TOYOTA xD 2013 Owners Manual (in English)

291
4-3. Do-it-yourself maintenance
4
Maintenance and care
Scion_xD_OM_OM52D97U_(U)
■
Front side marker lights
Turn the bulb base counterclock-
wise.
Remove the light bulb.
STEP 1
STEP 2

292 4-3. Do-it-yourself maintenance
Scion_xD_OM_OM52D97U_(U)
■Stop/tail and rear side marker lights, rear turn signal lights
and back-up lights
Open the back door and remove
the cover.
To prevent damaging the vehicle,
wrap the flathead screwdriver
with a rag.
Turn the bulb bases counter-
clockwise.
Remove the light bulb.
Stop/tail and rear side marker
light
Rear turn signal light
Back-up light
STEP 1
STEP 2
STEP 3

293
4-3. Do-it-yourself maintenance
4
Maintenance and care
Scion_xD_OM_OM52D97U_(U)
■
License plate lights
Open the back door and remove
the cover.
To prevent damaging the vehicle,
wrap the flathead screwdriver
with a rag.
Turn the bulb bases counter-
clockwise.
Remove the light bulb.
STEP 1
STEP 2
STEP 3

294 4-3. Do-it-yourself maintenance
Scion_xD_OM_OM52D97U_(U)
■LED light bulbs
The side turn signal lights and high mounted stoplight consist of a number of
LEDs. If any of the LEDs burn out, take your vehicle to your Scion dealer to
have the light replaced.
■ Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the headlight lens does
not indicate a malfunction. Contact your Scion dealer for more information in
the following situations:
● Large drops of water have built up on the inside of the lens.
● Water has built up inside the headlight.
CAUTION
■Replacing light bulbs
● Turn off the lights. Do not attempt to replace the bulb immediately after
turning off the lights.
The bulbs become very hot and may cause burns.
● Do not touch the glass portion of the light bulb with bare hands. When i\
t is
unavoidable to hold the glass portion, use and hold with a clean dry cloth
to avoid getting moisture and oils on the bulb.
Also, if the bulb is scratched or dropped, it may blow out or crack.
● Fully install light bulbs and any parts used to secure them. Failing to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
● Do not attempt to repair or disassemble light bulbs, connectors, electric
circuits or component parts.
Doing so may result in death or serious injury due to electric shock.
■ To prevent damage or fire
Make sure bulbs are fully seated and locked.

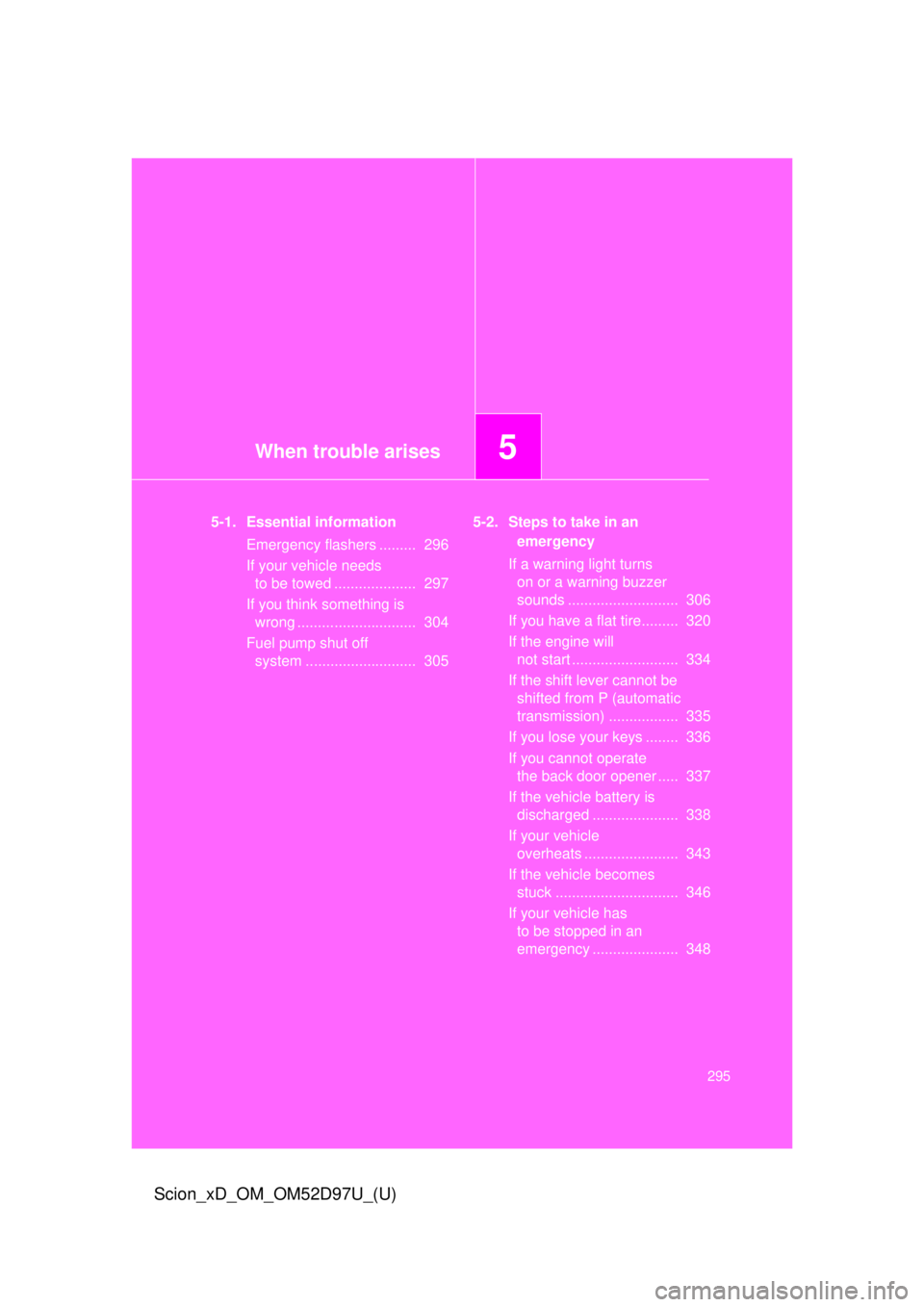

When trouble arises5
295
Scion_xD_OM_OM52D97U_(U)
5-1. Essential informationEmergency flashers ......... 296
If your vehicle needs to be towed .................... 297
If you think something is wrong ............................. 304
Fuel pump shut off system ........................... 305 5-2. Steps to take in an
emergency
If a warning light turns on or a warning buzzer
sounds ........................... 306
If you have a flat tire......... 320
If the engine will not start .......................... 334
If the shift lever cannot be shifted from P (automatic
transmission) ................. 335
If you lose your keys ........ 336
If you cannot operate the back door opener ..... 337
If the vehicle battery is discharged ..................... 338
If your vehicle overheats ....................... 343
If the vehicle becomes stuck .............................. 346
If your vehicle has to be stopped in an
emergency ..................... 348

296
Scion_xD_OM_OM52D97U_(U)
5-1. Essential information
Emergency flashers
NOTICE
■To prevent battery discharge
Do not leave the emergency flashers on longer than necessary when the
engine is not running.
Use the emergency flashers if th e vehicle malfunctions or is
involved in an accident.
Press the switch to flash all
the turn signal lights. To turn
them off, press the switch
once again.

5
When trouble arises
297
5-1. Essential information
Scion_xD_OM_OM52D97U_(U)
If your vehicle needs to be towed
Before towingThe following may indicate a problem with your transmission. Contact
your Scion dealer before towing.
● The engine is running but the vehicle will not move.
● The vehicle makes an abnormal sound.
If towing is necessary, we recommend having your vehicle towed by
your Scion dealer or a commercial towing service, using a lift-type
truck or flatbed truck.
Use a safety chain system for all to wing, and abide by all state/pro-
vincial and local laws.

298 5-1. Essential information
Scion_xD_OM_OM52D97U_(U)
Emergency towingIf a tow truck is not available in
an emergency, your vehicle may
be temporarily towed using a
cable or chain secured to the
emergency towing eyelet. This
should only be attempted on
hard surfaced roads for short
distances at low speeds.
A driver must be in the vehicle to
steer and operate the brakes.
The vehicle’s wheels, drive train,
axles, steering and brakes must
be in good condition.

5
When trouble arises
299
5-1. Essential information
Scion_xD_OM_OM52D97U_(U)
Installing towing eyelets
Remove the eyelet cover using a
flathead screwdriver.
To protect the bodywork, place a
rag between the screwdriver and
the vehicle body as shown in the
illustration.
Insert the towing eyelet into the
hole and tighten partially by
hand.
Tighten down the towing eyelet
securely using a wheel nut
wrench.
STEP 1
STEP 2
STEP 3

300 5-1. Essential information
Scion_xD_OM_OM52D97U_(U)
Towing with a sling-type truckDo not tow with a sling-type truck
to prevent body damage.
