TOYOTA xD 2013 Owners Manual (in English)

Vehicle specifications6
351
Scion_xD_OM_OM52D97U_(U)

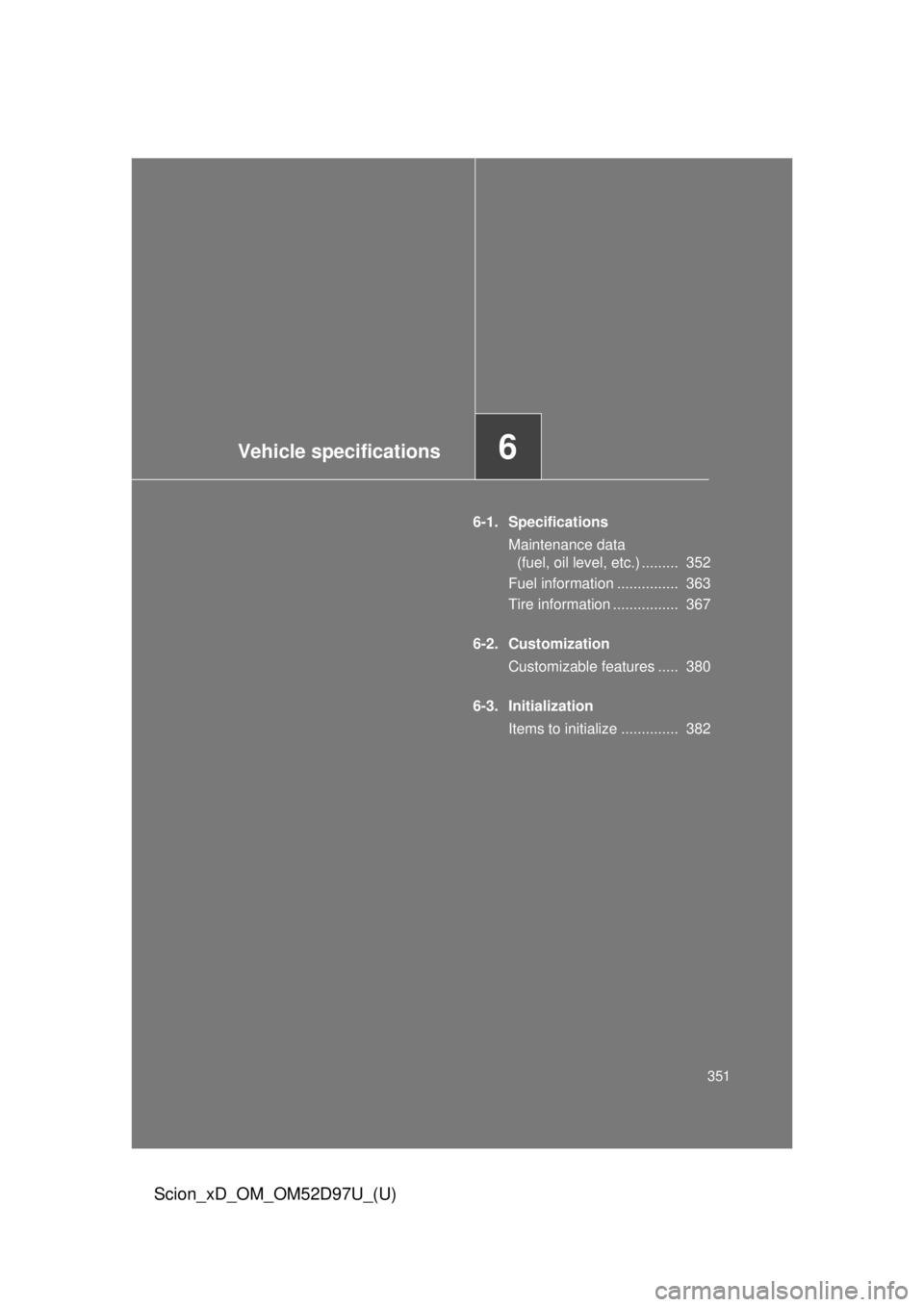

6-1. SpecificationsMaintenance data (fuel, oil level, etc.) ......... 352
Fuel information ............... 363
Tire information ................ 367
6-2. Customization Customizable features ..... 380
6-3. Initialization Items to initialize .............. 382

352
Scion_xD_OM_OM52D97U_(U)
6-1. Specifications
Maintenance data (fuel, oil level, etc.)
Dimensions and weight
*: Unladen vehicles
Vehicle identification■ Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primar y identification number for your
Scion. It is used in registeri ng the ownership of your vehicle.
This number is stamped on the
top left of the instrument panel.
Overall length 154.7 in. (3930 mm)
Overall width67.9 in. (1725 mm)
Overall height*60.0 in. (1525 mm)
Wheelbase96.9 in. (2460 mm)
TreadFront 58.5 in. (1485 mm)
Rear 58.7 in. (1490 mm)
Vehicle capacity weight
(occupants + luggage) 845 lb. (383 kg)

353
6-1. Specifications
6
Vehicle specifications
Scion_xD_OM_OM52D97U_(U)

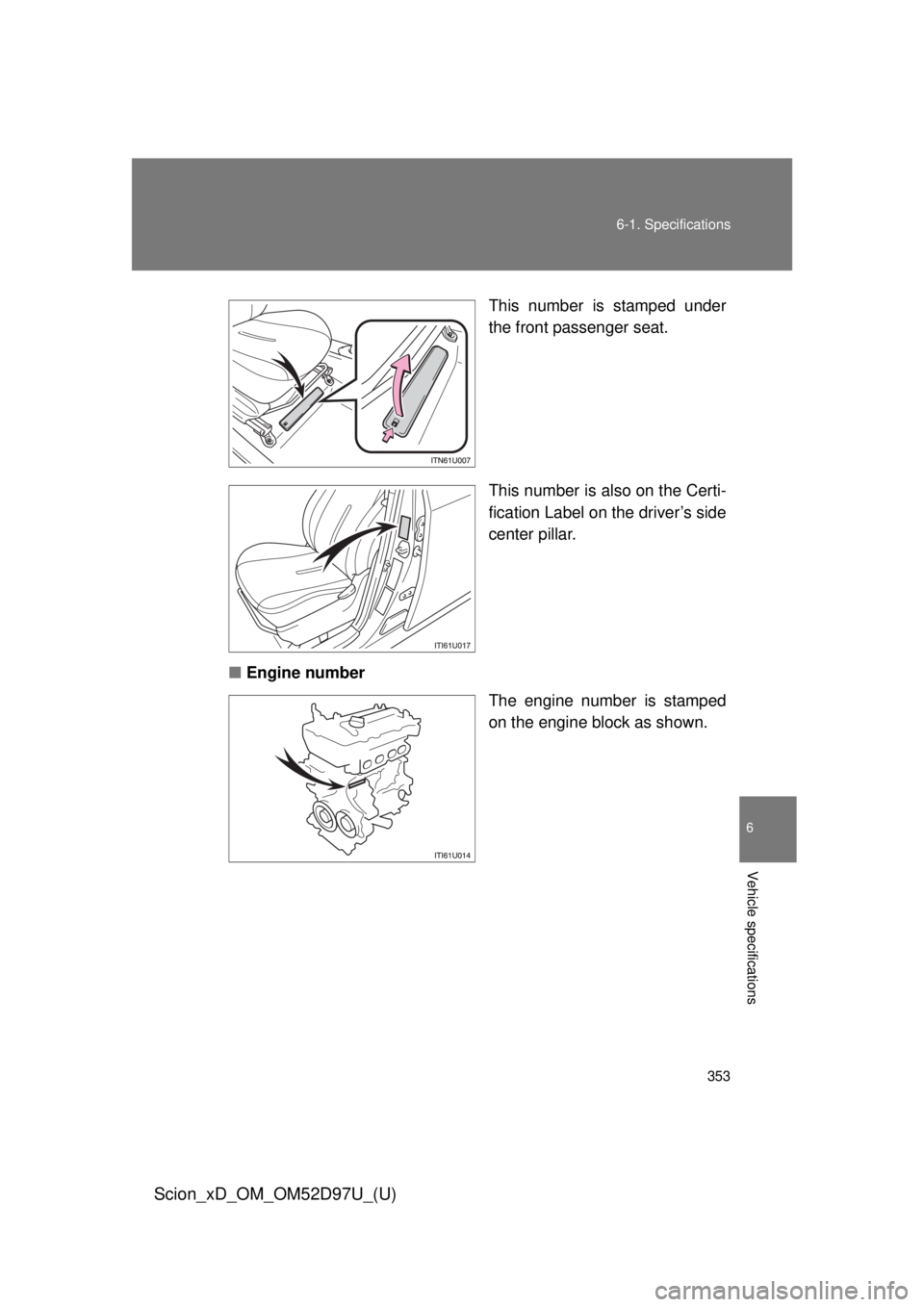

This number is stamped under
the front passenger seat.
This number is also on the Certi-
fication Label on the driver’s side
center pillar.
■ Engine number
The engine number is stamped
on the engine block as shown.

354 6-1. Specifications
Scion_xD_OM_OM52D97U_(U)
Engine
Fuel
Model2ZR-FE engine
Ty pe 4 cylinder in line,
4 cycle, gasoline
Bore and stroke3.17 
3.48 in.
(80.5  88.3 mm)
Displacement 109.7 cu.in. (1798 cm3)

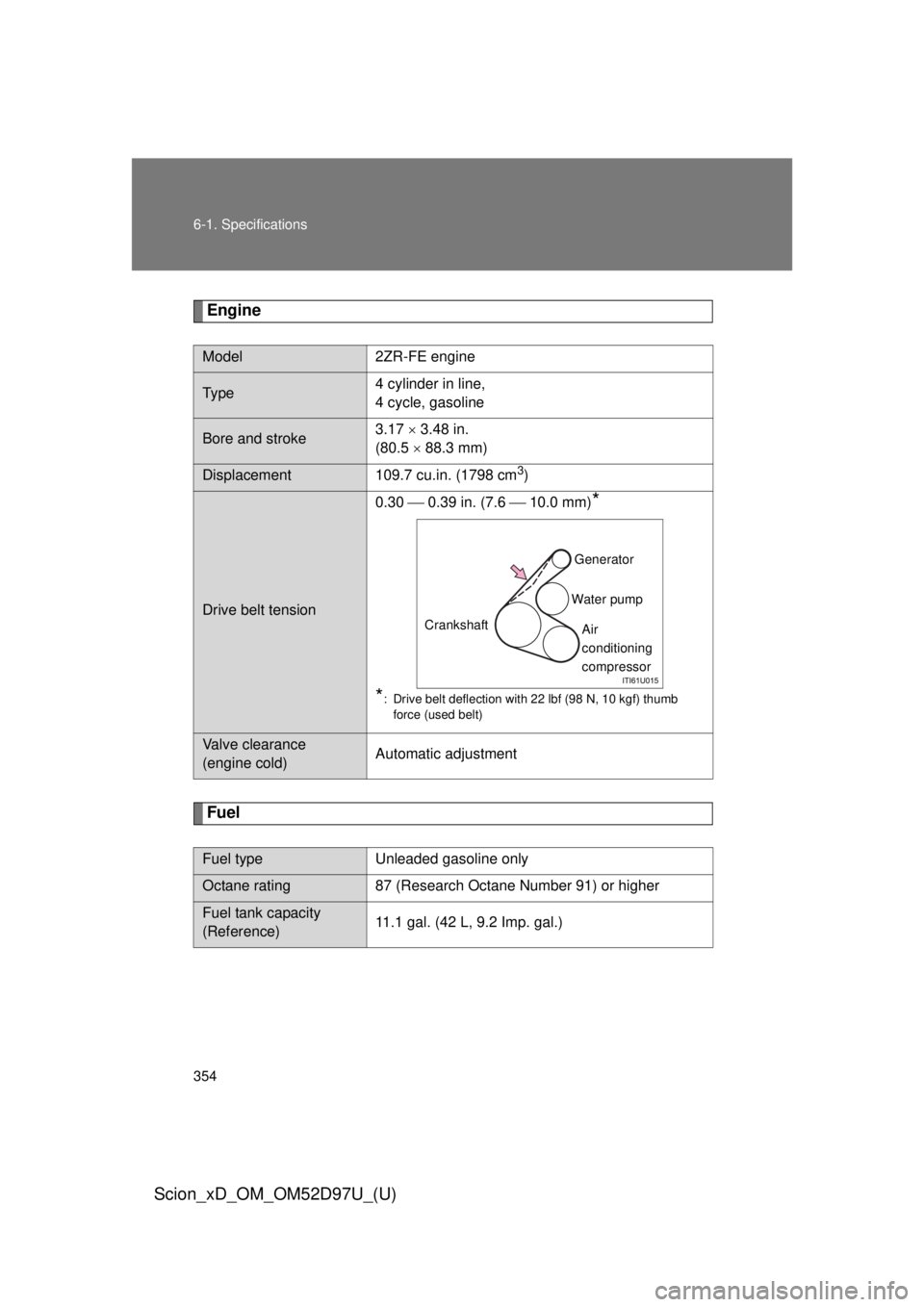

Drive belt tension 0.30
 0.39 in. (7.6  10.0 mm)*
*
: Drive belt deflection with 22 lbf (98 N, 10 kgf) thumb force (used belt)
Valve clearance
(engine cold) Automatic adjustment
Fuel type
Unleaded gasoline only
Octane rating 87 (Research Octane Number 91) or higher
Fuel tank capacity
(Reference) 11.1 gal. (42 L, 9.2 Imp. gal.)
Generator
Water pump Air
conditioning
compressor
Crankshaft

355
6-1. Specifications
6
Vehicle specifications
Scion_xD_OM_OM52D97U_(U)
Lubrication system
■ Engine oil selection
“Toyota Genuine Motor Oil” is used in your Scion vehicle. Use Scion
approved “Toyota Genuine Motor Oil” or equivalent to satisfy the fol-
lowing grade and viscosity.
Oil grade: ILSAC multigrade engine oil
Recommended viscosity: SAE 0W-20
SAE 0W-20 engine oil may be
used. However, SAE 0W-20 is
the best choice for good fuel
economy and good starting in
cold weather.
Oil viscosity (0W-20 is explained here as an example):
●The 0W in 0W-20 indicates the characteristic of the oil which allows
cold startability. Oils with a lower value before the W allow for easier
starting of the engine in cold weather.
● The 20 in 0W-20 indicates the viscosity characteristic of the oil when
the oil is at high temperature. An oil with a higher viscosity (one with a
higher value) may be better suited if the vehicle is operated at high
speeds, or under extreme load conditions.

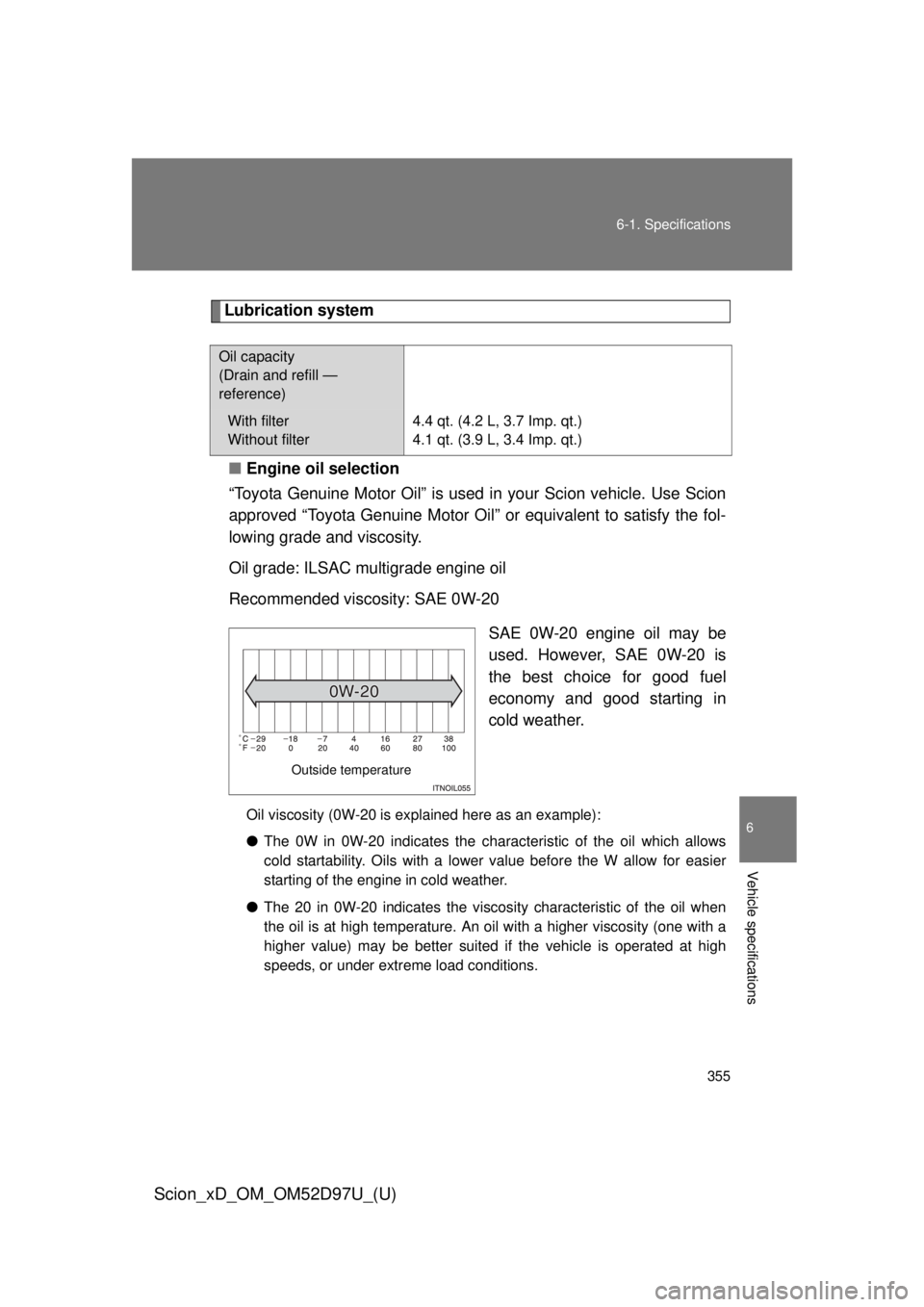

Oil capacity
(Drain and refill —
reference)
With filter
Without filter 4.4 qt. (4.2 L, 3.7 Imp. qt.)
4.1 qt. (3.9 L, 3.4 Imp. qt.)
Outside temperature

356 6-1. Specifications
Scion_xD_OM_OM52D97U_(U)

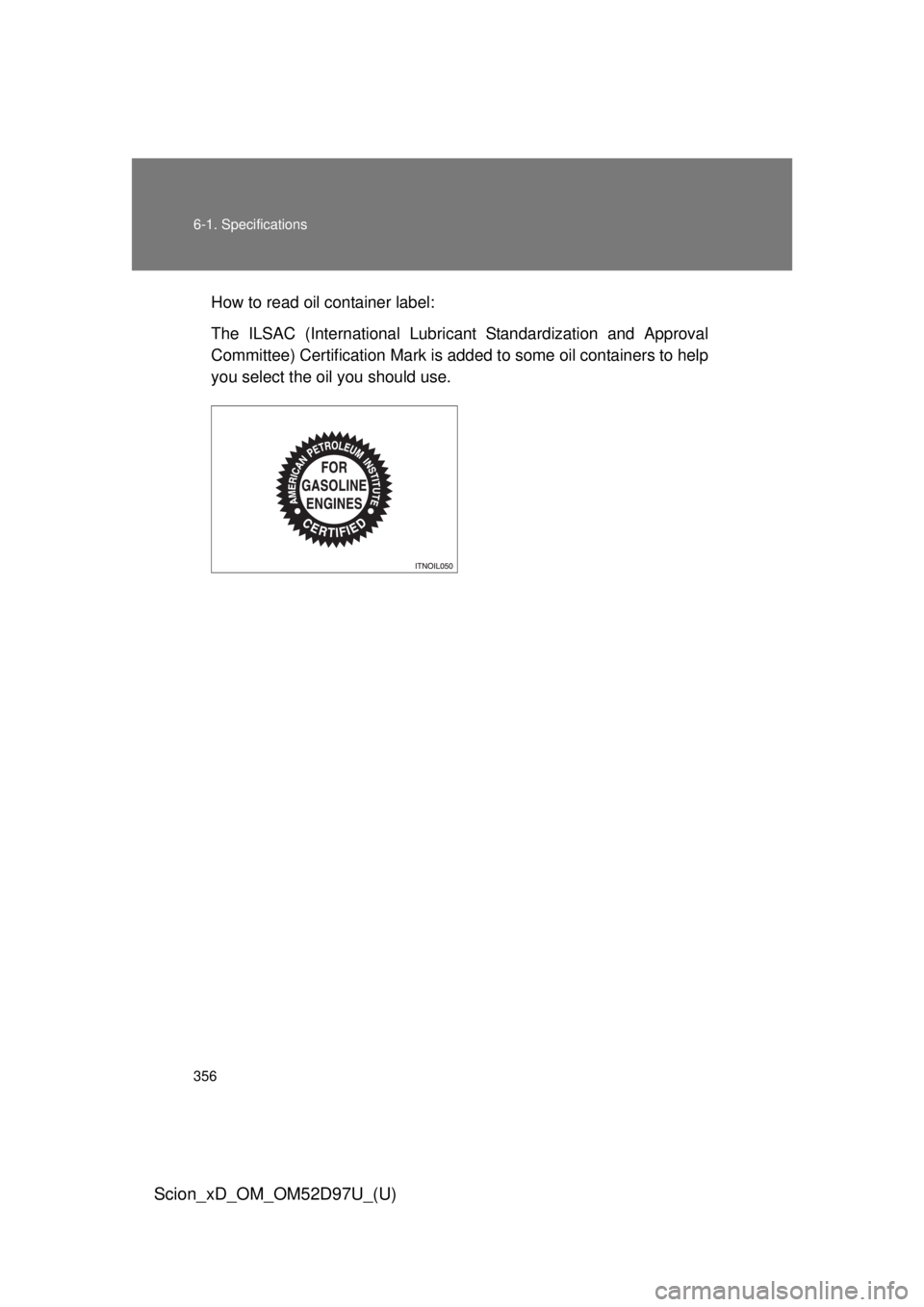

How to read oil container label:
The ILSAC (International Lubricant Standardization and Approval
Committee) Certification Mark is added to some oil containers to help
you select the oil you should use.

357
6-1. Specifications
6
Vehicle specifications
Scion_xD_OM_OM52D97U_(U)
Cooling system
Ignition system
Capacity (reference)
Vehicles with an automatic transmission:
5.2 qt. (4.9 L, 4.3 Imp. qt.)
Vehicles with a manual transmission: 5.3 qt. (5.0 L, 4.4 Imp. qt.)
Coolant type Use either of the following:
• “Toyota Super Long Life Coolant”
• A similar high-quality ethylene glycol-based non-silicate, non-amine, non-nitrite, and non-borate
coolant with long-life hybrid organic acid technol-
ogy
Do not use plain water alone.
Spark plug
Make
Gap DENSO SC20HR11
0.043 in. (1.1 mm)
NOTICE
■
Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust spark plug gap.

358 6-1. Specifications
Scion_xD_OM_OM52D97U_(U)
Electrical system
Automatic transaxle
Battery

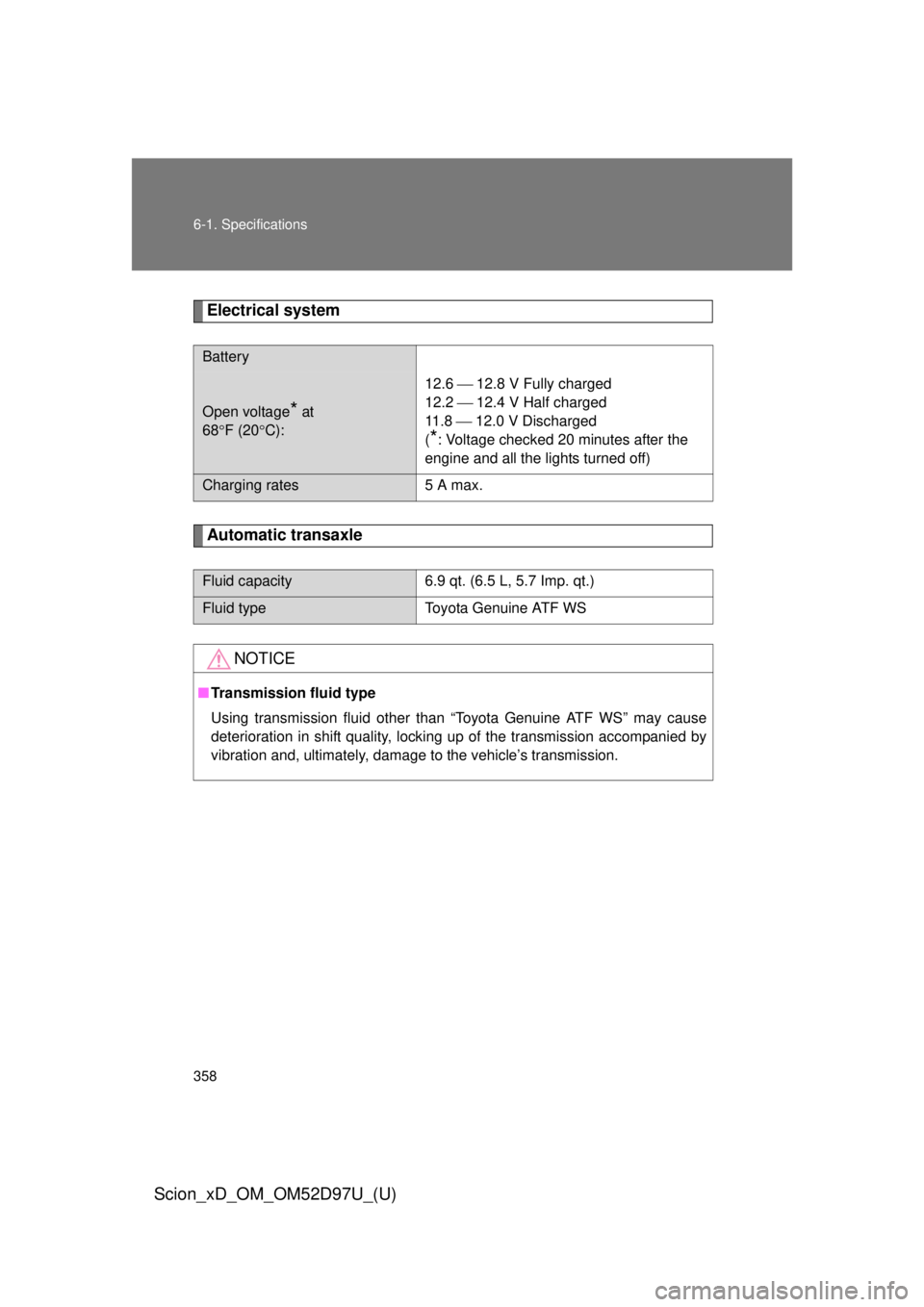

Open voltage* at
68 F (20 C): 12.6  12.8 V Fully charged
12.2  12.4 V Half charged
11 . 8
 12.0 V Discharged
(
*: Voltage checked 20 minutes after the
engine and all the lights turned off)
Charging rates 5 A max.
Fluid capacity 6.9 qt. (6.5 L, 5.7 Imp. qt.)
Fluid type Toyota Genuine ATF WS
NOTICE
■Transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause
deterioration in shift quality, locking up of the transmission accompanied by
vibration and, ultimately, damage to the vehicle’s transmission.

359
6-1. Specifications
6
Vehicle specifications
Scion_xD_OM_OM52D97U_(U)
Manual transaxle
Clutch

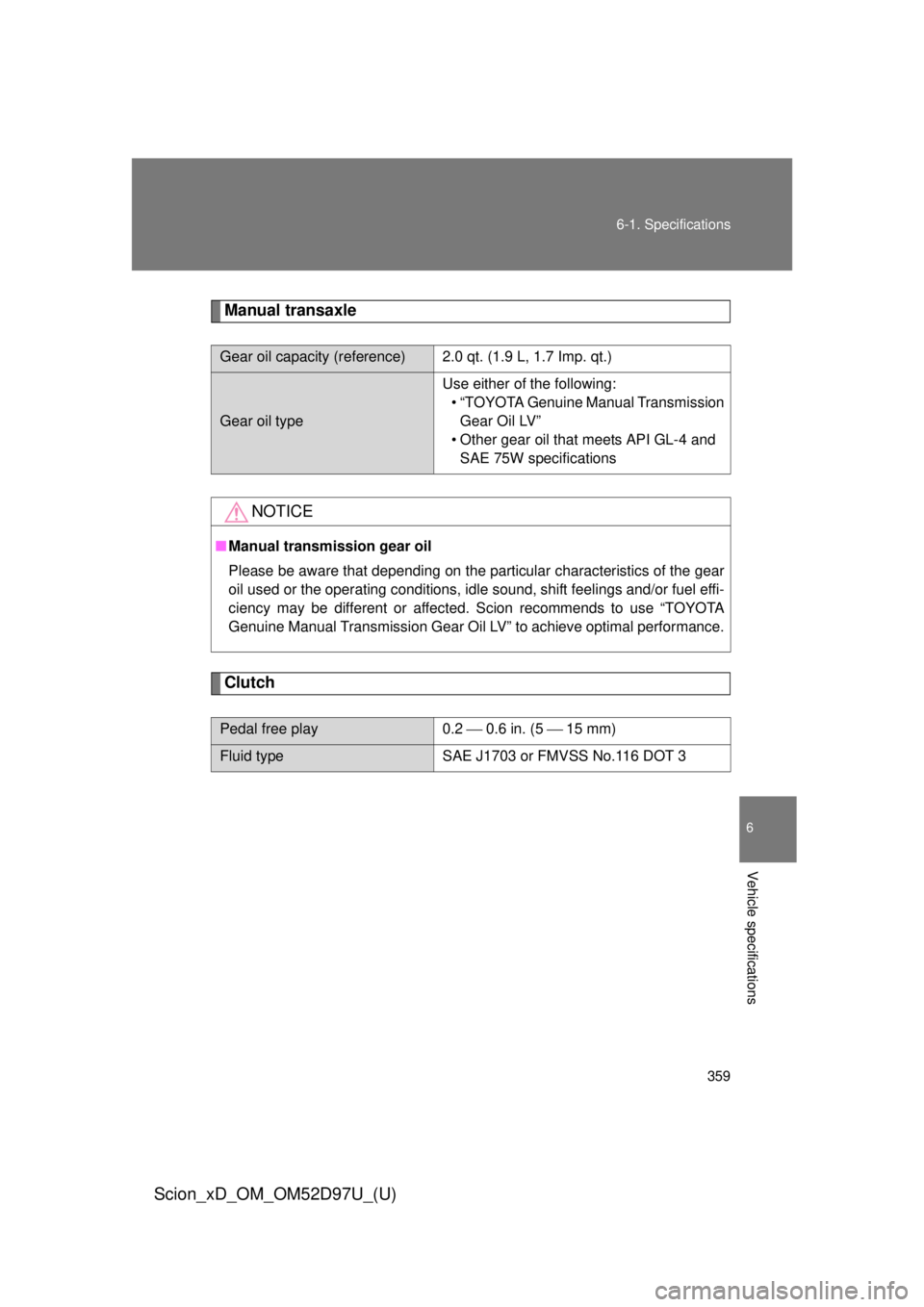

Gear oil capacity (reference) 2.0 qt. (1.9 L, 1.7 Imp. qt.)
Gear oil type
Use either of the following:
• “TOYOTA Genuine Manual Transmission Gear Oil LV”
• Other gear oil that meets API GL-4 and SAE 75W specifications
NOTICE
■ Manual transmission gear oil
Please be aware that depending on the particular characteristics of the gear
oil used or the operating conditions, idle sound, shift feelings and/or fuel effi-
ciency may be different or affected. Scion recommends to use “TOYOTA
Genuine Manual Transmission Gear Oil LV” to achieve optimal performance.
Pedal free play 0.2  0.6 in. (5  15 mm)
Fluid type SAE J1703 or FMVSS No.116 DOT 3

360 6-1. Specifications
Scion_xD_OM_OM52D97U_(U)
Brakes
*1: Minimum pedal clearance when depressed with a force of 66 lbf (300 N,30 kgf) while the engine is running
*2: Parking brake lever travel when pulled up with a force of 45 lbf (200 N,20 kgf)
Steering
Pedal clearance*13.4 in. (86 mm)
Pedal free play 0.04  0.24 in. (1  6 mm)
Brake pad wear limit 0.04 in. (1.0 mm)
Lining wear limit 0.04 in. (1.0 mm)
Parking brake lever travel*26  9 clicks
Fluid typeSAE J1703 or FMVSS No.116 DOT 3
Free playLess than 1.2 in. (30 mm)
