When trouble arises
331
5-2. Steps to take in an emergency
Scion_xD_OM_OM52D97U_(U)
CAUTION
■Using the tire jack
Improper use of the tire jack may cause the vehicle to suddenly fall off
the jack, leading to death or serious injury.
●Do not use the tire jack for any pu
rpose other than replacing tires or
installing and removing tire chains.
●Only use the tire jack that comes wi th this vehicle for replacing a flat
tire.
Do not use it on other vehicles, and do not use other tire jacks for
replacing tires on this vehicle.
●Always check that the tire jack is securely set to the jack point.
●Do not put any part of your body under the vehicle while it is supported
by the jack.
●Do not start or run the engine while your vehicle is supported by the
jack.
●Do not raise the vehicle while someone is inside.
●When raising the vehicle, do not put an object on or under the jack.
●Do not raise the vehicle to a hei ght greater than that required to
replace the tire.
●Use a jack stand if it is necessary to get under the vehicle.
Take particular care when lowering the vehicle to ensure that no one
working on or near the vehicle may be injured.

332 5-2. Steps to take in an emergency
Scion_xD_OM_OM52D97U_(U)
CAUTION
■Replacing a flat tire
●Do not touch the disc wheels or the area around the brakes immedi-
ately after the vehicle has been driven.
After the vehicle has been driven the disc wheels and the area around
the brakes will be extremely hot. Touching these areas with hands, feet
or other body parts while changing a tire, etc. may result in burns.
●Failure to follow these precautions could cause the wheel nuts to
loosen and the tire to fall off, resulting in death or serious injury.
• Have the wheel nuts tightened with a torque wrench to 76 ft•lbf
(103 N
•m, 10.5 kgf•m) as soon as possible after changing wheels.
• When installing a tire, only use wheel nuts that have been specifically designed for that wheel.
• If there are any cracks or deformations in the bolt screws, nut threads or bolt holes of the wheel, have the vehicle inspected by your Scion
dealer.
• When installing the wheel nuts, be sure to install them with the tapered ends facing inward. ( P. 266)
■
After using the tools and jack
Before driving, make sure all the tools and jack are securely in place in
their storage location to reduce the po ssibility of personal injury during a
collision or sudden braking.
■When stowing the flat tire
●Make sure the rear seats are in their original position.
●When carrying the flat tire, secure it using a tire tie-down belts. Other-
wise, the flat tire may fly out in ca se of the sudden braking or an acci-
dent, resulting in death or serious injury.

5
When trouble arises
333
5-2. Steps to take in an emergency
Scion_xD_OM_OM52D97U_(U)
NOTICE
■Do not drive the vehicle with a flat tire.
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the
wheel beyond repair.
■Be careful when driving over bumps with the compact spare tire
installed on the vehicle.
The vehicle becomes lower when driving with the compact spare tire
compared to when drivin
g with standard tires. Be careful when driving
over uneven road surfaces.
■Driving with tire chains and the compact spare tire
Do not fit tire chains to the compact spare tire.
Tire chains may damage the vehicle body and adversely affect driving
performance.
■When replacing the tires
When removing or fitting the wheels, tires or the tire pressure warning
valve and transmitter, contact your Scion dealer as the tire pressure
warning valve and transmitter may be damaged if not handled correctly.
■To avoid damage to the tire pressure warning valves and transmit-
ters
When a tire is repaired with liquid sealants, the tire pressure warning
valve and transmitter may not operate properly. If a liquid sealant is
used, contact your Scion dealer or other qualified service shop as soon
as possible. Make sure to replace the tire pressure warning valve and
transmitter when replacing the tire. ( P. 253)

334
5-2. Steps to take in an emergency
Scion_xD_OM_OM52D97U_(U)

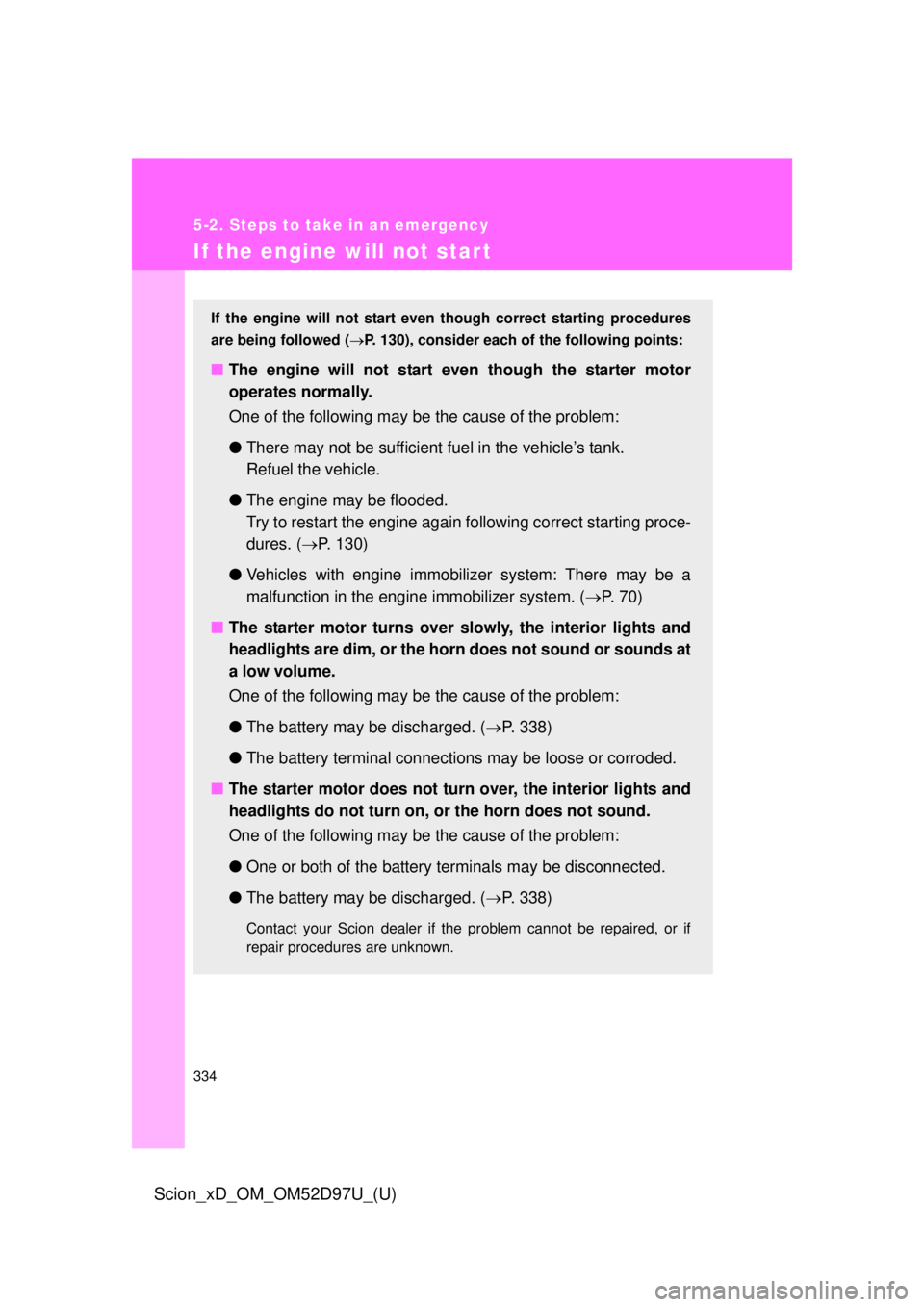

If the engine will not star t
If the engine will not start even though correct starting procedures
are being followed ( P. 130), consider each of the following points:
■The engine will not start even though the starter motor
operates normally.
One of the following may be the cause of the problem:
●There may not be sufficient fuel in the vehicle’s tank.
Refuel the vehicle.
● The engine may be flooded.
Try to restart the engine again following correct starting proce-
dures. ( P. 130)
● Vehicles with engine immobilizer system: There may be a
malfunction in the engine immobilizer system. (P. 7 0 )
■ The starter motor turns over slowly, the interior lights and
headlights are dim, or the horn does not sound or sounds at
a low volume.
One of the following may be the cause of the problem:
●The battery may be discharged. ( P. 338)
● The battery terminal connec tions may be loose or corroded.
■ The starter motor does not turn over, the interior lights and
headlights do not turn on, or the horn does not sound.
One of the following may be the cause of the problem:
● One or both of the battery terminals may be disconnected.
● The battery may be discharged. ( P. 338)
Contact your Scion dealer if the problem cannot be repaired, or if
repair procedures are unknown.

5
When trouble arises
335
5-2. Steps to take in an emergency
Scion_xD_OM_OM52D97U_(U)

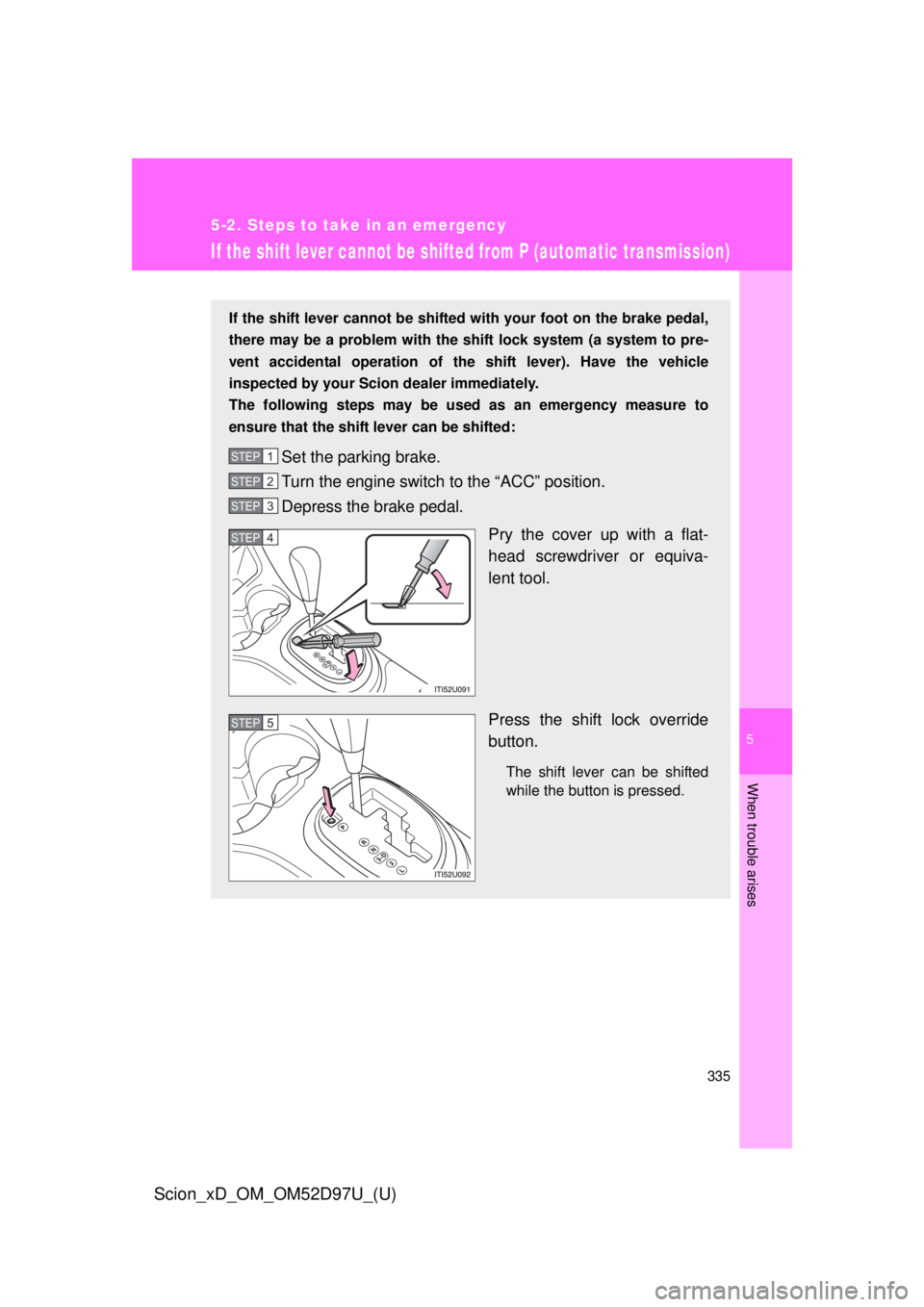

If the shift lever cannot be shifted from P (automatic transmission)
If the shift lever cannot be shifted with your foot on the brake pedal,
there may be a problem with the shift lock system (a system to pre-
vent accidental operation of the shift lever). Have the vehicle
inspected by your Scion dealer immediately.
The following steps may be used as an emergency measure to
ensure that the shift lever can be shifted:
Set the parking brake.
Turn the engine switch to the “ACC” position.
Depress the brake pedal.
Pry the cover up with a flat-
head screwdriver or equiva-
lent tool.
Press the shift lock override
button.
The shift lever can be shifted
while the button is pressed.
STEP 1
STEP 2
STEP 3
STEP 4
STEP 5

336
5-2. Steps to take in an emergency
Scion_xD_OM_OM52D97U_(U)

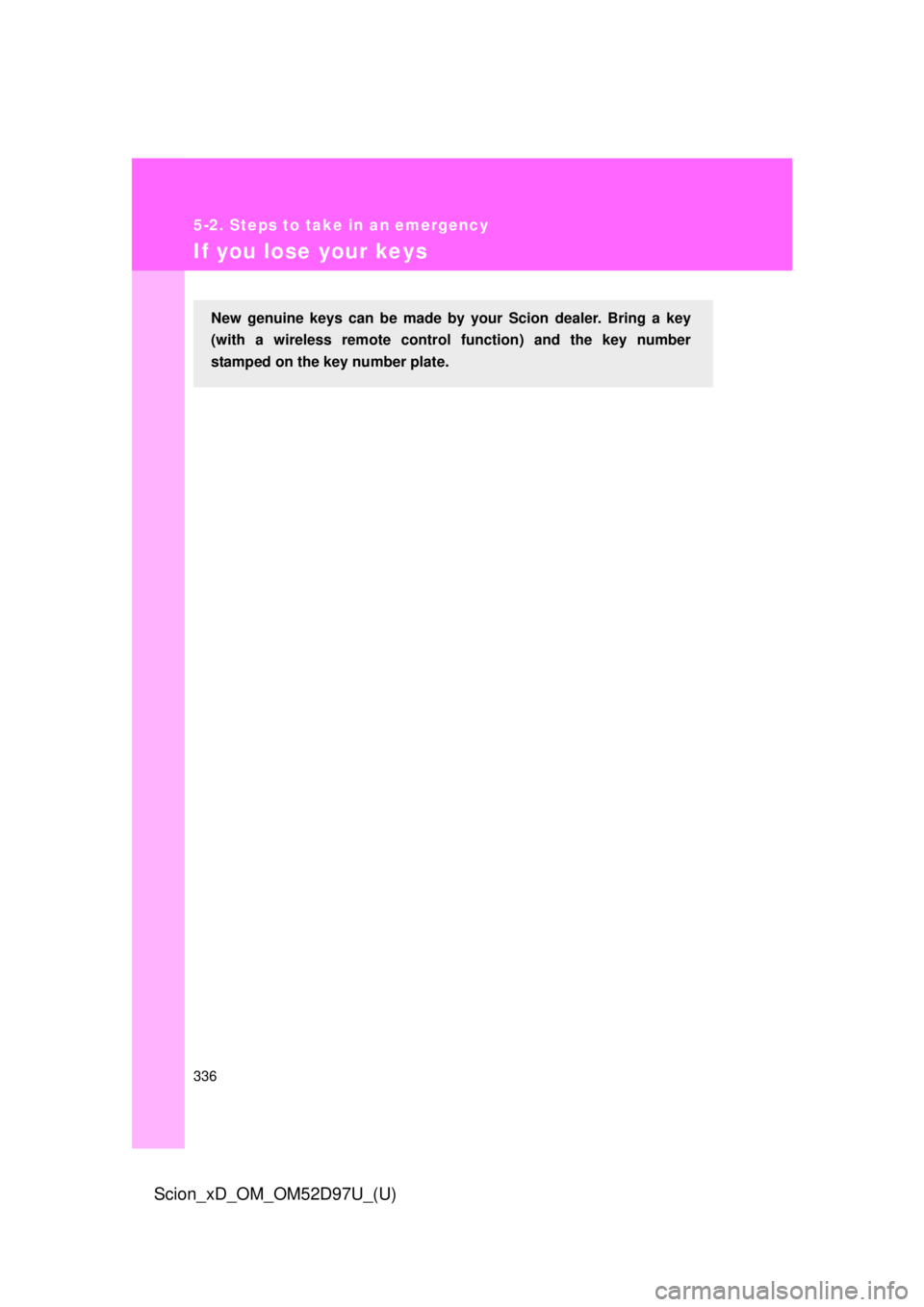

If you lose your keys
New genuine keys can be made by your Scion dealer. Bring a key
(with a wireless remote control function) and the key number
stamped on the key number plate.

5
When trouble arises
337
5-2. Steps to take in an emergency
Scion_xD_OM_OM52D97U_(U)

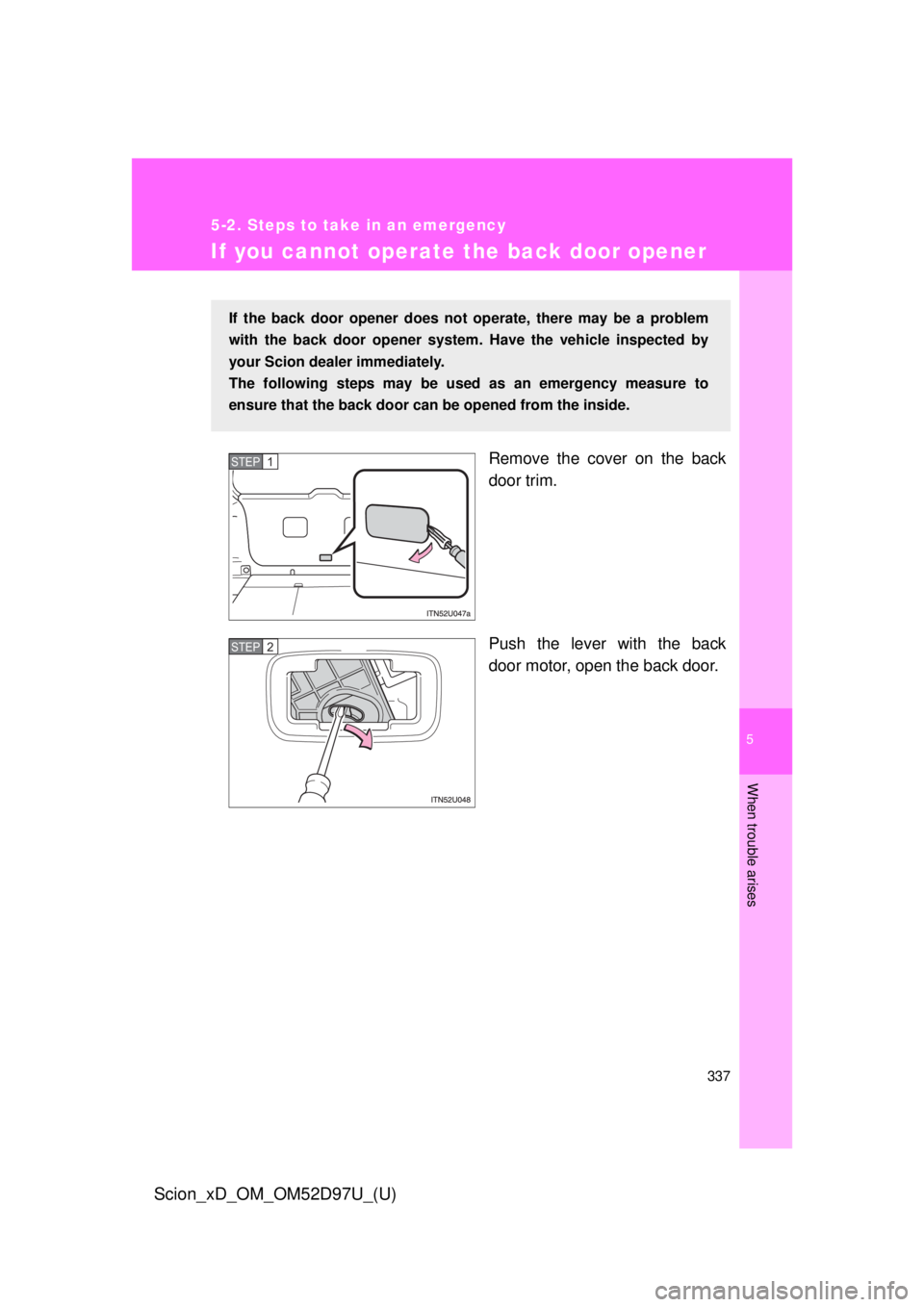

If you cannot operate the back door opener
Remove the cover on the back
door trim.
Push the lever with the back
door motor, open the back door.
If the back door opener does not operate, there may be a problem
with the back door opener system. Have the vehicle inspected by
your Scion dealer immediately.
The following steps may be used as an emergency measure to
ensure that the back door can be opened from the inside.
STEP 1
STEP 2

338
5-2. Steps to take in an emergency
Scion_xD_OM_OM52D97U_(U)

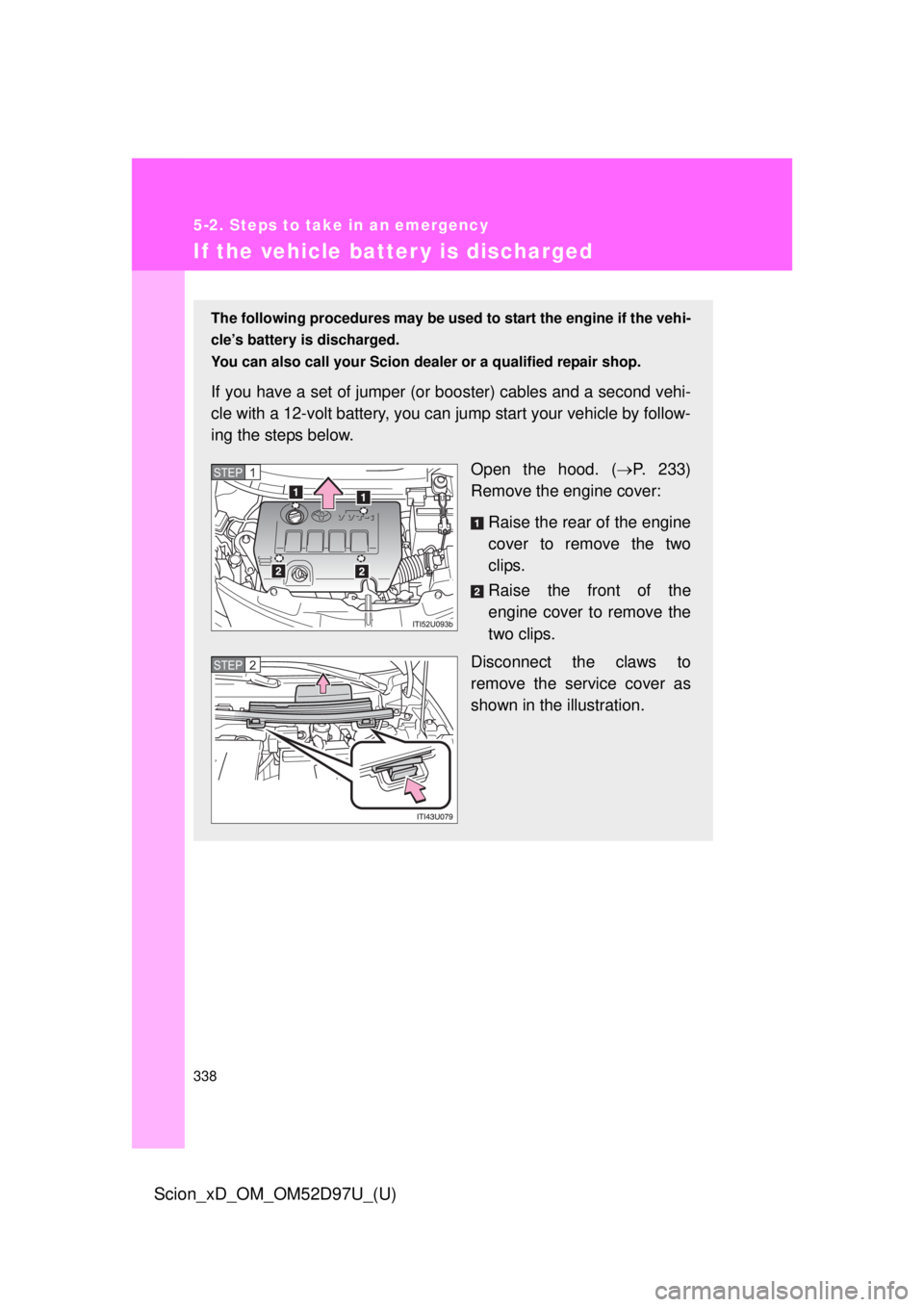

If the vehicle batter y is discharged
The following procedures may be used to start the engine if the vehi-
cle’s battery is discharged.
You can also call your Scion dealer or a qualified repair shop.
If you have a set of jumper (or booster) cables and a second vehi-
cle with a 12-volt battery, you can jump start your vehicle by follow-
ing the steps below.
Open the hood. (P. 233)
Remove the engine cover:
Raise the rear of the engine
cover to remove the two
clips.
Raise the front of the
engine cover to remove the
two clips.
Disconnect the claws to
remove the service cover as
shown in the illustration.
STEP 1
STEP 2

5
When trouble arises
339
5-2. Steps to take in an emergency
Scion_xD_OM_OM52D97U_(U)

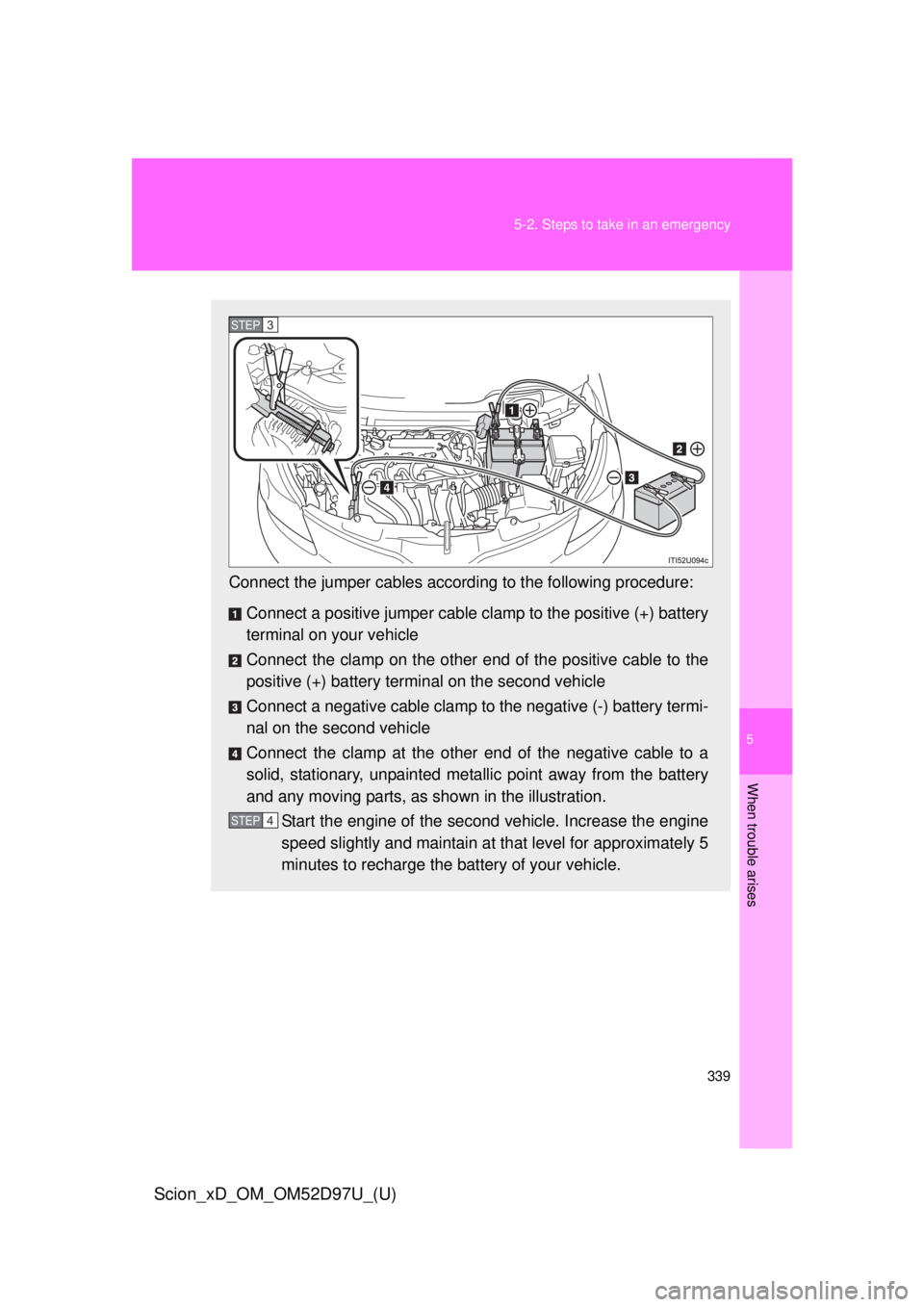

Connect the jumper cables accord
ing to the following procedure:
Connect a positive jumper cable clamp to the positive (+) battery
terminal on your vehicle
Connect the clamp on the other e nd of the positive cable to the
positive (+) battery termin al on the second vehicle
Connect a negative cable clamp to the negative (-) battery termi-
nal on the second vehicle
Connect the clamp at the other end of the negative cable to a
solid, stationary, unpainted metallic point away from the battery
and any moving parts, as shown in the illustration.
Start the engine of the second vehicle. Increase the engine
speed slightly and maintain at that level for approximately 5
minutes to recharge the battery of your vehicle.
STEP 3
STEP 4

340 5-2. Steps to take in an emergency
Scion_xD_OM_OM52D97U_(U)
■Starting the engine when the battery is discharged
Vehicles with an automatic transmission, the engine cannot be started by
push-starting.
■ To prevent battery discharge
● Turn off the headlights and the air conditioning system while the engine is
turned off.
● Turn off any unnecessary electrical components when the vehicle is run-
ning at a low speed for an extended period, such as in heavy traffic.

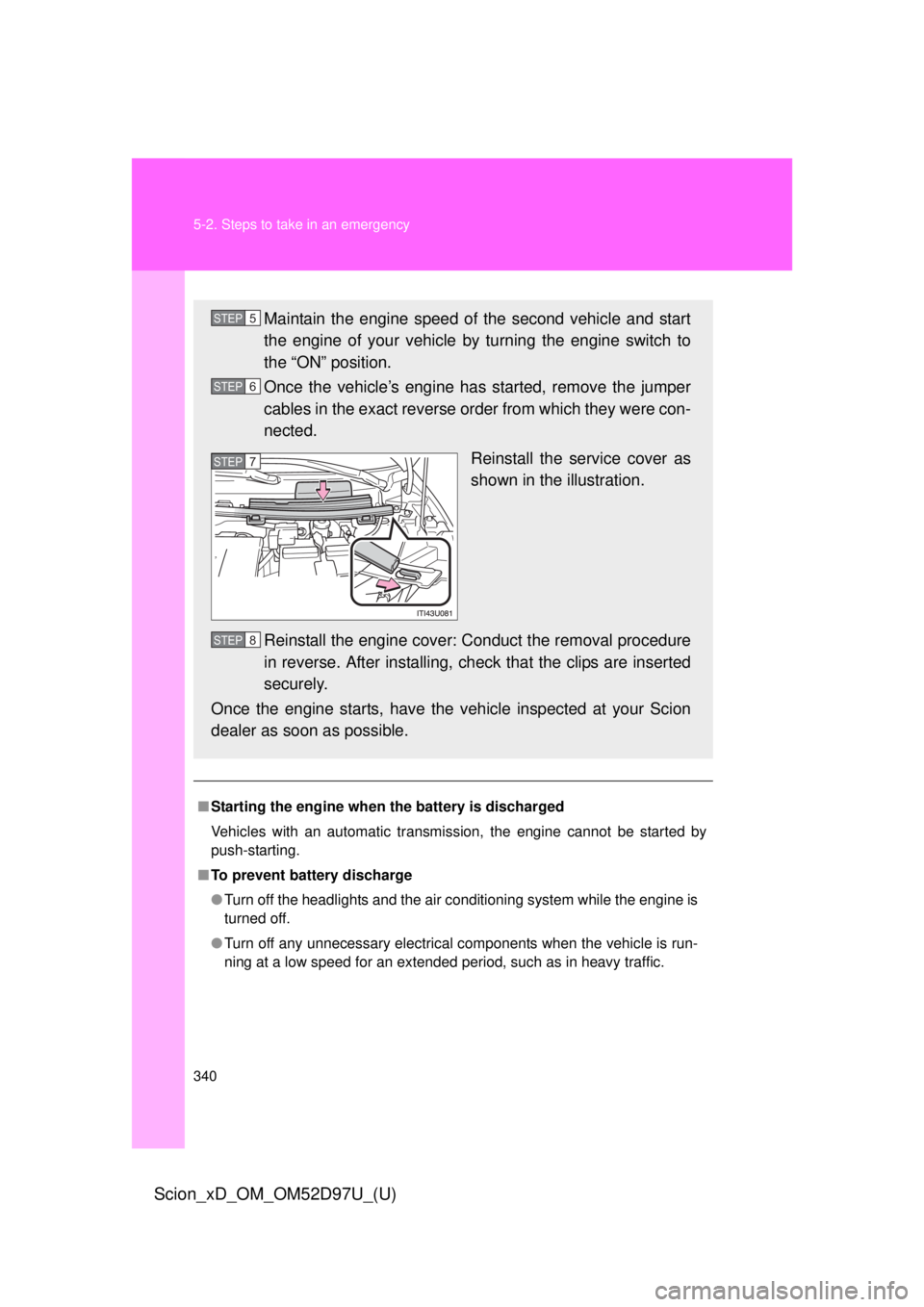

Maintain the engine speed of the second vehicle and start
the engine of your vehicle by turning the engine switch to
the “ON” position.
Once the vehicle’s engine has started, remove the jumper
cables in the exact reverse or der from which they were con-
nected.
Reinstall the service cover as
shown in the illustration.
Reinstall the engine cover: Conduct the removal procedure
in reverse. After installing, ch eck that the clips are inserted
securely.
Once the engine starts, have the vehicle inspected at your Scion
dealer as soon as possible.STEP 5
STEP 6
STEP7
STEP8
