When trouble arises
321
5-2. Steps to take in an emergency
Scion_xD_OM_OM52D97U_(U)
■

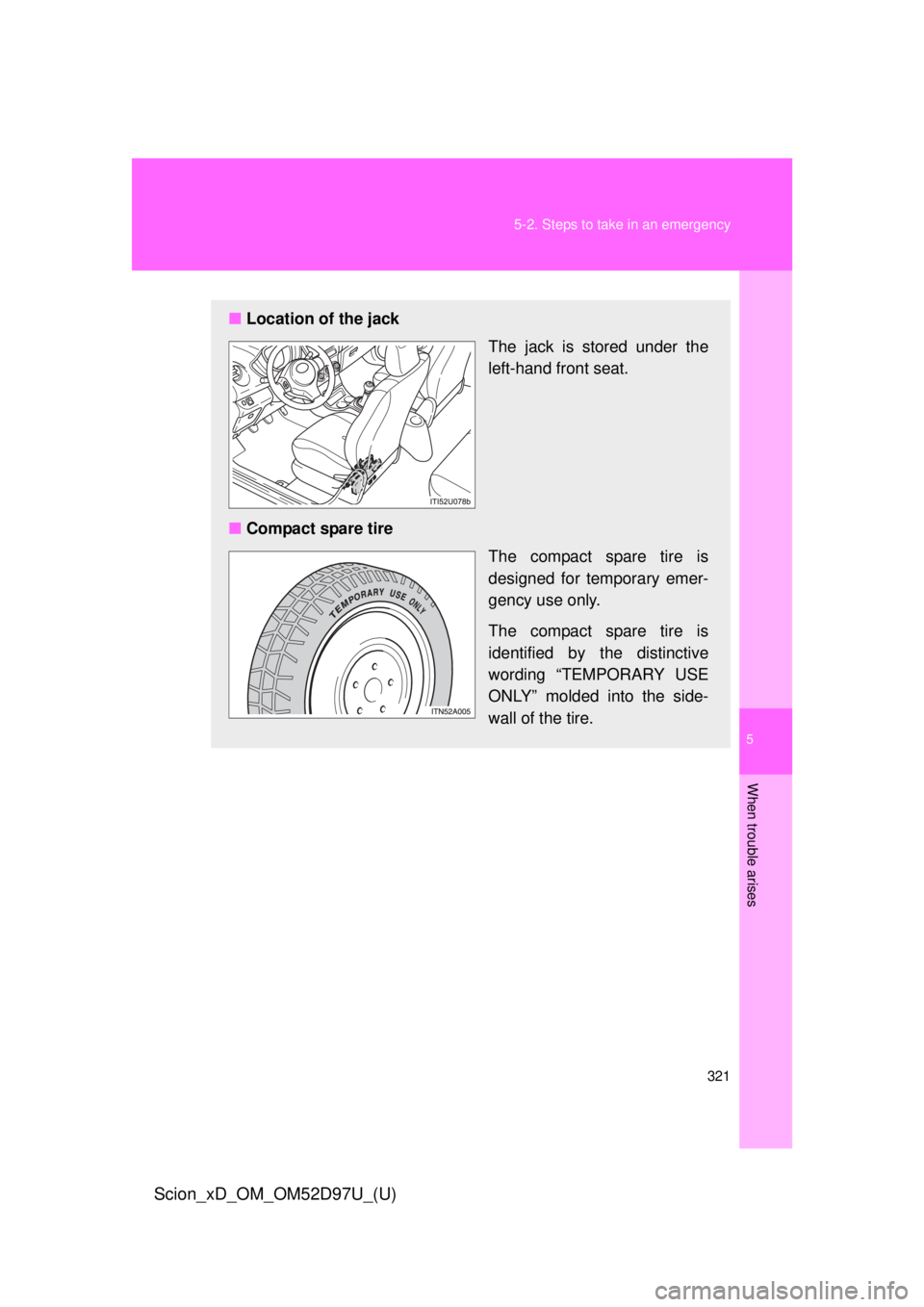

Location of the jack
The jack is stored under the
left-hand front seat.
■ Compact spare tire
The compact spare tire is
designed for temporary emer-
gency use only.
The compact spare tire is
identified by the distinctive
wording “TEMPORARY USE
ONLY” molded into the side-
wall of the tire.

322 5-2. Steps to take in an emergency
Scion_xD_OM_OM52D97U_(U)

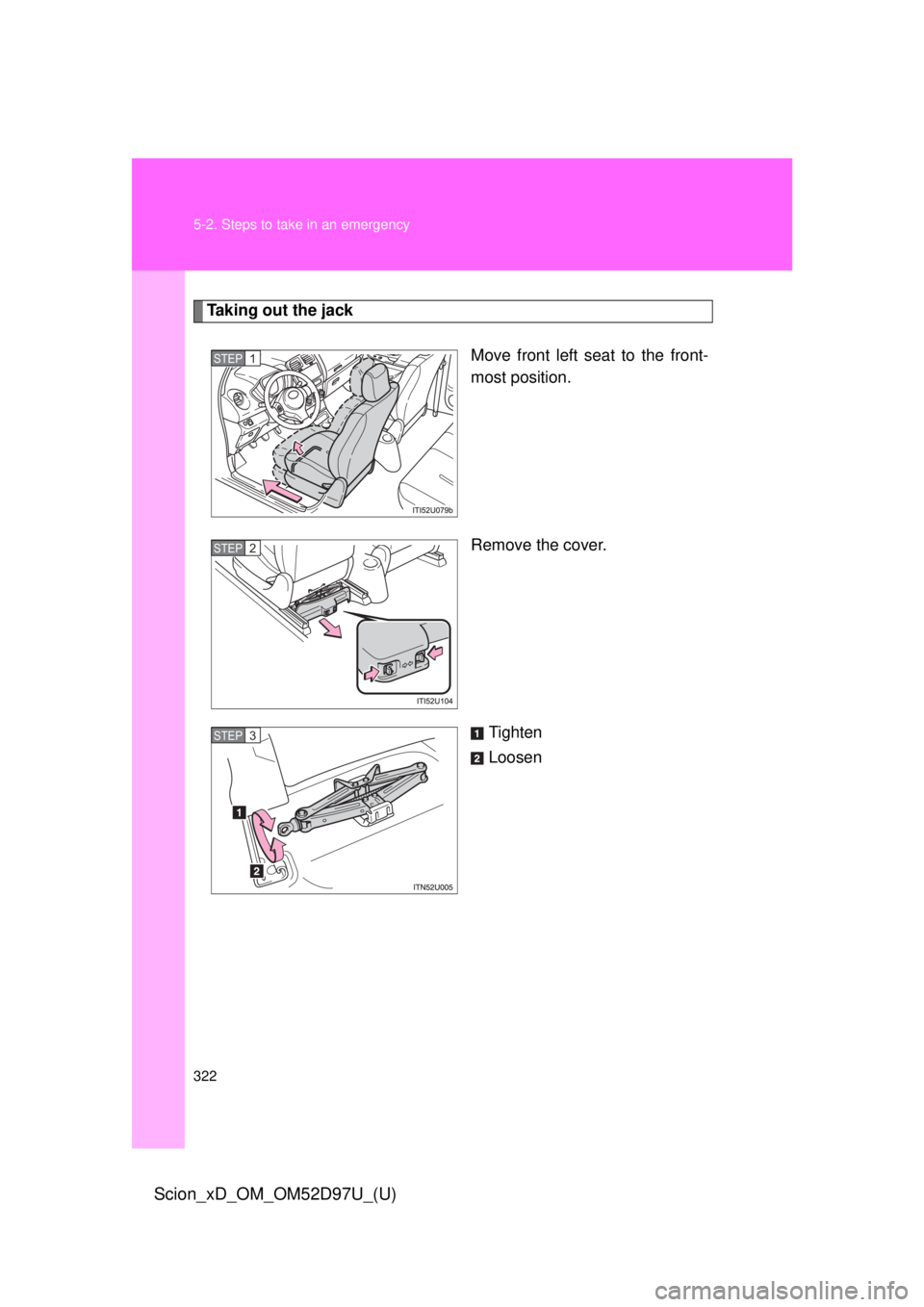

Taking out the jackMove front left seat to the front-
most position.
Remove the cover.
Tighten
Loosen
STEP 1
STEP 2
STEP 3

5
When trouble arises
323
5-2. Steps to take in an emergency
Scion_xD_OM_OM52D97U_(U)

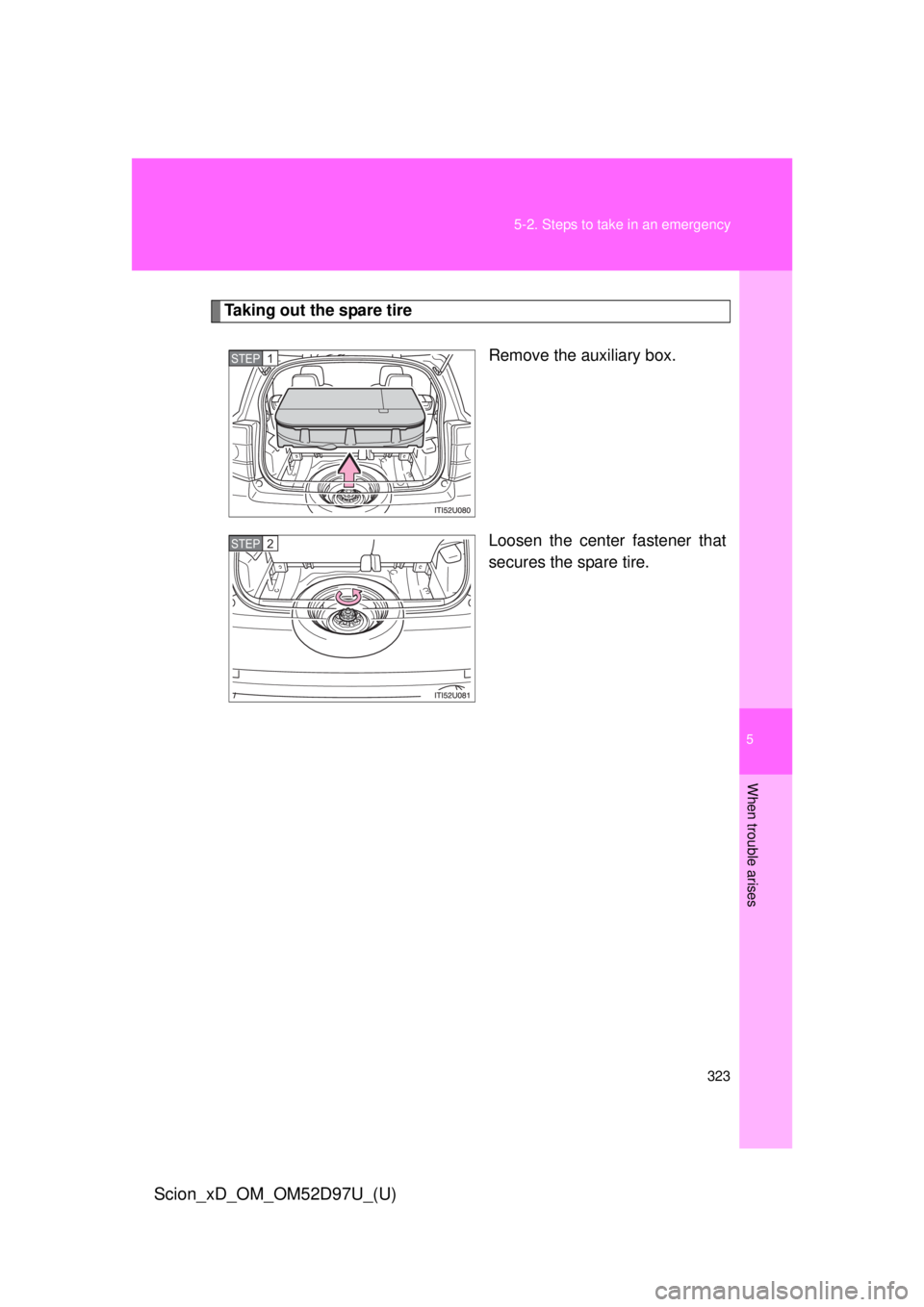

Taking out the spare tire
Remove the auxiliary box.
Loosen the center fastener that
secures the spare tire.
STEP 1
STEP 2

324 5-2. Steps to take in an emergency
Scion_xD_OM_OM52D97U_(U)

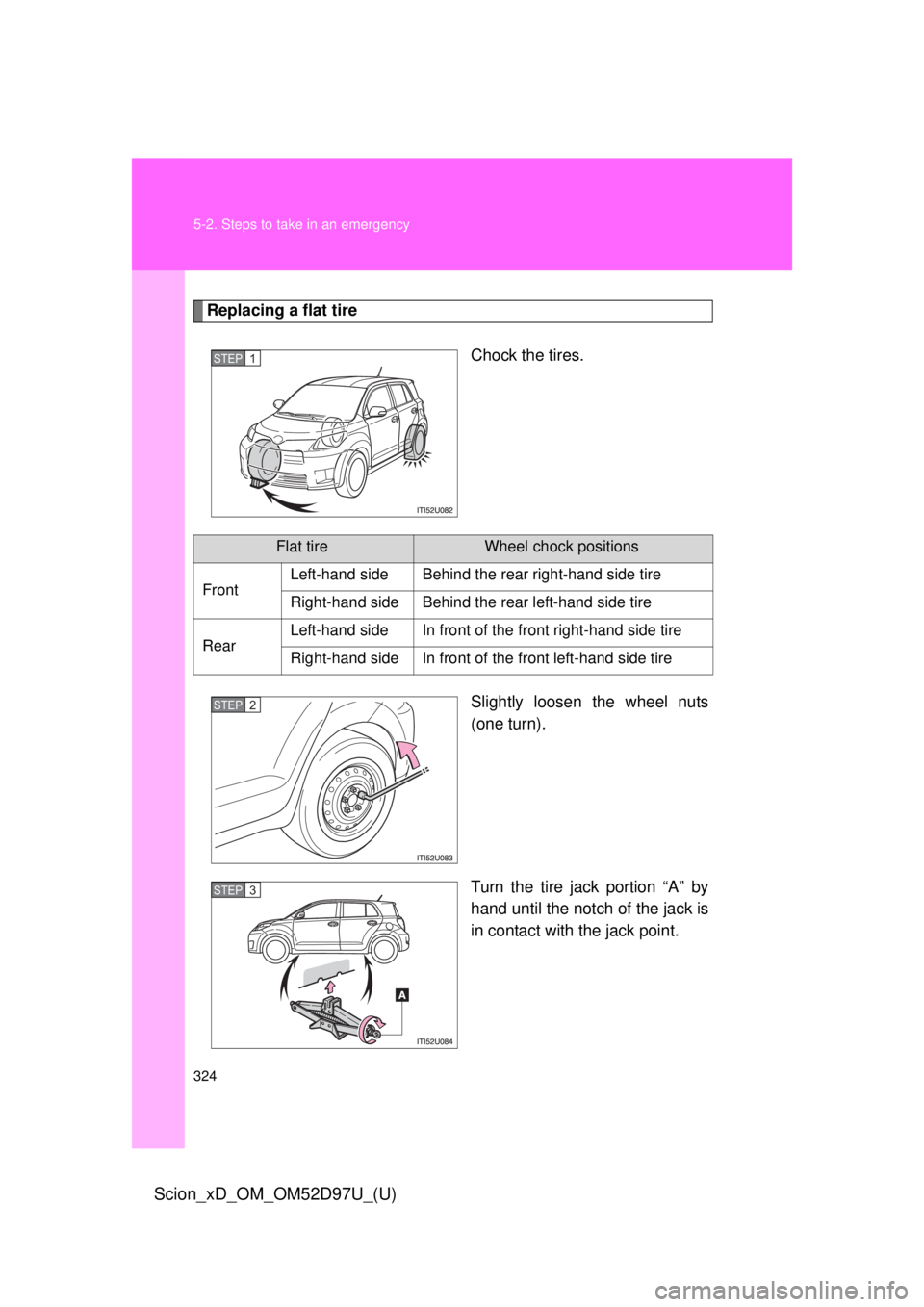

Replacing a flat tireChock the tires.
Slightly loosen the wheel nuts
(one turn).
Turn the tire jack portion “A” by
hand until the notch of the jack is
in contact with the jack point.
STEP 1
Flat tireWheel chock positions
Front Left-hand side Behind the rear right-hand side tire
Right-hand side Behind the rear left-hand side tire
Rear Left-hand side In front of the
front right-hand side tire
Right-hand side In front of the front left-hand side tire
STEP 2
STEP 3

5
When trouble arises
325
5-2. Steps to take in an emergency
Scion_xD_OM_OM52D97U_(U)
Raise the vehicle until the tire is
slightly raised off the ground.
Remove all the wheel nuts and
the tire.
When resting the tire on the
ground, place the tire so that the
wheel design faces up to avoid
scratching the wheel surface.
STEP 4
STEP 5

326 5-2. Steps to take in an emergency
Scion_xD_OM_OM52D97U_(U)
Installing the spare tireRemove any dirt or foreign mat-
ter from the wheel contact sur-
face.
If foreign matter is on the wheel
contact surface, the wheel nuts
may loosen while the vehicle is
in motion, causing the tire to
come off.
Install the spare tire and loosely
tighten each wheel nut by hand
by approximately the same
amount.
Tighten the wheel nuts until the
tapered portion comes into
loose contact with the disc
wheel seat.
Lower the vehicle.
STEP 1
Tapered portion
Disc wheel
seat
STEP 2
STEP 3

5
When trouble arises
327
5-2. Steps to take in an emergency
Scion_xD_OM_OM52D97U_(U)
Firmly tighten each wheel nut
two or three times in the order
shown in the illustration.
Tightening torque:
76 ft•lbf (103 N•m, 10.5 kgf•m)
Stow the flat tire, tire jack and all tools.
STEP 4
STEP 5

328 5-2. Steps to take in an emergency
Scion_xD_OM_OM52D97U_(U)
Stowing the flat tirePass the belt through the two of
anchor brackets. Then return the
luggage storage box to the origi-
nal position.
Lay the flat tire on the luggage
floor so that the outer side of the
wheel faces toward the rear of
the vehicle. Pass the belt
through the center hole of the
wheel as shown above.
Pass the belt in front of the rear
center head restraint as shown
and attach the belt end.
STEP 1
STEP 2
STEP 3 Lock release
button

5
When trouble arises
329
5-2. Steps to take in an emergency
Scion_xD_OM_OM52D97U_(U)
Hold the buckle and pull the belt
to secure the tire.
After stowing the flat tire, check
that the tire and belt are secured.STEP 4
■The compact spare tire
●The compact spare tire saves in your luggage compartment.
●Its lighter weight helps to enhance fuel economy.
●It permits easier installation
in case of a flat tire.
●Make sure to check the tire inflation pressure of the compact spare
tire. ( P. 361)
■After completing the tire change
The tire pressure warning system must be reset. (P. 253)
■When using the compact spare tire
As the compact spare tire is not equipped with a tire pressure warning
valve and transmitter, low inflation pressure of the spare tire will not be
indicated by the tire pressure warning system. Also, if you replace the
compact spare tire after the tire pressure warning light comes on, the
light remains on.

330 5-2. Steps to take in an emergency
Scion_xD_OM_OM52D97U_(U)
■If you have a flat front tire on a road covered with snow or ice
Install the compact spare tire on one of the rear wheels of the vehicle.
Perform the following steps and fit tire chains to the front tires:
Replace a rear tire with the compact spare tire.
Replace the flat front tire with the tire removed from the rear of
the vehicle.
Fit tire chains to the front tires.
CAUTION
■When using the compact spare tire
●Remember that the compact spare tire provided is specifically
designed for use with your vehicle. Do not use your compact spare tire
on another vehicle.
●Do not use more than one compact spare tire simultaneously.
●Replace the compact spare tire with a standard tire as soon as possi-
ble.
●Avoid sudden acceleration, deceleration and braking, as well as sharp
cornering.
■When the compact spare tire is attached
The vehicle speed may not be correctly detected, and the following sys-
tems may not operate correctly:
●ABS & Brake assist
●VSC
●TRAC
■Speed limit when using the compact spare tire
Do not drive at speeds in excess of 50 mph (80 km/h) when a compact
spare tire is installed on the vehicle.
The compact spare tire is not designed for driving at high speeds. Failure
to observe this precaution may lead to an accident causing death or seri-
ous injury.
STEP 1
STEP 2
STEP 3
