TOYOTA xD 2013 Owners Manual (in English)

5
When trouble arises
331
5-2. Steps to take in an emergency
Scion_xD_OM_OM52C62U_(U)
NOTICE
■Do not drive the vehicle with a flat tire.
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the
wheel beyond repair.
■Be careful when driving over bumps with the compact spare tire
installed on the vehicle.
The vehicle becomes lower when driving with the compact spare tire
compared to when drivin
g with standard tires. Be careful when driving
over uneven road surfaces.
■Driving with tire chains and the compact spare tire
Do not fit tire chains to the compact spare tire.
Tire chains may damage the vehicle body and adversely affect driving
performance.
■When replacing the tires
When removing or fitting the wheels, tires or the tire pressure warning
valve and transmitter, contact your Scion dealer as the tire pressure
warning valve and transmitter may be damaged if not handled correctly.
■To avoid damage to the tire pressure warning valves and transmit-
ters
When a tire is repaired with liquid sealants, the tire pressure warning
valve and transmitter may not operate properly. If a liquid sealant is
used, contact your Scion dealer or other qualified service shop as soon
as possible. Make sure to replace the tire pressure warning valve and
transmitter when replacing the tire. ( P. 253)

332
5-2. Steps to take in an emergency
Scion_xD_OM_OM52C62U_(U)

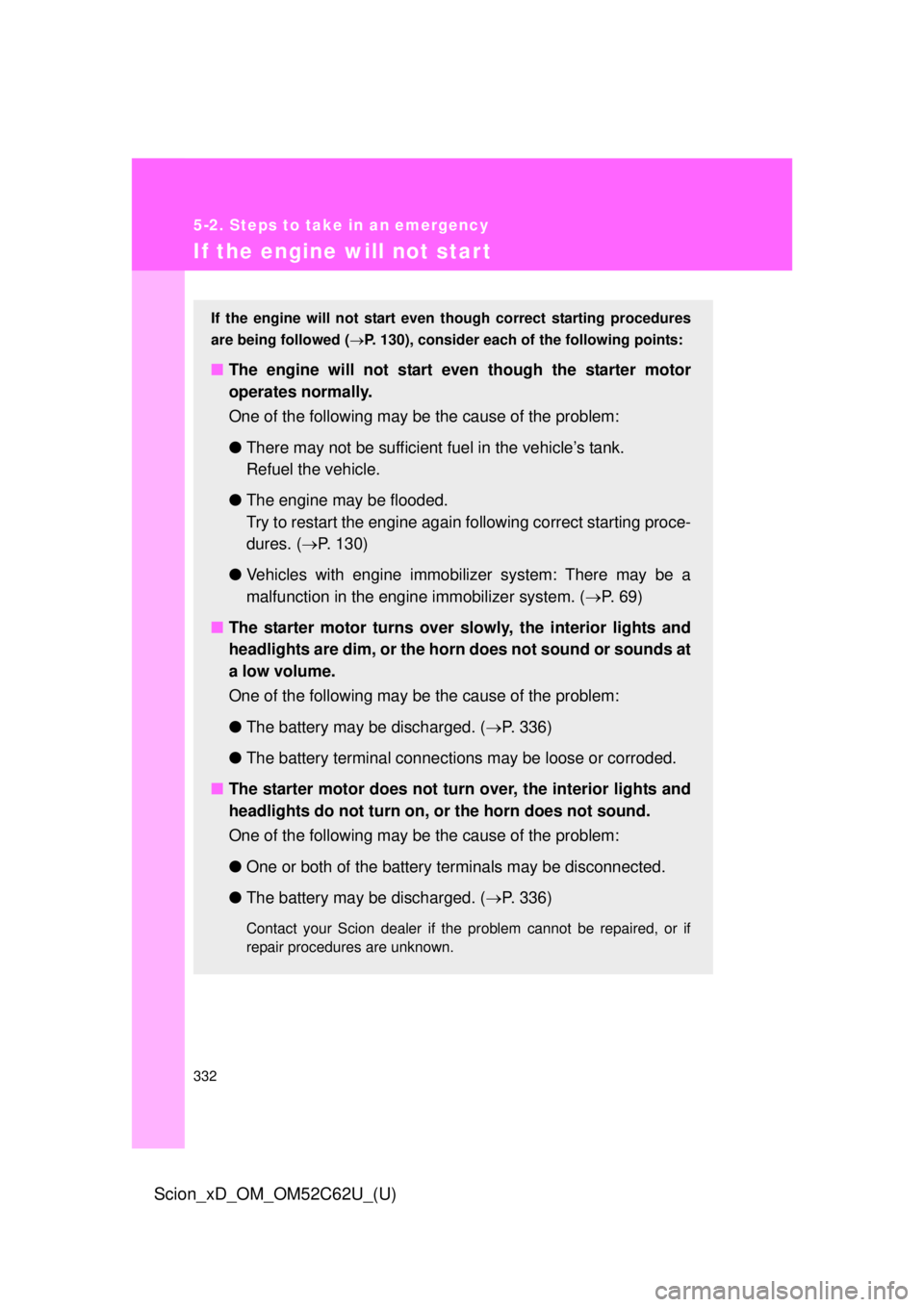

If the engine will not star t
If the engine will not start even though correct starting procedures
are being followed ( P. 130), consider each of the following points:
■The engine will not start even though the starter motor
operates normally.
One of the following may be the cause of the problem:
●There may not be sufficient fuel in the vehicle’s tank.
Refuel the vehicle.
● The engine may be flooded.
Try to restart the engine again following correct starting proce-
dures. ( P. 130)
● Vehicles with engine immobilizer system: There may be a
malfunction in the engine immobilizer system. (P. 6 9 )
■ The starter motor turns over slowly, the interior lights and
headlights are dim, or the horn does not sound or sounds at
a low volume.
One of the following may be the cause of the problem:
●The battery may be discharged. ( P. 336)
● The battery terminal connec tions may be loose or corroded.
■ The starter motor does not turn over, the interior lights and
headlights do not turn on, or the horn does not sound.
One of the following may be the cause of the problem:
● One or both of the battery terminals may be disconnected.
● The battery may be discharged. ( P. 336)
Contact your Scion dealer if the problem cannot be repaired, or if
repair procedures are unknown.

5
When trouble arises
333
5-2. Steps to take in an emergency
Scion_xD_OM_OM52C62U_(U)

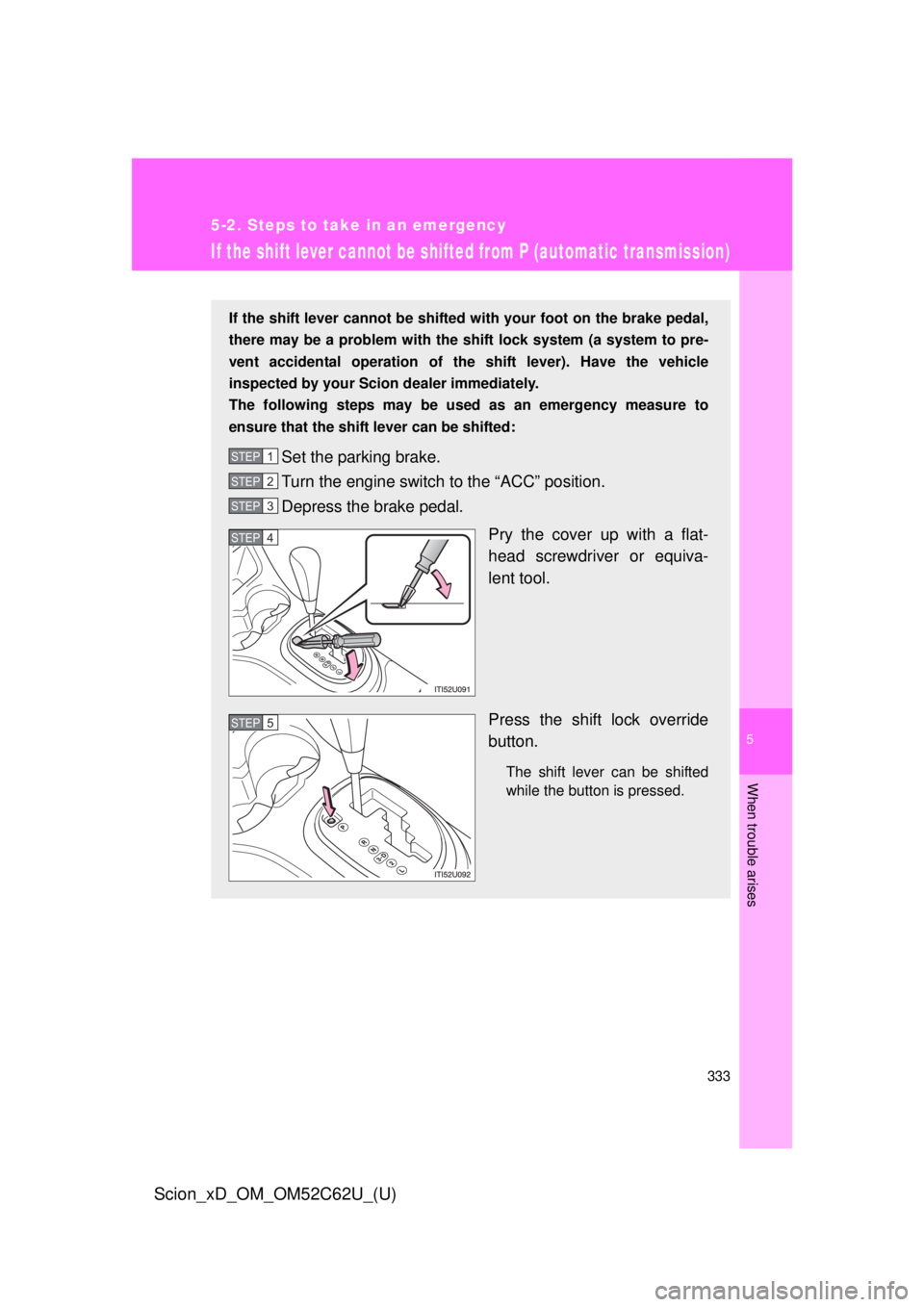

If the shift lever cannot be shifted from P (automatic transmission)
If the shift lever cannot be shifted with your foot on the brake pedal,
there may be a problem with the shift lock system (a system to pre-
vent accidental operation of the shift lever). Have the vehicle
inspected by your Scion dealer immediately.
The following steps may be used as an emergency measure to
ensure that the shift lever can be shifted:
Set the parking brake.
Turn the engine switch to the “ACC” position.
Depress the brake pedal.
Pry the cover up with a flat-
head screwdriver or equiva-
lent tool.
Press the shift lock override
button.
The shift lever can be shifted
while the button is pressed.
STEP 1
STEP 2
STEP 3
STEP 4
STEP 5

334
5-2. Steps to take in an emergency
Scion_xD_OM_OM52C62U_(U)
If you lose your keys
New genuine keys can be made by your Scion dealer. Bring a master
key and the key number stamped on the key number plate.

5
When trouble arises
335
5-2. Steps to take in an emergency
Scion_xD_OM_OM52C62U_(U)
If you cannot operate the back door opener
Remove the cover on the back
door trim.
Push the lever with the back
door motor, open the back door.
If the back door opener does not operate, there may be a problem
with the back door opener system. Have the vehicle inspected by
your Scion dealer immediately.
The following steps may be used as an emergency measure to
ensure that the back door can be opened from the inside.
STEP 1
STEP 2

336
5-2. Steps to take in an emergency
Scion_xD_OM_OM52C62U_(U)

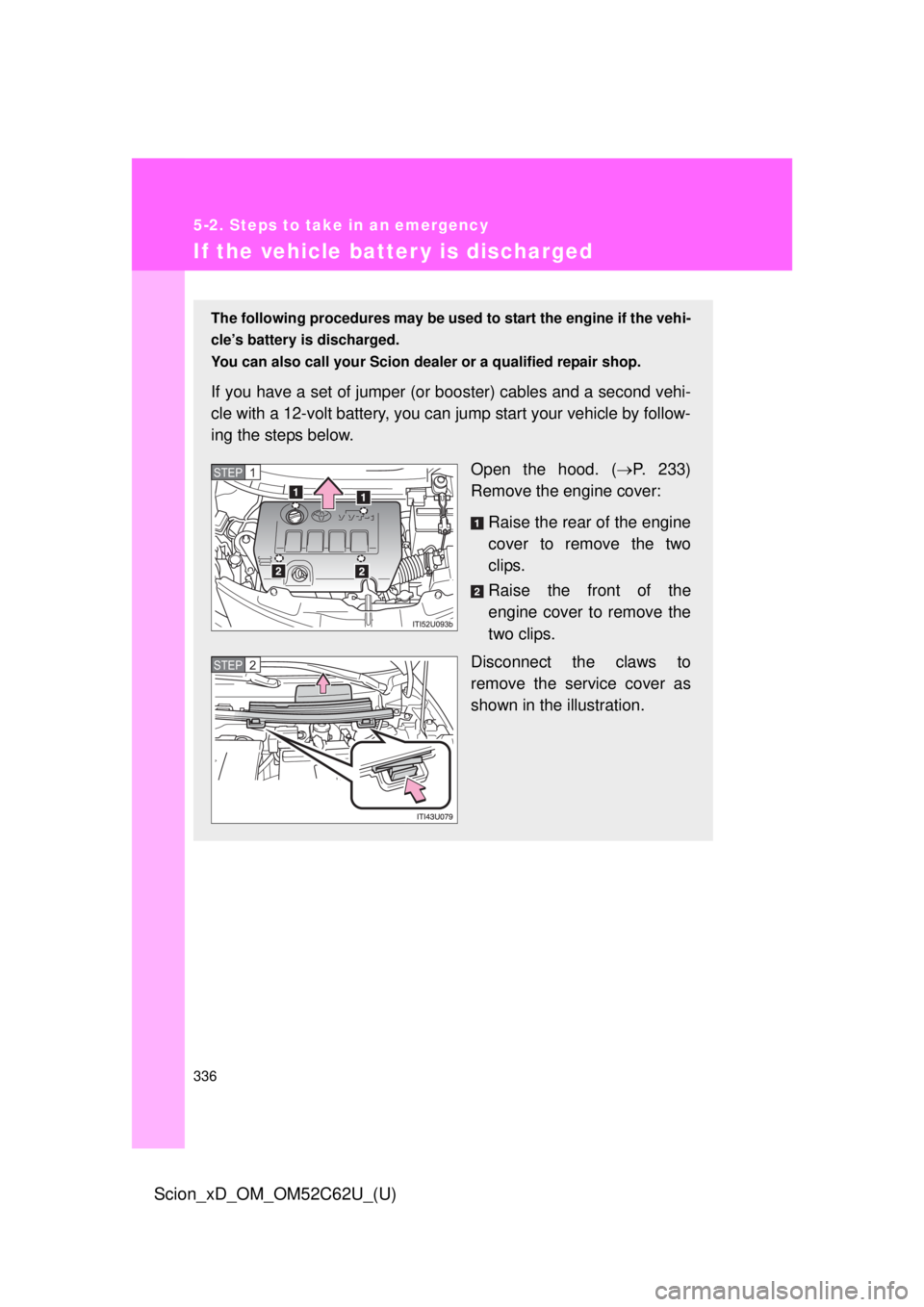

If the vehicle batter y is discharged
The following procedures may be used to start the engine if the vehi-
cle’s battery is discharged.
You can also call your Scion dealer or a qualified repair shop.
If you have a set of jumper (or booster) cables and a second vehi-
cle with a 12-volt battery, you can jump start your vehicle by follow-
ing the steps below.
Open the hood. (P. 233)
Remove the engine cover:
Raise the rear of the engine
cover to remove the two
clips.
Raise the front of the
engine cover to remove the
two clips.
Disconnect the claws to
remove the service cover as
shown in the illustration.
STEP 1
STEP 2

5
When trouble arises
337
5-2. Steps to take in an emergency
Scion_xD_OM_OM52C62U_(U)

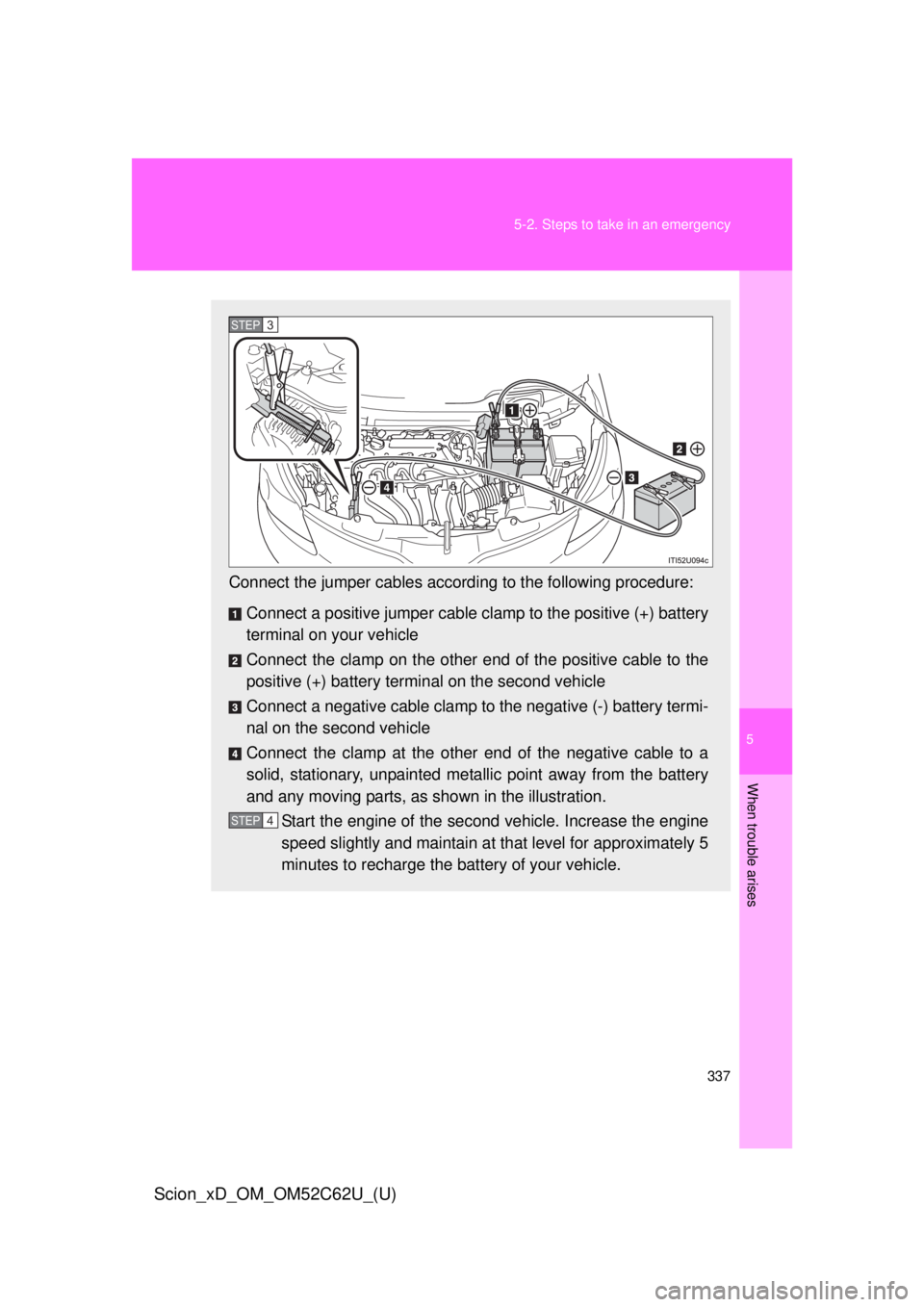

Connect the jumper cables accord
ing to the following procedure:
Connect a positive jumper cable clamp to the positive (+) battery
terminal on your vehicle
Connect the clamp on the other e nd of the positive cable to the
positive (+) battery termin al on the second vehicle
Connect a negative cable clamp to the negative (-) battery termi-
nal on the second vehicle
Connect the clamp at the other end of the negative cable to a
solid, stationary, unpainted metallic point away from the battery
and any moving parts, as shown in the illustration.
Start the engine of the second vehicle. Increase the engine
speed slightly and maintain at that level for approximately 5
minutes to recharge the battery of your vehicle.
STEP 3
STEP 4

338 5-2. Steps to take in an emergency
Scion_xD_OM_OM52C62U_(U)
■Starting the engine when the battery is discharged
Vehicles with an automatic transmission, the engine cannot be started by
push-starting.
■ To prevent battery discharge
● Turn off the headlights and the air conditioning system while the engine is
turned off.
● Turn off any unnecessary electrical components when the vehicle is run-
ning at a low speed for an extended period, such as in heavy traffic.
Maintain the engine speed of the second vehicle and start
the engine of your vehicle by turning the engine switch to
the “ON” position.
Once the vehicle’s engine has started, remove the jumper
cables in the exact reverse or der from which they were con-
nected.
Reinstall the service cover as
shown in the illustration.
Reinstall the engine cover: Conduct the removal procedure
in reverse. After installing, ch eck that the clips are inserted
securely.
Once the engine starts, have the vehicle inspected at your Scion
dealer as soon as possible.STEP 5
STEP 6
STEP7
STEP8

5
When trouble arises
339
5-2. Steps to take in an emergency
Scion_xD_OM_OM52C62U_(U)
■
Charging the battery
The electricity stored in the battery will discharge gradually even when the
vehicle is not in use, due to natural discharge and the draining effects of cer-
tain electrical appliances. If the vehicle is left for a long time, the battery may
discharge, and the engine may be unable to start. (The battery recharges
automatically during driving.)
CAUTION
■Avoiding battery fires or explosions
Observe the following precautions to prevent accidentally igniting the flam-
mable gas that may be emitted from the battery:
● Make sure each jumper cable is connected to the correct terminal and that
it is not unintentionally in contact with any other than the intended terminal.
● Do not allow the + and - clamps of the jumper cables to come into contact
with each other.
● Do not smoke, use matches, cigarette lighters or allow open flame near
the battery.
■ Battery precautions
The battery contains poisonous and corrosive acidic electrolyte, while
related parts contain lead and lead compounds. Observe the following pre-
cautions when handling the battery:
● When working with the battery, always wear safety glasses and take care
not to allow any battery fluids (acid) to come into contact with skin, clothing
or the vehicle body.
● Do not lean over the battery.
● In the event that battery fluid comes into contact with the skin or eyes,
immediately wash the affected area with water and seek medical attention.
Place a wet sponge or cloth over the affected area until medical attention
can be received.
● Always wash your hands after handling the battery support, terminals, and
other battery-related parts.
● Do not allow children near the battery.

340 5-2. Steps to take in an emergency
Scion_xD_OM_OM52C62U_(U)
CAUTION
■To prevent damage to the vehicle
Do not pull- or push-start the vehicle as the three-way catalytic converter
may overheat and become a fire hazard.
NOTICE
■When handling jumper cables
When connecting the jumper cables, ensure that they do not become entan-
gled in the cooling fans or belt.
■ To prevent damage to the engine cover
● When removing the cover, make sure that you pull the cover towards you
after lifting the front edge to remove the fixed pins.
● When installing the cover, do not force the cover or subject it to strong
shocks.
