6-1. Specifications
6
Vehicle specifications
Scion_xD_OM_OM52C62U_(U)

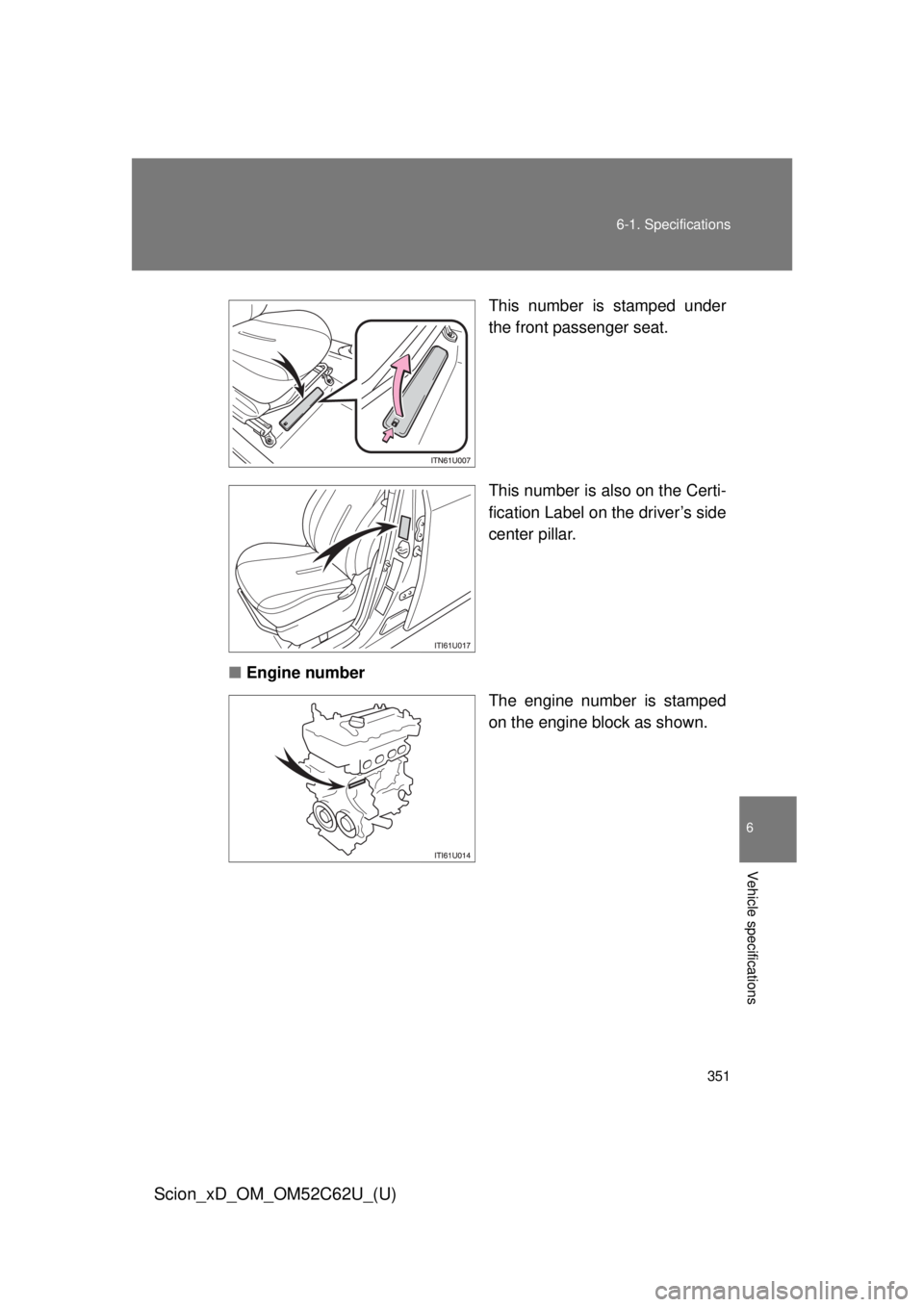

This number is stamped under
the front passenger seat.
This number is also on the Certi-
fication Label on the driver’s side
center pillar.
■ Engine number
The engine number is stamped
on the engine block as shown.

352 6-1. Specifications
Scion_xD_OM_OM52C62U_(U)

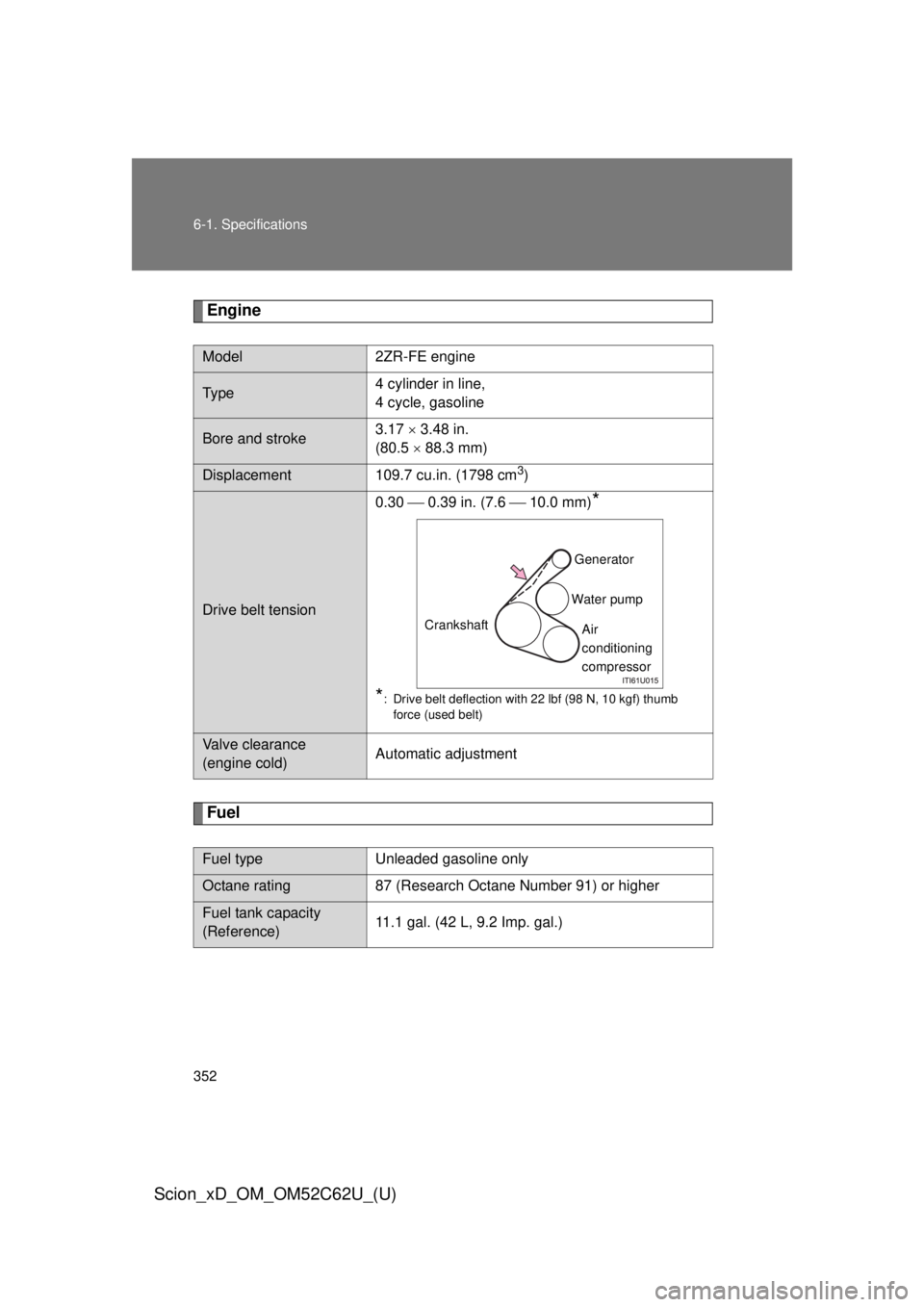

Engine
Fuel
Model2ZR-FE engine
Ty pe 4 cylinder in line,
4 cycle, gasoline
Bore and stroke3.17 
3.48 in.
(80.5  88.3 mm)
Displacement 109.7 cu.in. (1798 cm3)
Drive belt tension 0.30
 0.39 in. (7.6  10.0 mm)*
*
: Drive belt deflection with 22 lbf (98 N, 10 kgf) thumb force (used belt)
Valve clearance
(engine cold) Automatic adjustment
Fuel type
Unleaded gasoline only
Octane rating 87 (Research Octane Number 91) or higher
Fuel tank capacity
(Reference) 11.1 gal. (42 L, 9.2 Imp. gal.)
Generator
Water pump Air
conditioning
compressor
Crankshaft

353
6-1. Specifications
6
Vehicle specifications
Scion_xD_OM_OM52C62U_(U)
Lubrication system
■ Engine oil selection
“Toyota Genuine Motor Oil” is used in your Scion vehicle. Use Scion
approved “Toyota Genuine Motor Oil” or equivalent to satisfy the fol-
lowing grade and viscosity.
Oil grade: ILSAC multigrade engine oil
Recommended viscosity: SAE 0W-20
SAE 0W-20 engine oil may be
used. However, SAE 0W-20 is
the best choice for good fuel
economy and good starting in
cold weather.
Oil viscosity (0W-20 is explained here as an example):
●The 0W in 0W-20 indicates the characteristic of the oil which allows
cold startability. Oils with a lower value before the W allow for easier
starting of the engine in cold weather.
● The 20 in 0W-20 indicates the viscosity characteristic of the oil when
the oil is at high temperature. An oil with a higher viscosity (one with a
higher value) may be better suited if the vehicle is operated at high
speeds, or under extreme load conditions.
Oil capacity
(Drain and refill —
reference)
With filter
Without filter 4.4 qt. (4.2 L, 3.7 Imp. qt.)
4.1 qt. (3.9 L, 3.4 Imp. qt.)
Outside temperature

354 6-1. Specifications
Scion_xD_OM_OM52C62U_(U)
How to read oil container label:
The ILSAC (International Lubricant Standardization and Approval
Committee) Certification Mark is added to some oil containers to help
you select the oil you should use.

355
6-1. Specifications
6
Vehicle specifications
Scion_xD_OM_OM52C62U_(U)
Cooling system
Ignition system
Capacity (reference)
Vehicles with an automatic transmission:
5.2 qt. (4.9 L, 4.3 Imp. qt.)
Vehicles with a manual transmission: 5.3 qt. (5.0 L, 4.4 Imp. qt.)
Coolant type Use either of the following:
• “Toyota Super Long Life Coolant”
• A similar high-quality ethylene glycol-based non-silicate, non-amine, non-nitrite, and non-borate
coolant with long-life hybrid organic acid technol-
ogy
Do not use plain water alone.
Spark plug
Make
Gap DENSO SC20HR11
0.043 in. (1.1 mm)
NOTICE
■
Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust spark plug gap.

356 6-1. Specifications
Scion_xD_OM_OM52C62U_(U)
Electrical system
Automatic transaxle
Battery
Open voltage* at
68 F (20 C): 12.6  12.8 V Fully charged
12.2  12.4 V Half charged
11 . 8
 12.0 V Discharged
(
*: Voltage checked 20 minutes after the
engine and all the lights turned off)
Charging rates 5 A max.
Fluid capacity 6.9 qt. (6.5 L, 5.7 Imp. qt.)
Fluid type Toyota Genuine ATF WS
NOTICE
■Transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause
deterioration in shift quality, locking up of the transmission accompanied by
vibration and, ultimately, damage to the vehicle’s transmission.

357
6-1. Specifications
6
Vehicle specifications
Scion_xD_OM_OM52C62U_(U)
Manual transaxle
Clutch
Gear oil capacity (reference) 2.0 qt. (1.9 L, 1.7 Imp. qt.)
Gear oil type
Use either of the following:
• “TOYOTA Genuine Manual Transmission Gear Oil LV”
• Other gear oil that meets API GL-4 and SAE 75W specifications
NOTICE
■ Manual transmission gear oil
Please be aware that depending on the particular characteristics of the gear
oil used or the operating conditions, idle sound, shift feelings and/or fuel effi-
ciency may be different or affected. Scion recommends to use “TOYOTA
Genuine Manual Transmission Gear Oil LV” to achieve optimal performance.
Pedal free play 0.2  0.6 in. (5  15 mm)
Fluid type SAE J1703 or FMVSS No.116 DOT 3

358 6-1. Specifications
Scion_xD_OM_OM52C62U_(U)
Brakes
*1: Minimum pedal clearance when depressed with a force of 66 lbf (300 N,30 kgf) while the engine is running
*2: Parking brake lever travel when pulled up with a force of 45 lbf (200 N,20 kgf)
Steering
Pedal clearance*13.4 in. (86 mm)
Pedal free play 0.04  0.24 in. (1  6 mm)
Brake pad wear limit 0.04 in. (1.0 mm)
Lining wear limit 0.04 in. (1.0 mm)
Parking brake lever travel*26  9 clicks
Fluid typeSAE J1703 or FMVSS No.116 DOT 3
Free playLess than 1.2 in. (30 mm)

359
6-1. Specifications
6
Vehicle specifications
Scion_xD_OM_OM52C62U_(U)
Tires and wheels
Standard
Spare
Tire size 195/60R16 89H
Front and rear tire inflation
pressure
(Recommended cold tire
inflation pressure)Driving under normal conditions
Front:
33 psi (230 kPa, 2.3 kgf/cm
2 or bar)
Rear:
33 psi (230 kPa, 2.3 kgf/cm
2 or bar)
Wheel size 16  6J
Wheel nut torque 76 ft•lbf (103 N•m, 10.5 kgf•m)
Tire size T135/70D16 100M
Tire inflation pressure
(Recommended
cold tire inflation pressure)60 psi (420 kPa, 4.2 kgf/cm2 or bar)
Wheel size
16  4T
Wheel nut torque 76 ft•lbf (103 N•m, 10.5 kgf•m)

360 6-1. Specifications
Scion_xD_OM_OM52C62U_(U)
Light bulbs
A: H2 halogen bulbsB: Wedge base bulbs (clear)
C: Wedge base bulbs (amber) D: Double end bulbs
Light BulbsBulb No.WTy p e
Exterior Headlights
60/55 A
Front turn signal lights 7440 21 B
Parking lights 5B
Front side marker
lights 
5B
Rear turn signal lights 7440 21 C
Stop/tail lights and
rear side marker lights 7443 21/5 B
Back-up lights 921 16 B
Licence plate lights 5B
Interior Personal lights
8D
Interior lights 8D
Luggage
compartment light 
5D
