TOYOTA xD 2013 Owners Manual (in English)

5
When trouble arises
341
5-2. Steps to take in an emergency
Scion_xD_OM_OM52C62U_(U)

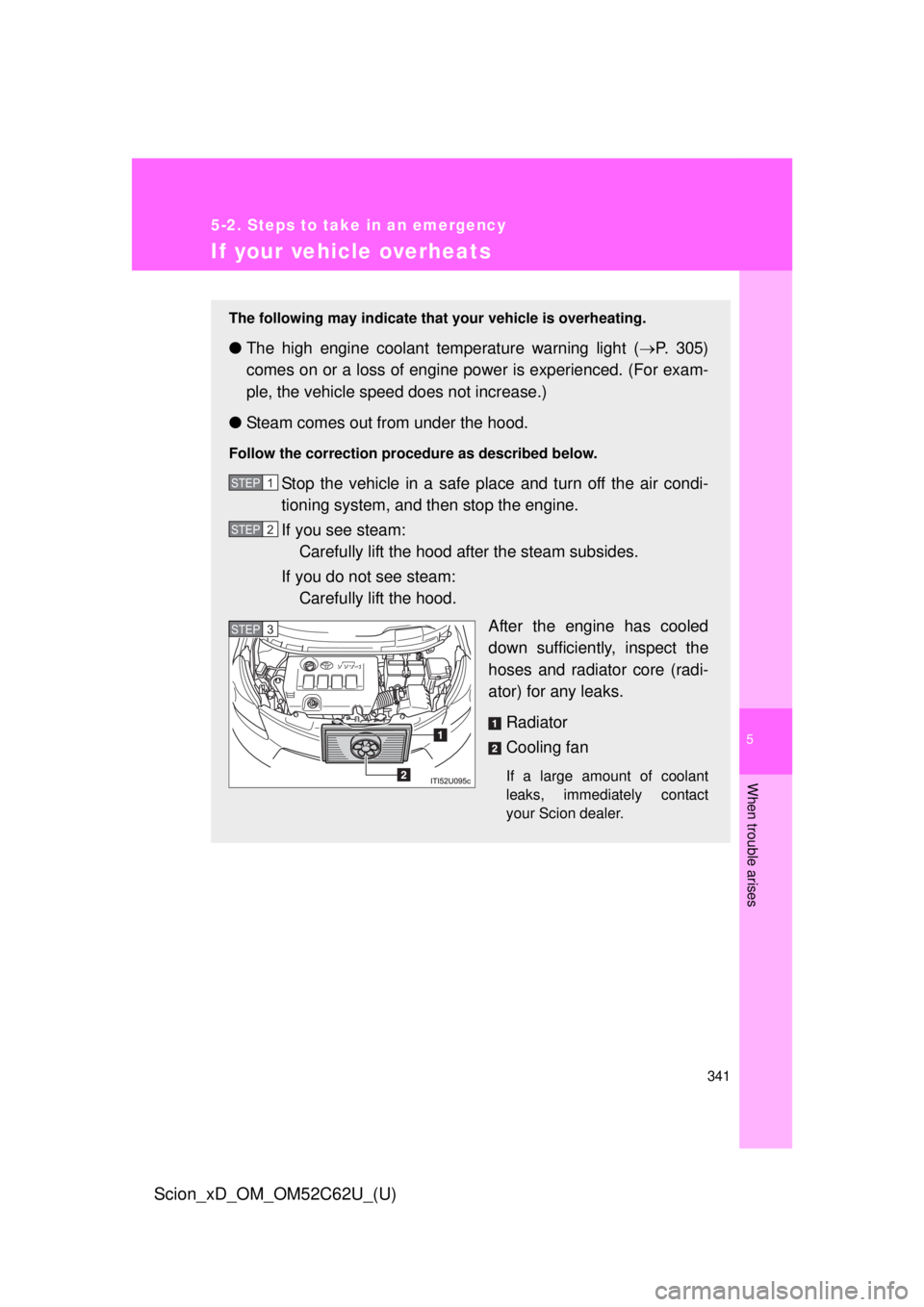

If your vehicle overheats
The following may indicate that your vehicle is overheating.
●The high engine coolant te mperature warning light (P. 305)
comes on or a loss of engine power is experienced. (For exam-
ple, the vehicle speed does not increase.)
● Steam comes out from under the hood.
Follow the correction pro cedure as described below.
Stop the vehicle in a safe place and turn off the air condi-
tioning system, and then stop the engine.
If you see steam:
Carefully lift the hood after the steam subsides.
If you do not see steam: Carefully lift the hood.
After the engine has cooled
down sufficiently, inspect the
hoses and radiator core (radi-
ator) for any leaks.
Radiator
Cooling fan
If a large amount of coolant
leaks, immediately contact
your Scion dealer.
STEP 1
STEP 2
STEP 5 STEP 3

342 5-2. Steps to take in an emergency
Scion_xD_OM_OM52C62U_(U)

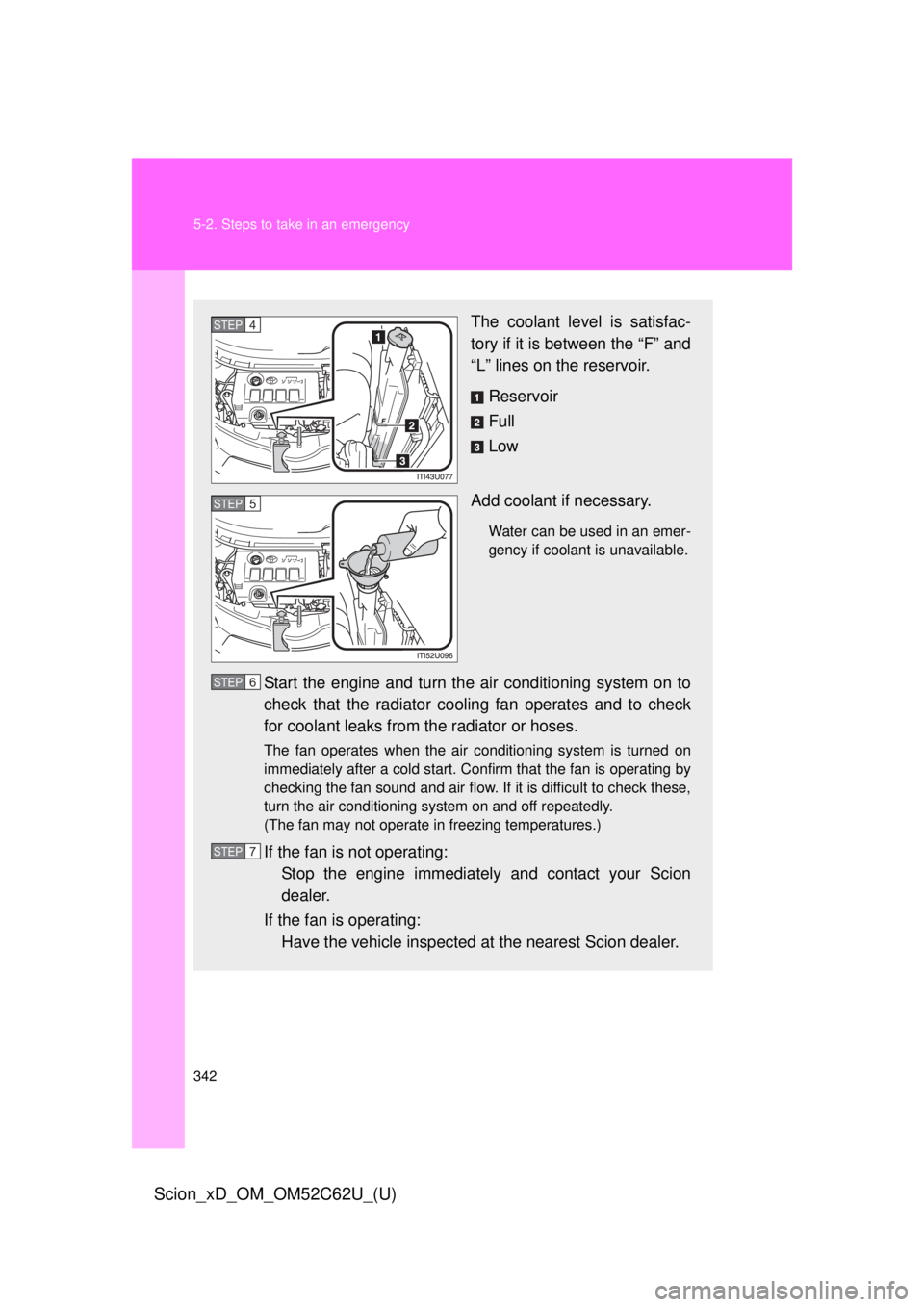

The coolant level is satisfac-
tory if it is between the “F” and
“L” lines on the reservoir.Reservoir
Full
Low
Add coolant if necessary.
Water can be used in an emer-
gency if coolant is unavailable.
Start the engine and turn the ai r conditioning system on to
check that the radiator cooling fan operates and to check
for coolant leaks from the radiator or hoses.
The fan operates when the air conditioning system is turned on
immediately after a cold start. Confirm that the fan is operating by
checking the fan sound and air flow. If it is difficult to check these,
turn the air conditioning system on and off repeatedly.
(The fan may not operate in freezing temperatures.)
If the fan is not operating:
Stop the engine immediately and contact your Scion
dealer.
If the fan is operating: Have the vehicle inspected at the nearest Scion dealer.
STEP 5 STEP 4
STEP 5
STEP 6
STEP7

5
When trouble arises
343
5-2. Steps to take in an emergency
Scion_xD_OM_OM52C62U_(U)
CAUTION
■
To prevent an accident or injury when inspecting under the hood of
your vehicle
● If steam is seen coming from under the hood, do not open the hood until
the steam has subsided. The engine compartment may be very hot, caus-
ing serious injuries such as burns.
● Keep hands and clothing (especially a tie, a scarf or a muffler) away from
the fan and belts. Failure to do so may cause the hands or clothing to be
caught, resulting in serious injury.
● Do not loosen the radiator cap and the coolant reservoir cap while the
engine and radiator are hot.
Serious injury, such as burns, may result from hot coolant and steam
released under pressure.
NOTICE
■When adding engine coolant
Wait until the engine has cooled down before adding coolant.
When adding coolant, do so slowly. Adding cool coolant to a hot engine too
quickly can cause damage to the engine.
■ To prevent damage to the cooling system
Observe the following precautions:
● Avoid contaminating the coolant with foreign matter (such as sand or dust
etc.).
● Do not use commercially available coolant additives.

344
5-2. Steps to take in an emergency
Scion_xD_OM_OM52C62U_(U)
If the vehicle becomes stuck
CAUTION
■When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the sur-
rounding area is clear to avoid striking other vehicles, objects or people. The
vehicle may also lunge forward or lunge back suddenly as it becomes free.
Use extreme caution.
■ When shifting the shift lever
For vehicles with an automatic transmission, be careful not to shift the shift
lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may
cause an accident resulting in death or serious injury.
Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt or snow:
Stop the engine. Set the parki ng brake and shift the shift
lever to P (automatic transmission) or N (manual transmis-
sion).
Remove the mud, snow or sand from around the stuck tire.
Place wood, stones or some other material under the tires
to help provide traction.
Restart the engine.
Shift the shift lever to the D or R position (automatic trans-
mission) or 1 or R position (manual transmission) and care-
fully apply the accelerator to free the vehicle.
Turn off TRAC and VSC if these functions are hampering
your attempts to free the vehicle. ( P. 165)STEP 1
STEP 2
STEP 3
STEP 4
STEP 5

5
When trouble arises
345
5-2. Steps to take in an emergency
Scion_xD_OM_OM52C62U_(U)
NOTICE
■
To avoid damage to the transmission and other components
● Avoid spinning the wheels and depressing the accelerator pedal more
than necessary.
● If the vehicle remains stuck even after these procedures are performed,
the vehicle may require towing to be freed.

346
5-2. Steps to take in an emergency
Scion_xD_OM_OM52C62U_(U)

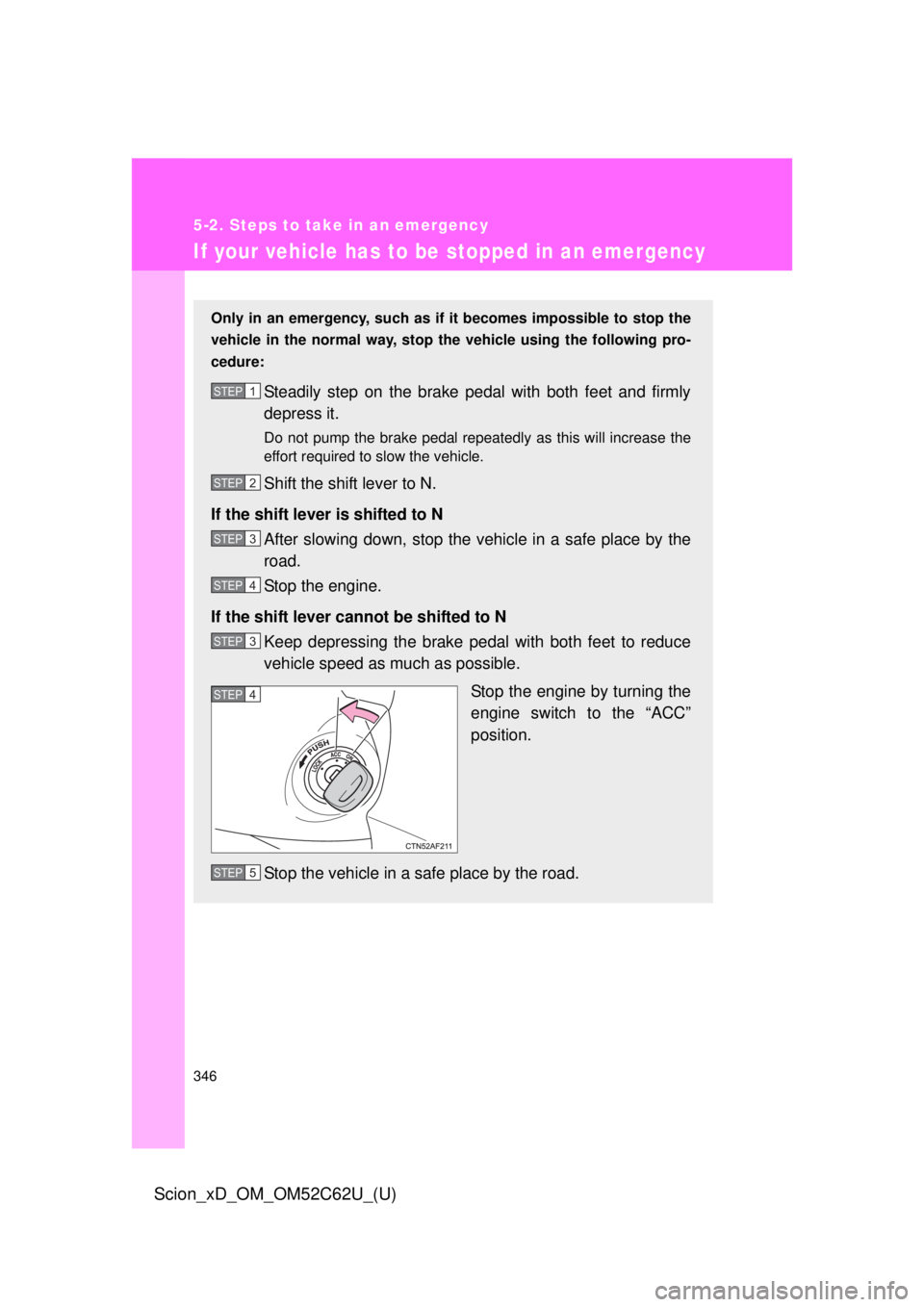

If your vehicle has to be stopped in an emergency
Only in an emergency, such as if it becomes impossible to stop the
vehicle in the normal way, stop the vehicle using the following pro-
cedure:
Steadily step on the brake pedal with both feet and firmly
depress it.
Do not pump the brake pedal repeatedly as this will increase the
effort required to slow the vehicle.
Shift the shift lever to N.
If the shift lever is shifted to N After slowing down, stop the vehi cle in a safe place by the
road.
Stop the engine.
If the shift lever cannot be shifted to N Keep depressing the brake pedal with both feet to reduce
vehicle speed as much as possible.
Stop the engine by turning the
engine switch to the “ACC”
position.
Stop the vehicle in a safe place by the road.
STEP 1
STEP 2
STEP 3
STEP 4
STEP 3
STEP 4
STEP 5

5
When trouble arises
347
5-2. Steps to take in an emergency
Scion_xD_OM_OM52C62U_(U)
CAUTION
■
If the engine has to be turned off while driving
● Power assist for the brakes and steering wheel will be lost, making the
brake pedal harder to depress and the steering wheel heavier to turn.
Decelerate as much as possible before turning off the engine.
● Never attempt to remove the key, as doing so will lock the steering wheel.

348 5-2. Steps to take in an emergency
Scion_xD_OM_OM52C62U_(U)

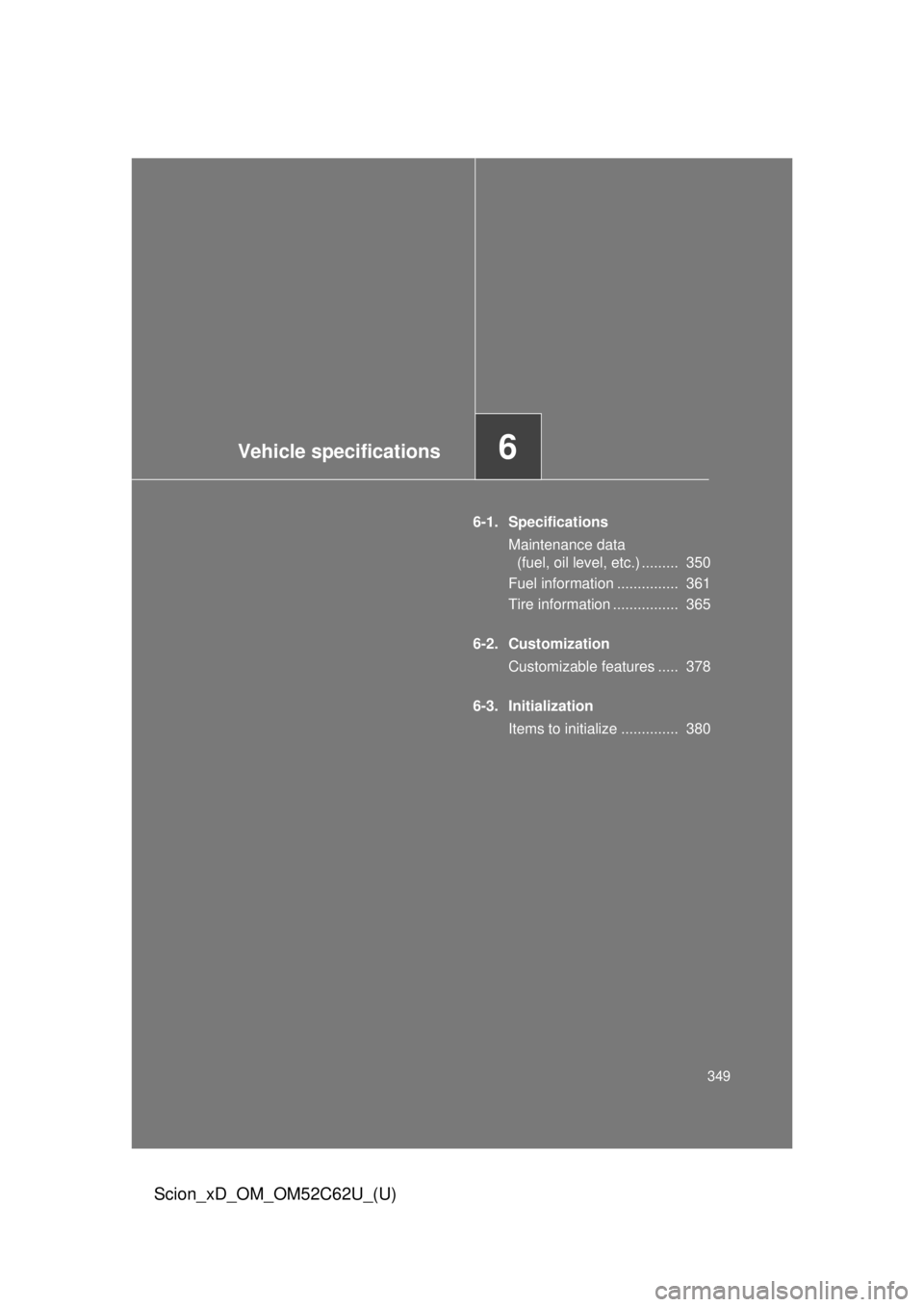

Vehicle specifications6
349
Scion_xD_OM_OM52C62U_(U)
6-1. SpecificationsMaintenance data (fuel, oil level, etc.) ......... 350
Fuel information ............... 361
Tire information ................ 365
6-2. Customization Customizable features ..... 378
6-3. Initialization Items to initialize .............. 380

350
Scion_xD_OM_OM52C62U_(U)
6-1. Specifications
Maintenance data (fuel, oil level, etc.)
Dimensions and weight
*: Unladen vehicles
Vehicle identification■ Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primar y identification number for your
Scion. It is used in registeri ng the ownership of your vehicle.
This number is stamped on the
top left of the instrument panel.
Overall length 154.7 in. (3930 mm)
Overall width67.9 in. (1725 mm)
Overall height*60.0 in. (1525 mm)
Wheelbase96.9 in. (2460 mm)
TreadFront 58.5 in. (1485 mm)
Rear 58.7 in. (1490 mm)
Vehicle capacity weight
(occupants + luggage) 845 lb. (383 kg)
