If you are a skilled do−it−yourself
mechanic, the Toyota service manuals are
recommended. Please be aware that
do− it−yourself maintenance can affect your
warranty coverage. See “Owner ’s Warranty
Information Booklet” or “Owner ’s Manual
Supplement” for the details.
General maintenance
Listed below are the general maintenance
items that should be performed as fre-
quently as specified. In addition to check-
ing the items listed, if you notice any
unusual noise, smell or vibration, you
should investigate the cause or take your
vehicle to your Toyota dealer or a quali-
fied service shop immediately. It is recom-
mended that any problem you notice be
brought to the attention of your dealer or
the qualified service shop for their advice.
CAUTION
Make these checks only with ade-
quate ventilation if you run the en-
gine.
IN THE ENGINE COMPARTMENT
Items listed below should be checked
from time to time, e.g. each time when
refueling.
Washer fluid
Make sure there is sufficient fluid in the
tank. See Section 7 −3 for additional in-
formation. Engine coolant level
Make sure the coolant level is between
the “FULL” and “LOW” lines on the see
−
through reservoir when the engine is cold.
See Section 7 −2 for additional information.
Radiator, condenser and hoses
Check that the front of the radiator and
condenser are clean and not blocked with
leaves, dirt or insects. See Section 7 −2
for additional information.
Battery condition
Check the battery condition by the indica-
tor color. See page 201 in Section 7 −3 for
additional information.
Brake fluid level
Make sure the brake fluid level is correct.
See Section 7 −2 for additional information.
Engine oil level
Check the level on the dipstick with the
engine turned off and the vehicle parked
on a level ground. See Section 7 −2 for
additional information.
Power steering fluid level
Check the level through the reservoir. The
level should be in the “HOT” or “COLD”
range depending on the fluid temperature.
See Section 7 −2 for additional information.
04 05.18

1742005 ECHO HATCHBACK from Jul. ’04Prod. (OM52624U)
Exhaust system
If you notice any change in the sound of
the exhaust or smell exhaust fumes, have
the cause located and corrected immedi-
ately. (See “Engine exhaust cautions” in
Section 2.)
INSIDE THE VEHICLE
Items listed below should be checked
regularly, e.g. while performing periodic
services, cleaning the vehicle, etc.
Lights
Make sure the headlights, stop lights, tail
lights, turn signal lights, and other lights
are all working. Check headlight aim.
Service reminder indicators and warning
buzzers
Check that all service reminder indicators
and warning buzzers function properly.
Steering wheel
Be alert for changes in steering condition,
such as hard steering or strange noise.Seats
Check that all front seat controls such as
seat adjusters, seatback recliner, etc. op-
erate smoothly and that all latches lock
securely in any position. Check that the
head restraint move up and down smooth-
ly and that the locks hold securely in any
latched position. For folding
−down rear
seatbacks, check that the latches lock se-
curely.
Seat belts
Check that the seat belt system such as
buckles, retractors and anchors operate
properly and smoothly. Make sure the belt
webbing is not cut, frayed, worn or dam-
aged.
Accelerator pedal
Check the pedal for smooth operation and
uneven pedal effort or catching.
Clutch pedal
Check the pedal for smooth operation.
Brake pedal
Check the pedal for smooth operation and
that the pedal has the proper clearance.
Check the brake booster function.
Brakes
In a safe place, check that the brakes do
not pull to one side when applied. Parking brake
Check that the lever has the proper travel
and that, on a safe incline, your vehicle
is held securely with only the parking
brake applied.
Automatic transmission “Park” mecha-
nism
Check the lock release button of the se-
lector lever for proper and smooth opera-
tion. On a safe incline, check that your
vehicle is held securely with the selector
lever in “P” position and all brakes re-
leased.
OUTSIDE THE VEHICLE
Items listed below should be performed
from time to time, unless otherwise
specified.
Fluid leaks
Check underneath for leaking fuel, oil, water
or other fluid after the vehicle has been
parked for a while. If you smell fuel fumes
or notice any leak, have the cause found and
corrected immediately.
Doors and engine hood
Check that all doors and back door oper-
ate smoothly and all latches lock securely.
Make sure the engine hood secondary
latch secures the hood from opening when
the primary latch is released.
04 05.18

1752005 ECHO HATCHBACK from Jul. ’04Prod. (OM52624U)
Tire pressure
Check the pressure with a gauge ev-
ery two weeks, or at least once a
month. See Section 7−2 for additional
information.
Tire surface and wheel nuts
Check the tires carefully for cuts,
damage or excessive wear. See Sec-
tion 7 −2 for additional information.
When checking the tires, make sure
no nuts are missing, and check the
nuts for looseness. Tighten them if
necessary.
Tire rotation
Rotate the tries according to the
maintenance schedule. (For
scheduled maintenance information,
please refer to the “Scheduled
Maintenance Guide” or “Owner ’s
Manual Supplement”.) See Section
7 −2 for additional information.Be on the alert for changes in perfor-
mance, sounds, and visual tip −offs that
indicate service is needed. Some impor-
tant clues are as follows:

Engine missing, stumbling, or pinging

Appreciable loss of power

Strange engine noises

A leak under the vehicle (however, wa-
ter dripping from the air conditioning
after use is normal.)

Change in exhaust sound (This may
indicate a dangerous carbon monoxide
leak. Drive with the windows open and
have the exhaust system checked im-
mediately.)

Flat −looking tire; excessive tire squeal
when cornering; uneven tire wear

Vehicle pulls to one side when driving
straight on a level road

Strange noises related to suspension
movement

Loss of brake effectiveness; spongy
feeling brake or clutch pedal; pedal al-
most touches floor; vehicle pulls to one
side when braking

Engine coolant temperature continually
higher than normal If you notice any of these clues, take your
vehicle to your Toyota dealer as soon as
possible. It probably needs adjustment or
repair.
CAUTION
Do not continue driving with the ve-
hicle unchecked. It could result in se-
rious vehicle damage and possibly
personal injury.
04 05.18
Does your vehicle need
repairing?

1762005 ECHO HATCHBACK from Jul. ’04Prod. (OM52624U)
Some states have vehicle emission in-
spection programs which include OBD
(On−Board Diagnostics) che cks.
The OBD system monitors the operation
of the emission control system. When the
OBD system determines that a problem
exists somewhere in the emission control
system, the malfunction indicator lamp
comes on. In this case, your vehicle may
not pass the I/M test and need to be
repaired. Contact your Toyota dealer to
service the vehicle.
Even if the malfunction indicator lamp
does not come on, your vehicle may not
pass the I/M test as readiness codes
have not been set in the OBD system.
Readiness codes are automatically set
during ordinary driving. However, when the
battery is disconnected or run down, the
codes are erased. Also, depending on
your driving habits, the codes may not be
completely set.
Also, if the malfunction indicator lamp had
come on recently due to temporary mal-
function such as a loose fuel tank cap,
your vehicle may not pass the I/M test. The malfunction indicator lamp will go off
after taking several driving trips, but the
error code in the OBD system will not be
cleared unless about 40 trips or more are
taken.
If your vehicle does not pass the I/M test
even the malfunction indicator lamp does
not come on, contact your Toyota dealer
to prepare the vehicle for re
−testing.
04 05.18
Emissions inspection and
maintenance (I/M) programs

1772005 ECHO HATCHBACK from Jul. ’04Prod. (OM52624U)
DO−IT−YOURSELF MAINTENANCE
Introduction
Engine compartment overview 178
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuse locations 179
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Do −it− yourself service precautions 179
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Parts and tools 181
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Positioning the jack 182
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
04 04.06
SECTION 7− 1

1782005 ECHO HATCHBACK from Jul. ’04Prod. (OM52624U)

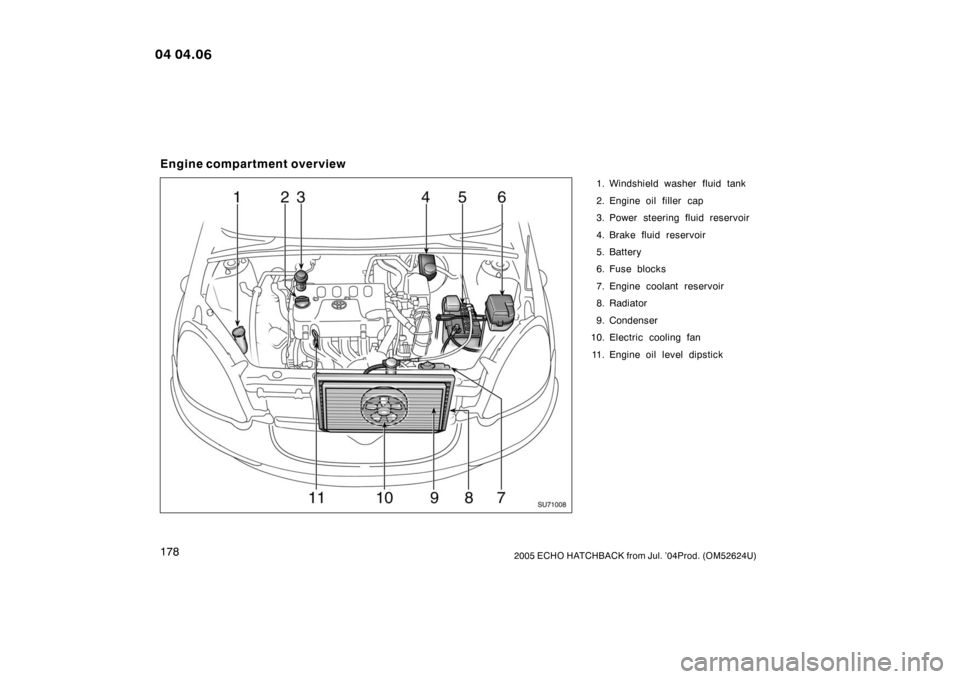

Engine compartment overview
1. Windshield washer fluid tank
2. Engine oil filler cap
3. Power steering fluid reservoir
4. Brake fluid reservoir
5. Battery
6. Fuse blocks
7. Engine coolant reservoir
8. Radiator
9. Condenser
10. Electric cooling fan
11. Engine oil level dipstick
04 04.06
SU71008

1792005 ECHO HATCHBACK from Jul. ’04Prod. (OM52624U)

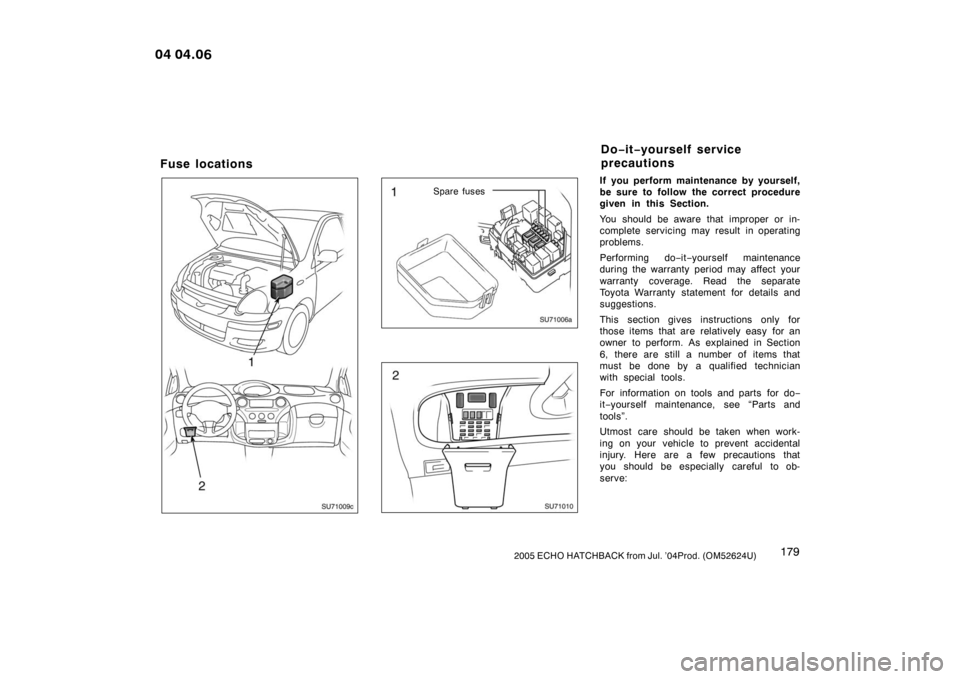

Fuse locations
SU71009c
SU71006a
Spare fuses
SU71010
If you perform maintenance by yourself,
be sure to follow the correct procedure
given in this Section.
You should be aware that improper or in-
complete servicing may result in operating
problems.
Performing do−it−yourself maintenance
during the warranty period may affect your
warranty coverage. Read the separate
Toyota Warranty statement for details and
suggestions.
This section gives instructions only for
those items that are relatively easy for an
owner to perform. As explained in Section
6, there are still a number of items that
must be done by a qualified technician
with special tools.
For information on tools and parts for do −
it −yourself maintenance, see “Parts and
tools”.
Utmost care should be taken when work-
ing on your vehicle to prevent accidental
injury. Here are a few precautions that
you should be especially careful to ob-
serve:
04 04.06
Do −it −yourself service
precautions

1802005 ECHO HATCHBACK from Jul. ’04Prod. (OM52624U)
CAUTION

When the engine is running, keep
hands, clothing, and tools away
from the moving fan and engine
drive belts. (Removing rings,
watches, and ties is advisable.)

Right after driving, the engine
compartment—the engine, radiator,
exhaust manifold and spark plug
boots, etc.—will be hot. So be care-
ful not to touch them. Oil, fluids
and spark plugs may also be hot.

If the engine is hot, do not remove
the radiator cap or loosen the drain
plugs to prevent burning yourself.

Do not leave anything that may
burn easily, such as paper or rags,
in the engine compartment.

Do not smoke, cause sparks or al-
low open flames around fuel or the
battery. Their fumes are flammable.

Be extremely cautious when work-
ing on the battery. It contains poi-
sonous and corrosive sulfuric acid.

Do not get under your vehicle with
just the body jack supporting it. Al-
ways use automotive jack stands or
other solid supports.

Be sure that the ignition is off if
you work near the electric cooling
fans or radiator grille. With the
ignition on, the electric cooling fans
will automatically start to run if the
engine coolant temperature is high
and/or the air conditioning is on.

Use eye protection whenever you
work on or under your vehicle
where you may be exposed to flying
or falling material, fluid spray, etc.

Used engine oil contains potentially
harmful contaminants which may
cause skin disorders such as in-
flammation or skin cancer, so care
should be taken to avoid prolonged
and repeated contact with it. To re-
move used engine oil from your
skin, wash thoroughly with soap
and water.

Do not leave used oil within the
reach of children.

Dispose of used oil and filter only
in a safe and acceptable manner.
Do not dispose of used oil and fil-
ter in household trash, in sewers or
onto the ground. Call your dealer or
a service station for information
concerning recycling or disposal.

Take care when filling the brake and
clutch fluid reservoirs because
brake fluid can harm your eyes and
damage painted surfaces. If fluid
gets in your eyes, flush your eyes
with clean water immediately. If you
still feel uncomfortable with your
eyes, go to the doctor.
04 04.06

1812005 ECHO HATCHBACK from Jul. ’04Prod. (OM52624U)
NOTICE

Remember that battery and ignition
cables carry high currents or volt-
ages. Be careful of accidentally
causing a short circuit.

Add only “Toyota Super Long Life
Coolant” or similar high quality eth-
ylene glycol based non −silicate,
non− amine, non −nitrite, and non −bo-
rate coolant with long −life hybrid
organic acid technology to fill the
radiator. “Toyota Super Long Life
Coolant” is a mixture of 55% cool-
ant and 45% deionized water.

If you spill some of the coolant, be
sure to wash it off with water to
prevent it from damaging the parts
or paint.

Do not allow dirt or anything else
to fall through the spark plugholes.

Use only spark plugs of the speci-
fied type. Using other types will
cause engine damage, loss of per-
formance or radio noise.

Do not overfill automatic transmis-
sion fluid, or the transmission
could be damaged.

Do not drive with the air cleaner
filter removed, or excessive engine
wear could result. Also backfiring
could cause a fire in the engine
compartment.

Be careful not to scratch the glass
surface with the wiper frame.

When closing the engine hood,
check to see that you have not for-
gotten any tools, rags, etc.
Parts and tools
Here is a list of parts and tools you will
need to perform do −it−yourself mainte-
nance. Remember all Toyota parts are de-
signed in metric sizes, so your tools must
be metric.
CHECKING THE ENGINE OIL LEVEL
Parts (if level is low):

Engine oil API grade SL
“Energy −Conserving” or ILSAC
multigrade having viscosity proper for
your climate
Tools:

Rag or paper towel

Funnel (only for adding oil)
CHECKING THE ENGINE COOLANT
LEVEL
Parts (if level is low):

“Toyota Super Long Life Coolant” or
similar high quality ethylene glycol
based non −silicate, non −amine, non− ni-
trite, and non −borate coolant with long −
life hybrid organic acid technology.
“Toyota Super Long Life Coolant” is a
mixture of 55% coolant and 45% deion-
ized water.
Tools:

Funnel (only for adding coolant)
04 04.06

1822005 ECHO HATCHBACK from Jul. ’04Prod. (OM52624U)
CHECKING BRAKE FLUID
Parts (if level is low):

SAE J1703 or FMVSS No.116 DOT 3
brake fluid
Tools:

Rag or paper towel

Funnel (only for adding fluid)
CHECKING POWER STEERING FLUID
Parts (if level is low):

Automatic transmission fluid
DEXRON®II or III
Tools:

Rag or paper towel

Funnel (only for adding fluid)
CHECKING BATTERY CONDITION
Tools:

Warm water

Baking soda

Grease

Conventional wrench (for terminal
clamp bolts)
CHECKING AND REPLACING FUSES
Parts (if replacement is necessary):

Fuse with same amperage rating as
original ADDING WASHER FLUID
Parts:

Water

Washer fluid containing antifreeze (for
winter use)
Tools:

Funnel
REPLACING LIGHT BULBS
Parts:

Bulb with same number and wattage
rating as original (See charts in
“Replacing light bulbs” in Section 7 −3.)
Positioning the jack
SH71009
Do not jack up Do not jack up
Attachment
Lower back outer
panel (protrusion)
When jacking up your vehicle with the
jack, position the jack correctly as
shown in the illustration.
Jack position
. . . . . . . . . .
Front—Front suspension member
Rear—Lower back outer panel
Support position for
Pantograph jack
. . . . . .
04 04.06
