Type A fuses can be pulled out by the
pull−out tool. The location of the pull −out
tool is shown in the illustration.
If you are not sure whether the fuse has
blown, try replacing the suspected fuse
with one that you know is good.
If the fuse has blown, push a new fuse
into the clip.
Only install a fuse with the amperage rat-
ing designated on the fuse box lid.
If you do not have a spare fuse, in an
emergency you can pull out the “A.C”
fuse, which may be dispensable for
normal driving, and use it if its amperage
rating is the same.
If you cannot use one of the same amper-
age, use one that is lower, but as close
to the rating as possible. If the amperage
is lower than that specified, the fuse
might blow out again but this does not
indicate anything wrong. Be sure to get
the correct fuse as soon as possible and
return the substitute to its original clip.
It is a good idea to purchase a set of
spare fuses and keep them in your ve-
hicle for emergencies. If the new fuse immediately blows out,
there is a problem with the electrical sys-
tem. Have your Toyota dealer correct it as
soon as possible.
CAUTION
Never use a fuse with a higher am-
perage rating, or any other object, in
place of a fuse. This may cause ex-
tensive damage and possibly a fire.
Adding washer fluid
If any washer does not work or the low
windshield washer fluid level warning
light comes on, the washer tank may be
empty. Add washer fluid.
You may use plain water as washer fluid.
However, in cold areas where tempera-
tures range below the freezing point, use
washer fluid containing antifreeze. This
product is available at your Toyota dealer
and most auto parts stores. Follow the
manufacturer ’s directions for how much to
mix with water.
NOTICE
Do not use engine antifreeze or any
other substitute because it may dam-
age your vehicle’s paint.
04 04.06

2042005 ECHO HATCHBACK from Jul. ’04Prod. (OM52624U)
Replacing light bulbs—
The following illustrations show how to
gain access to the bulbs. When replacing
a bulb, make sure the ignition switch and
light switch are off. Use bulbs with the
wattage ratings given in the table.
CAUTION

To prevent burning yourself, do not
replace the light bulbs while they
are hot.

Halogen bulbs have pressurized gas
inside and require special handling.
They can burst or shatter if
scratched or dropped. Hold a bulb
only by its plastic or metal case.
Do not touch the glass part of a
bulb with bare hands.
NOTICE
Only use a bulb of the listed type.
The inside of the lens of exterior lights
such as headlights may temporarily fog up
when the lens becomes wet in the rain or
in a car wash. This is not a problem
because the fogging is caused by the
temperature difference between the outside
and inside of the lens, just like the
windshield fogs up in the rain. However, if
there is a large drop of water on the
inside of the lens, or if there is water
pooled inside the light, contact your
Toyota dealer.Light bulbsBulb
No.WTy p e
HeadlightsHB260/55A
Parking lightsW5W5C
Front side marker
lights1943.8C
Front turn signal
lights744321D
Side turn signal
lightsW5W5C∗
Rear turn signal
lightsPY21W21B
Stop/tail and rear
side marker lights744321/5C
Back −up lights744021C
License plate lightsW5W5C
High mounted
stoplight92118C
Interior light—8E
Personal light—8C
Luggage
compartment light—5E
04 04.06

2052005 ECHO HATCHBACK from Jul. ’04Prod. (OM52624U)
∗: Side turn signal lights should be re-
placed as an assembly.
A: HB2 halogen bulbs
B: Single end bulbs (amber)
C: Wedge base bulbs
D: Wedge base bulbs (amber)
E: Double end bulbs
—Headlights

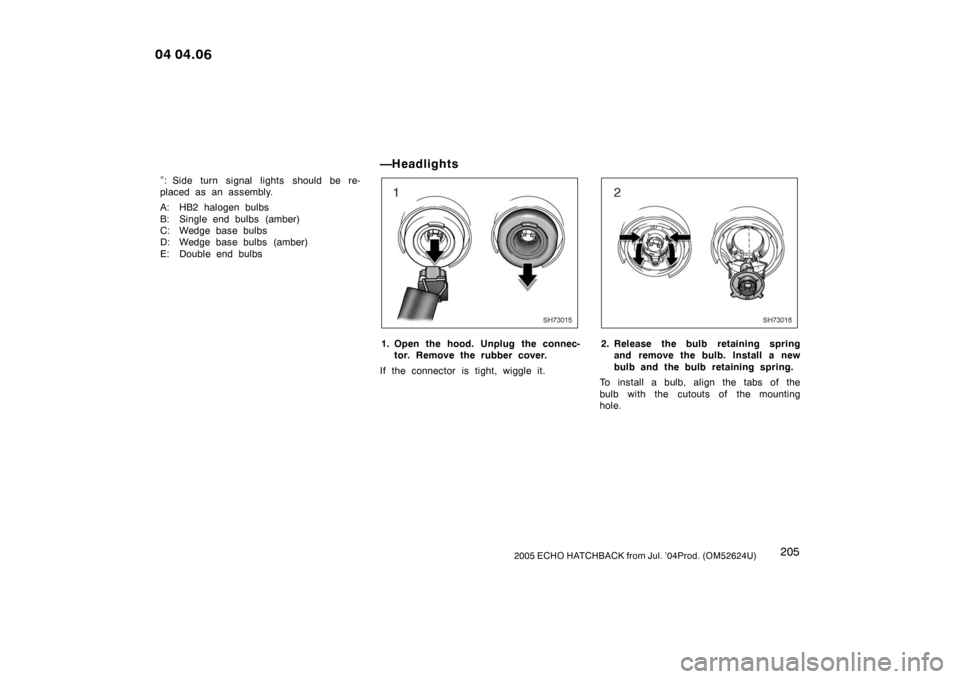

SH73015
1. Open the hood. Unplug the connec- tor. Remove the rubber cover.
If the connector is tight, wiggle it.
SH73016
2. Release the bulb retaining spring and remove the bulb. Install a new
bulb and the bulb retaining spring.
To install a bulb, align the tabs of the
bulb with the cutouts of the mounting
hole.
04 04.06

2062005 ECHO HATCHBACK from Jul. ’04Prod. (OM52624U)

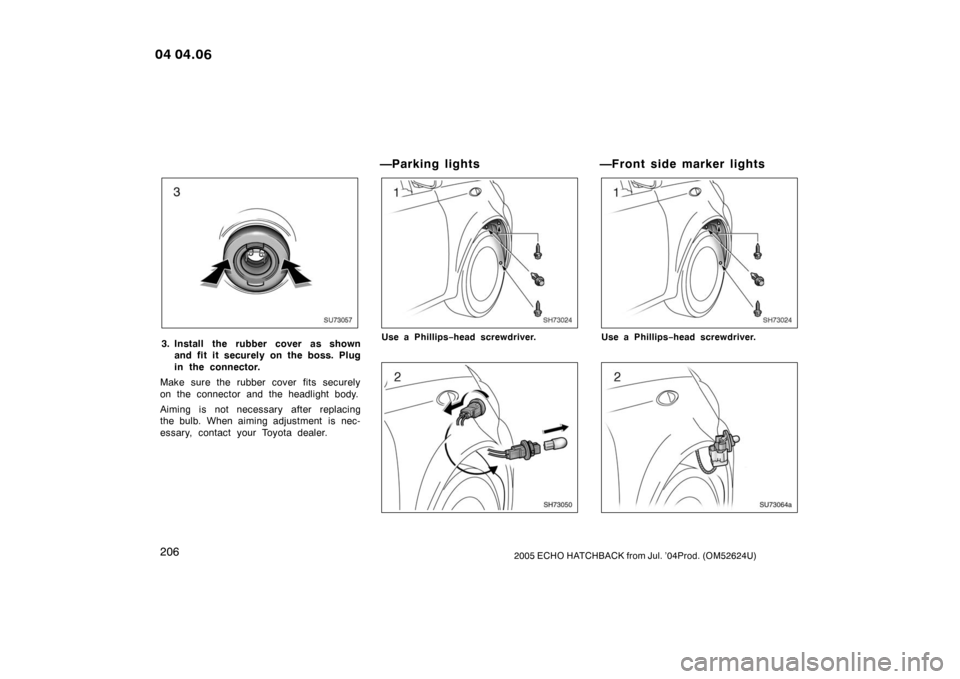

SU73057
3. Install the rubber cover as shownand fit it securely on the boss. Plug
in the connector.
Make sure the rubber cover fits securely
on the connector and the headlight body.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.
—Parking lights
SH73024
Use a Phillips −head screwdriver.
SH73050
—Front side marker lights
SH73024
Use a Phillips −head screwdriver.
SU73064a
04 04.06

2072005 ECHO HATCHBACK from Jul. ’04Prod. (OM52624U)
SU73059b
Right side
SU73065a
Left side
SU73060a

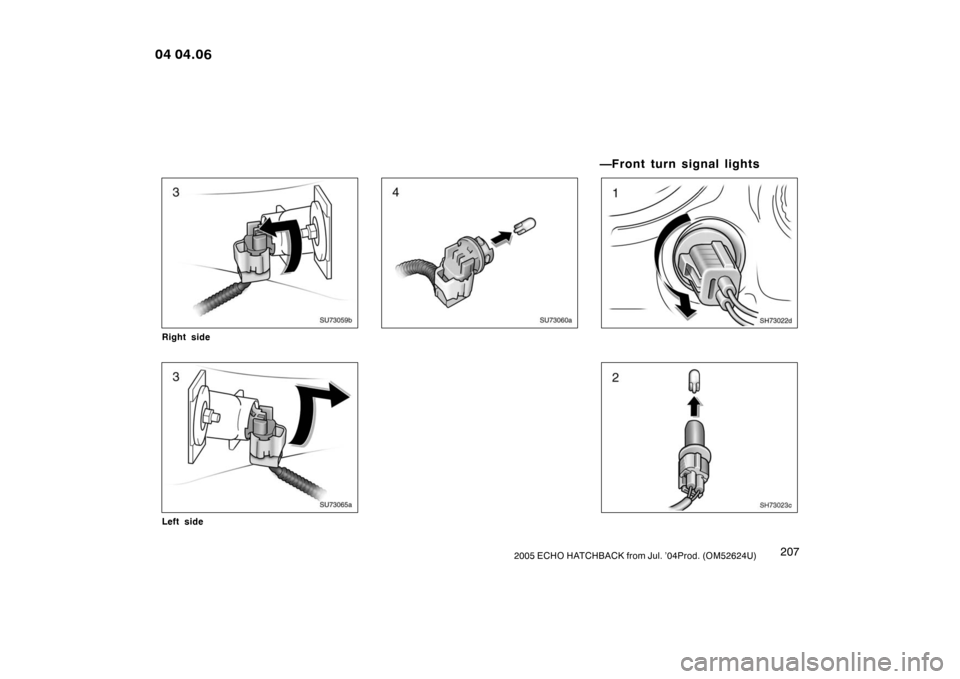

—Front turn signal lights
SH73022d
SH73023c
04 04.06

2082005 ECHO HATCHBACK from Jul. ’04Prod. (OM52624U)

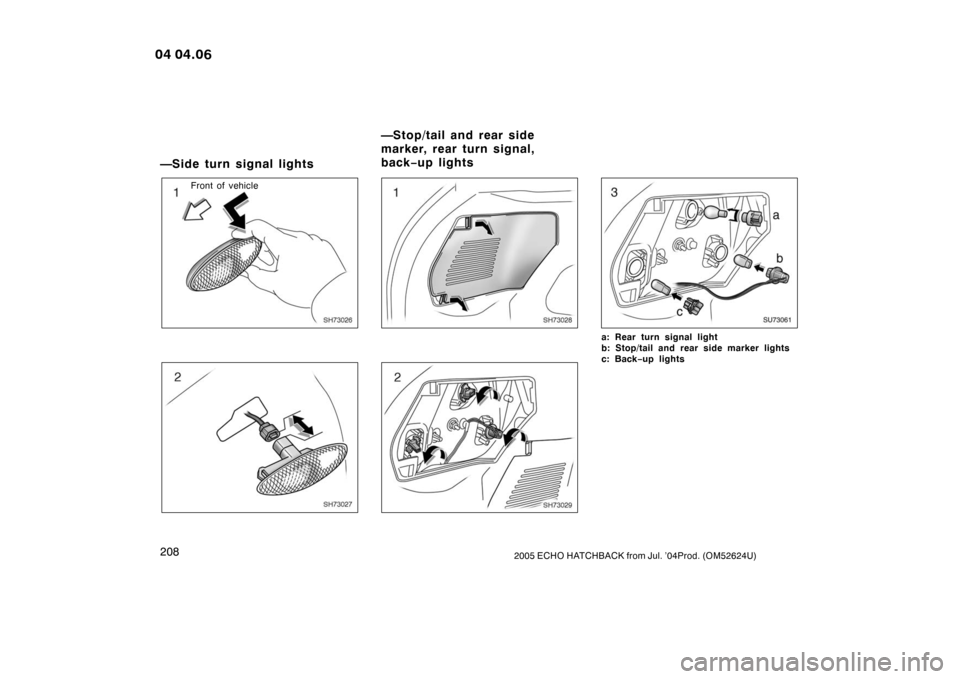

—Side turn signal lights
SH73026
Front of vehicle
SH73027
SH73028
SH73029
SU73061
a: Rear turn signal light
b: Stop/tail and rear side marker lights
c: Back−up lights
04 04.06
—Stop/tail and rear side
marker, rear turn signal,
back− up lights

2092005 ECHO HATCHBACK from Jul. ’04Prod. (OM52624U)

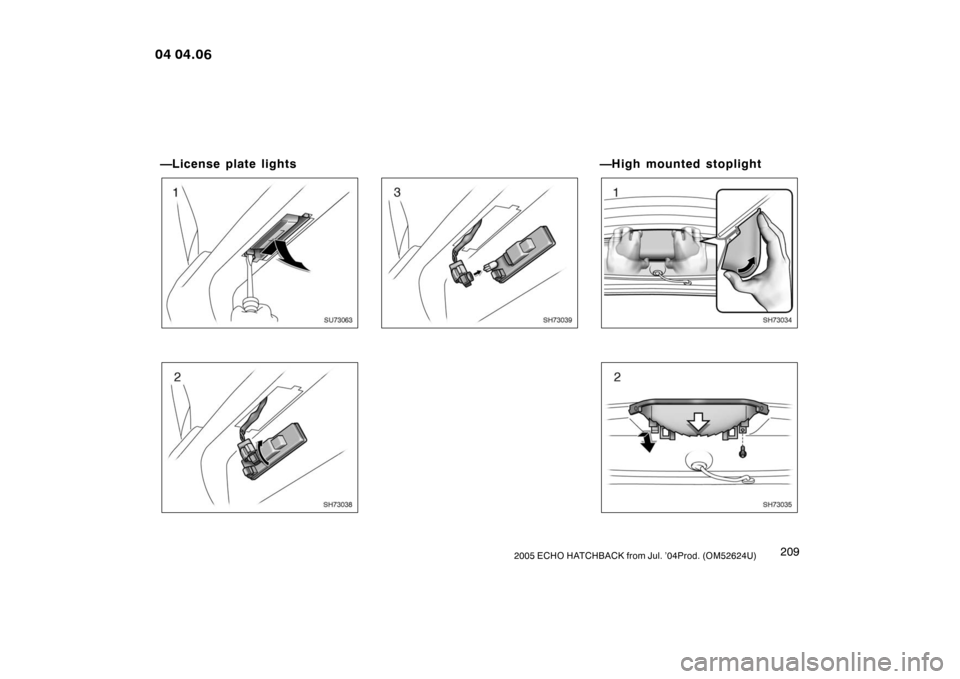

—License plate lights
SU73063
SH73038
SH73039
—High mounted stoplight
SH73034
SH73035
04 04.06

2102005 ECHO HATCHBACK from Jul. ’04Prod. (OM52624U)
SH73036
