TOYOTA YARIS 2008 2.G Owners Manual

181
3-2. Using the audio system
3
Interior features
■
When the battery is disconnected
Stations presets are erased.
■ Reception sensitivity
●Maintaining perfect radio reception at all times is difficult due to the con-
tinually changing position of the antenna, differences in signal strength
and surrounding objects, such as trains, transmitters, etc.
● The radio antenna is mounted on the rear roof. The antenna can be
removed from the base by turning it.
NOTICE
■To prevent damage, remove the antenna in the following cases.
●The antenna will touch the ceiling of a garage.
● A cover will be put on the vehicle.

182
3-2. Using the audio system
Using the cassette player
Selecting a track■ Skip a number of tracks at a time.
Press “ ” on .
Press “ ” until the number you want to skip appears.
9 tracks can be skipped at a time.
■ Rewind a number of tracks at a time.
Press “ ” on .
Press “ ” until the number you want to rewind appears.
9 tracks can be rewound at a time.
Note that the number includes the current track.
Type A (with external ca ssette tape player only)
Power Volume
Repeat play Playback
Noise reduction
Change playback direction
Fast-forward
Reverse
Track selection

183
3-2. Using the audio system
3
Interior features
Using Dolby® B Noise Reduction
Press .
Reduces the level of noise for tapes recorded with Dolby
® B NR only.
Dolby noise reduction is manufactured under license from Dolby Labora-
tories Licensing Corporation. DOLBY and the double-D symbol are
registered trademarks of Dolby Laboratories.
■ Canceling noise reduction
Press ( ) again.
■ Canceling repeat playback
Press
(RPT) again.
■ Canceling reverse and fast-forward
Press ( ) or ( ) again.
■ Auto-reverse feature
After the cassette player reaches the end of a tape, it automatically reverses
and begins to play the other side, regardless of whether the cassette was
playing or fast forwarding.
■ When the cassette player does not operate correctly due to the cas-
sette recording conditions
Forwarding to the beginning of a track and repeat play may not be possib\
le
in the following situations:
●The interval between tracks is less than 3 seconds.
● When there is noise between 2 tracks.
● The beginning and end of subsequent tracks are not clearly defined.

184 3-2. Using the audio system
■Cleaning the cassette player
Cassette player components (heads, capstan, pinch rollers) should be
cleaned at least once a month using a cleaning tape to remove dirt and dust
that can easily build up.
■ Using long playing cassette tapes
Avoid using tapes with a length of more than 90 minutes, as the tape used is
very thin and may become tangled in the cassette player.
NOTICE
■Cassette tapes that cannot be used
Do not use a cassette tape if it has been damaged or tangled or if its label is
peeling off. Such tapes may affect playing speed and may also get stuck in
the player.
■ Cassette player precautions
●Store cassette tapes away from direct sunlight.
● Do not insert anything other than cassette tapes into the cassette player.
● Do not apply oil to the cassette player.

185
3-2. Using the audio system
3
Interior features

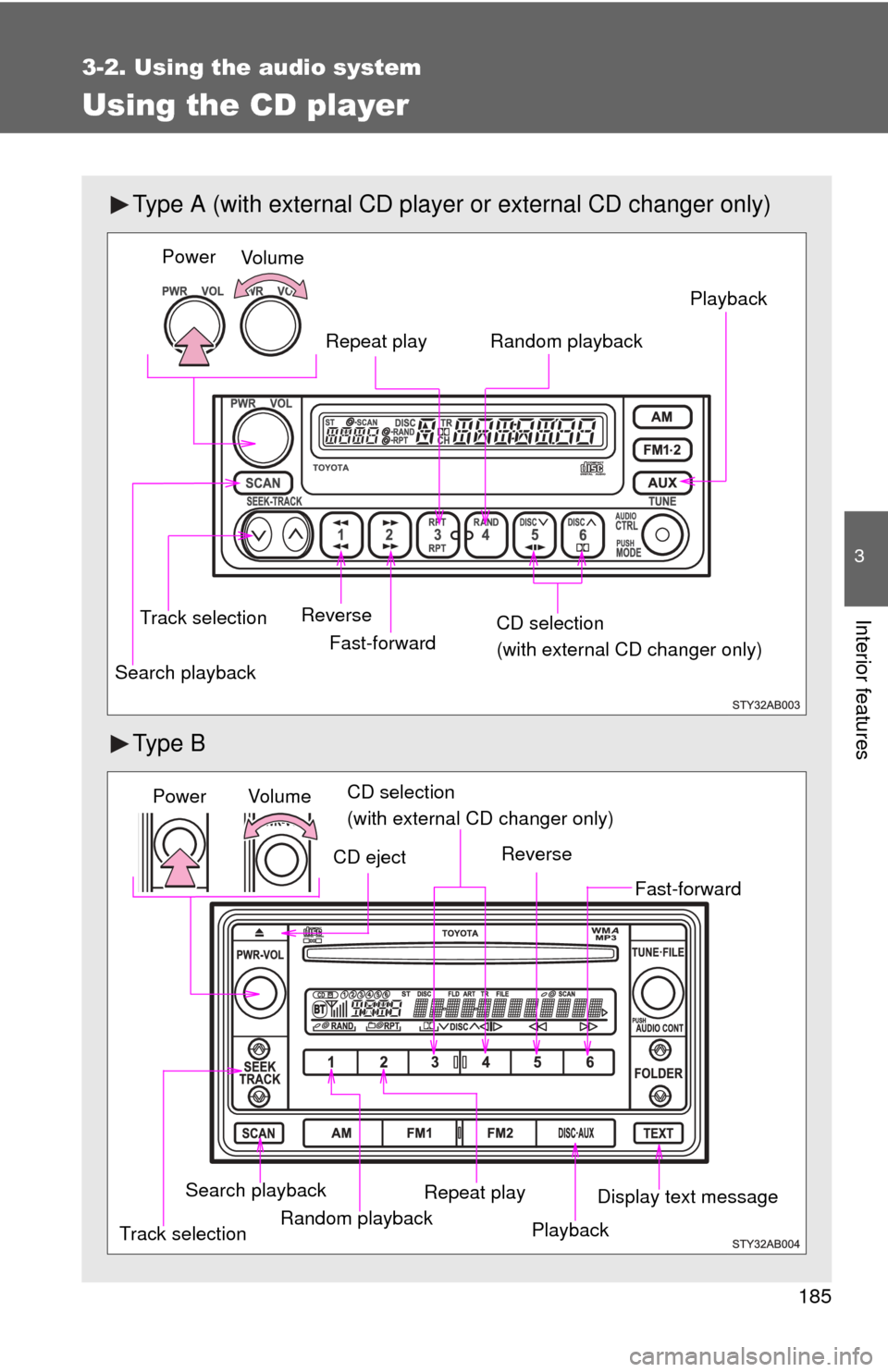

Using the CD player
Type A (with external CD player or external CD changer only)
Ty p e B
Vo l u m e
Power
CD selection
(with external CD changer only)
Reverse
Repeat play Playback
Fast-forward
Track selectionRandom playback
Search playback
Vol u m e
Random playback
Track selection Repeat play
Playback
Power
CD eject
Display text message
CD selection
(with external CD changer only)
Search playback
Reverse
Fast-forward

186 3-2. Using the audio system
Loading a CD (Type B only)Insert a CD.
Ejecting a CD (Type B only)Press and remove the CD.
Selecting and scanning a track■ Selecting a track
Press “
” to move up or “ ” to move down using or
until the desired track number is displayed.
■ Scanning tracks
Press or .
The first 10 seconds of each track will be played.
Press the switch again when the desired track is reached.
Fast-forwarding and reversing tracks
To fast-forward or reverse.
Type A: Press and hold ( ) or ( ).
Type B: Press and hold ( ) or ( ).
Selecting a CD (with exte rnal CD changer only)
■ Selecting the desired CD
Type A: Press ( ) or (
).
Type B: Press ( ) or (
).

187
3-2. Using the audio system
3
Interior features
■
Scanning loaded CDs
Press and hold or until you hear a beep.
The first 10 seconds of the first track on each CD will be played.
Press the switch again wh en the desired CD is reached.
Repeat play
■ Repeating a track
Press (RPT) or (RPT).
■ Repeating all of the tracks on a CD (with external CD changer
only)
Press and hold (RPT) or (RPT) until you hear a beep.
Random playback
■ Current CD
Press (RAND) or (RAND).
Tracks are played in a random order until the button is pressed once
more.
■All CDs (with externa l CD changer only)
Press and hold (RAND) or (RAND) until you hear a
beep.
Tracks on all loaded CDs are played in a random order until the button is
pressed once more.
Switching the display (Type B only) Press .
Each time the switch is pressed, the display changes in the order of Track
no./Elapsed time CD titleTrack name.

188 3-2. Using the audio system
■Display (Type B only)
Up to 12 characters can be displayed at a time.
If there are 13 characters or more, pressing and holding
for 1 second
or more will display the remaining characters.
A maximum of 24 characters can be displayed.
If
is pressed for 1 second or more again or has not been pressed for
6 seconds or more, the display will return to the first 12 characters.
Depending on the contents recorded, the characters may not be displayed
properly or may not be displayed at all.
■ Canceling random playback
Press
(RAND) or (RAND) again.
■ Canceling repeat play
Press
(RPT) or (RPT) again.
■ Error messages
Refer to the following table and take the appropriate measures. If the prob-
lem is not rectified, take the vehicle to your Toyota dealer.
Type A
MessageCauseCorrection
Procedures
Err 1
• The disc may be dirty or damaged
• The disc may be inserted upside down• Clean the disc
• Insert the disc cor-rectly
Err 2There is no disc in the
external CD changerInsert a disc
Err 3 or 4There is a problem
within the systemEject the disc or mag-
azine

189
3-2. Using the audio system
3
Interior features
Type B
■ Discs that can be used
Discs with the marks shown below can be used.
Playback may not be possible depending on recording format or disc fea-
tures, or due to scratches, dirt or deterioration.
CDs with copy-protect features may not be used.
MessageCauseCorrection
Procedures
WAIT
Operation is stopped
due to a high temper-
ature inside the playerEject the disc and
allow the player to
cool down
OPEnThe external CD
changer lid is openClose the lid
MessageCauseCorrection
Procedures
ERROR 1
• The disc may be dirty or damaged
• The disc may be inserted upside down• Clean the disc
• Insert the disc cor- rectly
ERROR 3There is a problem
within the systemEject the disc or mag-
azine
ERROR 4Over-currentAsk your Toyota
dealer
WAIT
Operation is stopped
due to a high temper-
ature inside the playerEject the disc and
allow the player to
cool down
CD OPENThe external CD
changer lid is openClose the lid
NO DISCThere is no disc in the
external CD changerInsert a disc

190 3-2. Using the audio system
■CD player protection feature
To protect the internal components, playback is automatically stopped when
a problem is detected while the CD player is being used.
■ If CDs are left inside the CD player or in the ejected position for
extended periods
CDs may be damaged and may not play properly.
■ Lens cleaners
Do not use lens cleaners. Doing so may damage the CD player.
NOTICE
■CDs and adapters that cannot be used
Do not use the following types of CDs or 3 in. (8 cm) CD adapters or D\
ual
Disc.
Doing so may damage the CD player and/or the CD insert/eject function.
●CDs that have a diameter that is not 4.7
in. (12 cm)
● Low-quality and deformed CDs
