TOYOTA YARIS 2010 3.G User Guide

11
Seat belts P. 56
SRS driver airbag P. 85
Head restraints P. 50
Front seats P. 40
SRS side airbags P. 85
Floor mats P. 232
SRS front passenger
airbag
P. 85
Security indicator
P. 78, 80
Power window
switches
P. 71
5-door models
Rear seats P. 43
: If equipped
Horn P. 138

12
Pictorial indexInterior
Anti-glare inside
rear view mirror
P. 67
Interior light P. 219
Vanity mirrors P. 228
Personal lights P. 219
Sun visors P. 227
SRS curtain shield airbags P. 85

13
Window lock switch P. 72Power window switches P. 71
Door lock switch P. 32
3-door models
5-door models
Window lock switch P. 72Power window switches P. 71
Door lock switch P. 32
: If equipped
Inside door lock
button
P. 33
Inside door lock
button
P. 33

14
Cup holder P. 222
Parking brake lever P. 136
Shift lever P. 132,134
Door lock switch P. 32
Shift lock override button P. 339
Pictorial indexInterior
VSC OFF switch
AUX adapter

P. 161
P. 217

15
Pictorial indexInstrument panel
Fog light switch P. 151Rear window wiper
and washer switch
 P. 155
Tilt steering lock release lever P. 66
Hood opener P. 250
Gauges and meters
P. 139
Audio system P. 195
Glove boxes P. 221
Fuel filler door
opener
P. 74
Auxiliary boxes
P. 225
Bottle holder
P. 223
Windshield wipers and
washer switch
P. 152Turn signal lever P. 135
Headlight switch P. 149
: If equipped

16
Emergency flasher switch P. 304
Pictorial indexInstrument panel

17
Rear window defogger switch/rear window
defogger and outside rear view mirror defogger
switch
 P. 193
Air conditioning system P. 186
Power outletP. 231

: If equipped

18
: If equipped

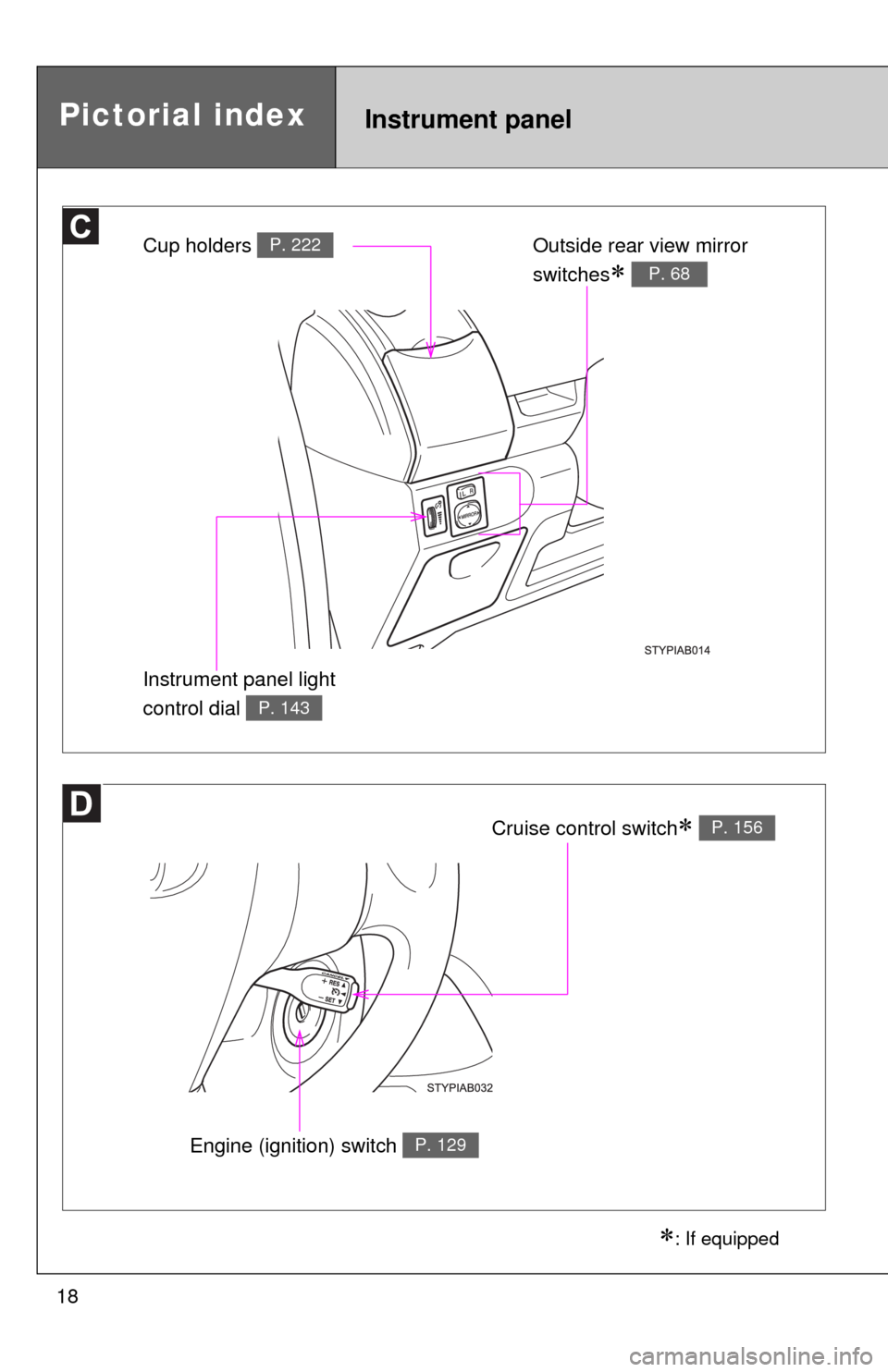

Cup holders P. 222Outside rear view mirror
switches
 P. 68
Instrument panel light
control dial
P. 143
Pictorial indexInstrument panel
Cruise control switch P. 156
Engine (ignition) switch P. 129

19

20
For your information
Main Owners Manual
Please note that this manual applies to all models explains and all equip-
ment, including options. Therefore, you may find some explanations for
equipment not installed on your vehicle.
All specifications provided in this manual are current at the time of printing.
However, because of the Toyota policy of continual product improvement, we
reserve the right to make changes at any time without notice.
Depending on specifications, the vehicle shown in the illustrations may differ
from your vehicle in terms of equipment.
Noise from under vehicle after turning off the engine
Approximately five hours after the engine is turned off, you may hear sound
coming from under the vehicle for several minutes. This is the sound of a fuel
evaporation leakage check and, it does not indicate a malfunction.
Accessories, spare parts and modification of your Toyota
A wide variety of non-genuine spare parts and accessories for Toyota
vehicles are currently available in the market. You should know that Toyota
does not warrant these products and is not responsible for their
performance, repair, or replacement, or for any damage they may cause to,
or adverse effect they may have on, your Toyota vehicle.
This vehicle should not be modified with non-genuine Toyota products.
Modification with non-genuine Toyota products could affect its performance,
safety or durability, and may even violate governmental regulations. In
addition, damage or performance problems resulting from the modification
may not be covered under warranty.
