51 1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving

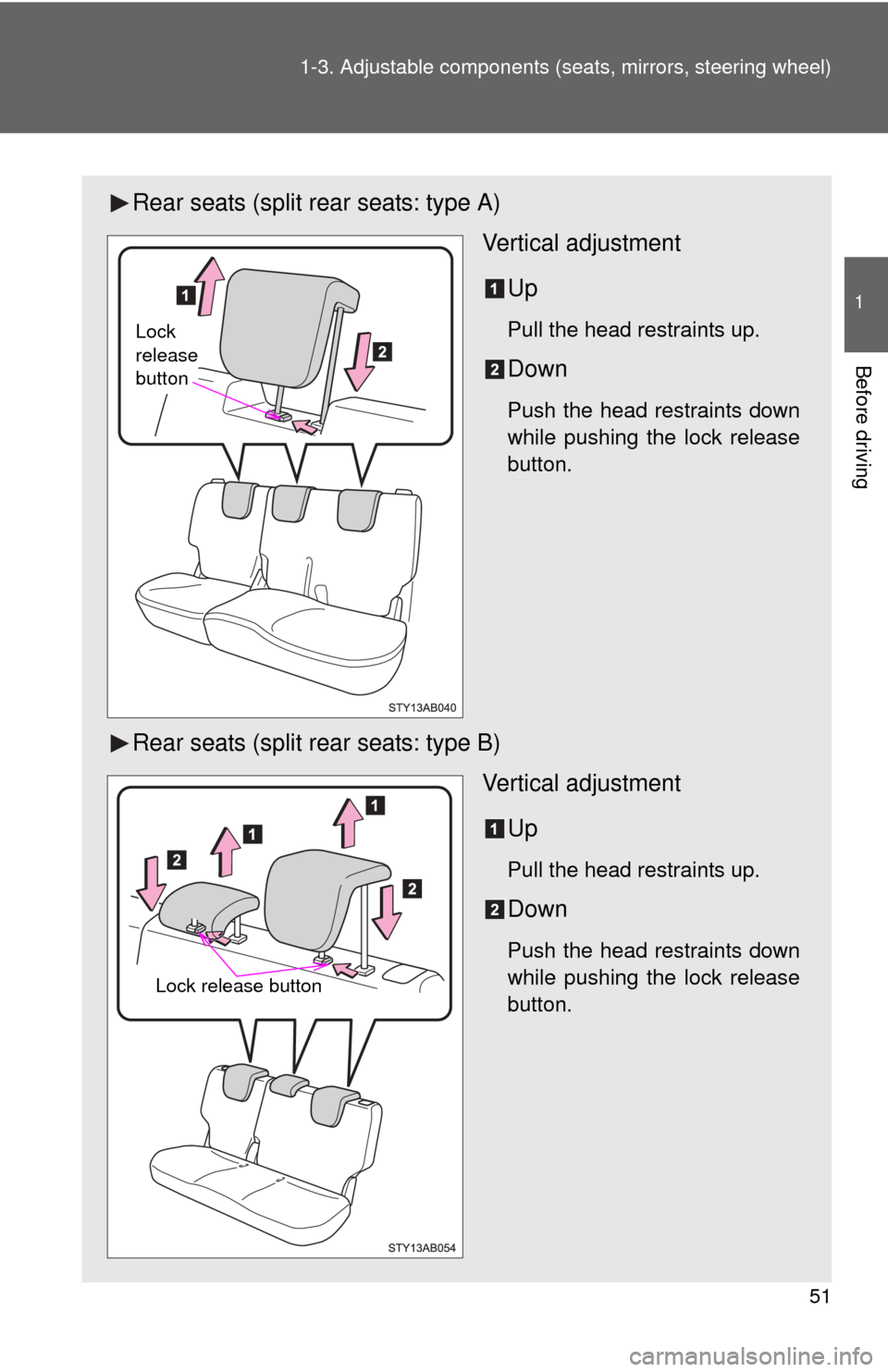

Rear seats (split rear seats: type A)
Vertical adjustment
Up
Pull the head restraints up.
Down
Push the head restraints down
while pushing the lock release
button.
Rear seats (split rear seats: type B)
Vertical adjustment
Up
Pull the head restraints up.
Down
Push the head restraints down
while pushing the lock release
button.
Lock
release
button
Lock release button

52 1-3. Adjustable components (seats, mirrors, steering wheel)

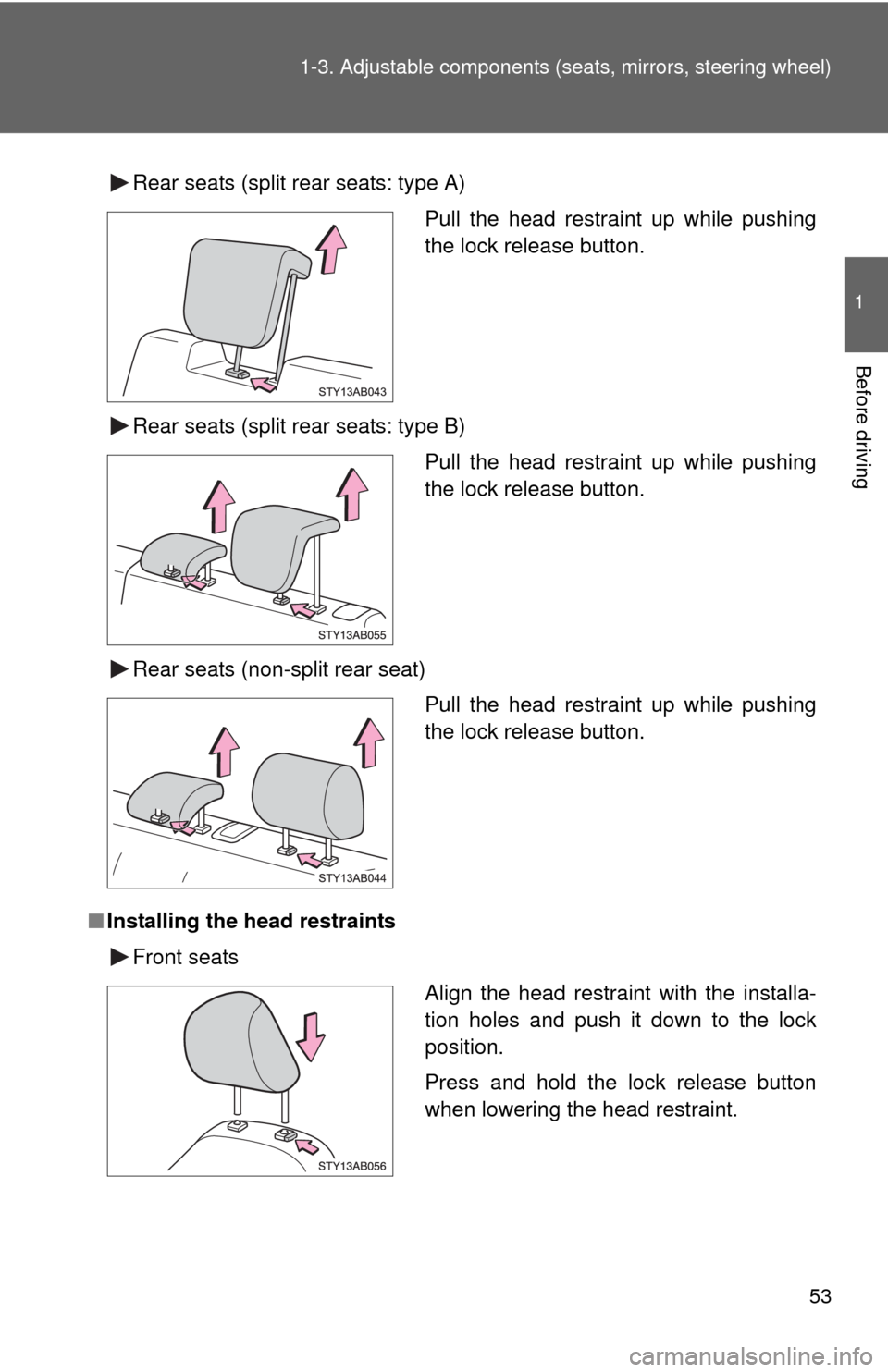

■Removing the head restraints
Front seats
Rear seats (non-split rear seat)
Vertical adjustment
Up
Pull the head restraints up.
Down
Push the head restraints down
while pushing the lock release
button.
Lock release button
Pull the head restraint up while pushing
the lock release button.

53 1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
Rear seats (split rear seats: type A)
Rear seats (split rear seats: type B)
Rear seats (non-split rear seat)
■Installing the head restraints
Front seats
Pull the head restraint up while pushing
the lock release button.
Pull the head restraint up while pushing
the lock release button.
Pull the head restraint up while pushing
the lock release button.
Align the head restraint with the installa-
tion holes and push it down to the lock
position.
Press and hold the lock release button
when lowering the head restraint.

54 1-3. Adjustable components (seats, mirrors, steering wheel)
Rear seats (split rear seats: type A)
Rear seats (split rear seats: type B)
Rear seats (non-split rear seat)

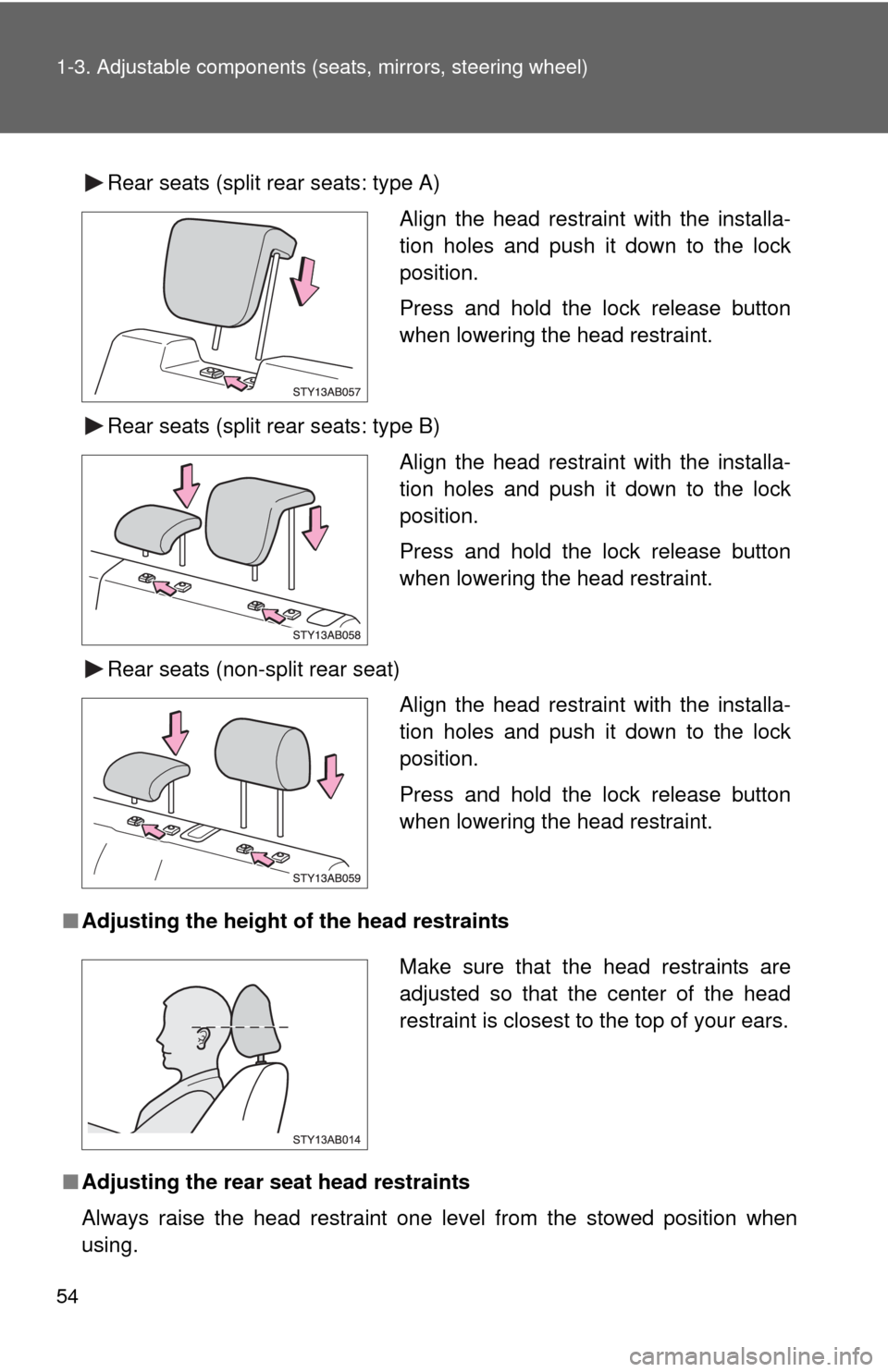

■Adjusting the height of the head restraints
■Adjusting the rear seat head restraints
Always raise the head restraint one level from the stowed position when
using.
Align the head restraint with the installa-
tion holes and push it down to the lock
position.
Press and hold the lock release button
when lowering the head restraint.
Align the head restraint with the installa-
tion holes and push it down to the lock
position.
Press and hold the lock release button
when lowering the head restraint.
Align the head restraint with the installa-
tion holes and push it down to the lock
position.
Press and hold the lock release button
when lowering the head restraint.
Make sure that the head restraints are
adjusted so that the center of the head
restraint is closest to the top of your ears.

55 1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
CAUTION
■Head restraint precautions
Observe the following precautions regarding the head restraints. Failure to
do so may result in death or serious injury.
●Use the head restraints designed for each respective seat.
●Adjust the head restraints to the correct position at all times.
●After adjusting the head restraints, push down on them and make sure
they are locked in position.
●Do not drive with the head restraints removed.

56
1-3. Adjustable components (seats, mirrors, steering wheel)

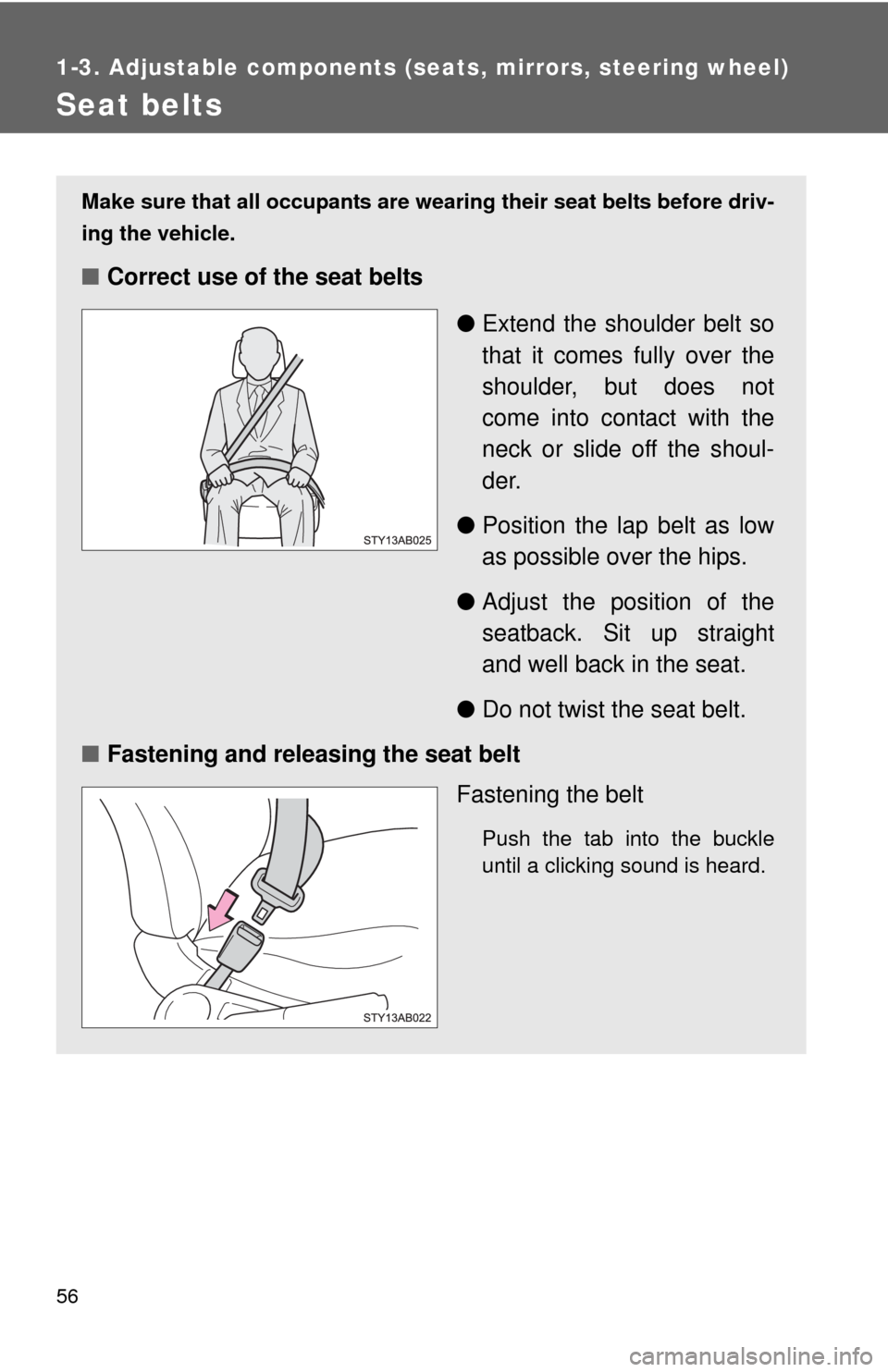

Seat belts
Make sure that all occupants are wearing their seat belts before driv-
ing the vehicle.
■Correct use of the seat belts
●Extend the shoulder belt so
that it comes fully over the
shoulder, but does not
come into contact with the
neck or slide off the shoul-
der.
●Position the lap belt as low
as possible over the hips.
●Adjust the position of the
seatback. Sit up straight
and well back in the seat.
●Do not twist the seat belt.
■Fastening and releasing the seat belt
Fastening the belt
Push the tab into the buckle
until a clicking sound is heard.

57 1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
Rear center seat belt
The rear center seat belt is a 3-point type restraint with 2 buckles. Both
seat belt buckles must be correctly located and securely latched for
proper operation.
Make sure that the buckle is
securely latched for ready use of
the center seat belt.
Matches the tab with the
hooked end
Matches the tab with the con-
cave end

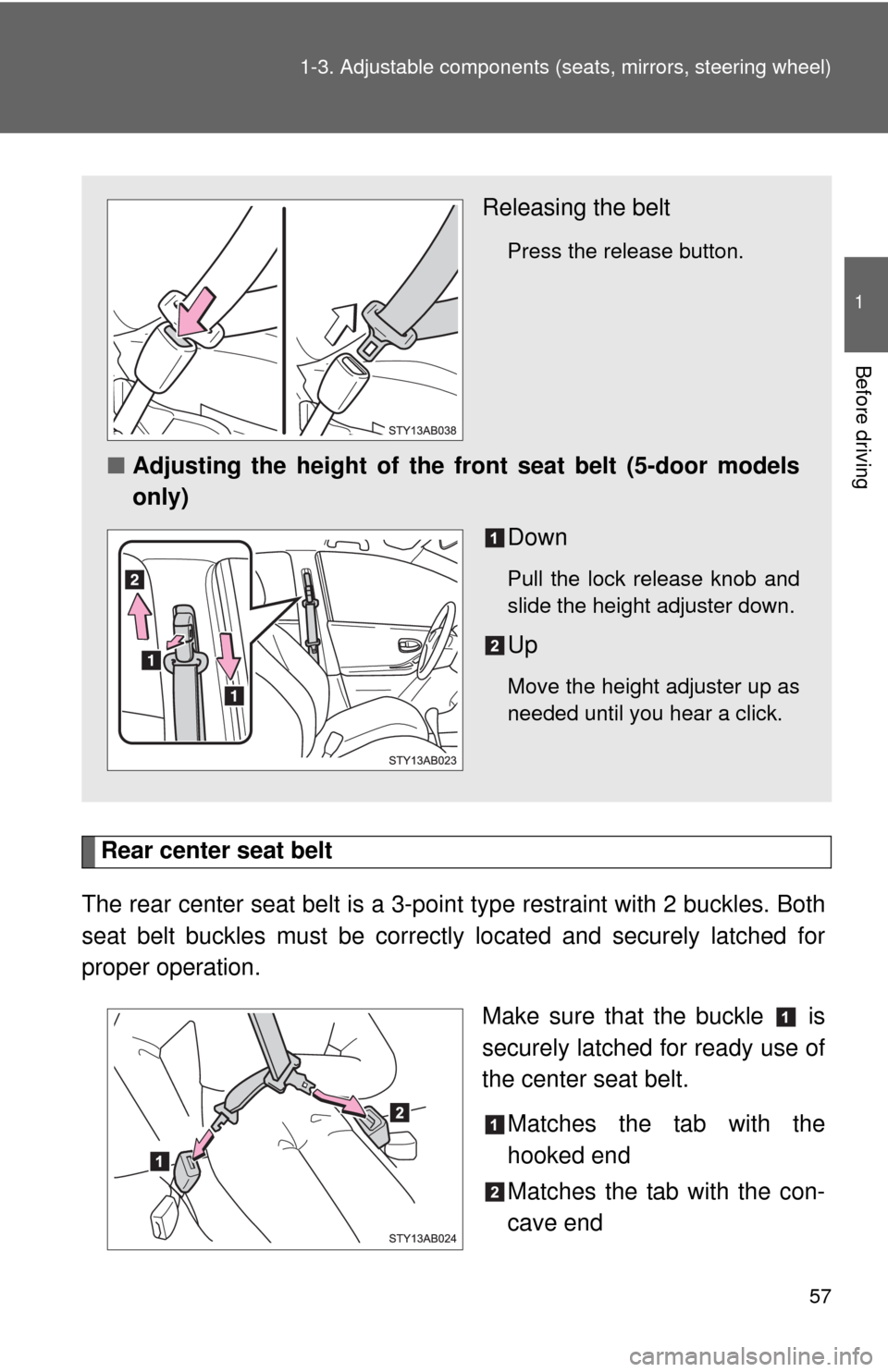

Releasing the belt
Press the release button.
■Adjusting the height of the front seat belt (5-door models
only)
Down
Pull the lock release knob and
slide the height adjuster down.
Up
Move the height adjuster up as
needed until you hear a click.

58 1-3. Adjustable components (seats, mirrors, steering wheel)

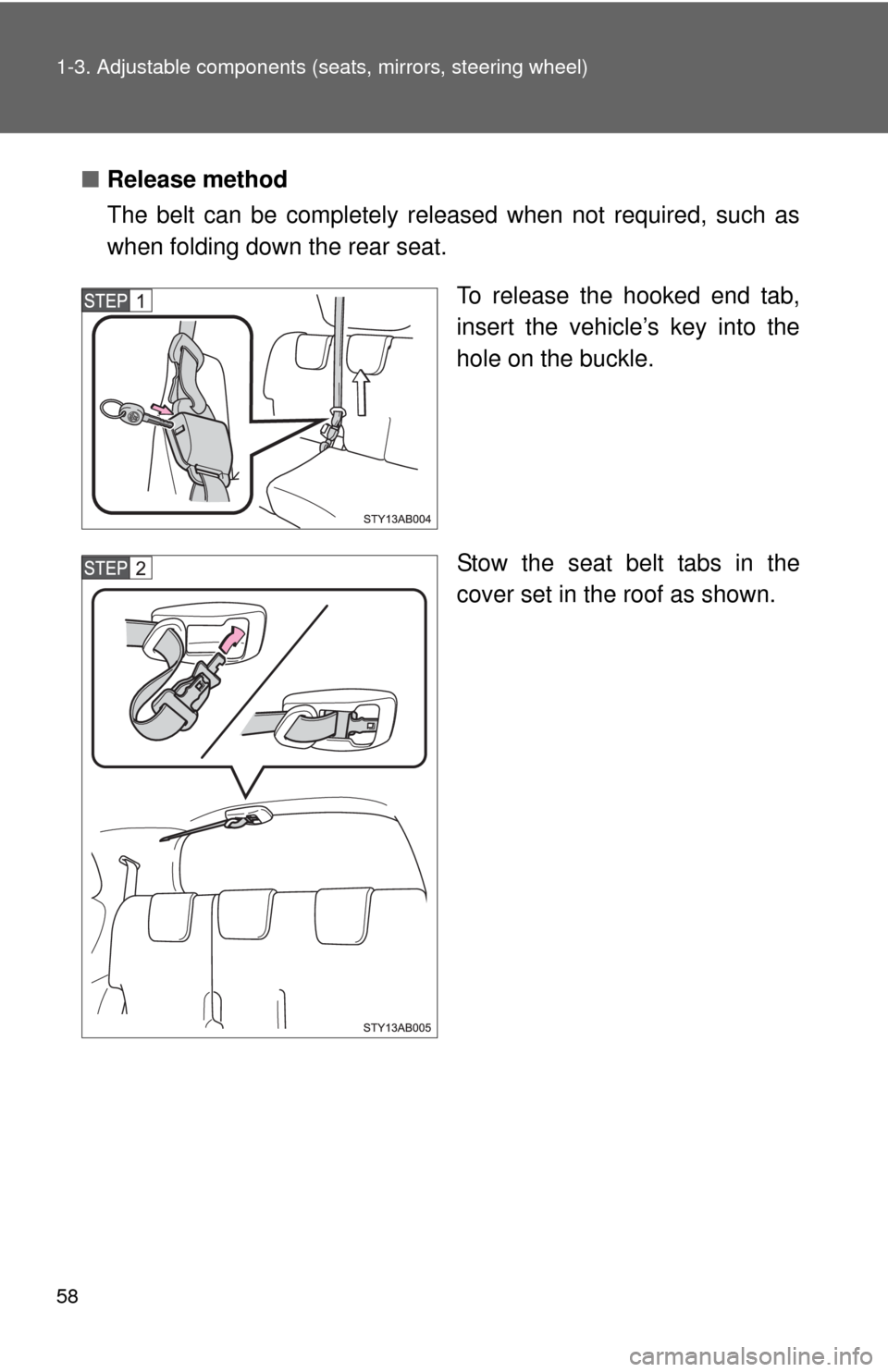

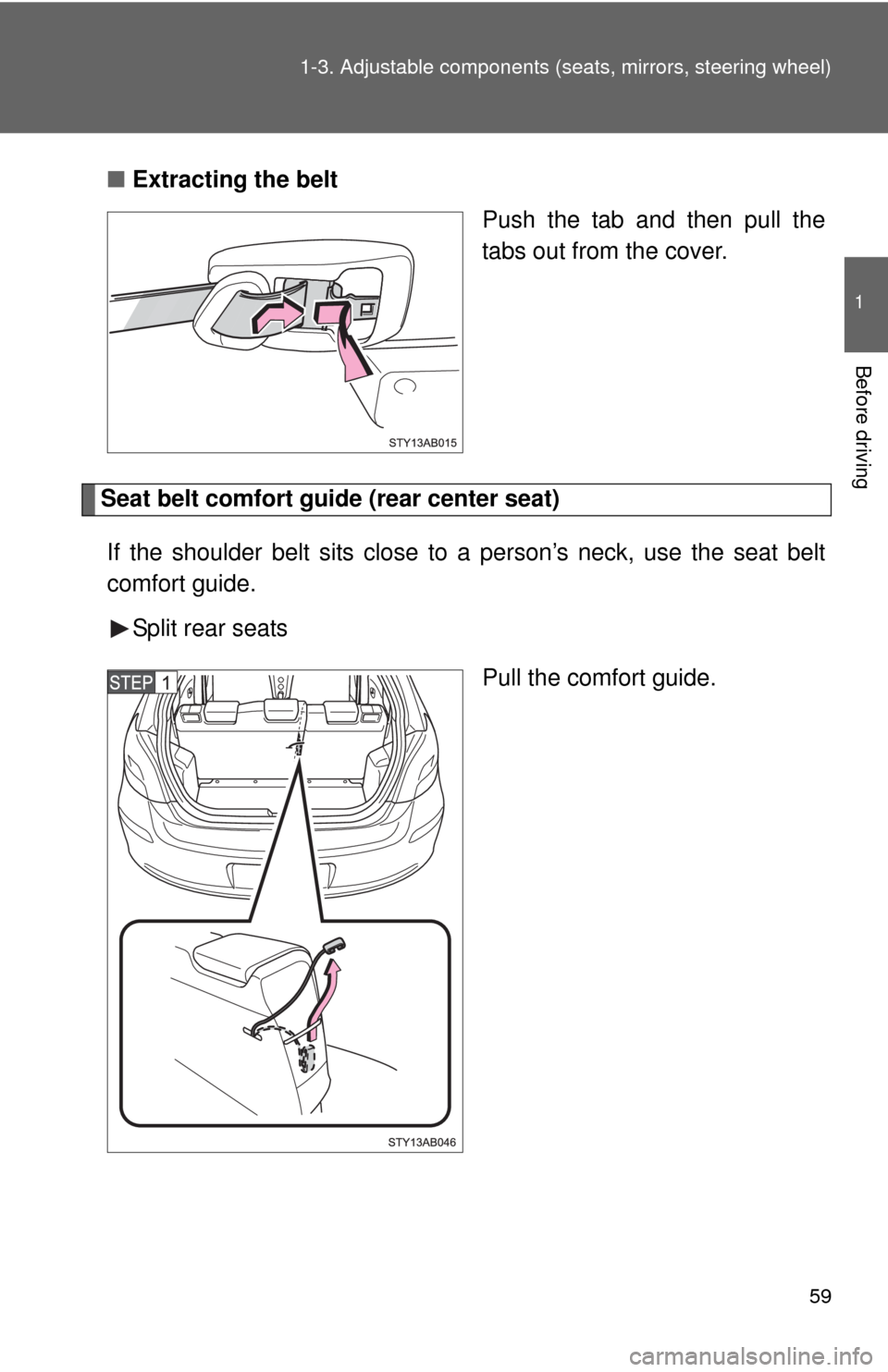

■Release method
The belt can be completely released when not required, such as
when folding down the rear seat.
To release the hooked end tab,
insert the vehicle’s key into the
hole on the buckle.
Stow the seat belt tabs in the
cover set in the roof as shown.

59 1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving

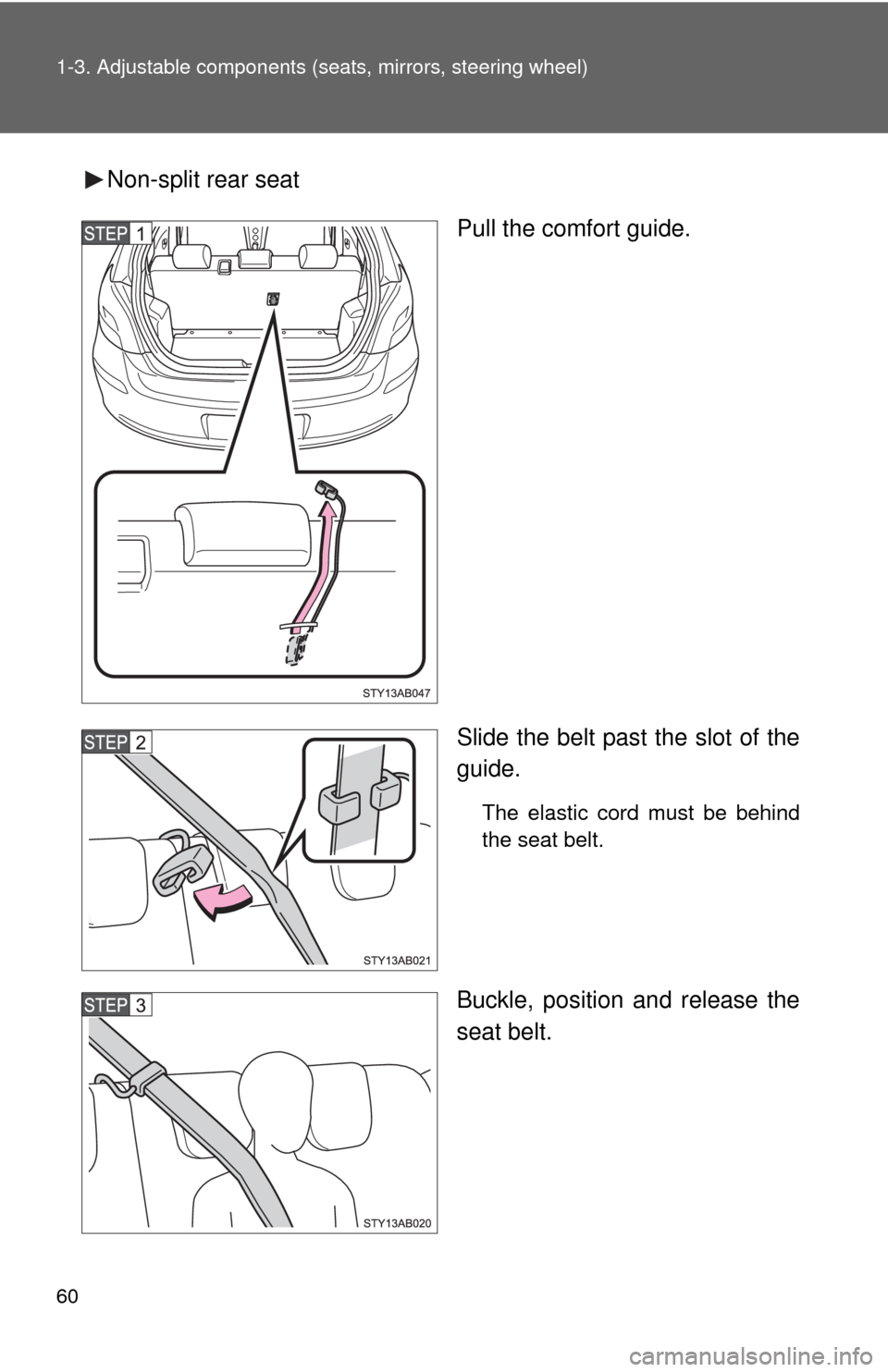

■Extracting the belt
Push the tab and then pull the
tabs out from the cover.
Seat belt comfort guide (rear center seat)
If the shoulder belt sits close to a person’s neck, use the seat belt
comfort guide.
Split rear seats
Pull the comfort guide.

60 1-3. Adjustable components (seats, mirrors, steering wheel)
Non-split rear seat
Pull the comfort guide.
Slide the belt past the slot of the
guide.
The elastic cord must be behind
the seat belt.
Buckle, position and release the
seat belt.
