TOYOTA YARIS 2014 Owners Manual

271
2
When driving
YARIS_F(including HV)_WE_52E26E

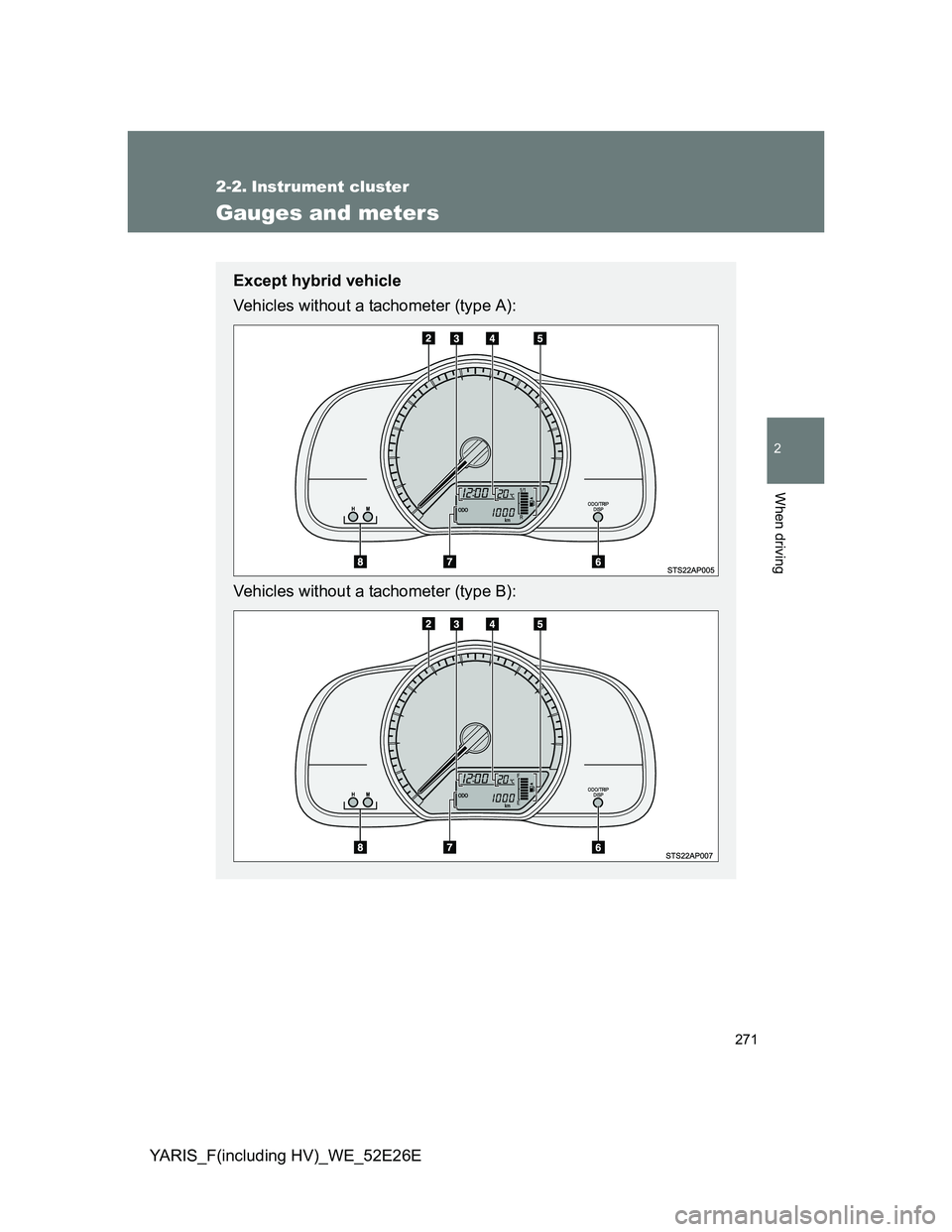

2-2. Instrument cluster
Gauges and meters
Except hybrid vehicle
Vehicles without a tachometer (type A):
Vehicles without a tachometer (type B):

272 2-2. Instrument cluster
YARIS_F(including HV)_WE_52E26E
Vehicles with a tachometer (type A):
Vehicles with a tachometer (type B):

273 2-2. Instrument cluster
2
When driving
YARIS_F(including HV)_WE_52E26E

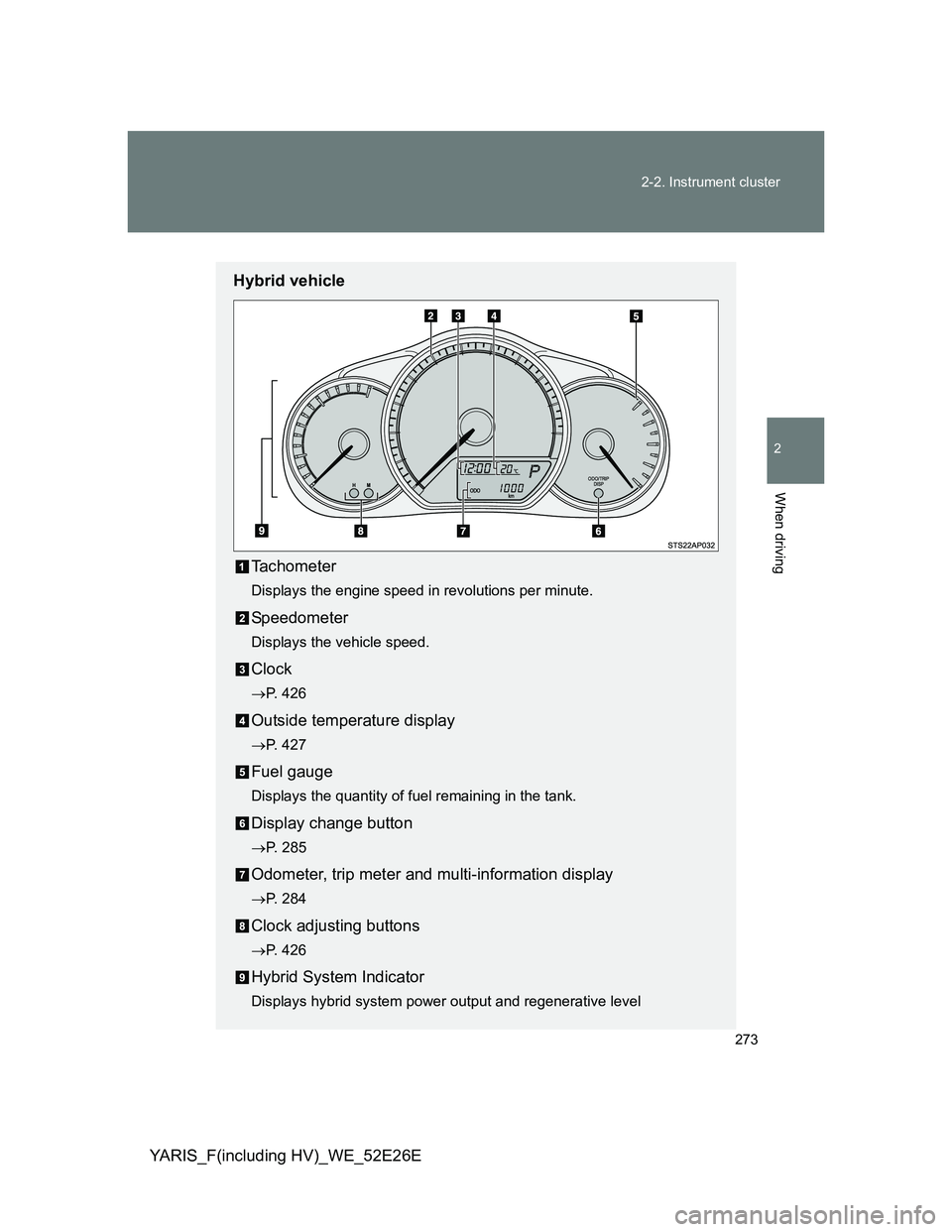

Hybrid vehicle
Tachometer
Displays the engine speed in revolutions per minute.
Speedometer
Displays the vehicle speed.
Clock
P. 426
Outside temperature display
P. 427
Fuel gauge
Displays the quantity of fuel remaining in the tank.
Display change button
P. 285
Odometer, trip meter and multi-information display
P. 284
Clock adjusting buttons
P. 426
Hybrid System Indicator
Displays hybrid system power output and regenerative level

274 2-2. Instrument cluster
YARIS_F(including HV)_WE_52E26E
The meters and display operate when
Except hybrid vehicle
Vehicles without a smart entry & start system:
The engine switch is in the “ON” position.
Vehicles with a smart entry & start system:
The “ENGINE START STOP” switch is in IGNITION ON mode.
Hybrid vehicle
Vehicles without an electronic key:
The engine switch is in the “ON” position.
Vehicles with an electronic key:
The “POWER” switch is in ON mode.
Hybrid System Indicator
By keeping the indicator needle within Eco area, more Eco-friendly driv-
ing can be achieved.
Charge area indicates regeneration
* status. Regenerated energy will be
used to charge the battery.
*: When used in this manual, “regeneration” refers to the conversion of
energy created by the movement of the vehicle into electrical energy.
Power area
Shows that the driving power is more
than the upper limit of Eco driving.
Eco area
Shows that the vehicle is driven Eco-
friendly.
Hybrid Eco area
Shows that the vehicle is driven in a
condition that promotes frequent
motor-only operation. (When the vehi-
cle is operating with low driving load,
such as when driving slowly, using
Hybrid Eco area leads Eco-friendly
driving.)
Charge area
Shows regenerative charging.

275 2-2. Instrument cluster
2
When driving
YARIS_F(including HV)_WE_52E26E

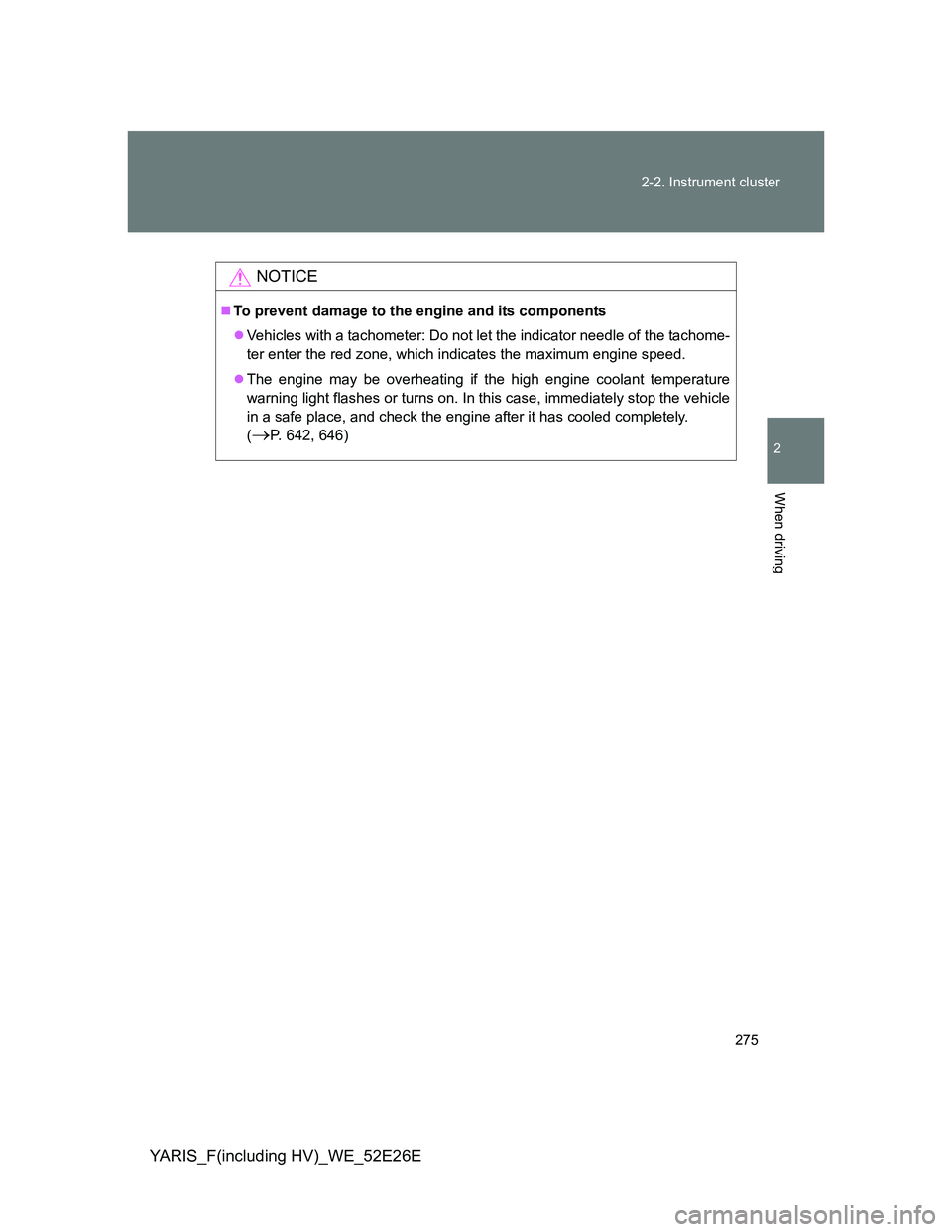

NOTICE
To prevent damage to the engine and its components
Vehicles with a tachometer: Do not let the indicator needle of the tachome-
ter enter the red zone, which indicates the maximum engine speed.
The engine may be overheating if the high engine coolant temperature
warning light flashes or turns on. In this case, immediately stop the vehicle
in a safe place, and check the engine after it has cooled completely.
(
P. 642, 646)

276
2-2. Instrument cluster
YARIS_F(including HV)_WE_52E26E

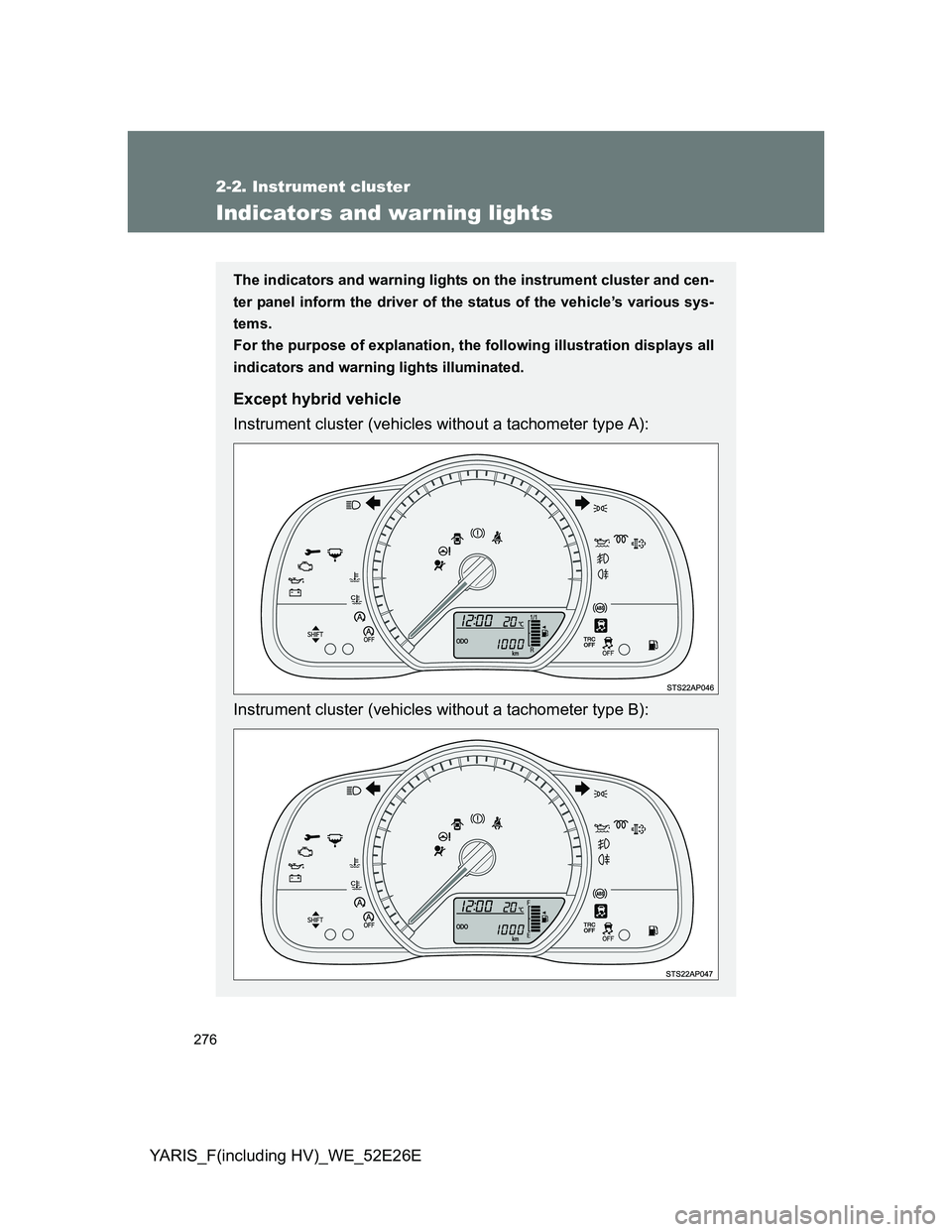

Indicators and warning lights
The indicators and warning lights on the instrument cluster and cen-
ter panel inform the driver of the status of the vehicle’s various sys-
tems.
For the purpose of explanation, the following illustration displays all
indicators and warning lights illuminated.
Except hybrid vehicle
Instrument cluster (vehicles without a tachometer type A):
Instrument cluster (vehicles without a tachometer type B):

277 2-2. Instrument cluster
2
When driving
YARIS_F(including HV)_WE_52E26E

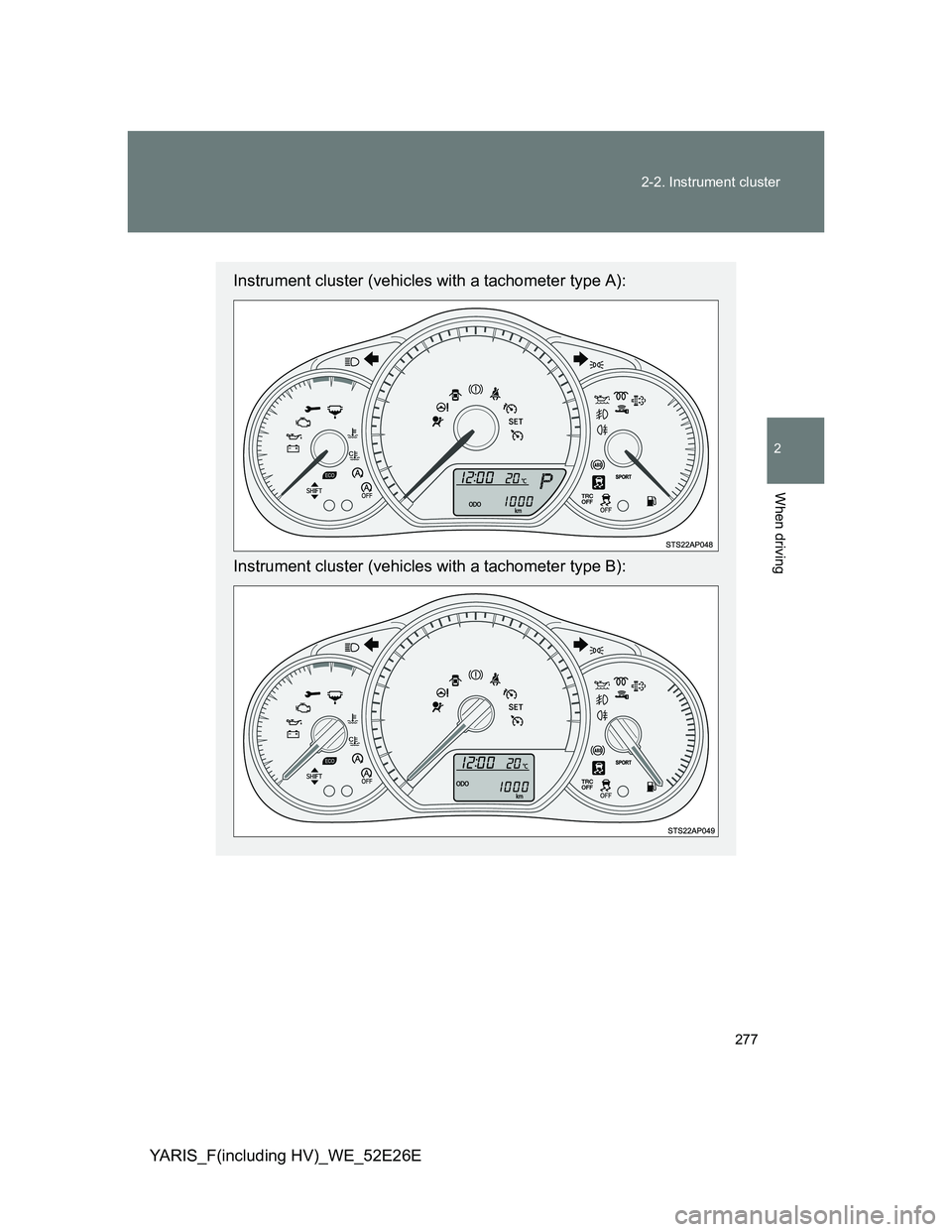

Instrument cluster (vehicles with a tachometer type A):
Instrument cluster (vehicles with a tachometer type B):

278 2-2. Instrument cluster
YARIS_F(including HV)_WE_52E26E

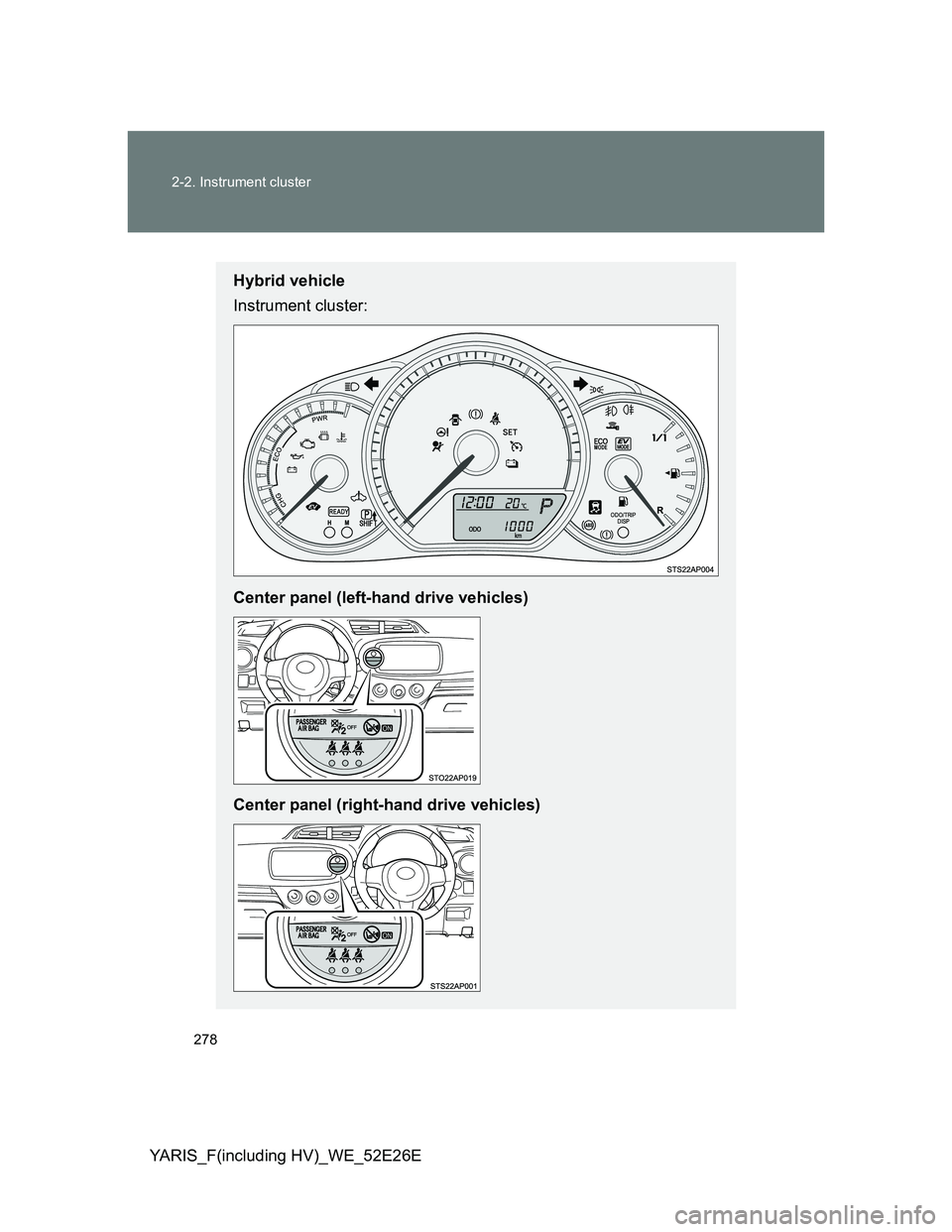

Hybrid vehicle
Instrument cluster:
Center panel (left-hand drive vehicles)
Center panel (right-hand drive vehicles)

279 2-2. Instrument cluster
2
When driving
YARIS_F(including HV)_WE_52E26E

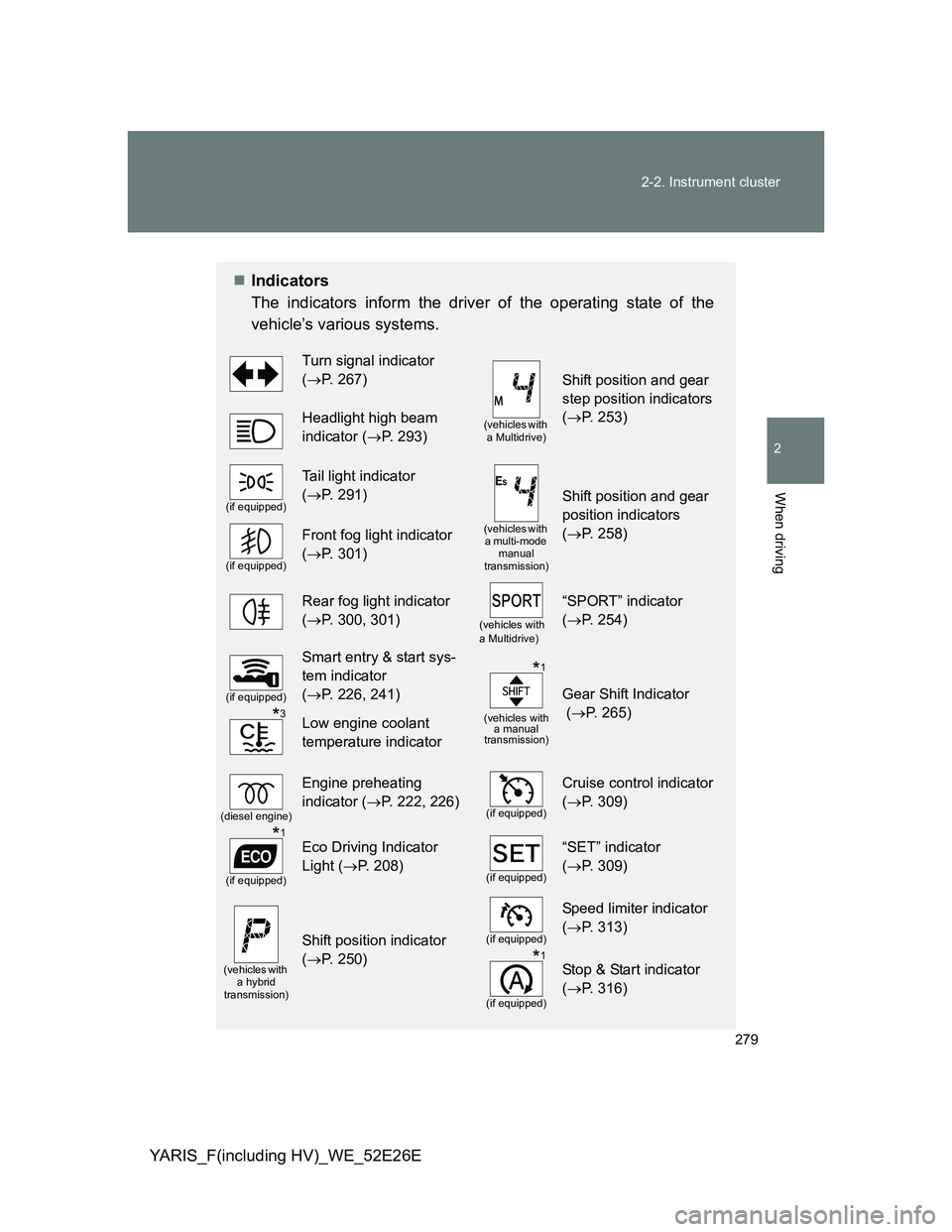

Indicators
The indicators inform the driver of the operating state of the
vehicle’s various systems.
Turn signal indicator
(P. 267)
(vehicles with
a Multidrive)
Shift position and gear
step position indicators
(P. 253)
Headlight high beam
indicator (P. 293)
(if equipped)
Tail light indicator
(P. 291)
(vehicles with
a multi-mode
manual
transmission)
Shift position and gear
position indicators
(P. 258)
(if equipped)
Front fog light indicator
(P. 301)
Rear fog light indicator
(P. 300, 301)
(vehicles with
a Multidrive)
“SPORT” indicator
(P. 254)
(if equipped)
Smart entry & start sys-
tem indicator
(P. 226, 241)*1
(vehicles with
a manual
transmission)
Gear Shift Indicator
(P. 265)
*3Low engine coolant
temperature indicator
(diesel engine)
Engine preheating
indicator (P. 222, 226)
(if equipped)
Cruise control indicator
(P. 309)
*1
(if equipped)
Eco Driving Indicator
Light (P. 208)
(if equipped)
“SET” indicator
(P. 309)
(vehicles with
a hybrid
transmission)
Shift position indicator
(P. 250)(if equipped)
Speed limiter indicator
(P. 313)
*1
(if equipped)
Stop & Start indicator
(P. 316)

280 2-2. Instrument cluster
YARIS_F(including HV)_WE_52E26E
*1: Except hybrid vehicle: These lights turn on when the engine switch
is turned to the “ON” position (vehicles without a smart entry & start
system) or the “ENGINE START STOP” switch is turned to IGNI-
TION ON mode (vehicles with a smart entry & start system) to indi-
cate that a system check is being performed. They will turn off after
the engine is started, or after a few seconds. There may be a mal-
function in a system if a light does not come on, or if the lights do
not turn off. Have the vehicle inspected by any authorized Toyota
dealer or repairer, or another duly qualified and equipped profes-
sional.
*1
(if equipped)
Stop & Start cancel indi-
cator (P. 317)
(hybrid
vehicle)
EV drive mode indicator
(P. 248)
*1,*2,4
(if equipped)
Slip indicator (P. 325)
*2
(hybrid
vehicle)
“ECO MODE” indicator
(P. 251)
*1
(if equipped)
“TRC OFF” indicator
(P. 326)
(hybrid
vehicle)
EV indicator (P. 50)
*1
(if equipped)
VSC OFF indicator
(P. 326)
(hybrid
vehicle)
Driving ready indicator
(P. 236, 241)
“PASSENGER AIR BAG” indicator
(P. 178)
