TOYOTA YARIS 2014 Owners Manual

441 3-5. Other interior features
3
Interior features
YARIS_F(including HV)_WE_52E26E

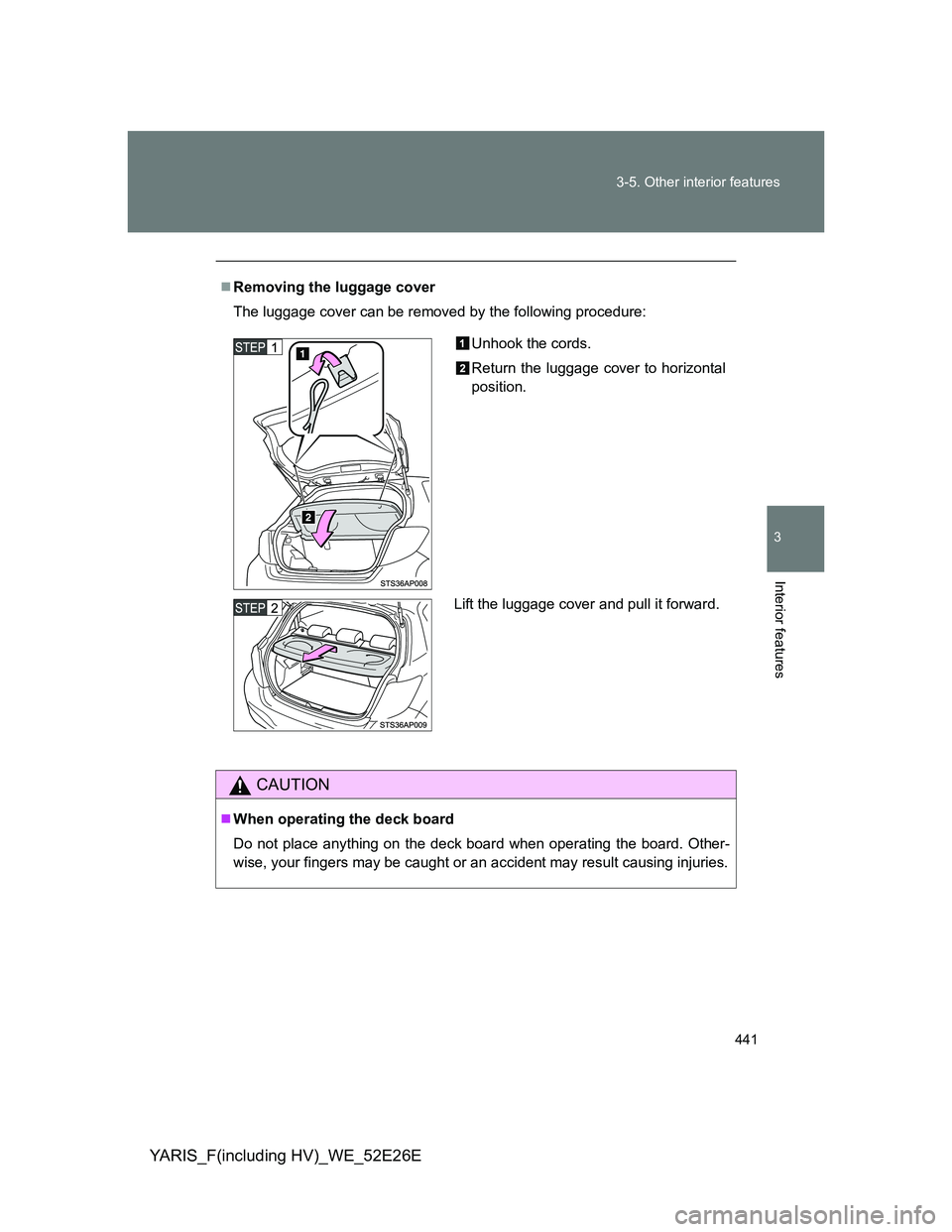

Removing the luggage cover
The luggage cover can be removed by the following procedure:
CAUTION
When operating the deck board
Do not place anything on the deck board when operating the board. Other-
wise, your fingers may be caught or an accident may result causing injuries.
Unhook the cords.
Return the luggage cover to horizontal
position.
Lift the luggage cover and pull it forward.

442 3-5. Other interior features
YARIS_F(including HV)_WE_52E26E

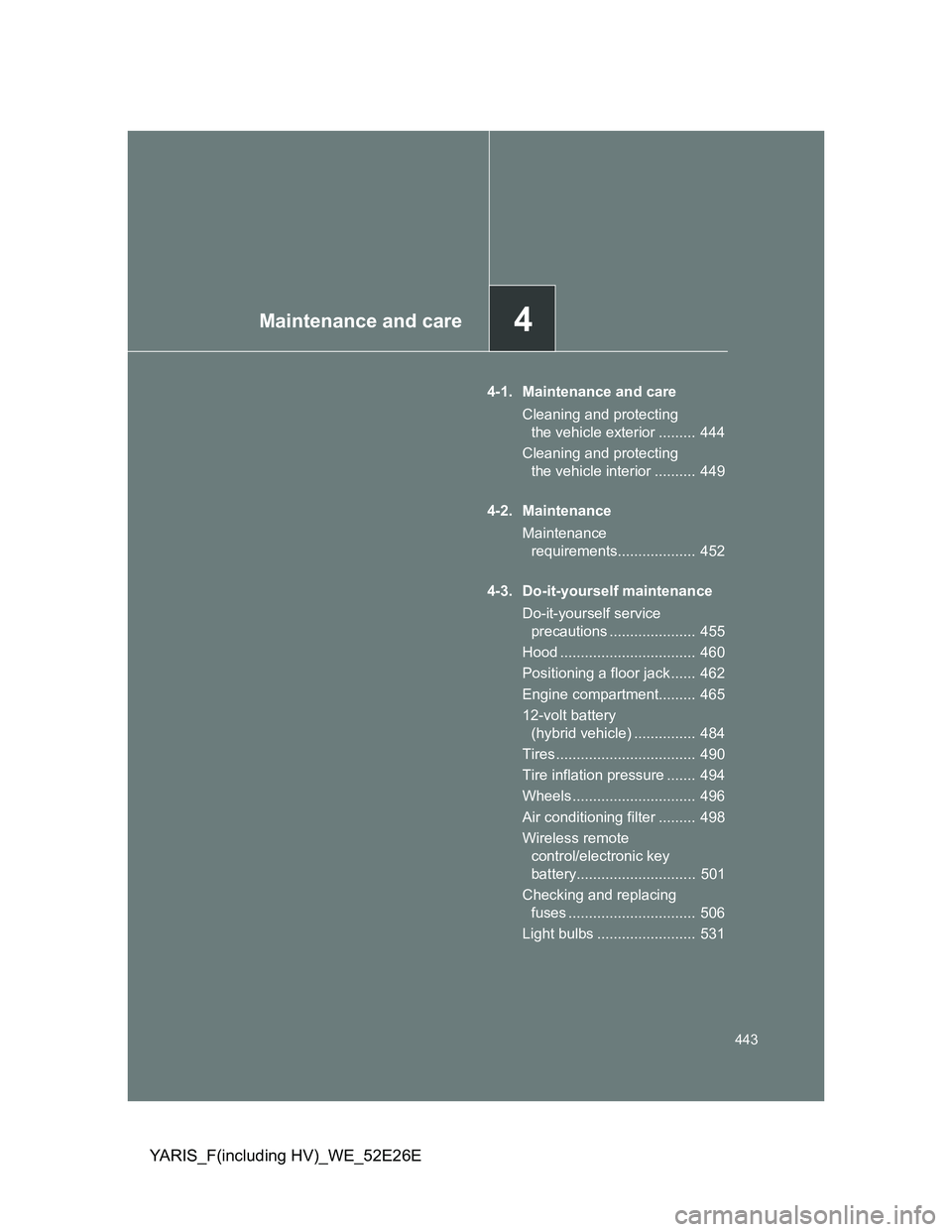

4Maintenance and care
443
YARIS_F(including HV)_WE_52E26E
4-1. Maintenance and care
Cleaning and protecting
the vehicle exterior ......... 444
Cleaning and protecting
the vehicle interior .......... 449
4-2. Maintenance
Maintenance
requirements................... 452
4-3. Do-it-yourself maintenance
Do-it-yourself service
precautions ..................... 455
Hood ................................. 460
Positioning a floor jack ...... 462
Engine compartment......... 465
12-volt battery
(hybrid vehicle) ............... 484
Tires .................................. 490
Tire inflation pressure ....... 494
Wheels .............................. 496
Air conditioning filter ......... 498
Wireless remote
control/electronic key
battery............................. 501
Checking and replacing
fuses ............................... 506
Light bulbs ........................ 531

444
YARIS_F(including HV)_WE_52E26E
4-1. Maintenance and care

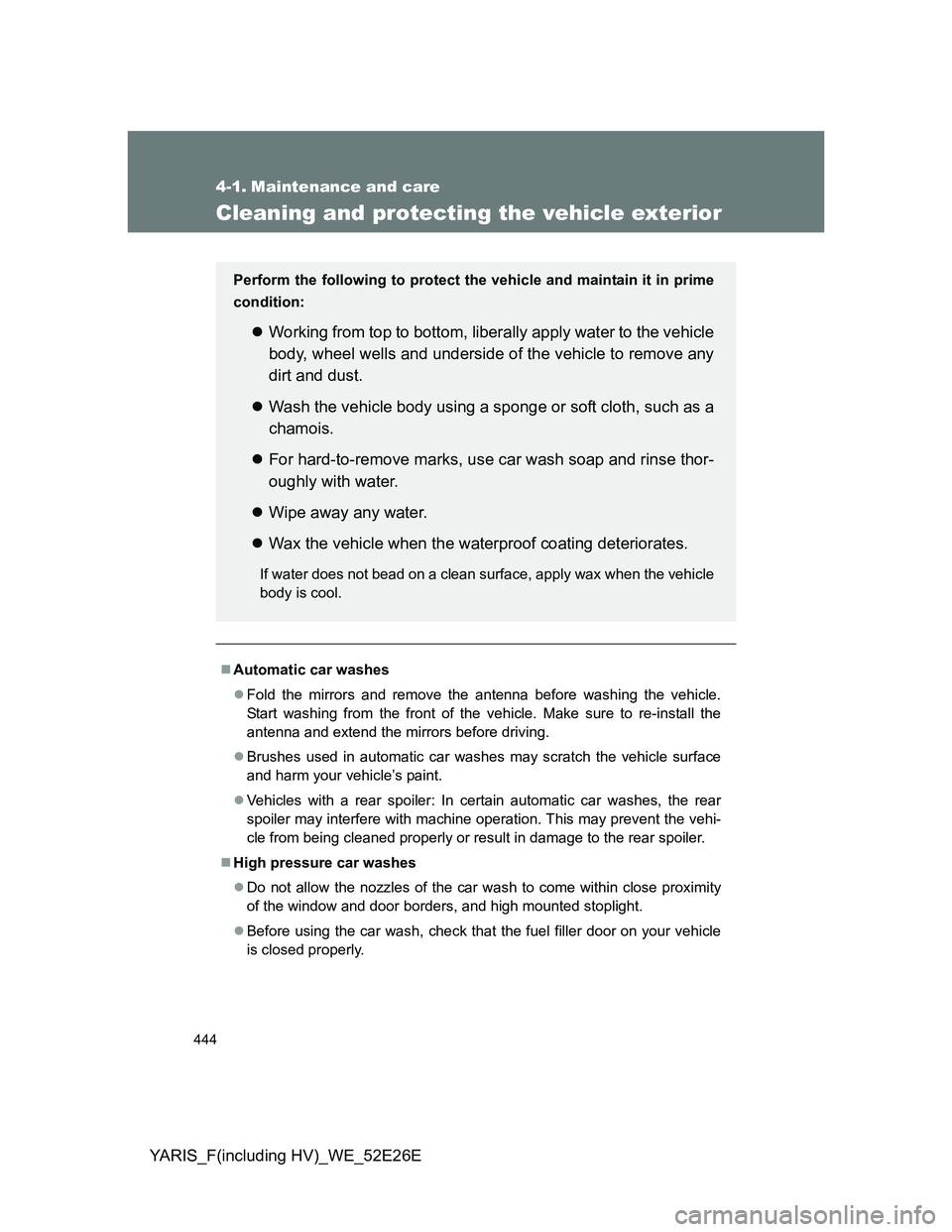

Cleaning and protecting the vehicle exterior
Automatic car washes
Fold the mirrors and remove the antenna before washing the vehicle.
Start washing from the front of the vehicle. Make sure to re-install the
antenna and extend the mirrors before driving.
Brushes used in automatic car washes may scratch the vehicle surface
and harm your vehicle’s paint.
Vehicles with a rear spoiler: In certain automatic car washes, the rear
spoiler may interfere with machine operation. This may prevent the vehi-
cle from being cleaned properly or result in damage to the rear spoiler.
High pressure car washes
Do not allow the nozzles of the car wash to come within close proximity
of the window and door borders, and high mounted stoplight.
Before using the car wash, check that the fuel filler door on your vehicle
is closed properly.
Perform the following to protect the vehicle and maintain it in prime
condition:
Working from top to bottom, liberally apply water to the vehicle
body, wheel wells and underside of the vehicle to remove any
dirt and dust.
Wash the vehicle body using a sponge or soft cloth, such as a
chamois.
For hard-to-remove marks, use car wash soap and rinse thor-
oughly with water.
Wipe away any water.
Wax the vehicle when the waterproof coating deteriorates.
If water does not bead on a clean surface, apply wax when the vehicle
body is cool.

445 4-1. Maintenance and care
4
Maintenance and care
YARIS_F(including HV)_WE_52E26E

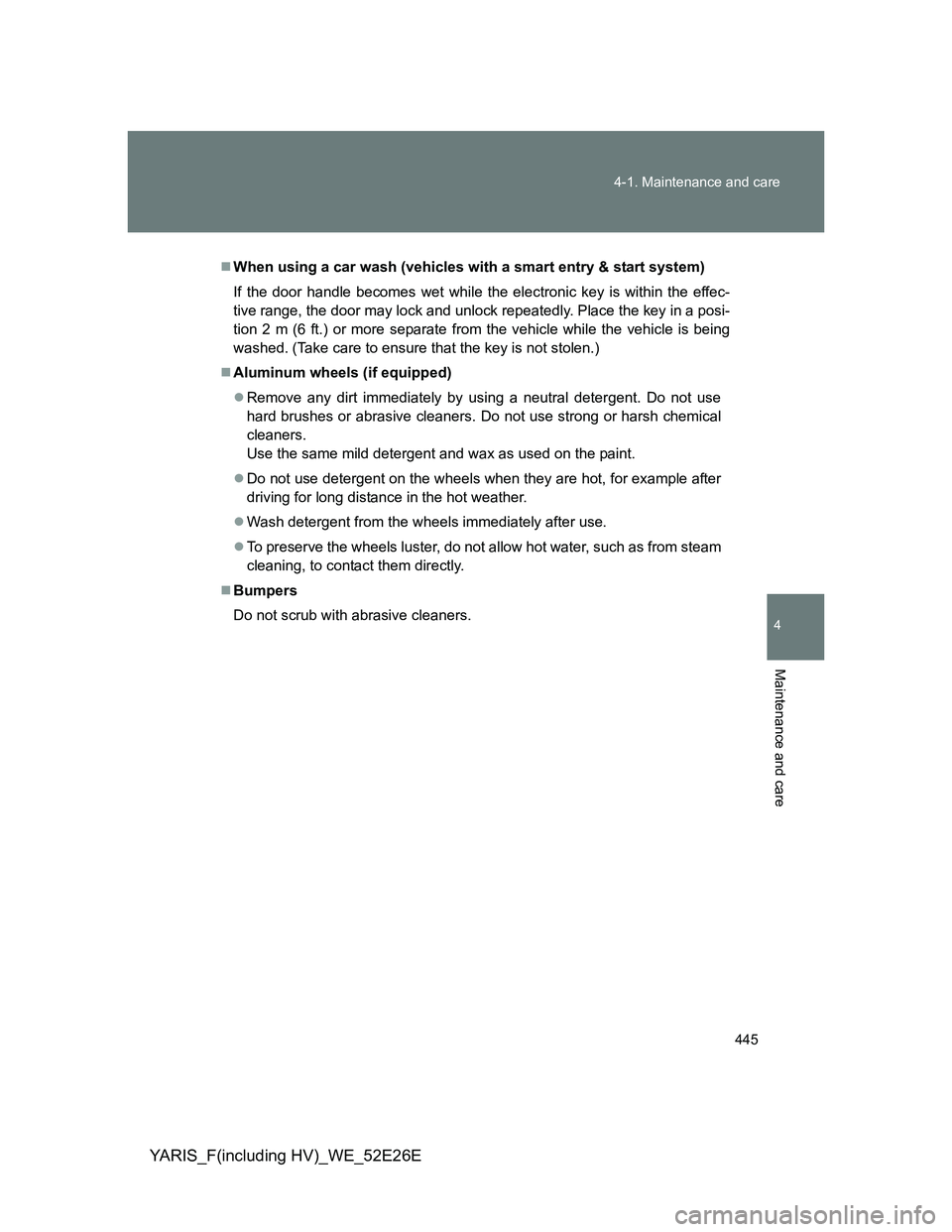

When using a car wash (vehicles with a smart entry & start system)
If the door handle becomes wet while the electronic key is within the effec-
tive range, the door may lock and unlock repeatedly. Place the key in a posi-
tion 2 m (6 ft.) or more separate from the vehicle while the vehicle is being
washed. (Take care to ensure that the key is not stolen.)
Aluminum wheels (if equipped)
Remove any dirt immediately by using a neutral detergent. Do not use
hard brushes or abrasive cleaners. Do not use strong or harsh chemical
cleaners.
Use the same mild detergent and wax as used on the paint.
Do not use detergent on the wheels when they are hot, for example after
driving for long distance in the hot weather.
Wash detergent from the wheels immediately after use.
To preserve the wheels luster, do not allow hot water, such as from steam
cleaning, to contact them directly.
Bumpers
Do not scrub with abrasive cleaners.

446 4-1. Maintenance and care
YARIS_F(including HV)_WE_52E26E

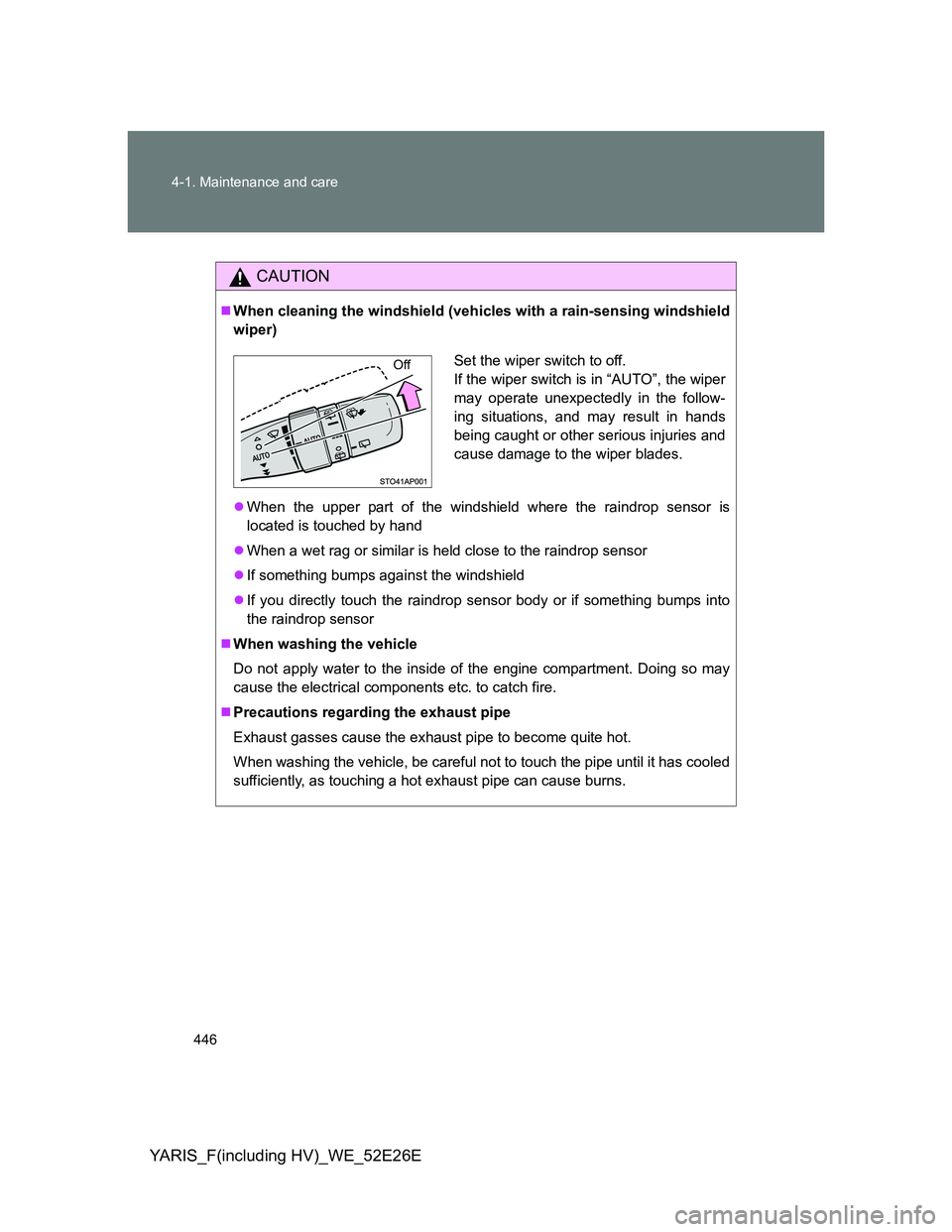

CAUTION
When cleaning the windshield (vehicles with a rain-sensing windshield
wiper)
When the upper part of the windshield where the raindrop sensor is
located is touched by hand
When a wet rag or similar is held close to the raindrop sensor
If something bumps against the windshield
If you directly touch the raindrop sensor body or if something bumps into
the raindrop sensor
When washing the vehicle
Do not apply water to the inside of the engine compartment. Doing so may
cause the electrical components etc. to catch fire.
Precautions regarding the exhaust pipe
Exhaust gasses cause the exhaust pipe to become quite hot.
When washing the vehicle, be careful not to touch the pipe until it has cooled
sufficiently, as touching a hot exhaust pipe can cause burns.
Set the wiper switch to off.
If the wiper switch is in “AUTO”, the wiper
may operate unexpectedly in the follow-
ing situations, and may result in hands
being caught or other serious injuries and
cause damage to the wiper blades.Off

447 4-1. Maintenance and care
4
Maintenance and care
YARIS_F(including HV)_WE_52E26E

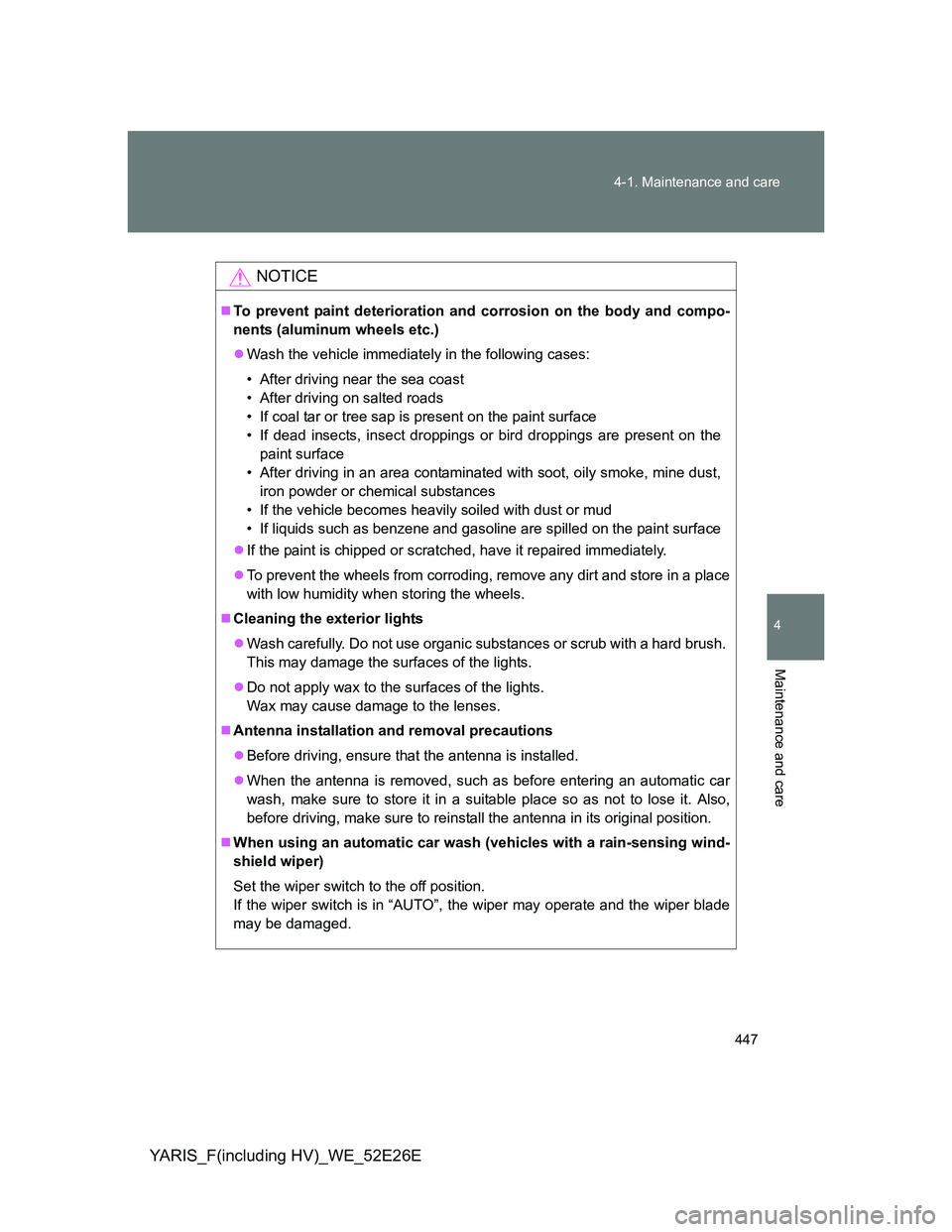

NOTICE
To prevent paint deterioration and corrosion on the body and compo-
nents (aluminum wheels etc.)
Wash the vehicle immediately in the following cases:
• After driving near the sea coast
• After driving on salted roads
• If coal tar or tree sap is present on the paint surface
• If dead insects, insect droppings or bird droppings are present on the
paint surface
• After driving in an area contaminated with soot, oily smoke, mine dust,
iron powder or chemical substances
• If the vehicle becomes heavily soiled with dust or mud
• If liquids such as benzene and gasoline are spilled on the paint surface
If the paint is chipped or scratched, have it repaired immediately.
To prevent the wheels from corroding, remove any dirt and store in a place
with low humidity when storing the wheels.
Cleaning the exterior lights
Wash carefully. Do not use organic substances or scrub with a hard brush.
This may damage the surfaces of the lights.
Do not apply wax to the surfaces of the lights.
Wax may cause damage to the lenses.
Antenna installation and removal precautions
Before driving, ensure that the antenna is installed.
When the antenna is removed, such as before entering an automatic car
wash, make sure to store it in a suitable place so as not to lose it. Also,
before driving, make sure to reinstall the antenna in its original position.
When using an automatic car wash (vehicles with a rain-sensing wind-
shield wiper)
Set the wiper switch to the off position.
If the wiper switch is in “AUTO”, the wiper may operate and the wiper blade
may be damaged.

448 4-1. Maintenance and care
YARIS_F(including HV)_WE_52E26E

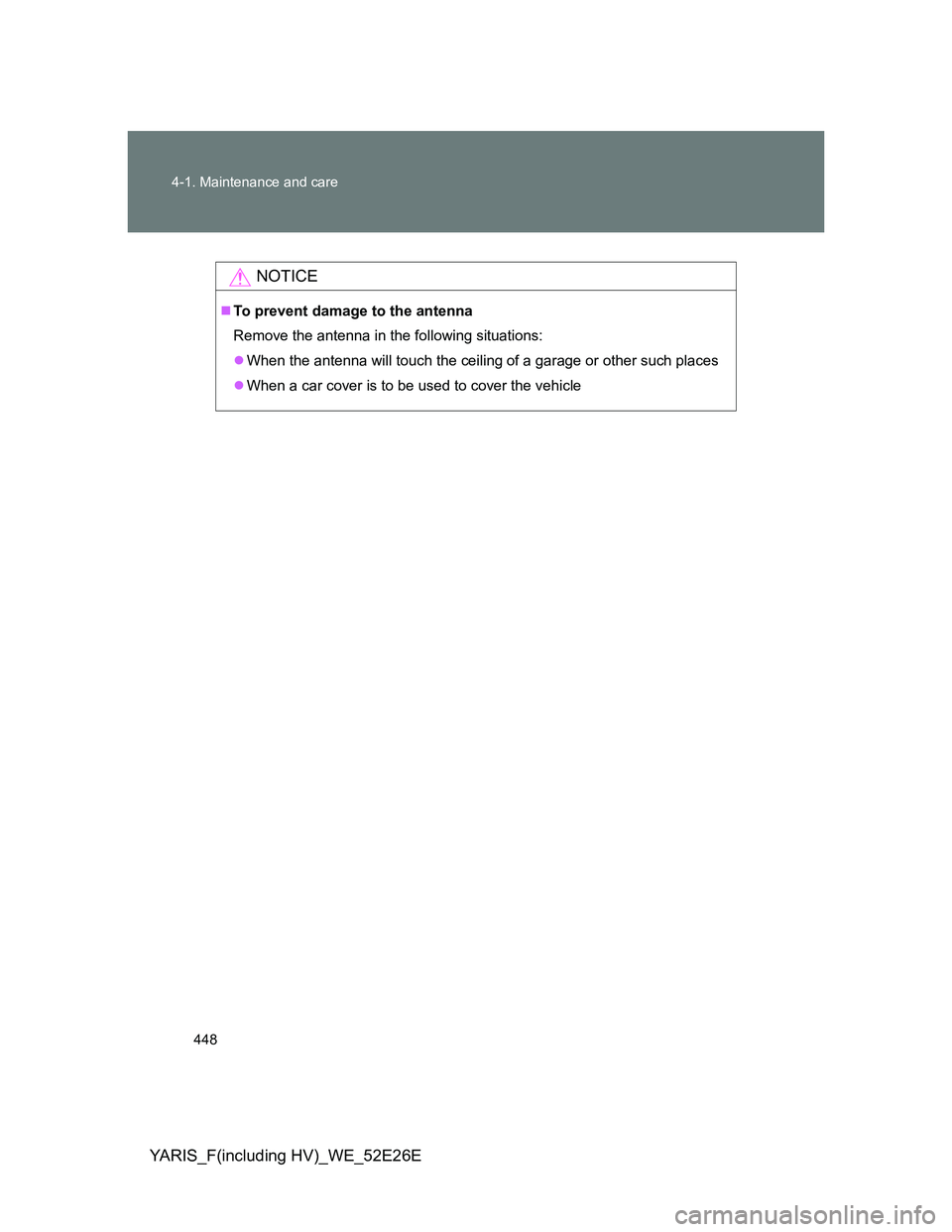

NOTICE
To prevent damage to the antenna
Remove the antenna in the following situations:
When the antenna will touch the ceiling of a garage or other such places
When a car cover is to be used to cover the vehicle

449
4-1. Maintenance and care
4
Maintenance and care
YARIS_F(including HV)_WE_52E26E

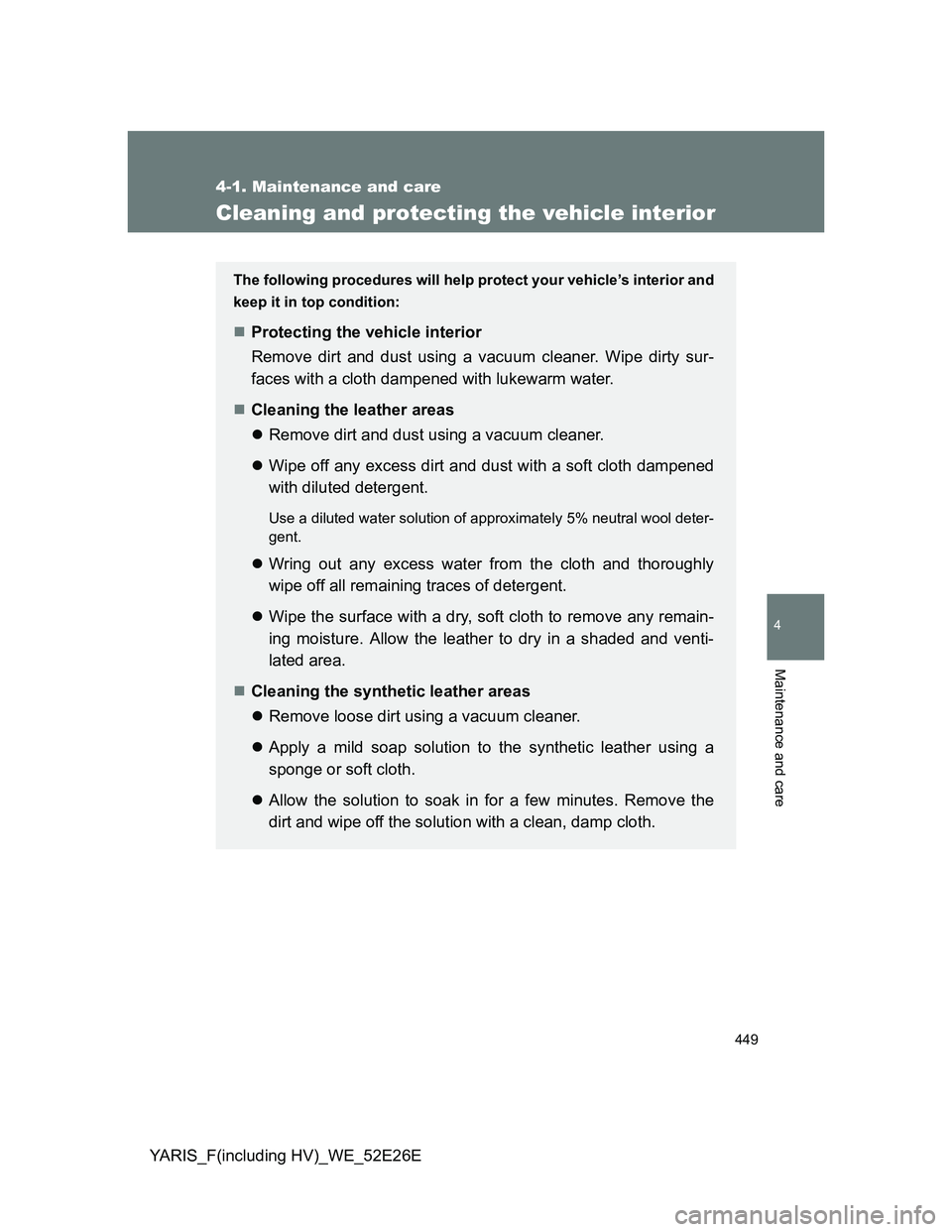

Cleaning and protecting the vehicle interior
The following procedures will help protect your vehicle’s interior and
keep it in top condition:
Protecting the vehicle interior
Remove dirt and dust using a vacuum cleaner. Wipe dirty sur-
faces with a cloth dampened with lukewarm water.
Cleaning the leather areas
Remove dirt and dust using a vacuum cleaner.
Wipe off any excess dirt and dust with a soft cloth dampened
with diluted detergent.
Use a diluted water solution of approximately 5% neutral wool deter-
gent.
Wring out any excess water from the cloth and thoroughly
wipe off all remaining traces of detergent.
Wipe the surface with a dry, soft cloth to remove any remain-
ing moisture. Allow the leather to dry in a shaded and venti-
lated area.
Cleaning the synthetic leather areas
Remove loose dirt using a vacuum cleaner.
Apply a mild soap solution to the synthetic leather using a
sponge or soft cloth.
Allow the solution to soak in for a few minutes. Remove the
dirt and wipe off the solution with a clean, damp cloth.

450 4-1. Maintenance and care
YARIS_F(including HV)_WE_52E26E

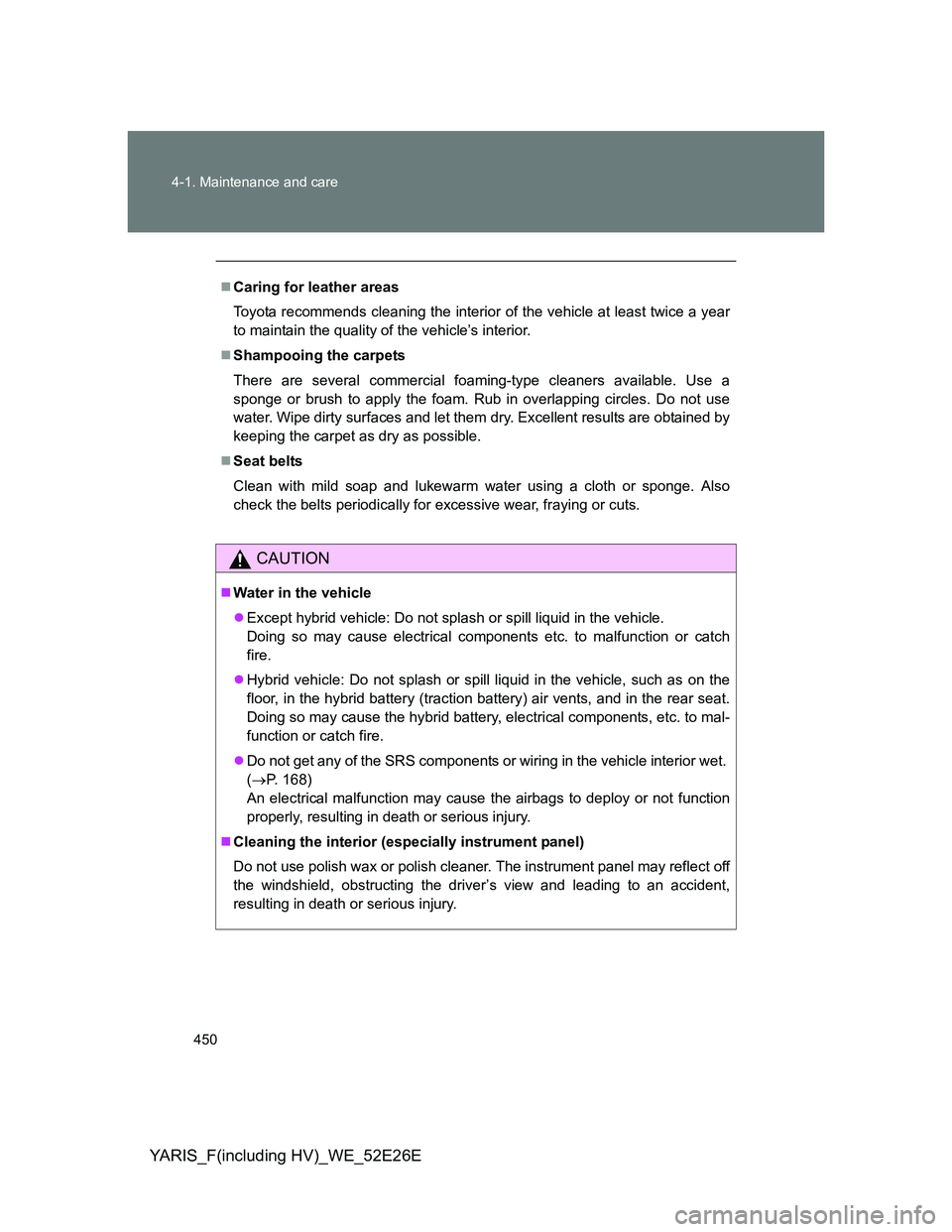

Caring for leather areas
Toyota recommends cleaning the interior of the vehicle at least twice a year
to maintain the quality of the vehicle’s interior.
Shampooing the carpets
There are several commercial foaming-type cleaners available. Use a
sponge or brush to apply the foam. Rub in overlapping circles. Do not use
water. Wipe dirty surfaces and let them dry. Excellent results are obtained by
keeping the carpet as dry as possible.
Seat belts
Clean with mild soap and lukewarm water using a cloth or sponge. Also
check the belts periodically for excessive wear, fraying or cuts.
CAUTION
Water in the vehicle
Except hybrid vehicle: Do not splash or spill liquid in the vehicle.
Doing so may cause electrical components etc. to malfunction or catch
fire.
Hybrid vehicle: Do not splash or spill liquid in the vehicle, such as on the
floor, in the hybrid battery (traction battery) air vents, and in the rear seat.
Doing so may cause the hybrid battery, electrical components, etc. to mal-
function or catch fire.
Do not get any of the SRS components or wiring in the vehicle interior wet.
(P. 168)
An electrical malfunction may cause the airbags to deploy or not function
properly, resulting in death or serious injury.
Cleaning the interior (especially instrument panel)
Do not use polish wax or polish cleaner. The instrument panel may reflect off
the windshield, obstructing the driver’s view and leading to an accident,
resulting in death or serious injury.
