421 3-4. Using the storage features
3
Interior features
YARIS_F(including HV)_WE_52E26ERear

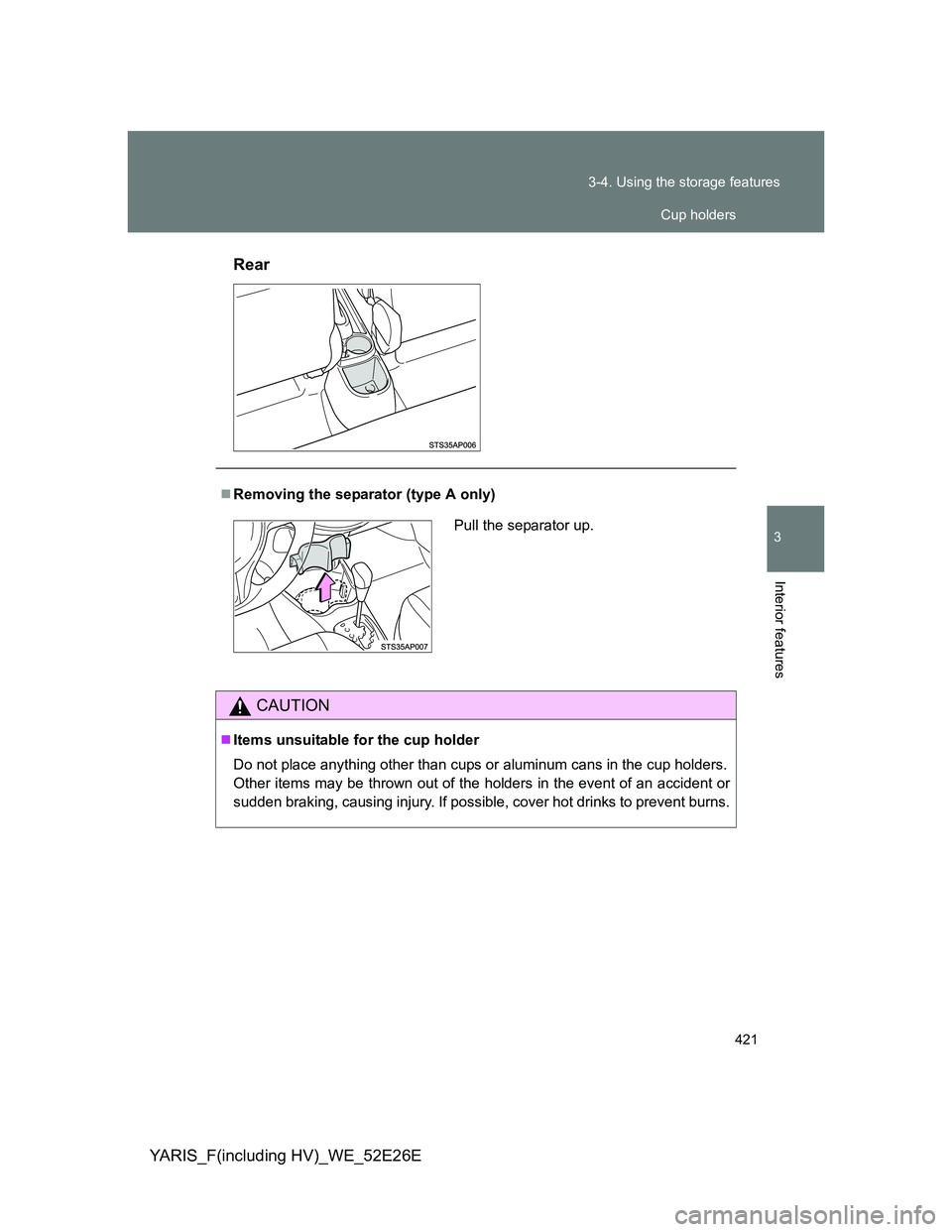

Removing the separator (type A only)
CAUTION
Items unsuitable for the cup holder
Do not place anything other than cups or aluminum cans in the cup holders.
Other items may be thrown out of the holders in the event of an accident or
sudden braking, causing injury. If possible, cover hot drinks to prevent burns.
Pull the separator up.
Cup holders

422 3-4. Using the storage features
YARIS_F(including HV)_WE_52E26E

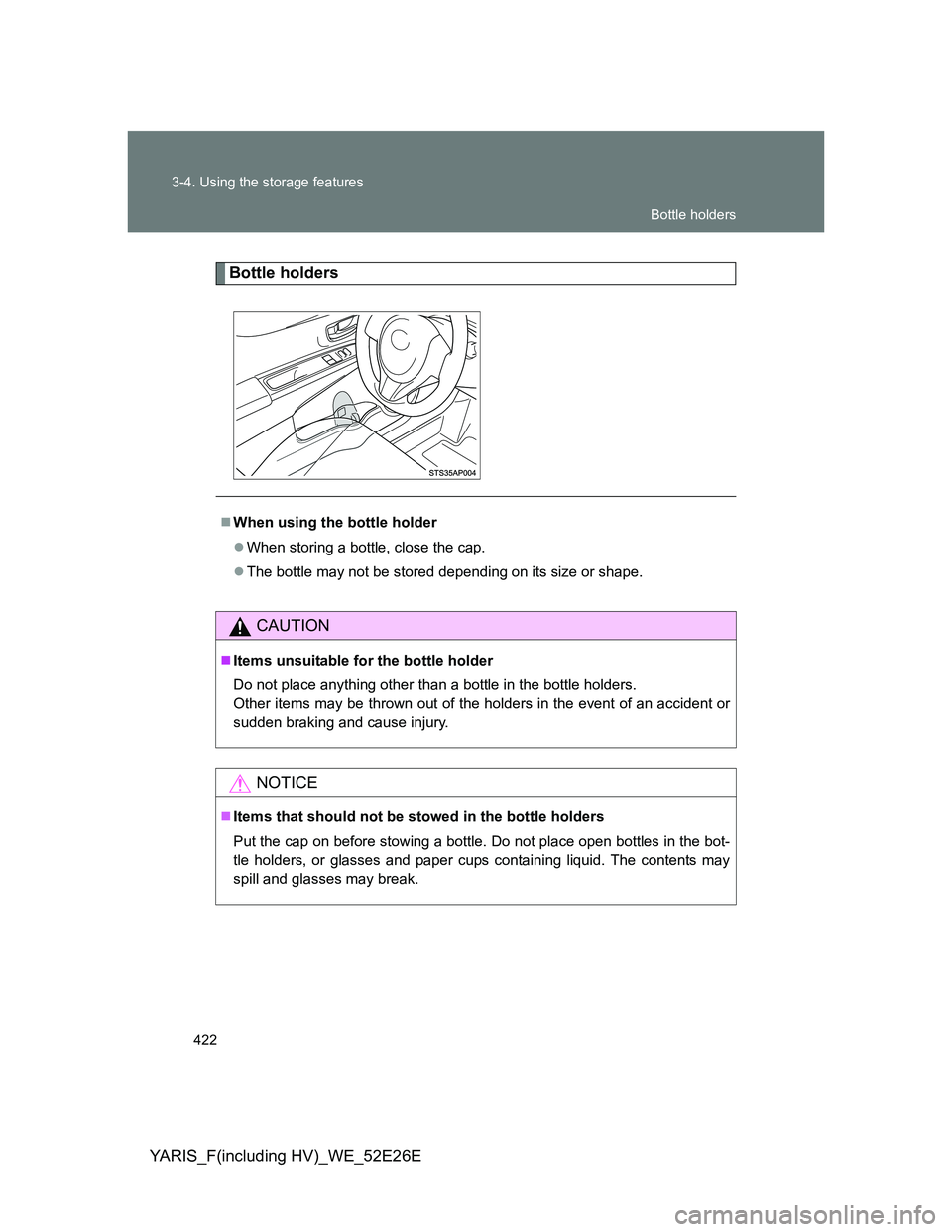

Bottle holders
When using the bottle holder
When storing a bottle, close the cap.
The bottle may not be stored depending on its size or shape.
CAUTION
Items unsuitable for the bottle holder
Do not place anything other than a bottle in the bottle holders.
Other items may be thrown out of the holders in the event of an accident or
sudden braking and cause injury.
NOTICE
Items that should not be stowed in the bottle holders
Put the cap on before stowing a bottle. Do not place open bottles in the bot-
tle holders, or glasses and paper cups containing liquid. The contents may
spill and glasses may break.
Bottle holders

423
3
Interior features
YARIS_F(including HV)_WE_52E26E
3-5. Other interior features

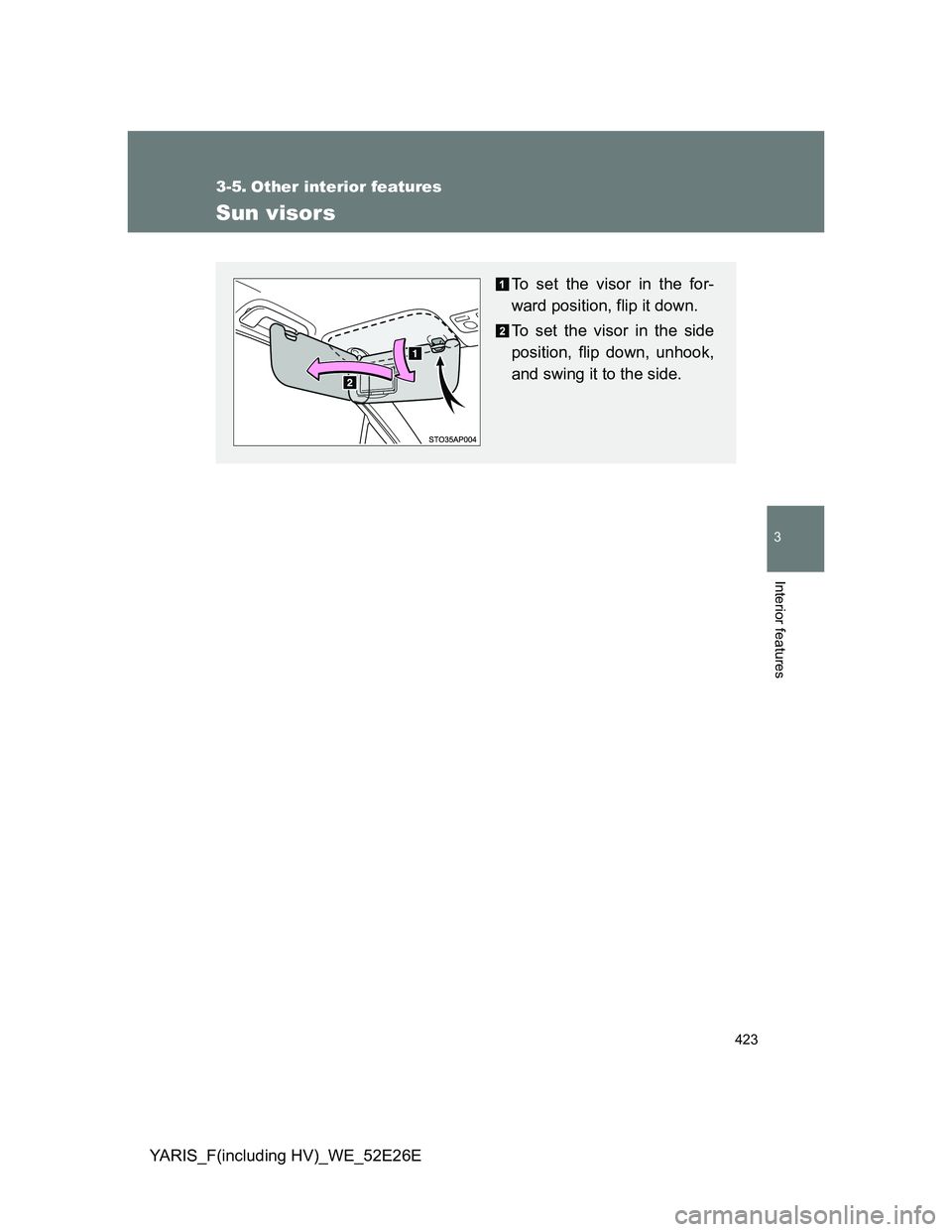

Sun visors
To set the visor in the for-
ward position, flip it down.
To set the visor in the side
position, flip down, unhook,
and swing it to the side.

424
3-5. Other interior features
YARIS_F(including HV)_WE_52E26E

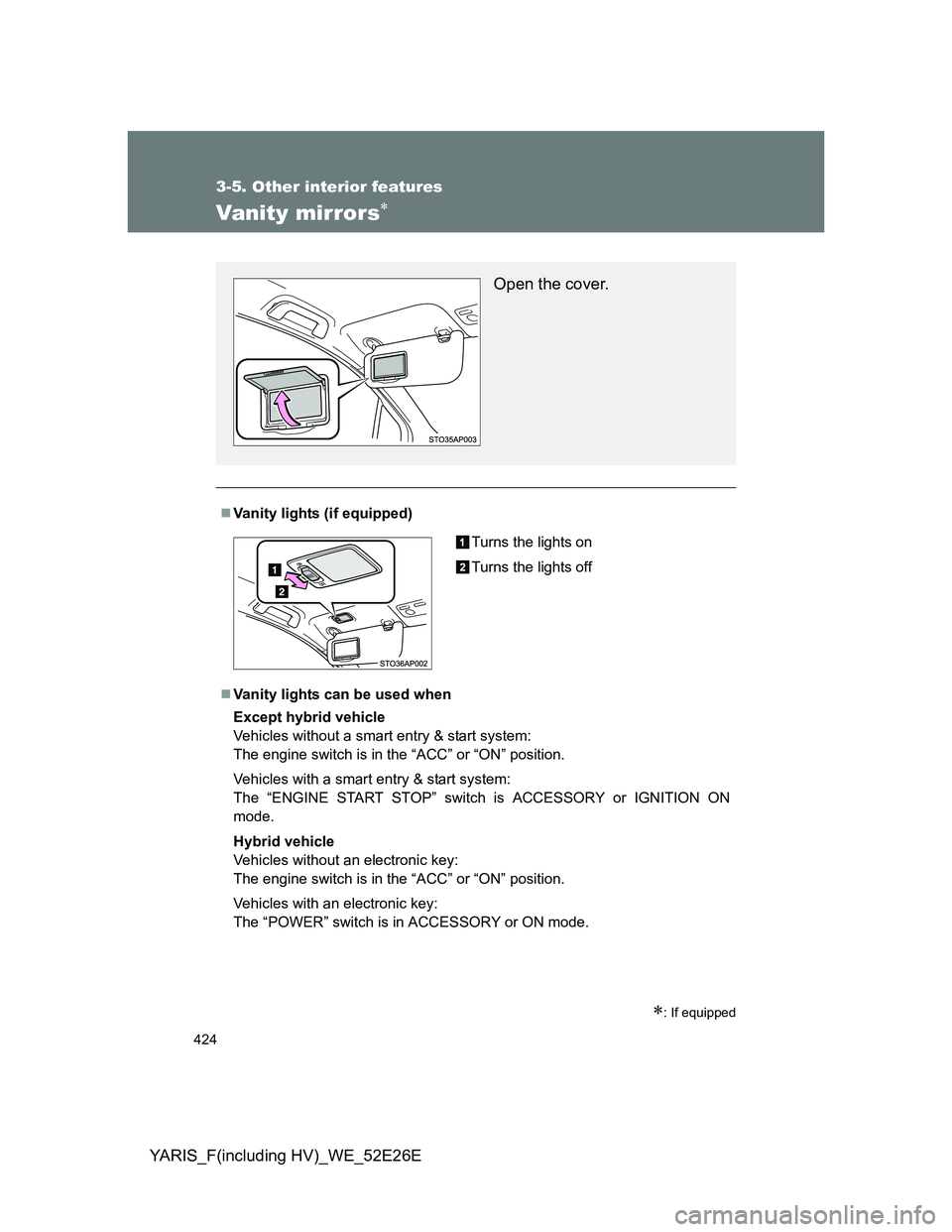

Vanity mirrors
: If equipped
Vanity lights (if equipped)
Vanity lights can be used when
Except hybrid vehicle
Vehicles without a smart entry & start system:
The engine switch is in the “ACC” or “ON” position.
Vehicles with a smart entry & start system:
The “ENGINE START STOP” switch is ACCESSORY or IGNITION ON
mode.
Hybrid vehicle
Vehicles without an electronic key:
The engine switch is in the “ACC” or “ON” position.
Vehicles with an electronic key:
The “POWER” switch is in ACCESSORY or ON mode.
Open the cover.
Turns the lights on
Turns the lights off

425 3-5. Other interior features
3
Interior features
YARIS_F(including HV)_WE_52E26E

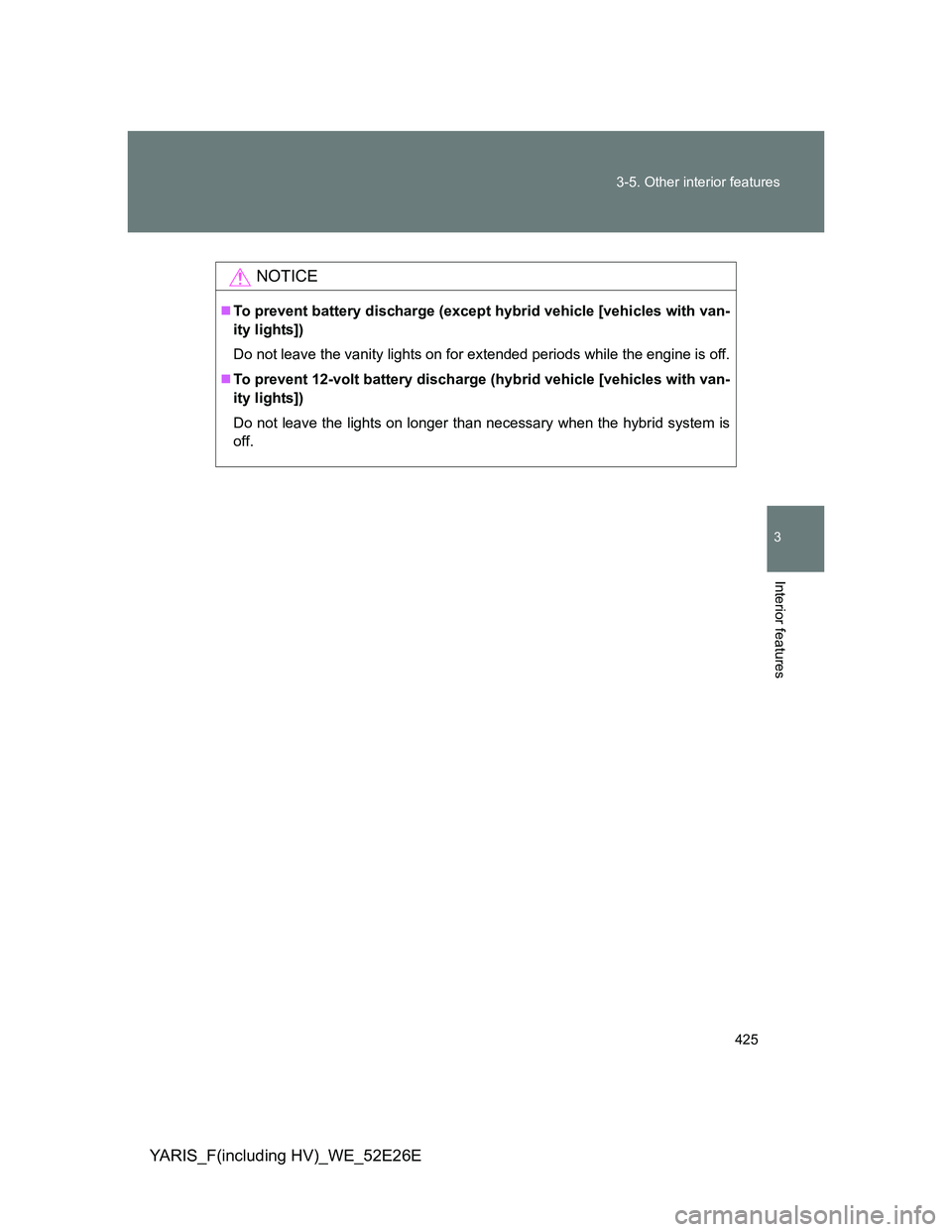

NOTICE
To prevent battery discharge (except hybrid vehicle [vehicles with van-
ity lights])
Do not leave the vanity lights on for extended periods while the engine is off.
To prevent 12-volt battery discharge (hybrid vehicle [vehicles with van-
ity lights])
Do not leave the lights on longer than necessary when the hybrid system is
off.

426
3-5. Other interior features
YARIS_F(including HV)_WE_52E26E
Clock
The clock is displayed when
Except hybrid vehicle
Vehicles without a smart entry & start system:
The engine switch is in the “ON” position.
Vehicles with a smart entry & start system:
The “ENGINE START STOP” switch is in IGNITION ON mode.
Hybrid vehicle
Vehicles without an electronic key:
The engine switch is in the “ON” position.
Vehicles with an electronic key:
The “POWER” switch is in ON mode.
When disconnecting and reconnecting battery terminals
The clock data will be reset.
The clock can be adjusted by pressing the buttons.
Adjusts the hours
Adjusts the minutes

427
3-5. Other interior features
3
Interior features
YARIS_F(including HV)_WE_52E26E

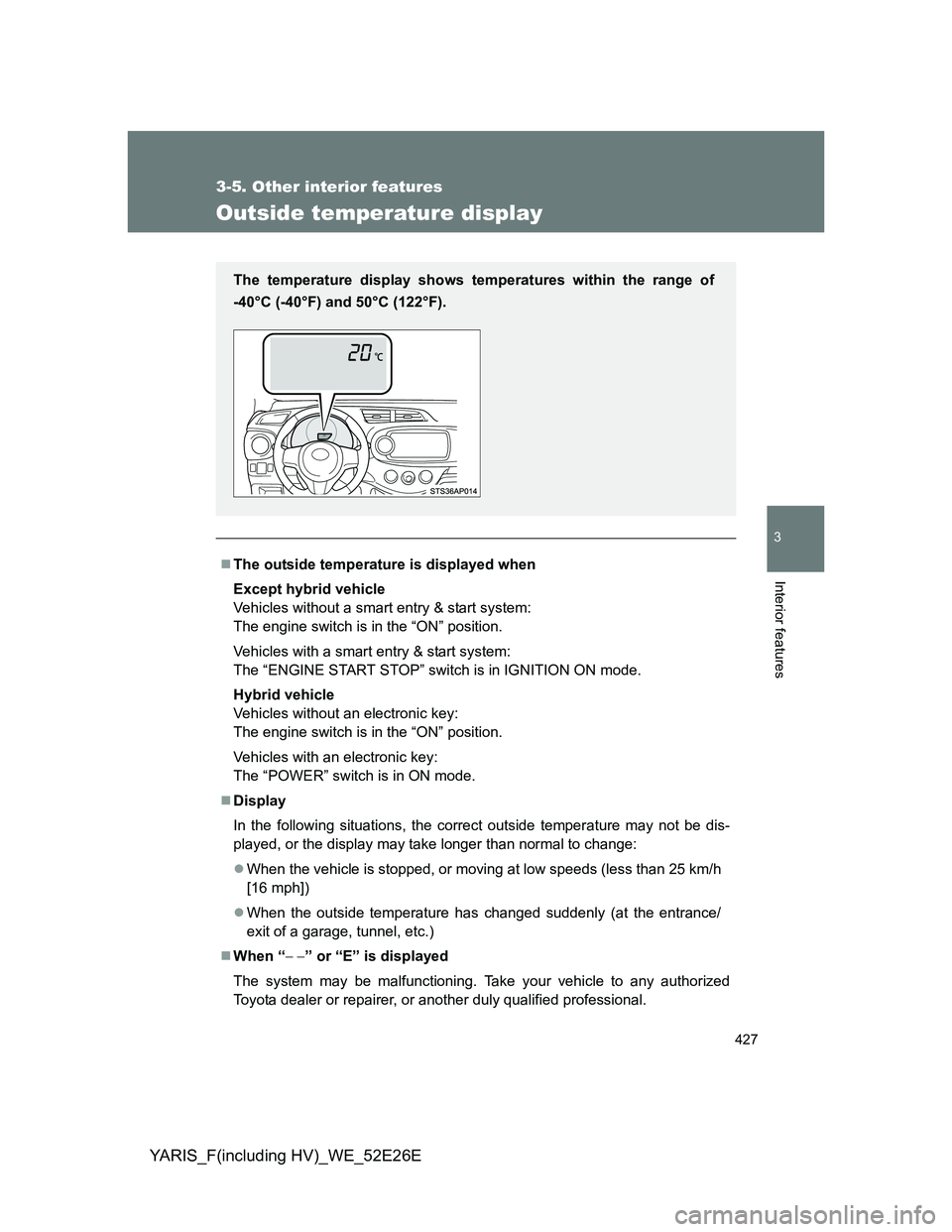

Outside temperature display
The outside temperature is displayed when
Except hybrid vehicle
Vehicles without a smart entry & start system:
The engine switch is in the “ON” position.
Vehicles with a smart entry & start system:
The “ENGINE START STOP” switch is in IGNITION ON mode.
Hybrid vehicle
Vehicles without an electronic key:
The engine switch is in the “ON” position.
Vehicles with an electronic key:
The “POWER” switch is in ON mode.
Display
In the following situations, the correct outside temperature may not be dis-
played, or the display may take longer than normal to change:
When the vehicle is stopped, or moving at low speeds (less than 25 km/h
[16 mph])
When the outside temperature has changed suddenly (at the entrance/
exit of a garage, tunnel, etc.)
When “” or “E” is displayed
The system may be malfunctioning. Take your vehicle to any authorized
Toyota dealer or repairer, or another duly qualified professional.
The temperature display shows temperatures within the range of
-40°C (-40°F) and 50°C (122°F).

428
3-5. Other interior features
YARIS_F(including HV)_WE_52E26E

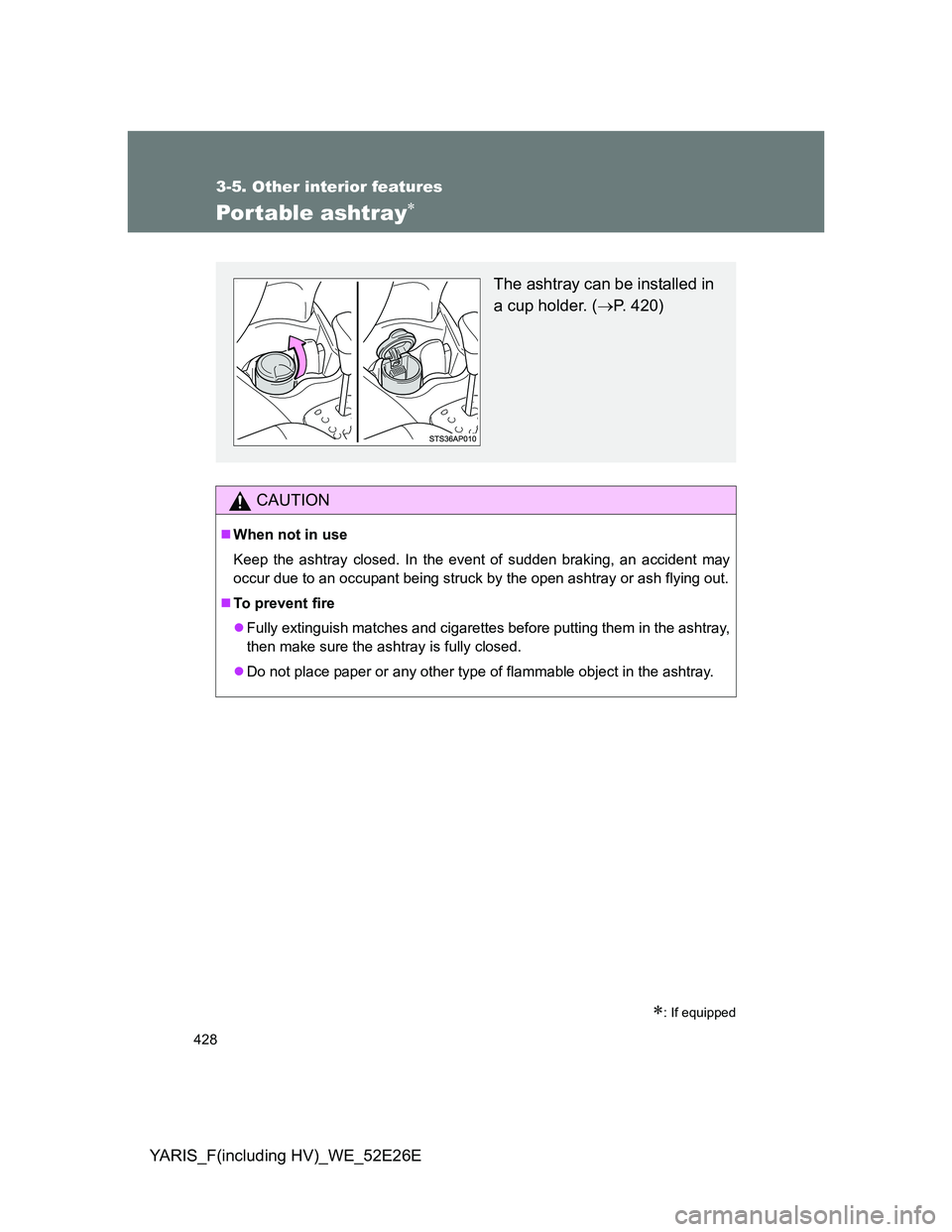

Portable ashtray
: If equipped
CAUTION
When not in use
Keep the ashtray closed. In the event of sudden braking, an accident may
occur due to an occupant being struck by the open ashtray or ash flying out.
To prevent fire
Fully extinguish matches and cigarettes before putting them in the ashtray,
then make sure the ashtray is fully closed.
Do not place paper or any other type of flammable object in the ashtray.
The ashtray can be installed in
a cup holder. (P. 420)

429
3-5. Other interior features
3
Interior features
YARIS_F(including HV)_WE_52E26E

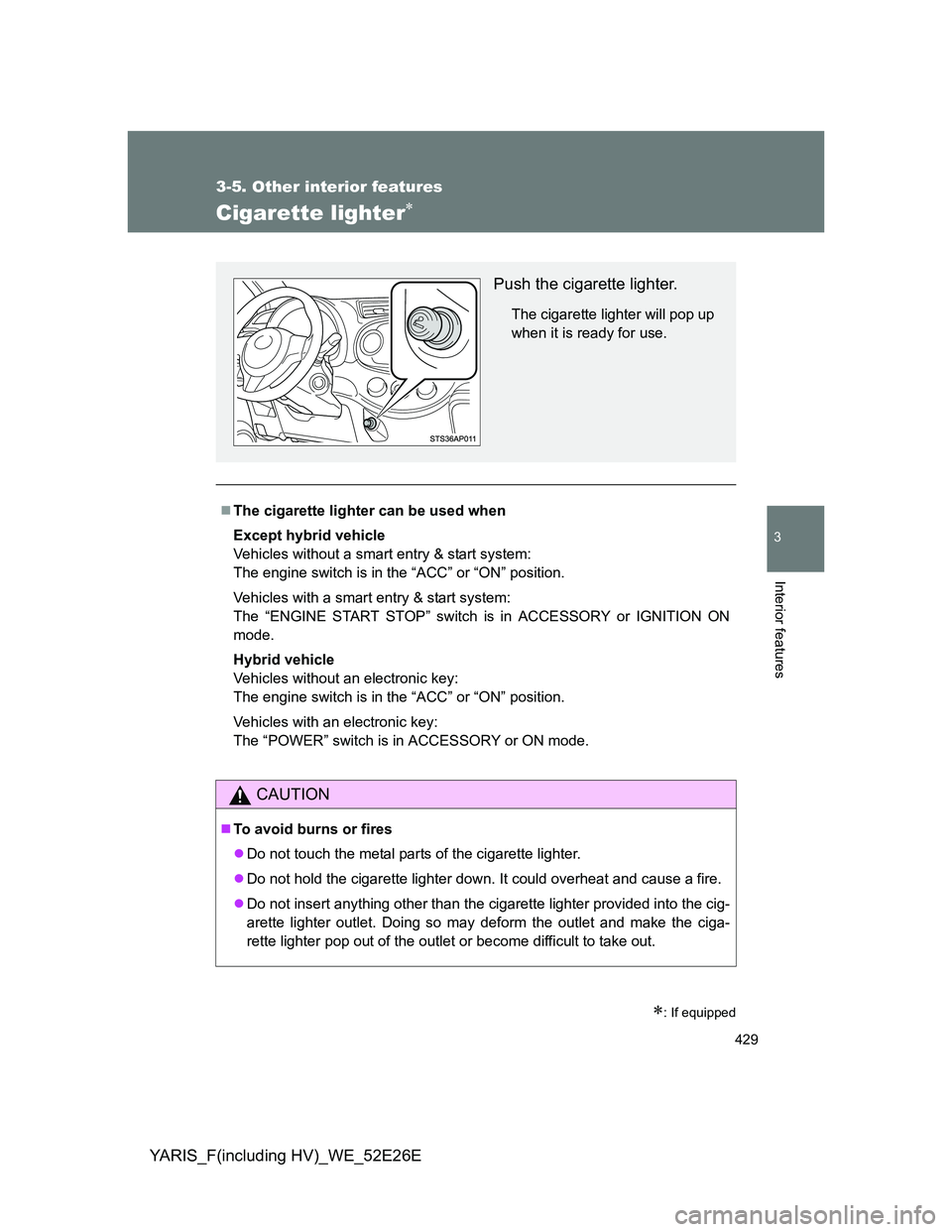

Cigarette lighter
: If equipped
The cigarette lighter can be used when
Except hybrid vehicle
Vehicles without a smart entry & start system:
The engine switch is in the “ACC” or “ON” position.
Vehicles with a smart entry & start system:
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON
mode.
Hybrid vehicle
Vehicles without an electronic key:
The engine switch is in the “ACC” or “ON” position.
Vehicles with an electronic key:
The “POWER” switch is in ACCESSORY or ON mode.
CAUTION
To avoid burns or fires
Do not touch the metal parts of the cigarette lighter.
Do not hold the cigarette lighter down. It could overheat and cause a fire.
Do not insert anything other than the cigarette lighter provided into the cig-
arette lighter outlet. Doing so may deform the outlet and make the ciga-
rette lighter pop out of the outlet or become difficult to take out.
Push the cigarette lighter.
The cigarette lighter will pop up
when it is ready for use.

430
3-5. Other interior features
YARIS_F(including HV)_WE_52E26E

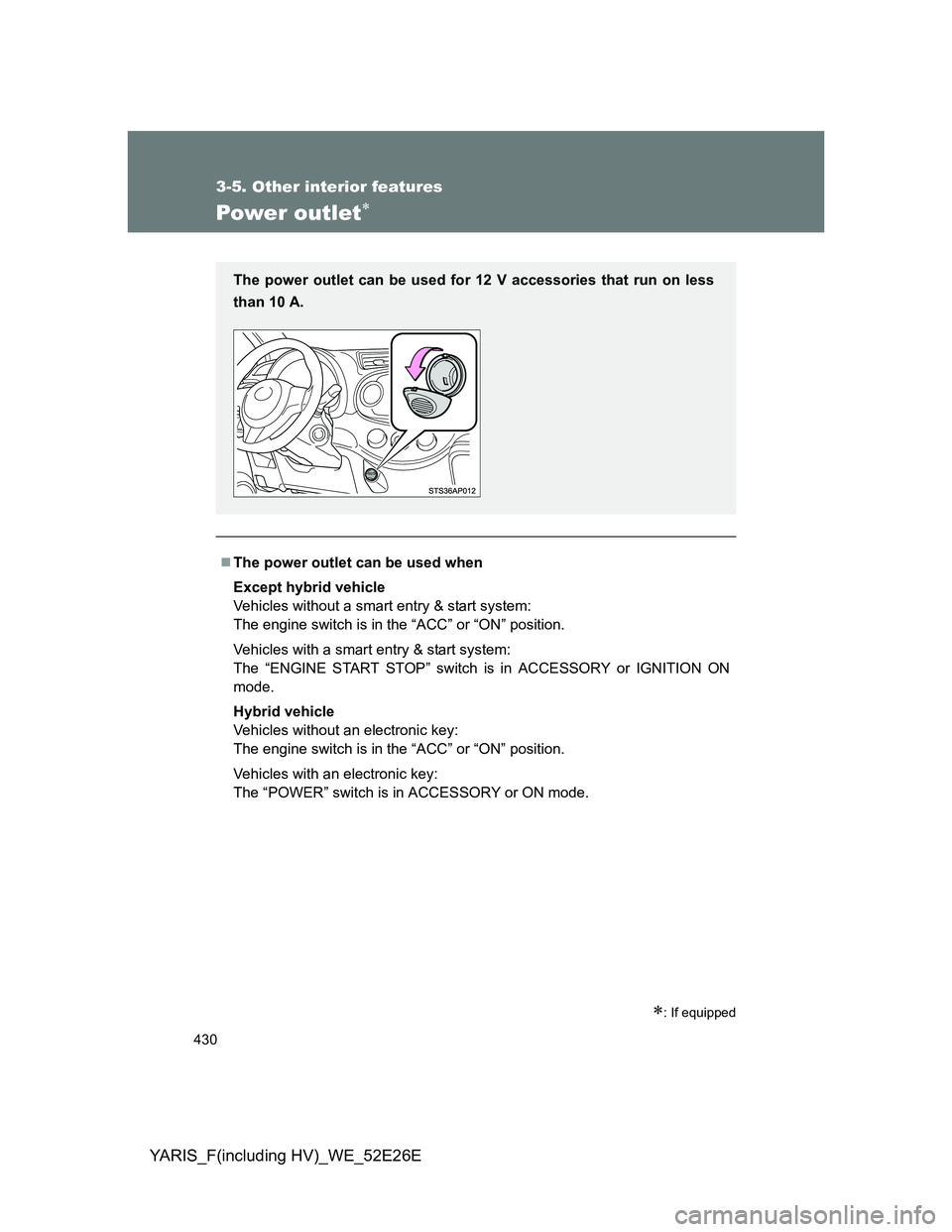

Power outlet
: If equipped
The power outlet can be used when
Except hybrid vehicle
Vehicles without a smart entry & start system:
The engine switch is in the “ACC” or “ON” position.
Vehicles with a smart entry & start system:
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON
mode.
Hybrid vehicle
Vehicles without an electronic key:
The engine switch is in the “ACC” or “ON” position.
Vehicles with an electronic key:
The “POWER” switch is in ACCESSORY or ON mode.
The power outlet can be used for 12 V accessories that run on less
than 10 A.
