TOYOTA YARIS 2014 Owners Manual

411
3-2. Using the audio system
3
Interior features
YARIS_F(including HV)_WE_52E26E
Using the AUX por t
: If equipped
Operating portable audio devices connected to the audio system
The volume can be adjusted using the vehicle's audio controls. All other
adjustments must be made on the portable audio device itself.
When using a portable audio device connected to the power outlet
Noise may occur during playback. Use the power source of the portable
audio device.
This port can be used to connect a portable audio device and listen
to it through the vehicle’s speakers.
Pull up the lever to open the
glove box.
Open the cover and connect
the portable audio device.
Close the glove box and press until “AUX” is dis-
played.

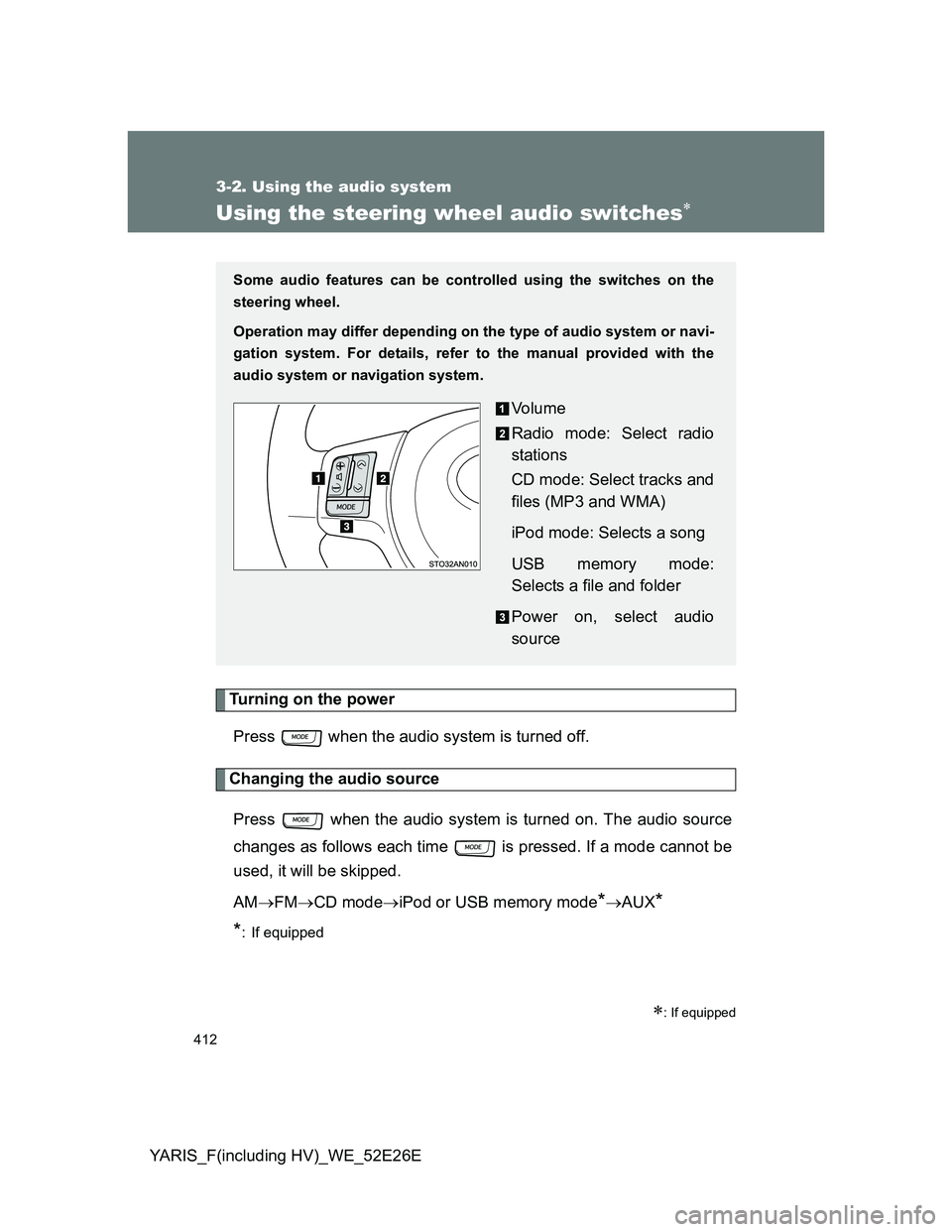

412
3-2. Using the audio system
YARIS_F(including HV)_WE_52E26E
Using the steering wheel audio switches
Turning on the power
Press when the audio system is turned off.
Changing the audio source
Press when the audio system is turned on. The audio source
changes as follows each time is pressed. If a mode cannot be
used, it will be skipped.
AMFMCD modeiPod or USB memory mode
*AUX*
*
: If equipped
: If equipped
Some audio features can be controlled using the switches on the
steering wheel.
Operation may differ depending on the type of audio system or navi-
gation system. For details, refer to the manual provided with the
audio system or navigation system.
Vo l u m e
Radio mode: Select radio
stations
CD mode: Select tracks and
files (MP3 and WMA)
iPod mode: Selects a song
USB memory mode:
Selects a file and folder
Power on, select audio
source

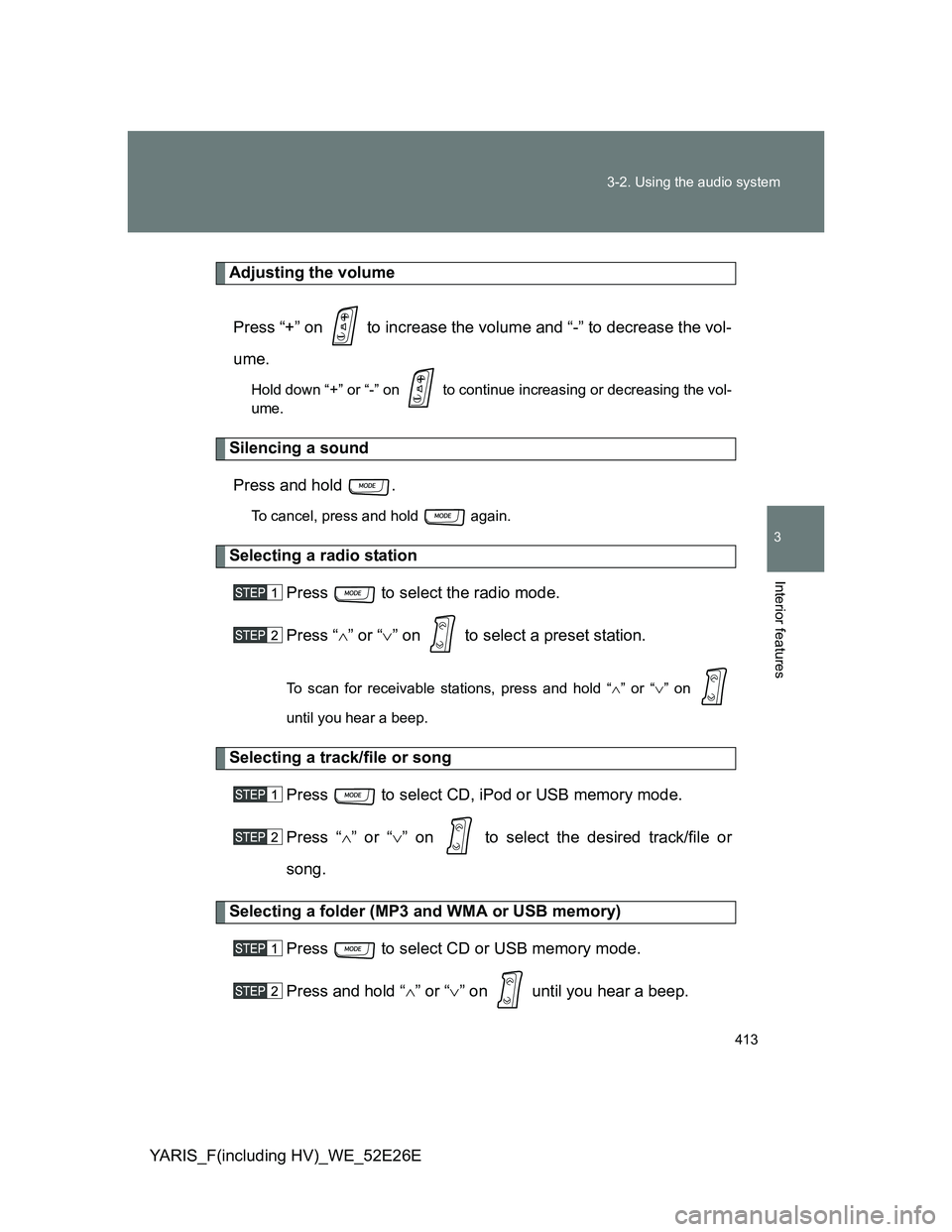

413 3-2. Using the audio system
3
Interior features
YARIS_F(including HV)_WE_52E26E
Adjusting the volume
Press “+” on to increase the volume and “-” to decrease the vol-
ume.
Hold down “+” or “-” on to continue increasing or decreasing the vol-
ume.
Silencing a sound
Press and hold .
To cancel, press and hold again.
Selecting a radio station
Press to select the radio mode.
Press “” or “” on to select a preset station.
To scan for receivable stations, press and hold “” or “” on
until you hear a beep.
Selecting a track/file or song
Press to select CD, iPod or USB memory mode.
Press “” or “” on to select the desired track/file or
song.
Selecting a folder (MP3 and WMA or USB memory)
Press to select CD or USB memory mode.
Press and hold “” or “” on until you hear a beep.

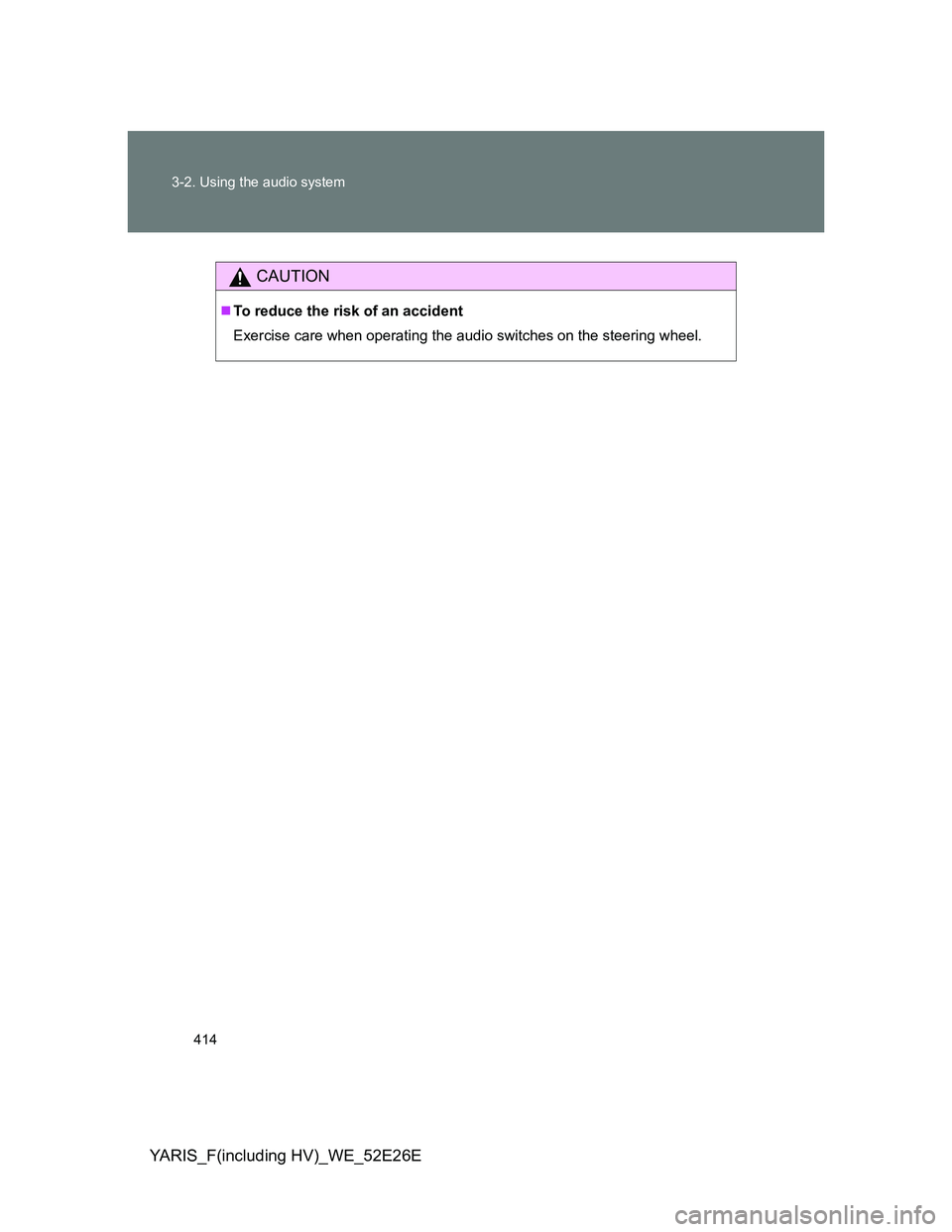

414 3-2. Using the audio system
YARIS_F(including HV)_WE_52E26E
CAUTION
To reduce the risk of an accident
Exercise care when operating the audio switches on the steering wheel.

415
3
Interior features
YARIS_F(including HV)_WE_52E26E

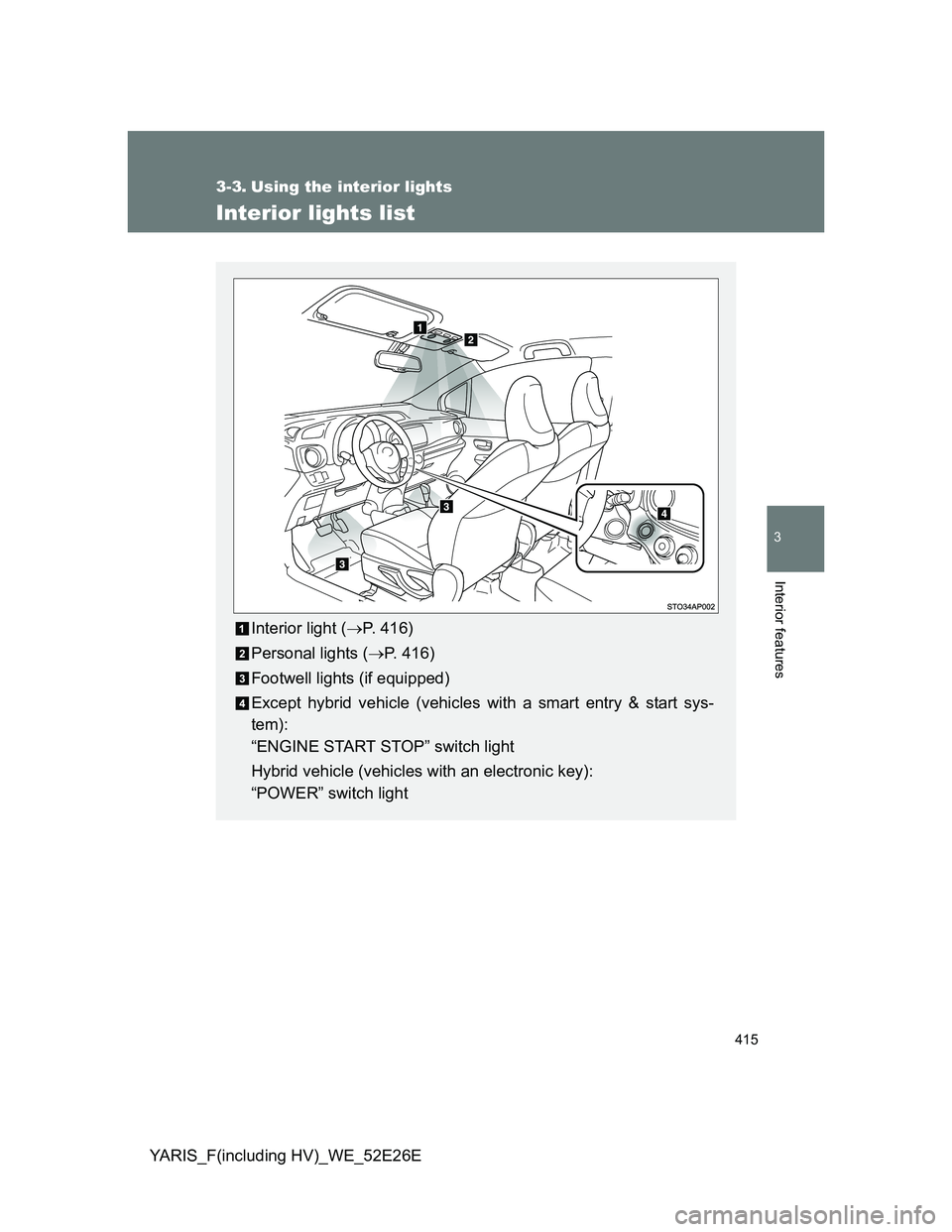

3-3. Using the interior lights
Interior lights list
Interior light (P. 416)
Personal lights (P. 416)
Footwell lights (if equipped)
Except hybrid vehicle (vehicles with a smart entry & start sys-
tem):
“ENGINE START STOP” switch light
Hybrid vehicle (vehicles with an electronic key):
“POWER” switch light

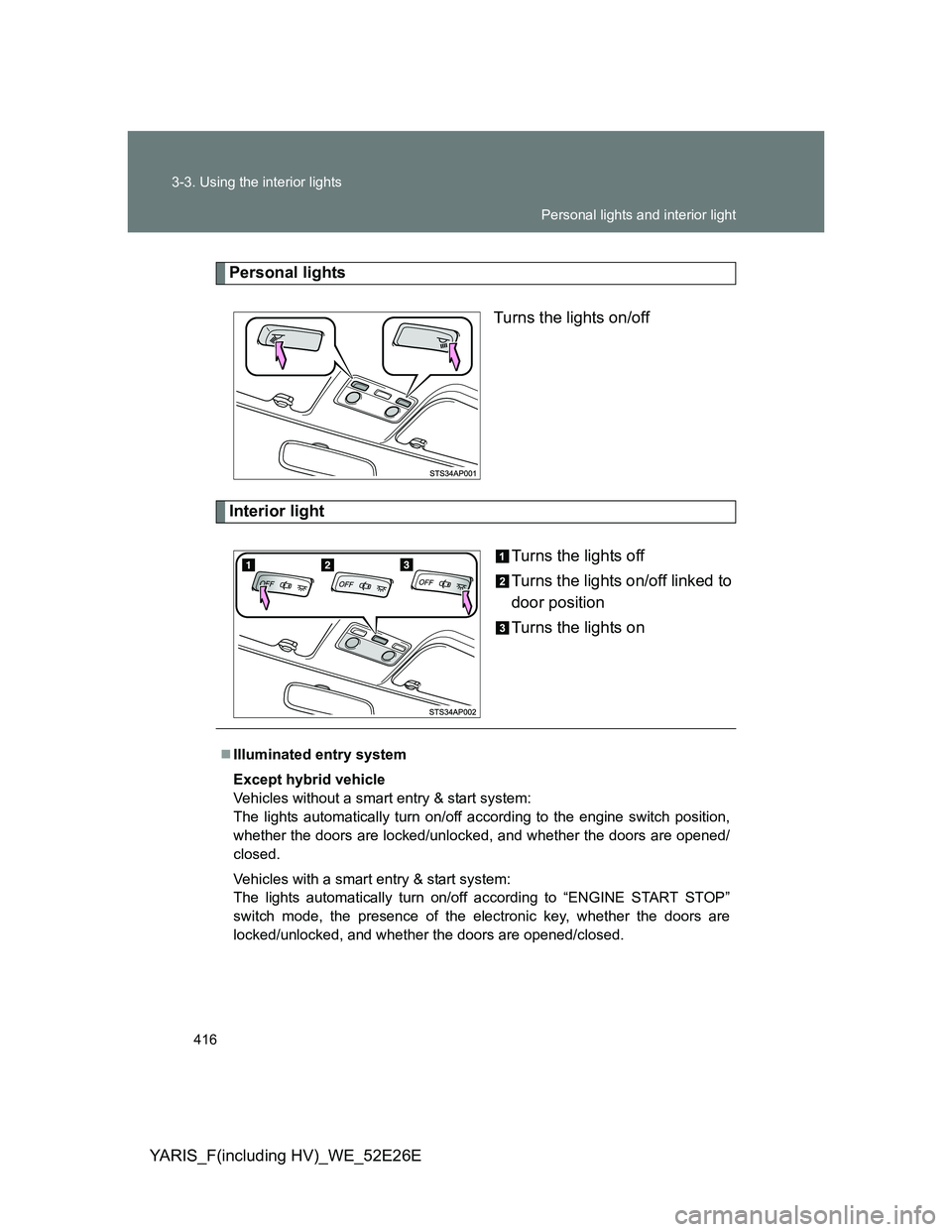

416 3-3. Using the interior lights
YARIS_F(including HV)_WE_52E26E
Personal lights
Turns the lights on/off
Interior light
Turns the lights off
Turns the lights on/off linked to
door position
Turns the lights on
Illuminated entry system
Except hybrid vehicle
Vehicles without a smart entry & start system:
The lights automatically turn on/off according to the engine switch position,
whether the doors are locked/unlocked, and whether the doors are opened/
closed.
Vehicles with a smart entry & start system:
The lights automatically turn on/off according to “ENGINE START STOP”
switch mode, the presence of the electronic key, whether the doors are
locked/unlocked, and whether the doors are opened/closed.
Personal lights and interior light

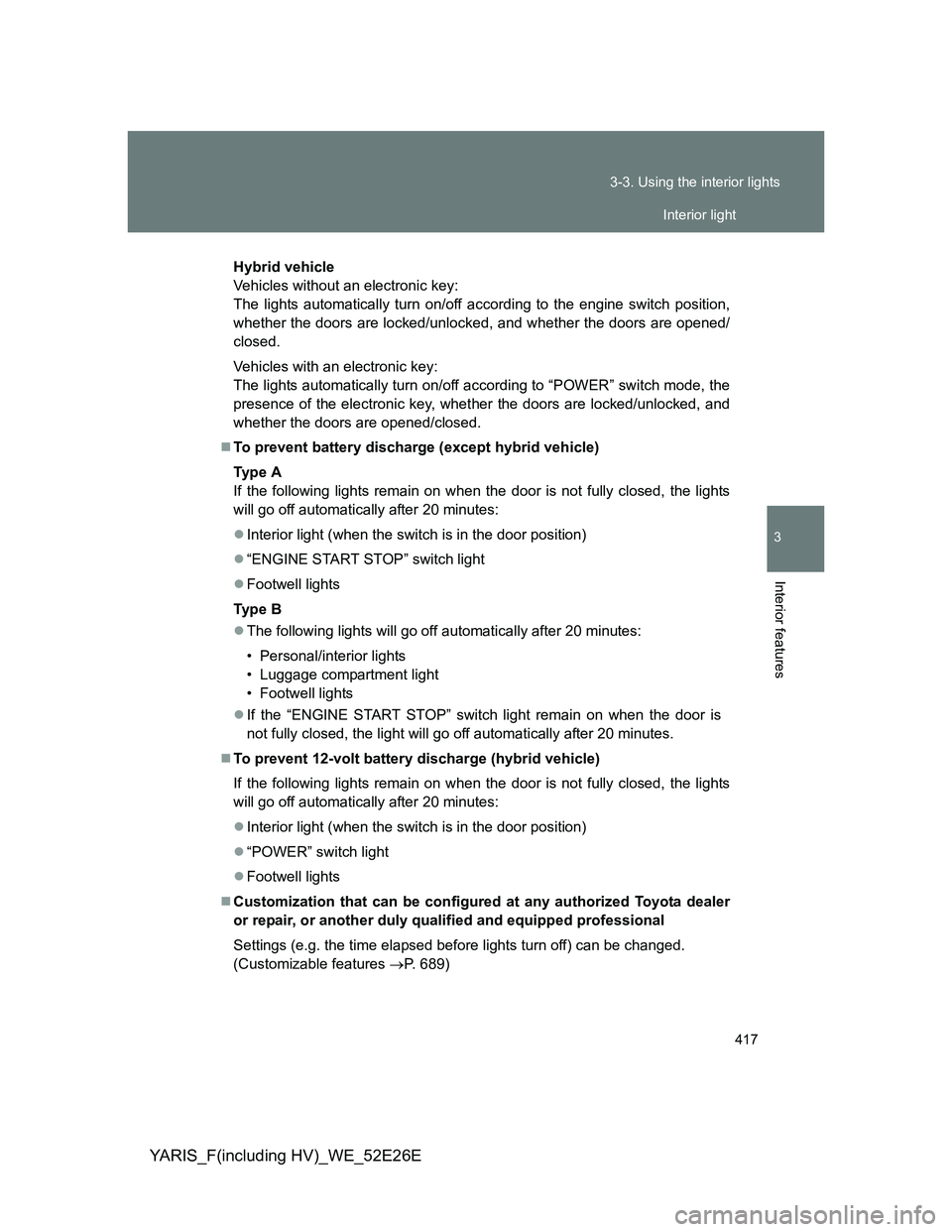

417 3-3. Using the interior lights
3
Interior features
YARIS_F(including HV)_WE_52E26E
Hybrid vehicle
Vehicles without an electronic key:
The lights automatically turn on/off according to the engine switch position,
whether the doors are locked/unlocked, and whether the doors are opened/
closed.
Vehicles with an electronic key:
The lights automatically turn on/off according to “POWER” switch mode, the
presence of the electronic key, whether the doors are locked/unlocked, and
whether the doors are opened/closed.
To prevent battery discharge (except hybrid vehicle)
Ty p e A
If the following lights remain on when the door is not fully closed, the lights
will go off automatically after 20 minutes:
Interior light (when the switch is in the door position)
“ENGINE START STOP” switch light
Footwell lights
Ty p e B
The following lights will go off automatically after 20 minutes:
• Personal/interior lights
• Luggage compartment light
• Footwell lights
If the “ENGINE START STOP” switch light remain on when the door is
not fully closed, the light will go off automatically after 20 minutes.
To prevent 12-volt battery discharge (hybrid vehicle)
If the following lights remain on when the door is not fully closed, the lights
will go off automatically after 20 minutes:
Interior light (when the switch is in the door position)
“POWER” switch light
Footwell lights
Customization that can be configured at any authorized Toyota dealer
or repair, or another duly qualified and equipped professional
Settings (e.g. the time elapsed before lights turn off) can be changed.
(Customizable features P. 689)
Interior light

418
YARIS_F(including HV)_WE_52E26E
3-4. Using the storage features
List of storage features
CAUTION
Items that should not be left in the storage spaces
Do not leave glasses, lighters or spray cans in the storage spaces, as this
may cause the following when cabin temperature becomes high:
Glasses may be deformed by heat or cracked if they come into contact
with other stored items.
Lighters or spray cans may explode. If they come into contact with other
stored items, the lighter may catch fire or the spray can may release gas,
causing a fire hazard.
Glove box
Cup holders
Bottle holders

419 3-4. Using the storage features
3
Interior features
YARIS_F(including HV)_WE_52E26E
Glove box
Pull up the lever to open the
glove box.
Owner’s Manual storage inside the glove box
Using the glove box vent (if equipped)
Inside the glove box, there is a compart-
ment at the top that can be used to store
the Owner’s Manual.
Air from the air conditioning system can
be distributed into the glove box by open-
ing and closing the vent.
Open
Close
The air is conditioned the same as the air
for the passenger side vent.
Perishable items should not be put in the
box.
Glove box

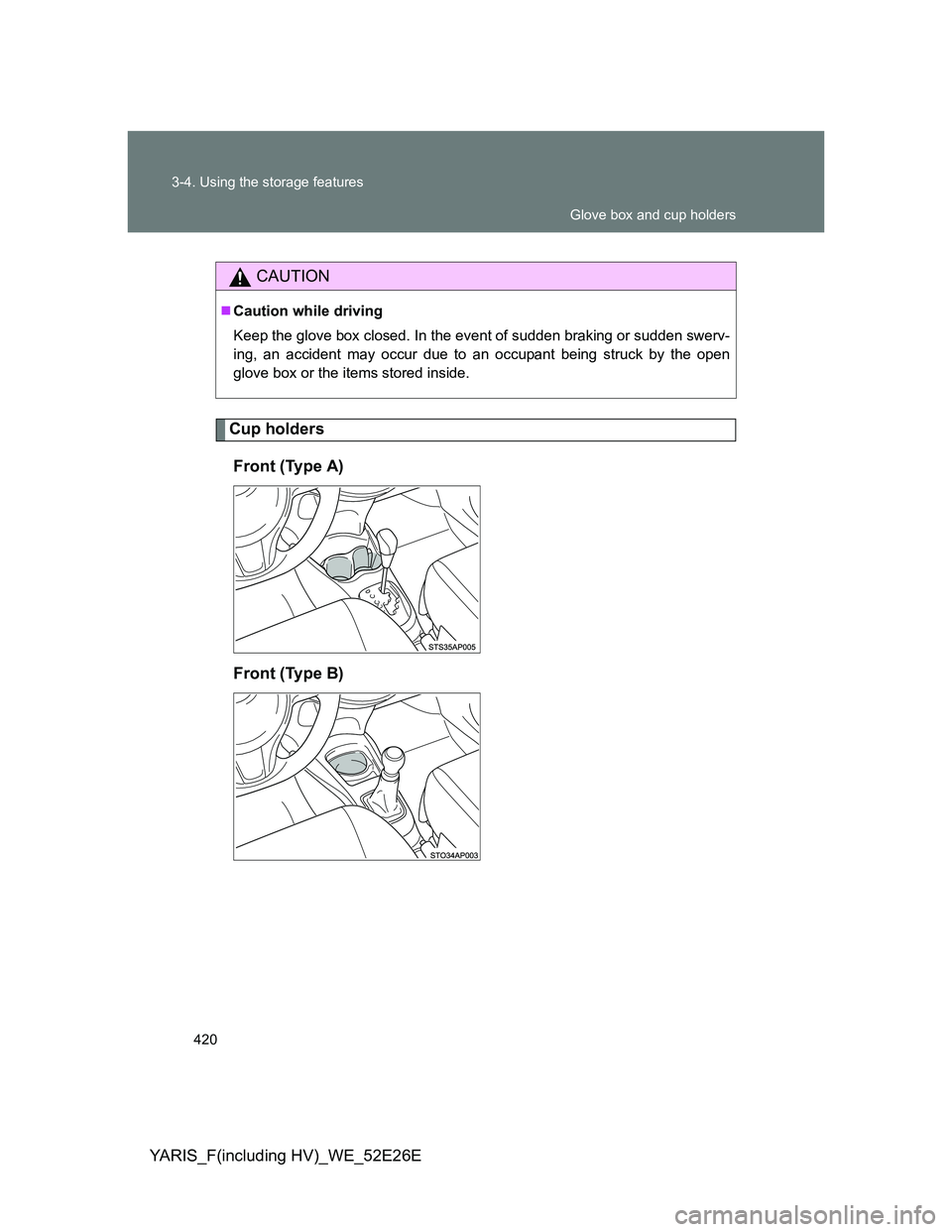

420 3-4. Using the storage features
YARIS_F(including HV)_WE_52E26E
Cup holders
Front (Type A)
Front (Type B)
CAUTION
Caution while driving
Keep the glove box closed. In the event of sudden braking or sudden swerv-
ing, an accident may occur due to an occupant being struck by the open
glove box or the items stored inside.
Glove box and cup holders
