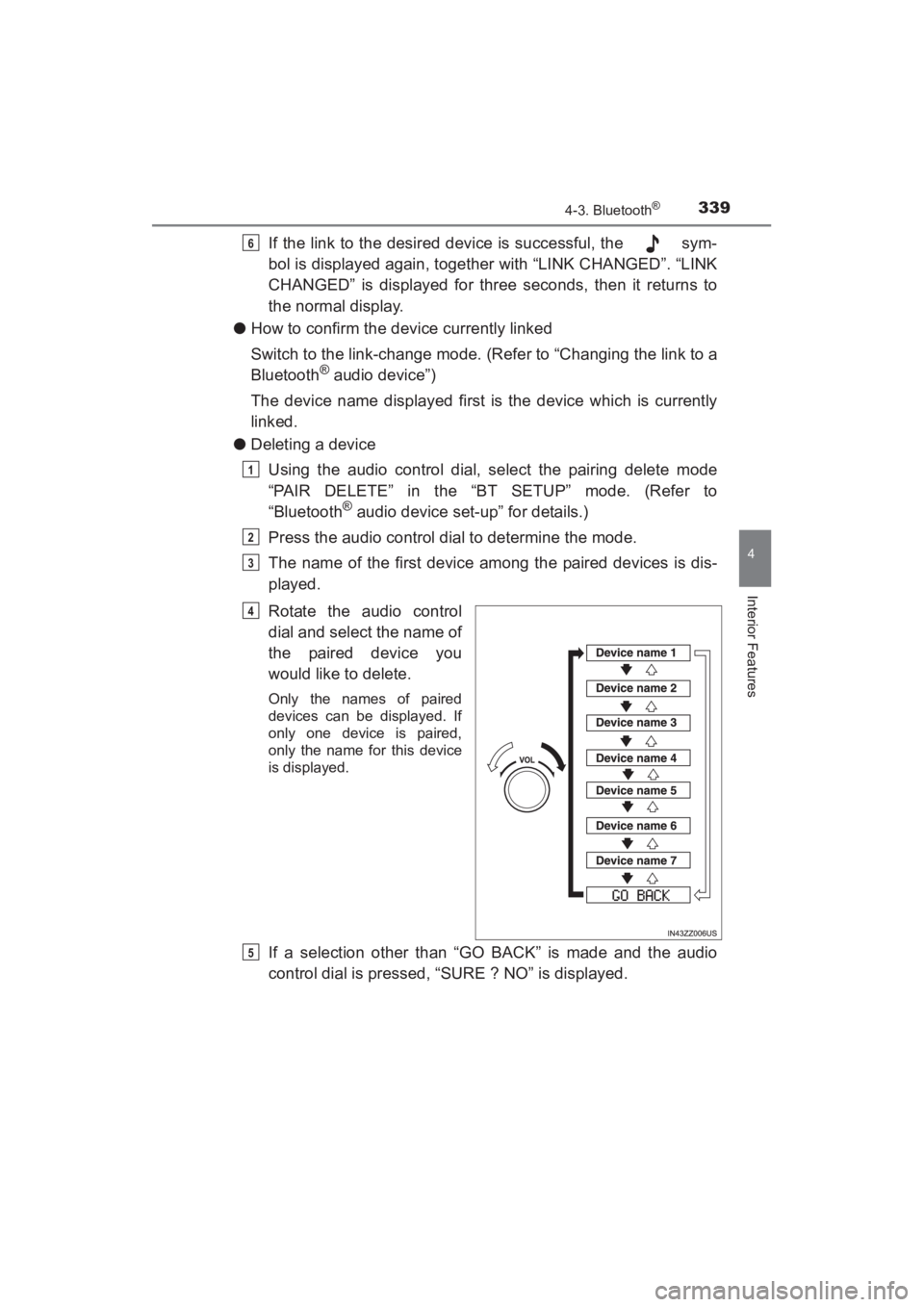

TOYOTA YARIS 2016 Owners Manual

YARIS_SEDAN_OM_OM99M18z_(U)
3394-3. Bluetooth®
4
Interior Features
If the link to the desired device is successful, the sym-
bol is displayed again, together with “LINK CHANGED”. “LINK
CHANGED” is displayed for three seconds, then it returns to
the normal display.
● How to confirm the device currently linked
Switch to the link-change mode. (Refer to “Changing the link to a
Bluetooth
® audio device”)
The device name displayed first is the device which is currently
linked.
● Deleting a device
Using the audio control dial, select the pairing delete mode
“PAIR DELETE” in the “BT SETUP” mode. (Refer to
“Bluetooth
® audio device set-up” for details.)
Press the audio control dial to determine the mode.
The name of the first device among the paired devices is dis-
played.
Rotate the audio control
dial and select the name of
the paired device you
would like to delete.
Only the names of paired
devices can be displayed. If
only one device is paired,
only the name for this device
is displayed.
If a selection other than “GO BACK” is made and the audio
control dial is pressed, “SURE ? NO” is displayed.
6
1
2
3
4
5
YARIS_SEDAN_OM_OM99M18z_(U).book Page 339 Monday, June 1, 2015 9:22 PM

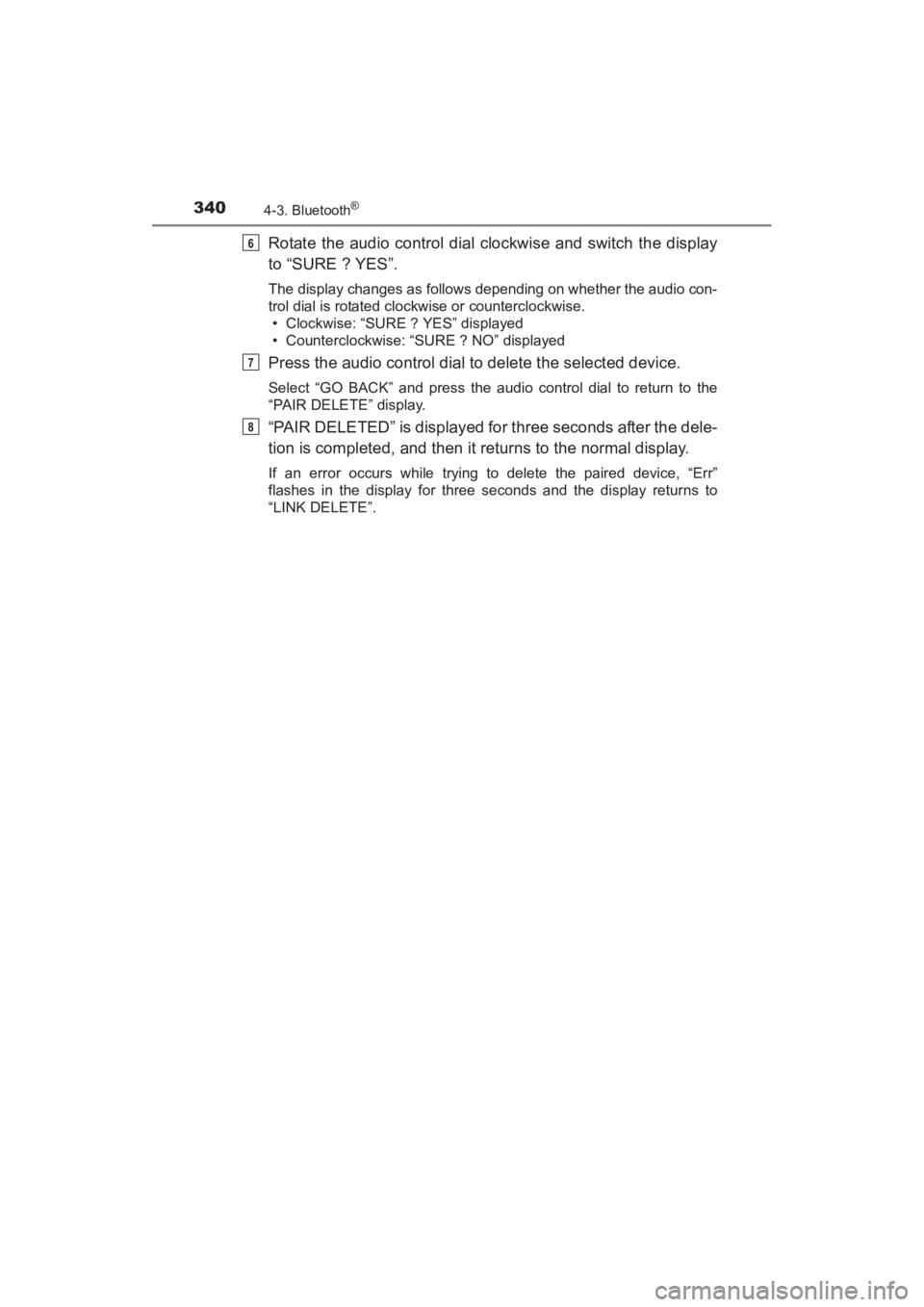

340
YARIS_SEDAN_OM_OM99M18z_(U)
4-3. Bluetooth®
Rotate the audio control dial clockwise and switch the display
to “SURE ? YES”.
The display changes as follows depending on whether the audio con-
trol dial is rotated clockwise or counterclockwise.• Clockwise: “SURE ? YES” displayed
• Counterclockwise: “SURE ? NO” displayed
Press the audio control dial to delete the selected device.
Select “GO BACK” and press the audio control dial to return to the
“PAIR DELETE” display.
“PAIR DELETED” is displayed for three seconds after the dele-
tion is completed, and then it returns to the normal display.
If an error occurs while trying to delete the paired device, “Err”
flashes in the display for three seconds and the display returns to
“LINK DELETE”.
6
7
8
YARIS_SEDAN_OM_OM99M18z_(U).book Page 340 Monday, June 1, 2015 9:22 PM

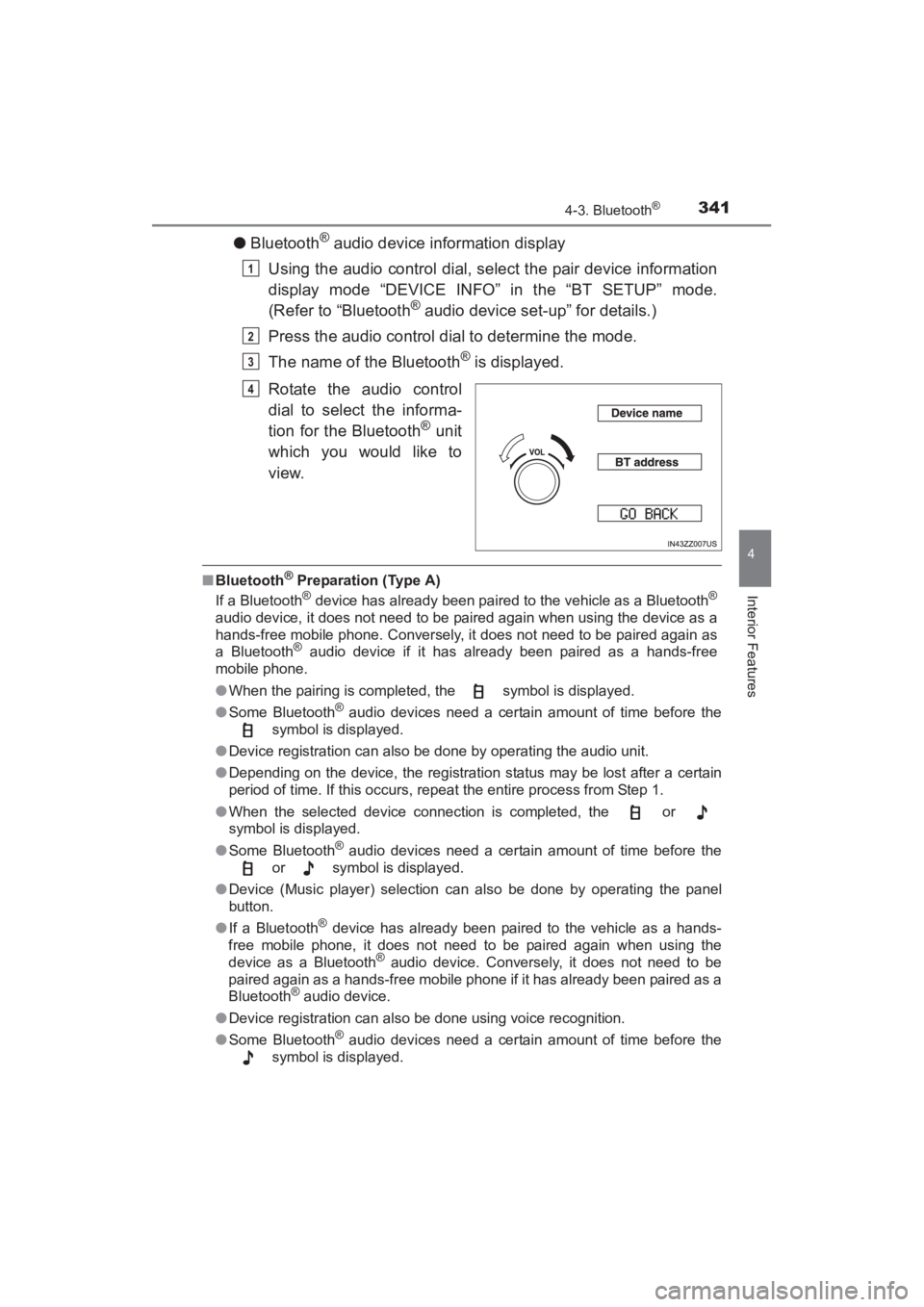

YARIS_SEDAN_OM_OM99M18z_(U)
3414-3. Bluetooth®
4
Interior Features
●Bluetooth® audio device information display
Using the audio control dial, select the pair device information
display mode “DEVICE INFO” in the “BT SETUP” mode.
(Refer to “Bluetooth
® audio device set-up” for details.)
Press the audio control dial to determine the mode.
The name of the Bluetooth
® is displayed.
Rotate the audio control
dial to select the informa-
tion for the Bluetooth
® unit
which you would like to
view.
■ Bluetooth® Preparation (Type A)
If a Bluetooth® device has already been paired to the vehicle as a Bluetooth®
audio device, it does not need to be paired again when using the device as a
hands-free mobile phone. Conversely, it does not need to be paired again as
a Bluetooth
® audio device if it has already been paired as a hands-free
mobile phone.
● When the pairing is completed, the symbol is displayed.
● Some Bluetooth
® audio devices need a certain amount of time before the
symbol is displayed.
● Device registration can also be done by operating the audio unit.
● Depending on the device, the registration status may be lost after a certain
period of time. If this occurs, repeat the entire process from Step 1.
● When the selected device connection is completed, the or
symbol is displayed.
● Some Bluetooth
® audio devices need a certain amount of time before the
or symbol is displayed.
● Device (Music player) selection can also be done by operating the panel
button.
● If a Bluetooth
® device has already been paired to the vehicle as a hands-
free mobile phone, it does not need to be paired again when using the
device as a Bluetooth
® audio device. Conversely, it does not need to be
paired again as a hands-free mobile phone if it has already been paired as a
Bluetooth
® audio device.
● Device registration can also be done using voice recognition.
● Some Bluetooth
® audio devices need a certain amount of time before the
symbol is displayed.
1
2
3
4
YARIS_SEDAN_OM_OM99M18z_(U).book Page 341 Monday, June 1, 2015 9:22 PM

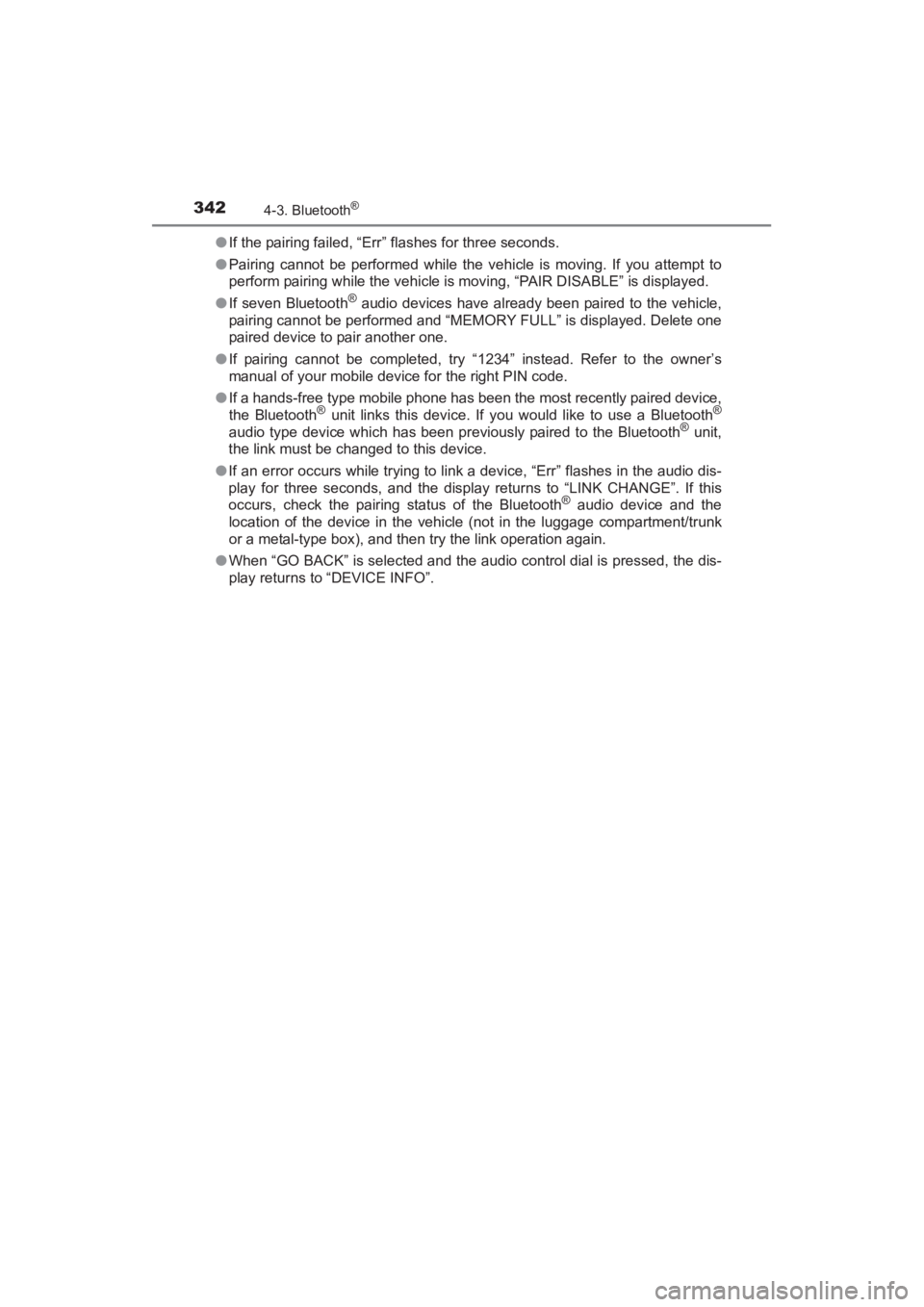

342
YARIS_SEDAN_OM_OM99M18z_(U)
4-3. Bluetooth®
●If the pairing failed, “Err” flashes for three seconds.
● Pairing cannot be performed while the vehicle is moving. If you attempt to
perform pairing while the vehicle is moving, “PAIR DISABLE” is displayed.
● If seven Bluetooth
® audio devices have already been paired to the vehicle,
pairing cannot be performed and “MEMORY FULL” is displayed. Delete one
paired device to pair another one.
● If pairing cannot be completed, try “1234” instead. Refer to the owner’s
manual of your mobile device for the right PIN code.
● If a hands-free type mobile phone has been the most recently paired device,
the Bluetooth
® unit links this device. If you would like to use a Bluetooth®
audio type device which has been previously paired to the Bluetooth® unit,
the link must be changed to this device.
● If an error occurs while trying to link a device, “Err” flashes in the audio dis-
play for three seconds, and the display returns to “LINK CHANGE”. If this
occurs, check the pairing status of the Bluetooth
® audio device and the
location of the device in the vehicle (not in the luggage compartment/trunk
or a metal-type box), and then try the link operation again.
● When “GO BACK” is selected and the audio control dial is pressed, the dis-
play returns to “DEVICE INFO”.
YARIS_SEDAN_OM_OM99M18z_(U).book Page 342 Monday, June 1, 2015 9:22 PM

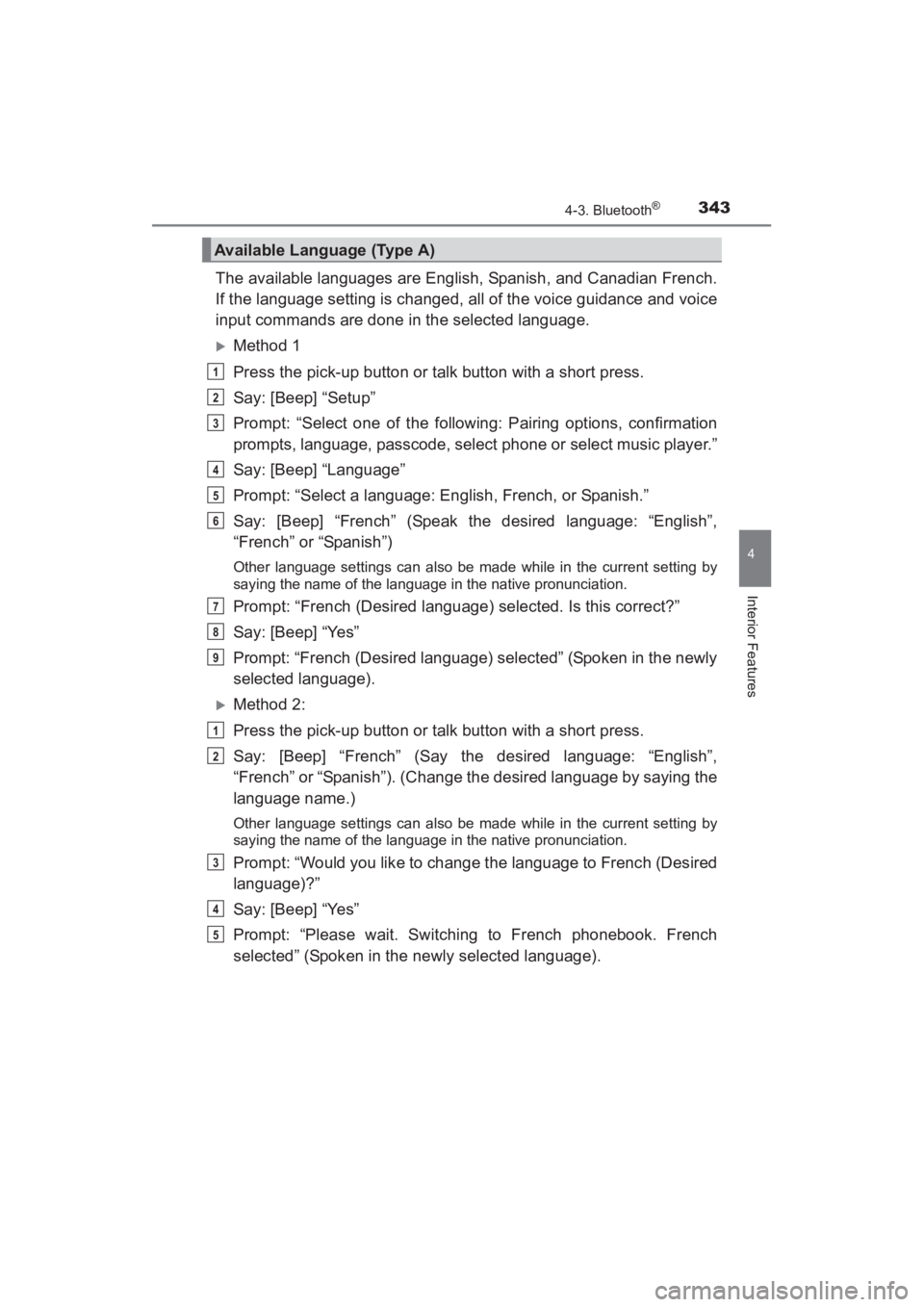

YARIS_SEDAN_OM_OM99M18z_(U)
3434-3. Bluetooth®
4
Interior Features
The available languages are English, Spanish, and Canadian French.
If the language setting is changed, all of the voice guidance and voice
input commands are done in the selected language.
XMethod 1
Press the pick-up button or talk button with a short press.
Say: [Beep] “Setup”
Prompt: “Select one of the following: Pairing options, confirmation
prompts, language, passcode, select phone or select music player.”
Say: [Beep] “Language”
Prompt: “Select a language: English, French, or Spanish.”
Say: [Beep] “French” (Speak the desired language: “English”,
“French” or “Spanish”)
Other language settings can also be made while in the current setting by
saying the name of the language in the native pronunciation.
Prompt: “French (Desired language) selected. Is this correct?”
Say: [Beep] “Yes”
Prompt: “French (Desired language) selected” (Spoken in the newly
selected language).
XMethod 2:
Press the pick-up button or talk button with a short press.
Say: [Beep] “French” (Say the desired language: “English”,
“French” or “Spanish”). (Change the desired language by saying the
language name.)
Other language settings can also be made while in the current setting by
saying the name of the language in the native pronunciation.
Prompt: “Would you like to change the language to French (Desired
language)?”
Say: [Beep] “Yes”
Prompt: “Please wait. Switching to French phonebook. French
selected” (Spoken in the newly selected language).
Available Language (Type A)
1
2
3
4
5
6
7
8
9
1
2
3
4
5
YARIS_SEDAN_OM_OM99M18z_(U).book Page 343 Monday, June 1, 2015 9:22 PM

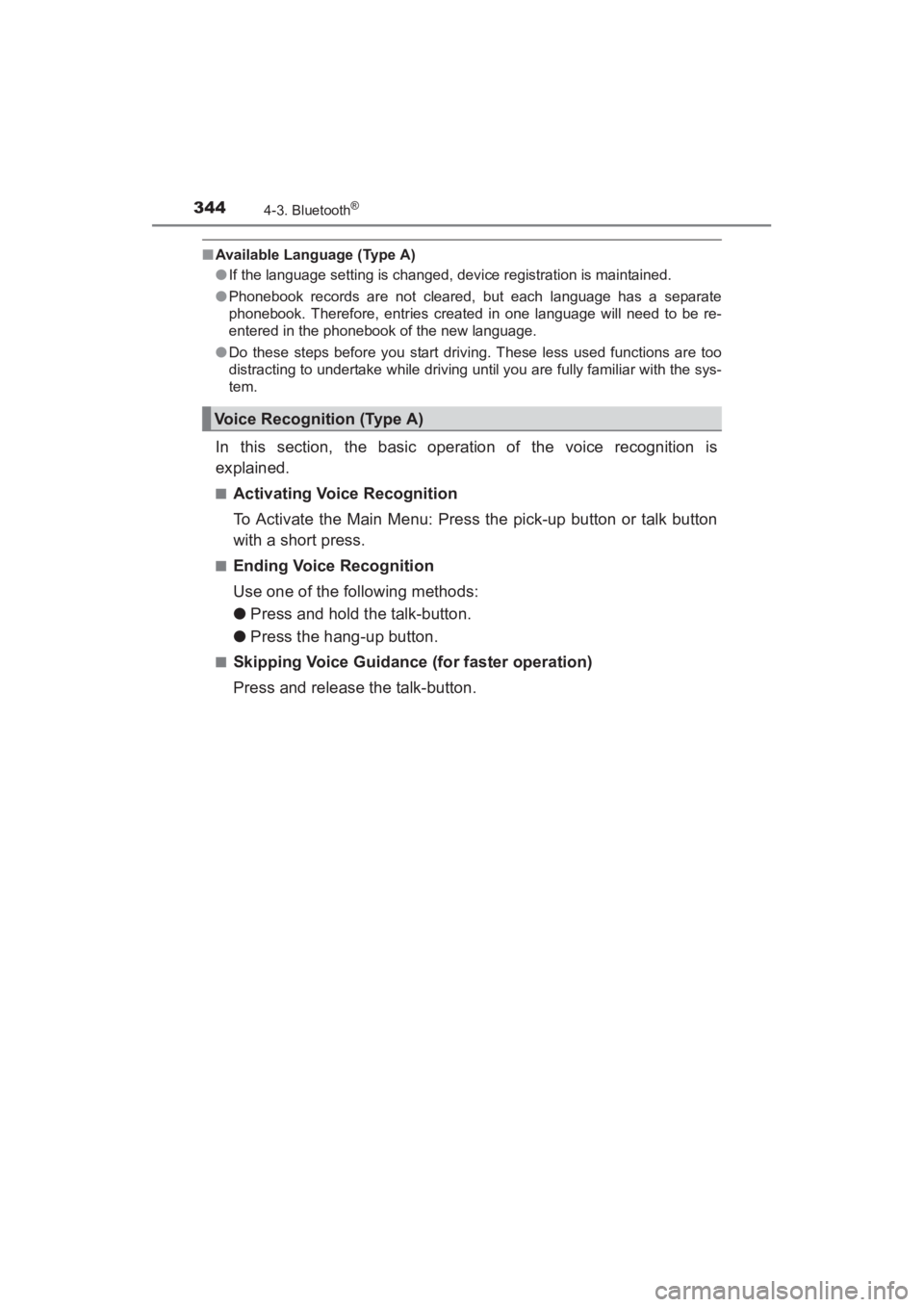

344
YARIS_SEDAN_OM_OM99M18z_(U)
4-3. Bluetooth®
■Available Language (Type A)
●If the language setting is changed, dev ice registration is maintained.
● Phonebook records are not cleared, but each language has a separate
phonebook. Therefore, entries created in one language will need to be re-
entered in the phonebook of the new language.
● Do these steps before you start driving. These less used functions are too
distracting to undertake while driving until you are fully familiar with the sys-
tem.
In this section, the basic operation of the voice recognition is
explained.
■Activating Voice Recognition
To Activate the Main Menu: Press the pick-up button or talk button
with a short press.
■Ending Voice Recognition
Use one of the following methods:
● Press and hold the talk-button.
● Press the hang-up button.
■Skipping Voice Guidance (for faster operation)
Press and release the talk-button.
Voice Recognition (Type A)
YARIS_SEDAN_OM_OM99M18z_(U).book Page 344 Monday, June 1, 2015 9:22 PM

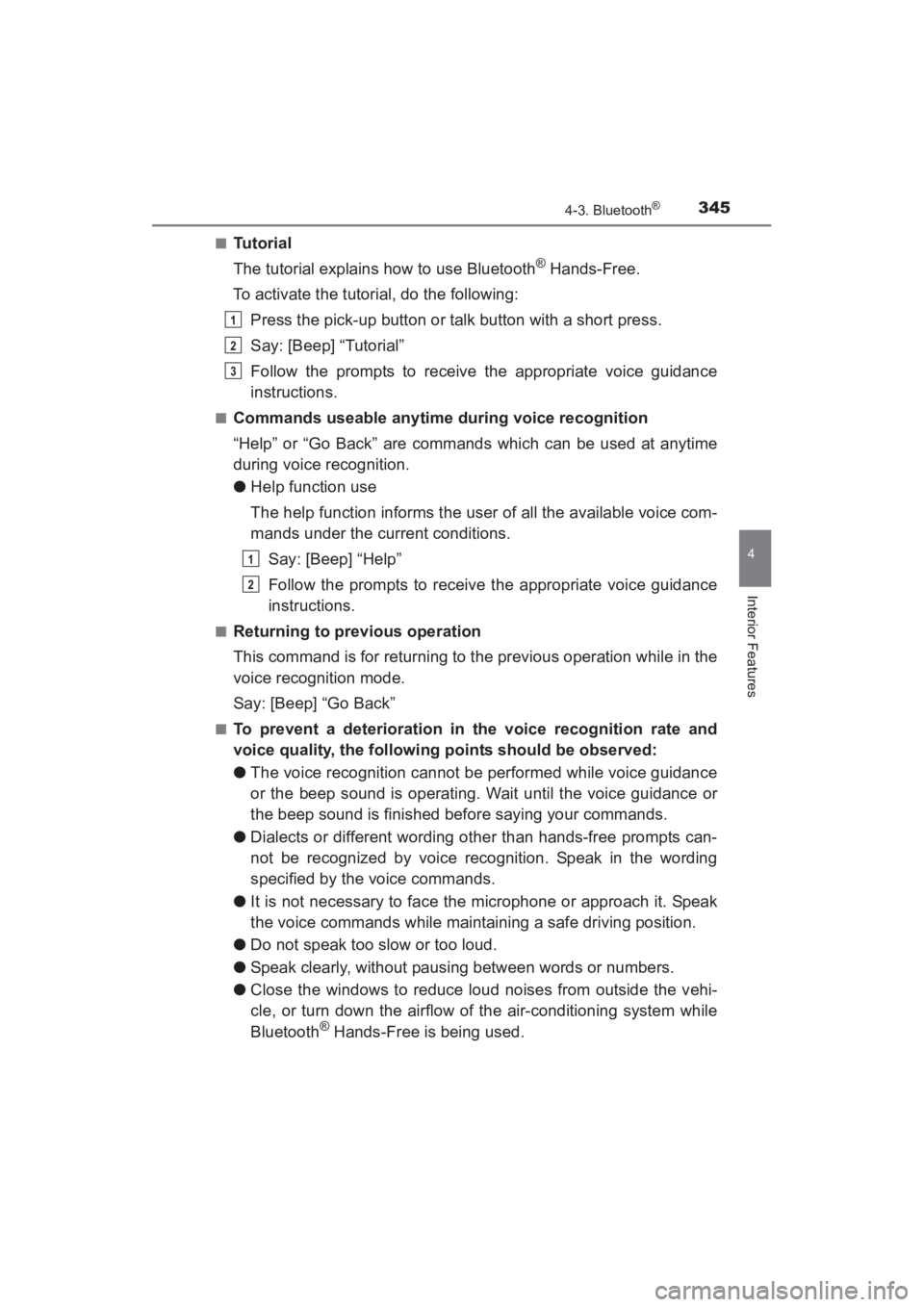

YARIS_SEDAN_OM_OM99M18z_(U)
3454-3. Bluetooth®
4
Interior Features
■Tu t o r i a l
The tutorial explains how to use Bluetooth
® Hands-Free.
To activate the tutorial, do the following:
Press the pick-up button or talk button with a short press.
Say: [Beep] “Tutorial”
Follow the prompts to receive the appropriate voice guidance
instructions.
■Commands useable anytime during voice recognition
“Help” or “Go Back” are commands which can be used at anytime
during voice recognition.
●Help function use
The help function informs the user of all the available voice com-
mands under the current conditions.
Say: [Beep] “Help”
Follow the prompts to receive the appropriate voice guidance
instructions.
■Returning to previous operation
This command is for returning to the previous operation while in the
voice recognition mode.
Say: [Beep] “Go Back”
■To prevent a deterioration in the voice recognition rate and
voice quality, the following points should be observed:
●The voice recognition cannot be performed while voice guidance
or the beep sound is operating. Wait until the voice guidance or
the beep sound is finished before saying your commands.
● Dialects or different wording other than hands-free prompts can-
not be recognized by voice recognition. Speak in the wording
specified by the voice commands.
● It is not necessary to face the microphone or approach it. Speak
the voice commands while maintaining a safe driving position.
● Do not speak too slow or too loud.
● Speak clearly, without pausing between words or numbers.
● Close the windows to reduce loud noises from outside the vehi-
cle, or turn down the airflow of the air-conditioning system while
Bluetooth
® Hands-Free is being used.
1
2
3
1
2
YARIS_SEDAN_OM_OM99M18z_(U).book Page 345 Monday, June 1, 2015 9:22 PM

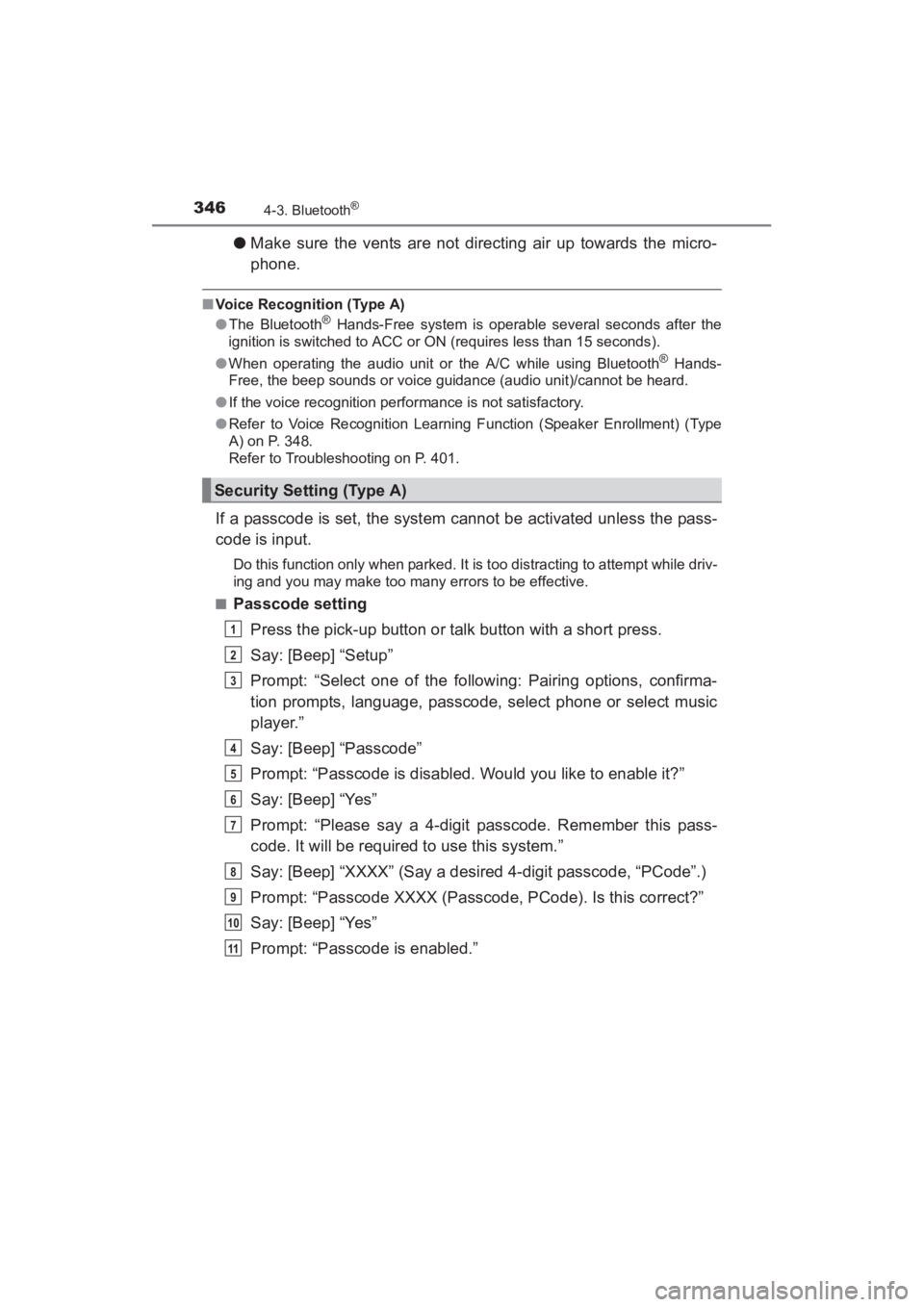

346
YARIS_SEDAN_OM_OM99M18z_(U)
4-3. Bluetooth®
●Make sure the vents are not directing air up towards the micro-
phone.
■Voice Recognition (Type A)
●The Bluetooth® Hands-Free system is operable several seconds after the
ignition is switched to ACC or ON (requires less than 15 seconds).
● When operating the audio unit or the A/C while using Bluetooth
® Hands-
Free, the beep sounds or voice guidance (audio unit)/cannot be heard.
● If the voice recognition performance is not satisfactory.
● Refer to Voice Recognition Learning Function (Speaker Enrollment) (Type
A) on P. 348.
Refer to Troubleshooting on P. 401.
If a passcode is set, the system cannot be activated unless the pass-
code is input.
Do this function only when parked. It is too distracting to attempt while driv-
ing and you may make too many errors to be effective.
■
Passcode setting
Press the pick-up button or talk button with a short press.
Say: [Beep] “Setup”
Prompt: “Select one of the following: Pairing options, confirma-
tion prompts, language, passcode, select phone or select music
player.”
Say: [Beep] “Passcode”
Prompt: “Passcode is disabled. Would you like to enable it?”
Say: [Beep] “Yes”
Prompt: “Please say a 4-digit passcode. Remember this pass-
code. It will be required to use this system.”
Say: [Beep] “XXXX” (Say a desired 4-digit passcode, “PCode”.)
Prompt: “Passcode XXXX (Passcode, PCode). Is this correct?”
Say: [Beep] “Yes”
Prompt: “Passcode is enabled.”
Security Setting (Type A)
1
2
3
4
5
6
7
8
9
10
11
YARIS_SEDAN_OM_OM99M18z_(U).book Page 346 Monday, June 1, 2015 9:22 PM

YARIS_SEDAN_OM_OM99M18z_(U)

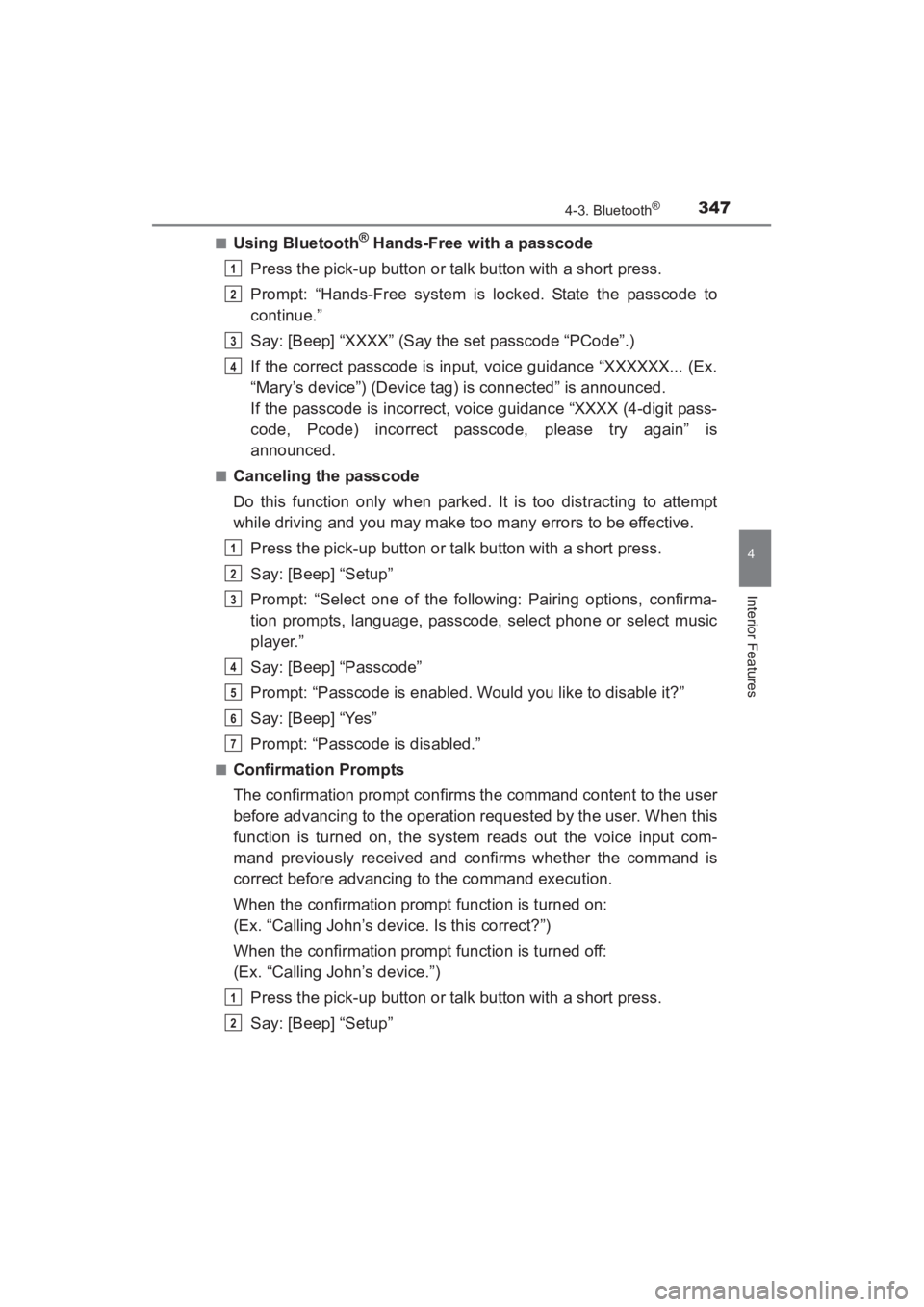

3474-3. Bluetooth®
4
Interior Features
■Using Bluetooth® Hands-Free with a passcode
Press the pick-up button or talk button with a short press.
Prompt: “Hands-Free system is locked. State the passcode to
continue.”
Say: [Beep] “XXXX” (Say the set passcode “PCode”.)
If the correct passcode is input, voice guidance “XXXXXX... (Ex.
“Mary’s device”) (Device tag) is connected” is announced.
If the passcode is incorrect, voice guidance “XXXX (4-digit pass-
code, Pcode) incorrect passcode, please try again” is
announced.
■Canceling the passcode
Do this function only when parked. It is too distracting to attempt
while driving and you may make too many errors to be effective. Press the pick-up button or talk button with a short press.
Say: [Beep] “Setup”
Prompt: “Select one of the following: Pairing options, confirma-
tion prompts, language, passcode, select phone or select music
player.”
Say: [Beep] “Passcode”
Prompt: “Passcode is enabled. Would you like to disable it?”
Say: [Beep] “Yes”
Prompt: “Passcode is disabled.”
■Confirmation Prompts
The confirmation prompt confirms the command content to the user
before advancing to the operation requested by the user. When this
function is turned on, the system reads out the voice input com-
mand previously received and confirms whether the command is
correct before advancing to the command execution.
When the confirmation prompt function is turned on:
(Ex. “Calling John’s device. Is this correct?”)
When the confirmation prompt function is turned off:
(Ex. “Calling John’s device.”)
Press the pick-up button or talk button with a short press.
Say: [Beep] “Setup”
1
2
3
4
1
2
3
4
5
6
7
1
2
YARIS_SEDAN_OM_OM99M18z_(U).book Page 347 Monday, June 1, 2015 9:22 PM

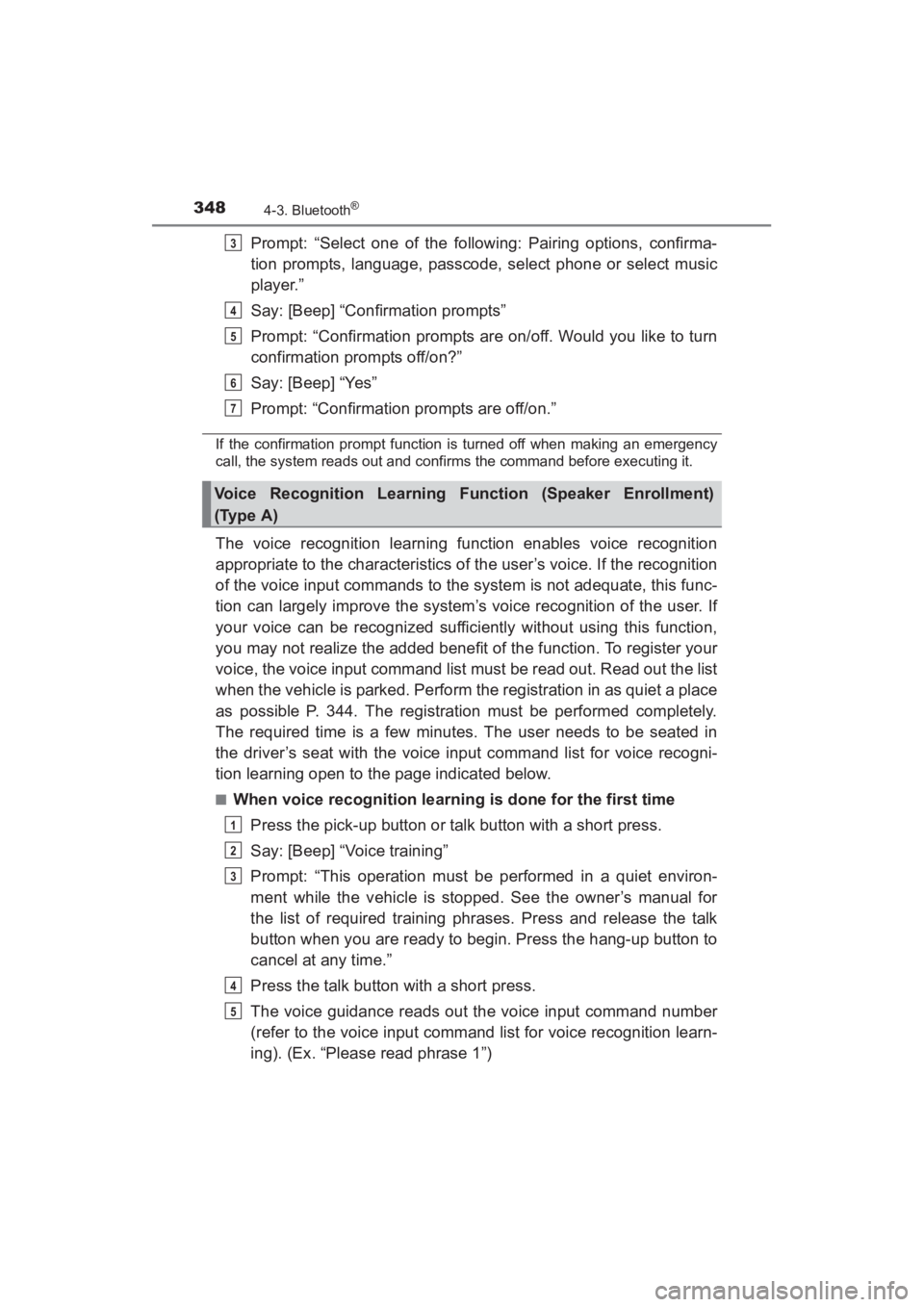

348
YARIS_SEDAN_OM_OM99M18z_(U)
4-3. Bluetooth®
Prompt: “Select one of the following: Pairing options, confirma-
tion prompts, language, passcode, select phone or select music
player.”
Say: [Beep] “Confirmation prompts”
Prompt: “Confirmation prompts are on/off. Would you like to turn
confirmation prompts off/on?”
Say: [Beep] “Yes”
Prompt: “Confirmation prompts are off/on.”
If the confirmation prompt function is turned off when making an emergency
call, the system reads out and confirms the command before executing it.
The voice recognition learning function enables voice recognition
appropriate to the characteristics of the user’s voice. If the recognition
of the voice input commands to the system is not adequate, this func-
tion can largely improve the system’s voice recognition of the user. If
your voice can be recognized sufficiently without using this function,
you may not realize the added benefit of the function. To register your
voice, the voice input command list must be read out. Read out the list
when the vehicle is parked. Perform the registration in as quiet a place
as possible P. 344. The registration must be performed completely.
The required time is a few minutes. The user needs to be seated in
the driver’s seat with the voice input command list for voice recogni-
tion learning open to the page indicated below.
■When voice recognition learning is done for the first timePress the pick-up button or talk button with a short press.
Say: [Beep] “Voice training”
Prompt: “This operation must be performed in a quiet environ-
ment while the vehicle is stopped. See the owner’s manual for
the list of required training phrases. Press and release the talk
button when you are ready to begin. Press the hang-up button to
cancel at any time.”
Press the talk button with a short press.
The voice guidance reads out the voice input command number
(refer to the voice input command list for voice recognition learn-
ing). (Ex. “Please read phrase 1”)
Voice Recognition Learning Function (Speaker Enrollment)
(Type A)
3
4
5
6
7
1
2
3
4
5
YARIS_SEDAN_OM_OM99M18z_(U).book Page 348 Monday, June 1, 2015 9:22 PM
