TOYOTA YARIS 2016 Owners Manual

YARIS_SEDAN_OM_OM99M18z_(U)
3494-3. Bluetooth®
4
Interior Features
Say: [Beep] “0123456789” (Say the voice input command for
voice recognition learning (1 to 8) according to the voice guid-
ance.)
Prompt: “Speaker enrollment is complete.”
■Voice recognition re-learning
If voice recognition learning has already been done.Press the pick-up button or talk button with a short press.
Say: [Beep] “Voice training”
Prompt: “Enrollment is enabled/ disabled. Would you like to dis-
able/ enable or retrain?”
Say: [Beep] “Retrain”
Prompt: “This operation must be performed in a quiet environ-
ment while the vehicle is stopped. See the owner’s manual for
the list of required training phrases. Press and release the talk
button when you are ready to begin. Press the hang-up button to
cancel at any time.”
Press the talk button with a short press.
The voice guidance reads out the voice input command number
(refer to the voice input command list for voice recognition learn-
ing). (Ex. “Please read phrase 1”)
Say: [Beep] “0123456789” (Say the voice input command for
voice recognition learning (1 to 8) according to the voice guid-
ance.)
Prompt: “Speaker enrollment is complete.”
6
7
1
2
3
4
5
6
7
8
9
YARIS_SEDAN_OM_OM99M18z_(U).book Page 349 Monday, June 1, 2015 9:22 PM

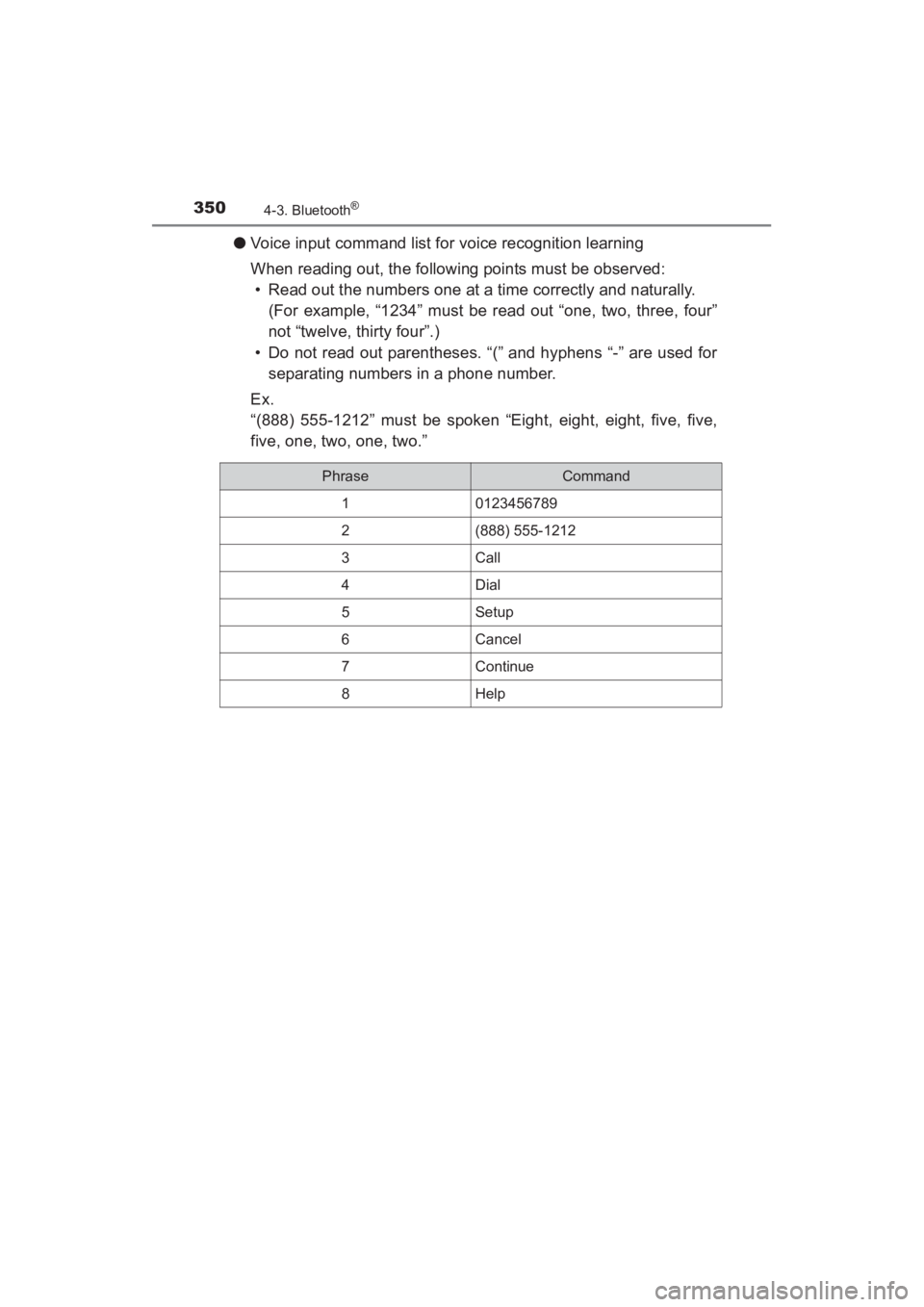

350
YARIS_SEDAN_OM_OM99M18z_(U)
4-3. Bluetooth®
●Voice input command list for voice recognition learning
When reading out, the following points must be observed:
• Read out the numbers one at a time correctly and naturally.
(For example, “1234” must be read out “one, two, three, four”
not “twelve, thirty four”.)
• Do not read out parentheses. “(” and hyphens “-” are used for separating numbers in a phone number.
Ex.
“(888) 555-1212” must be spoken “Eight, eight, eight, five, five,
five, one, two, one, two.”
PhraseCommand
10123456789
2(888) 555-1212
3Call
4Dial
5Setup
6Cancel
7Continue
8Help
YARIS_SEDAN_OM_OM99M18z_(U).book Page 350 Monday, June 1, 2015 9:22 PM

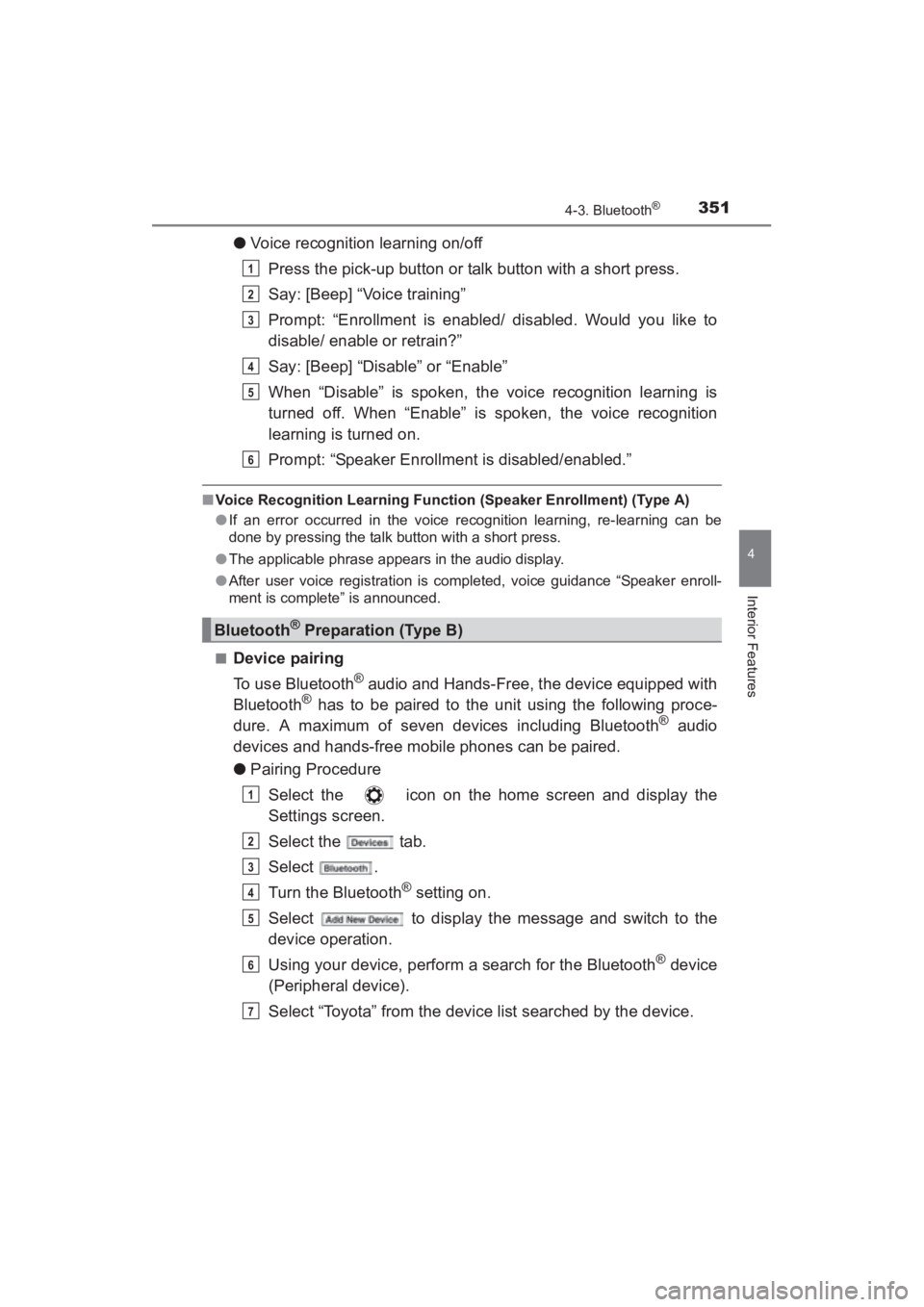

YARIS_SEDAN_OM_OM99M18z_(U)
3514-3. Bluetooth®
4
Interior Features
●Voice recognition learning on/off
Press the pick-up button or talk button with a short press.
Say: [Beep] “Voice training”
Prompt: “Enrollment is enabled/ disabled. Would you like to
disable/ enable or retrain?”
Say: [Beep] “Disable” or “Enable”
When “Disable” is spoken, the voice recognition learning is
turned off. When “Enable” is spoken, the voice recognition
learning is turned on.
Prompt: “Speaker Enrollment is disabled/enabled.”
■Voice Recognition Learning Funct ion (Speaker Enrollment) (Type A)
● If an error occurred in the voice recognition learning, re-learning can be
done by pressing the talk button with a short press.
● The applicable phrase appears in the audio display.
● After user voice registration is completed, voice guidance “Speaker enroll-
ment is complete” is announced.
■
Device pairing
To use Bluetooth
® audio and Hands-Free, the device equipped with
Bluetooth® has to be paired to the unit using the following proce-
dure. A maximum of seven devices including Bluetooth® audio
devices and hands-free mobile phones can be paired.
● Pairing Procedure
Select the icon on the home screen and display the
Settings screen.
Select the tab.
Select .
Turn the Bluetooth
® setting on.
Select to display the message and switch to the
device operation.
Using your device, perform a search for the Bluetooth
® device
(Peripheral device).
Select “Toyota” from the device list searched by the device.
Bluetooth® Preparation (Type B)
1
2
3
4
5
6
1
2
3
4
5
6
7
YARIS_SEDAN_OM_OM99M18z_(U).book Page 351 Monday, June 1, 2015 9:22 PM

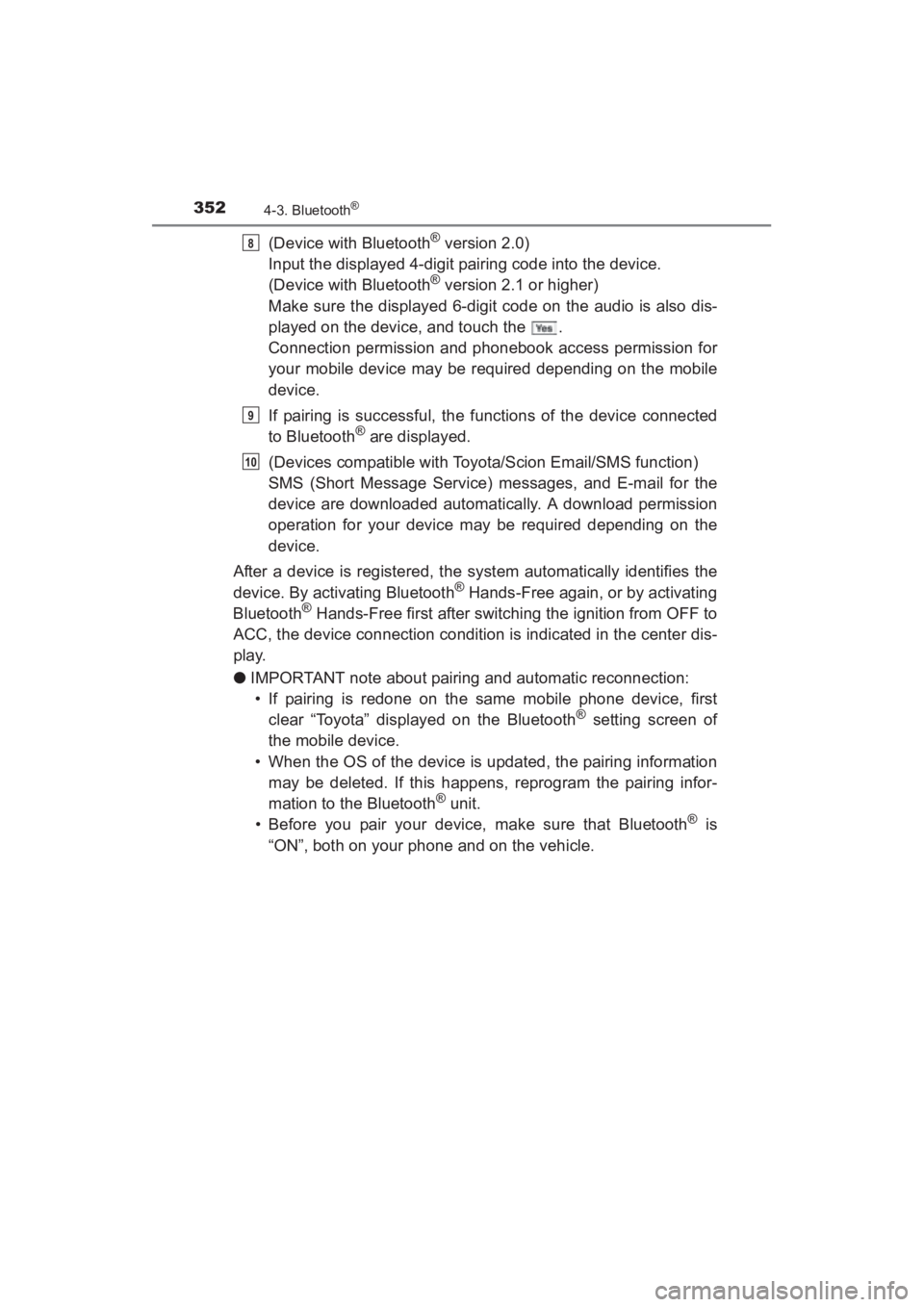

352
YARIS_SEDAN_OM_OM99M18z_(U)
4-3. Bluetooth®
(Device with Bluetooth® version 2.0)
Input the displayed 4-digit pairing code into the device.
(Device with Bluetooth
® version 2.1 or higher)
Make sure the displayed 6-digit code on the audio is also dis-
played on the device, and touch the .
Connection permission and phonebook access permission for
your mobile device may be required depending on the mobile
device.
If pairing is successful, the functions of the device connected
to Bluetooth
® are displayed.
(Devices compatible with Toyota/Scion Email/SMS function)
SMS (Short Message Service) messages, and E-mail for the
device are downloaded automatically. A download permission
operation for your device may be required depending on the
device.
After a device is registered, the system automatically identifies the
device. By activating Bluetooth
® Hands-Free again, or by activating
Bluetooth® Hands-Free first after switching the ignition from OFF to
ACC, the device connection condition is indicated in the center dis-
play.
● IMPORTANT note about pairing and automatic reconnection:
• If pairing is redone on the same mobile phone device, first
clear “Toyota” displayed on the Bluetooth
® setting screen of
the mobile device.
• When the OS of the device is updated, the pairing information may be deleted. If this happens, reprogram the pairing infor-
mation to the Bluetooth
® unit.
• Before you pair your device, make sure that Bluetooth® is
“ON”, both on your phone and on the vehicle.
8
9
10
YARIS_SEDAN_OM_OM99M18z_(U).book Page 352 Monday, June 1, 2015 9:22 PM

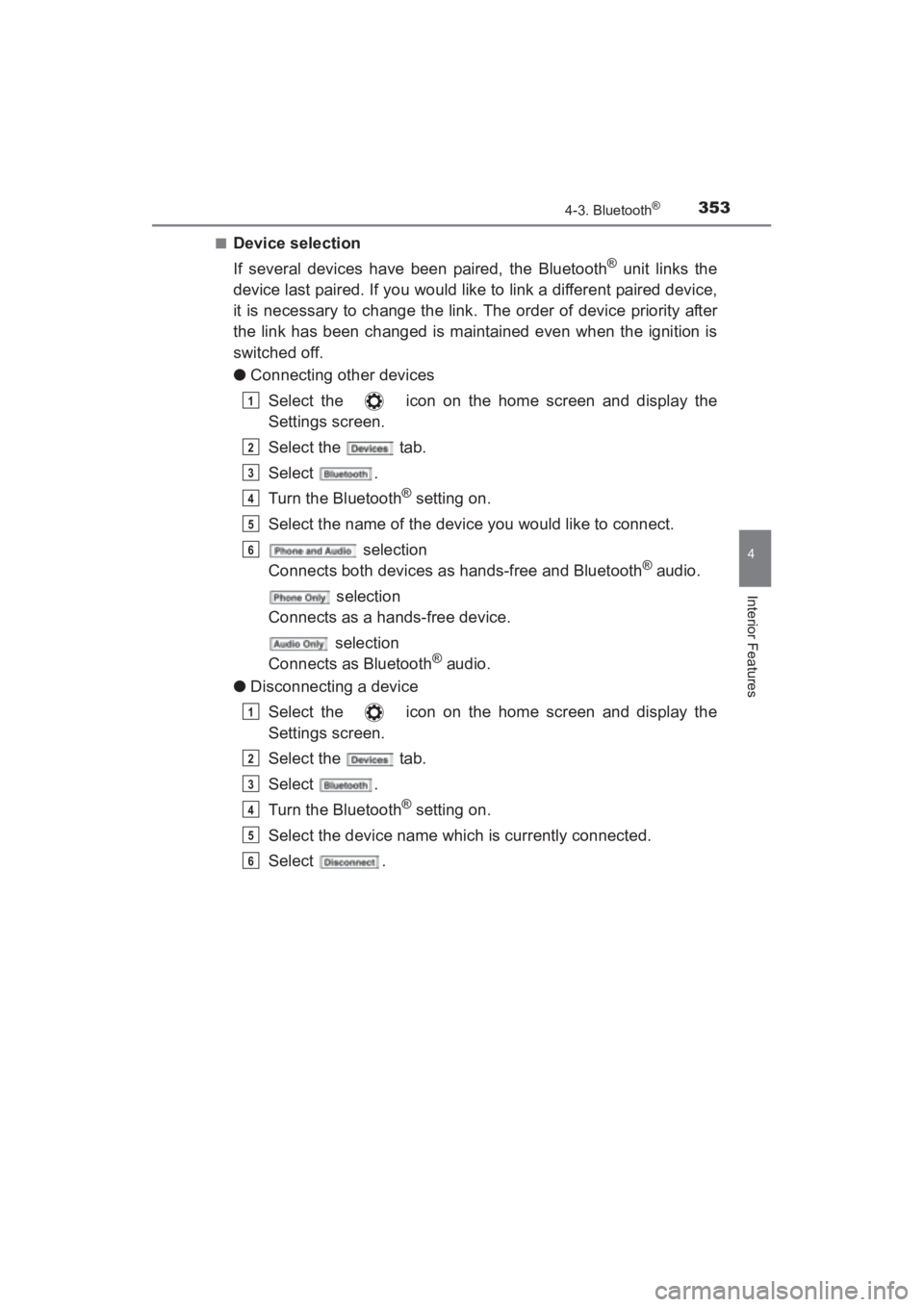

YARIS_SEDAN_OM_OM99M18z_(U)
3534-3. Bluetooth®
4
Interior Features
■Device selection
If several devices have been paired, the Bluetooth
® unit links the
device last paired. If you would like to link a different paired device,
it is necessary to change the link. The order of device priority after
the link has been changed is maintained even when the ignition is
switched off.
● Connecting other devices
Select the icon on the home screen and display the
Settings screen.
Select the tab.
Select .
Turn the Bluetooth
® setting on.
Select the name of the device you would like to connect. selection
Connects both devices as hands-free and Bluetooth
® audio.
selection
Connects as a hands-free device.
selection
Connects as Bluetooth
® audio.
● Disconnecting a device
Select the icon on the home screen and display the
Settings screen.
Select the tab.
Select .
Turn the Bluetooth
® setting on.
Select the device name which is currently connected.
Select .
1
2
3
4
5
6
1
2
3
4
5
6
YARIS_SEDAN_OM_OM99M18z_(U).book Page 353 Monday, June 1, 2015 9:22 PM

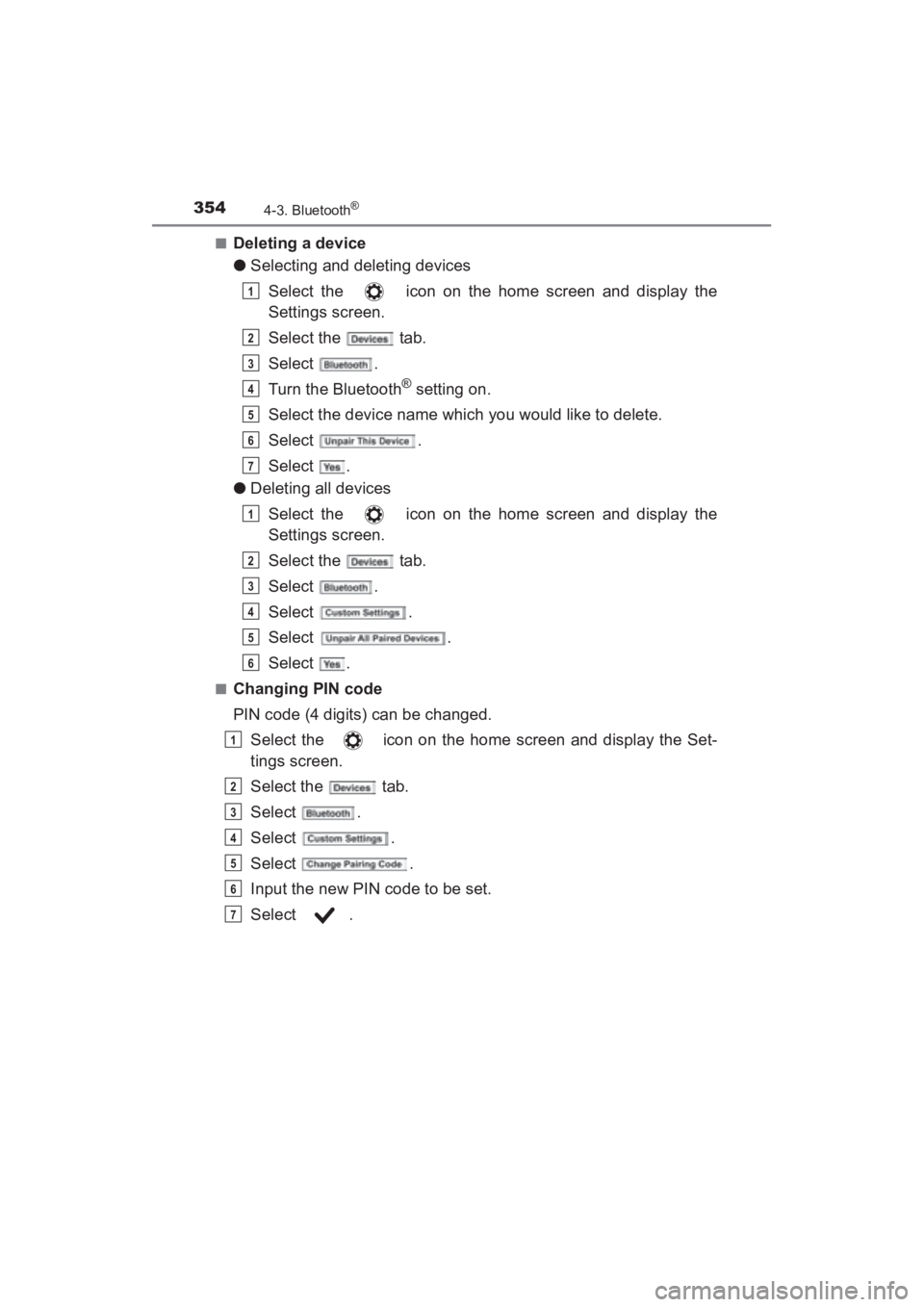

354
YARIS_SEDAN_OM_OM99M18z_(U)
4-3. Bluetooth®
■Deleting a device
●Selecting and deleting devices
Select the icon on the home screen and display the
Settings screen.
Select the tab.
Select .
Turn the Bluetooth
® setting on.
Select the device name which you would like to delete.
Select .
Select .
● Deleting all devices
Select the icon on the home screen and display the
Settings screen.
Select the tab.
Select .
Select .
Select .
Select .
■Changing PIN code
PIN code (4 digits) can be changed.Select the icon on the home screen and display the Set-
tings screen.
Select the tab.
Select .
Select .
Select .
Input the new PIN code to be set.
Select .
1
2
3
4
5
6
7
1
2
3
4
5
6
1
2
3
4
5
6
7
YARIS_SEDAN_OM_OM99M18z_(U).book Page 354 Monday, June 1, 2015 9:22 PM

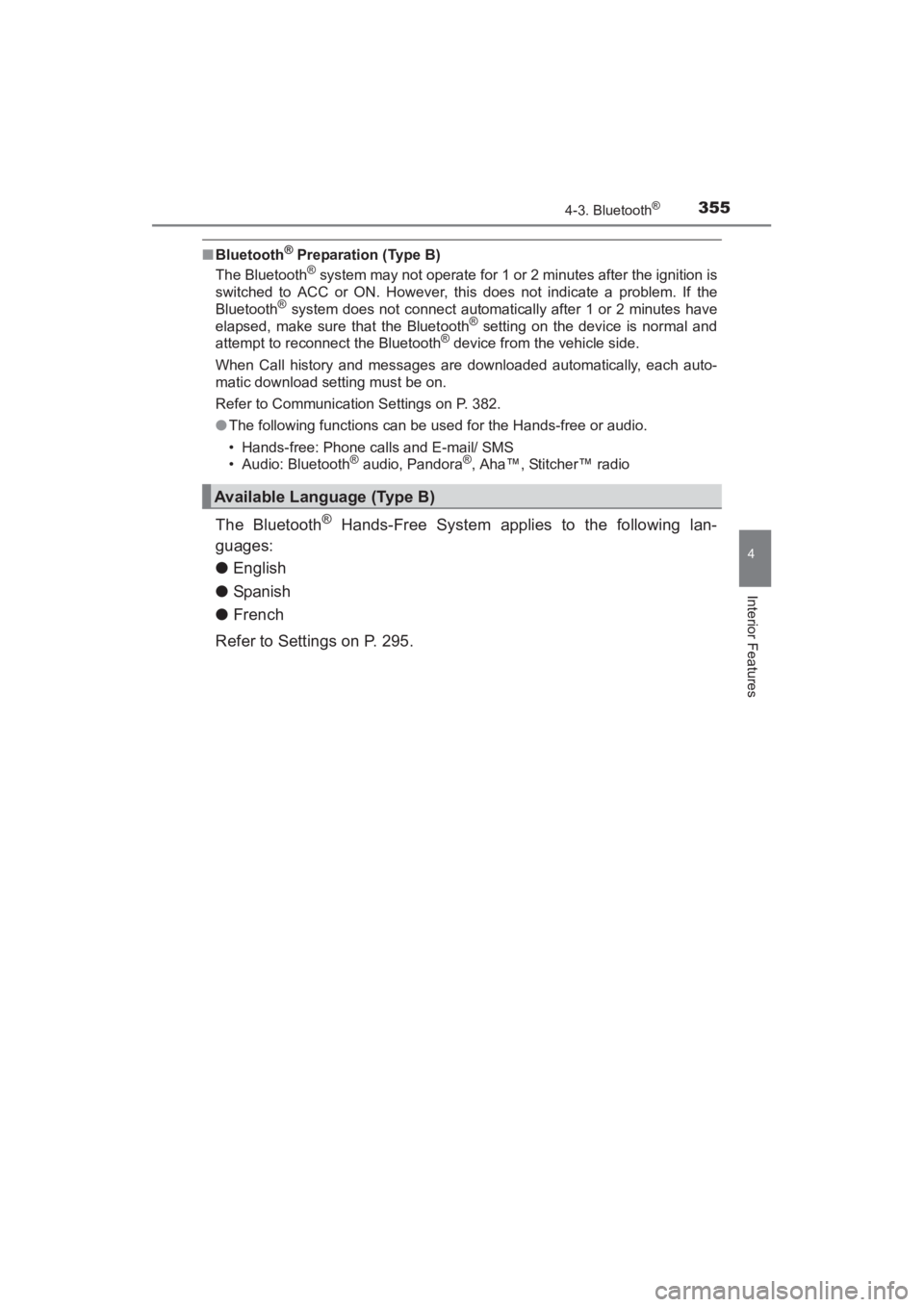

YARIS_SEDAN_OM_OM99M18z_(U)
3554-3. Bluetooth®
4
Interior Features
■Bluetooth® Preparation (Type B)
The Bluetooth® system may not operate for 1 or 2 minutes after the ignition is
switched to ACC or ON. However, this does not indicate a problem. If the
Bluetooth
® system does not connect automatically after 1 or 2 minutes have
elapsed, make sure that the Bluetooth® setting on the device is normal and
attempt to reconnect the Bluetooth® device from the vehicle side.
When Call history and messages are downloaded automatically, each auto-
matic download setting must be on.
Refer to Communication Settings on P. 382.
● The following functions can be used for the Hands-free or audio.
• Hands-free: Phone calls and E-mail/ SMS
• Audio: Bluetooth
® audio, Pandora®, Aha™, Stitcher™ radio
The Bluetooth® Hands-Free System applies to the following lan-
guages:
● English
● Spanish
● French
Refer to Settings on P. 295.
Available Language (Type B)
YARIS_SEDAN_OM_OM99M18z_(U).book Page 355 Monday, June 1, 2015 9:22 PM

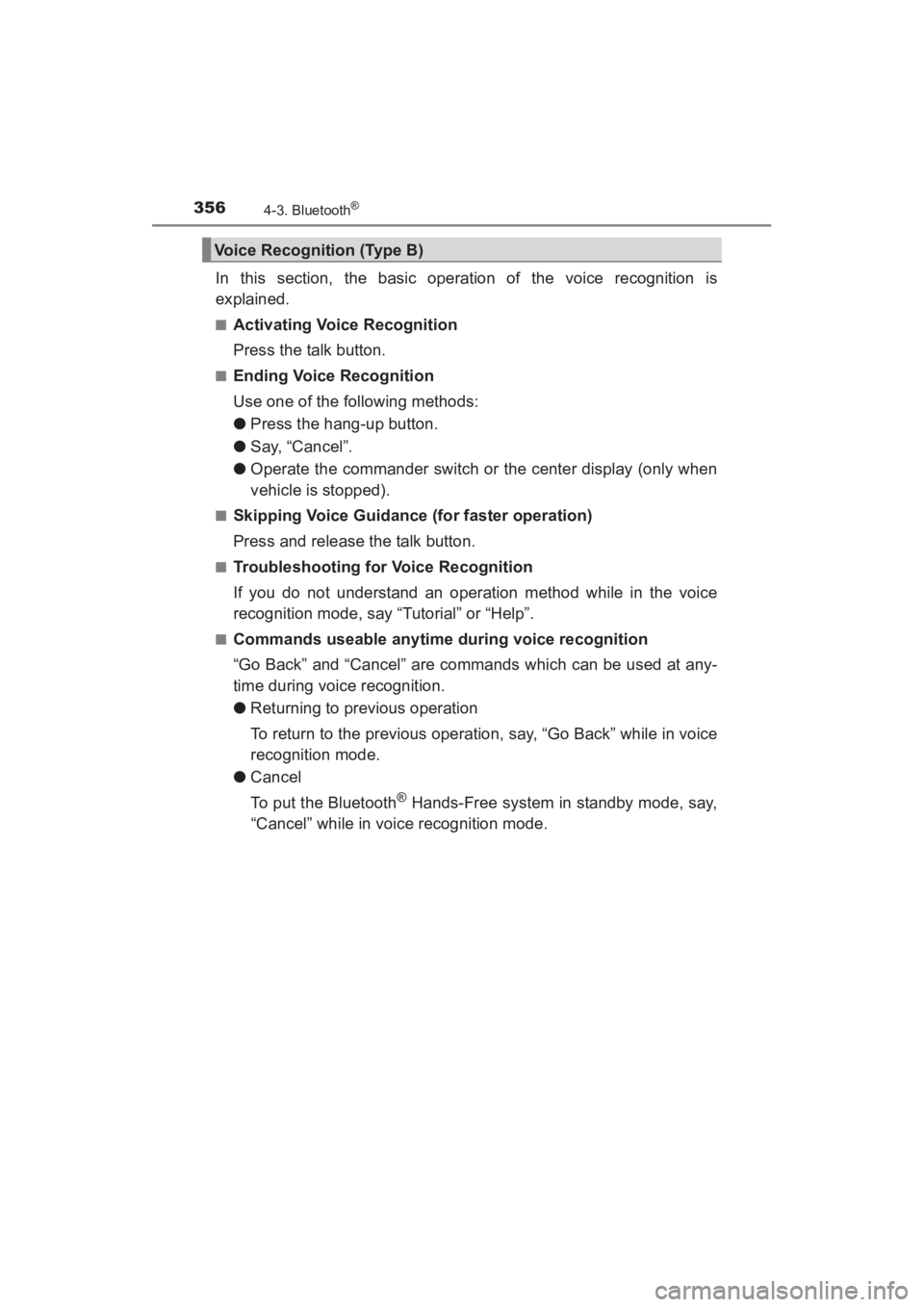

356
YARIS_SEDAN_OM_OM99M18z_(U)
4-3. Bluetooth®
In this section, the basic operation of the voice recognition is
explained.
■Activating Voice Recognition
Press the talk button.
■Ending Voice Recognition
Use one of the following methods:
●Press the hang-up button.
● Say, “Cancel”.
● Operate the commander switch or the center display (only when
vehicle is stopped).
■Skipping Voice Guidance (for faster operation)
Press and release the talk button.
■Troubleshooting for Voice Recognition
If you do not understand an operation method while in the voice
recognition mode, say “Tutorial” or “Help”.
■Commands useable anytime during voice recognition
“Go Back” and “Cancel” are commands which can be used at any-
time during voice recognition.
●Returning to previous operation
To return to the previous operation, say, “Go Back” while in voice
recognition mode.
● Cancel
To put the Bluetooth
® Hands-Free system in standby mode, say,
“Cancel” while in voice recognition mode.
Voice Recognition (Type B)
YARIS_SEDAN_OM_OM99M18z_(U).book Page 356 Monday, June 1, 2015 9:22 PM

YARIS_SEDAN_OM_OM99M18z_(U)
3574-3. Bluetooth®
4
Interior Features

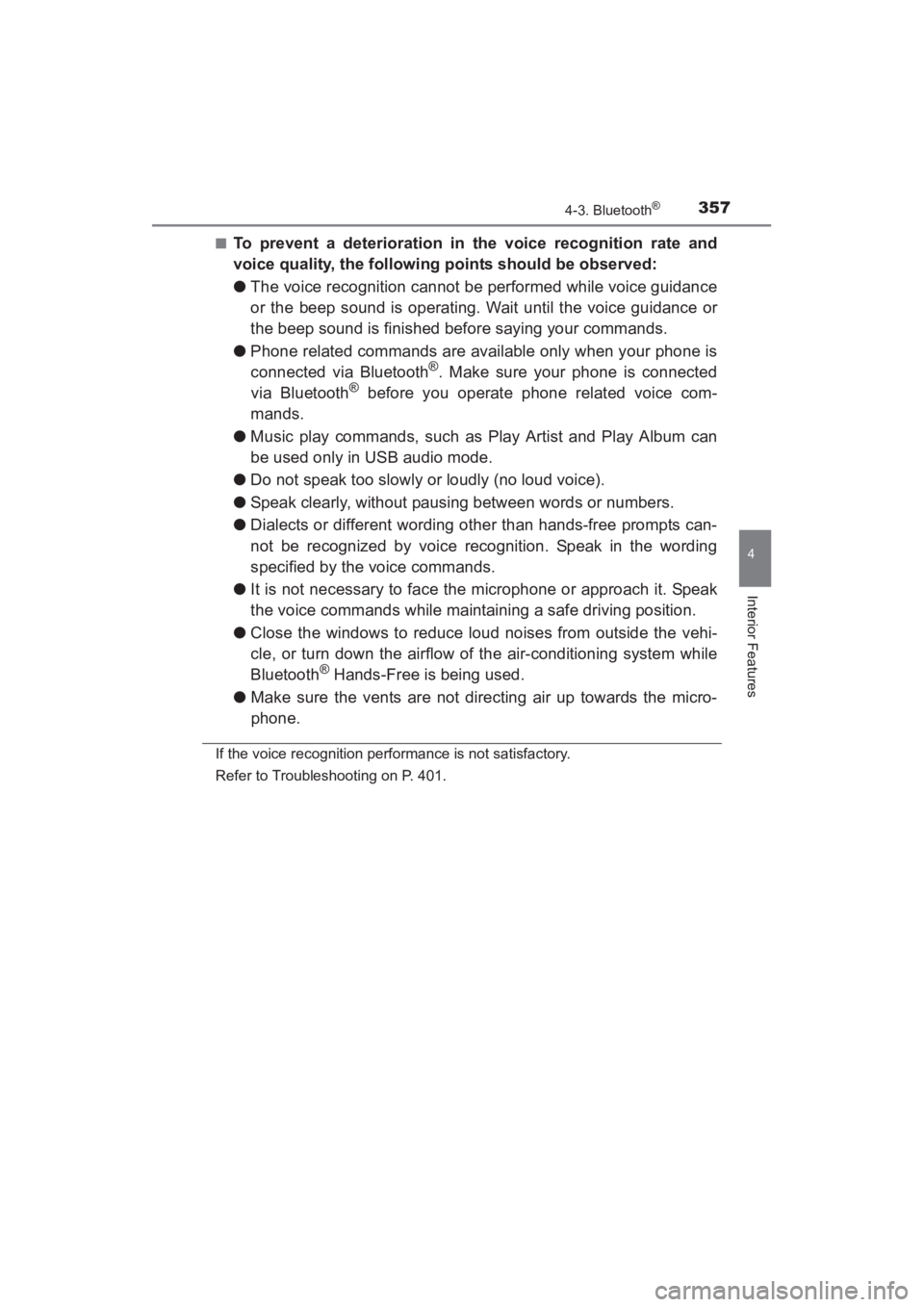

■To prevent a deterioration in the voice recognition rate and
voice quality, the following points should be observed:
●The voice recognition cannot be performed while voice guidance
or the beep sound is operating. Wait until the voice guidance or
the beep sound is finished before saying your commands.
● Phone related commands are available only when your phone is
connected via Bluetooth
®. Make sure your phone is connected
via Bluetooth® before you operate phone related voice com-
mands.
● Music play commands, such as Play Artist and Play Album can
be used only in USB audio mode.
● Do not speak too slowly or loudly (no loud voice).
● Speak clearly, without pausing between words or numbers.
● Dialects or different wording other than hands-free prompts can-
not be recognized by voice recognition. Speak in the wording
specified by the voice commands.
● It is not necessary to face the microphone or approach it. Speak
the voice commands while maintaining a safe driving position.
● Close the windows to reduce loud noises from outside the vehi-
cle, or turn down the airflow of the air-conditioning system while
Bluetooth
® Hands-Free is being used.
● Make sure the vents are not directing air up towards the micro-
phone.
If the voice recognition performance is not satisfactory.
Refer to Troubleshooting on P. 401.
YARIS_SEDAN_OM_OM99M18z_(U).book Page 357 Monday, June 1, 2015 9:22 PM

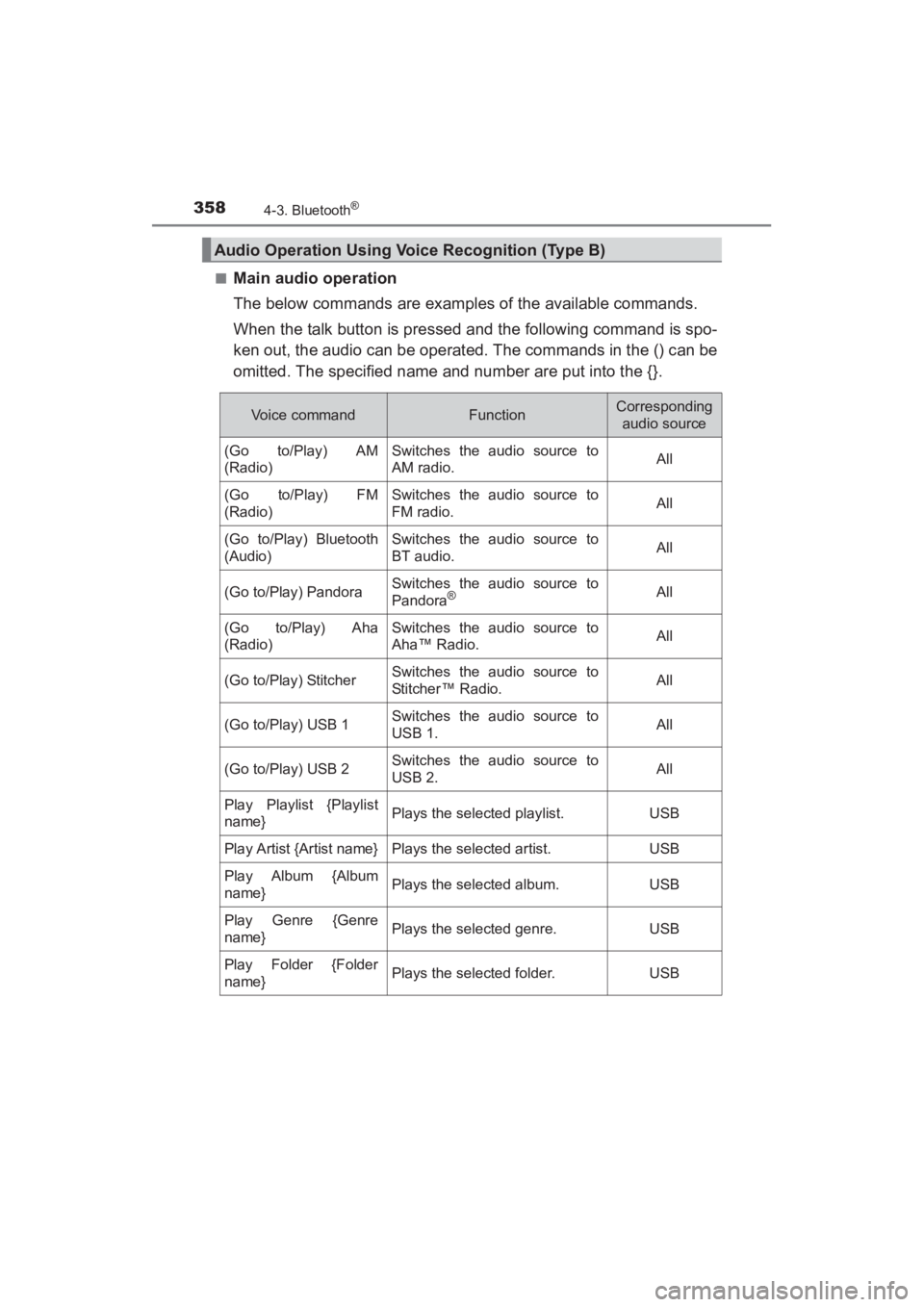

358
YARIS_SEDAN_OM_OM99M18z_(U)
4-3. Bluetooth®
■Main audio operation
The below commands are examples of the available commands.
When the talk button is pressed and the following command is spo-
ken out, the audio can be operated. The commands in the () can be
omitted. The specified name and number are put into the {}.
Audio Operation Using Voice Recognition (Type B)
Voice commandFunctionCorresponding audio source
(Go to/Play) AM
(Radio)Switches the audio source to
AM radio.All
(Go to/Play) FM
(Radio)Switches the audio source to
FM radio.All
(Go to/Play) Bluetooth
(Audio)Switches the audio source to
BT audio.All
(Go to/Play) PandoraSwitches the audio source to
Pandora®All
(Go to/Play) Aha
(Radio)Switches the audio source to
Aha™ Radio.All
(Go to/Play) StitcherSwitches the audio source to
Stitcher™ Radio.All
(Go to/Play) USB 1Switches the audio source to
USB 1.All
(Go to/Play) USB 2Switches the audio source to
USB 2.All
Play Playlist {Playlist
name}Plays the selected playlist.USB
Play Artist {Artist name}Plays the selected artist.USB
Play Album {Album
name}Plays the selected album.USB
Play Genre {Genre
name}Plays the selected genre.USB
Play Folder {Folder
name}Plays the selected folder.USB
YARIS_SEDAN_OM_OM99M18z_(U).book Page 358 Monday, June 1, 2015 9:22 PM
