TOYOTA YARIS 2016 Owners Manual

YARIS_SEDAN_OM_OM99M18z_(U)
3094-2. Audio System
4
Interior Features

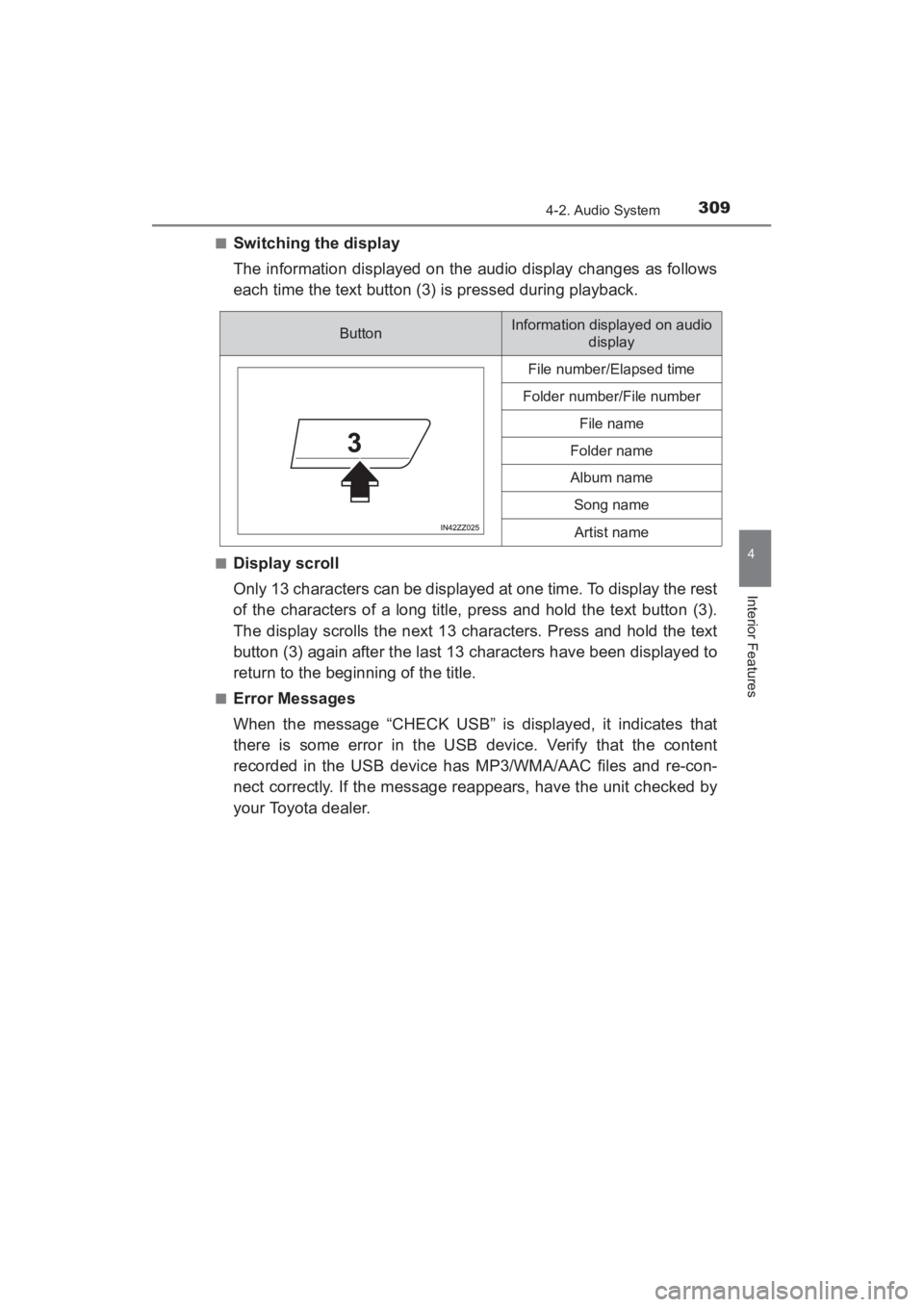

■Switching the display
The information displayed on the audio display changes as follows
each time the text button (3) is pressed during playback.
■Display scroll
Only 13 characters can be displayed at one time. To display the rest
of the characters of a long title, press and hold the text button (3).
The display scrolls the next 13 characters. Press and hold the text
button (3) again after the last 13 characters have been displayed to
return to the beginning of the title.
■Error Messages
When the message “CHECK USB” is displayed, it indicates that
there is some error in the USB device. Verify that the content
recorded in the USB device has MP3/WMA/AAC files and re-con-
nect correctly. If the message reappears, have the unit checked by
your Toyota dealer.
ButtonInformation displayed on audio display
File number/Elapsed time
Folder number/File number
File name
Folder name
Album name
Song name
Artist name
YARIS_SEDAN_OM_OM99M18z_(U).book Page 309 Monday, June 1, 2015 9:22 PM

310
YARIS_SEDAN_OM_OM99M18z_(U)
4-2. Audio System

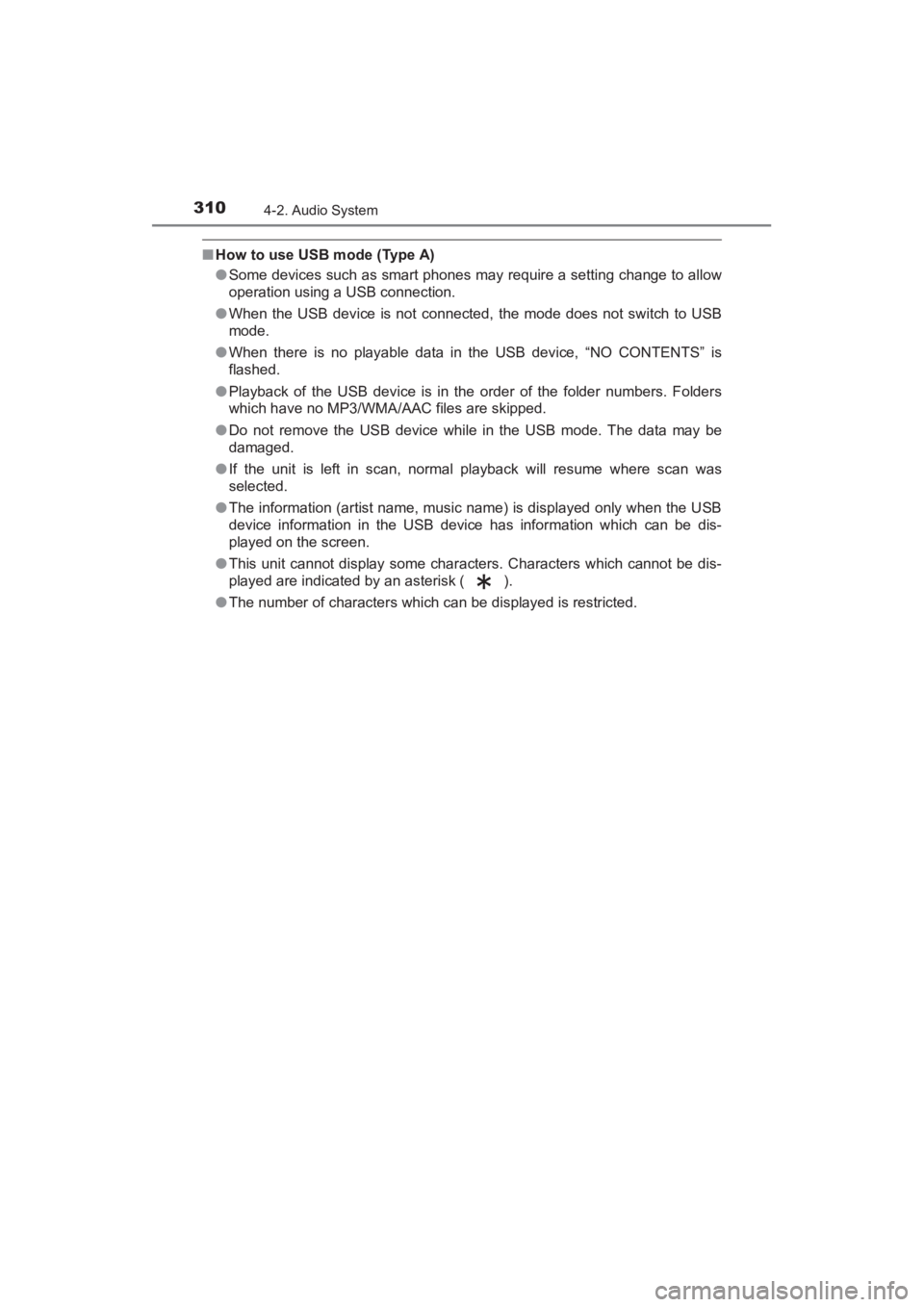

■How to use USB mode (Type A)
●Some devices such as smart phones may require a setting change to allow
operation using a USB connection.
● When the USB device is not connected, the mode does not switch to USB
mode.
● When there is no playable data in the USB device, “NO CONTENTS” is
flashed.
● Playback of the USB device is in the order of the folder numbers. Folders
which have no MP3/WMA/AAC files are skipped.
● Do not remove the USB device while in the USB mode. The data may be
damaged.
● If the unit is left in scan, normal playback will resume where scan was
selected.
● The information (artist name, music name) is displayed only when the USB
device information in the USB device has information which can be dis-
played on the screen.
● This unit cannot display some characters. Characters which cannot be dis-
played are indicated by an asterisk ( ).
● The number of characters which can be displayed is restricted.
YARIS_SEDAN_OM_OM99M18z_(U).book Page 310 Monday, June 1, 2015 9:22 PM

YARIS_SEDAN_OM_OM99M18z_(U)
3114-2. Audio System
4
Interior Features

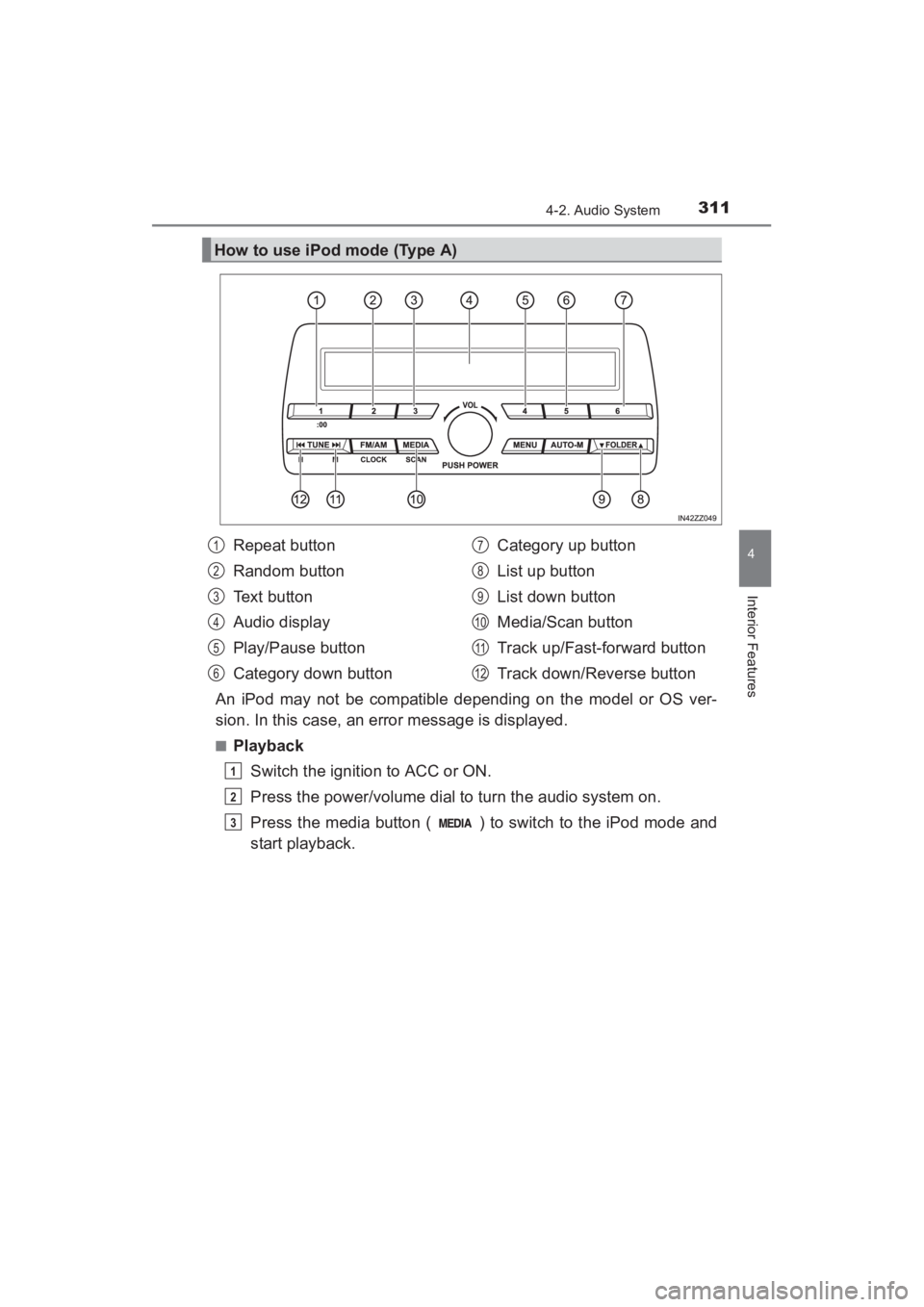

An iPod may not be compatible depending on the model or OS ver-
sion. In this case, an error message is displayed.
■PlaybackSwitch the ignition to ACC or ON.
Press the power/volume dial to turn the audio system on.
Press the media button ( ) to switch to the iPod mode and
start playback.
How to use iPod mode (Type A)
Repeat button
Random button
Text button
Audio display
Play/Pause button
Category down button Category up button
List up button
List down button
Media/Scan button
Track up/Fast-forward button
Track down/Reverse button1
2
3
4
5
6
7
8
9
10
11
12
1
2
3
YARIS_SEDAN_OM_OM99M18z_(U).book Page 311 Monday, June 1, 2015 9:22 PM

312
YARIS_SEDAN_OM_OM99M18z_(U)
4-2. Audio System

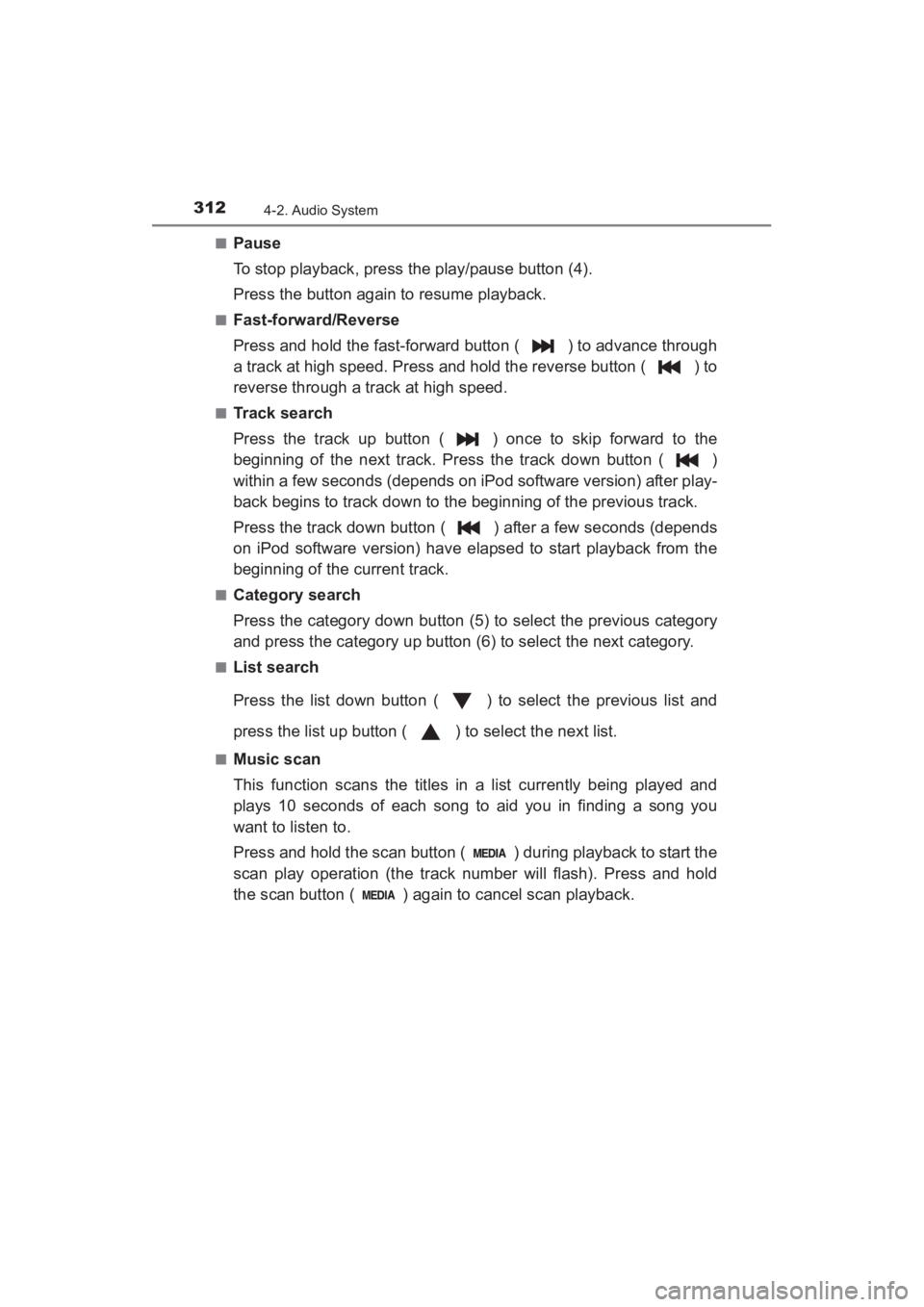

■Pause
To stop playback, press the play/pause button (4).
Press the button again to resume playback.
■Fast-forward/Reverse
Press and hold the fast-forward button ( ) to advance through
a track at high speed. Press and hold the reverse button ( ) to
reverse through a track at high speed.
■Track search
Press the track up button ( ) once to skip forward to the
beginning of the next track. Press the track down button ( )
within a few seconds (depends on iPod software version) after play-
back begins to track down to the beginning of the previous track.
Press the track down button ( ) after a few seconds (depends
on iPod software version) have elapsed to start playback from the
beginning of the current track.
■Category search
Press the category down button (5) to select the previous category
and press the category up button (6) to select the next category.
■List search
Press the list down button ( ) to select the previous list and
press the list up button ( ) to select the next list.
■Music scan
This function scans the titles in a list currently being played and
plays 10 seconds of each song to aid you in finding a song you
want to listen to.
Press and hold the scan button ( ) during playback to start the
scan play operation (the track number will flash). Press and hold
the scan button ( ) again to cancel scan playback.
YARIS_SEDAN_OM_OM99M18z_(U).book Page 312 Monday, June 1, 2015 9:22 PM

YARIS_SEDAN_OM_OM99M18z_(U)
3134-2. Audio System
4
Interior Features

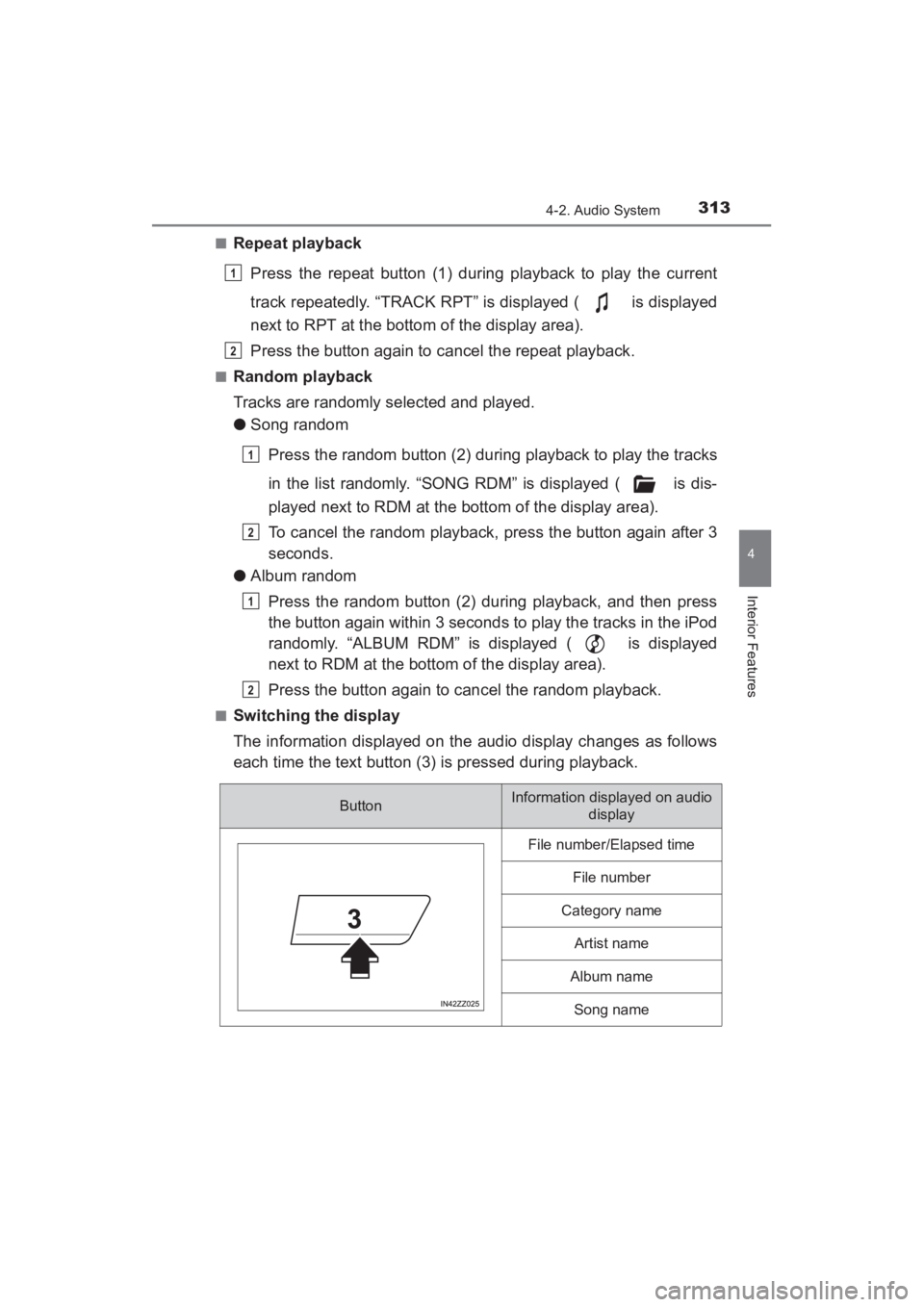

■Repeat playbackPress the repeat button (1) during playback to play the current
track repeatedly. “TRACK RPT” is displayed ( is displayed
next to RPT at the bottom of the display area).
Press the button again to cancel the repeat playback.
■Random playback
Tracks are randomly selected and played.
●Song random
Press the random button (2) during playback to play the tracks
in the list randomly. “SONG RDM” is displayed ( is dis-
played next to RDM at the bottom of the display area).
To cancel the random playback, press the button again after 3
seconds.
● Album random
Press the random button (2) during playback, and then press
the button again within 3 seconds to play the tracks in the iPod
randomly. “ALBUM RDM” is displayed ( is displayed
next to RDM at the bottom of the display area).
Press the button again to cancel the random playback.
■Switching the display
The information displayed on the audio display changes as follows
each time the text button (3) is pressed during playback.
1
2
1
2
1
2
ButtonInformation displayed on audio display
File number/Elapsed time
File number
Category name
Artist name
Album name
Song name
YARIS_SEDAN_OM_OM99M18z_(U).book Page 313 Monday, June 1, 2015 9:22 PM

314
YARIS_SEDAN_OM_OM99M18z_(U)
4-2. Audio System

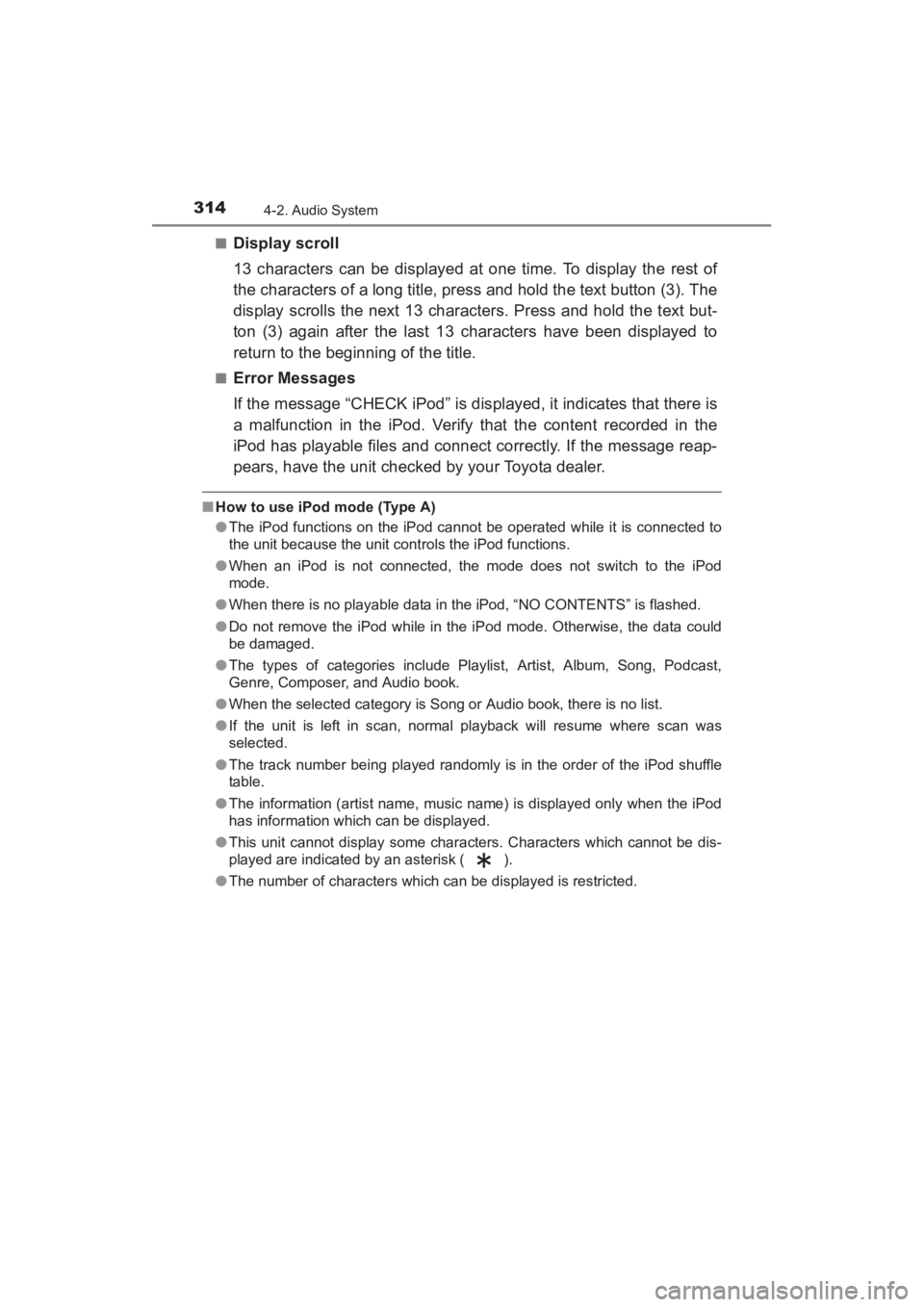

■Display scroll
13 characters can be displayed at one time. To display the rest of
the characters of a long title, press and hold the text button (3). The
display scrolls the next 13 characters. Press and hold the text but-
ton (3) again after the last 13 characters have been displayed to
return to the beginning of the title.
■Error Messages
If the message “CHECK iPod” is displayed, it indicates that there is
a malfunction in the iPod. Verify that the content recorded in the
iPod has playable files and connect correctly. If the message reap-
pears, have the unit checked by your Toyota dealer.
■How to use iPod mode (Type A)
●The iPod functions on the iPod cannot be operated while it is connected to
the unit because the unit controls the iPod functions.
● When an iPod is not connected, the mode does not switch to the iPod
mode.
● When there is no playable data in the iPod, “NO CONTENTS” is flashed.
● Do not remove the iPod while in the iPod mode. Otherwise, the data could
be damaged.
● The types of categories include Playlist, Artist, Album, Song, Podcast,
Genre, Composer, and Audio book.
● When the selected category is Song or Audio book, there is no list.
● If the unit is left in scan, normal playback will resume where scan was
selected.
● The track number being played randomly is in the order of the iPod shuffle
table.
● The information (artist name, music name) is displayed only when the iPod
has information which can be displayed.
● This unit cannot display some characters. Characters which cannot be dis-
played are indicated by an asterisk ( ).
● The number of characters which can be displayed is restricted.
YARIS_SEDAN_OM_OM99M18z_(U).book Page 314 Monday, June 1, 2015 9:22 PM

YARIS_SEDAN_OM_OM99M18z_(U)
3154-2. Audio System
4
Interior Features

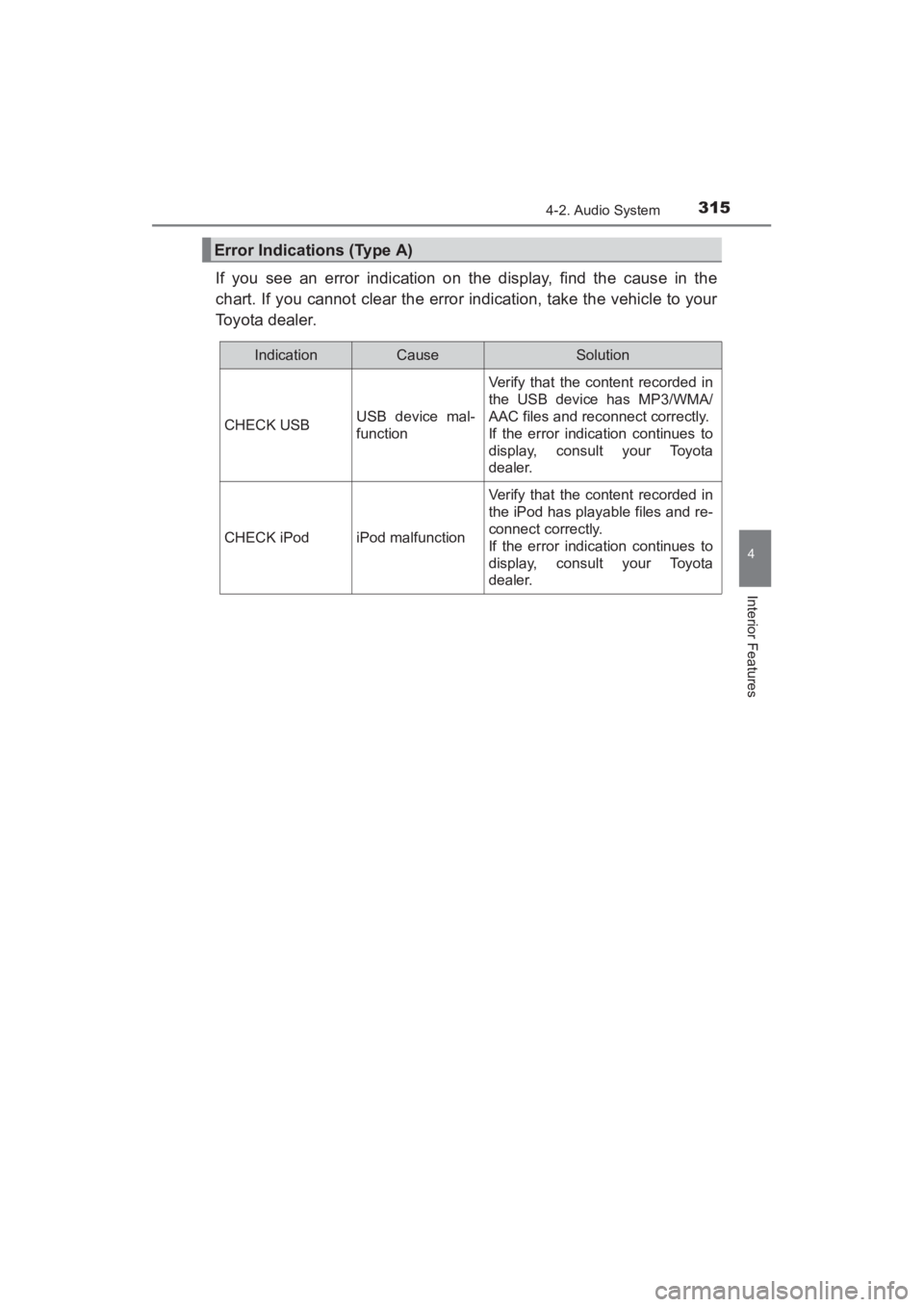

If you see an error indication on the display, find the cause in the
chart. If you cannot clear the error indication, take the vehicle to your
Toyota dealer.
Error Indications (Type A)
IndicationCauseSolution
CHECK USBUSB device mal-
function
Verify that the content recorded in
the USB device has MP3/WMA/
AAC files and reconnect correctly.
If the error indication continues to
display, consult your Toyota
dealer.
CHECK iPodiPod malfunction
Verify that the content recorded in
the iPod has playable files and re-
connect correctly.
If the error indication continues to
display, consult your Toyota
dealer.
YARIS_SEDAN_OM_OM99M18z_(U).book Page 315 Monday, June 1, 2015 9:22 PM

316
YARIS_SEDAN_OM_OM99M18z_(U)
4-2. Audio System

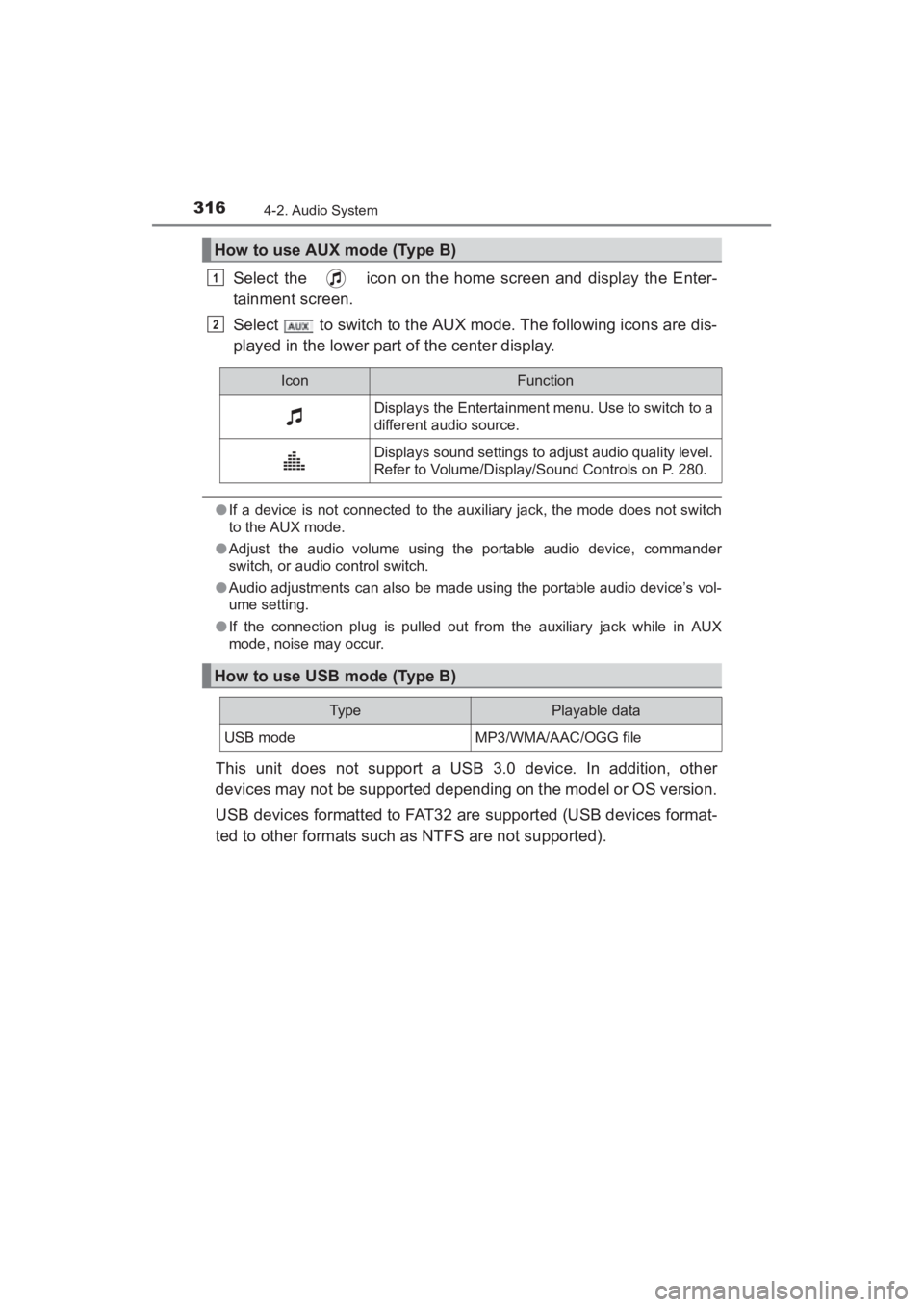

Select the icon on the home screen and display the Enter-
tainment screen.
Select to switch to the AUX mode. The following icons are dis-
played in the lower part of the center display.
●If a device is not connected to the auxiliary jack, the mode does not switch
to the AUX mode.
● Adjust the audio volume using the portable audio device, commander
switch, or audio control switch.
● Audio adjustments can also be made using the portable audio device’s vol-
ume setting.
● If the connection plug is pulled out from the auxiliary jack while in AUX
mode, noise may occur.
This unit does not support a USB 3.0 device. In addition, other
devices may not be supported depending on the model or OS version.
USB devices formatted to FAT32 are supported (USB devices format-
ted to other formats such as NTFS are not supported).
How to use AUX mode (Type B)
1
2
IconFunction
Displays the Entertainment menu. Use to switch to a
different audio source.
Displays sound settings to adjust audio quality level.
Refer to Volume/Display/Sound Controls on P. 280.
How to use USB mode (Type B)
Typ ePlayable data
USB modeMP3/WMA/AAC/OGG file
YARIS_SEDAN_OM_OM99M18z_(U).book Page 316 Monday, June 1, 2015 9:22 PM

YARIS_SEDAN_OM_OM99M18z_(U)
3174-2. Audio System
4
Interior Features

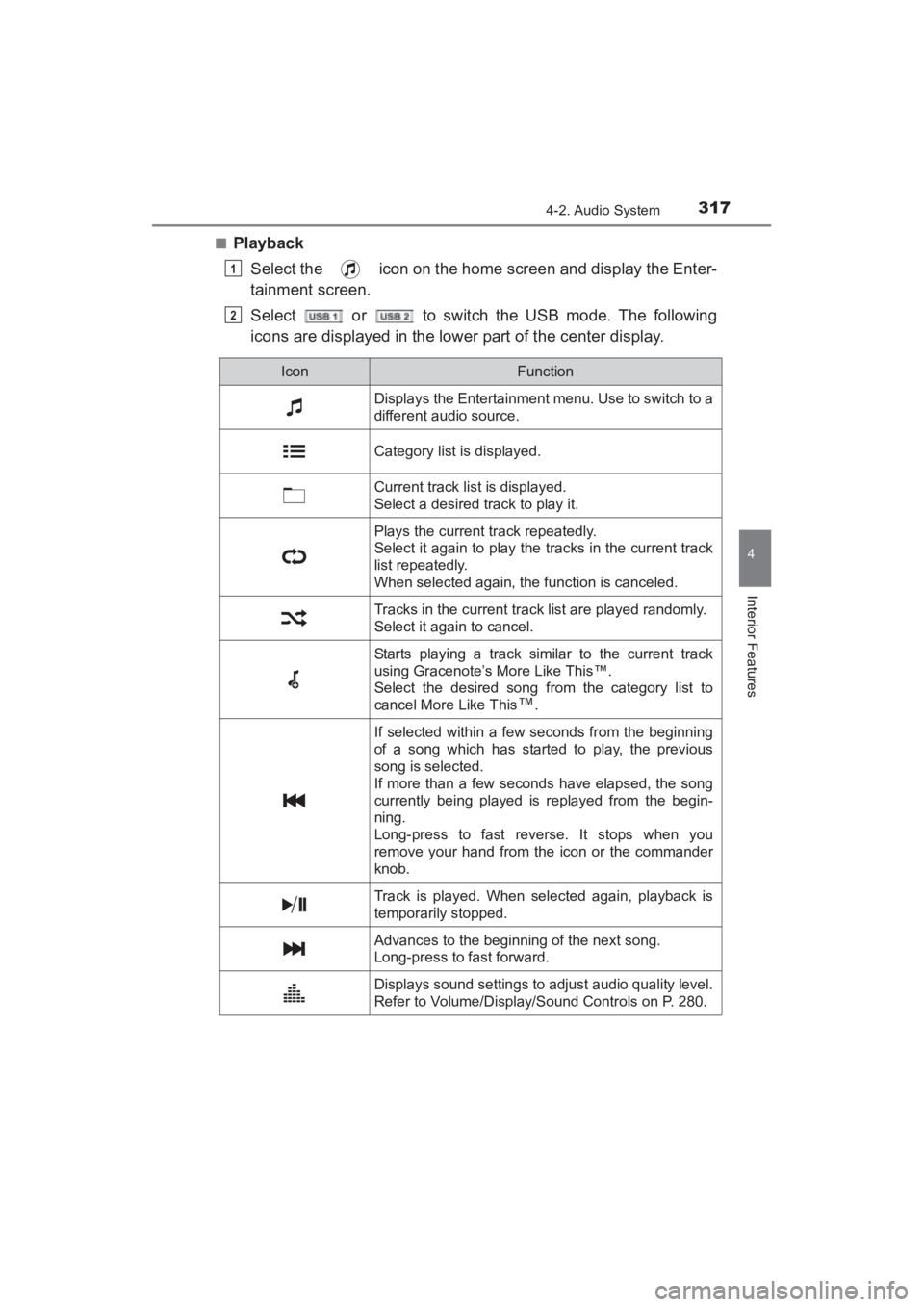

■PlaybackSelect the icon on the home screen and display the Enter-
tainment screen.
Select or to switch the USB mode. The following
icons are displayed in the lower part of the center display.
1
2
IconFunction
Displays the Entertainment menu. Use to switch to a
different audio source.
Category list is displayed.
Current track list is displayed.
Select a desired track to play it.
Plays the current track repeatedly.
Select it again to play the tracks in the current track
list repeatedly.
When selected again, the function is canceled.
Tracks in the current track list are played randomly.
Select it again to cancel.
Starts playing a track similar to the current track
using Gracenote’s More Like This™.
Select the desired song from the category list to
cancel More Like This
™.
If selected within a few seconds from the beginning
of a song which has started to play, the previous
song is selected.
If more than a few seconds have elapsed, the song
currently being played is replayed from the begin-
ning.
Long-press to fast reverse. It stops when you
remove your hand from the icon or the commander
knob.
Track is played. When selected again, playback is
temporarily stopped.
Advances to the beginning of the next song.
Long-press to fast forward.
Displays sound settings to adjust audio quality level.
Refer to Volume/Display/Sound Controls on P. 280.
YARIS_SEDAN_OM_OM99M18z_(U).book Page 317 Monday, June 1, 2015 9:22 PM

318
YARIS_SEDAN_OM_OM99M18z_(U)
4-2. Audio System

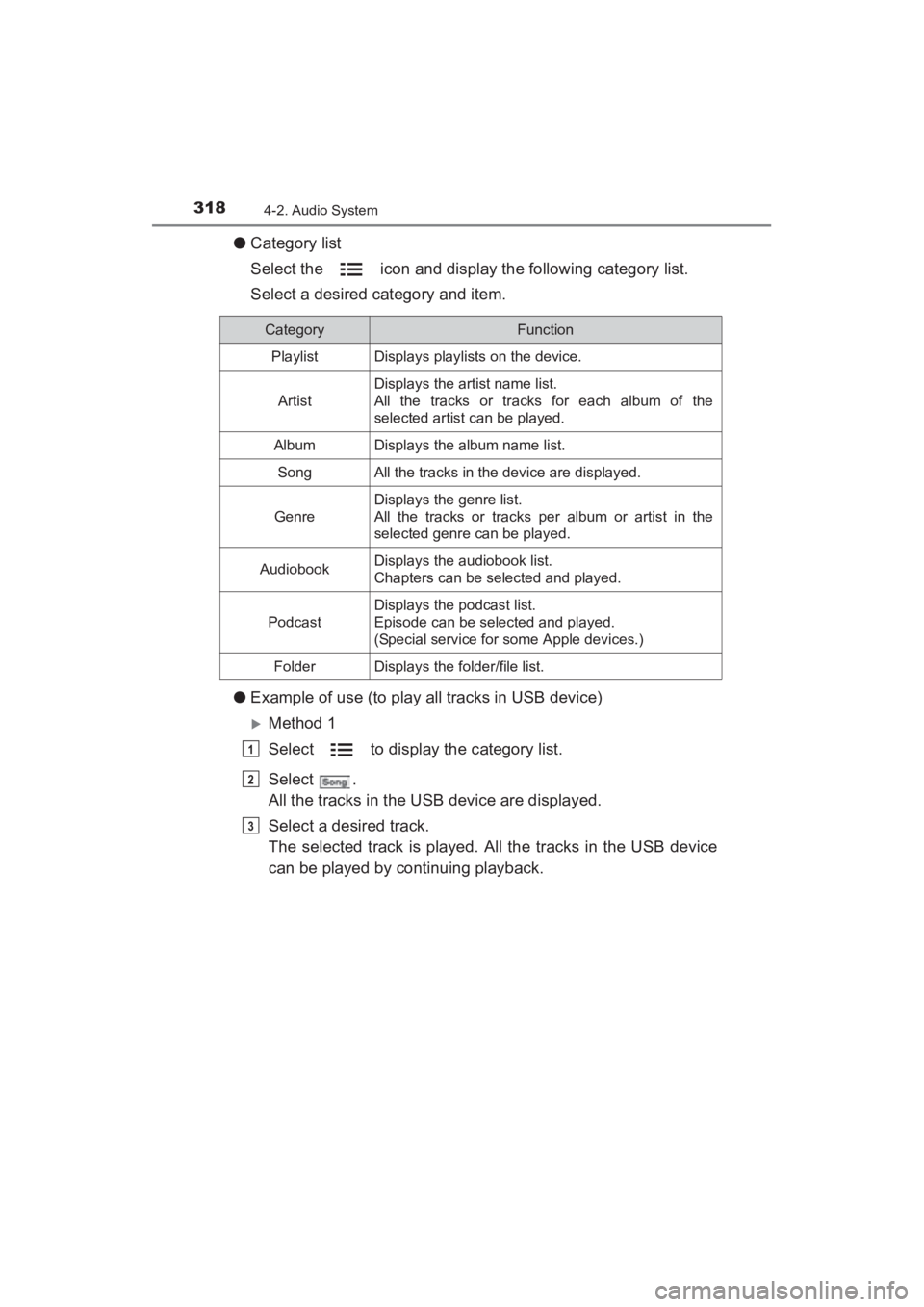

●Category list
Select the icon and display the following category list.
Select a desired category and item.
● Example of use (to play all tracks in USB device)
XMethod 1
Select to display the category list.
Select .
All the tracks in the USB device are displayed.
Select a desired track.
The selected track is played. All the tracks in the USB device
can be played by continuing playback.
CategoryFunction
PlaylistDisplays playlists on the device.
Artist
Displays the artist name list.
All the tracks or tracks for each album of the
selected artist can be played.
AlbumDisplays the album name list.
SongAll the tracks in the device are displayed.
Genre
Displays the genre list.
All the tracks or tracks per album or artist in the
selected genre can be played.
AudiobookDisplays the audiobook list.
Chapters can be selected and played.
Podcast
Displays the podcast list.
Episode can be selected and played.
(Special service for some Apple devices.)
FolderDisplays the folder/file list.
1
2
3
YARIS_SEDAN_OM_OM99M18z_(U).book Page 318 Monday, June 1, 2015 9:22 PM
