Double locking system
Vehicles employing this system
have labels on the window glass
of both front doors.
Turn the engine switch to the “LOCK” position (vehicles without a
smart entry & start system) or off (vehicles with a smart entry & start
system), have all the passengers exit the vehicle and ensure that all
the doors are closed.
Using the entry function (vehicles with a smart entry & start system):
Touch the sensor area on the outside door handle twice within 5 sec-
onds.
Using the wireless remote control:
Press twice within 5 seconds.
: If equipped
Unauthorized access to the vehicle is prevented by disabling the
door unlocking function from both the interior and exterior of
the vehicle.
Setting the double locking system

821-2. Theft deterrent system
YARIS_F_OM_Europe_OM52J20E
Using the entry function (vehicles with a smart entry & start system):
Hold either front outside door handle or push up the back door opener
switch.
Using the wireless remote control:
Press .
Canceling the double locking system
WARNING
■ Double locking system precaution
Never activate the double locking system when there are people in the vehi-
cle because all the doors cannot be opened from inside the vehicle.

83
2Instrument cluster
YARIS_F_OM_Europe_OM52J20E
2. Instrument cluster
Warning lights and
indicators ........................... 84
Gauges and meters ............. 90
Multi-information display ...... 92
Fuel consumption
information ......................... 98

842. Instrument cluster
YARIS_F_OM_Europe_OM52J20E
War ning lights and indicators

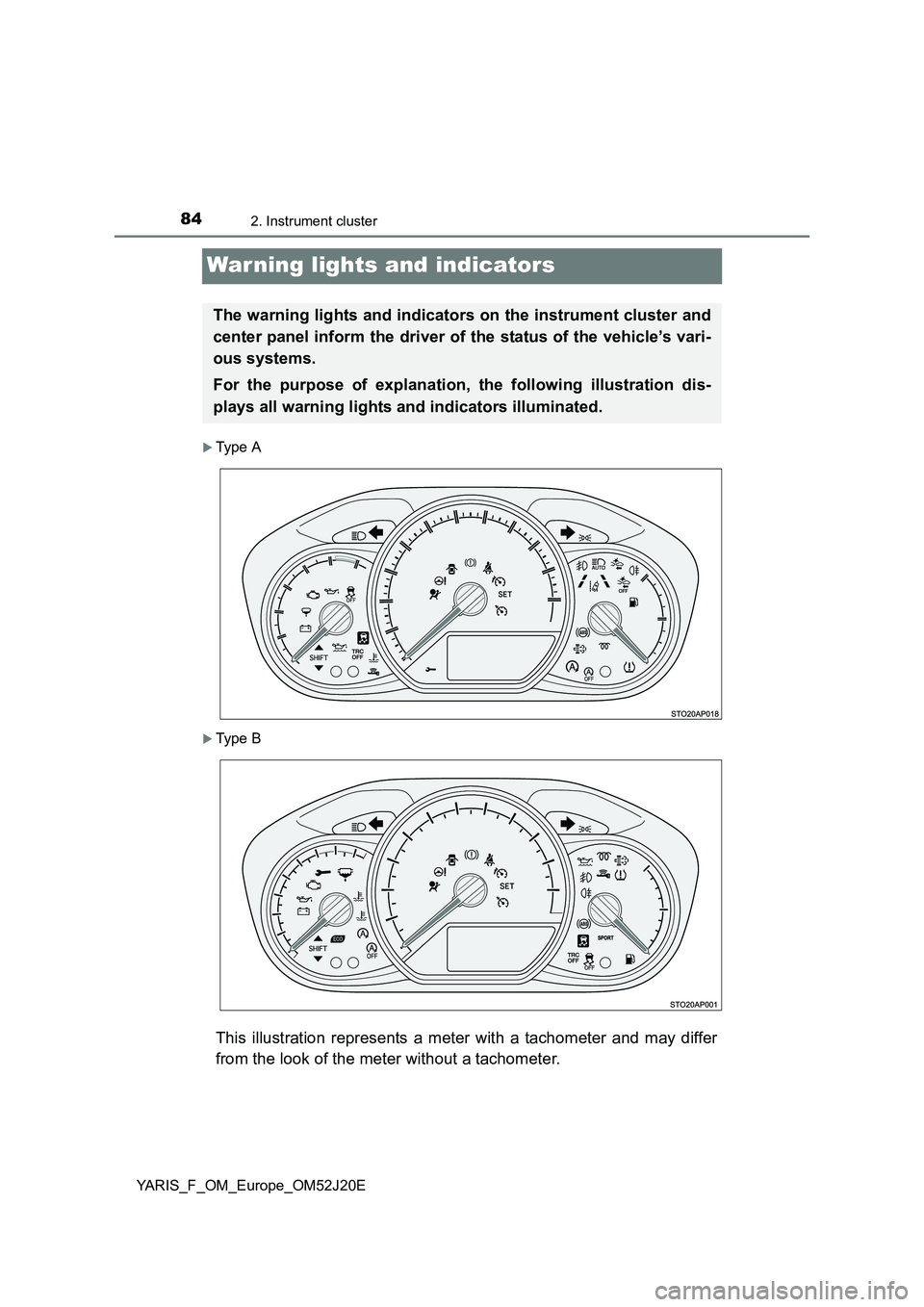

Type A
Type B
This illustration represents a meter with a tachometer and may differ
from the look of the meter without a tachometer.
The warning lights and indicators on the instrument cluster and
center panel inform the driver of the status of the vehicle’s vari-
ous systems.
For the purpose of explanation, the following illustration dis-
plays all warning lights and indicators illuminated.

852. Instrument cluster
2
Instrument cluster
YARIS_F_OM_Europe_OM52J20E

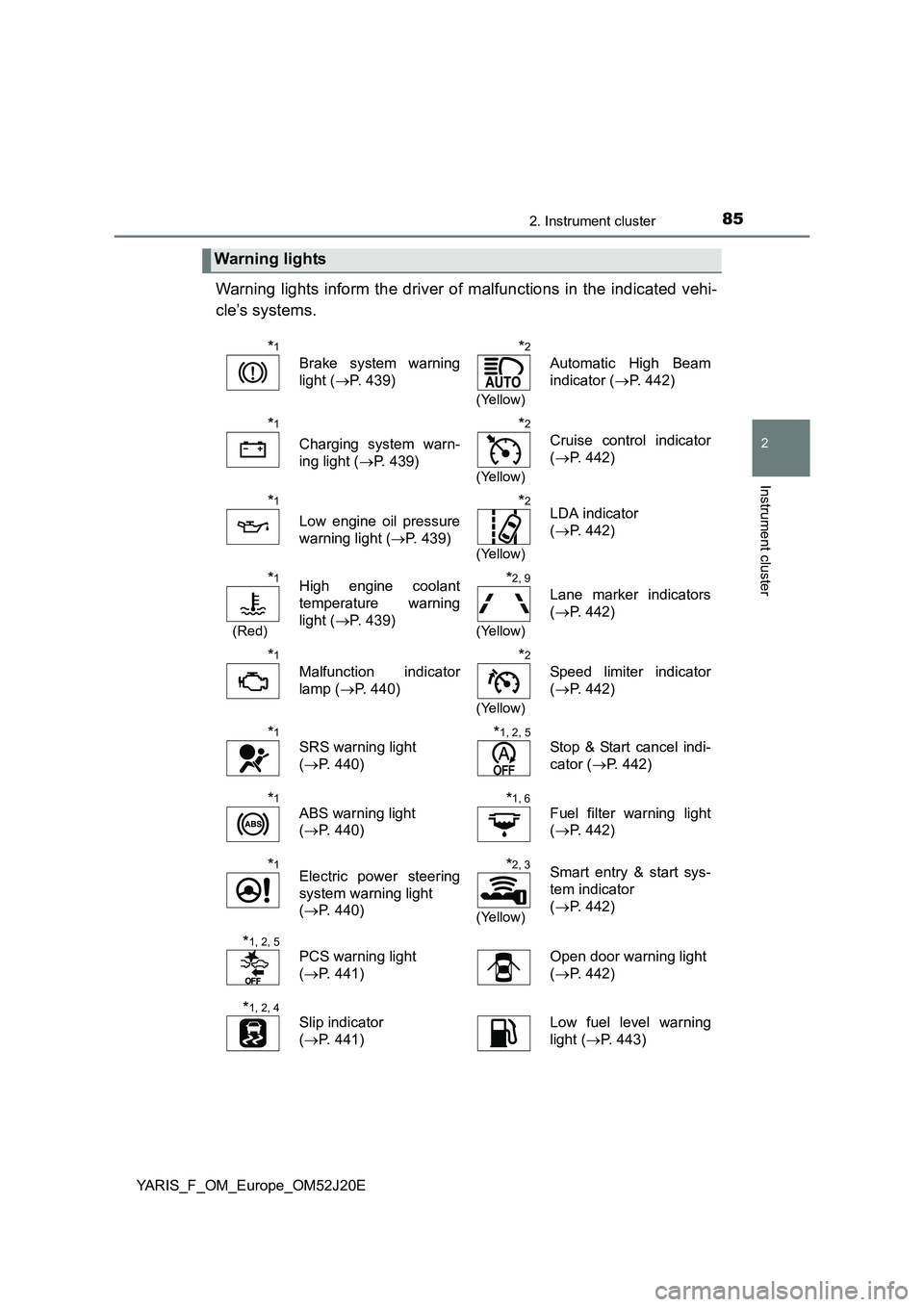

Warning lights inform the driver of malfunctions in the indicated vehi-
cle’s systems.
Warning lights
*1
Brake system warning
light ( P. 439)
*2
(Yellow)
Automatic High Beam
indicator ( P. 442)
*1
Charging system warn-
ing light ( P. 439)
*2
(Yellow)
Cruise control indicator
( P. 442)
*1
Low engine oil pressure
warning light ( P. 439)
*2
(Yellow)
LDA indicator
( P. 442)
*1
(Red)
High engine coolant
temperature warning
light ( P. 439)
*2, 9
(Yellow)
Lane marker indicators
( P. 442)
*1
Malfunction indicator
lamp ( P. 440)
*2
(Yellow)
Speed limiter indicator
( P. 442)
*1
SRS warning light
( P. 440)
*1, 2, 5
Stop & Start cancel indi-
cator ( P. 442)
*1
ABS warning light
( P. 440)
*1, 6
Fuel filter warning light
( P. 442)
*1Electric power steering
system warning light
( P. 440)
*2, 3
(Yellow)
Smart entry & start sys-
tem indicator
( P. 442)
*1, 2, 5
PCS warning light
( P. 441)
Open door warning light
( P. 442)
*1, 2, 4
Slip indicator
( P. 441)
Low fuel level warning
light ( P. 443)

862. Instrument cluster
YARIS_F_OM_Europe_OM52J20E
*1: These lights turn on when the engine switch is turned to the “ON” position
(vehicles without a smart entry & start system) or IGNITION ON mode
(vehicles with a smart entry & start system) to indicate that a system check
is being performed. They will turn off after the engine is started, or after a
few seconds. There may be a malfunction in a system if a light does not
come on, or if the lights do not turn off. Have the vehicle inspected by any
authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
*2: If equipped
*3: The light flashes in yellow to indicate a malfunction. The light flashes
quickly in green to indicate that the steering lock has not been released.
*4: The light turns on to indicate a malfunction.
*5: The light flashes to indicate a malfunction.
*6: Diesel engine
*7: The light illuminate on the center panel.
*8: These lights turn on when the engine switch is turned to the “ON” position
(vehicles without a smart entry & start system) or IGNITION ON mode
(vehicles with a smart entry & start system) to indicate that a system check
is being performed. They will turn off after the engine is started, or after a
few seconds.
*9: The lights turn on with LDA indicator to indicate a malfunction.

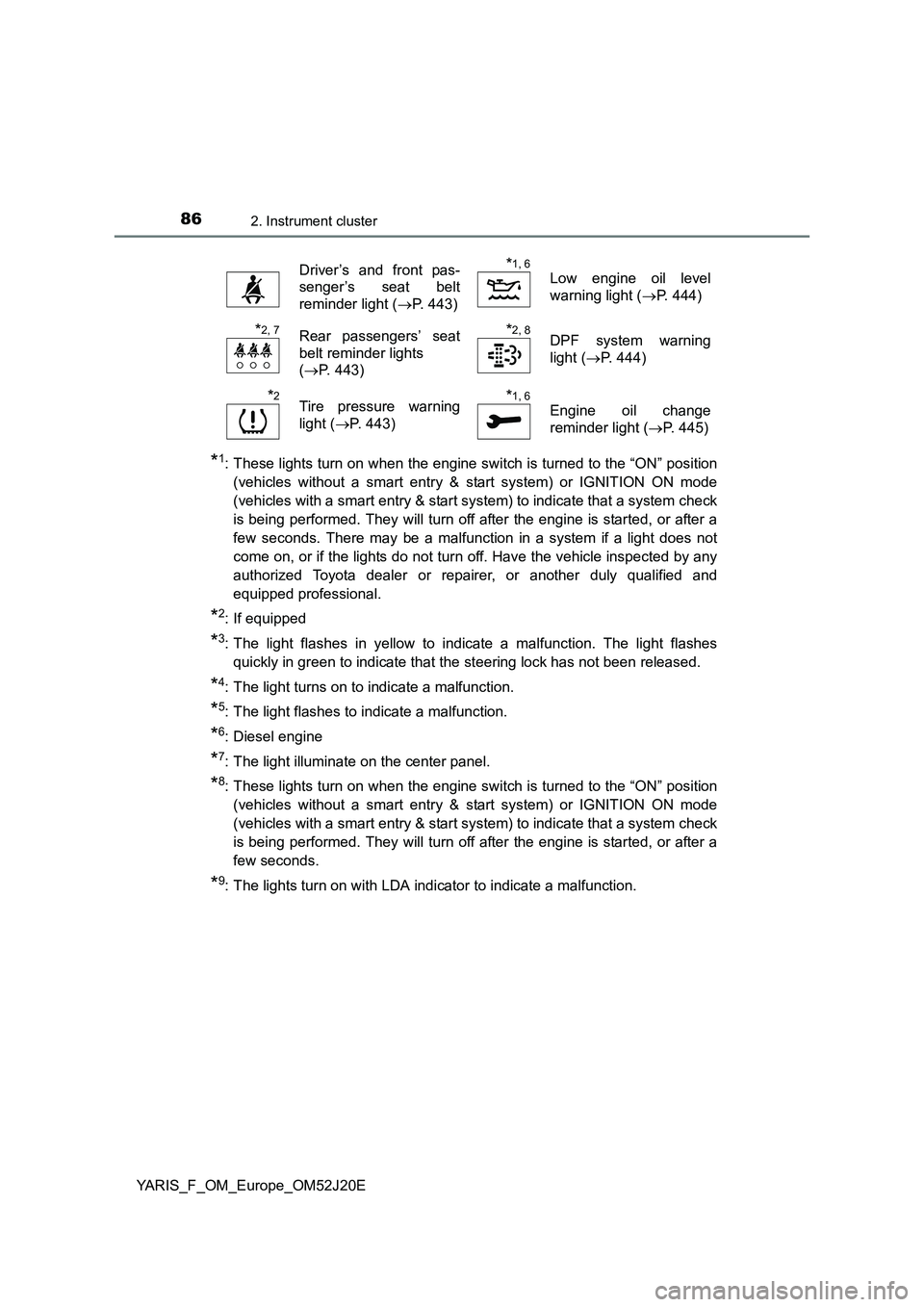

Driver’s and front pas-
senger’s seat belt
reminder light ( P. 443)
*1, 6
Low engine oil level
warning light ( P. 444)
*2, 7Rear passengers’ seat
belt reminder lights
( P. 443)
*2, 8DPF system warning
light ( P. 444)
*2Tire pressure warning
light ( P. 443)
*1, 6
Engine oil change
reminder light ( P. 445)

872. Instrument cluster
2
Instrument cluster
YARIS_F_OM_Europe_OM52J20E

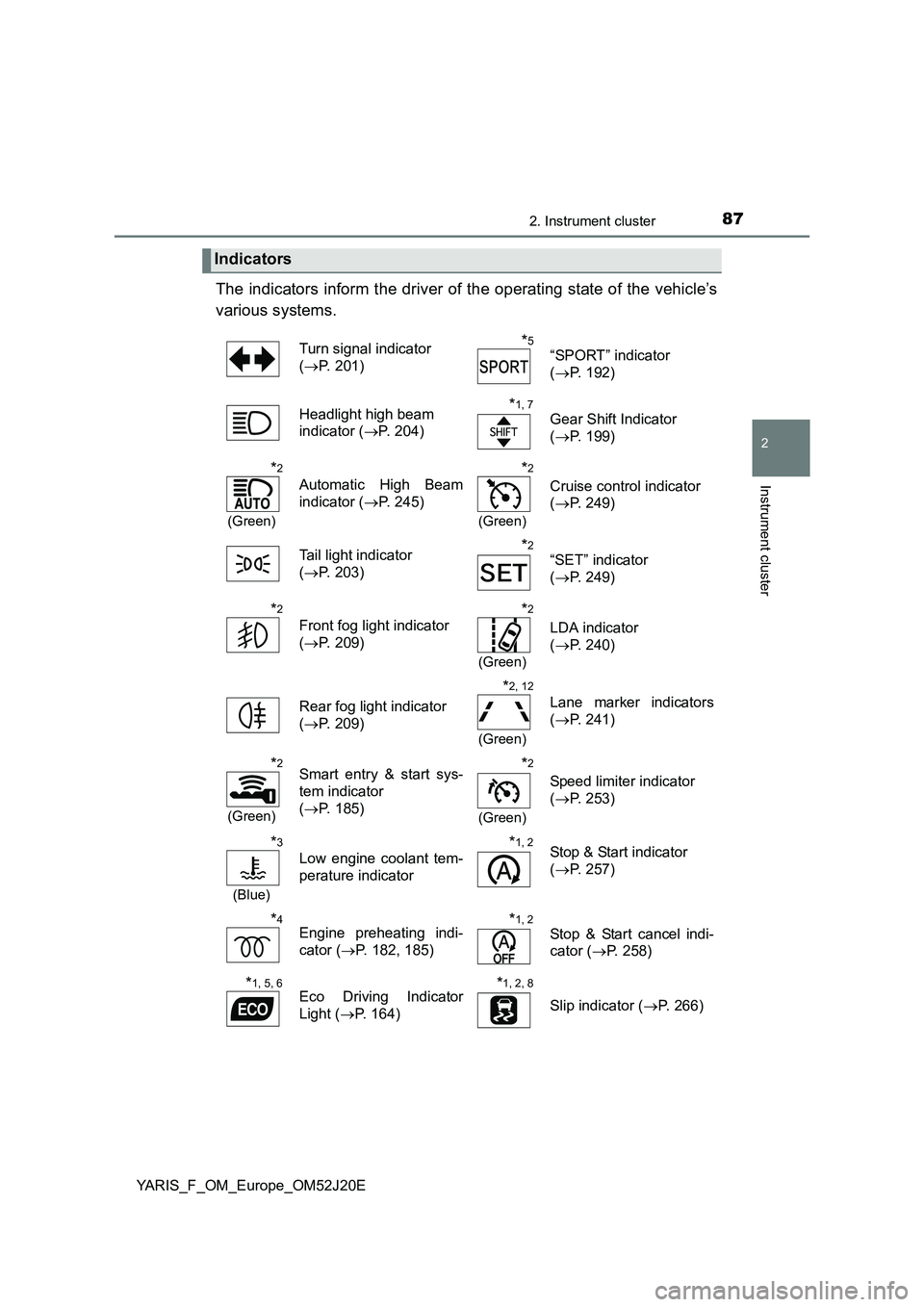

The indicators inform the driver of the operating state of the vehicle’s
various systems.
Indicators
Turn signal indicator
( P. 201)
*5
“SPORT” indicator
( P. 192)
Headlight high beam
indicator ( P. 204)
*1, 7
Gear Shift Indicator
( P. 199)
*2
(Green)
Automatic High Beam
indicator ( P. 245)
*2
(Green)
Cruise control indicator
( P. 249)
Tail light indicator
( P. 203)
*2
“SET” indicator
( P. 249)
*2
Front fog light indicator
( P. 209)
*2
(Green)
LDA indicator
( P. 240)
Rear fog light indicator
( P. 209)
*2, 12
(Green)
Lane marker indicators
( P. 241)
*2
(Green)
Smart entry & start sys-
tem indicator
( P. 185)
*2
(Green)
Speed limiter indicator
( P. 253)
*3
(Blue)
Low engine coolant tem-
perature indicator
*1, 2Stop & Start indicator
( P. 257)
*4Engine preheating indi-
cator ( P. 182, 185)
*1, 2
Stop & Start cancel indi-
cator ( P. 258)
*1, 5, 6Eco Driving Indicator
Light ( P. 164)
*1, 2, 8
Slip indicator (P. 266)

882. Instrument cluster
YARIS_F_OM_Europe_OM52J20E

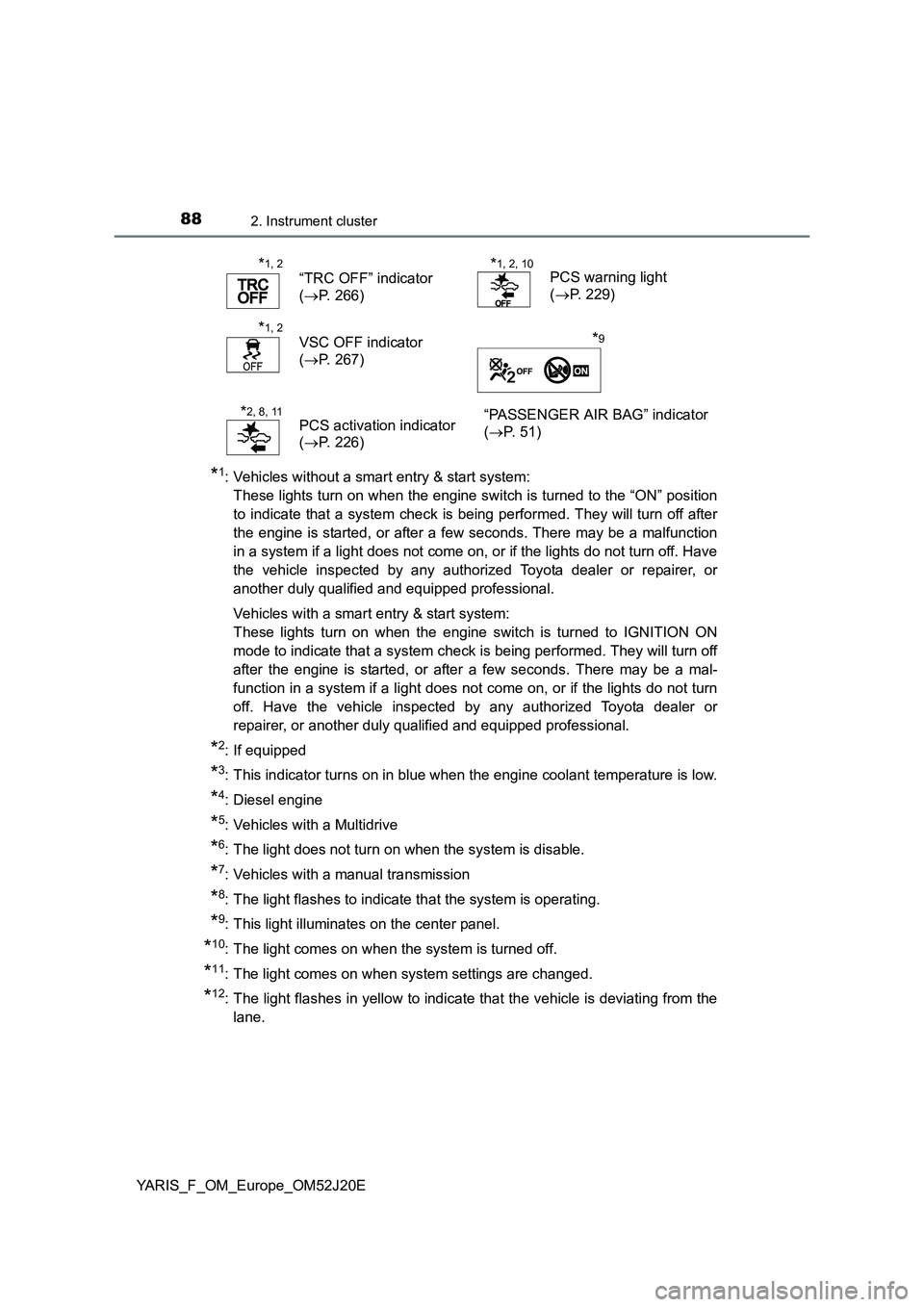

*1: Vehicles without a smart entry & start system:
These lights turn on when the engine switch is turned to the “ON” position
to indicate that a system check is being performed. They will turn off after
the engine is started, or after a few seconds. There may be a malfunction
in a system if a light does not come on, or if the lights do not turn off. Have
the vehicle inspected by any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.
Vehicles with a smart entry & start system:
These lights turn on when the engine switch is turned to IGNITION ON
mode to indicate that a system check is being performed. They will turn off
after the engine is started, or after a few seconds. There may be a mal-
function in a system if a light does not come on, or if the lights do not turn
off. Have the vehicle inspected by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
*2: If equipped
*3: This indicator turns on in blue when the engine coolant temperature is low.
*4: Diesel engine
*5: Vehicles with a Multidrive
*6: The light does not turn on when the system is disable.
*7: Vehicles with a manual transmission
*8: The light flashes to indicate that the system is operating.
*9: This light illuminates on the center panel.
*10: The light comes on when the system is turned off.
*11: The light comes on when system settings are changed.
*12: The light flashes in yellow to indicate that the vehicle is deviating from the
lane.
*1, 2
“TRC OFF” indicator
( P. 266)
*1, 2, 10PCS warning light
( P. 229)
*1, 2
VSC OFF indicator
( P. 267)
*9
*2, 8, 11PCS activation indicator
( P. 226)
“PASSENGER AIR BAG” indicator
( P. 51)

892. Instrument cluster
2
Instrument cluster
YARIS_F_OM_Europe_OM52J20E

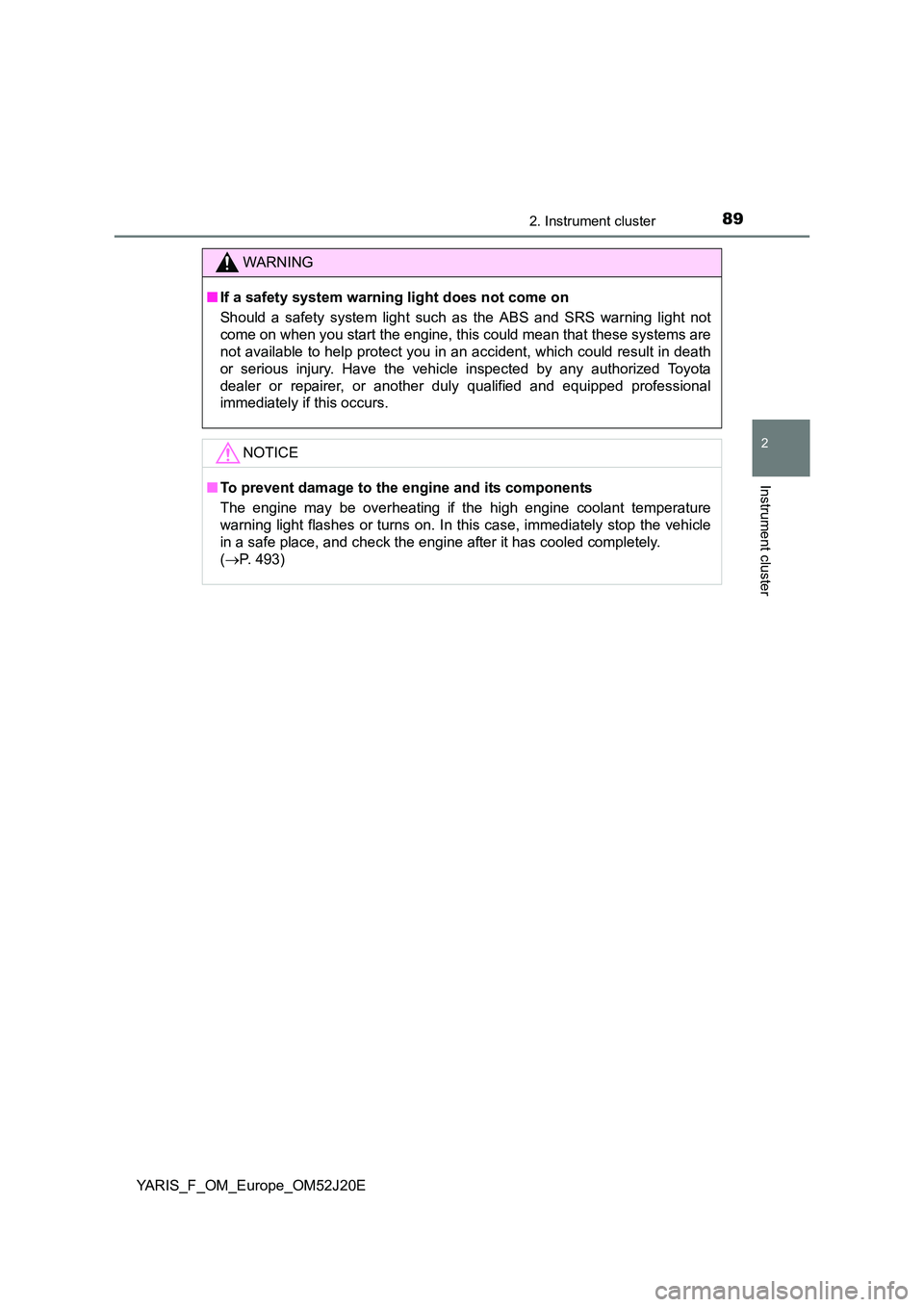

WARNING
■If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning light not
come on when you start the engine, this could mean that these systems are
not available to help protect you in an accident, which could result in death
or serious injury. Have the vehicle inspected by any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional
immediately if this occurs.
NOTICE
■ To prevent damage to the engine and its components
The engine may be overheating if the high engine coolant temperature
warning light flashes or turns on. In this case, immediately stop the vehicle
in a safe place, and check the engine after it has cooled completely.
( P. 493)

902. Instrument cluster
YARIS_F_OM_Europe_OM52J20E

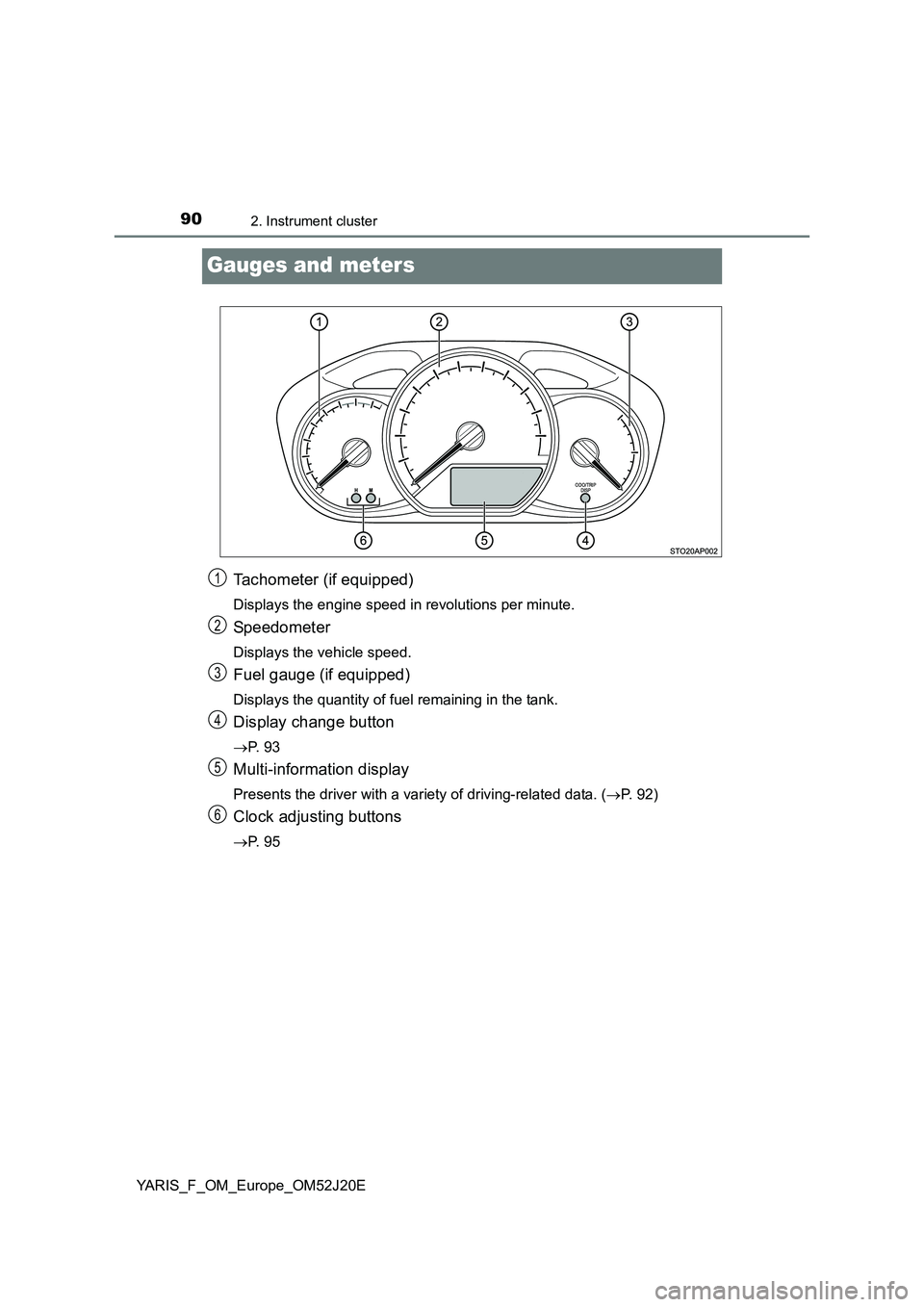

Gauges and meters
Tachometer (if equipped)
Displays the engine speed in revolutions per minute.
Speedometer
Displays the vehicle speed.
Fuel gauge (if equipped)
Displays the quantity of fuel remaining in the tank.
Display change button
P. 9 3
Multi-information display
Presents the driver with a variety of driving-related data. (P. 92)
Clock adjusting buttons
P. 9 5
1
2
3
4
5
6
