1312. Instrument cluster
2
Instrument cluster
YARIS_HV_OM_Europe_OM52J66E
■Pop-up display
In some situations, such as when a switch operation is performed, a pop-up
display will be temporarily display ed on the multi-information display.
The pop-up display function can be set on/off.
■ Setting display automatic cancelation
“Settings” item in settings display is not selectable during driving and cannot
be operated.
Also, the settings screen is temporarily canceled in the following situations.
● A warning message is displayed.
● The vehicle starts off.
■ Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal displays, and there is no problem continuing to
use the display.
■ When disconnecting and reconnecting 12-volt battery terminals
The drive information and clock data will be reset.
■ Arrow guide navigation (vehicles with a navigation system)
The arrow guide navigation appears only
while route guidance of the navigation
system is being performed. When a turn
approaches, the distance to the turn and
the turn direction are displayed.
Turn direction
The image shown may differ from the
actual intersection.
Distance to the next turn
1
2

1322. Instrument cluster
YARIS_HV_OM_Europe_OM52J66E

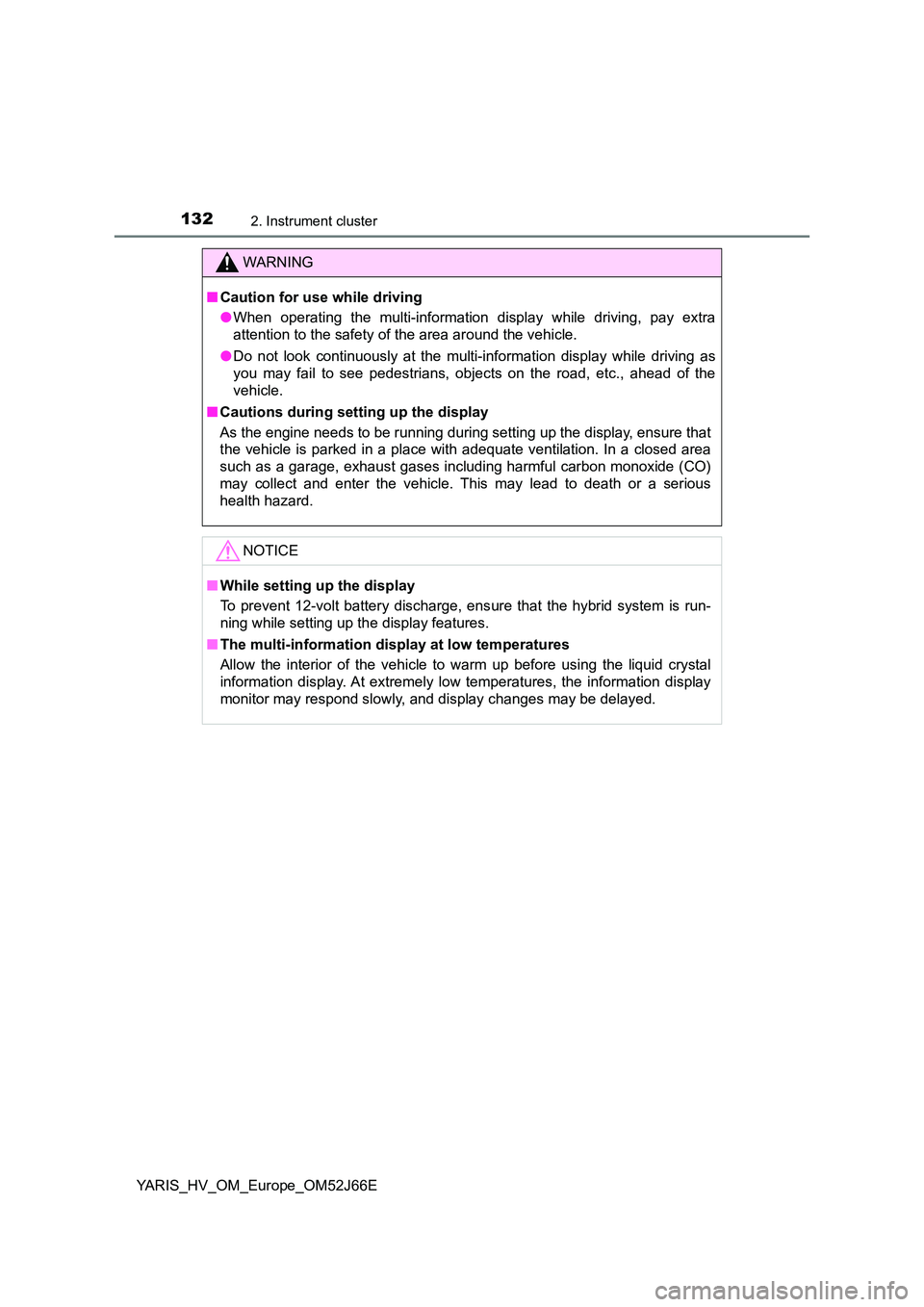

WARNING
■Caution for use while driving
● When operating the multi-information display while driving, pay extra
attention to the safety of the area around the vehicle.
● Do not look continuously at the multi-information display while driving as
you may fail to see pedestrians, objects on the road, etc., ahead of the
vehicle.
■ Cautions during setting up the display
As the engine needs to be running during setting up the display, ensure that
the vehicle is parked in a place with adequate ventilation. In a closed area
such as a garage, exhaust gases including harmful carbon monoxide (CO)
may collect and enter the vehicle. This may lead to death or a serious
health hazard.
NOTICE
■ While setting up the display
To prevent 12-volt battery discharge, ens ure that the hybrid system is run-
ning while setting up the display features.
■ The multi-information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.

133
2
2. Instrument cluster
Instrument cluster
YARIS_HV_OM_Europe_OM52J66E
Energy monitor/consumption screen
Multi-information display*1
Meter control switches*1
Navigation/Multimedia
system screen*2
*1: Vehicles with color display
*2: Vehicles with Navigation/Multime-
dia system
Multi-information display (vehicles with color display)
Press “<” or “>” of the meter control switches and select , and then
press “ ” or “” to select the energy monitor display.
Navigation/Multimedia system screen (vehicles with Navigation/
Multimedia system)
Press , and then select
“Energy monitor” on the screen.
: If equipped
You can view the status of your vehicle on the multi-information
display and the Navigation/Multimedia system screen.
1
2
3
Energy monitor

1342. Instrument cluster
YARIS_HV_OM_Europe_OM52J66E
Navigation/Multimedia
system screen Multi-information display

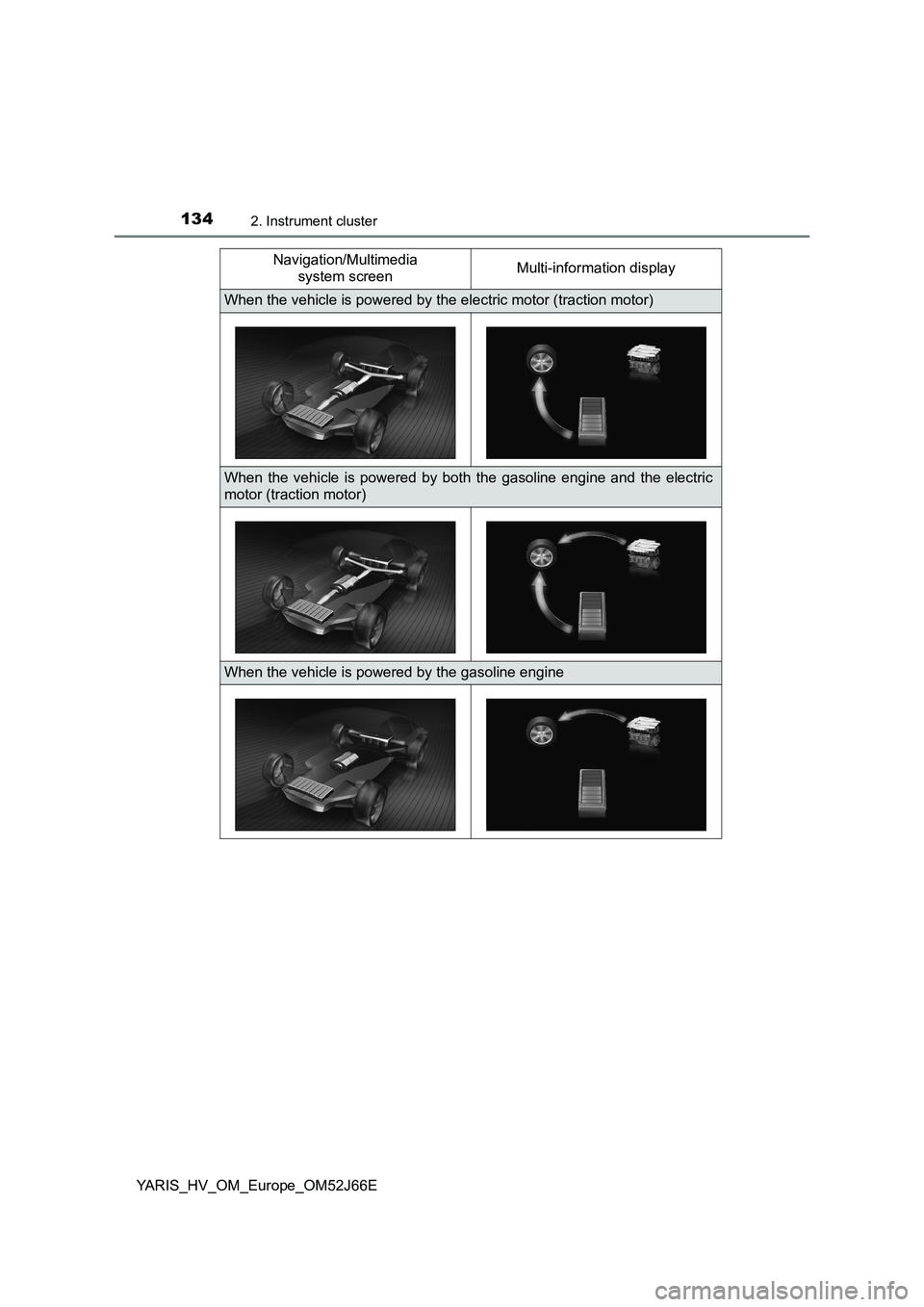

When the vehicle is powered by the electric motor (traction motor)
When the vehicle is powered by both the gasoline engine and the electric
motor (traction motor)
When the vehicle is powered by the gasoline engine

1352. Instrument cluster
2
Instrument cluster
YARIS_HV_OM_Europe_OM52J66E
These images are examples only, and may vary slightly from actual condi-
tions.

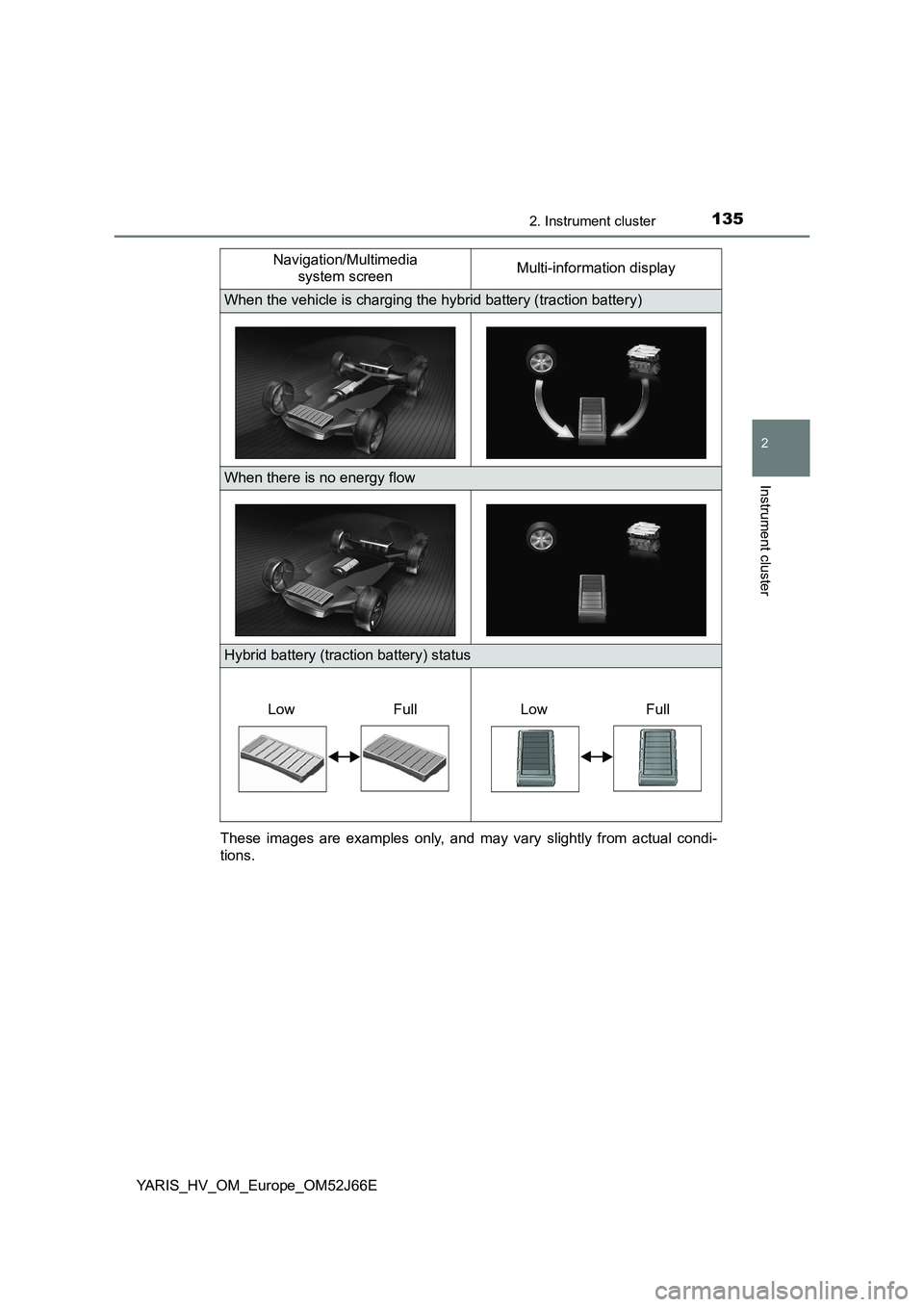

When the vehicle is charging the hybrid battery (traction battery)
When there is no energy flow
Hybrid battery (traction battery) status
Navigation/Multimedia
system screen Multi-information display
Low FullLow Full

1362. Instrument cluster
YARIS_HV_OM_Europe_OM52J66E
Press the button on the
Navigation/Multimedia system.
Select “Trip information”.
Displays the average vehicle
speed since the hybrid sys-
tem was started.
Cruising range ( P. 138)
Fuel consumption in the past
15 minutes
Regenerated energy in the
past 15 minutes
One symbol indicates 30 Wh. Up to 5 symbols are shown.
Displays the elapsed time since the hybrid system was started.
Resetting the consumption data
Vehicles without a smart entry & start system:
Average fuel consumption for the past 15 minutes is divided by
color into past averages and averages attained since the power
switch was last turned to the “ON” position. Use the displayed aver-
age fuel consumption as a reference.
Vehicles with a smart entry & start system:
Average fuel consumption for the past 15 minutes is divided by
color into past averages and averages attained since the power
switch was last turned to ON mode. Use the displayed average fuel
consumption as a reference.
This image is an example only.
Trip information (Navigation/Multimedia system)
1
2
1
2
3
4
5
6

1372. Instrument cluster
2
Instrument cluster
YARIS_HV_OM_Europe_OM52J66E
Press the button on the
Navigation/Multimedia system.
Select “Past record”.
Best recorded fuel consump-
tion
Previous fuel consumption
record
Average fuel consumption
Updating the average fuel
consumption data
Resetting the past record
data
The average fuel consumption history is divided by color into past
averages and the average fuel consumption since the last updated.
Use the displayed average fuel consumption as a reference.
This image is an example only.

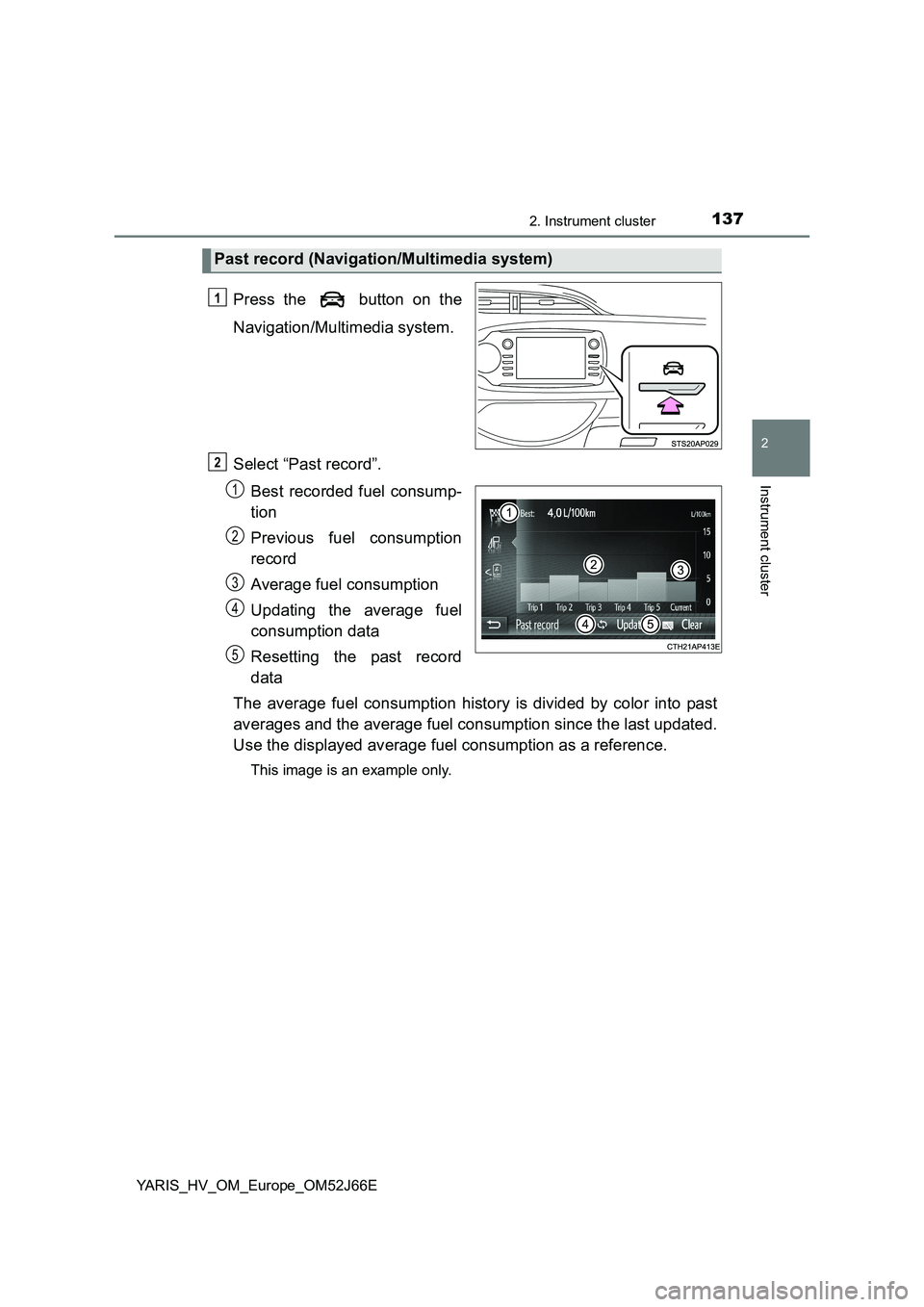

Past record (Navigation/Multimedia system)
1
2
1
2
3
4
5

1382. Instrument cluster
YARIS_HV_OM_Europe_OM52J66E

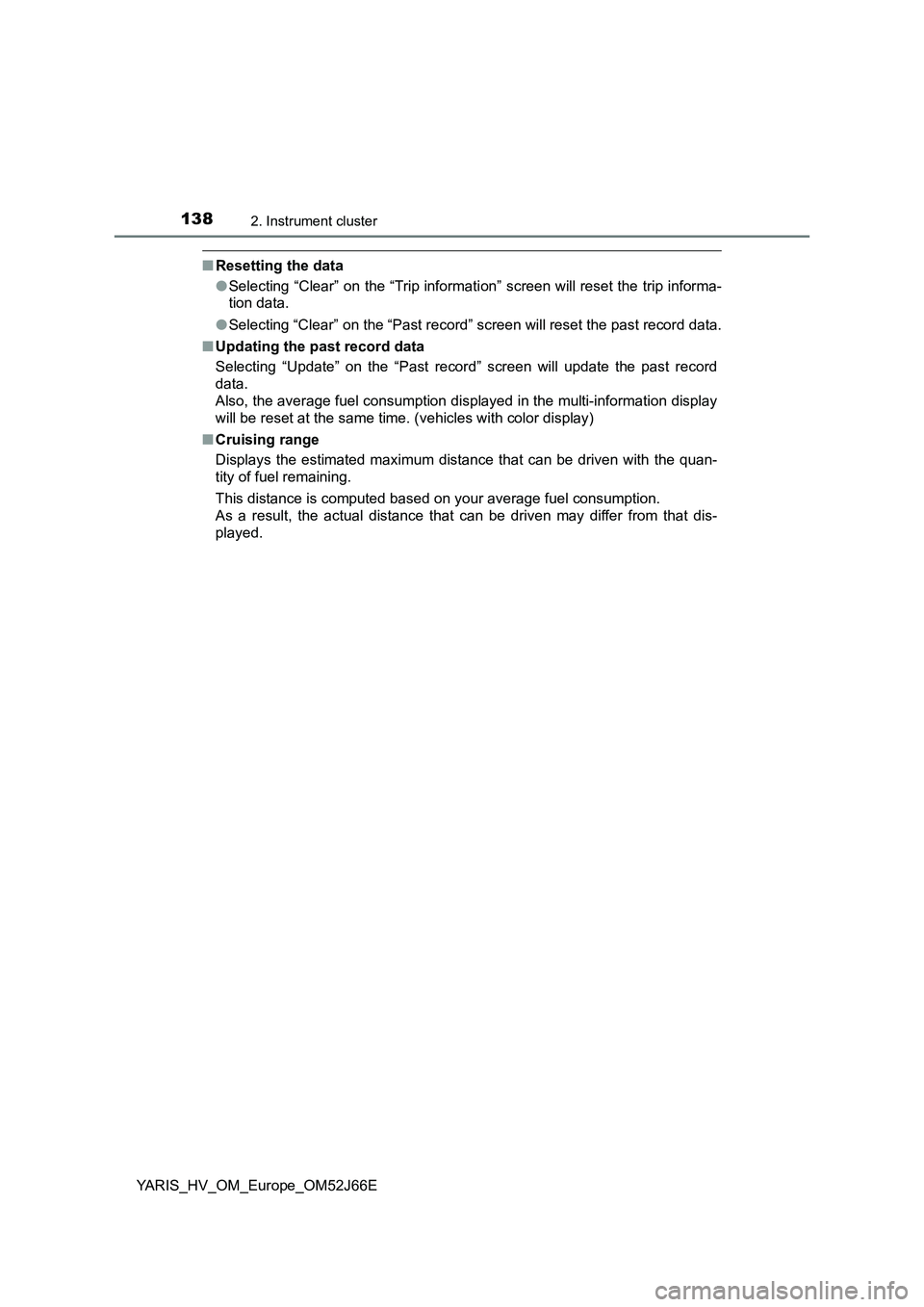

■Resetting the data
● Selecting “Clear” on the “Trip information” screen will reset the trip informa-
tion data.
● Selecting “Clear” on the “Past record” screen will reset the past record data.
■ Updating the past record data
Selecting “Update” on the “Past record” screen will update the past record
data.
Also, the average fuel consumption displayed in the multi-information display
will be reset at the same time. (vehicles with color display)
■ Cruising range
Displays the estimated maximum distance that can be driven with the quan-
tity of fuel remaining.
This distance is computed based on your average fuel consumption.
As a result, the actual distance that can be driven may differ from that dis-
played.

139
3
Operation of
each component
YARIS_HV_OM_Europe_OM52J66E

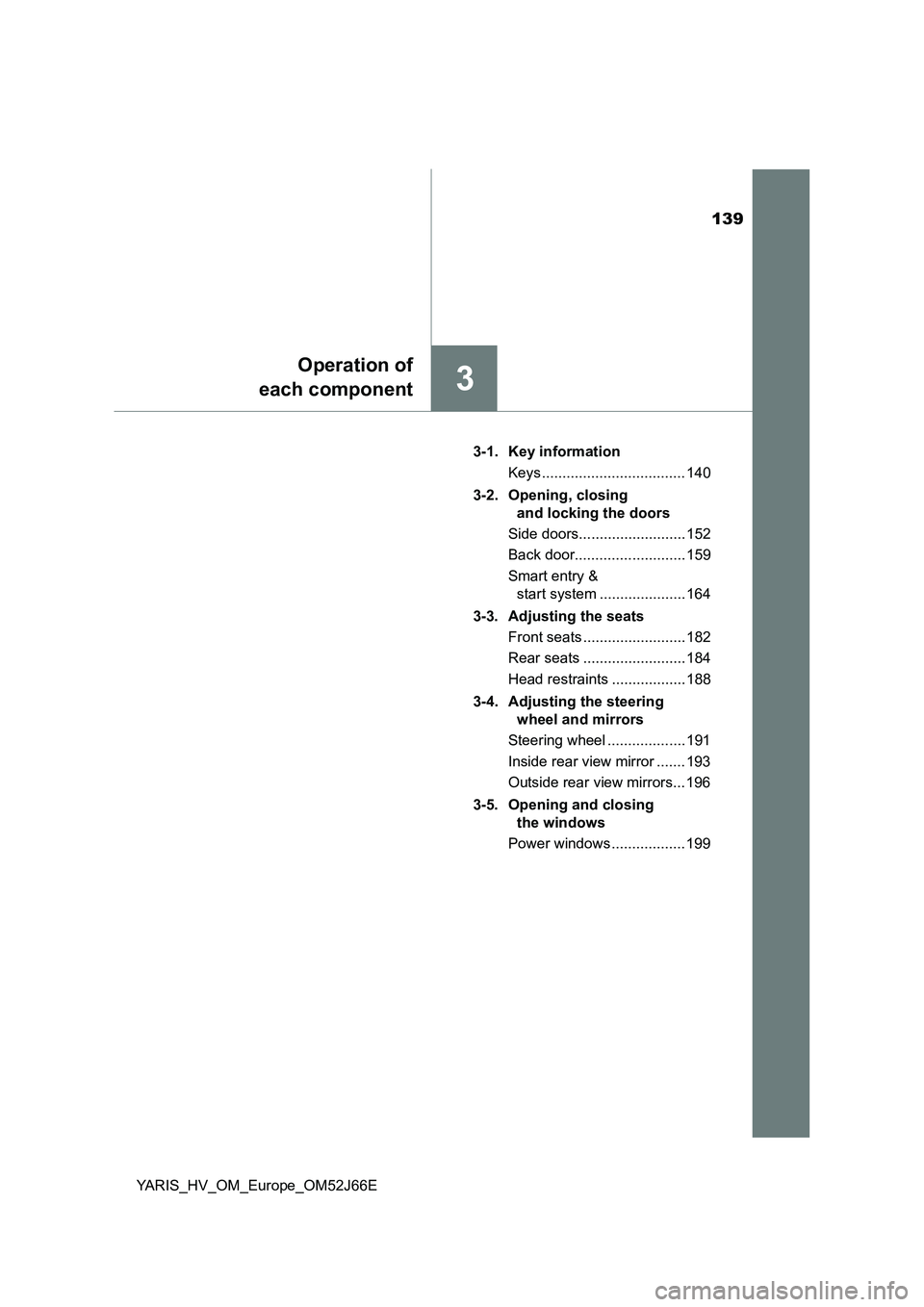

3-1. Key information
Keys ................................... 140
3-2. Opening, closing
and locking the doors
Side doors.......................... 152
Back door........................... 159
Smart entry &
start system ..................... 164
3-3. Adjusting the seats
Front seats ......................... 182
Rear seats ......................... 184
Head restraints .................. 188
3-4. Adjusting the steering
wheel and mirrors
Steering wheel ................... 191
Inside rear view mirror ....... 193
Outside rear view mirrors... 196
3-5. Opening and closing
the windows
Power windows .................. 199

1403-1. Key information
YARIS_HV_OM_Europe_OM52J66E
Keys

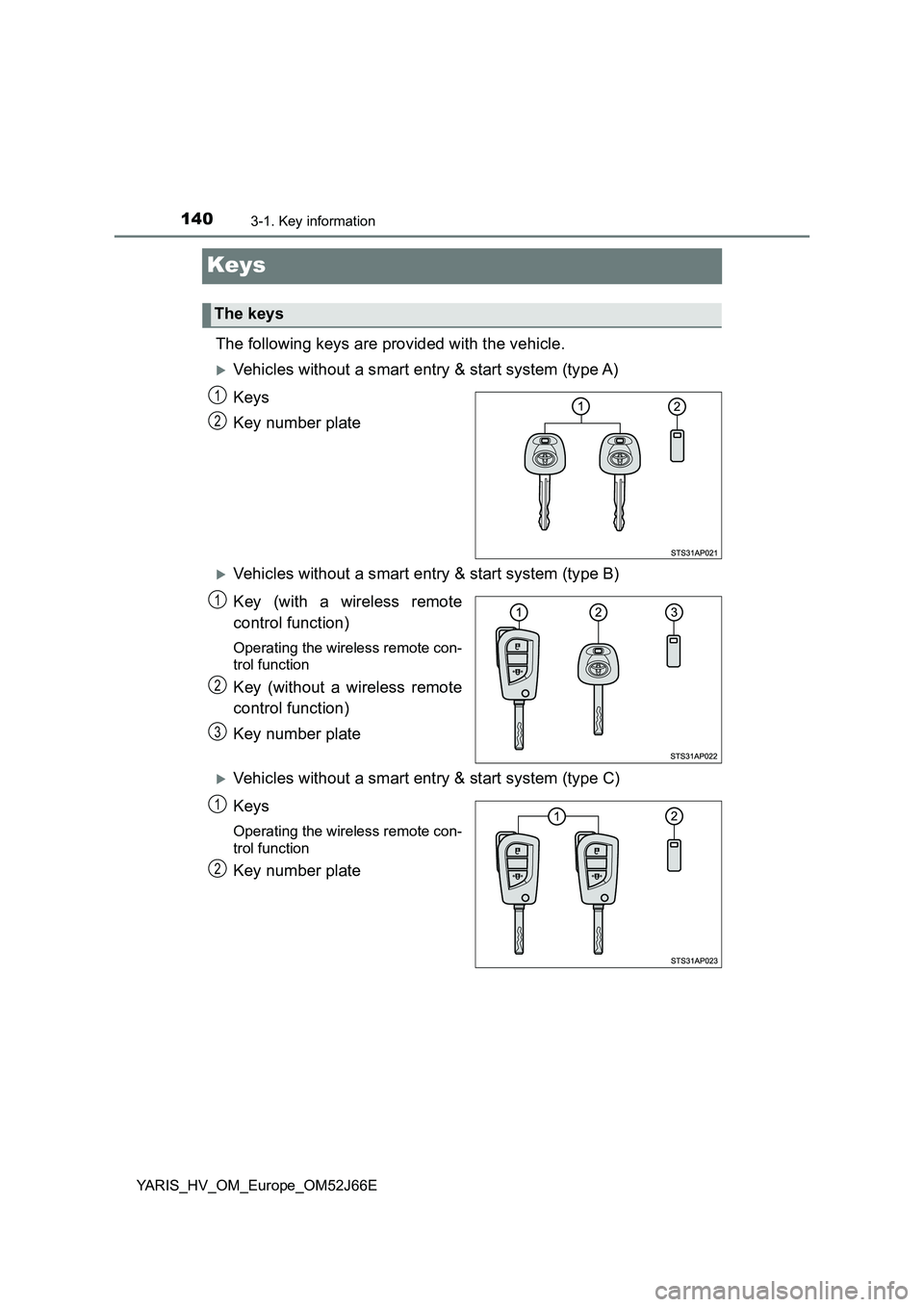

The following keys are provided with the vehicle.
Vehicles without a smart entry & start system (type A)
Keys
Key number plate
Vehicles without a smart entry & start system (type B)
Key (with a wireless remote
control function)
Operating the wireless remote con-
trol function
Key (without a wireless remote
control function)
Key number plate
Vehicles without a smart entry & start system (type C)
Keys
Operating the wireless remote con-
trol function
Key number plate
The keys
1
2
1
2
3
1
2
