TOYOTA YARIS 2018 Owners Manual

5017-3. Do-it-yourself maintenance
7
Maintenance and care
YARIS_HV_OM_Europe_OM52J66E

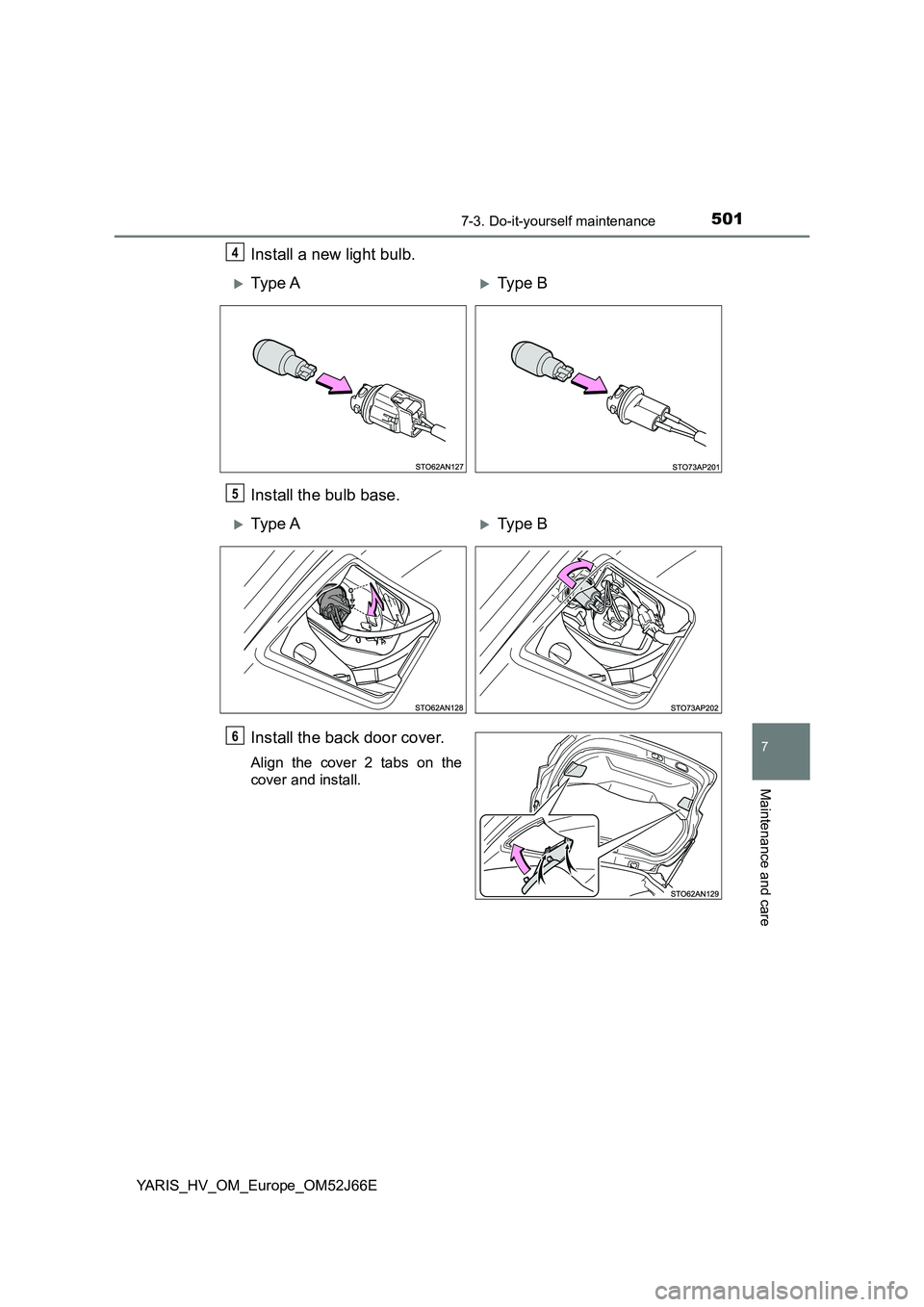

Install a new light bulb.
Install the bulb base.
Install the back door cover.
Align the cover 2 tabs on the
cover and install.
4
Type AType B
5
Type AType B
6

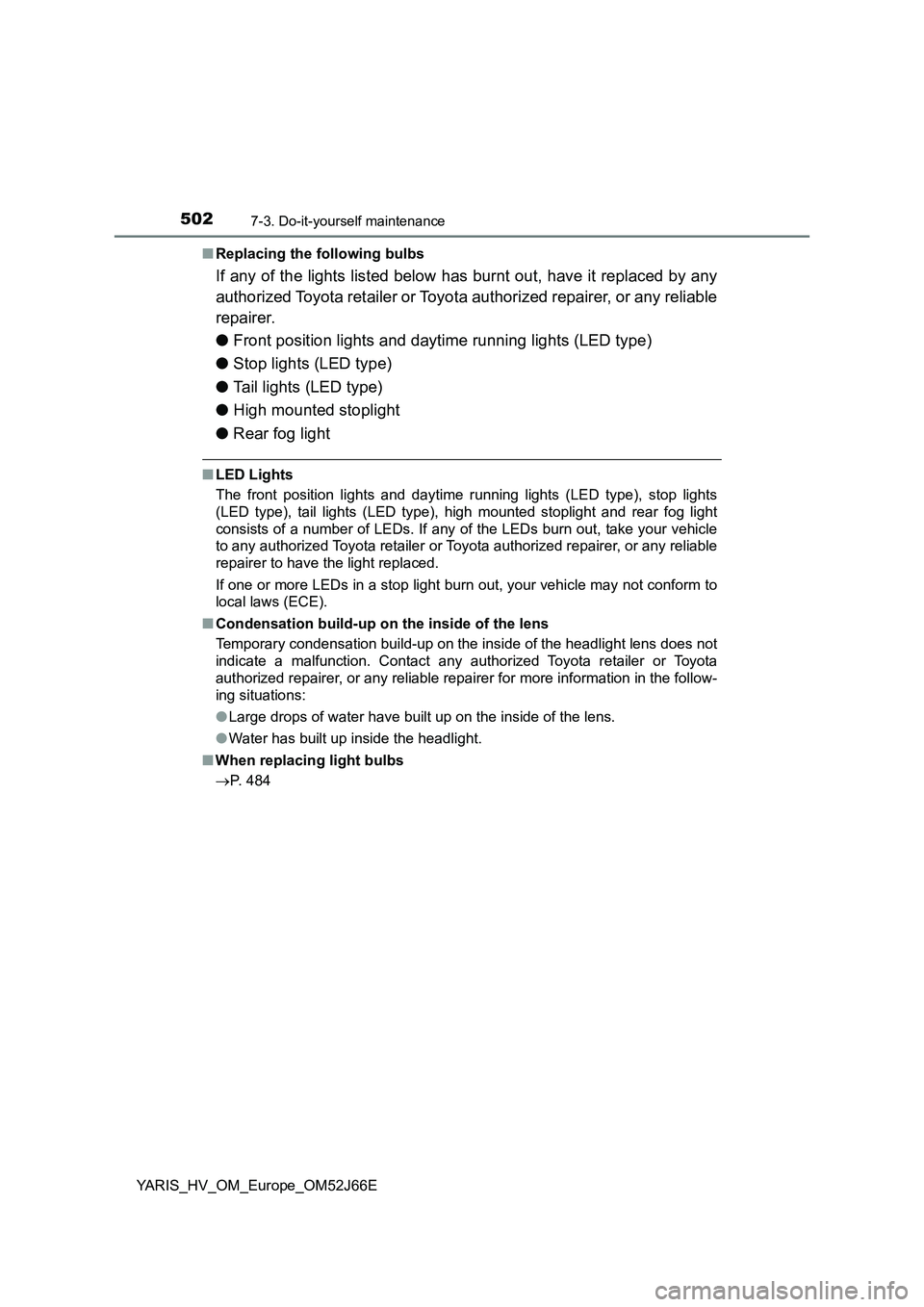

5027-3. Do-it-yourself maintenance
YARIS_HV_OM_Europe_OM52J66E
■ Replacing the following bulbs
If any of the lights listed below has burnt out, have it replaced by any
authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer.
● Front position lights and daytime running lights (LED type)
● Stop lights (LED type)
● Tail lights (LED type)
● High mounted stoplight
● Rear fog light
■LED Lights
The front position lights and daytime running lights (LED type), stop lights
(LED type), tail lights (LED type), high mounted stoplight and rear fog light
consists of a number of LEDs. If any of the LEDs burn out, take your vehicle
to any authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer to have the light replaced.
If one or more LEDs in a stop light burn out, your vehicle may not conform to
local laws (ECE).
■ Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the headlight lens does not
indicate a malfunction. Contact any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer for more information in the follow-
ing situations:
● Large drops of water have built up on the inside of the lens.
● Water has built up inside the headlight.
■ When replacing light bulbs
 P. 484

5037-3. Do-it-yourself maintenance
7
Maintenance and care
YARIS_HV_OM_Europe_OM52J66E

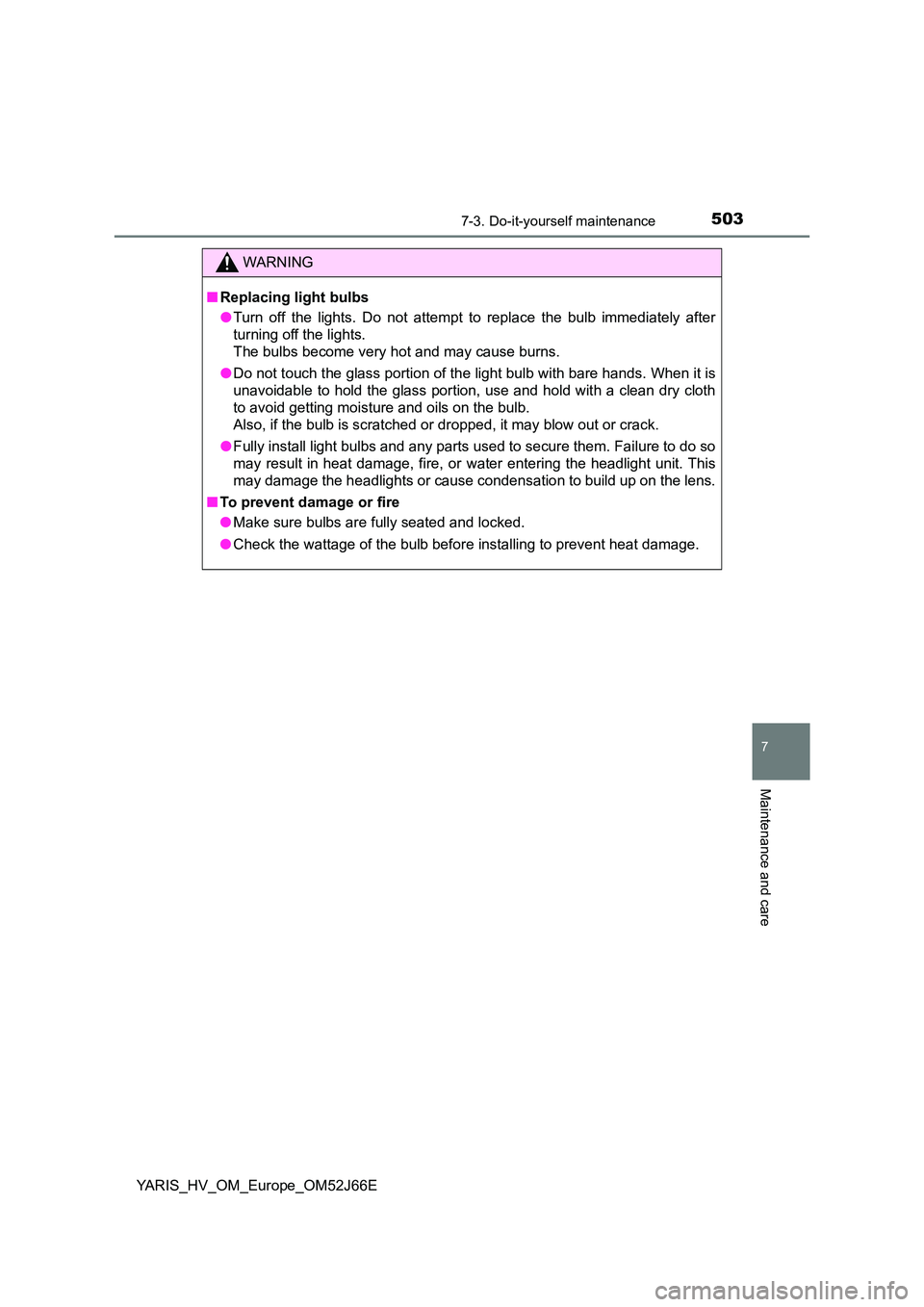

WARNING
■Replacing light bulbs
● Turn off the lights. Do not attempt to replace the bulb immediately after
turning off the lights.
The bulbs become very hot and may cause burns.
● Do not touch the glass portion of the light bulb with bare hands. When it is
unavoidable to hold the glass portion, use and hold with a clean dry cloth
to avoid getting moisture and oils on the bulb.
Also, if the bulb is scratched or dropped, it may blow out or crack.
● Fully install light bulbs and any parts used to secure them. Failure to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
■ To prevent damage or fire
● Make sure bulbs are fully seated and locked.
● Check the wattage of the bulb before installing to prevent heat damage.

5047-3. Do-it-yourself maintenance
YARIS_HV_OM_Europe_OM52J66E

505

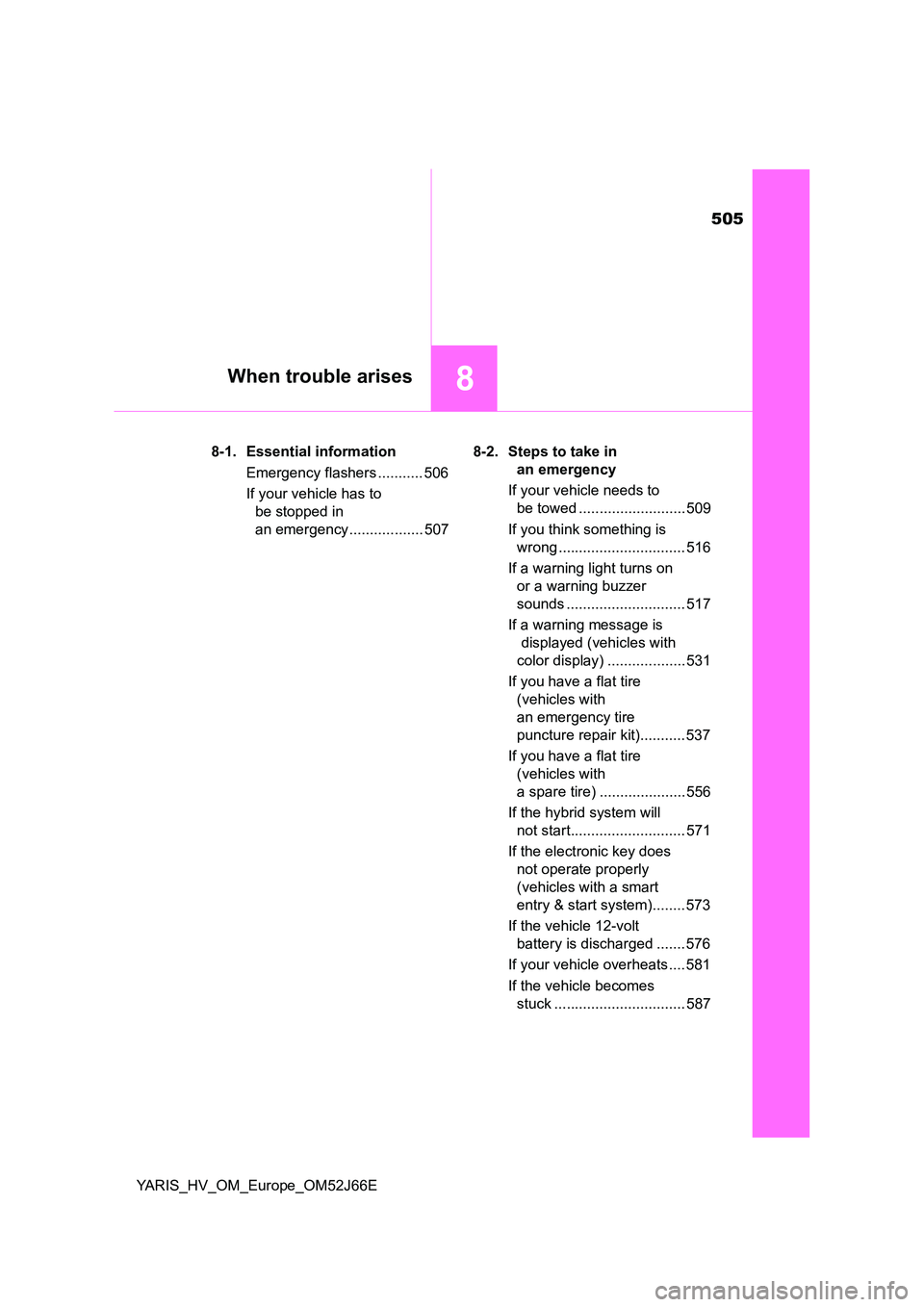

8When trouble arises
YARIS_HV_OM_Europe_OM52J66E
8-1. Essential information
Emergency flashers ........... 506
If your vehicle has to
be stopped in
an emergency .................. 507
8-2. Steps to take in
an emergency
If your vehicle needs to
be towed .......................... 509
If you think something is
wrong ............................... 516
If a warning light turns on
or a warning buzzer
sounds ............................. 517
If a warning message is
displayed (vehicles with
color display) ................... 531
If you have a flat tire
(vehicles with
an emergency tire
puncture repair kit)........... 537
If you have a flat tire
(vehicles with
a spare tire) ..................... 556
If the hybrid system will
not start............................ 571
If the electronic key does
not operate properly
(vehicles with a smart
entry & start system)........ 573
If the vehicle 12-volt
battery is discharged ....... 576
If your vehicle overheats .... 581
If the vehicle becomes
stuck ................................ 587

5068-1. Essential information
YARIS_HV_OM_Europe_OM52J66E

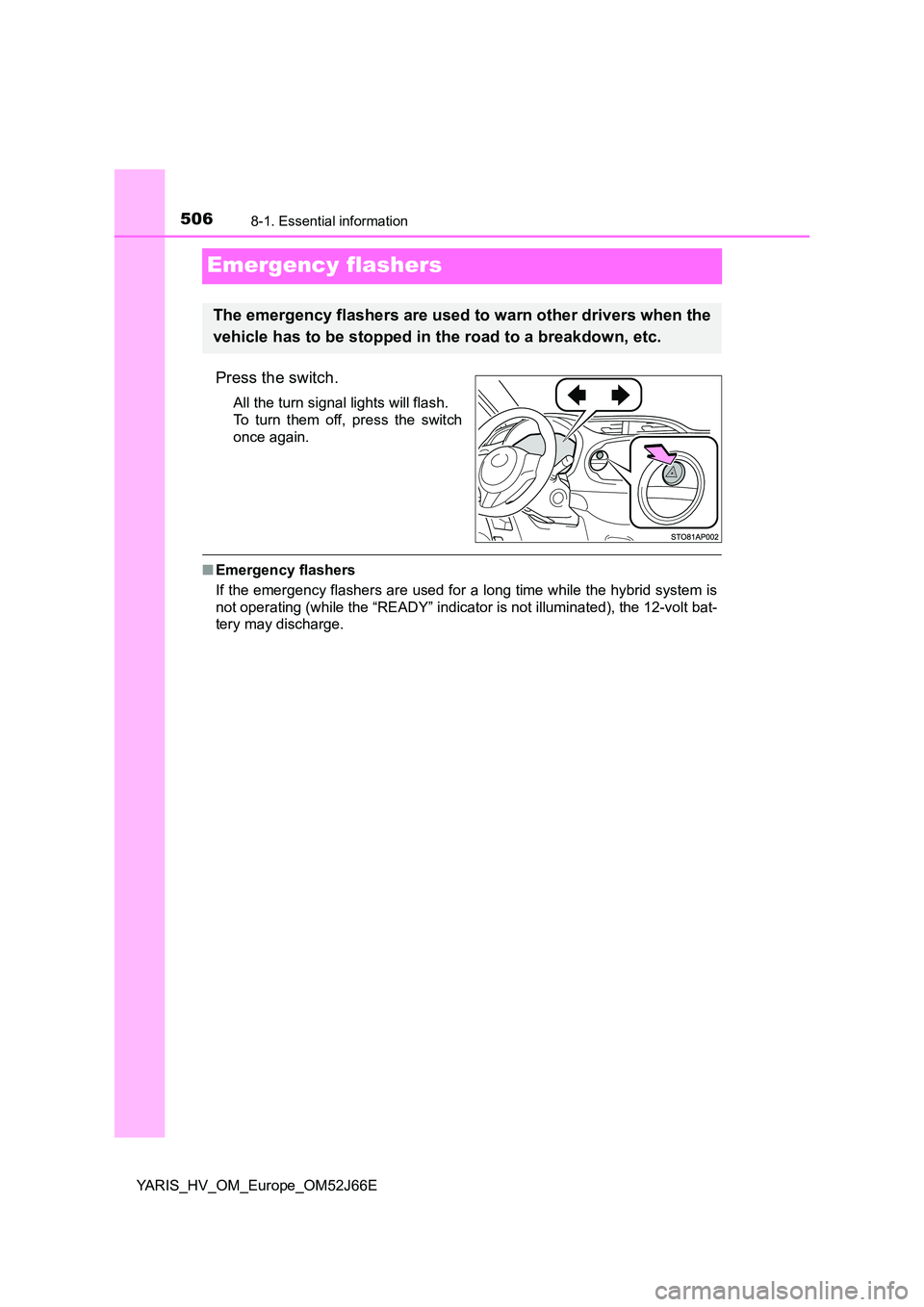

Emergency flashers
Press the switch.
All the turn signal lights will flash.
To turn them off, press the switch
once again.
■ Emergency flashers
If the emergency flashers are used for a long time while the hybrid system is
not operating (while the “READY” indicato r is not illuminated), the 12-volt bat-
tery may discharge.
The emergency flashers are used to warn other drivers when the
vehicle has to be stopped in the road to a breakdown, etc.

5078-1. Essential information
8
When trouble arises
YARIS_HV_OM_Europe_OM52J66E

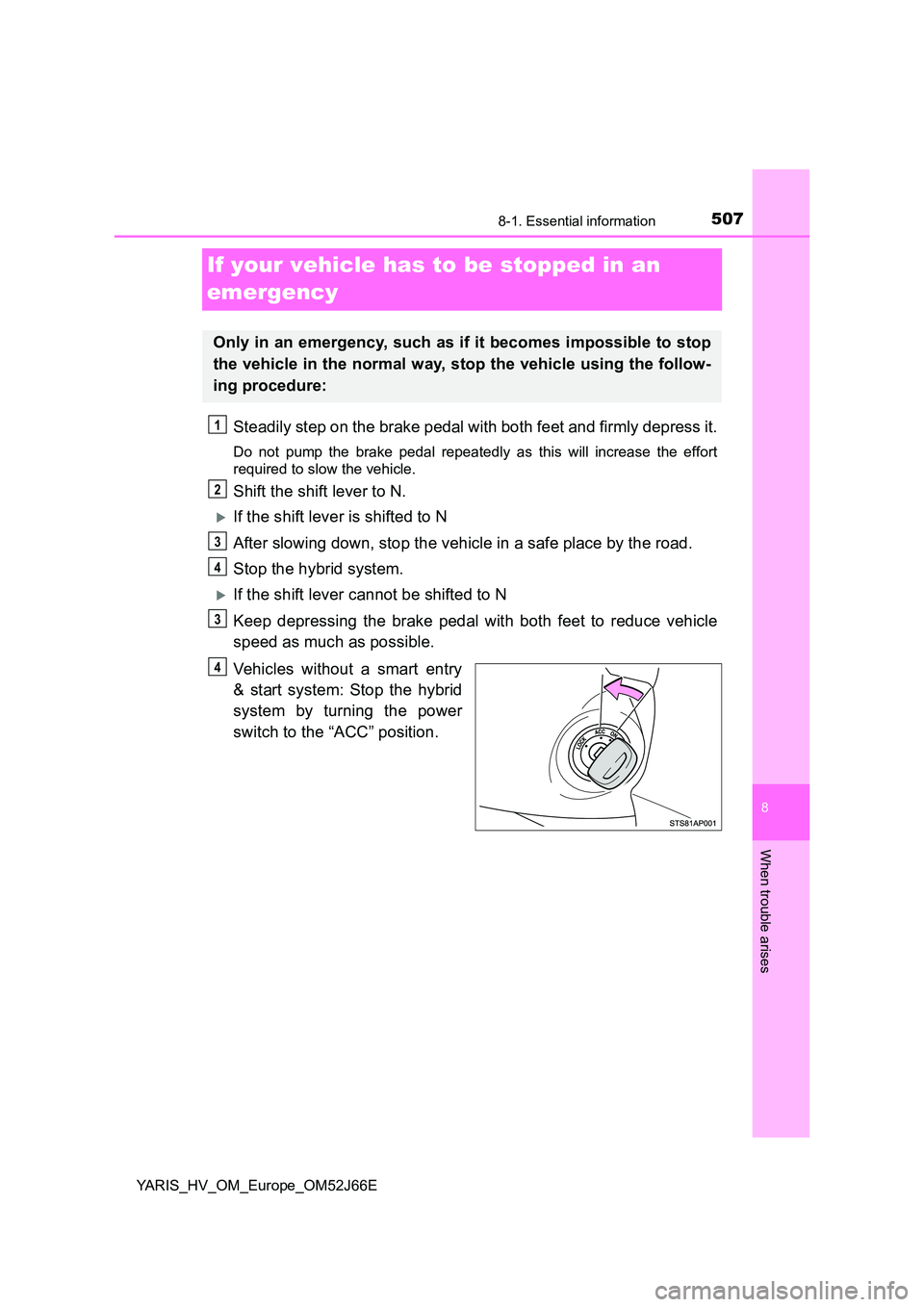

If your vehicle has to be stopped in an
emergency
Steadily step on the brake pedal with both feet and firmly depress it.
Do not pump the brake pedal repeatedly as this will increase the effort
required to slow the vehicle.
Shift the shift lever to N.
If the shift lever is shifted to N
After slowing down, stop the vehicle in a safe place by the road.
Stop the hybrid system.
If the shift lever cannot be shifted to N
Keep depressing the brake pedal with both feet to reduce vehicle
speed as much as possible.
Vehicles without a smart entry
& start system: Stop the hybrid
system by turning the power
switch to the “ACC” position.
Only in an emergency, such as if it becomes impossible to stop
the vehicle in the normal way, stop the vehicle using the follow-
ing procedure:
1
2
3
4
3
4

5088-1. Essential information
YARIS_HV_OM_Europe_OM52J66E

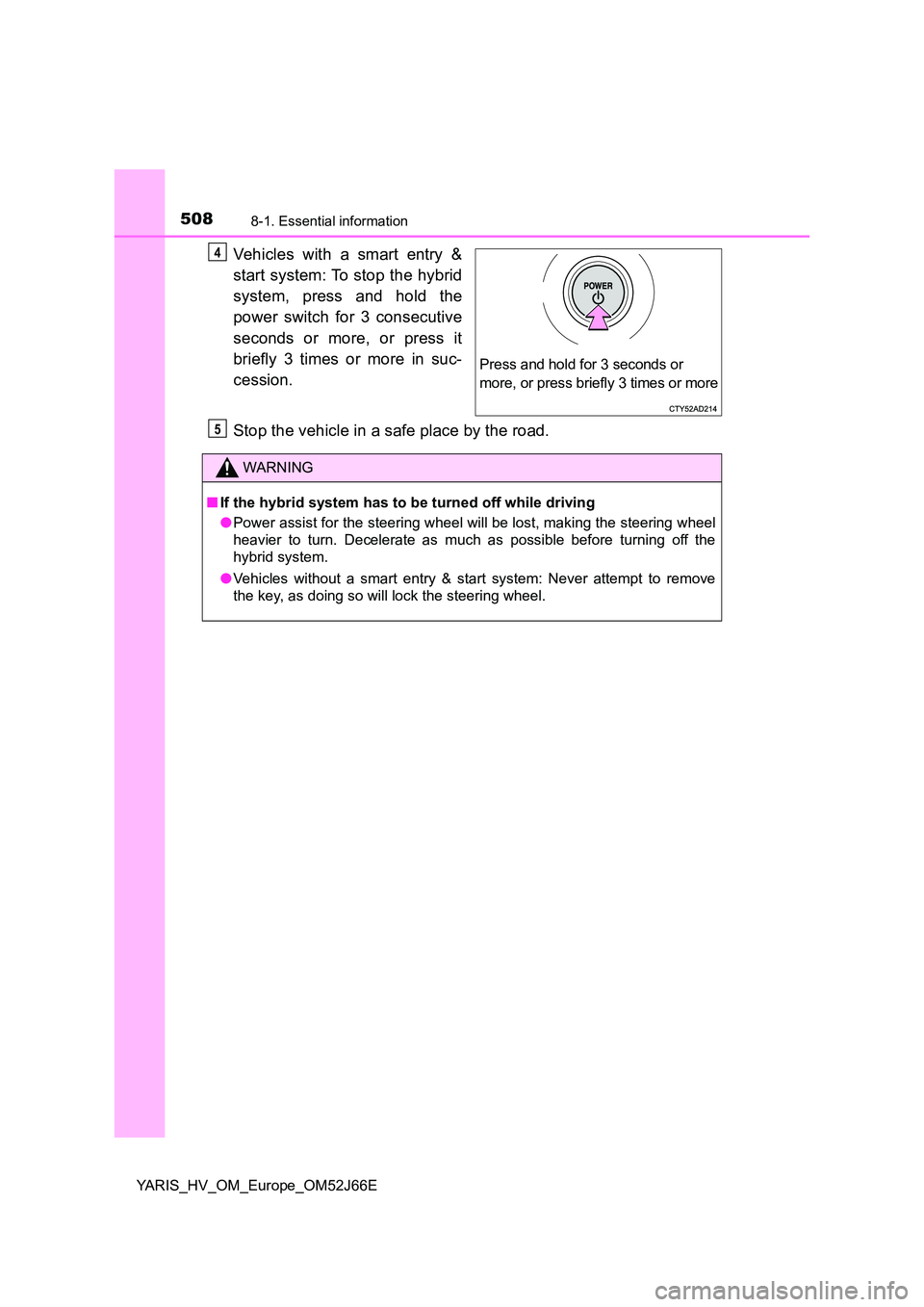

Vehicles with a smart entry &
start system: To stop the hybrid
system, press and hold the
power switch for 3 consecutive
seconds or more, or press it
briefly 3 times or more in suc-
cession.
Stop the vehicle in a safe place by the road.
Press and hold for 3 seconds or
more, or press briefly 3 times or more
4
WARNING
■ If the hybrid system has to be turned off while driving
● Power assist for the steering wheel will be lost, making the steering wheel
heavier to turn. Decelerate as much as possible before turning off the
hybrid system.
● Vehicles without a smart entry & start system: Never attempt to remove
the key, as doing so will lock the steering wheel.
5

5098-2. Steps to take in an emergency
8
When trouble arises
YARIS_HV_OM_Europe_OM52J66E

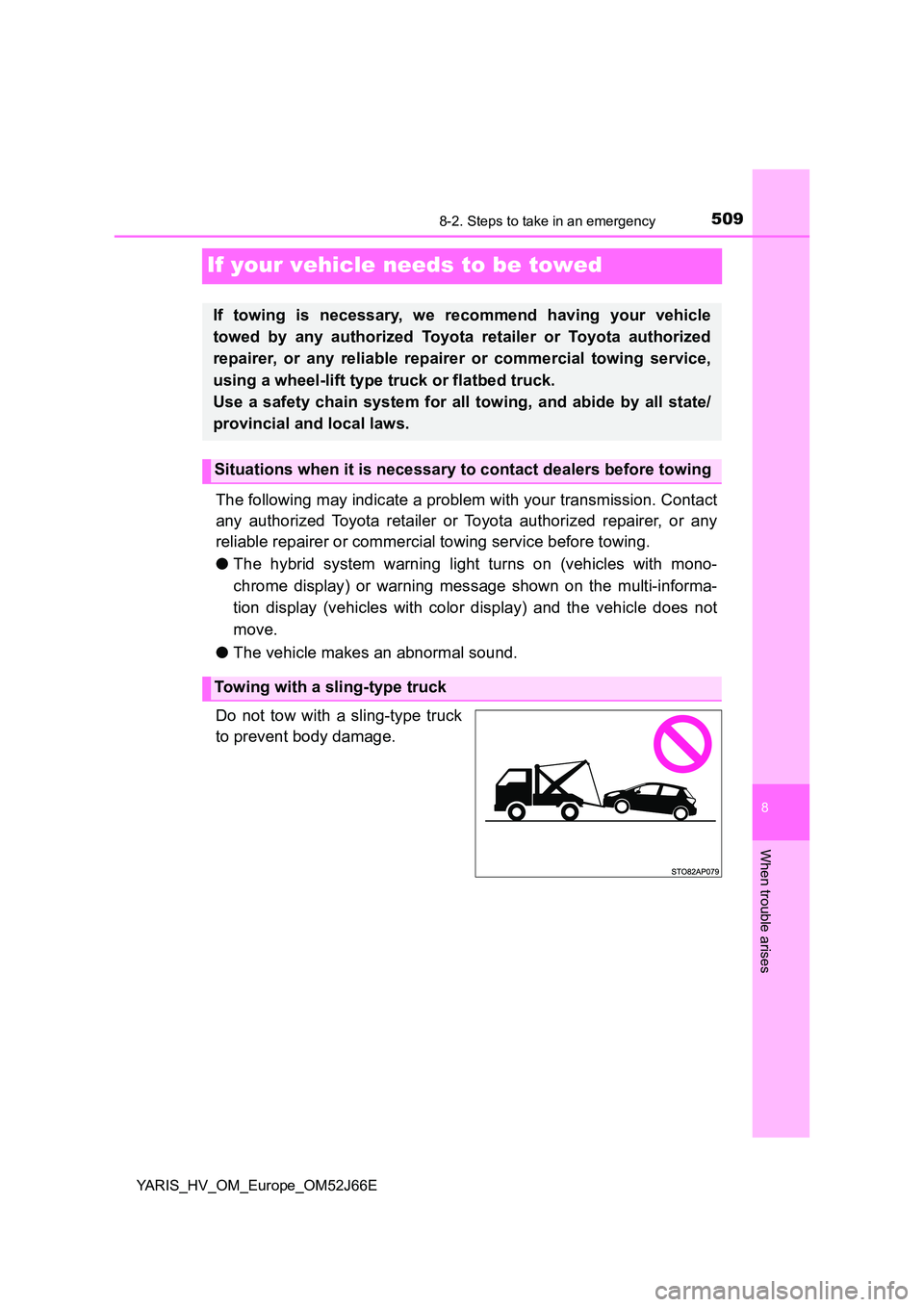

If your vehicle needs to be towed
The following may indicate a problem with your transmission. Contact
any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer or commercial towing service before towing.
● The hybrid system warning light turns on (vehicles with mono-
chrome display) or warning message shown on the multi-informa-
tion display (vehicles with color display) and the vehicle does not
move.
● The vehicle makes an abnormal sound.
Do not tow with a sling-type truck
to prevent body damage.
If towing is necessary, we recommend having your vehicle
towed by any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer or commercial towing service,
using a wheel-lift type truck or flatbed truck.
Use a safety chain system for all towing, and abide by all state/
provincial and local laws.
Situations when it is necessary to contact dealers before towing
Towing with a sling-type truck

5108-2. Steps to take in an emergency
YARIS_HV_OM_Europe_OM52J66E
If your vehicle is transported by a
flatbed truck, it should be tied
down at the locations shown in the
illustration.
After transporting, return the cov-
ers that were attached to the rear
side.
If you use chains or cables to tie
down your vehicle, the angles
shaded in black must be 45°.
Do not overly tighten the tie
downs or the vehicle may be dam-
aged.

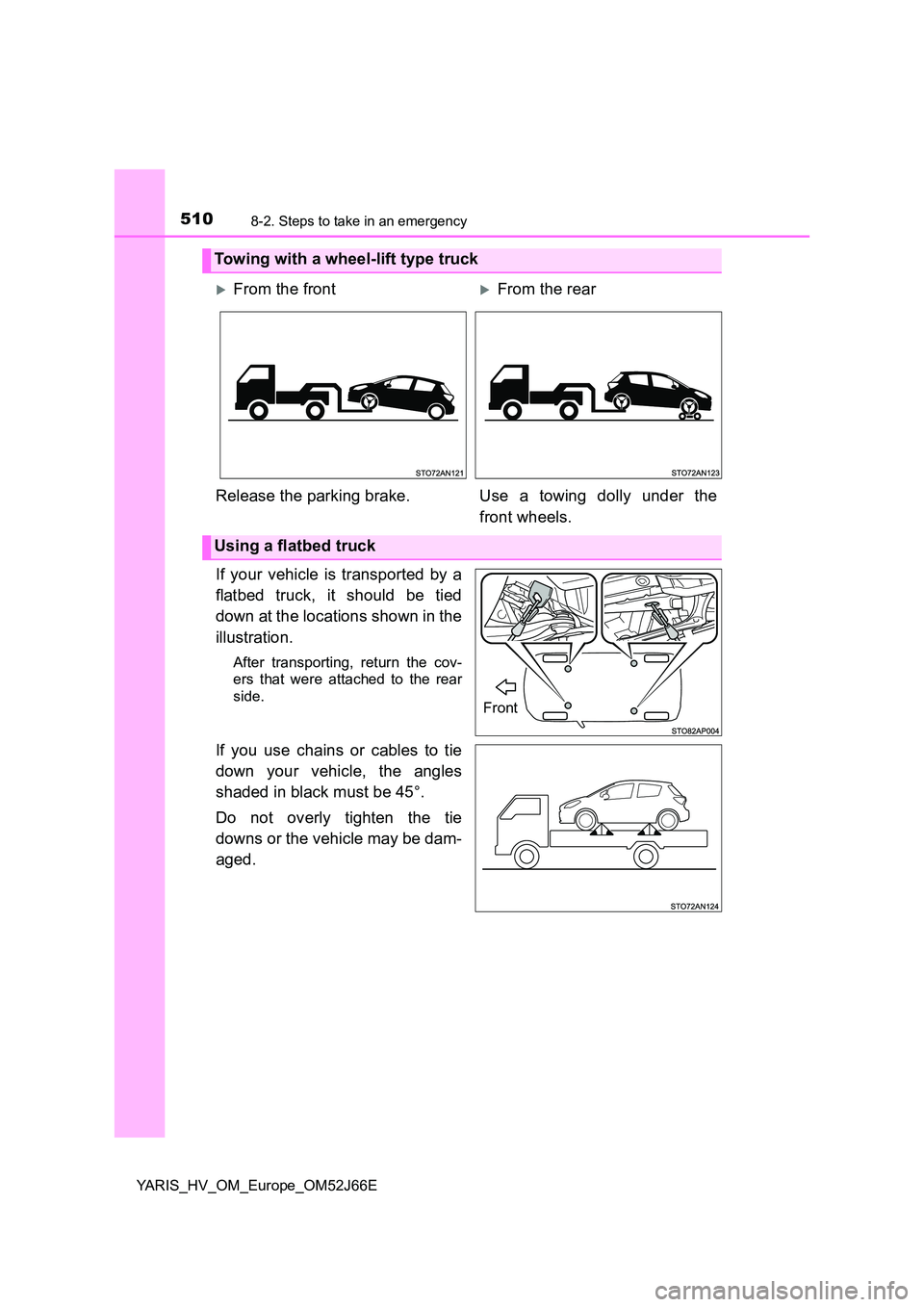

Towing with a wheel-lift type truck
From the frontFrom the rear
Release the parking brake. Use a towing dolly under the
front wheels.
Using a flatbed truck
Front
