TOYOTA YARIS 2018 Owners Manual

5318-2. Steps to take in an emergency
8
When trouble arises
YARIS_HV_OM_Europe_OM52J66E

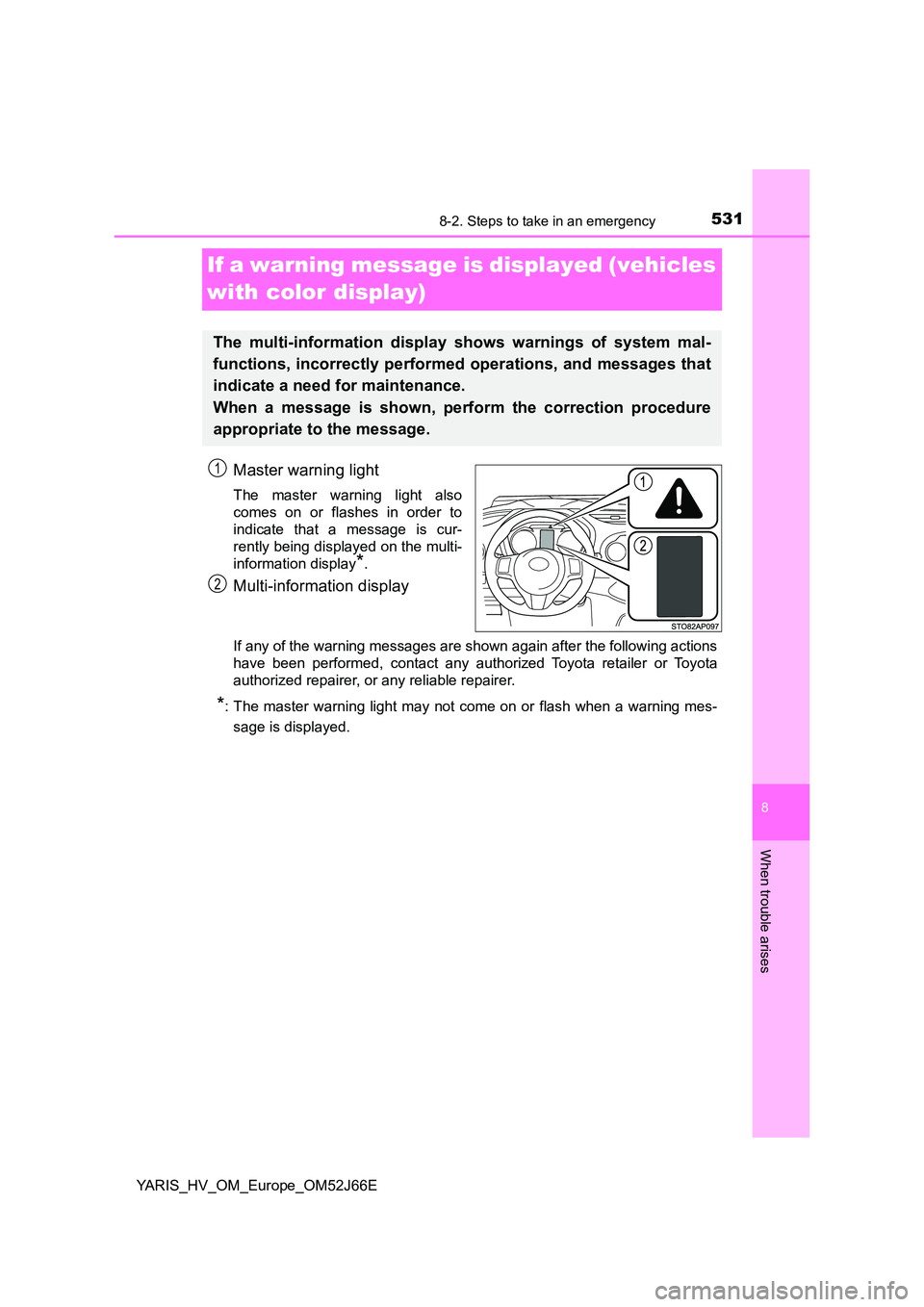

If a warning message is displayed (vehicles
with color display)
Master warning light
The master warning light also
comes on or flashes in order to
indicate that a message is cur-
rently being displayed on the multi-
information display*.
Multi-information display
If any of the warning messages are shown again after the following actions
have been performed, contact any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer.
*: The master warning light may not come on or flash when a warning mes-
sage is displayed.
The multi-information display shows warnings of system mal-
functions, incorrectly performed operations, and messages that
indicate a need for maintenance.
When a message is shown, perform the correction procedure
appropriate to the message.
1
2

5328-2. Steps to take in an emergency
YARIS_HV_OM_Europe_OM52J66E

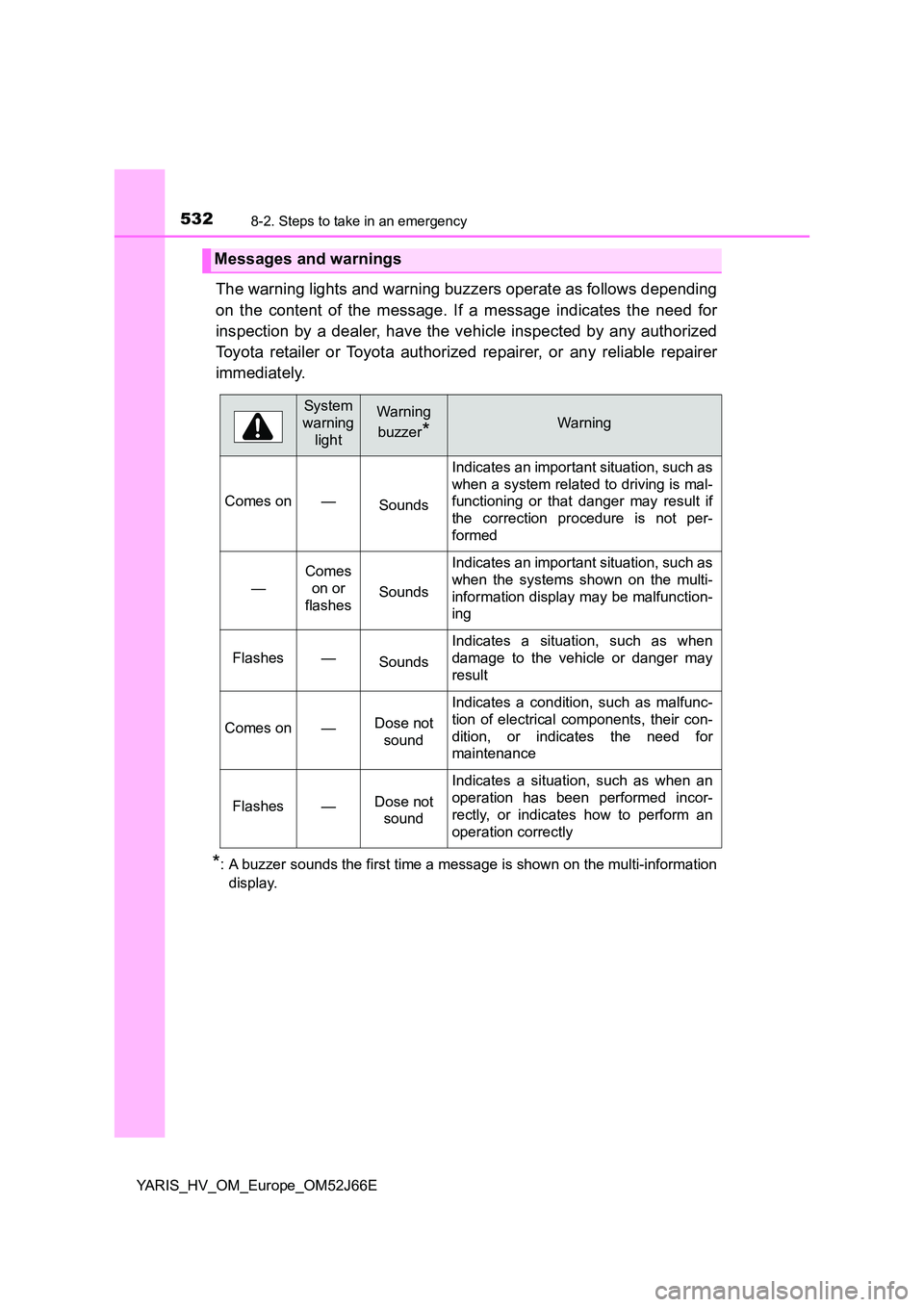

The warning lights and warning buzzers operate as follows depending
on the content of the message. If a message indicates the need for
inspection by a dealer, have the vehicle inspected by any authorized
Toyota retailer or Toyota authorized repairer, or any reliable repairer
immediately.
*: A buzzer sounds the first time a message is shown on the multi-information
display.
Messages and warnings
System
warning
light
Warning
buzzer*Warning
Comes on—Sounds
Indicates an important situation, such as
when a system related to driving is mal-
functioning or that danger may result if
the correction procedure is not per-
formed
—
Comes
on or
flashesSounds
Indicates an important situation, such as
when the systems shown on the multi-
information display may be malfunction-
ing
Flashes—Sounds
Indicates a situation, such as when
damage to the vehicle or danger may
result
Comes on—Dose not
sound
Indicates a condition, such as malfunc-
tion of electrical components, their con-
dition, or indicates the need for
maintenance
Flashes—Dose not
sound
Indicates a situation, such as when an
operation has been performed incor-
rectly, or indicates how to perform an
operation correctly

5338-2. Steps to take in an emergency
8
When trouble arises
YARIS_HV_OM_Europe_OM52J66E

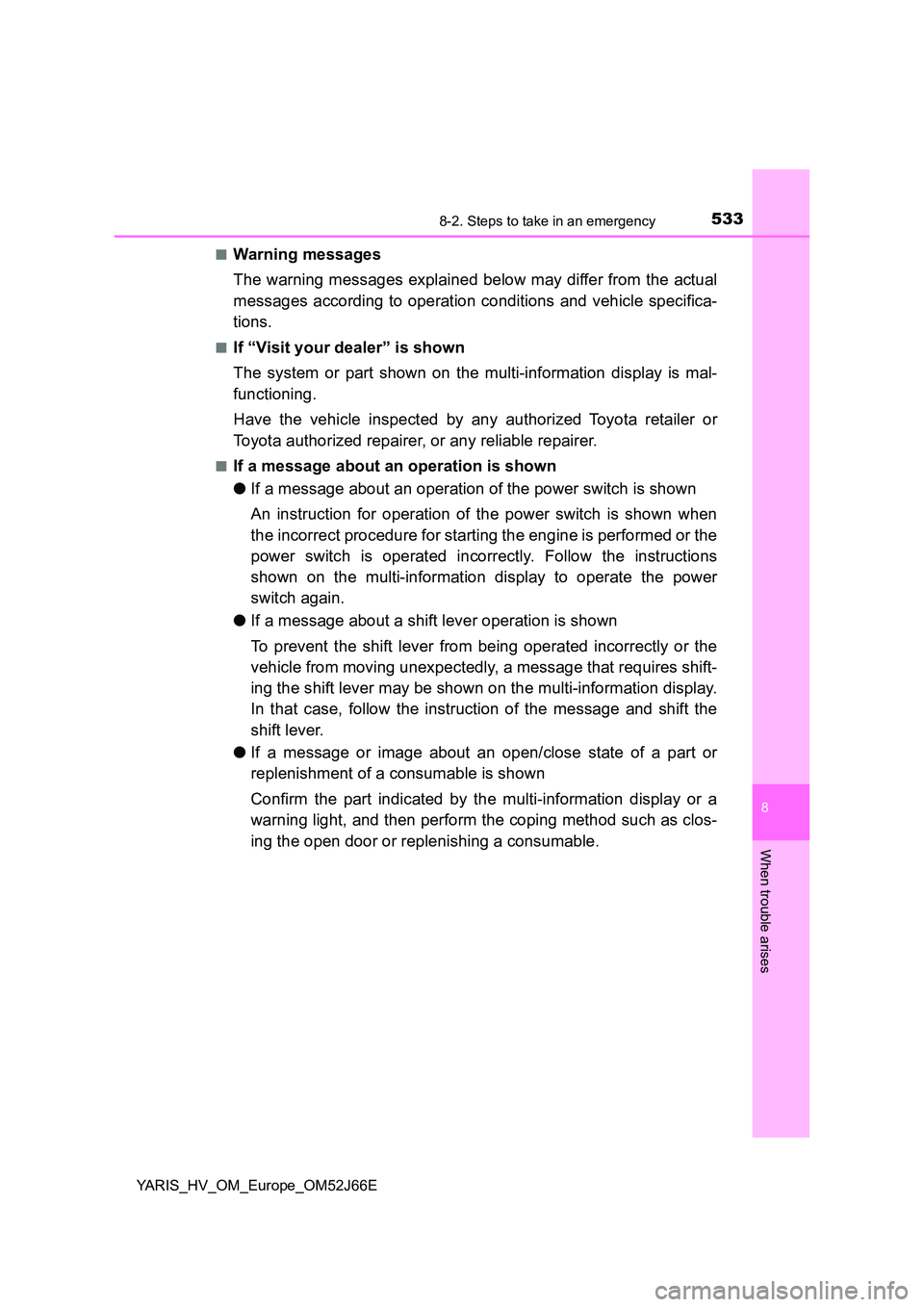

■Warning messages
The warning messages explained below may differ from the actual
messages according to operation conditions and vehicle specifica-
tions.
■If “Visit your dealer” is shown
The system or part shown on the multi-information display is mal-
functioning.
Have the vehicle inspected by any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer.
■If a message about an operation is shown
● If a message about an operation of the power switch is shown
An instruction for operation of the power switch is shown when
the incorrect procedure for starting the engine is performed or the
power switch is operated incorrectly. Follow the instructions
shown on the multi-information display to operate the power
switch again.
● If a message about a shift lever operation is shown
To prevent the shift lever from being operated incorrectly or the
vehicle from moving unexpectedly, a message that requires shift-
ing the shift lever may be shown on the multi-information display.
In that case, follow the instruction of the message and shift the
shift lever.
● If a message or image about an open/close state of a part or
replenishment of a consumable is shown
Confirm the part indicated by the multi-information display or a
warning light, and then perform the coping method such as clos-
ing the open door or replenishing a consumable.

5348-2. Steps to take in an emergency
YARIS_HV_OM_Europe_OM52J66E

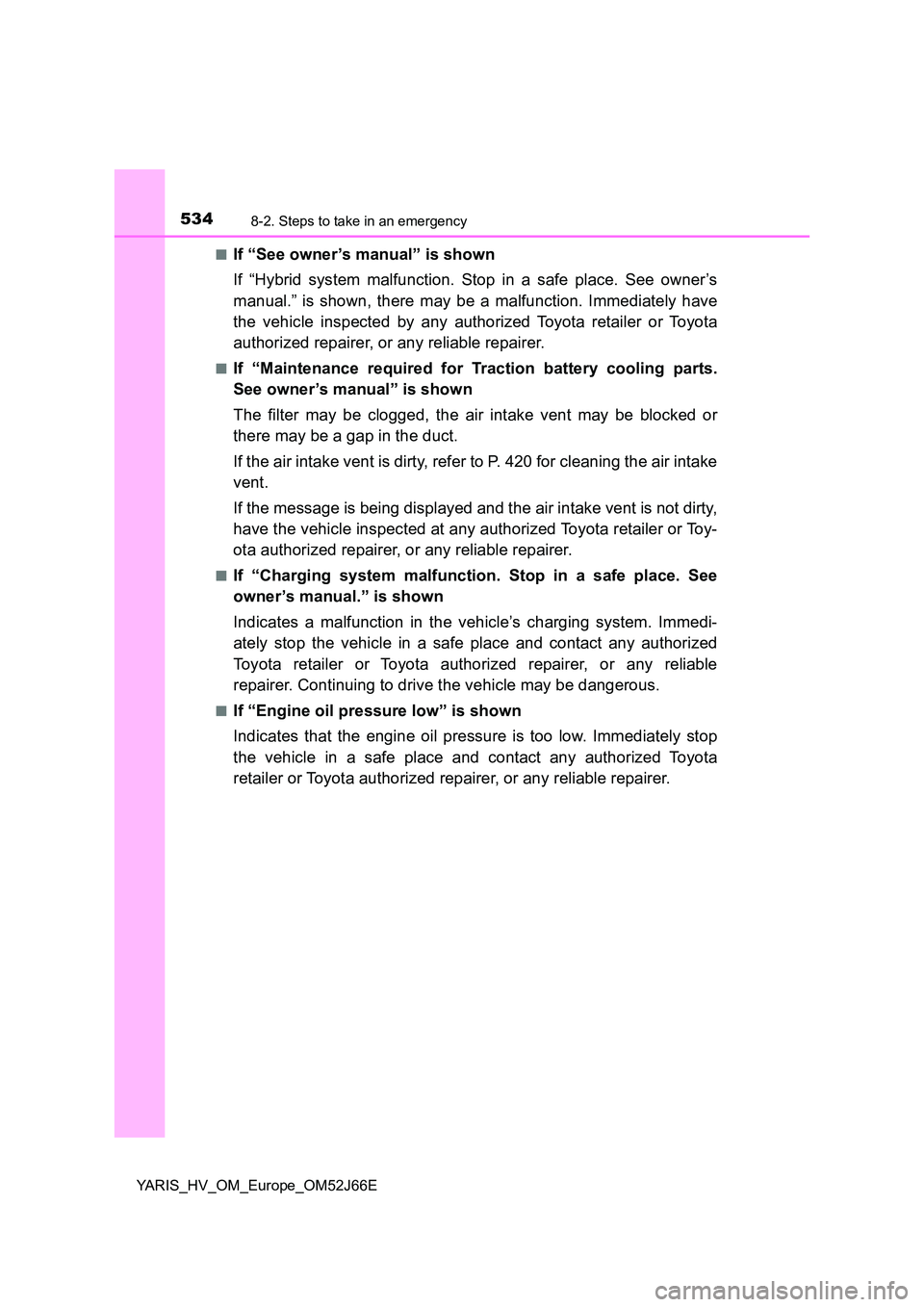

■If “See owner’s manual” is shown
If “Hybrid system malfunction. Stop in a safe place. See owner’s
manual.” is shown, there may be a malfunction. Immediately have
the vehicle inspected by any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer.
■If “Maintenance required for Traction battery cooling parts.
See owner’s manual” is shown
The filter may be clogged, the air intake vent may be blocked or
there may be a gap in the duct.
If the air intake vent is dirty, refer to P. 420 for cleaning the air intake
vent.
If the message is being displayed and the air intake vent is not dirty,
have the vehicle inspected at any authorized Toyota retailer or Toy-
ota authorized repairer, or any reliable repairer.
■If “Charging system malfunction. Stop in a safe place. See
owner’s manual.” is shown
Indicates a malfunction in the vehicle’s charging system. Immedi-
ately stop the vehicle in a safe place and contact any authorized
Toyota retailer or Toyota authorized repairer, or any reliable
repairer. Continuing to drive the vehicle may be dangerous.
■If “Engine oil pressure low” is shown
Indicates that the engine oil pressure is too low. Immediately stop
the vehicle in a safe place and contact any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer.

5358-2. Steps to take in an emergency
8
When trouble arises
YARIS_HV_OM_Europe_OM52J66E

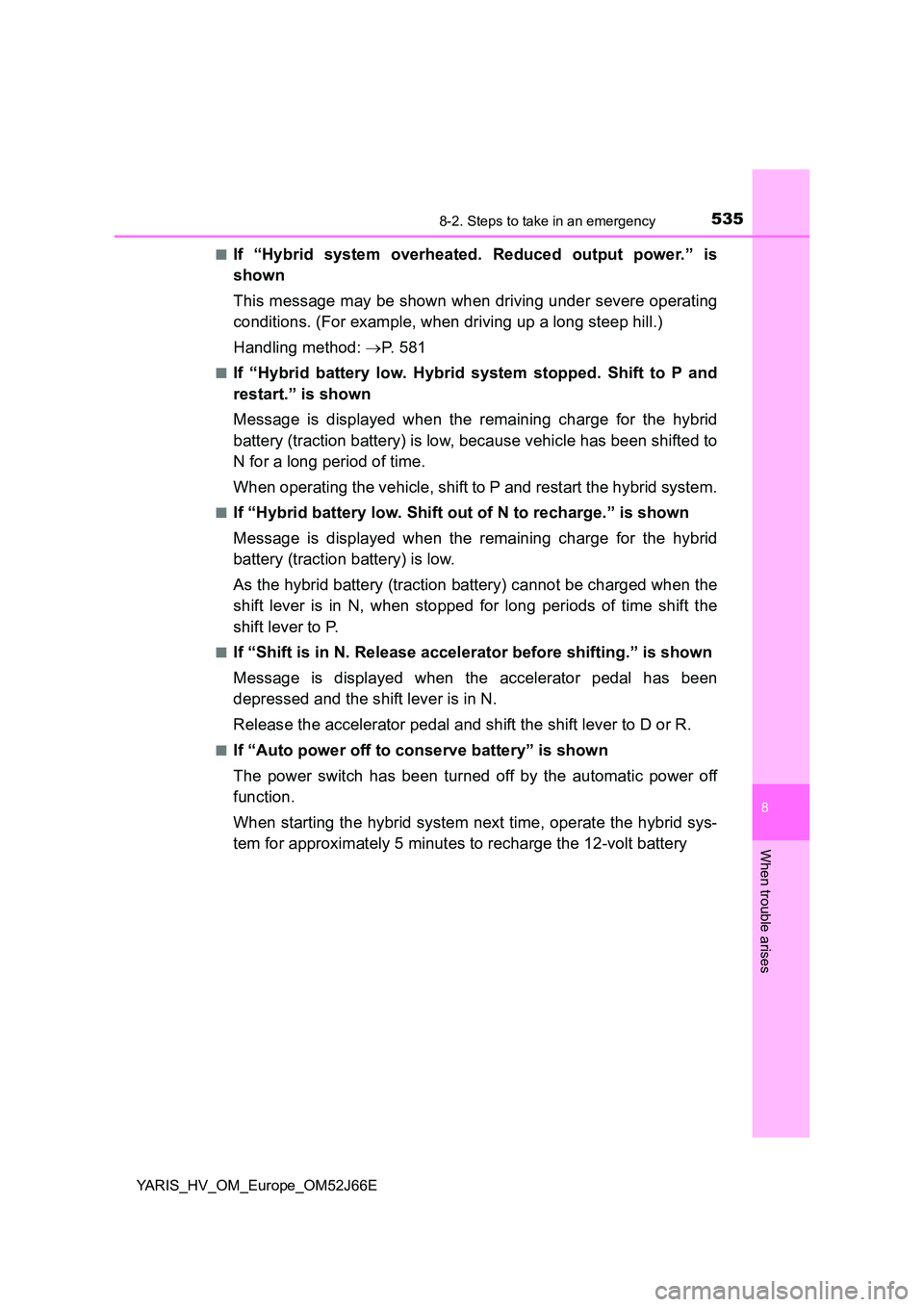

■If “Hybrid system overheated. Reduced output power.” is
shown
This message may be shown when driving under severe operating
conditions. (For example, when driving up a long steep hill.)
Handling method: P. 581
■If “Hybrid battery low. Hybrid system stopped. Shift to P and
restart.” is shown
Message is displayed when the remaining charge for the hybrid
battery (traction battery) is low, because vehicle has been shifted to
N for a long period of time.
When operating the vehicle, shift to P and restart the hybrid system.
■If “Hybrid battery low. Shift out of N to recharge.” is shown
Message is displayed when the remaining charge for the hybrid
battery (traction battery) is low.
As the hybrid battery (traction battery) cannot be charged when the
shift lever is in N, when stopped for long periods of time shift the
shift lever to P.
■If “Shift is in N. Release accelerator before shifting.” is shown
Message is displayed when the accelerator pedal has been
depressed and the shift lever is in N.
Release the accelerator pedal and shift the shift lever to D or R.
■If “Auto power off to conserve battery” is shown
The power switch has been turned off by the automatic power off
function.
When starting the hybrid system next time, operate the hybrid sys-
tem for approximately 5 minutes to recharge the 12-volt battery

5368-2. Steps to take in an emergency
YARIS_HV_OM_Europe_OM52J66E

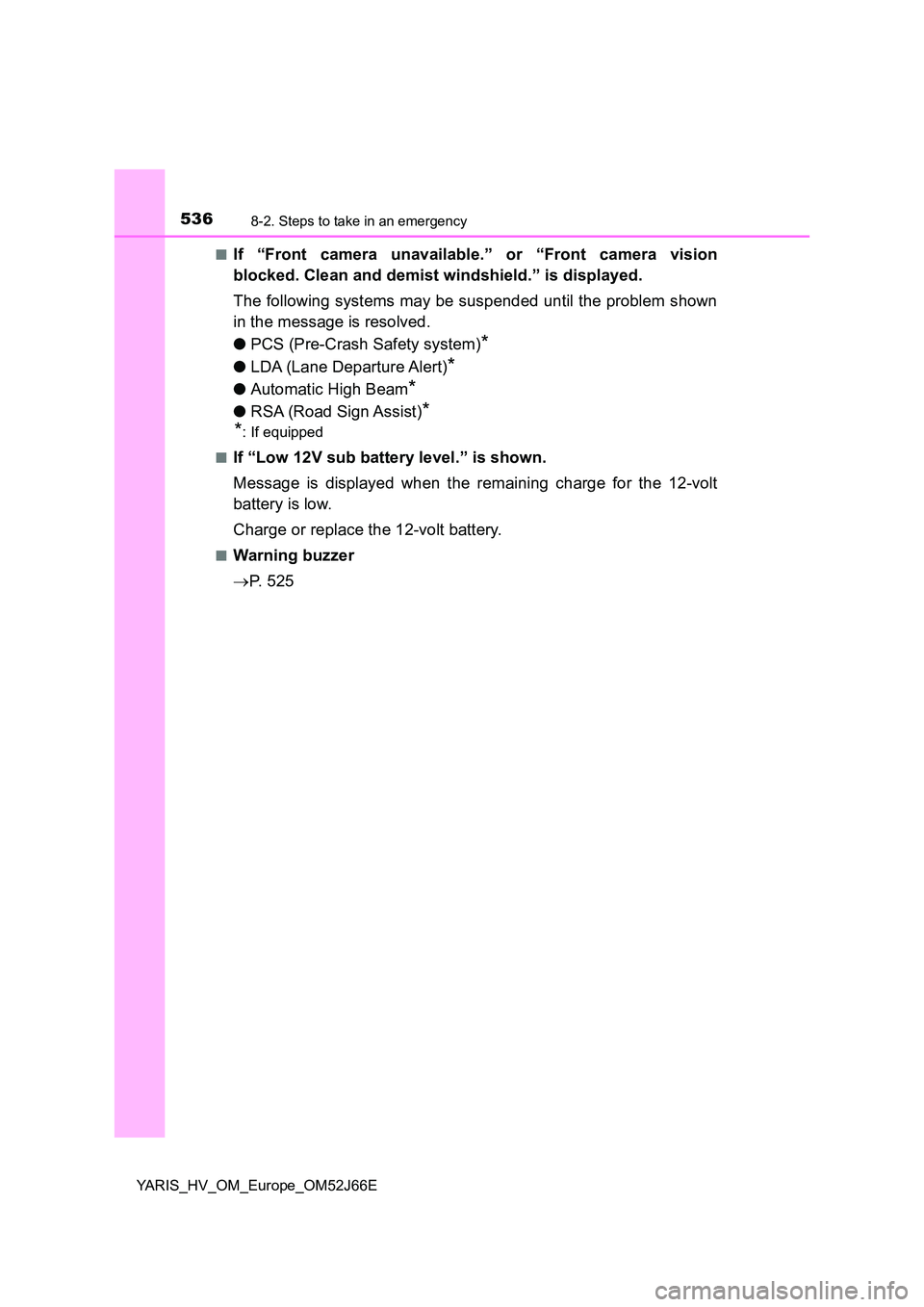

■If “Front camera unavailable.” or “Front camera vision
blocked. Clean and demist windshield.” is displayed.
The following systems may be suspended until the problem shown
in the message is resolved.
● PCS (Pre-Crash Safety system)*
●LDA (Lane Departure Alert)*
●Automatic High Beam*
●RSA (Road Sign Assist)*
*: If equipped
■If “Low 12V sub battery level.” is shown.
Message is displayed when the remaining charge for the 12-volt
battery is low.
Charge or replace the 12-volt battery.
■Warning buzzer
 P. 5 2 5

5378-2. Steps to take in an emergency
8
When trouble arises
YARIS_HV_OM_Europe_OM52J66E

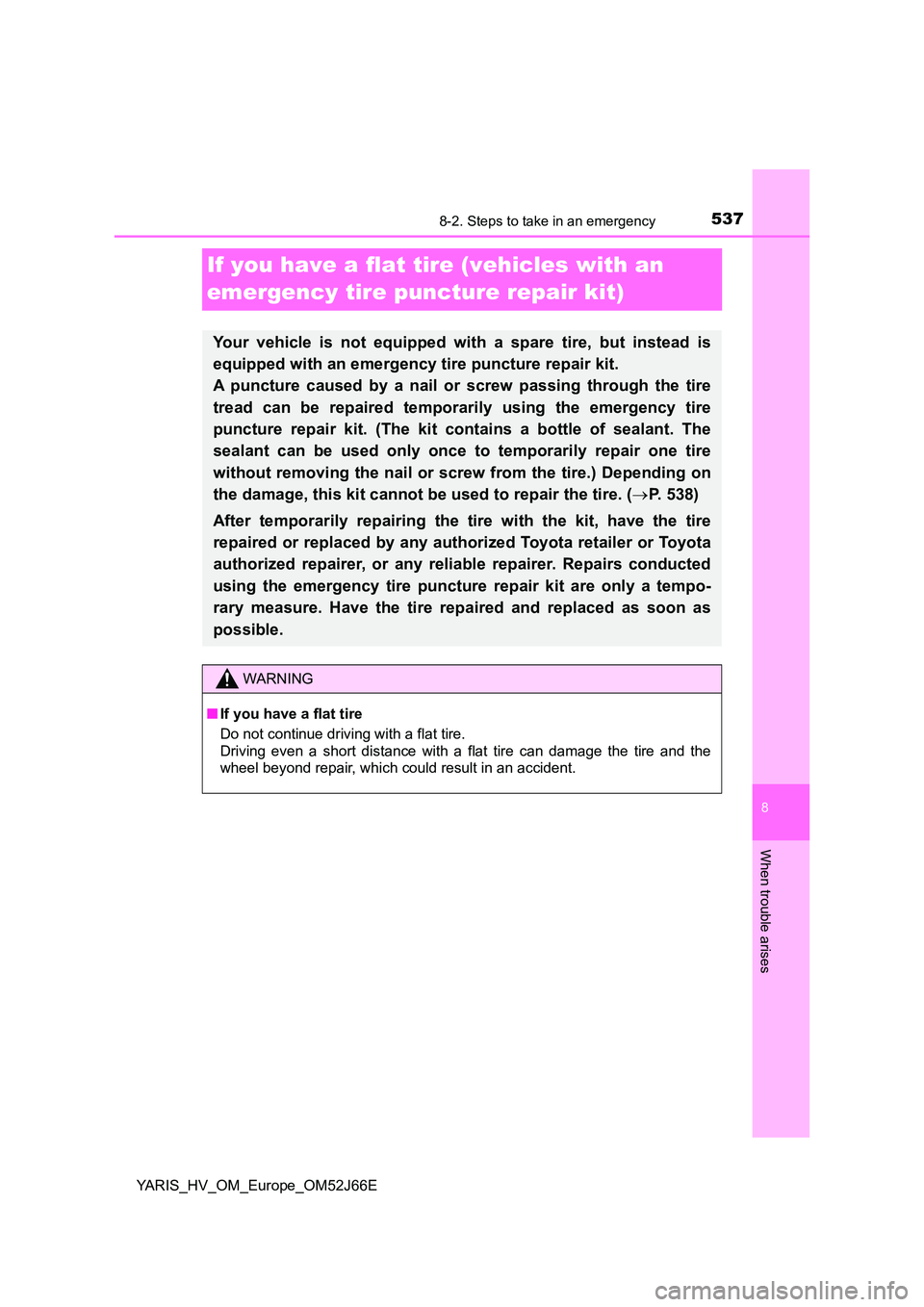

If you have a flat tire (vehicles with an
emergency tire puncture repair kit)
Your vehicle is not equipped with a spare tire, but instead is
equipped with an emergency tire puncture repair kit.
A puncture caused by a nail or screw passing through the tire
tread can be repaired temporarily using the emergency tire
puncture repair kit. (The kit contains a bottle of sealant. The
sealant can be used only once to temporarily repair one tire
without removing the nail or screw from the tire.) Depending on
the damage, this kit cannot be used to repair the tire. ( P. 538)
After temporarily repairing the tire with the kit, have the tire
repaired or replaced by any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer. Repairs conducted
using the emergency tire puncture repair kit are only a tempo-
rary measure. Have the tire repaired and replaced as soon as
possible.
WARNING
■ If you have a flat tire
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the
wheel beyond repair, which could result in an accident.

5388-2. Steps to take in an emergency
YARIS_HV_OM_Europe_OM52J66E

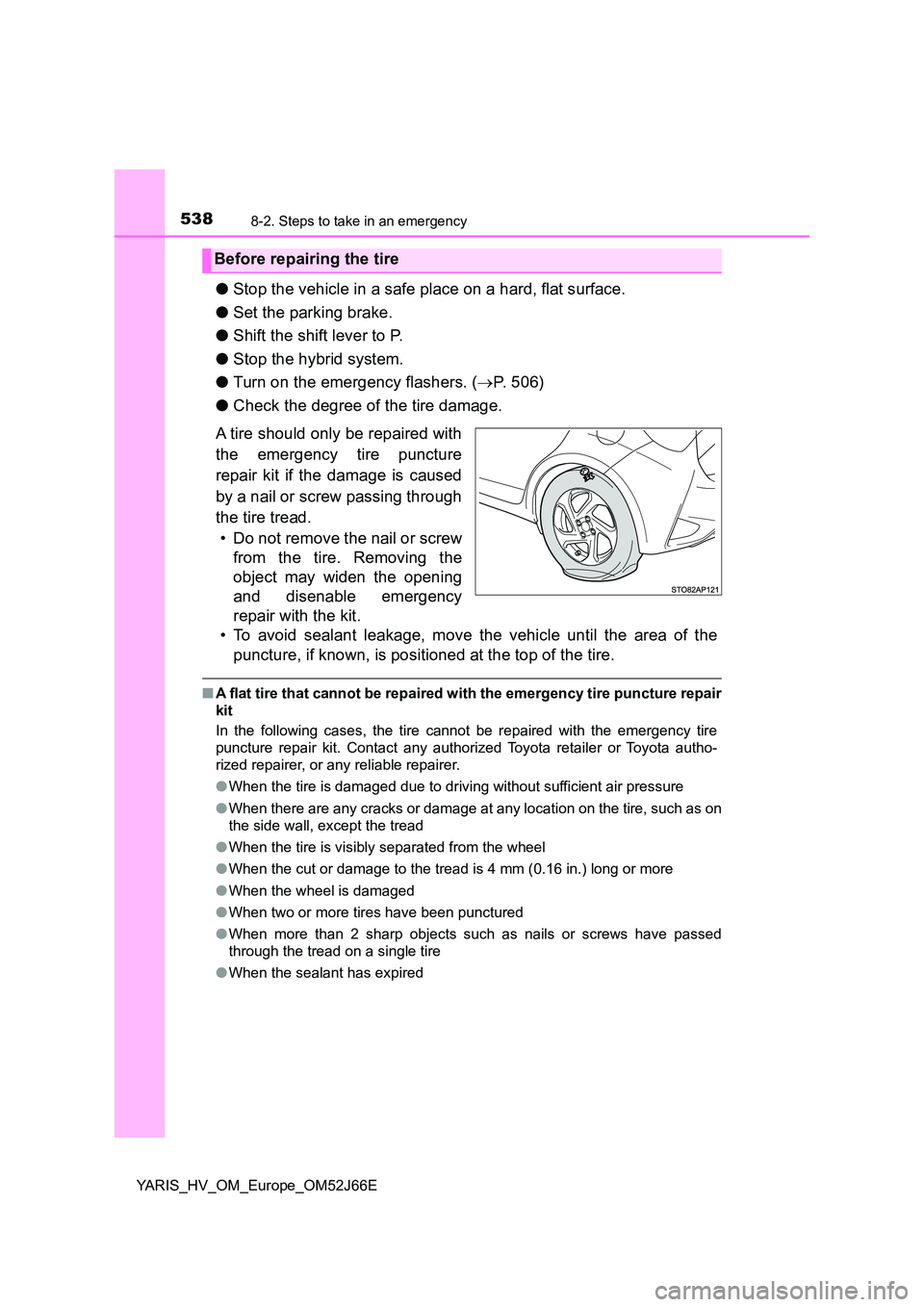

●Stop the vehicle in a safe place on a hard, flat surface.
● Set the parking brake.
● Shift the shift lever to P.
● Stop the hybrid system.
● Turn on the emergency flashers. (P. 506)
● Check the degree of the tire damage.
A tire should only be repaired with
the emergency tire puncture
repair kit if the damage is caused
by a nail or screw passing through
the tire tread.
• Do not remove the nail or screw
from the tire. Removing the
object may widen the opening
and disenable emergency
repair with the kit.
• To avoid sealant leakage, move the vehicle until the area of the
puncture, if known, is positioned at the top of the tire.
■ A flat tire that cannot be repaired with the emergency tire puncture repair
kit
In the following cases, the tire c annot be repaired with the emergency tire
puncture repair kit. Contact any authorized Toyota retailer or Toyota autho-
rized repairer, or any reliable repairer.
● When the tire is damaged due to driving without sufficient air pressure
● When there are any cracks or damage at any location on the tire, such as on
the side wall, except the tread
● When the tire is visibly separated from the wheel
● When the cut or damage to the tread is 4 mm (0.16 in.) long or more
● When the wheel is damaged
● When two or more tires have been punctured
● When more than 2 sharp objects such as nails or screws have passed
through the tread on a single tire
● When the sealant has expired
Before repairing the tire

5398-2. Steps to take in an emergency
8
When trouble arises
YARIS_HV_OM_Europe_OM52J66E
*: Use of the jack, jack handle and wheel nut wrench. (if equipped) (P. 557)
A jack, jack handle and wheel nut wrench can be purchased at any autho-
rized Toyota retailer or Toyota authorized repairer, or any reliable repairer.

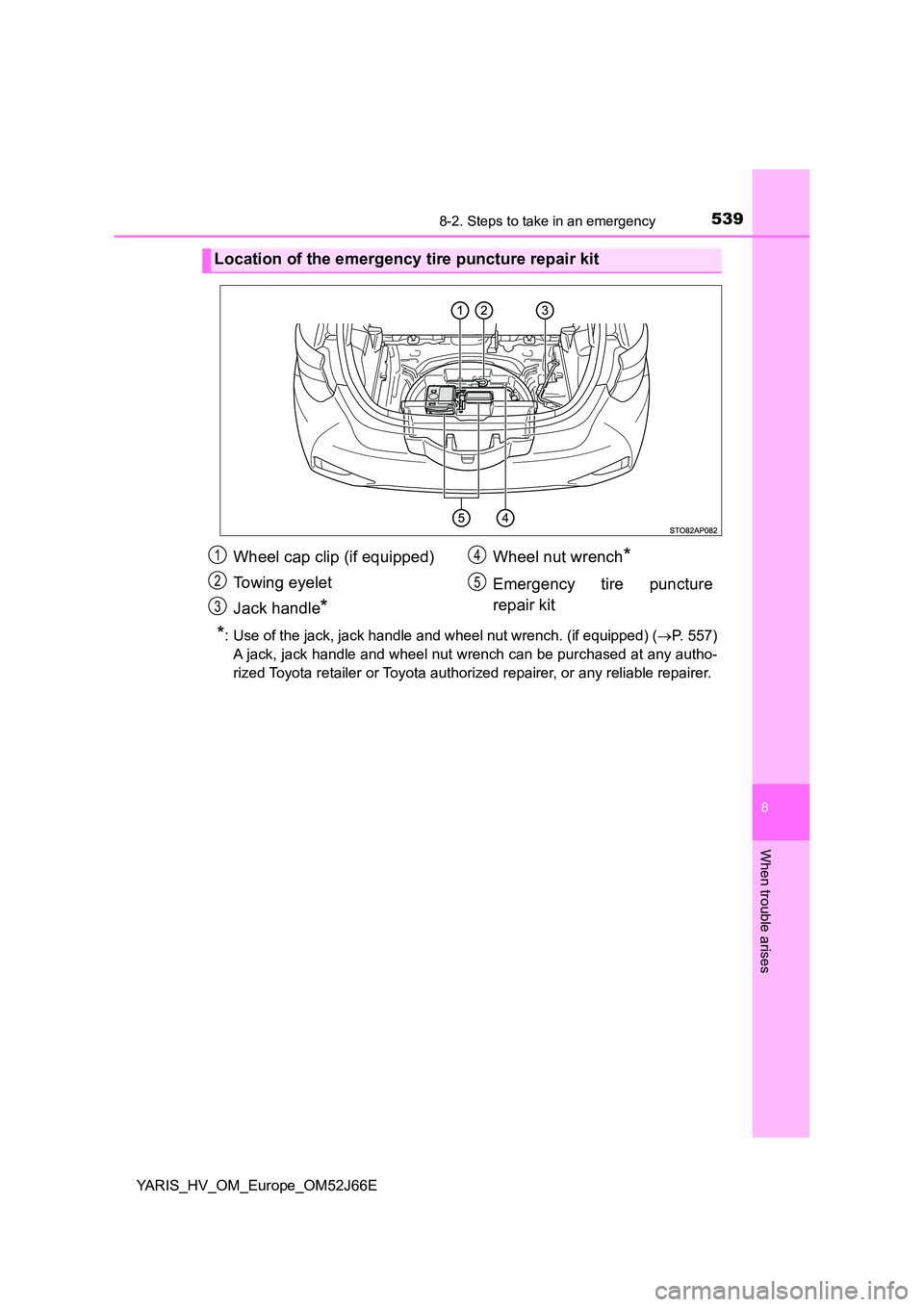

Location of the emergency tire puncture repair kit
Wheel cap clip (if equipped)
Towing eyelet
Jack handle*
Wheel nut wrench*
Emergency tire puncture
repair kit
1
2
3
4
5

5408-2. Steps to take in an emergency
YARIS_HV_OM_Europe_OM52J66E

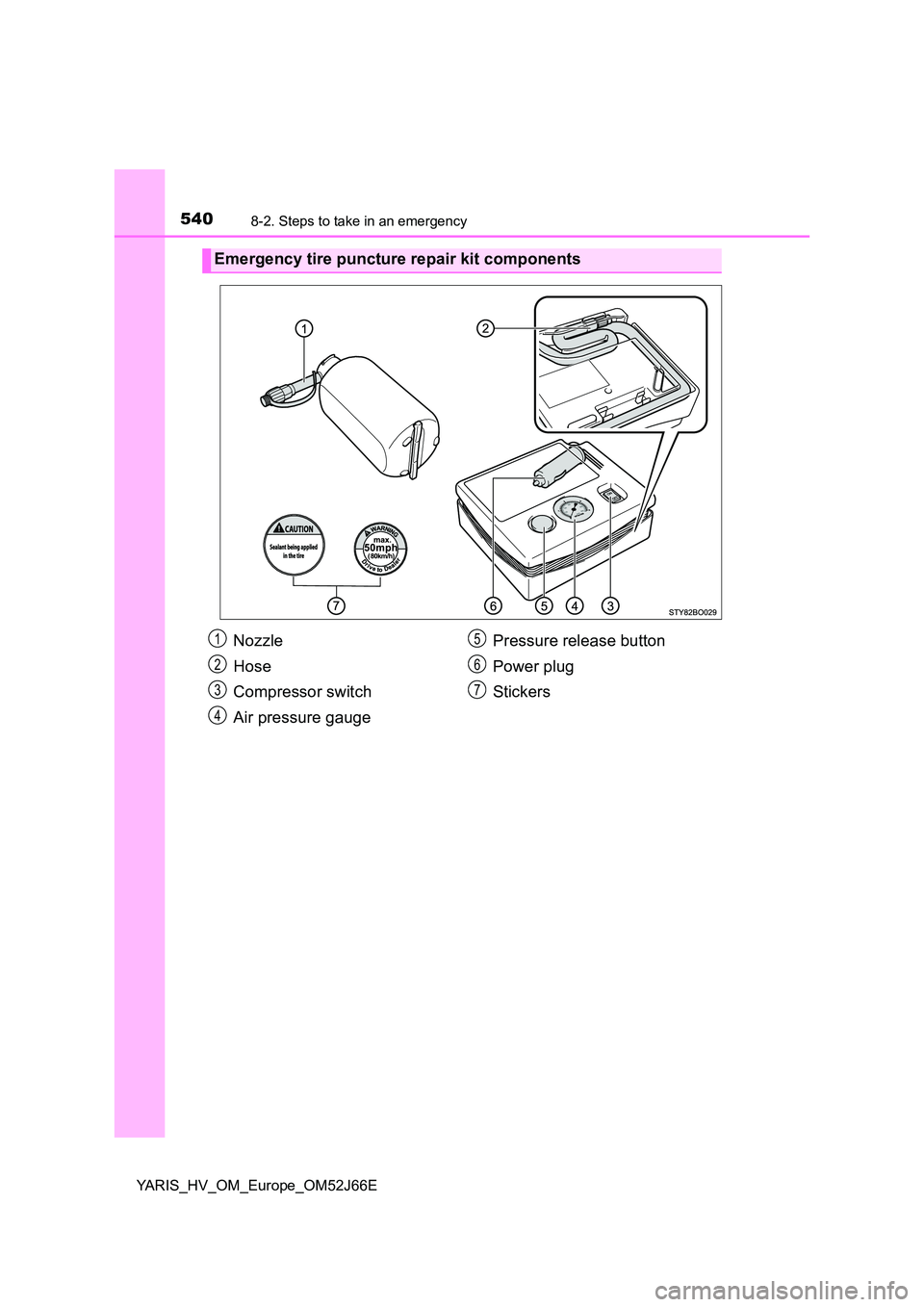

Emergency tire puncture repair kit components
Nozzle
Hose
Compressor switch
Air pressure gauge
Pressure release button
Power plug
Stickers
1
2
3
4
5
6
7
