TOYOTA YARIS 2019 Owners Manual (in English)

291
YARIS SEDAN_OM_OM99S50z_(U)
4-2. Audio System
4
Interior Features
Audio Set (Type B [touchscreen])
The explanation of functions described in this manual may differ from
the actual operation, and the shapes of screens and buttons and the
letters and characters displayed may also differ from the actua l
appearance.
Additionally, depending on future software updates, the content may
successively change without notice.
■Commander switch operation
For safety reasons, some operations are disabled while the vehi cle
is being driven.
● Volume dial operation
Press the volume dial to
switch the audio MUTE on
and off.
Turn the volume dial to adjust
the volume. The volume
increases by turning the dial
clockwise, and decreases by
turning it counterclockwise.
: If equipped
Audio Set (Type B) has 3 d ifferent human interfaces.
• Commander switch
• Touch panel
• Voice recognition with steer ing switch and microphone
Vo l u m e d i al

292
YARIS SEDAN_OM_OM99S50z_(U)
4-2. Audio System
●Switches around commander knob
The following operations can be done by pressing the switches
around the commander knob.
: Displays the homescreen.
: Displays the Enter- tainment screen.
: Displays the Naviga- tion screen (Only
navigation-equipped
vehicles).
For operation of the Navigation screen, refer to the navi-
gation system manual . If the SD card for the navigation
system is not inserted, the compass indicating the direc-
tion in which the vehicle is moving is displayed.
: Displays the Favorites screen. Long-press to store par- ticular items in Favorites. (Radio, phonebook and desti-
nation of the navigation sy stem can be programmed.)
: Returns to previous screen.
● Commander knob operation
Selection of icons on screen:
Tilt or turn the commander
knob and move the cursor
to the desired icon.
Press the commander
knob and select the icon.
1
2

YARIS SEDAN_OM_OM99S50z_(U)
2934-2. Audio System
4
Interior Features
■Touch panel operation
For safety reasons, operation of
the center display is disabled
while the vehicle is being
driven. However, items not dis-
played in gray can be operated
using the commander switch
while the vehicle is being
driven.
■Commander switch operation
Long-press operation of the commander knob is also possible for some func-
tions.
■
TOUCH & TAP
Touch or tap on the item indi-
cated on the screen.
The operation is launched
and the next item is dis-
played.
NOTICE
■Touch panel operation
Do not press the screen strongly or press it with a sharp-point ed object.
Otherwise, the screen could be damaged.
Basic Operation Method
1
2

294
YARIS SEDAN_OM_OM99S50z_(U)
4-2. Audio System
■SLIDETouch the setting item dis-
playing a slider bar.
Touch the slider with your fin-
ger and move to the desired
level.
■SWIPETouch the screen with your
finger and move up or down.
Items which were not dis-
played can be displayed.
1
2
1
2

YARIS SEDAN_OM_OM99S50z_(U)
2954-2. Audio System
4
Interior Features

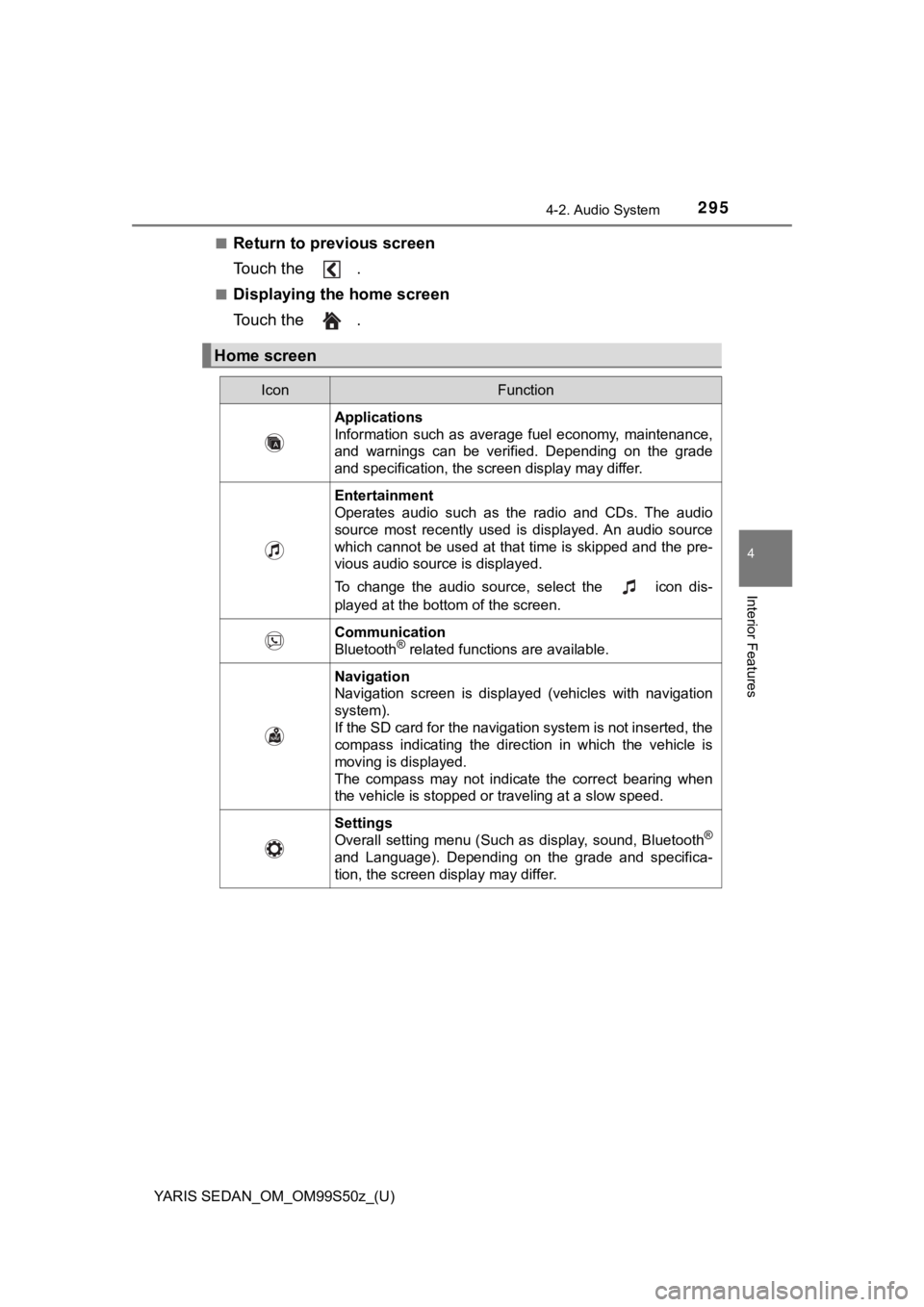

■Return to previous screen
Touch the .
■Displaying the home screen
Touch the .
Home screen
IconFunction
Applications
Information such as average fuel economy, maintenance,
and warnings can be verified. Depending on the grade
and specification, the screen display may differ.
Entertainment
Operates audio such as the radio and CDs. The audio
source most recently used is displayed. An audio source
which cannot be used at that time is skipped and the pre-
vious audio source is displayed.
To change the audio source, select the icon dis-
played at the bottom of the screen.
Communication
Bluetooth® related functions are available.
Navigation
Navigation screen is displayed (vehicles with navigation
system).
If the SD card for the navigation system is not inserted, the
compass indicating the direction in which the vehicle is
moving is displayed.
The compass may not indicate the correct bearing when
the vehicle is stopped or traveling at a slow speed.
Settings
Overall setting menu (Such as display, sound, Bluetooth®
and Language). Depending on the grade and specifica-
tion, the screen display may differ.

296
YARIS SEDAN_OM_OM99S50z_(U)
4-2. Audio System
■Volume adjustment
Turn the commander switch volume dial. The volume switch on the
steering switch can also be pressed.
Press the volume dial to switch the audio MUTE on and off.
■
Display setting
Select the icon on the home screen and display the Settings
screen.
Select the tab to select the i tem you would like to change.
● Display OFF/Clock
The center display can be turned off. Select to turn
the display off. When is selected the cen-
ter display turns off and the clock is displayed.
The center display can be turned back on as follows:
• Touch the center display.
• Operate the commander switch.
● Daytime/nighttime (Sy stem) screen setting
The daytime or nighttime screen can be selected.
: Switches screen automatically according to parking lights illumination condition
*1
: Daytime screen setting
: Nighttime screen setting
*1: The display is constantly on daytime screen when the illuminat ion dim-
mer is cancelled.
Volume/Display/Sound Controls
Commander switchAudio control switch
Vo l u m e d i al
Vo l u m e
switch

YARIS SEDAN_OM_OM99S50z_(U)
2974-2. Audio System
4
Interior Features
●Brightness adjustment
Adjust the center display bri ghtness using the slider.
● Contrast adjustment
Adjust the center display c ontrast using the slider.
● Display setting reset
All of the screen setting values can be reset to their initial set-
tings.
Select .
Select .
■Audio sound adjustment
Select the icon on the home screen and display the Settings
screen.
Select the tab to se lect the item you would like to change.
1
2
IndicationSetting value
Bass (Low pitch sound)
Side: Low pitch enhance-
ment
Side: Low pitch reduction
Treble (Treble sound) Side: Treble enhancement
Side: Treble reduction
Fade (Front/Rear volume balance)
Front: Front speaker volume
enhancement
Rear: Rear speaker volume enhancement
Balance (Left/right volume balance)
Right: Right speaker volumeenhancement
Left: Left speaker volume enhancement
ALC (Automatic volume adjustment)Off—Adjustment at seven levels
Beep (Audio operation sound)On/Off

298
YARIS SEDAN_OM_OM99S50z_(U)
4-2. Audio System
●ALC (Automatic v olume adjustment)
The automatic level control (ALC ) is a feature that automatically
adjusts audio volume and sound quality according to the vehicle
speed. The volume increases in accordance with the increase in
vehicle speed, and decreases as vehicle speed decreases.

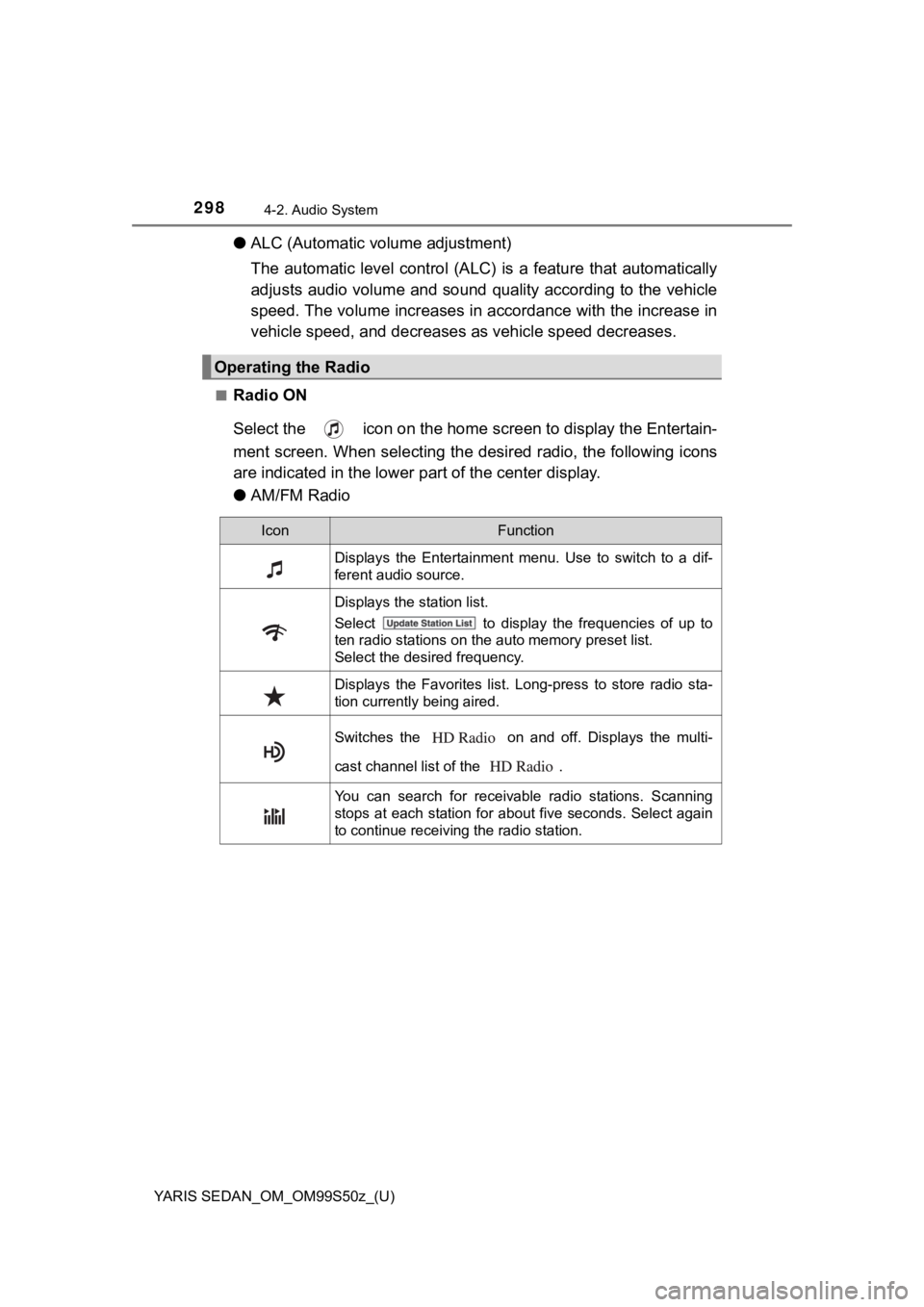

■Radio ON
Select the icon on the home scr een to display the Entertain-
ment screen. When selecting the desired radio, the following ic ons
are indicated in the lower part of the center display.
● AM/FM Radio
Operating the Radio
IconFunction
Displays the Entertainment menu. Use to switch to a dif-
ferent audio source.
Displays the station list.
Select to display the frequencies of up to
ten radio stations on the auto memory preset list.
Select the desired frequency.
Displays the Favorites list. Long-press to store radio sta-
tion currently being aired.
Switches the on and off. Displays the multi-
cast channel list of the .
You can search for receivable radio stations. Scanning
stops at each station for about five seconds. Select again
to continue receiving the radio station.

YARIS SEDAN_OM_OM99S50z_(U)
2994-2. Audio System
4
Interior Features

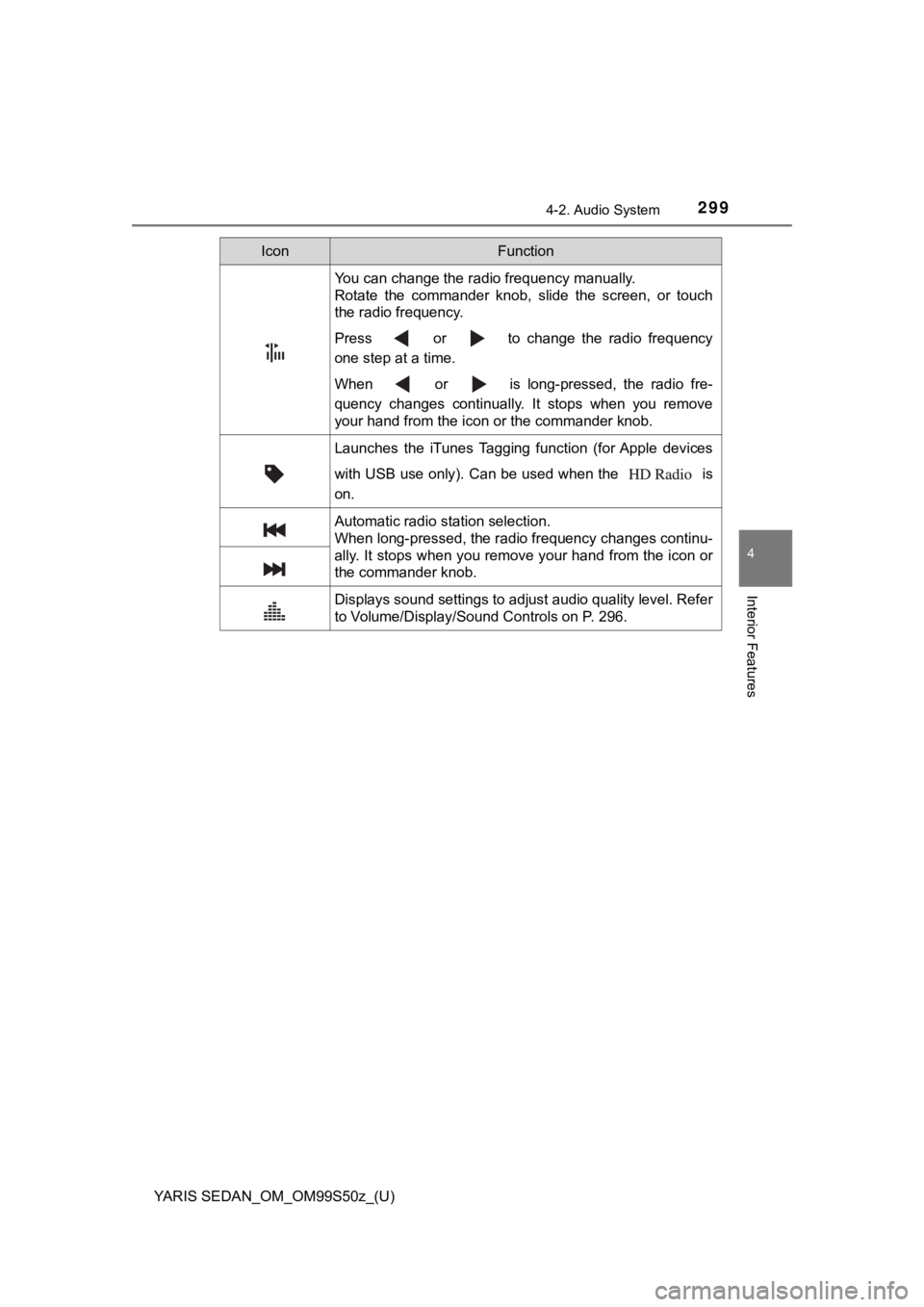

You can change the radio frequency manually.
Rotate the commander knob, slide the screen, or touch
the radio frequency.
Press or to change the radio frequency
one step at a time.
When or is long-pressed, the radio fre-
quency changes continually. It stops when you remove
your hand from the icon or the commander knob.
Launches the iTunes Tagging function (for Apple devices
with USB use only). Can be used when the is
on.
Automatic radio station selection.
When long-pressed, the radio frequency changes continu-
ally. It stops when you remove your hand from the icon or
the commander knob.
Displays sound settings to adjust audio quality level. Refer
to Volume/Display/Sound Controls on P. 296.
IconFunction

300
YARIS SEDAN_OM_OM99S50z_(U)
4-2. Audio System
■Favorites Radio
Selected stations can be registered for convenient operation. Up to
50 stations can be registered. The Favorites list is common to AM,
FM, and satellite radio.
● Registering to Favorites
Long-press the icon to register the current radio station.
The registration can also be performed using the following proc e-
dure.
Select the icon to displ ay the Favorites list.
Select .
Select .
The station is added to the bottom of the Favorites list.
● Selecting radio station from Favorites
Select the icon to displ ay the Favorites list.
Select the radio frequency to tune in the radio station.
● Deleting from Favorites
Select the icon to displ ay the Favorites list.
Select .
Select .
Select the radio frequency you want to delete.
Select .
● Changing Favorites list order
Select the icon to displ ay the Favorites list.
Select .
Select .
Select a radio frequency. The selected radio station can be
moved.
Slide the radio station or mov e it using the commander switch,
then select .
1
2
3
4
1
2
1
2
3
4
5
1
2
3
4
5
