TOYOTA YARIS 2019 Owners Manual (in English)

YARIS SEDAN_OM_OM99S50z_(U)
3014-2. Audio System
4
Interior Features
■Radio Broadcast Data System (RBDS) (if equipped)
● Radio text information display
Radio text information sent from a broadcasting station is dis-
played in the center display.
● Genre Seek
Some FM stations transmit Genre codes (Program type like a
Rock, News, and so on). This cod e enables alternative stations
transmitting the same Genre code to be found quickly.
To scan for Genre Seek: Select the icon while in the FM mode.
Select to open the genre list.
Select the genre type y ou want to select.
Select the , icon.
Ex.)
89.3 is currently being received. With Rock selected as the
Genre, the radio stations broadcasting Rock are at the followin g
frequencies.
98.3
*1, 98.7, 104.3*1, 107.1
*1: Radio stations with good reception
The frequency changes as foll ows each time is pressed.
89.3 98.3 104.3 98.3
■HD Radio
●What is HD Radio™ Technology and how does it work?
HD Radio™ Technology is the digital evolution of analog AM/FM
radio. Your radio produc t has a special receiver which allows it to
receive digital broadcasts (where available) in addition to the
analog broadcasts it already rec eives. Digital broadcasts have
better sound quality than analog broadcasts as digital broadcas ts
provide free, crystal clear audio. For more information, and a
guide to available radio stations and programming, please visit
www.hdradio.com.
1
2
3
4

302
YARIS SEDAN_OM_OM99S50z_(U)
4-2. Audio System
●Benefits of HD Radio™ Technology
Information:
The song title, artist name, album name and genre will appear o n
the screen when available by the radio station.
Multicast:
On the FM radio frequency most d igital stations have “multiple”
or supplemental programs on each FM station.
● Listening to HD Radio™ Technology
If icon turns on by selecting a radio station which is an
broadcasting station, the analog broadcast is
switched to an broadcast automatically after a few
seconds and then received.
If the broadcast is stopped and changed to an analog
broadcast, press down to turn off .

YARIS SEDAN_OM_OM99S50z_(U)
3034-2. Audio System
4
Interior Features
●Multicast channel selection (FM)
If multi-cast channels are av ailable for an broadcast
currently being received, the multi-cast channel list is displa yed.
Select the desired radio station.
● iTunes Tagging (for Apple devices with USB use only)
By tagging a song currently being aired, the song can later be
purchased from the iTunes Store. One hundred tags can be
stored. A maximum of 100 tags ( for 100 songs) can be stored for
later downloading.
Select the icon. The tag i s stored in the audio unit.
Connect the device via the vehi cle’s USB. Any stored tag(s)
will be sent automatically t o the connected device.
Once at home or after parking the vehicle safely, log onto the
iTunes Store with your device. Your previously tagged song(s)
can now be eas ily purchased.
■Favorites Radio
If the battery is disconnected, your Favorites list will not be deleted.
■ Radio Broadcast Data System (RBDS)
●Radio text information is a function of FM radio only. There is no text func-
tion on AM radio. Text information is not displayed in the foll owing:
• During reception
• Not an RBDS broadcast
• RBDS broadcast, but radio text is not transmitted from the rad io station
● To change the desired genre, select the icon.
● Only one Genre can be selected.
● It may not be possible to receive any station even if the Genre Seek function
is used.
● If a program in the selected genre is not broadcast to a region, reception is
not possible even if the Genre Seek function is used.
● The Genre Seek function searches for genre code (program type) which FM
analog broadcasts transmit. specialty programs (HD2-HD8) can-
not be searched because they are not FM analog broadcasts.
● If radio stations which are selected by scanning using the Genr e Seek func-
tion are broadcasting stations, they are changed from analog
broadcasts to broadcdiffer.
1
2
3

304
YARIS SEDAN_OM_OM99S50z_(U)
4-2. Audio System
■HD Radio
●If an analog broadcast is received once and is received while HD1
is selected, the audio unit switches to the station automatica lly.
● When the icon is illuminated, there could be a noticeable diff erence in
sound quality and volume when a change from digital to analog s ignals
occurs. If the sound quality and volume become noticeably dimin ished or
cut off, select the icon to turn off ( icon is not illumi-
nated).
● Once an analog broadcast is received when HD1 is selected from the
Favorite channels, it is switched to automatically. If the rad io
reception conditions are poor, or HD is off, switching to broa dcasts
is not possible.
● When an HD specialty channel (HD2 to HD8) is selected from the Favorite
channels, “Signal Lost” is displayed and no audio is output unt il is
received. If the radio reception conditions are poor, “Signal L ost” continues
to be displayed.
● If the icon is not illuminated, information such as song title s of the
station are received, however, the audio output is analog.
■ iTunes Tagging (for Apple d evices with USB use only)
● Both AM and FM can be used.
● Because iTunes tagging only supports purchases from the iTunes Store,
direct downloading of music from the vehicle’s audio unit is no t possible.
● If the available memory for the connected device is insufficien t, the tag is not
sent.
● If an error occurs while the tag is being sent, reconnect the device.

YARIS SEDAN_OM_OM99S50z_(U)
3054-2. Audio System
4
Interior Features
■What is satellite radio?
●SiriusXM
® Satellite Radio
SiriusXM satellite radio is a s ubscription-based satellite radio ser-
vice that broadcasts a variety of music, sports, news, weather, traf-
fic and entertainment programming.
Your new Toyota vehicle is factory-installed with SiriusXM sate llite
radio hardware and includes a limited trial subscription term t hat
begins on the date of sale or lease of your vehicle. See an aut ho-
rized dealer for availability.
The satellite radio service should be active in your vehicle, i f you can-
not hear SiriusXM audio, please activate online by visiting siri-
usxm.com/refresh or by calling SiriusXM Lis tener Care at 1-877-447-
0011 (U.S.A.)/1-888-539-7474 Customer Care (Canada).
You can find the radio ID by turning to Channel 0 or visiting s iri-
usxm.com/activationhelp (U.S.A), and siriusxm.ca/subscribe-now/
(Canada).
For more information on extended subscription terms (a service fee
is required), the online media player and a list of SiriusXM sa tellite
radio channels, and other features , please visit www.siriusxm.com
(U.S.A), and www.siriusxm.ca (Canada), or call SiriusXM at 1-877-
447-0011 (U.S.A.)/1-888-539-7474 (Canada).
This feature may not be available in all markets and requires a n active
subscription. SiriusXM reserves the unrestricted right to change, rear-
range, add or delete programming. This includes canceling, movi ng or
adding particular channels, and its prices, at any time, with o r without
notice to you. Toyota shall not be responsible for any such pro gramming
changes.
■
Displaying the Radio ID (ESN)
When channel 0 is selected, the radio ID is displayed. Use the
PREVIOUS or NEXT channel bu ttons to select channel 0.
Operating the Satellite Radio (if equipped)

306
YARIS SEDAN_OM_OM99S50z_(U)
4-2. Audio System

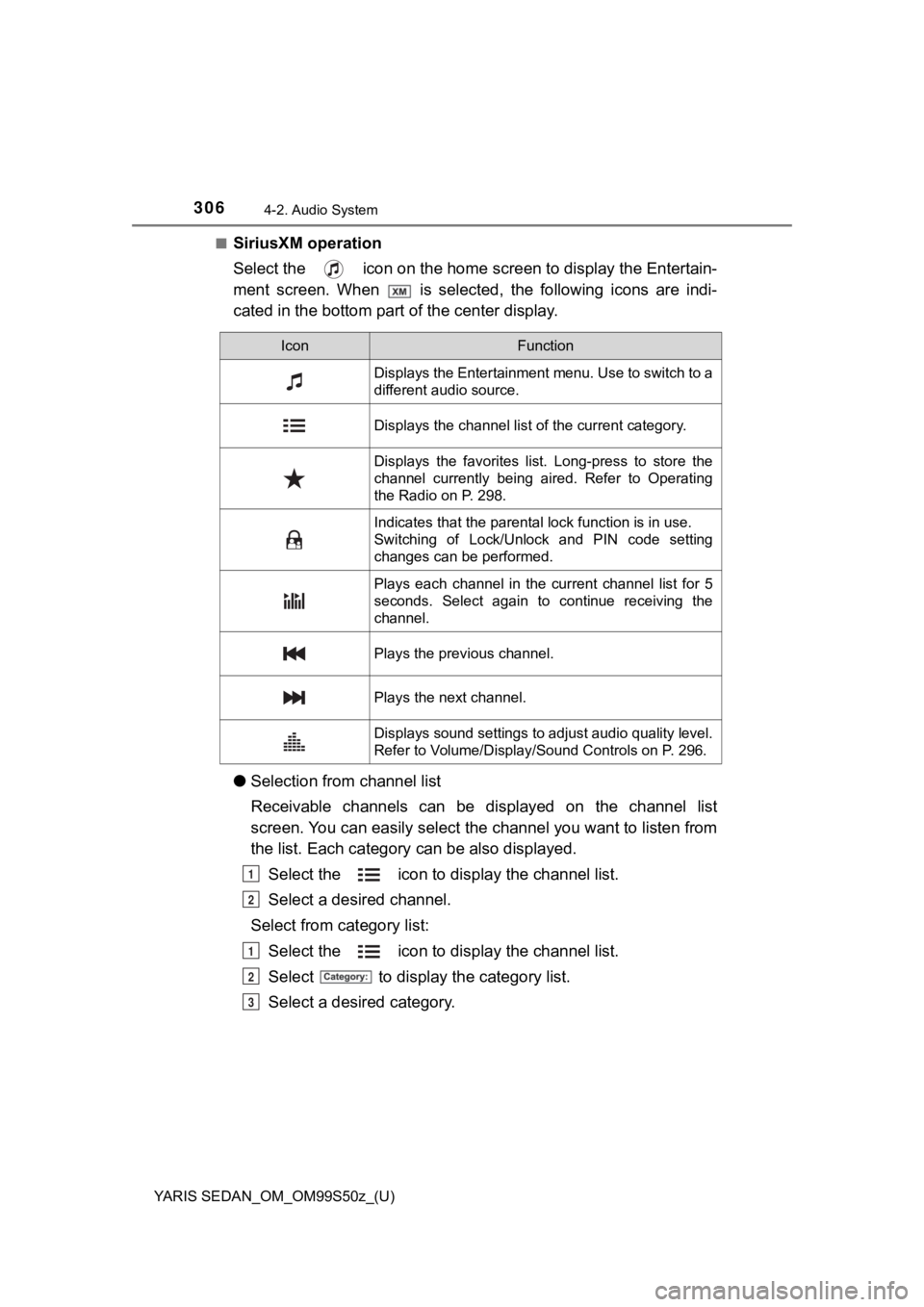

■SiriusXM operation
Select the icon on the home screen to display the Entertain-
ment screen. When is selected, the following icons are indi-
cated in the bottom part of the center display.
● Selection from channel list
Receivable channels can be displayed on the channel list
screen. You can easily select th e channel you want to listen from
the list. Each category can be also displayed.
Select the icon to dis play the channel list.
Select a desired channel.
Select from category list: Select the icon to dis play the channel list.
Select to display the category list.
Select a desired category.
IconFunction
Displays the Entertainment menu. Use to switch to a
different audio source.
Displays the channel list of the current category.
Displays the favorites list. Long-press to store the
channel currently being aired. Refer to Operating
the Radio on P. 298.
Indicates that the parental lock function is in use.
Switching of Lock/Unlock and PIN code setting
changes can be performed.
Plays each channel in the current channel list for 5
seconds. Select again to continue receiving the
channel.
Plays the previous channel.
Plays the next channel.
Displays sound settings to adjust audio quality level.
Refer to Volume/Display/Sound Controls on P. 296.
1
2
1
2
3

YARIS SEDAN_OM_OM99S50z_(U)
3074-2. Audio System
4
Interior Features

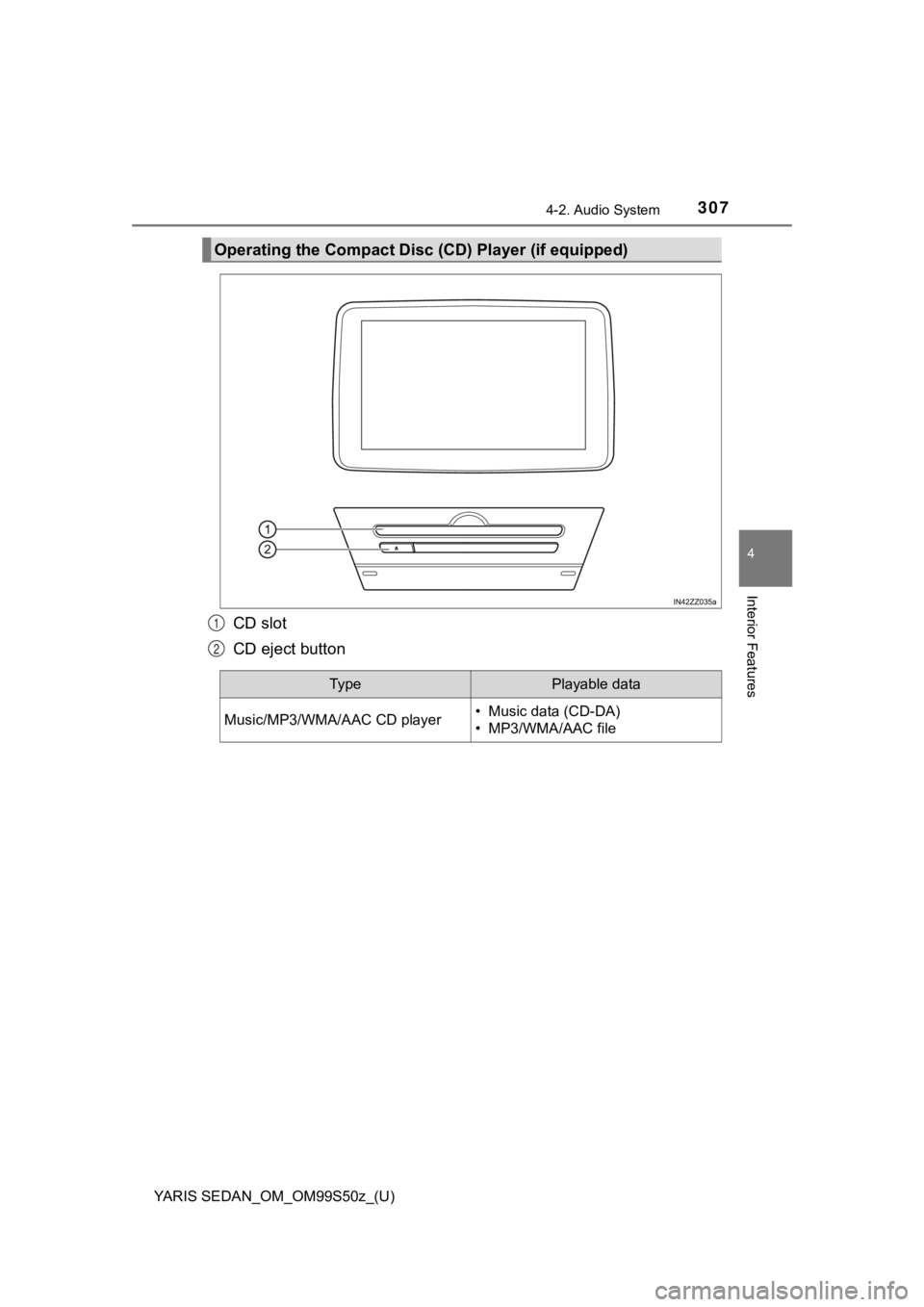

CD slot
CD eject button
Operating the Compact Disc (CD) Player (if equipped)
1
2
Ty pePlayable data
Music/MP3/WMA/AAC CD player• Music data (CD-DA)
• MP3/WMA/AAC file

308
YARIS SEDAN_OM_OM99S50z_(U)
4-2. Audio System
■Inserting the CD
Insert the CD into the slot, label-side up. The auto-loading me cha-
nism will set the CD and begin play.
There will be a short lapse before play begins while the player reads the
digital signals on the CD.
■
Ejecting the CD
Press the CD eject butto n ( ) to eject the CD.

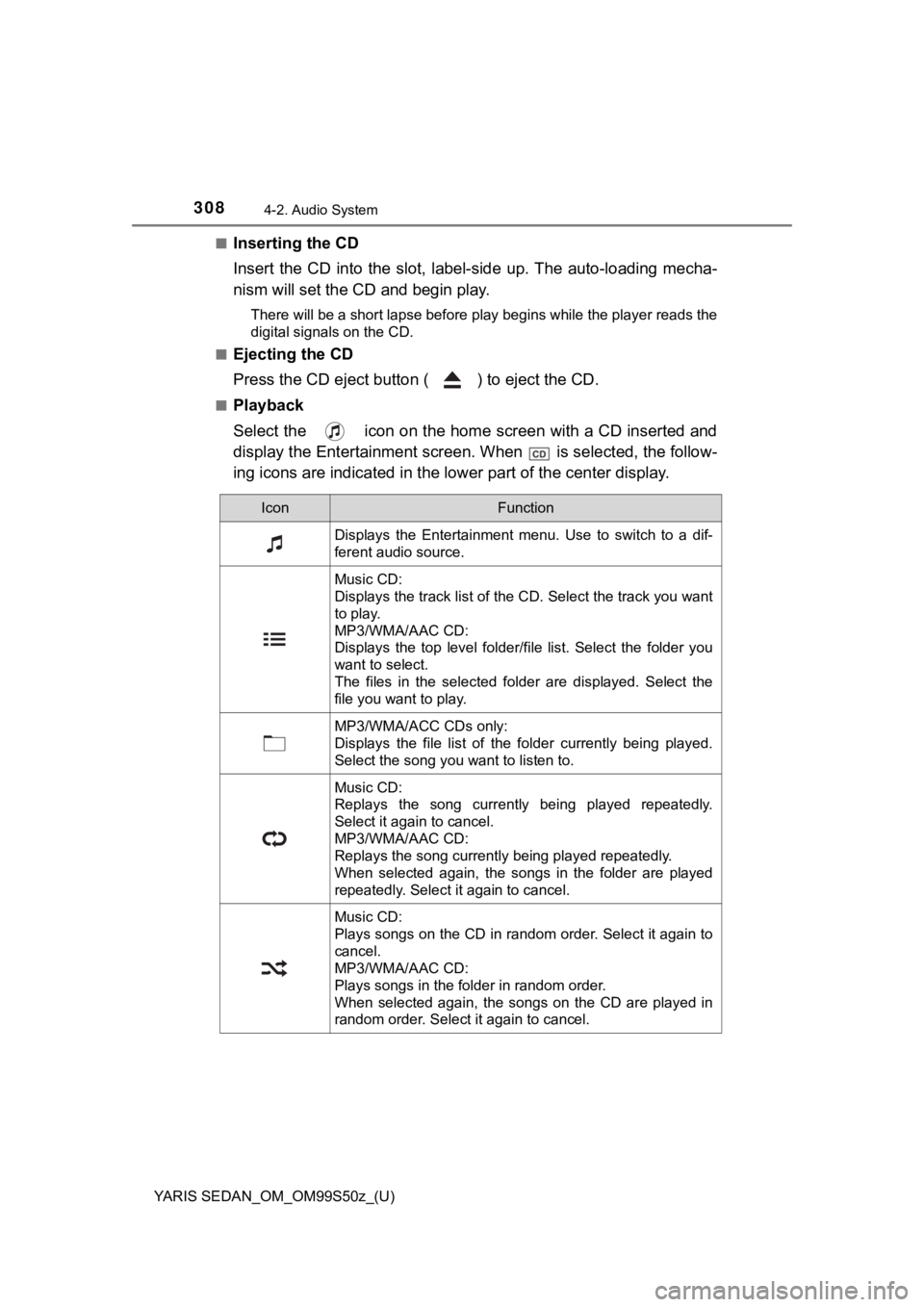

■Playback
Select the icon on the home screen with a CD inserted and
display the Entertainment screen. When is selected, the follow -
ing icons are indicated in the lower part of the center display .
IconFunction
Displays the Entertainment menu. Use to switch to a dif-
ferent audio source.
Music CD:
Displays the track list of the CD. Select the track you want
to play.
MP3/WMA/AAC CD:
Displays the top level folder/file list. Select the folder you
want to select.
The files in the selected folder are displayed. Select the
file you want to play.
MP3/WMA/ACC CDs only:
Displays the file list of the folder currently being played.
Select the song you want to listen to.
Music CD:
Replays the song currently being played repeatedly.
Select it again to cancel.
MP3/WMA/AAC CD:
Replays the song currently being played repeatedly.
When selected again, the songs in the folder are played
repeatedly. Select it again to cancel.
Music CD:
Plays songs on the CD in random order. Select it again to
cancel.
MP3/WMA/AAC CD:
Plays songs in the folder in random order.
When selected again, the songs on the CD are played in
random order. Select it again to cancel.

YARIS SEDAN_OM_OM99S50z_(U)
3094-2. Audio System
4
Interior Features

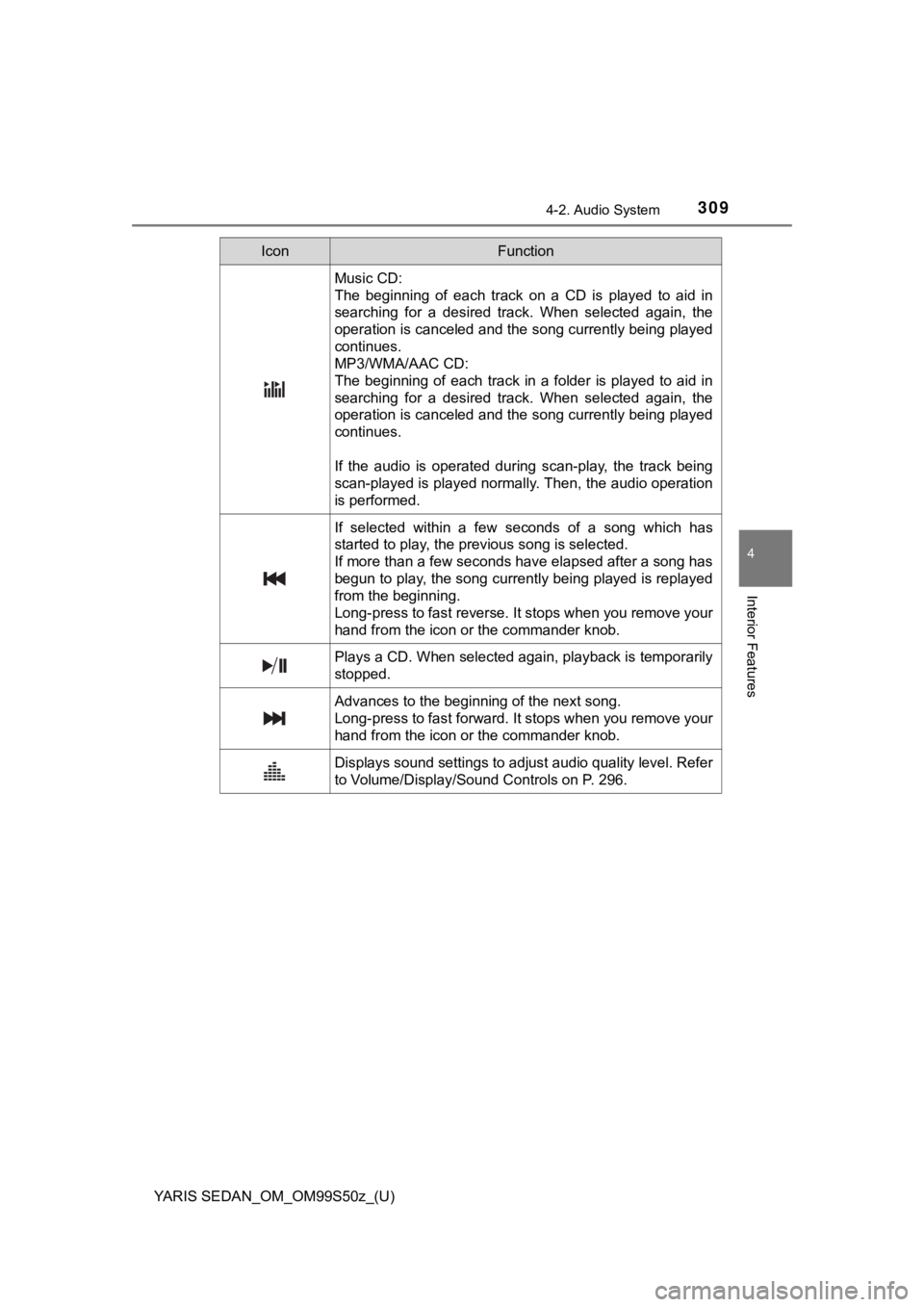

Music CD:
The beginning of each track on a CD is played to aid in
searching for a desired track. When selected again, the
operation is canceled and the song currently being played
continues.
MP3/WMA/AAC CD:
The beginning of each track in a folder is played to aid in
searching for a desired track. When selected again, the
operation is canceled and the song currently being played
continues.
If the audio is operated during scan-play, the track being
scan-played is played normally. Then, the audio operation
is performed.
If selected within a few seconds of a song which has
started to play, the previous song is selected.
If more than a few seconds have elapsed after a song has
begun to play, the song currently being played is replayed
from the beginning.
Long-press to fast reverse. It stops when you remove your
hand from the icon or the commander knob.
Plays a CD. When selected again, playback is temporarily
stopped.
Advances to the beginning of the next song.
Long-press to fast forward. It stops when you remove your
hand from the icon or the commander knob.
Displays sound settings to adjust audio quality level. Refer
to Volume/Display/Sound Controls on P. 296.
IconFunction

310
YARIS SEDAN_OM_OM99S50z_(U)
4-2. Audio System
●Example of use (When searching for a song from the top level of
an MP3/WMA/AAC CD)
Select the icon and display the folder/file list at the top
level.
When the folder is
selected, folders/file lists in
the folder are displayed.
Select the desired song.
■Operating the Compact Disc (CD) Player (if equipped)
If a disc has both music data (CD-DA) and MP3/WMA/AAC files, pl ayback of
the 2 or 3 file types differs depending on how the disc was rec orded.
■ When searching for a song from t he top level of an MP3/WMA/AAC CD
● Select to move to a folder one level higher.
● The appearance of the repeat and shuffle icons changes dependin g on the
type of operation in which the function is used.
Audio can be heard from the vehi cle’s speakers by connecting a com-
mercially-available portable audio unit t o the auxiliary jack.
Use a commercially-available, non-impedance (3.5 ) stereo mini plug
cable.
In addition, audio can be played from the vehicle audio device by con-
necting a USB device to the USB port.
Refer to AUX/USB mode on P. 317.
1
2
3
How to use Auxiliary jack/USB port
