TOYOTA YARIS 2019 Owners Manual (in English)

YARIS SEDAN_OM_OM99S50z_(U)
3814-3. Bluetooth®
4
Interior Features
Communication between the hands-free unit and a device (Mobile
phone) is canceled, and the line can be switched to a standard call
using a device (Mobile phone).
Press the talk button with a short press.
Say: [Beep] “Transfer call”
Prompt: “Transferred call to phone”
Communication between devices (Mobile phone) can be switched to
Bluetooth
® Hands-Free.
Press the talk button with a short press.
Say: [Beep] “Transfer call”
Prompt: “Transferred call to Hands Free system”
A call can be interrupted to receive an incoming call from a th ird party.
Switch to a new incoming call using the following methods.
Method 1
Press the pick-up button.
Prompt: “Swapping calls.”
Method 2
Press the talk button with a short press.
Say: [Beep] “Swap calls”
Prompt: “Swapping calls.”
●To refuse an incoming call, press the hang-up button.
● After receiving a new incoming call, the previous call is place d on hold.
Transferring a Call from Hands-Free to a Device (Mobile Phone)
Transferring a Call from a Device (Mobile Phone) to Hands-Free
Call interrupt
1
2
3
1
2
3
1
2
1
2
3

382
YARIS SEDAN_OM_OM99S50z_(U)
4-3. Bluetooth®
■Switching calls
Switching back to the previous call can also be done.
Method 1
Press the pick-up button.
Prompt: “Swapping calls.”
Method 2
Press the talk button with a short press.
Say: [Beep] “Swap calls”
Prompt: “Swapping calls.”
■Three-way call function
Press the talk button with a short press.
Say: [Beep] “Join calls”
Prompt: “Joining calls”
■Making a call using a telephone number
Press the talk button with a short press.
Say: [Beep] “Dial”
Prompt: “Number, please”
Say: [Beep] “XXXXXXXXXXX (Telephone number)”
Prompt: “XXXXXXXXXXX. (Telephone number) After the beep,
continue to add numbers, or sa y Go-Back to re-enter the last
entered numbers, or press the Pick-Up button to execute dial-
ing.”
Dialing:
Press the pick-up button or say “Dial”, then go to Step .
Adding/inputting telephone number:
Say, “XXXX” (desired telepho ne number), then go to Step .
Telephone number correction:
Say, “Go Back”. The prompt replies, “Go Back. The last entered
numbers have been removed.”. Then go back to Step .
Prompt: “Dialing”
1
2
1
2
3
1
2
3
1
2
3
4
5
6
7
5
3
7

YARIS SEDAN_OM_OM99S50z_(U)
3834-3. Bluetooth®
4
Interior Features
■Making calls using the phonebookPress the talk button with a short press.
Say: [Beep] “Call”
Prompt: “Name please.”
Say: [Beep] “XXXXX... (Ex. “John’s phone”)” (Say a voice tag
registered in the phonebook.)
Prompt: “Calling XXXXX... (Ex . “John’s phone”) XXXX (Ex. “at
home”). Is this correct?” (Voice tag and phone number location
registered in phonebook).
Say: [Beep] “Yes”
Prompt: “Dialing”
■Redialing function
Press the talk button with a short press.
Say: [Beep] “Redial”
Prompt: “Dialing”
■Ending the current call
Press the hang-up button during the call.
This function is used when transmitting DTMF via the user’s voi ce.
The receiver of a DTMF transmission is generally a home telepho ne
answering machine or a company’s automated guidance call center
(When you send tone signals back according to the voice guidance
recording).
Press the talk button with a short press.
Say: [Beep] “X XXX... send” (Sa y DTMF code)
Prompt: “Sending XXXX... (DTMF code)”
DTMF (Dual Tone Multi-Fre quency Signal) Transmission
1
2
3
4
5
6
7
1
2
3
1
2
3

384
YARIS SEDAN_OM_OM99S50z_(U)
4-3. Bluetooth®
Bluetooth® Hands-Free (Type B)
■Phonebook Usage
Telephone calls can be made by saying the contact name in the
downloaded phonebook or the name of a person whose phone
number has been registered in the Bluetooth
® Hands-Free. Refer
to Import contact (Download Phonebook).
Press the talk button.
Wait for the beep sound.
Say: “Call XXXXX... (Ex. “John”) Mobile”. (You can also say,
“Home”, “Work”, or “Other” instead of “Mobile”, depending on
how you set up your contact information.)
Follow the voice guidance to make the call, or simple press the
pick-up button on the steering switch during or after the guida nce
to make the call.
● Screen operation
Select the icon on the home screen and display the
Communication screen.
Select to display the contact list.
Select the contact you would like to call to display the details
for the contact.
Select the desired phone n umber to make the call.
Making a Call
1
2
3
4
1
2
3
4

YARIS SEDAN_OM_OM99S50z_(U)
3854-3. Bluetooth®
4
Interior Features
●Import contact (Download Phonebook)
Phonebook data from your device (Mobile phone) can be sent
and registered to your Bluetooth
® Hands-Free phonebook using
Bluetooth®.
Automatic downloading
The “Auto Download Contacts” setting must be on. When hands-
free is connected to the device, the phonebook is downloaded
automatically.
Refer to Communication Settings on P. 396.
Manually downloading
If the “Auto Download Contacts” setting is off, download the
phonebook using the following procedure. Select the icon on the home screen and display the
Communication screen.
Select to display the contact list.
Select .
Select or to switch to the
device operation.
If is selected, select .
Download will be started from the mobile phone.
If “Import All Contacts” is performed after saving the phoneboo k to
the Bluetooth® unit, the phonebook will be overwritten.
1
2
3
4
5
6

386
YARIS SEDAN_OM_OM99S50z_(U)
4-3. Bluetooth®
■Favorites Contacts
A maximum of 50 contacts can be registered. It will take less time to
make a call after registering the telephone number. In addition , you
do not have to look for the person you want to call in the phon e-
book.
● Registering to your favorites
Select the icon on the home screen and display the
Communication screen.
Select to display the favorites list.
Select .
Select or .
Select from the d isplayed list.
When “Add New Contact” is selected, information such as the
selected person’s name is also registered. In addition, when “A dd
New Contact Details” is selected, only the telephone number of the
selected person is registered.
● Making a call from your favorites
Select the icon on the home screen and display the
Communication screen.
Select to display the favorites list.
Only one phone number is registered to contact:
Select the contact information you would like to call. Go to
Step .
Multiple phone numbers are registered to contact:
Select the contact you would like to call to display the screen
indicating the details for the contact. Go to Step .
Select the phone number you would like to call.
Select .
1
2
3
4
5
1
2
3
5
4
4
5

YARIS SEDAN_OM_OM99S50z_(U)
3874-3. Bluetooth®
4
Interior Features
●Deleting from your favorites
Select the icon on the home screen and display the
Communication screen.
Select to display the favorites list.
Select .
Select .
Select the contact information which you would like to delete.
Select .
● Changing the display orde r of your favorites list
Select the icon on the home screen and display the
Communication screen.
Select to display the favorites list.
Select .
Select .
The contact can be move d after it is selected.
Slide the contact or move it using the commander switch, then
select .
● Changing contact name of your favorites
Select the icon on the home screen and display the
Communication screen.
Select to display the favorites list.
Select .
Select .
Select the contact to disp lay the keyboard screen.
If a new name is input and is selected, the contact name is
stored.
1
2
3
4
5
6
1
2
3
4
5
6
1
2
3
4
5
6

388
YARIS SEDAN_OM_OM99S50z_(U)
4-3. Bluetooth®
■Telephone Number InputSelect the icon on the home screen and display the Com-
munication screen.
When is pressed, the dial pad is displayed.
Input the telephone number using the dial pad.
Select to make the call.
● Numeral or symbol entry
Use the dial pad.
Long-press the to input +.
Select to delete the currently input value.
Long-press to delete all input values.
■Redial Function
Makes a call to the last person called (latest person on outgoi ng call
record) from the mobile phone/vehicle.
Press the talk button.
Wait for the beep sound.
Say: “Redial”
■Call back Function
Makes a call to the last person who called your (latest person on
incoming call record) mobile phone/vehicle.
Press the talk button.
Wait for the beep sound.
Say: “Call back”
● Mobile 911 (U.S.A./Canada only)
If the vehicle is involved in a moderate to severe collision, a call
is made automatically to 911 from the connected device. The
“Emergency Assistance Cal l” setting must be on.
Refer to Communication Settings on P. 396.
If the vehicle is involved in a moderate to severe collision, n oti-
fication of the call to 911 is made via audio and screen displa y.
To cancel the call, press or hang-up
button withi n 10 seconds.
If or hang-up button is not pressed
within 10 seconds, the call i s made to 911 automatically.
1
2
3
4
1
2
3
1
2
3
1
2

YARIS SEDAN_OM_OM99S50z_(U)
3894-3. Bluetooth®
4
Interior Features
■Phonebook Usage
●A maximum of 1000 contacts can be registered to the phonebook.
● Phonebook, incoming/outgoing call record, and favorite memories are
exclusive to each mobile phone to protect privacy.
■ Favorites Contacts
If the contact is long-pressed when the favorites list is displ ayed, the contact
information can be edited (deleted, moved).
■ Telephone Number Input
Practice this while parked until you are confident you can do i t while driving in
a non-taxing road situation. If you are not completely comforta ble, make all
calls from a safe parking position, and only start driving when you can devote
your full attention to driving.
■ Mobile 911 (U.S.A./Canada only)
●Mobile 911 is a secondary function of the audio entertainment s ystem.
Therefore, the mobile 911 function does not assure that the cal l is always
made to 911 after an accident occurs.
● A Hands-free device must be paired and connected. The 911 operator can
verify the vehicle’s position information using the Hands-free device GPS if
equipped. The 911 operator can verify the vehicle’s position in formation.
NOTICE
■Mobile 911 (U.S.A./Canada only)
Though the system can be set to not call 911, doing so will def eat the pur-
pose of the system. Toyota recommends that the Mobile 911 system remain
activated.

390
YARIS SEDAN_OM_OM99S50z_(U)
4-3. Bluetooth®

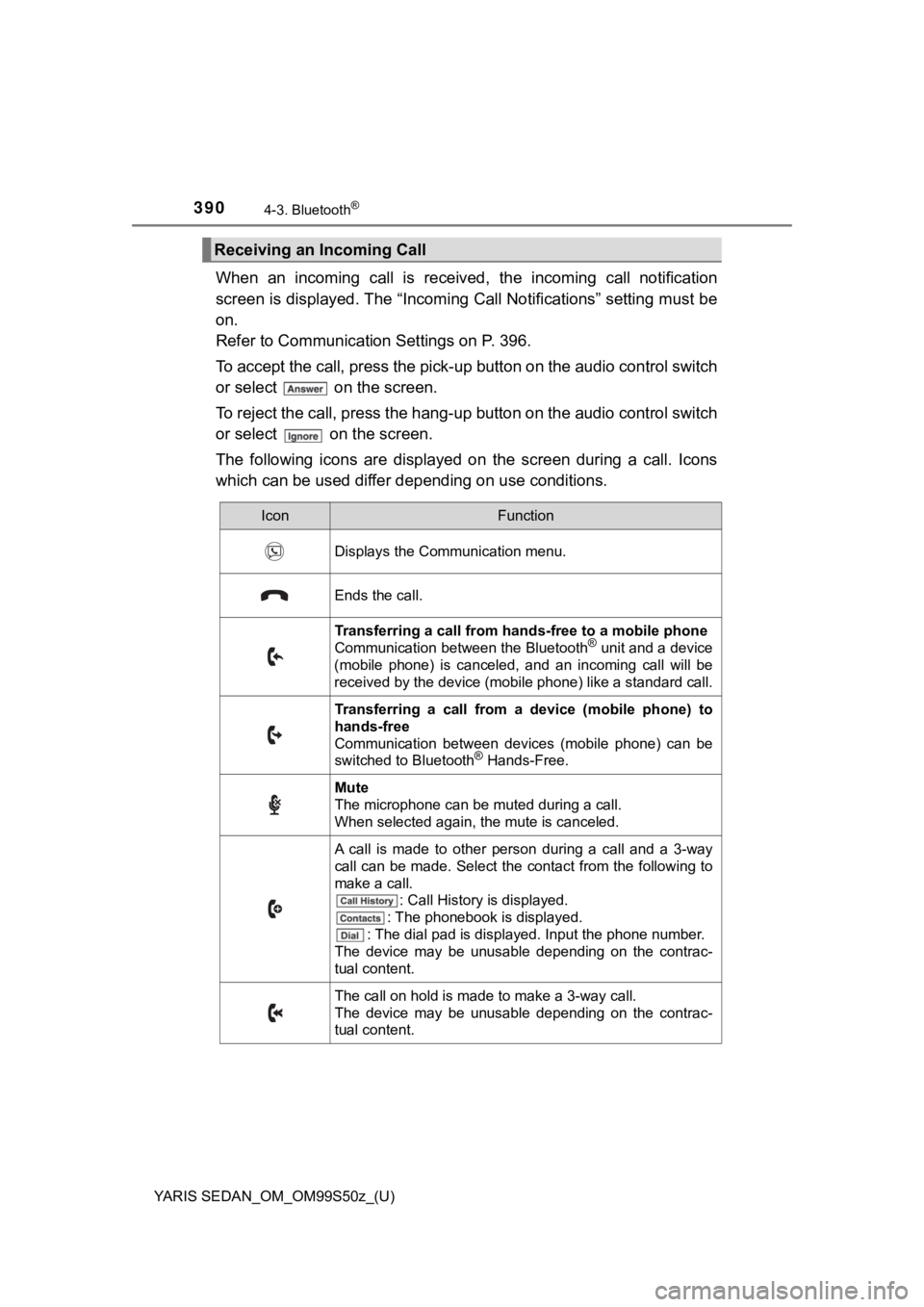

When an incoming call is received, the incoming call notification
screen is displayed. The “Incomi ng Call Notifications” setting must be
on.
Refer to Communication Settings on P. 396.
To accept the call, press the p ick-up button on the audio contr ol switch
or select on the screen.
To reject the call, press the hang-up button on the audio contr ol switch
or select on the screen.
The following icons are displayed on the screen during a call. Icons
which can be used differ d epending on use conditions.
Receiving an Incoming Call
IconFunction
Displays the Communication menu.
Ends the call.
Transferring a call from h ands-free to a mobile phone
Communication between the Bluetooth® unit and a device
(mobile phone) is canceled, and an incoming call will be
received by the device (mobile phone) like a standard call.
Transferring a call from a device (mobile phone) to
hands-free
Communication between devices (mobile phone) can be
switched to Bluetooth
® Hands-Free.
Mute
The microphone can be muted during a call.
When selected again, the mute is canceled.
A call is made to other person during a call and a 3-way
call can be made. Select the contact from the following to
make a call. : Call History is displayed.
: The phonebook is displayed.
: The dial pad is displayed. Input the phone number.
The device may be unusable depending on the contrac-
tual content.
The call on hold is made to make a 3-way call.
The device may be unusable depending on the contrac-
tual content.
