TOYOTA YARIS 2020 Owners Manual (in English)

YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
1713-2. Combination Meter and Display
3
When Driving
The following information can be selected by pressing the INFO
switch with the ignition switched ON.
• Distance-to-empty mode
• Average fuel economy mode
• Current fuel economy mode
• Average vehicle speed
If you have any problems with your trip computer, consult your To y o t a
dealer.
■Distance-to-empty mode
The distance-to-empty will be cal culated and displayed every sec-
ond.
■Average fuel economy mode
The average fuel economy is calculated and displayed every
minute.
To clear the data being displayed, press the INFO switch for mo re
than 1.5 seconds or longer.
After resetting the data, - - - mpg (- - - L/100 km) is displayed for
one minute before the fuel econom y is recalculated and displayed.
Trip Computer and INFO Switch
This mode displays the approximate distance
you can travel on the remaining fuel based on
the fuel economy.
This mode displays the average fuel economy
by calculating the total traveled distance and
the total fuel consumption since the vehicle
was purchased or the past data was reset.

172
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
3-2. Combination Meter and Display
■Current fuel economy mode
Current fuel economy will be calculated and displayed every 2 sec-
onds.
When you’ve slowed to about 3 mph (5 km/h), - - - mpg (- - - L/ 100
km) will be displayed.
■Average vehicle speed mode
Average vehicle speed will be cal culated and displayed every 10
seconds.
To clear the data being displayed, press the INFO button for mo re
than 1.5 seconds.
After pressing the IN FO button, - - - mph (- - - km/h) will be dis-
played for about 1 minute before the vehicle speed is recalculated
and displayed.
■ Distance-to-empty mode
●Even though the distance-to-empty display may indicate a suffic ient amount
of remaining driving distance before refueling is required, refuel as soon as
possible if the fuel level is very low or the low fuel warning light illuminates.
● The display may not change unless you add more than approximate ly 2.3
gal. (9 L, 1.9 Imp.gal.) of fuel.
● The distance-to-empty is the approximate remaining distance the vehicle
can be driven until all the graduation marks in the fuel gauge (indicating the
remaining fuel supply) disappear.
● If there is no past fuel economy information such as after firs t purchasing
your vehicle or the information is deleted when the battery cab les are dis-
connected, the actual distance-to empty/range may differ from t he amount
indicated.
■ Average fuel economy mode
If TRIP A is reset using the trip meter when the function which synchronizes
(resets) the fuel economy monitor and the trip meter (TRIP A) i s on, the dis-
played past data is reset.
This mode displays the current fuel economy
by calculating the amount of fuel consumption
and the distance traveled.
This mode displays the average vehicle speed
by calculating the distance and the time trav-
eled since connecting the battery or resetting
the data.

173
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
3-2. Combination Meter and Display
3
When Driving
Warning/Indicator Lights
Warning/Indicator lights will appear in any of the highlighted areas
These lights turn on or flash to notify the user of the system operation
status or a system malfunction.
Combination Meter
Analog Speedometer Type
(With Tachometer)Center of Dashboard
Warning Lights
*1Master Warning Light
( P. 489)*1Check Engine Light
(P. 489)
*1, 2Brake System Warning
Light ( P. 489)*1
(Red)
High Engine Coolant
Temperature Warning
Light (P. 489)
*1ABS Warning
Light (P. 489)*1
(If equipped)
Automatic Transaxle
Warning Light ( P. 489)
*1Charging System
Warning Light (P. 489)*1Power Steering
Malfunction Indicator
Light (P. 489)
*1Engine Oil Warning
Light (P. 489)*1Air Bag/Front Seat Belt
Pretensioner System
Warning Light ( P. 489)

174
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
3-2. Combination Meter and Display
*1: The light turns on when the ignition is switched on for an operation check,
and turns off a few seconds later or when the engine is started . If the light
does not turn on or remains turned on, have the vehicle inspect ed at your
Toyota dealer.
*2: The light turns on continuously when the parking brake is appl ied.
These lights turn on or flash to notify the user of the system operation
status or a system malfunction.
*1
(If equipped)
LED Headlight Warning
Light (
P. 489)(If equipped)
Low Washer Fluid Level
Warning Light ( P. 489)
Low Fuel Warning Light
( P. 489)
*1
(If equipped)
Tire Pressure Monitoring
System Warning Light
(P. 489)
*1Check Fuel Cap
Warning Light ( P. 489)*1
(Red)
KEY Warning Light
(P. 489)
Seat Belt Warning Light
(Front seat) ( P. 489)
*1
(Amber)
Low Speed Pre-Collision
System Warning Light
(P. 489)
Door-Ajar Warning Light
( P. 489)
Indicator Lights
(Green)
KEY Indicator Light
(P. 158)*1DSC OFF Indicator Light
(P. 219)
*1
(If equipped)
Wrench Indicator Light
(P. 175)
(Red)
Low Speed Pre-Collision
System Indicator Light
(P. 232)
*1TCS/DSC Indicator
Light ( P. 217, 219)*1Low Speed Pre-Collision
System OFF
Indicator Light ( P. 233)

YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
1753-2. Combination Meter and Display
3
When Driving
*1: The light turns on when the ignition is switched on for an operation check,
and turns off a few seconds later or when the engine is started . If the light
does not turn on or remains turned on, have the vehicle inspect ed at your
Toyota dealer.
When the ignition is switched ON,
the wrench indicato r light is illumi-
nated and then turns off after a
few seconds.
The wrench indicator light is illu-
minated when the preset mainte-
nance period arrives. Verify the
content and perform mainte-
nance.
Refer to Maintenance Monitor on
P. 388.
(Blue)
Low Engine Coolant
Temperature Indicator
Light ( P. 176)
(If equipped)
Cruise Main Indication
(P. 237)
(If equipped)
Shift Position Indication
(P. 182)(White/
Green)
(If equipped)
Cruise Set Indication/
Indicator Light ( P. 237)
Headlight High-Beam
Indicator Light
( P. 196, 196)
(If equipped)
Select Mode Indicator
Light ( P. 225)
Turn Signal/Hazard
Warning Indicator Lights
( P. 199, 208) Lights-On Indicator Light
(
P. 192)
*1Security Indicator Light
(P. 137)*1Front Passenger
Air Bag Deactiva-
tion Indicator
Light ( P. 82)
Wrench Indicator Light

176
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
3-2. Combination Meter and Display
The light illuminates continuously
when the engine coolant tempera-
ture is low and turns off after the
engine is warm.
If the low engine coolant tempera-
ture indicator light remains illumi-
nated after the engine has been
sufficiently warmed up, the tem-
perature sensor could have a mal-
function. Consult your Toyota
dealer.
Low Engine Coolant Temperature Indicator Light (Blue)

177
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
3-3. Transaxle
3
When Driving
Manual Transaxle Operation
The shift pattern of the transaxle
is conventional, as shown.
Depress the clutch pedal all the
way down while shifting; then
release it slowly.
Your vehicle is equipped with a
device to prevent shifting to R
(reverse) by mistake. Push the
shift lever downward and shift to
R.
If shifting to R is difficult, shift back into neutral, release the clutch pedal, and
try again.
Manual Transaxle Shift Pattern
Neutral position
WARNING
■Do not use sudden engine braking on slippery road surfaces or at high
speeds
Shifting down while driving on wet, snowy, or frozen roads, or while driving
at high speeds causes sudden engine braking, which is dangerous . The
sudden change in tire speed could cause the tires to skid. This could lead to
loss of vehicle control and an accident.
■ Always leave the shift lever in 1 or R position and set the par king brake
when leaving the vehicle unattended
Otherwise the vehicle could move and cause an accident.

178
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
3-3. Transaxle
The gear shift indicator supports you to obtain optimum fuel economy
and smooth driving. It displays the selected gear position in t he com-
bination meter as well as notifies the driver to change to the most suit-
able gear position corresponding to the actual driving condition.
Selected gear position
Suitable gear position
The gear shift indicator turns off when the following operations are performed.
● The vehicle is stopped.
● The vehicle is put in neutral.
● The vehicle is driven in reverse.
● The clutch is not fully engaged when accelerating from a stop.
● The clutch pedal remains depressed for 2 seconds or longer whil e driving.
NOTICE
●Keep your foot off the clutch pedal except when shifting gears. Also, do
not use the clutch to hold the vehicle on an upgrade. Riding th e clutch will
cause needless clutch wear and damage.
● Do not apply any excessive lateral force to the shift lever when changing
from 5th to 4th gear. This could lead to the accidental selecti on of 2nd
gear, which could result in damage to the transaxle.
● Make sure the vehicle comes to a complete stop before shifting to R. Shift-
ing to R while the vehicle is still moving may damage the trans axle.
Gear Shift Indicator
1
2
IndicationCondition
NumeralThe selected gear position is displayed.
and numeralShift up or down to the indicated gear position is rec-
ommended.

YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
1793-3. Transaxle
3
When Driving
■Upshifting
For normal acceleration, Toyota recommends these shift points:
For cruising, Toyota recom mends these shift points:
WARNING
Do not rely solely on the shift-up/shift-down recommendations by indica-
tions. The actual driving situation might require shift operations different
from indication. To avoid the risk of accidents, the road and t raffic conditions
have to be judged correctly by the driver before shifting.

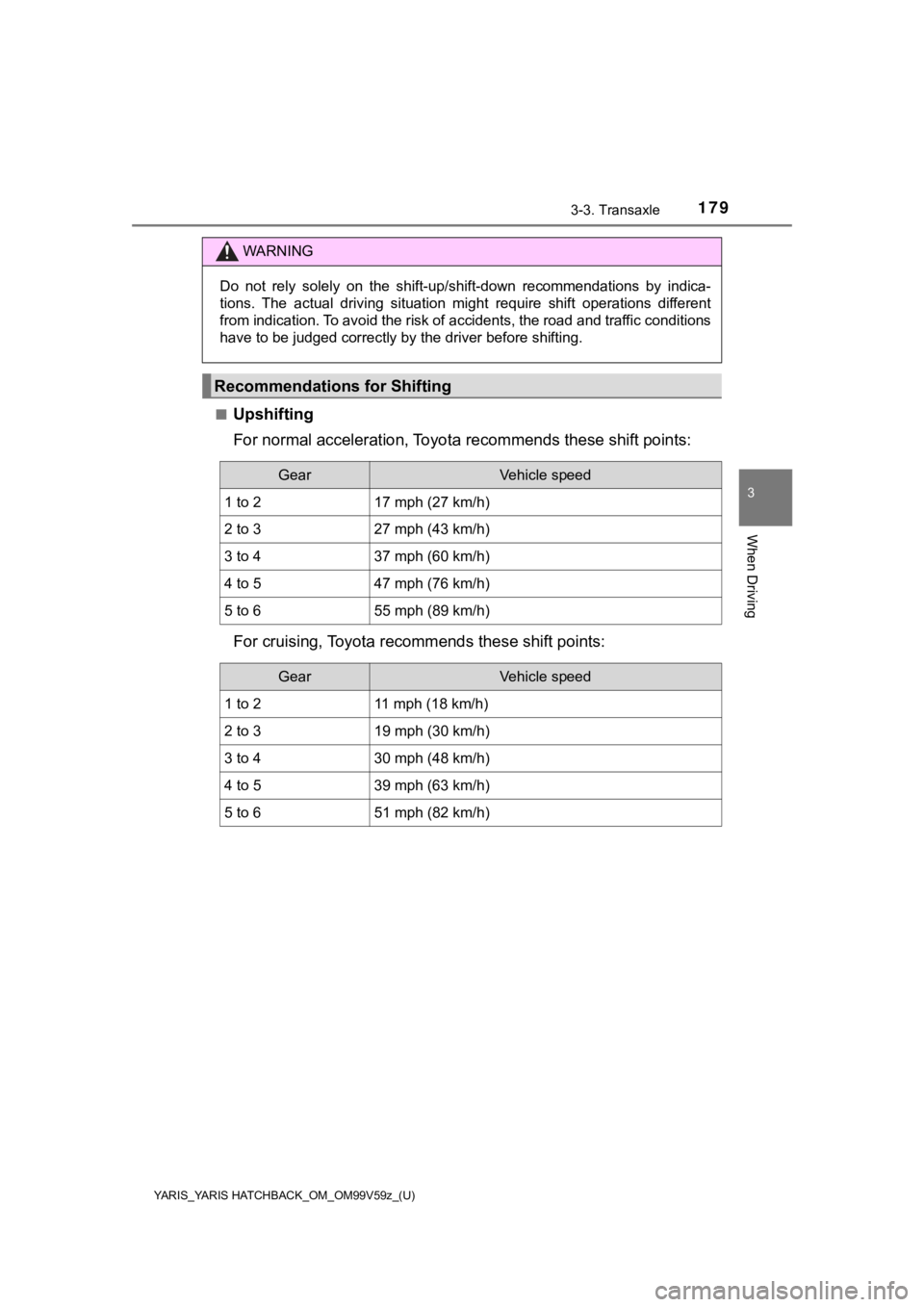

Recommendations for Shifting
GearVehicle speed
1 to 217 mph (27 km/h)
2 to 327 mph (43 km/h)
3 to 437 mph (60 km/h)
4 to 547 mph (76 km/h)
5 to 655 mph (89 km/h)
GearVehicle speed
1 to 211 mph (18 km/h)
2 to 319 mph (30 km/h)
3 to 430 mph (48 km/h)
4 to 539 mph (63 km/h)
5 to 651 mph (82 km/h)

180
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
3-3. Transaxle
■Downshifting
When you must slow down in heavy traffic or on a steep upgrade,
downshift before the engine starts to overwork. This reduces the
chance of stalling and gives bet ter acceleration when you need
more speed.
On a steep downgrade, downshifting helps maintain safe speed
and prolongs brake life.
