1041-3. Theft deterrent system
YARIS_F_OM_Europe_OM52A54E
Double locking system
Vehicles employing this system
have labels on the window glass
of both front doors.
Turn the engine switch to the “LOCK” position (vehicles without a
smart entry & start system) or off (vehicles with a smart entry & start
system), have all the passengers exit the vehicle and ensure that all
the doors are closed.
Using the entry function (vehicles with a smart entry & start system):
Touch the sensor area on the outside door handle twice within 5 sec-
onds.
Using the wireless remote control:
Press twice within 5 seconds.
: If equipped
Unauthorized access to the vehicle is prevented by disabling the
door unlocking function from both the interior and exterior of
the vehicle.
Setting the double locking system
1051-3. Theft deterrent system
1
For safety and security
YARIS_F_OM_Europe_OM52A54E

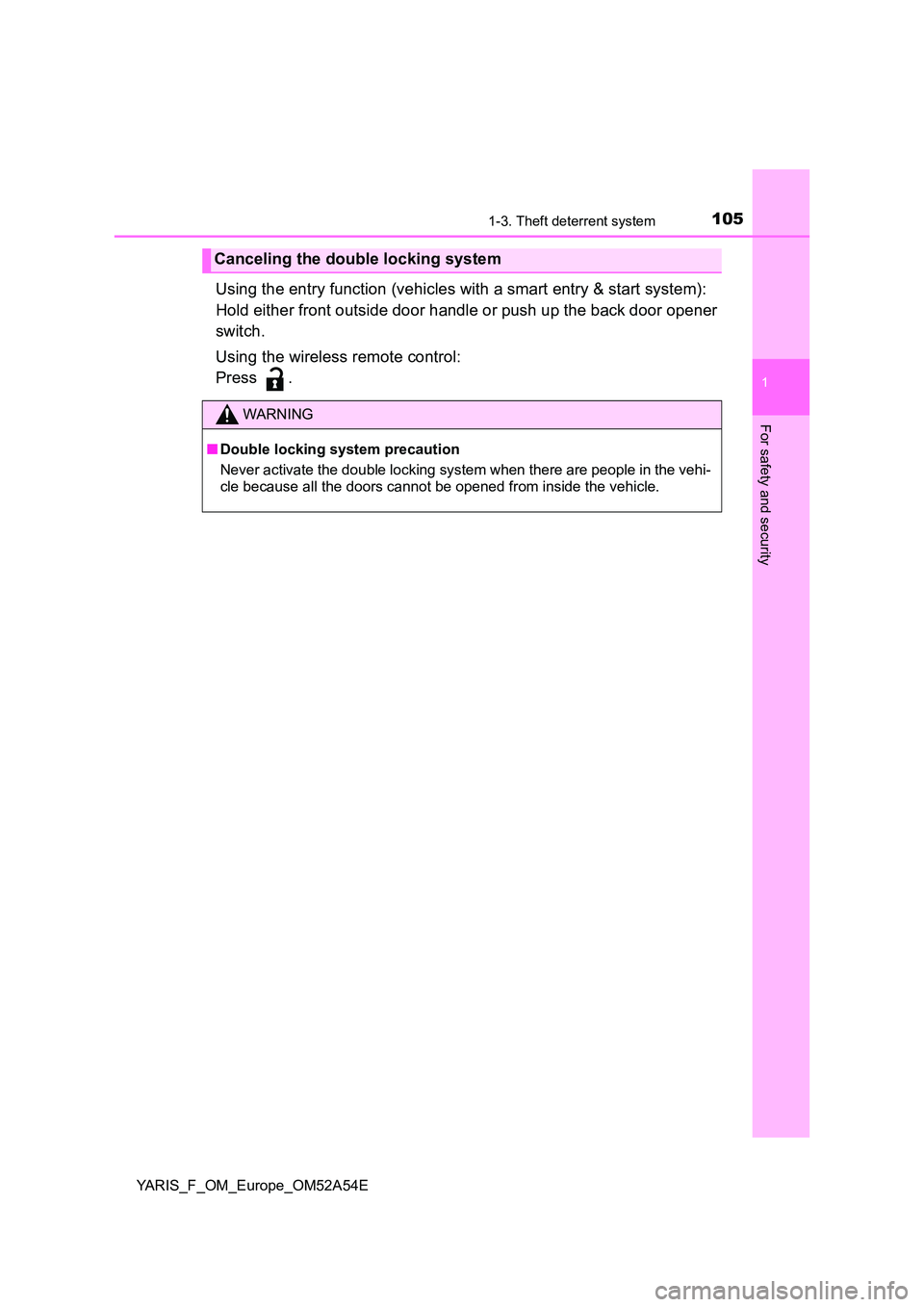

Using the entry function (vehicles with a smart entry & start system):
Hold either front outside door handle or push up the back door opener
switch.
Using the wireless remote control:
Press .
Canceling the double locking system
WARNING
■ Double locking system precaution
Never activate the double locking system when there are people in the vehi-
cle because all the doors cannot be opened from inside the vehicle.
107
2Instrument cluster
YARIS_F_OM_Europe_OM52A54E2. Instrument cluster
Warning lights and
indicators ......................... 108
Gauges and meters
(vehicles with
monochrome display) ...... 115
Gauges and meters
(vehicles with
color display) ................... 118
Multi-information display
(vehicles with
monochrome display) ...... 122
Multi-information display
(vehicles with
color display) ................... 127
Fuel consumption
information ....................... 137
1082. Instrument cluster
YARIS_F_OM_Europe_OM52A54E
Warning lights and indicators

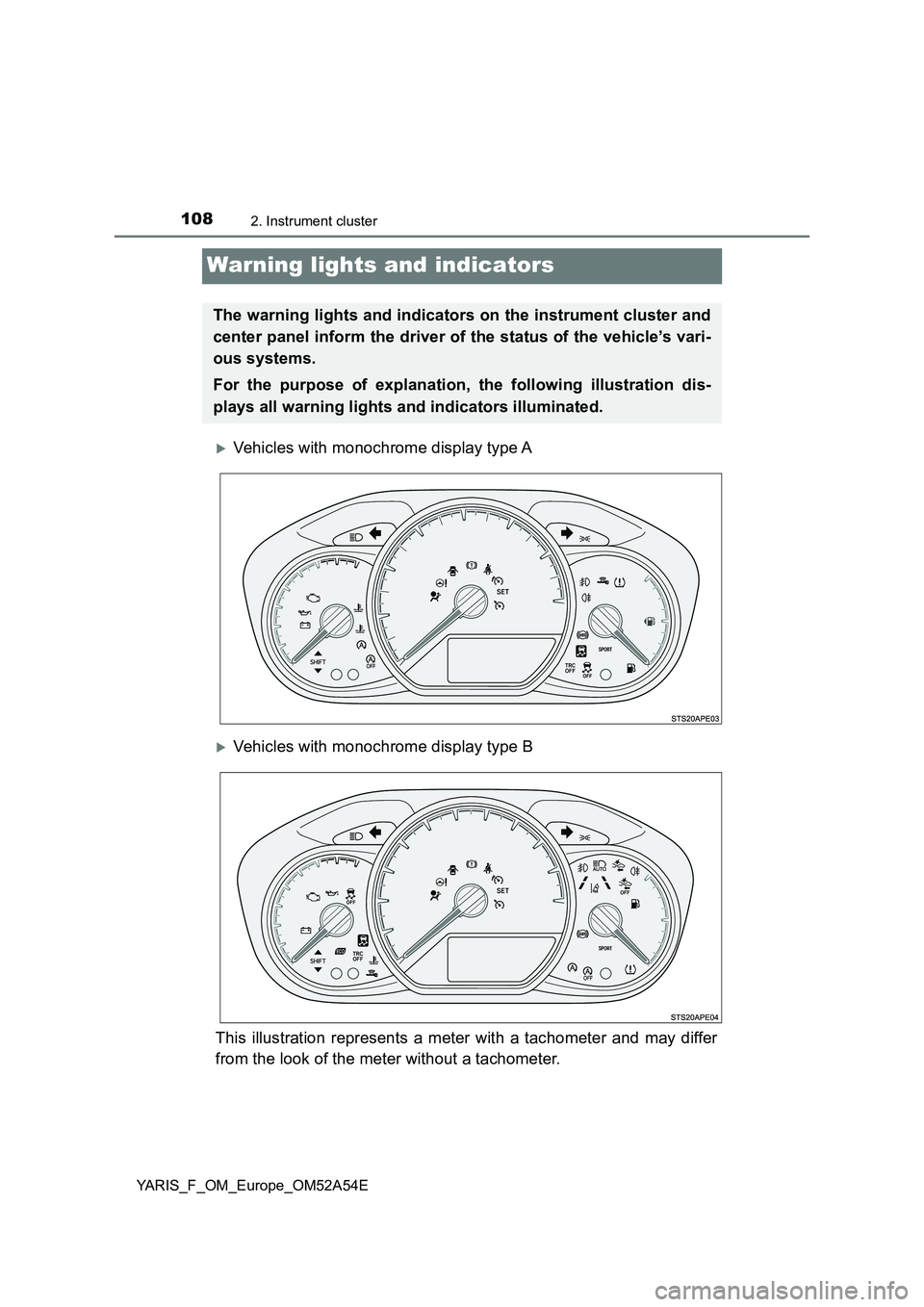

Vehicles with monochrome display type A
Vehicles with monochrome display type B
This illustration represents a meter with a tachometer and may differ
from the look of the meter without a tachometer.
The warning lights and indicators on the instrument cluster and
center panel inform the driver of the status of the vehicle’s vari-
ous systems.
For the purpose of explanation, the following illustration dis-
plays all warning lights and indicators illuminated.

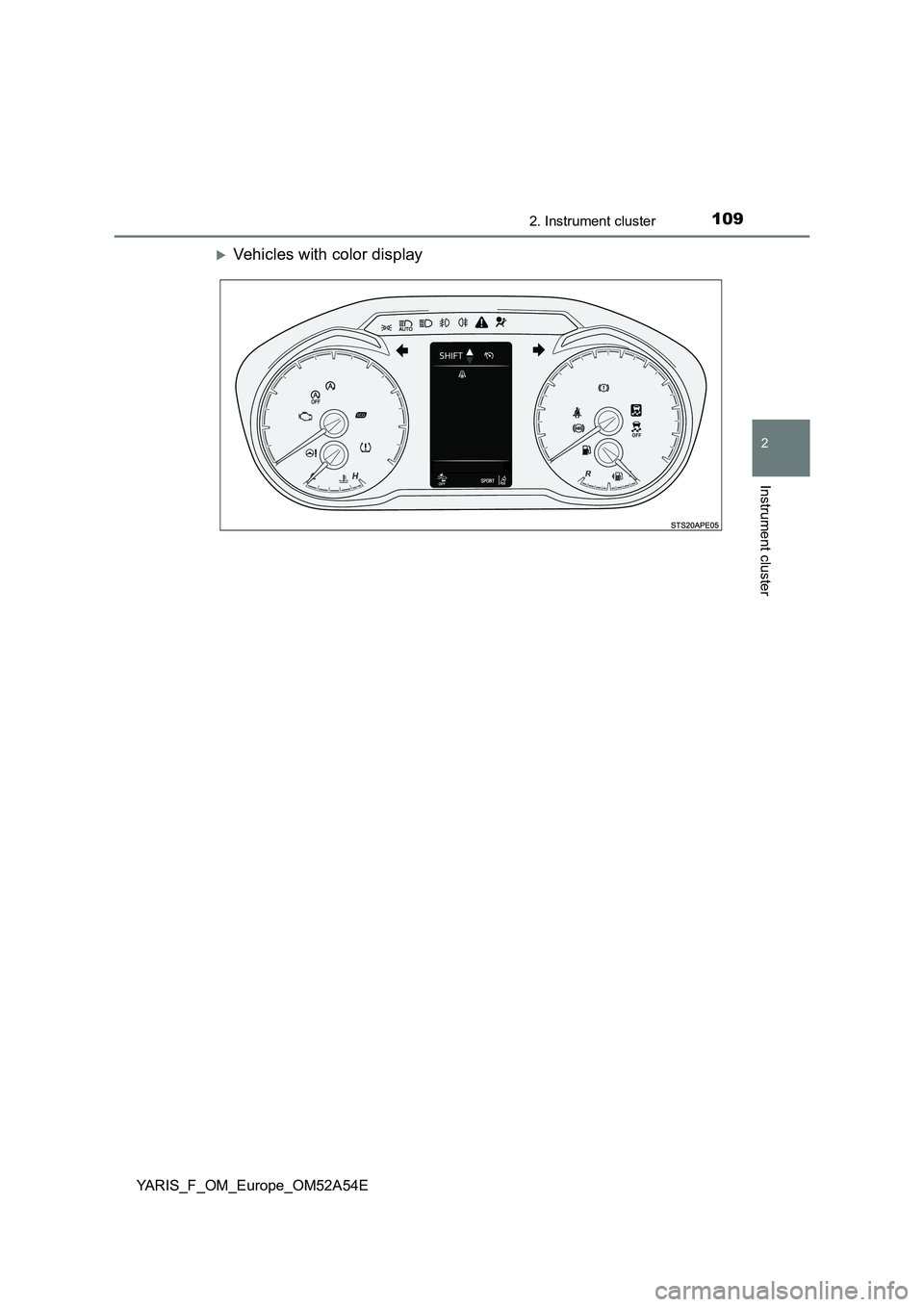

1102. Instrument cluster
YARIS_F_OM_Europe_OM52A54E

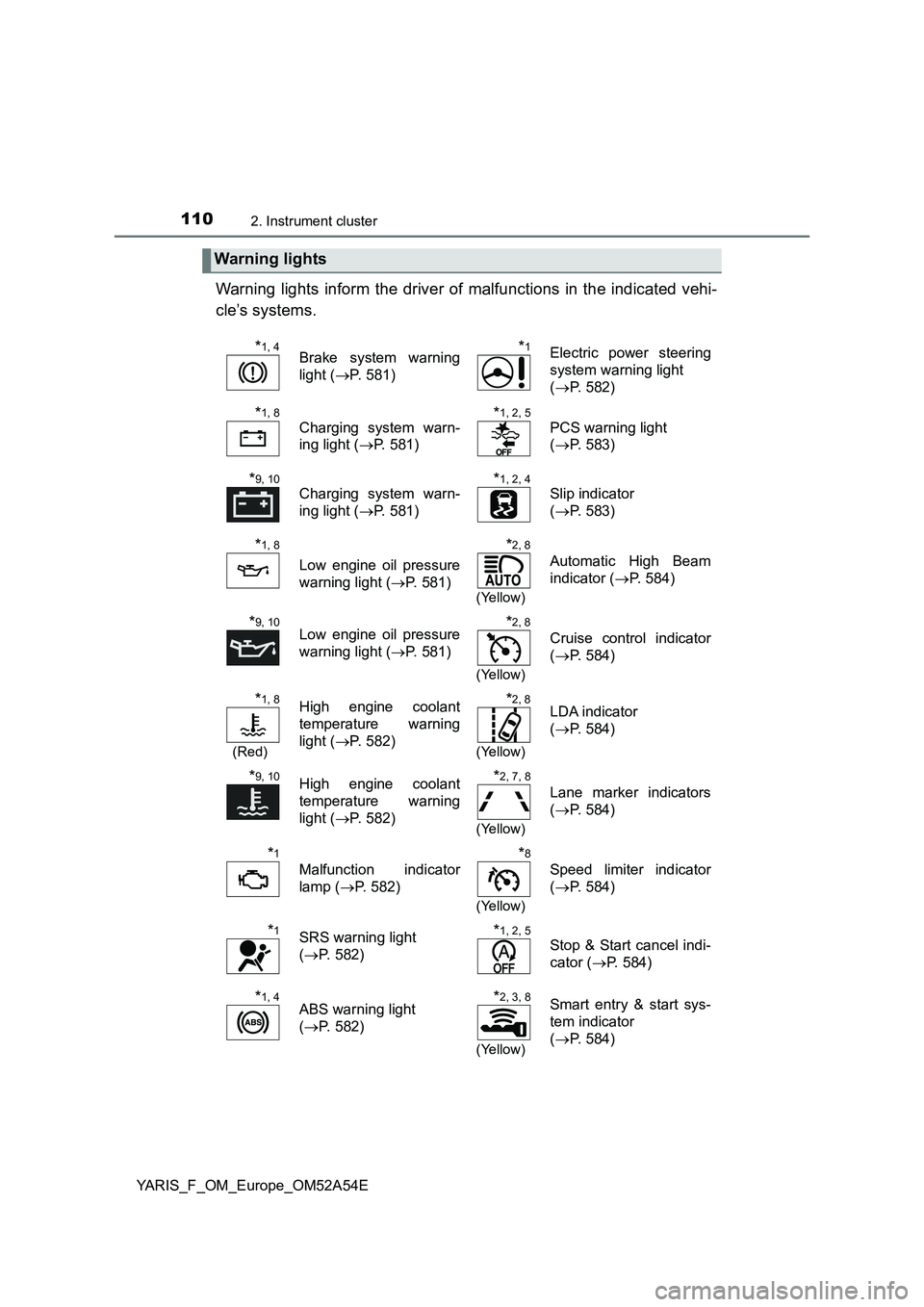

Warning lights inform the driver of malfunctions in the indicated vehi-
cle’s systems.
Warning lights
*1, 4Brake system warning
light ( P. 581)
*1Electric power steering
system warning light
( P. 582)
*1, 8
Charging system warn-
ing light ( P. 581)
*1, 2, 5
PCS warning light
( P. 583)
*9, 10
Charging system warn-
ing light ( P. 581)
*1, 2, 4
Slip indicator
( P. 583)
*1, 8
Low engine oil pressure
warning light ( P. 581)
*2, 8
(Yellow)
Automatic High Beam
indicator ( P. 584)
*9, 10Low engine oil pressure
warning light ( P. 581)
*2, 8
(Yellow)
Cruise control indicator
( P. 584)
*1, 8
(Red)
High engine coolant
temperature warning
light ( P. 582)
*2, 8
(Yellow)
LDA indicator
( P. 584)
*9, 10High engine coolant
temperature warning
light ( P. 582)
*2, 7, 8
(Yellow)
Lane marker indicators
( P. 584)
*1
Malfunction indicator
lamp ( P. 582)
*8
(Yellow)
Speed limiter indicator
( P. 584)
*1SRS warning light
( P. 582)
*1, 2, 5
Stop & Start cancel indi-
cator ( P. 584)
*1, 4ABS warning light
( P. 582)
*2, 3, 8
(Yellow)
Smart entry & start sys-
tem indicator
( P. 584)
