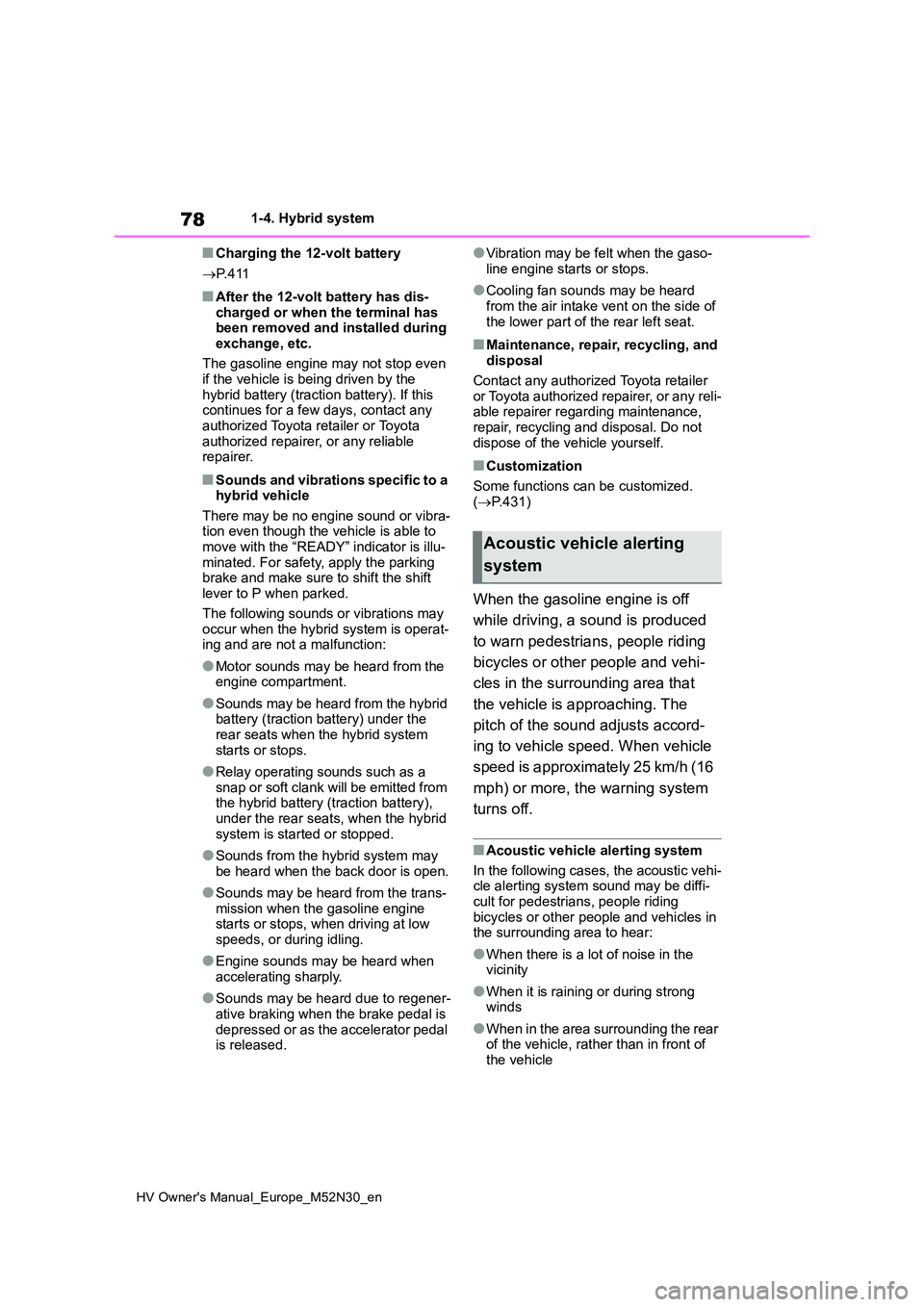

78
HV Owner's Manual_Europe_M52N30_en
1-4. Hybrid system
■Charging the 12-volt battery
 P. 4 1 1
■After the 12-volt battery has dis- charged or when the terminal has been removed and installed during
exchange, etc.
The gasoline engine may not stop even if the vehicle is being driven by the
hybrid battery (traction battery). If this continues for a few days, contact any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer.
■Sounds and vibrations specific to a hybrid vehicle
There may be no engine sound or vibra- tion even though the vehicle is able to move with the “READY” indicator is illu-
minated. For safety, apply the parking brake and make sure to shift the shift lever to P when parked.
The following sounds or vibrations may occur when the hybrid system is operat-ing and are not a malfunction:
●Motor sounds may be heard from the engine compartment.
●Sounds may be heard from the hybrid battery (traction battery) under the
rear seats when the hybrid system starts or stops.
●Relay operating sounds such as a snap or soft clank will be emitted from the hybrid battery (traction battery),
under the rear seats, when the hybrid system is started or stopped.
●Sounds from the hybrid system may be heard when the back door is open.
●Sounds may be heard from the trans-mission when the gasoline engine starts or stops, when driving at low
speeds, or during idling.
●Engine sounds may be heard when
accelerating sharply.
●Sounds may be heard due to regener-
ative braking when the brake pedal is depressed or as the accelerator pedal is released.
●Vibration may be felt when the gaso-
line engine starts or stops.
●Cooling fan sounds may be heard
from the air intake vent on the side of the lower part of the rear left seat.
■Maintenance, repair, recycling, and disposal
Contact any authorized Toyota retailer or Toyota authorized repairer, or any reli-able repairer regarding maintenance,
repair, recycling and disposal. Do not dispose of the vehicle yourself.
■Customization
Some functions can be customized.
( P.431)
When the gasoline engine is off
while driving, a sound is produced
to warn pedestrians, people riding
bicycles or other people and vehi-
cles in the surrounding area that
the vehicle is approaching. The
pitch of the sound adjusts accord-
ing to vehicle speed. When vehicle
speed is approximately 25 km/h (16
mph) or more, the warning system
turns off.
■Acoustic vehicle alerting system
In the following cases, the acoustic vehi- cle alerting system sound may be diffi-
cult for pedestrians, people riding bicycles or other people and vehicles in the surrounding area to hear:
●When there is a lot of noise in the vicinity
●When it is raining or during strong winds
●When in the area surrounding the rear of the vehicle, rather than in front of
the vehicle
Acoustic vehicle alerting
system
