2-1. Instrument cluster
Vehicle status information and indicators
Score result
Eco start status
Eco cruise status
Eco stop status
 How to read the bar display
Not yet evaluated
Low
High
• After the hybrid system is started, the
Eco score will not be displayed until
the vehicle speed exceeds approxi-
mately 20 km/h (12 mph).
• The Eco score will be reset each time
the hybrid system is started.
• When the hybrid system is stopped,
the total score of the current trip will
be displayed.
■EV travel time display
EV travel time ratio is displayed
within the overall travel time.
■The ECO Accelerator Guidance/Eco
score will not operate when
The ECO Accelerator Guidance/Eco score will not operate in the following sit-
uations:
●The Hybrid System Indicator is not
operating.
●The vehicle is being driven using the
dynamic radar cruise control with full- speed range. (if equipped)
■Driving support system infor-
mation
Select to display the operational
status of the following systems:
 LTA (Lane Tracing Assist) (if
equipped) ( P.242)
 Dynamic radar cruise control
with full-speed range (if
equipped) ( P.252)
■Navigation system-linked dis-
play (if equipped)
Select to display the following navi-
gation system-linked information:
 Route guidance to destination (if
equipped)
 Compass display (heading-up
display)
■Route guidance to destination dis-
play
When the route guidance to destination display is enabled on the head-up dis-
play, it will not be displayed on the multi- information display. ( P.119)
Driving support system
information display

110
YARIS CROSS Owner's Manual_Europe_M52K60_en
2-1. Instrument cluster
Select to enable selection of an
audio source or track on the meter
using the meter control switches.
This menu icon can be set to be dis-
played/not displayed in .
■Display items
 Drive information
 Energy monitor (P. 1 2 3 )
 Torque distribution (if equipped)
 Tire inflation pressure
■Drive information
2 items that are selected using the
“Drive Info. Items” setting (average
speed, distance and total time) can
be displayed vertically.
The displayed information changes
according to the “Drive Info. Type”
setting (since the system was
started or between resets).
( P. 1 1 0 )
Use the displayed information as a
reference only.
Following items will be displayed.
 “Trip”
• “Average Speed”: Displays the aver-
age vehicle speed since hybrid sys-
tem start*
• “Distance”: Displays the distance
driven since hybrid system start*
• “Total Time”: Displays the elapsed
time since hybrid system start*
*: These items are reset each time the
hybrid system stops.
 “Total”
• “Average Speed”: Displays the aver-
age vehicle speed since the display
was reset*
• “Distance”: Displays the distance
driven since the display was reset*
• “Total Time”: Displays the elapsed
time since the display was reset*
*: To reset, display the desired item and
press and hold the meter control
switch.
■Torque distribution (if
equipped)
Drive power put on each tire is dis-
played with a bar meter. The larger
the bar meter the larger the driving
power is displayed.
■Tire inflation pressure
Displays inflation pressure of each
tire.
■Meter display settings that can
be changed
 Clock setting (vehicles without
navigation/multimedia system)
 P. 9 8
Language
Select to change the language dis-
played.
 Units
Select to change the units of measure
Audio system-linked dis-
play (if equipped)
Vehicle information display
Settings display

113
2
YARIS CROSS Owner's Manual_Europe_M52K60_en
2-1. Instrument cluster
Vehicle status information and indicators
related information can be displayed.
The multi-information display can also
be used to change display settings and
other vehicle settings.
Warning or advice pop-up displays are
also displayed in certain situations.
■Menu icons
The menu icons will be displayed
by pressing the or meter
control switch.
■When the drive mode is changed
The multi-information display back- ground color changes in accordance to
the drive mode selected. ( P.330)
■Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal displays, and there is no problem continuing to use the display.
The multi-information display is
operated using the meter control
switches.
/ : Select menu icons
/ : Change displayed con-
tent, scroll up/down the screen
and move the cursor up/down
Press: Enter/Set
Press and hold: Reset/Display
customizable items
Return to the previous screen
Call sending/receiving and his-
tory display
Linked with the hands-free system,
sending or receiving call is displayed.
For details regarding the hands-free
system, refer to the “Navigation and
Driving information display
( P.114)
Driving support system infor-
mation display (if equipped)
( P.116)
Audio system-linked display
(if equipped) ( P. 1 1 6 )
Vehicle information display
( P.116)
Settings display ( P. 1 1 7 )
Warning message display
( P.449)
WARNING
■Caution for use while driving
●When operating the multi-informa- tion display while driving, pay extra
attention to the safety of the area around the vehicle.
●Do not look continuously at the multi-information display while driv-ing as you may fail to see pedestri-
ans, objects on the road, etc., ahead of the vehicle.
■The information display at low temperatures
 P. 1 0 3
Changing the meter display

116
YARIS CROSS Owner's Manual_Europe_M52K60_en
2-1. Instrument cluster
■EV travel time display
EV travel time ratio is displayed
within the overall travel time.
■The ECO Accelerator Guidance/Eco
score will not operate when
The ECO Accelerator Guidance/Eco score will not operate in the following sit-
uations:
●The Hybrid System Indicator is not
operating.
●The vehicle is being driven using the
dynamic radar cruise control with full- speed range. (if equipped)
■Driving support system infor-
mation
Select to display the operational
status of the following systems:
 LTA (Lane Tracing Assist) (if
equipped) ( P.242)
 Dynamic radar cruise control
with full-speed range (if
equipped) ( P.252)
■Navigation system-linked dis-
play (if equipped)
Select to display the following navi-
gation system-linked information:
 Route guidance to destination (if
equipped)
 Compass display (heading-up
display)
■Route guidance to destination dis-
play
When the route guidance to destination display is enabled on the head-up dis-
play, it will not be displayed on the multi-
information display. ( P.119)
Select to enable selection of an
audio source or track on the meter
using the meter control switches.
This menu icon can be set to be dis-
played/not displayed in .
■Display items
 Drive information
 Energy monitor (P.123)
 Torque distribution (if equipped)
 Tire inflation pressure
■Drive information
2 items that are selected using the
“Drive Info. Items” setting (average
speed, distance and total time) can
be displayed vertically.
The displayed information changes
according to the “Drive Info. Type”
setting (since the system was
started or between resets).
( P. 1 1 7 )
Use the displayed information as a
reference only.
Following items will be displayed.
 “Trip”
• “Average Speed”: Displays the aver-
age vehicle speed since hybrid sys-
tem start*
• “Distance”: Displays the distance
Driving support system
information display
Audio system-linked dis-
play (if equipped)
Vehicle information display

117
2
YARIS CROSS Owner's Manual_Europe_M52K60_en
2-1. Instrument cluster
Vehicle status information and indicators
driven since hybrid system start*
• “Total Time”: Displays the elapsed
time since hybrid system start*
*: These items are reset each time the
hybrid system stops.
 “Total”
• “Average Speed”: Displays the aver-
age vehicle speed since the display
was reset*
• “Distance”: Displays the distance
driven since the display was reset*
• “Total Time”: Displays the elapsed
time since the display was reset*
*: To reset, display the desired item and
press and hold the meter control
switch.
■Torque distribution (if
equipped)
Drive power put on each tire is dis-
played with a bar meter. The larger
the bar meter the larger the driving
power is displayed.
■Tire inflation pressure
Displays inflation pressure of each
tire.
■Meter display settings that can
be changed
 Clock setting (vehicles without
navigation/multimedia system)
 P. 1 0 4
Language
Select to change the language dis-
played.
 Units
Select to change the units of measure
displayed.
 Meter Type
The speed meter display method can
be changed.
 EV indicator
Select to enable/disable the EV indica-
tor.

Select to change the displayed content
of the following:
• Hybrid System Indicator
Select to display/not display the Eco
Accelerator Guidance. ( P. 1 1 4 )
• Fuel economy display
Select to change the average fuel con-
sumption display between after
start/after reset/after refuel. ( P.114)
 (if equipped)
Select to display/not display the audio
system linked display.

Select to change the displayed content
of the following:
• Display contents
Select to display/not display the energy
monitor/torque distribution display.
( P.123)
• Drive information type
Select to change the drive information
type display between after start/after
reset.
• Drive information items
Select to set the first and second items
of the drive information display to any of
Settings display

119
2
YARIS CROSS Owner's Manual_Europe_M52K60_en
2-1. Instrument cluster
Vehicle status information and indicators
*: If equipped
Illustrations used in this text are intended as examples, and m ay differ from the
image that is actually displayed by the head-up display.
Driving support system status (if equipped)/navigation system-l inked
display area (if equipped) ( P. 1 2 1 )
Shift position display/RSA (Road Sign Assist) display area (if equipped)
( P.197, 266)
Vehicle speed display
Hybrid System Indicator/Tachometer/Outside temperature display area
( P.122)
■Head-up display will operate when
The power switch is in ON.
■When using the head-up display
The head-up display may seem dark or hard to see when viewed through sun-
glasses, especially polarized sun-
glasses. Adjust the brightness of the head-up display or remove your sun-glasses.
Head-up display*

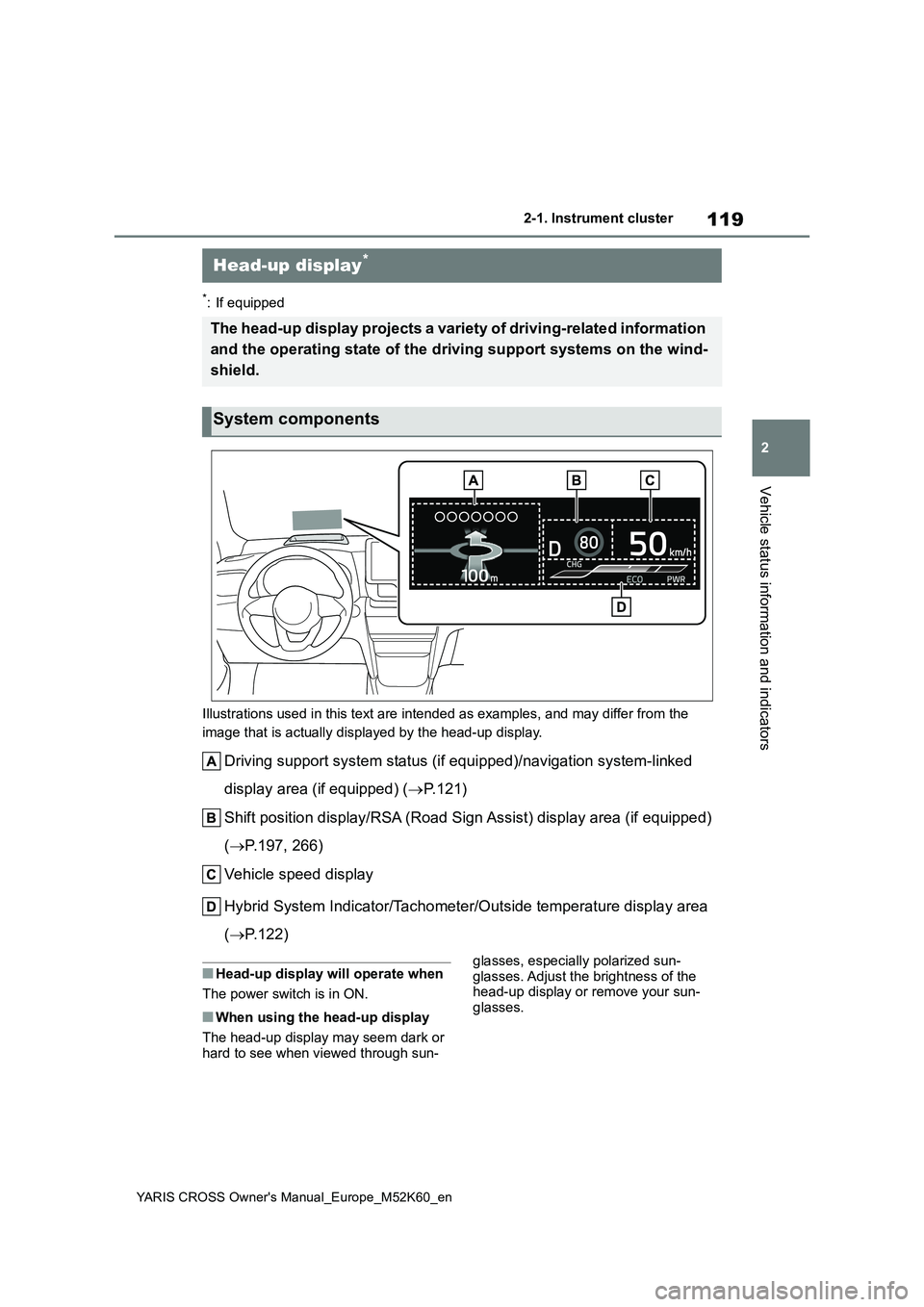

The head-up display projects a variety of driving-related infor mation
and the operating state of the d riving support systems on the wind-
shield.
System components

120
YARIS CROSS Owner's Manual_Europe_M52K60_en
2-1. Instrument cluster
■Street name display (vehicles with
navigation system)
Only street names which are included in the map data will be displayed.Select on the multi-information
display ( P.498) and then “HUD
Main”.
■Enabling/disabling the head-
up display
Press the meter control switch
to enable/disable the head-up dis-
play.

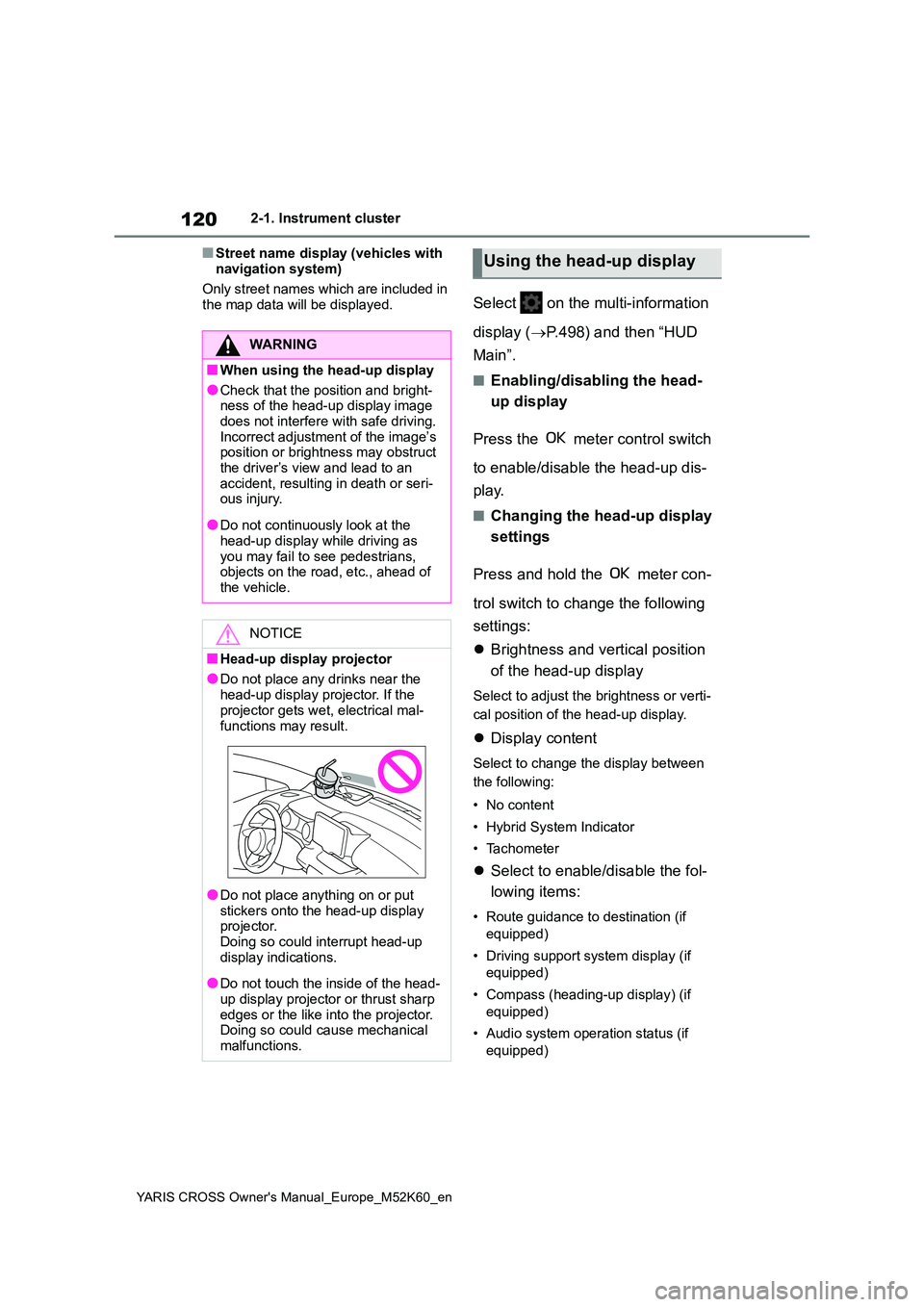

■Changing the head-up display
settings
Press and hold the meter con-
trol switch to change the following
settings:
 Brightness and vertical position
of the head-up display
Select to adjust the brightness or verti-
cal position of the head-up display.
 Display content
Select to change the display between
the following:
• No content
• Hybrid System Indicator
• Tachometer
 Select to enable/disable the fol-
lowing items:
• Route guidance to destination (if
equipped)
• Driving support system display (if
equipped)
• Compass (heading-up display) (if
equipped)
• Audio system operation status (if
equipped)
WARNING
■When using the head-up display
●Check that the position and bright- ness of the head-up display image
does not interfere with safe driving. Incorrect adjustment of the image’s position or brightness may obstruct
the driver’s view and lead to an accident, resulting in death or seri-ous injury.
●Do not continuously look at the head-up display while driving as
you may fail to see pedestrians, objects on the road, etc., ahead of the vehicle.
NOTICE
■Head-up display projector
●Do not place any drinks near the
head-up display projector. If the projector gets wet, electrical mal-
functions may result.
●Do not place anything on or put
stickers onto the head-up display projector. Doing so could interrupt head-up
display indications.
●Do not touch the inside of the head-
up display projector or thrust sharp edges or the like into the projector. Doing so could cause mechanical
malfunctions.
Using the head-up display

121
2
YARIS CROSS Owner's Manual_Europe_M52K60_en
2-1. Instrument cluster
Vehicle status information and indicators

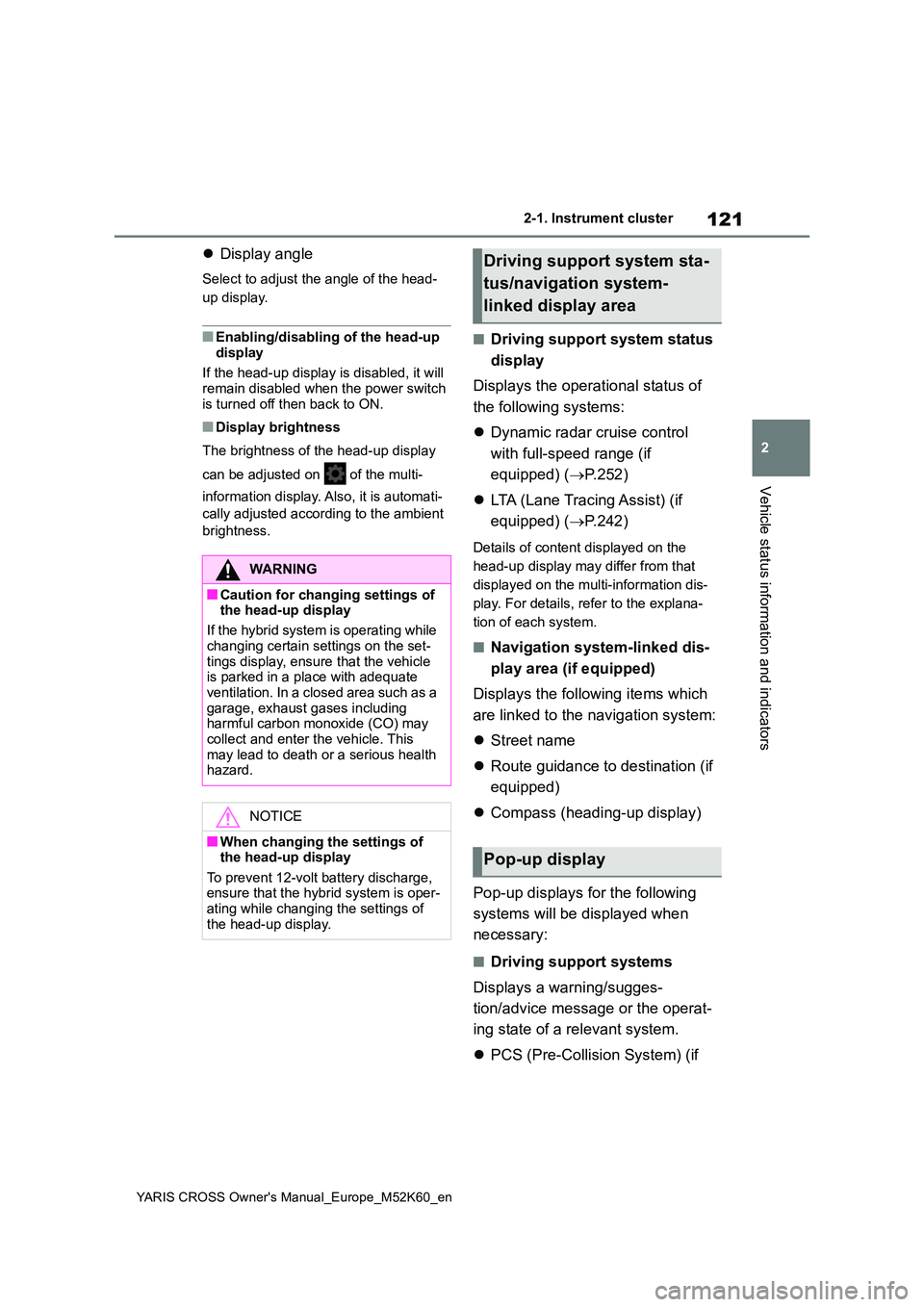

Display angle
Select to adjust the angle of the head-
up display.
■Enabling/disabling of the head-up
display
If the head-up display is disabled, it will remain disabled when the power switch
is turned off then back to ON.
■Display brightness
The brightness of the head-up display
can be adjusted on of the multi-
information display. Also, it is automati-
cally adjusted according to the ambient
brightness.
■Driving support system status
display
Displays the operational status of
the following systems:
 Dynamic radar cruise control
with full-speed range (if
equipped) ( P.252)
 LTA (Lane Tracing Assist) (if
equipped) ( P.242)
Details of content displayed on the
head-up display may differ from that
displayed on the multi-information dis-
play. For details, refer to the explana-
tion of each system.
■Navigation system-linked dis-
play area (if equipped)
Displays the following items which
are linked to the navigation system:
 Street name
 Route guidance to destination (if
equipped)
 Compass (heading-up display)
Pop-up displays for the following
systems will be displayed when
necessary:
■Driving support systems
Displays a warning/sugges-
tion/advice message or the operat-
ing state of a relevant system.
 PCS (Pre-Collision System) (if
WARNING
■Caution for changing settings of the head-up display
If the hybrid system is operating while
changing certain settings on the set- tings display, ensure that the vehicle is parked in a place with adequate
ventilation. In a closed area such as a garage, exhaust gases including harmful carbon monoxide (CO) may
collect and enter the vehicle. This may lead to death or a serious health hazard.
NOTICE
■When changing the settings of the head-up display
To prevent 12-volt battery discharge, ensure that the hybrid system is oper-ating while changing the settings of
the head-up display.
Driving support system sta-
tus/navigation system-
linked display area
Pop-up display

123
2
YARIS CROSS Owner's Manual_Europe_M52K60_en
2-1. Instrument cluster
Vehicle status information and indicators
■Outside temperature display
●When the ambient temperature is approximately 3°C (37°F) or lower, the low outside temperature indicator will
flash for approximately 10 seconds and the outside temperature display will turn off. In this case, the display
will be displayed again when the out- side temperature becomes approxi-mately 5°C (41°F) or higher.
●In the following situations, the correct outside temperature may not be dis-
played, or the display may take longer than normal to change:• When stopped, or driving at low
speeds (less than 25 km/h [16 mph]) • When the outside temperature has changed suddenly (at the
entrance/exit of a garage, tunnel, etc.)
●When “--” is displayed, the system
may be malfunctioning. Take your vehicle to any authorized Toyota retailer or Toyota authorized repairer,
or any reliable repairer.
*: If equipped
Multimedia system display (if
equipped)
Multi-information display
Meter control switches
The energy monitor can be used to
check the vehicle drive status,
hybrid system operation status and
energy regeneration status.
■Display
Multi-information display
Press / (4.2-inch display) or
/ (7-inch display) of the
Energy monitor/con-
sumption screen*
You can view the status of your
hybrid system on the multi-
information display and the
navigation/multimedia system
display.
System components
Energy monitor

124
YARIS CROSS Owner's Manual_Europe_M52K60_en
2-1. Instrument cluster
meter control switches on the steer-
ing wheel and select , and then
press / (4.2-inch display) or
/ (7-inch display) to select
the energy monitor display.
7-inch/8-inch display multimedia
system
1 Press the “MENU” button.
2 Select “Info” on the “Menu”
screen.
3 Select “ECO” on the “Informa-
tion” screen.*
*: Models with navigation function only
If a screen other than “Energy monitor”
is displayed, select “Energy”.
9-inch display multimedia system
1 Press the “HOME” button.
2 Select “Vehicle” on the “Home”
screen.
If a screen other than “Energy monitor”
is displayed, select “Energy flow”.
■Reading the display
The arrows will appear in accor-
dance with the energy flow. When
there is no energy flow, arrows will
not be displayed.
The color of the arrows will change as
follows
Green: When the hybrid battery (trac-
tion battery) is regenerated or charged.
Yellow: When the hybrid battery (trac-
tion battery) is in use.
Red: When the gasoline engine is in
use.
Multi-information display (4.2-
inch display)
The image shows all the arrows as an
example. The actual display will vary
depending on conditions.
Gasoline engine
Hybrid battery (traction battery)
Front tire
Rear tire*
*: For FF vehicles, the arrows to are
not displayed.
Multi-information display (7-inch
display)
The image shows all the arrows as an
example. The actual display will vary
depending on conditions.
Gasoline engine
Hybrid battery (traction battery)
