display TOYOTA YARIS CROSS 2022 Owners Manual

458
CV Owner's Manual_Europe_M52N20_en
8-2. Customization
Some function settings are changed simultaneously with other functions
being customized. Contact any authorized Toyota retailer or Toy ota autho-
rized repairer, or any reliable repairer for further details.
Settings that can be changed using the 7-inch/8-inch display m ultimedia
system
Settings that can be changed using the multi-information displ ay
Settings that can be changed by any authorized Toyota retailer or Toy ota
authorized repairer, or any reliable repairer
Definition of symbols: O = Available, — = Not available
■Alarm* ( P.77)
*: If equipped
■Gauges, meters and multi-information display (P.85, 89, 94, 100)
Customizable features
FunctionDefault settingCustomized setting
Deactivates the alarm
when the doors are
unlocked using the key or
mechanical key
OffOn——O
Function*1Default settingCustomized setting
Language*2EnglishExcept English*3—O—
Units*2L/100 kmkm/L—O—miles (MPG)*4
Speedometer display*5AnalogDigital—O—
Eco Driving Indicator
Light*4OnOff—O—
Fuel economy display
Total average
(Average fuel
consumption
[after reset])
Trip average (Aver-
age fuel consump-
tion [after start])—O—Tank average (Aver-
age fuel consump-
tion [after refuel])

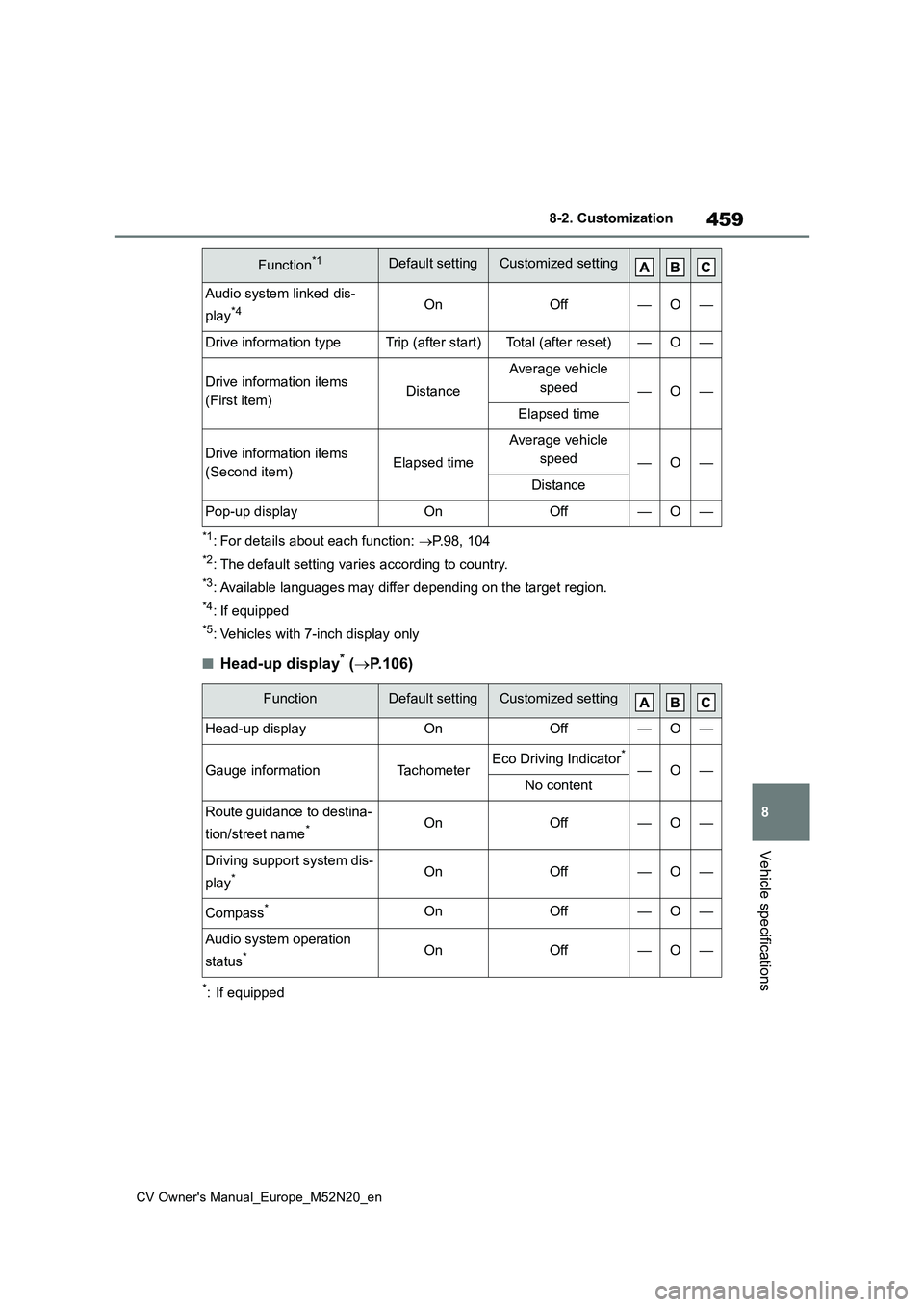

459
8
CV Owner's Manual_Europe_M52N20_en
8-2. Customization
Vehicle specifications
*1: For details about each function: P.98, 104
*2: The default setting varies according to country.
*3: Available languages may differ depending on the target region.
*4: If equipped
*5: Vehicles with 7-inch display only
■Head-up display* (P.106)
*: If equipped
Audio system linked dis-
play*4OnOff—O—
Drive information typeTrip (after start)Total (after reset)—O—
Drive information items
(First item)Distance
Average vehicle
speed—O—
Elapsed time
Drive information items
(Second item)Elapsed time
Average vehicle
speed—O—
Distance
Pop-up displayOnOff—O—
FunctionDefault settingCustomized setting
Head-up displayOnOff—O—
Gauge informationTachometerEco Driving Indicator*
—O—No content
Route guidance to destina-
tion/street name*OnOff—O—
Driving support system dis-
play*OnOff—O—
Compass*OnOff—O—
Audio system operation
status*OnOff—O—
Function*1Default settingCustomized setting

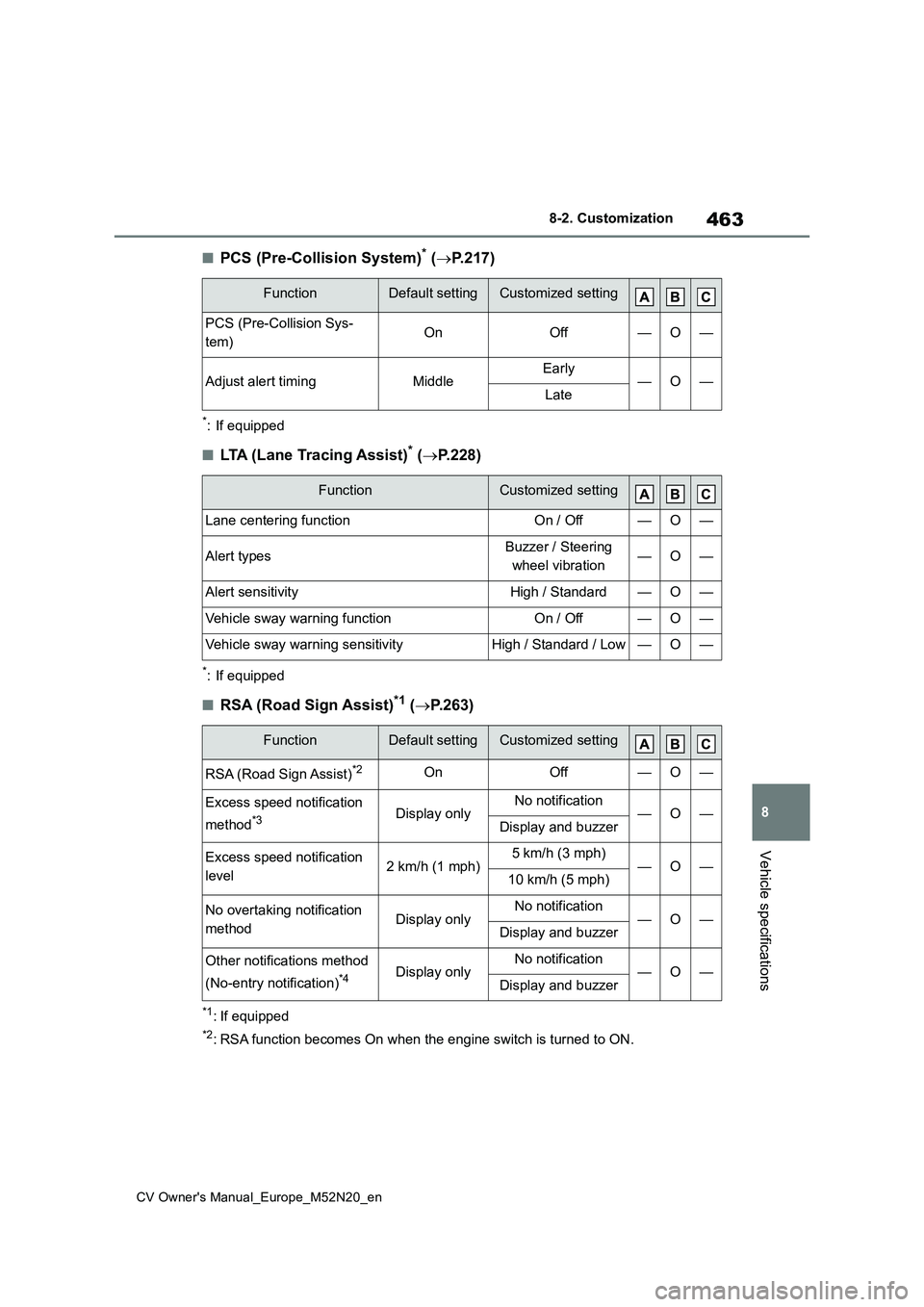

463
8
CV Owner's Manual_Europe_M52N20_en
8-2. Customization
Vehicle specifications
■PCS (Pre-Collision System)* (P.217)
*: If equipped
■LTA (Lane Tracing Assist)* (P.228)
*: If equipped
■RSA (Road Sign Assist)*1 (P.263)
*1: If equipped
*2: RSA function becomes On when the engine switch is turned to ON.
FunctionDefault settingCustomized setting
PCS (Pre-Collision Sys-
tem)OnOff—O—
Adjust alert timingMiddleEarly—O—Late
FunctionCustomized setting
Lane centering functionOn / Off—O—
Alert typesBuzzer / Steering
wheel vibration—O—
Alert sensitivityHigh / Standard—O—
Vehicle sway warning functionOn / Off—O—
Vehicle sway warning sensitivityHigh / Standard / Low—O—
FunctionDefault settingCustomized setting
RSA (Road Sign Assist)*2OnOff—O—
Excess speed notification
method*3Display onlyNo notification—O—Display and buzzer
Excess speed notification
level2 km/h (1 mph)5 km/h (3 mph)—O—10 km/h (5 mph)
No overtaking notification
methodDisplay onlyNo notification—O—Display and buzzer
Other notifications method
(No-entry notification)*4Display onlyNo notification—O—Display and buzzer

464
CV Owner's Manual_Europe_M52N20_en
8-2. Customization
*3: If a speed limit with supplemental mark is exceeded, the notification buzzer does
not operate.
*4: Vehicles with 7-inch/8-inch display navigation system
■Dynamic radar cruise control* ( P.238, 250)
*: If equipped
■Stop & Start system* (P.267)
*: If equipped
■BSM (Blind Spot Monitor)* (P.272)
*: If equipped
■Toyota parking assist-sensor* (P.277)
FunctionDefault settingCustomized setting
Radar Cruise Control with
Road Sign AssistOffOn—O—
FunctionDefault settingCustomized setting
Change the Stop & Start
system duration when the
A/C is on
StandardExtended—O—
FunctionDefault settingCustomized setting
BSM (Blind Spot Monitor)
functionOnOff—O—
Outside rear view mirror
indicator brightnessBrightDim—O—
Alert timing for presence of
approaching vehicle (sensi-
tivity)
Intermediate
Early
—O—Late
Only when vehicle
detected in blind spot
FunctionDefault settingCustomized setting
Toyota parking assist-sen-
sorOnOff—O—
Buzzer volumeLevel 2Level 1—O—Level 3

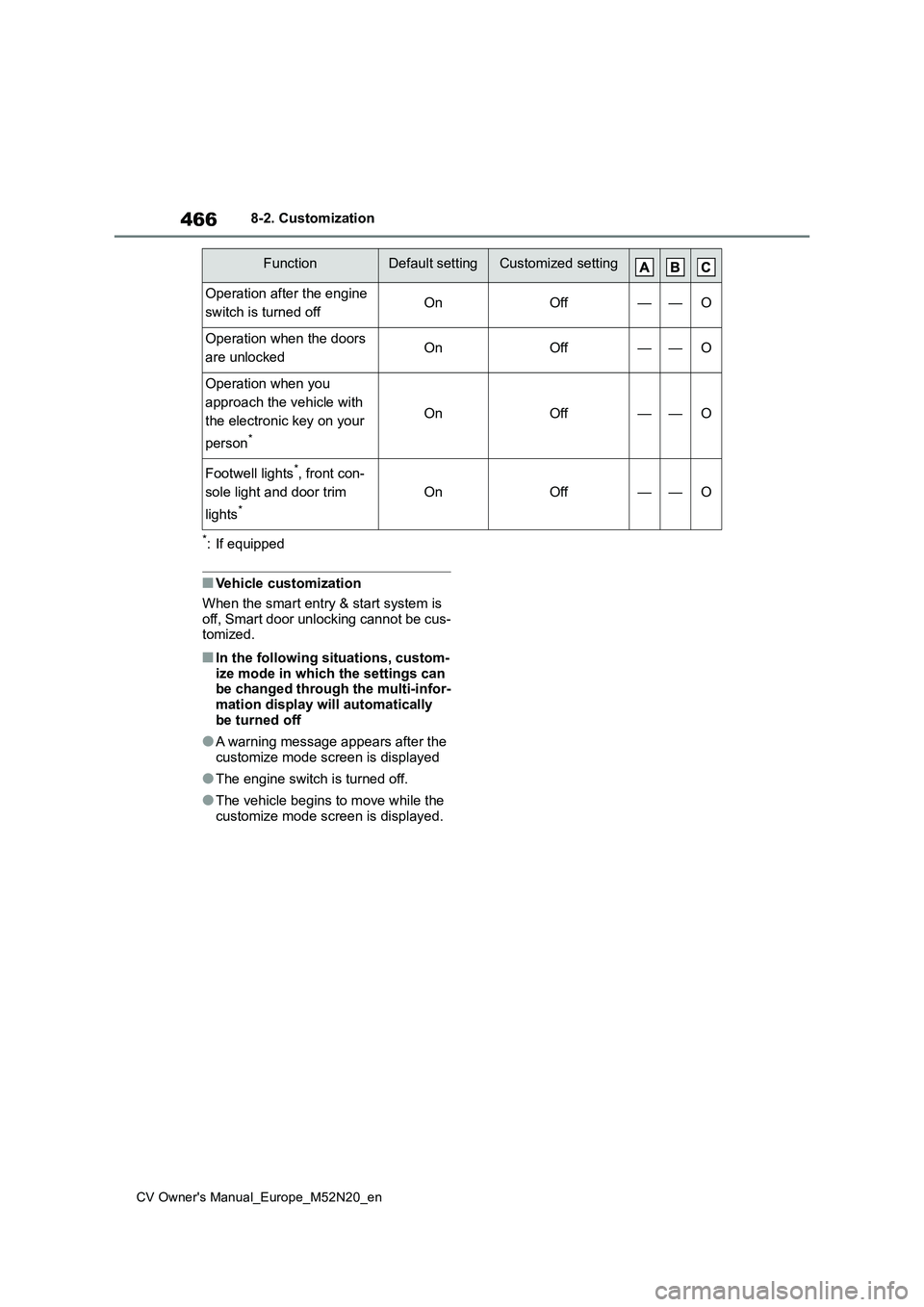

466
CV Owner's Manual_Europe_M52N20_en
8-2. Customization
*: If equipped
■Vehicle customization
When the smart entry & start system is off, Smart door unlocking cannot be cus-tomized.
■In the following situations, custom-
ize mode in which the settings can be changed through the multi-infor-mation display will automatically
be turned off
●A warning message appears after the
customize mode screen is displayed
●The engine switch is turned off.
●The vehicle begins to move while the customize mode screen is displayed.
Operation after the engine
switch is turned offOnOff——O
Operation when the doors
are unlockedOnOff——O
Operation when you
approach the vehicle with
the electronic key on your
person*
OnOff——O
Footwell lights*, front con-
sole light and door trim
lights*
OnOff——O
FunctionDefault settingCustomized setting

472
CV Owner's Manual_Europe_M52N20_en
What to do if... (Troubleshooting)
Is the parking brake released?
( P. 1 8 6)
Depending on the situation, other
types of warning buzzer may also
sound. ( P.403, 413)
 Did anyone inside the vehicle
open a door during setting the
alarm?
The sensor detects it and the alarm
sounds. ( P. 7 7)
Do one of the following to deacti-
vate or stop the alarms:
 Unlock the doors using the entry
function (if equipped) or wireless
remote control.
 Starting the engine. (The alarm
will be deactivated or stopped
after a few seconds.)
 Is the electronic key left inside
the vehicle?
Check the message on the multi-infor-
mation display. ( P.413)
When a warning light turns on or
a warning message is displayed,
refer to P.403, 413.
 Vehicles with an emergency tire
puncture repair kit: Stop the vehi-
cle in a safe place and repair the
flat tire temporarily with the
emergency tire puncture repair
kit. ( P.415)
 Vehicles with spare tire: Stop the
vehicle in a safe place and
replace the flat tire with the spare
tire. ( P.426)
 Try the procedure for when the
vehicle becomes stuck in mud,
dirt, or snow. ( P.444)
An alarm is activated and the
horn sounds (vehicles with
an alarm)
A warning buzzer sounds
when leaving the vehicle
(vehicles with a smart entry
& start system)
A warning light turns on or a
warning message is dis-
played
When a problem has
occurred
If you have a flat tire
The vehicle becomes stuck

473
CV Owner's Manual_Europe_M52N20_en
Alphabetical Index
Alphabetical Index
A
A/C
Air conditioning filter................... 376
Automatic air conditioning system
................................................. 316
Manual air conditioning system.. 312
ABS (Anti-lock Brake System) .... 301
Warning light .............................. 405
ACA (Active Cornering Assist) .... 301
Active Cornering Assist (ACA) .... 301
Adaptive High-beam System ....... 197
AHB (Automatic High Beam) ....... 201
AHS (Adaptive High-beam System)
..................................................... 197
Air conditioning filter ................... 376
Air conditioning system
Air conditioning filter................... 376
Automatic air conditioning system
................................................. 316
Manual air conditioning system.. 312
Airbag manual on-off system ........ 47
Airbags ............................................ 38
Airbag manual on-off system ....... 47
Airbag operating conditions ......... 40
Airbag precautions for your child . 43
Correct driving posture................. 33
Curtain shield airbag operating con-
ditions ........................................ 40
Curtain shield airbag precautions 43
General airbag precautions.......... 43
Locations of airbags ..................... 38
Modification and disposal of airbags
................................................... 45
Side airbag operating conditions.. 40
Side airbag precautions ............... 43
Side and curtain shield airbags oper-
ating conditions.......................... 40
Side and curtain shield airbags pre-
cautions ..................................... 43
SRS airbags ................................. 38
SRS warning light.......................404
Alarm................................................77
Alarm ............................................ 77
Warning buzzer .......................... 403
Antennas (smart entry & start sys-
tem) ..............................................136
Anti-lock Brake System (ABS)..... 301
Warning light .............................. 405
Approach warning ................ 245, 256
Assist grips ...................................338
Audio remote control switches ... 338
Audio system-linked display .97, 103
Automatic air conditioning system
..................................................... 316
Automatic headlight leveling system
..................................................... 193
Automatic High Beam ..................201
Automatic light control system ... 193
Auxiliary box ................................. 329
Average fuel economy ...........96, 101
Average vehicle speed ...........98, 103
B
Back door ...................................... 123
Hands Free Power Back Door ... 128
Power back door ........................ 126
Wireless remote control ............. 126
Back-up light
Replacing light bulbs ..........387, 390
Battery ........................................... 358
Battery checking......................... 358
If the battery is discharged ......... 439
Installing the battery ........... 360, 361
Preparing and checking before win-
ter ............................................. 307
Removing the battery ......... 359, 360
Warning light .............................. 404

475
CV Owner's Manual_Europe_M52N20_en
Alphabetical Index
Display
Dynamic radar cruise control ..... 250
Dynamic radar cruise control with
full-speed range ....................... 238
Head-up display ......................... 106
LTA (Lane-Tracing Assist) .......... 234
Multi-information display ...... 94, 100
Speed limiter .............................. 261
Toyota parking assist-sensor ..... 277
Warning message ...................... 413
Display change button ............. 87, 92
Distance until next engine oil change
................................................. 87, 92
Do-it-yourself maintenance ......... 348
Door
Double locking system ................. 76
Door lock
Back door ................................... 123
Side doors .................................. 119
Smart entry & start system......... 136
Wireless remote control ............. 116
Doors
Back door ................................... 123
Door glasses .............................. 153
Door lock ............................ 119, 123
Open door warning buzzer. 120, 122
Outside rear view mirrors ........... 150
Rear door child-protectors ......... 123
Side doors .................................. 119
Double locking system .................. 76
Drive distance ......................... 98, 103
Drive information .................... 98, 103
Driving ........................................... 158
Break-in tips ............................... 160
Correct driving posture................. 33
Driving mode select switch ........ 299
Procedures................................. 158
Winter drive tips ......................... 307
Driving information display ... 96, 101
Driving range................... 96, 101, 102
Driving support system information
display ...................................97, 103
Dynamic radar cruise control ...... 250
Road Sign Assist (RSA) ............. 257
Warning message ...................... 259
Dynamic radar cruise control with
full-speed range.......................... 238
Road Sign Assist (RSA) ............. 246
Warning message ...................... 248
E
eCall ................................................. 65
“SOS” button ................................ 65
Eco drive mode .............................299
Eco Driving Indicator...... 96, 102, 109
Eco Driving Indicator Light ....96, 102
Elapsed time............................98, 103
Electric Power Steering (EPS) ..... 301
Warning light .............................. 406
Electronic key ............................... 114
Battery-saving function............... 137
If the electronic key does not operate
properly .................................... 437
Replacing the battery ................. 378
Emergency brake signal .............. 301
Emergency flashers...................... 394
Emergency tire puncture ............. 415
Emergency, in case of
If a warning buzzer sounds ........ 403
If a warning light turns on ........... 403
If a warning message is displayed
................................................. 413
If the battery is discharged ......... 439
If the electronic key does not operate
properly .................................... 437
If the engine will not start ........... 435
If the vehicle is trapped in rising
water ........................................395

477
CV Owner's Manual_Europe_M52N20_en
Alphabetical Index
Front turn signal lights ................ 186
Replacing light bulbs .......... 387, 388
Turn signal lever ........................ 186
Wattage ...................................... 455
Fuel ................................................ 210
Capacity ..................................... 450
Fuel gauge ............................. 85, 89
Fuel pump shut off system ......... 402
Information ................................. 456
Refueling .................................... 210
Type ........................................... 450
Warning light .............................. 406
Fuel consumption
Average fuel economy ......... 96, 101
Current fuel consumption ..... 96, 101
Fuel economy ......................... 96, 101
Fuel filler door .............................. 210
Refueling .................................... 210
Fuel gauge ................................ 85, 89
Fuel pump shut off system .......... 402
Fuses ............................................. 381
G
Gauges ...................................... 85, 89
Gear Shift Indicator ...................... 185
Glove box ...................................... 327
GPF (Gasoline Particulate Filter)
system ......................................... 300
H
Hands Free Power Back Door ..... 128
Head restraints ............................. 144
Head-up display ............................ 106
Driving information display area. 106
Driving support system display area
................................................. 108
Eco Driving Indicator .................. 109
Navigation system-linked display
area .......................................... 108
Pop-up display ........................... 108
Settings ...................................... 107
Headlights
Adaptive High-beam System...... 197
Automatic High Beam system .... 201
Extended headlight lighting function
................................................. 194
Light switch ................................ 192
Replacing light bulbs ..................387
Wattage ...................................... 455
Heated steering wheel ..................322
Heaters
Automatic air conditioning system
................................................. 316
Heated steering wheel ............... 322
Heater system ............................ 312
Manual air conditioning system .. 312
Outside rear view mirrors ... 313, 318
Seat heaters ............................... 322
High mounted stoplight
Replacing light bulbs ..................387
Hill-start assist control ................. 301
Hood............................................... 351
Open .......................................... 351
Hooks
Coat hooks ................................. 339
Retaining hooks (floor mat) .......... 32
Horn ............................................... 148
I
Identification
Engine ........................................449
Vehicle........................................448

479
CV Owner's Manual_Europe_M52N20_en
Alphabetical Index
Interior lights list ......................... 324
Luggage compartment light 126, 129
Personal lights ........................... 325
Replacing light bulbs .................. 387
Turn signal lever ........................ 186
Vanity lights ................................ 338
Wattage ...................................... 455
Lock steering column .......... 173, 175
LTA (Lane Tracing Assist) ............ 228
Operation ................................... 228
Warning lights ............................ 407
Warning messages .................... 237
Luggage compartment features .. 329
Auxiliary box............................... 329
Deck board................................. 329
Luggage cover ........................... 330
Luggage compartment light ........ 129
Wattage ...................................... 455
Luggage cover .............................. 330
M
Maintenance
Do-it-yourself maintenance ........ 350
Maintenance data ...................... 448
Maintenance requirements ........ 348
Malfunction indicator lamp .......... 404
Manual air conditioning system .. 312
Manual headlight leveling dial..... 194
Manual transmission .................... 183
Gear Shift Indicator .................... 185
iMT (Intelligent Manual Transmis-
sion) ......................................... 184
Menu icons .............................. 95, 100
Meter
Clock ...................................... 85, 89
Indicators ..................................... 82
Instrument panel light control . 88, 93
Meter control switches ......... 95, 101
Meters ....................................85, 89
Multi-information display ......94, 100
Settings ................................98, 104
Warning lights.............................403
Warning message ...................... 413
Mirrors
Inside rear view mirror................ 149
Outside rear view mirror defoggers
......................................... 313, 318
Outside rear view mirrors ........... 150
Vanity mirrors .............................338
Multi-information display .......94, 100
Audio system-linked display .97, 103
Clock ................................ 87, 88, 93
Cruise control .............................261
Driving information display ...96, 101
Driving support system information
display ................................97, 103
Dynamic radar cruise control ..... 250
Dynamic radar cruise control with
full-speed range .......................238
Eco Driving Indicator ............96, 102
Fuel economy.......................96, 101
LTA (Lane-Tracing Assist) .......... 234
Menu icons ...........................95, 100
Meter control switches .........95, 101
Navigation system-linked display97,
103
Settings ................................98, 104
Stop & Start system information.99,
105
Tire pressure .............................. 364
Toyota parking assist-sensor...... 277
Vehicle information display...98, 103
Warning message ...................... 413
Multidrive ....................................... 179
If the shift lever cannot be shifted
from P ...................................... 180
M mode ...................................... 182
Paddle shift switches..................181
