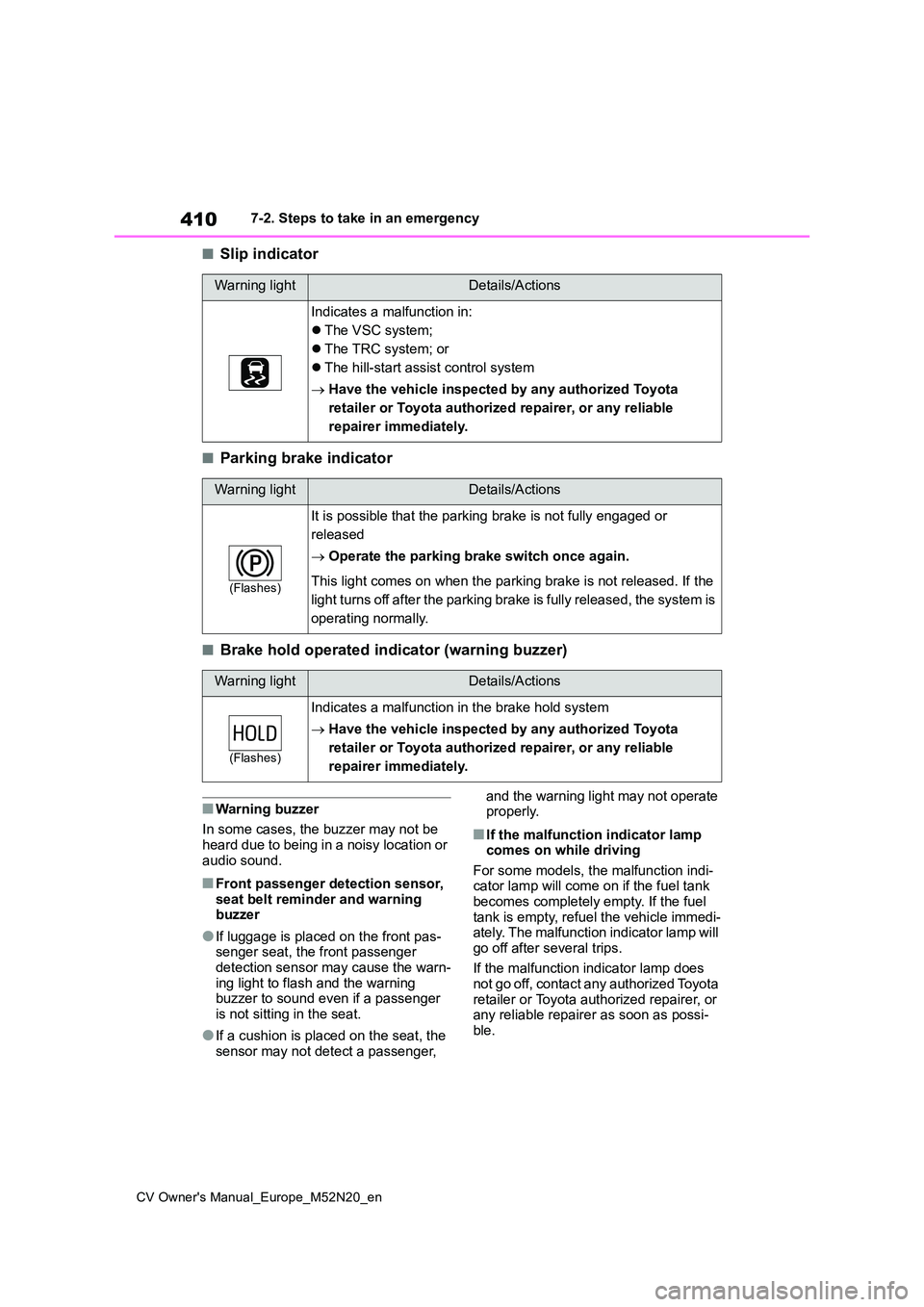

410
CV Owner's Manual_Europe_M52N20_en
7-2. Steps to take in an emergency
■Slip indicator
■Parking brake indicator
■Brake hold operated indicator (warning buzzer)
■Warning buzzer
In some cases, the buzzer may not be heard due to being in a noisy location or
audio sound.
■Front passenger detection sensor, seat belt reminder and warning buzzer
●If luggage is placed on the front pas-senger seat, the front passenger
detection sensor may cause the warn- ing light to flash and the warning buzzer to sound even if a passenger
is not sitting in the seat.
●If a cushion is placed on the seat, the
sensor may not detect a passenger,
and the warning light may not operate properly.
■If the malfunction indicator lamp comes on while driving
For some models, the malfunction indi- cator lamp will come on if the fuel tank becomes completely empty. If the fuel
tank is empty, refuel the vehicle immedi- ately. The malfunction indicator lamp will
go off after several trips.
If the malfunction indicator lamp does not go off, contact any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer as soon as possi-ble.
Warning lightDetails/Actions
Indicates a malfunction in:
 The VSC system;
 The TRC system; or
 The hill-start assist control system
 Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable
repairer immediately.
Warning lightDetails/Actions
(Flashes)
It is possible that the parking brake is not fully engaged or
released
 Operate the parking brake switch once again.
This light comes on when the parking brake is not released. If the
light turns off after the parking brake is fully released, the system is
operating normally.
Warning lightDetails/Actions
(Flashes)
Indicates a malfunction in the brake hold system
 Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable
repairer immediately.

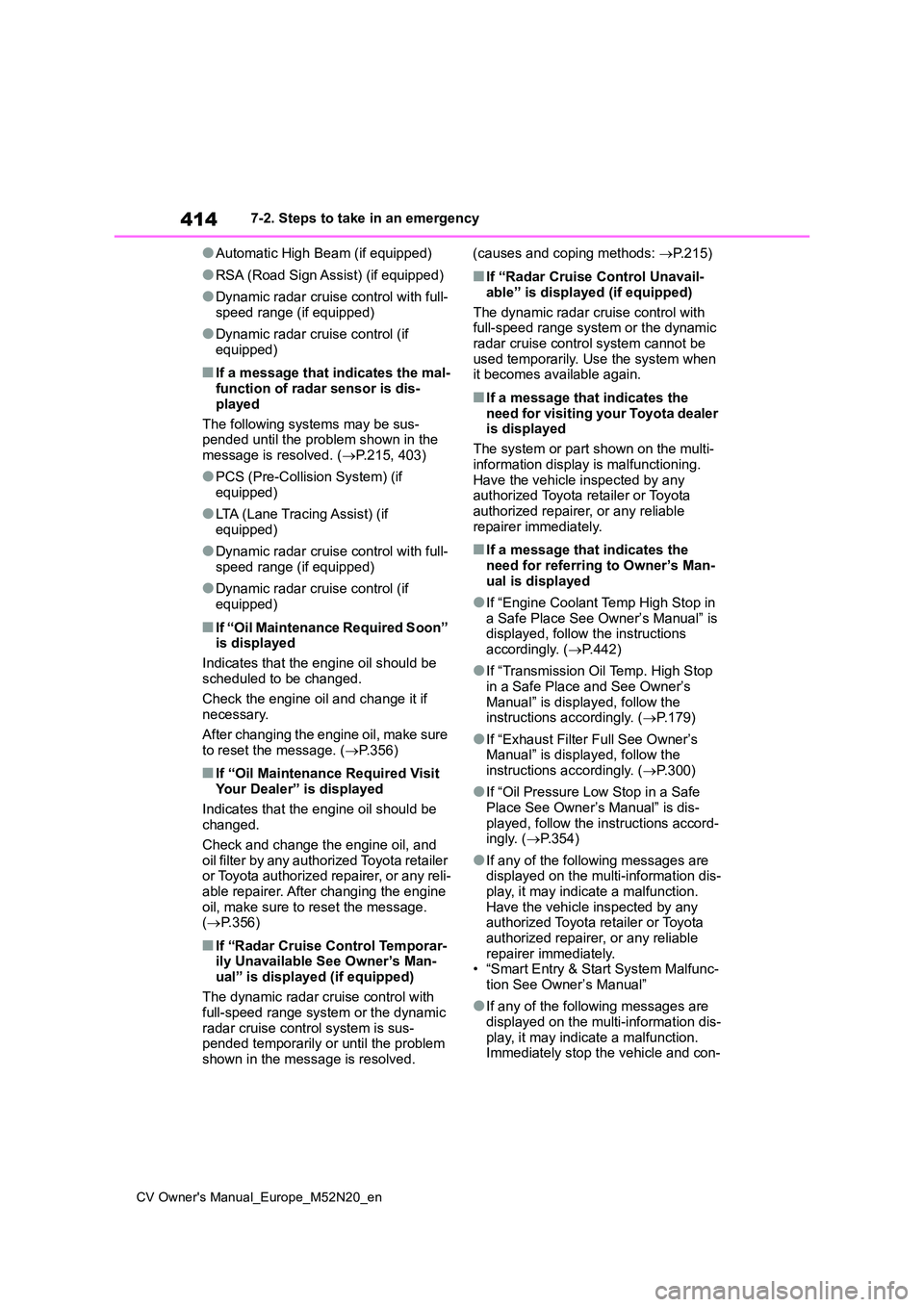

414
CV Owner's Manual_Europe_M52N20_en
7-2. Steps to take in an emergency
●Automatic High Beam (if equipped)
●RSA (Road Sign Assist) (if equipped)
●Dynamic radar cruise control with full- speed range (if equipped)
●Dynamic radar cruise control (if equipped)
■If a message that indicates the mal-function of radar sensor is dis-
played
The following systems may be sus- pended until the problem shown in the
message is resolved. ( P.215, 403)
●PCS (Pre-Collision System) (if
equipped)
●LTA (Lane Tracing Assist) (if
equipped)
●Dynamic radar cruise control with full-
speed range (if equipped)
●Dynamic radar cruise control (if
equipped)
■If “Oil Maintenance Required Soon” is displayed
Indicates that the engine oil should be
scheduled to be changed.
Check the engine oil and change it if necessary.
After changing the engine oil, make sure to reset the message. ( P.356)
■If “Oil Maintenance Required Visit Your Dealer” is displayed
Indicates that the engine oil should be changed.
Check and change the engine oil, and
oil filter by any authorized Toyota retailer or Toyota authorized repairer, or any reli-able repairer. After changing the engine
oil, make sure to reset the message. ( P.356)
■If “Radar Cruise Control Temporar- ily Unavailable See Owner’s Man-
ual” is displayed (if equipped)
The dynamic radar cruise control with full-speed range system or the dynamic
radar cruise control system is sus- pended temporarily or until the problem shown in the message is resolved.
(causes and coping methods: P.215)
■If “Radar Cruise Control Unavail-
able” is displayed (if equipped)
The dynamic radar cruise control with full-speed range system or the dynamic
radar cruise control system cannot be used temporarily. Use the system when it becomes available again.
■If a message that indicates the
need for visiting your Toyota dealer is displayed
The system or part shown on the multi-
information display is malfunctioning. Have the vehicle inspected by any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer immediately.
■If a message that indicates the need for referring to Owner’s Man-
ual is displayed
●If “Engine Coolant Temp High Stop in
a Safe Place See Owner’s Manual” is displayed, follow the instructions accordingly. ( P.442)
●If “Transmission Oil Temp. High Stop in a Safe Place and See Owner’s
Manual” is displayed, follow the instructions accordingly. ( P.179)
●If “Exhaust Filter Full See Owner’s Manual” is displayed, follow the instructions accordingly. ( P.300)
●If “Oil Pressure Low Stop in a Safe Place See Owner’s Manual” is dis-
played, follow the instructions accord- ingly. ( P.354)
●If any of the following messages are displayed on the multi-information dis-play, it may indicate a malfunction.
Have the vehicle inspected by any authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer immediately. • “Smart Entry & Start System Malfunc-tion See Owner’s Manual”
●If any of the following messages are displayed on the multi-information dis-
play, it may indicate a malfunction. Immediately stop the vehicle and con-

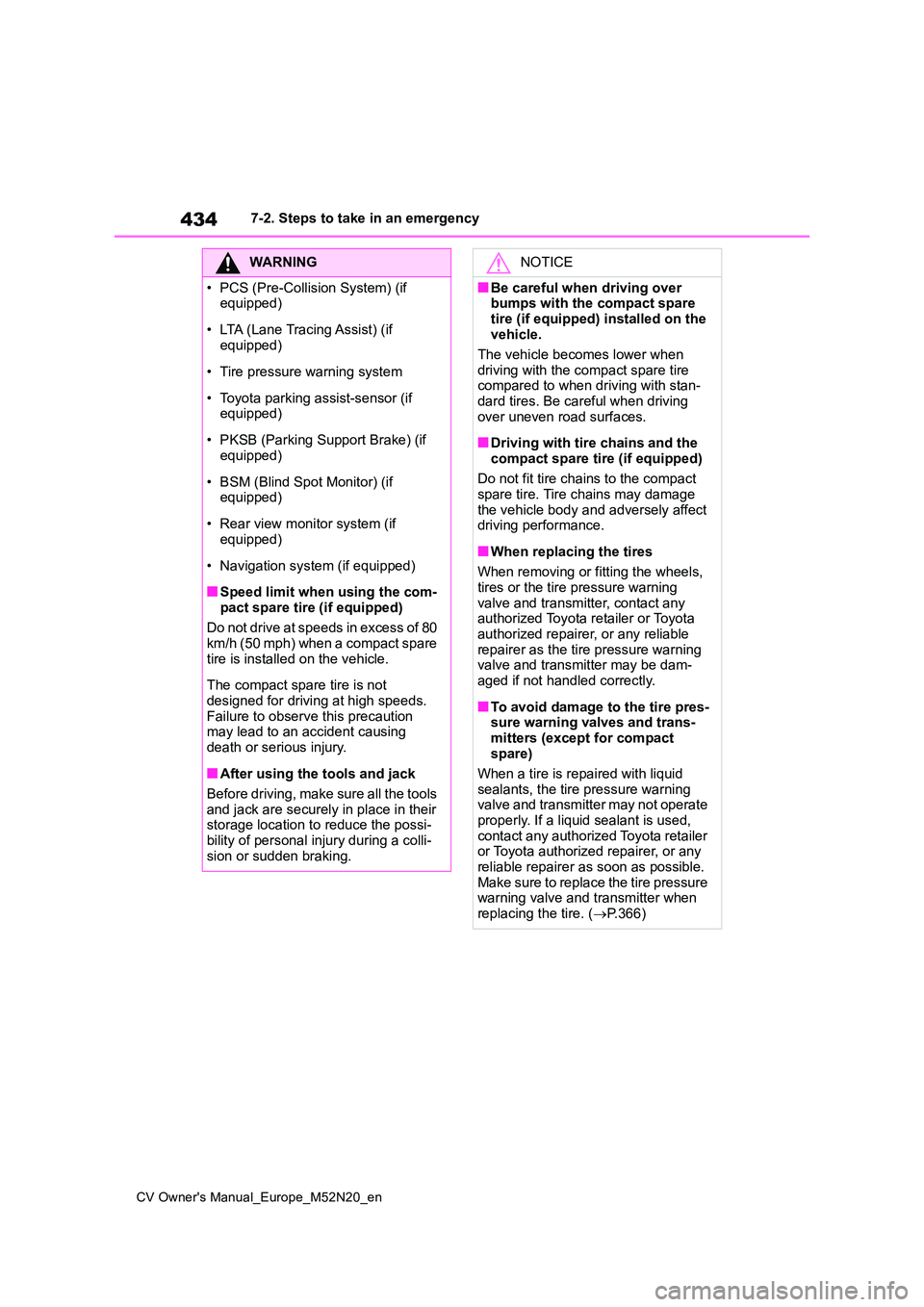

434
CV Owner's Manual_Europe_M52N20_en
7-2. Steps to take in an emergency
WARNING
• PCS (Pre-Collision System) (if equipped)
• LTA (Lane Tracing Assist) (if equipped)
• Tire pressure warning system
• Toyota parking assist-sensor (if equipped)
• PKSB (Parking Support Brake) (if equipped)
• BSM (Blind Spot Monitor) (if equipped)
• Rear view monitor system (if equipped)
• Navigation system (if equipped)
■Speed limit when using the com-
pact spare tire (if equipped)
Do not drive at speeds in excess of 80 km/h (50 mph) when a compact spare
tire is installed on the vehicle.
The compact spare tire is not
designed for driving at high speeds. Failure to observe this precaution may lead to an accident causing
death or serious injury.
■After using the tools and jack
Before driving, make sure all the tools and jack are securely in place in their storage location to reduce the possi-
bility of personal injury during a colli- sion or sudden braking.
NOTICE
■Be careful when driving over bumps with the compact spare
tire (if equipped) installed on the vehicle.
The vehicle becomes lower when
driving with the compact spare tire compared to when driving with stan-dard tires. Be careful when driving
over uneven road surfaces.
■Driving with tire chains and the
compact spare tire (if equipped)
Do not fit tire chains to the compact spare tire. Tire chains may damage
the vehicle body and adversely affect driving performance.
■When replacing the tires
When removing or fitting the wheels, tires or the tire pressure warning
valve and transmitter, contact any authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer as the tire pressure warning valve and transmitter may be dam-aged if not handled correctly.
■To avoid damage to the tire pres-sure warning valves and trans-
mitters (except for compact spare)
When a tire is repaired with liquid
sealants, the tire pressure warning valve and transmitter may not operate properly. If a liquid sealant is used,
contact any authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer as soon as possible.
Make sure to replace the tire pressure warning valve and transmitter when replacing the tire. ( P.366)

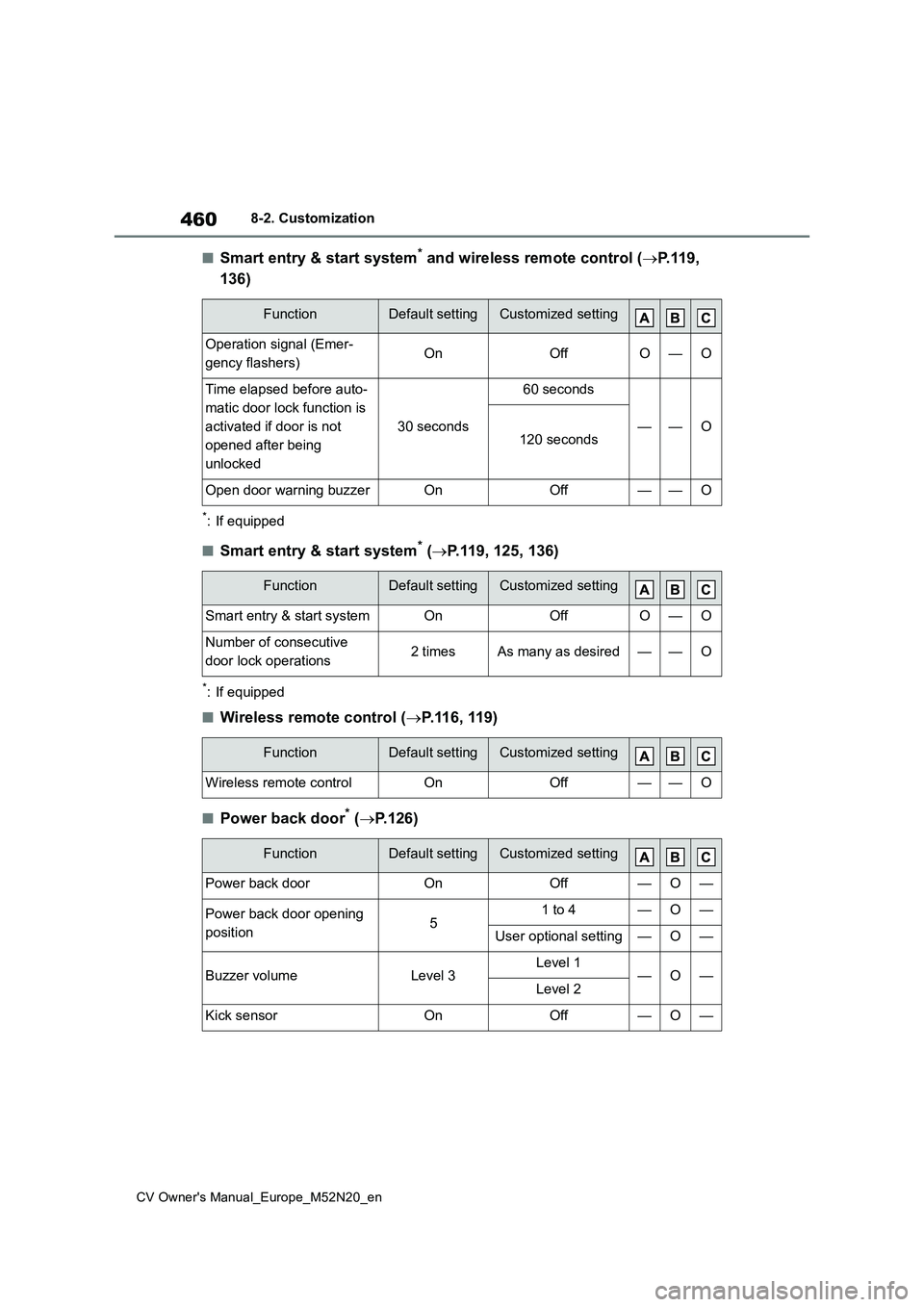

460
CV Owner's Manual_Europe_M52N20_en
8-2. Customization
■Smart entry & start system* and wireless remote control (P.119,
136)
*: If equipped
■Smart entry & start system* ( P.119, 125, 136)
*: If equipped
■Wireless remote control (P.116, 119)
■Power back door* (P.126)
FunctionDefault settingCustomized setting
Operation signal (Emer-
gency flashers)OnOffO—O
Time elapsed before auto-
matic door lock function is
activated if door is not
opened after being
unlocked
30 seconds
60 seconds
——O120 seconds
Open door warning buzzerOnOff——O
FunctionDefault settingCustomized setting
Smart entry & start systemOnOffO—O
Number of consecutive
door lock operations2 timesAs many as desired——O
FunctionDefault settingCustomized setting
Wireless remote controlOnOff——O
FunctionDefault settingCustomized setting
Power back doorOnOff—O—
Power back door opening
position51 to 4—O—
User optional setting—O—
Buzzer volumeLevel 3Level 1—O—Level 2
Kick sensorOnOff—O—

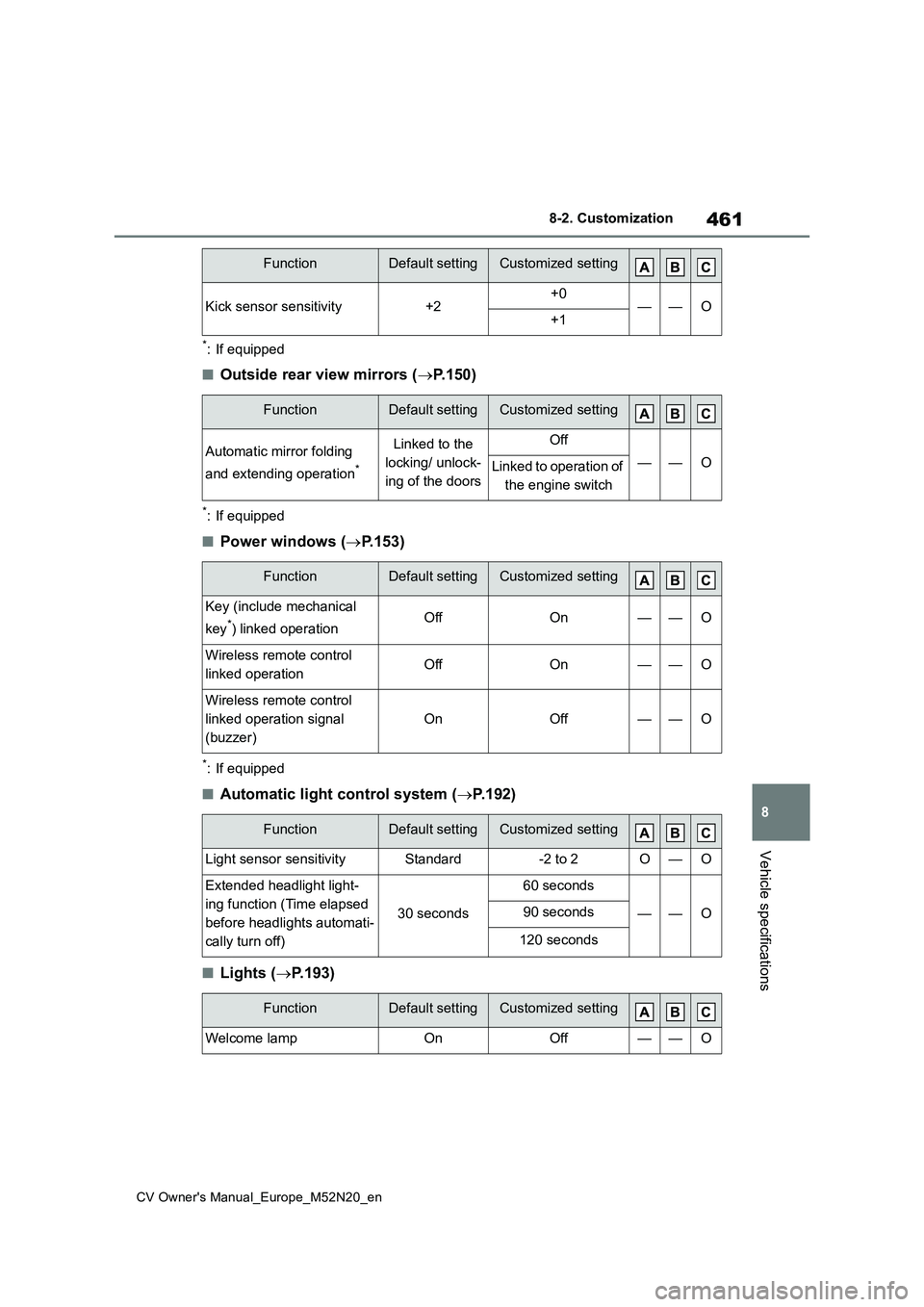

461
8
CV Owner's Manual_Europe_M52N20_en
8-2. Customization
Vehicle specifications
*: If equipped
■Outside rear view mirrors (P.150)
*: If equipped
■Power windows (P.153)
*: If equipped
■Automatic light control system (P.192)
■Lights (P.193)
Kick sensor sensitivity+2+0——O+1
FunctionDefault settingCustomized setting
Automatic mirror folding
and extending operation*
Linked to the
locking/ unlock-
ing of the doors
Off
——OLinked to operation of
the engine switch
FunctionDefault settingCustomized setting
Key (include mechanical
key*) linked operationOffOn——O
Wireless remote control
linked operationOffOn——O
Wireless remote control
linked operation signal
(buzzer)
OnOff——O
FunctionDefault settingCustomized setting
Light sensor sensitivityStandard-2 to 2O—O
Extended headlight light-
ing function (Time elapsed
before headlights automati-
cally turn off)
30 seconds
60 seconds
——O90 seconds
120 seconds
FunctionDefault settingCustomized setting
Welcome lampOnOff——O
FunctionDefault settingCustomized setting

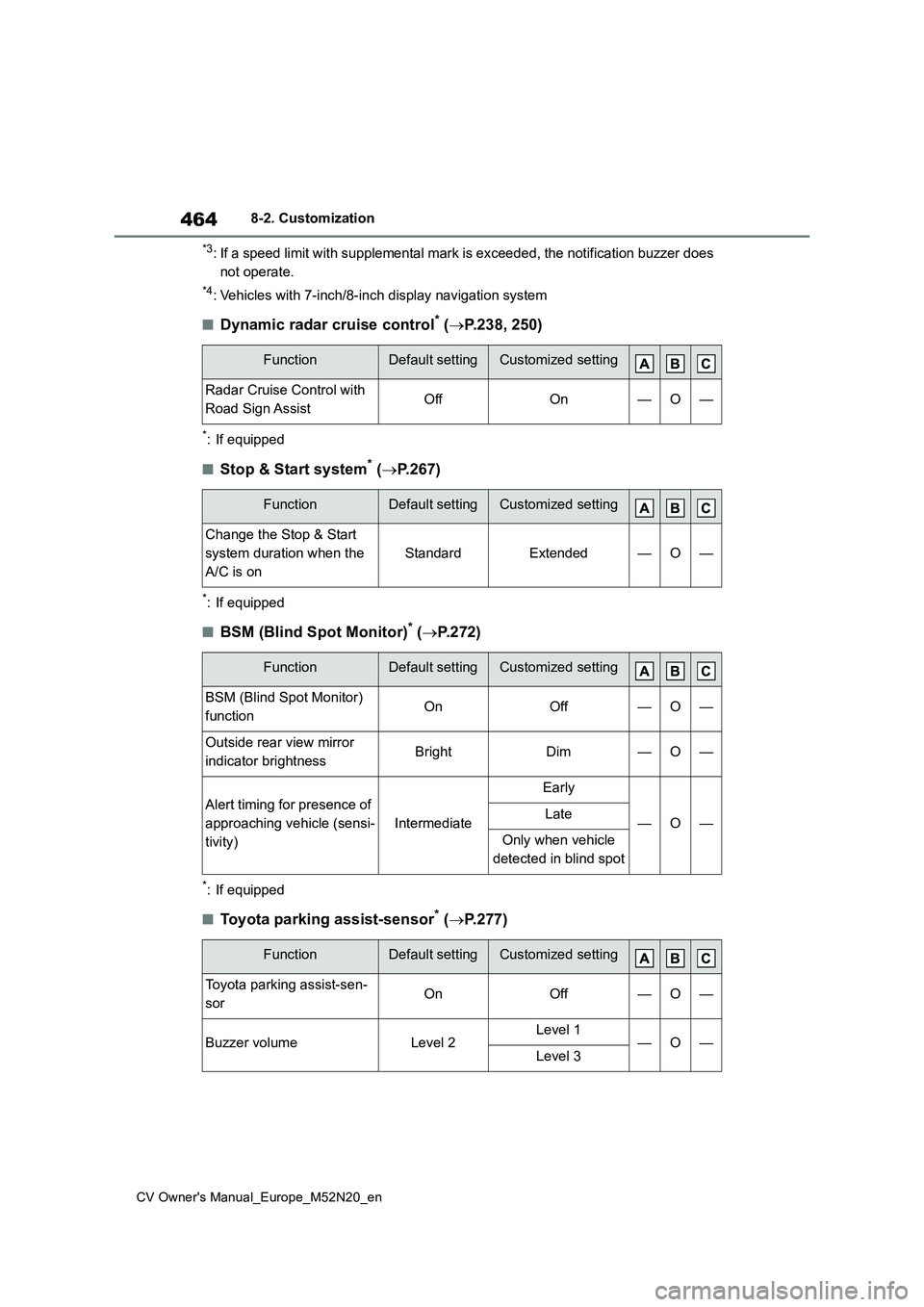

464
CV Owner's Manual_Europe_M52N20_en
8-2. Customization
*3: If a speed limit with supplemental mark is exceeded, the notification buzzer does
not operate.
*4: Vehicles with 7-inch/8-inch display navigation system
■Dynamic radar cruise control* ( P.238, 250)
*: If equipped
■Stop & Start system* (P.267)
*: If equipped
■BSM (Blind Spot Monitor)* (P.272)
*: If equipped
■Toyota parking assist-sensor* (P.277)
FunctionDefault settingCustomized setting
Radar Cruise Control with
Road Sign AssistOffOn—O—
FunctionDefault settingCustomized setting
Change the Stop & Start
system duration when the
A/C is on
StandardExtended—O—
FunctionDefault settingCustomized setting
BSM (Blind Spot Monitor)
functionOnOff—O—
Outside rear view mirror
indicator brightnessBrightDim—O—
Alert timing for presence of
approaching vehicle (sensi-
tivity)
Intermediate
Early
—O—Late
Only when vehicle
detected in blind spot
FunctionDefault settingCustomized setting
Toyota parking assist-sen-
sorOnOff—O—
Buzzer volumeLevel 2Level 1—O—Level 3

472
CV Owner's Manual_Europe_M52N20_en
What to do if... (Troubleshooting)
Is the parking brake released?
( P. 1 8 6)
Depending on the situation, other
types of warning buzzer may also
sound. ( P.403, 413)
 Did anyone inside the vehicle
open a door during setting the
alarm?
The sensor detects it and the alarm
sounds. ( P. 7 7)
Do one of the following to deacti-
vate or stop the alarms:
 Unlock the doors using the entry
function (if equipped) or wireless
remote control.
 Starting the engine. (The alarm
will be deactivated or stopped
after a few seconds.)
 Is the electronic key left inside
the vehicle?
Check the message on the multi-infor-
mation display. ( P.413)
When a warning light turns on or
a warning message is displayed,
refer to P.403, 413.
 Vehicles with an emergency tire
puncture repair kit: Stop the vehi-
cle in a safe place and repair the
flat tire temporarily with the
emergency tire puncture repair
kit. ( P.415)
 Vehicles with spare tire: Stop the
vehicle in a safe place and
replace the flat tire with the spare
tire. ( P.426)
 Try the procedure for when the
vehicle becomes stuck in mud,
dirt, or snow. ( P.444)
An alarm is activated and the
horn sounds (vehicles with
an alarm)
A warning buzzer sounds
when leaving the vehicle
(vehicles with a smart entry
& start system)
A warning light turns on or a
warning message is dis-
played
When a problem has
occurred
If you have a flat tire
The vehicle becomes stuck

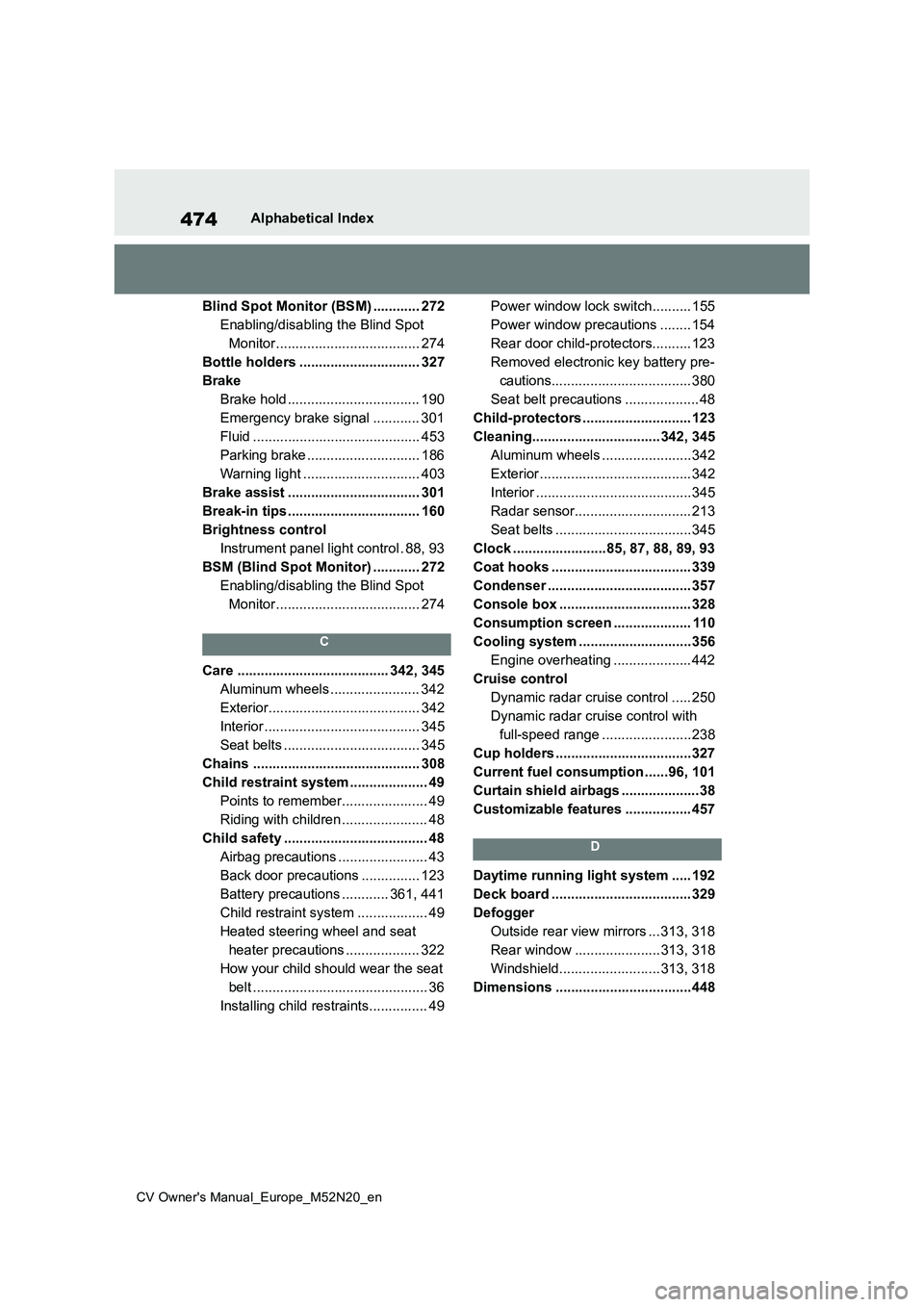

474
CV Owner's Manual_Europe_M52N20_en
Alphabetical Index
Blind Spot Monitor (BSM) ............ 272
Enabling/disabling the Blind Spot
Monitor..................................... 274
Bottle holders ............................... 327
Brake
Brake hold .................................. 190
Emergency brake signal ............ 301
Fluid ........................................... 453
Parking brake ............................. 186
Warning light .............................. 403
Brake assist .................................. 301
Break-in tips .................................. 160
Brightness control
Instrument panel light control . 88, 93
BSM (Blind Spot Monitor) ............ 272
Enabling/disabling the Blind Spot
Monitor..................................... 274
C
Care ....................................... 342, 345
Aluminum wheels ....................... 342
Exterior....................................... 342
Interior ........................................ 345
Seat belts ................................... 345
Chains ........................................... 308
Child restraint system .................... 49
Points to remember...................... 49
Riding with children ...................... 48
Child safety ..................................... 48
Airbag precautions ....................... 43
Back door precautions ............... 123
Battery precautions ............ 361, 441
Child restraint system .................. 49
Heated steering wheel and seat
heater precautions ................... 322
How your child should wear the seat
belt ............................................. 36
Installing child restraints............... 49
Power window lock switch.......... 155
Power window precautions ........ 154
Rear door child-protectors.......... 123
Removed electronic key battery pre-
cautions.................................... 380
Seat belt precautions ................... 48
Child-protectors ............................ 123
Cleaning................................. 342, 345
Aluminum wheels .......................342
Exterior ....................................... 342
Interior ........................................345
Radar sensor.............................. 213
Seat belts ...................................345
Clock ........................85, 87, 88, 89, 93
Coat hooks .................................... 339
Condenser ..................................... 357
Console box .................................. 328
Consumption screen .................... 110
Cooling system .............................356
Engine overheating .................... 442
Cruise control
Dynamic radar cruise control ..... 250
Dynamic radar cruise control with
full-speed range .......................238
Cup holders ...................................327
Current fuel consumption ......96, 101
Curtain shield airbags ....................38
Customizable features ................. 457
D
Daytime running light system ..... 192
Deck board .................................... 329
Defogger
Outside rear view mirrors ... 313, 318
Rear window ...................... 313, 318
Windshield.......................... 313, 318
Dimensions ...................................448

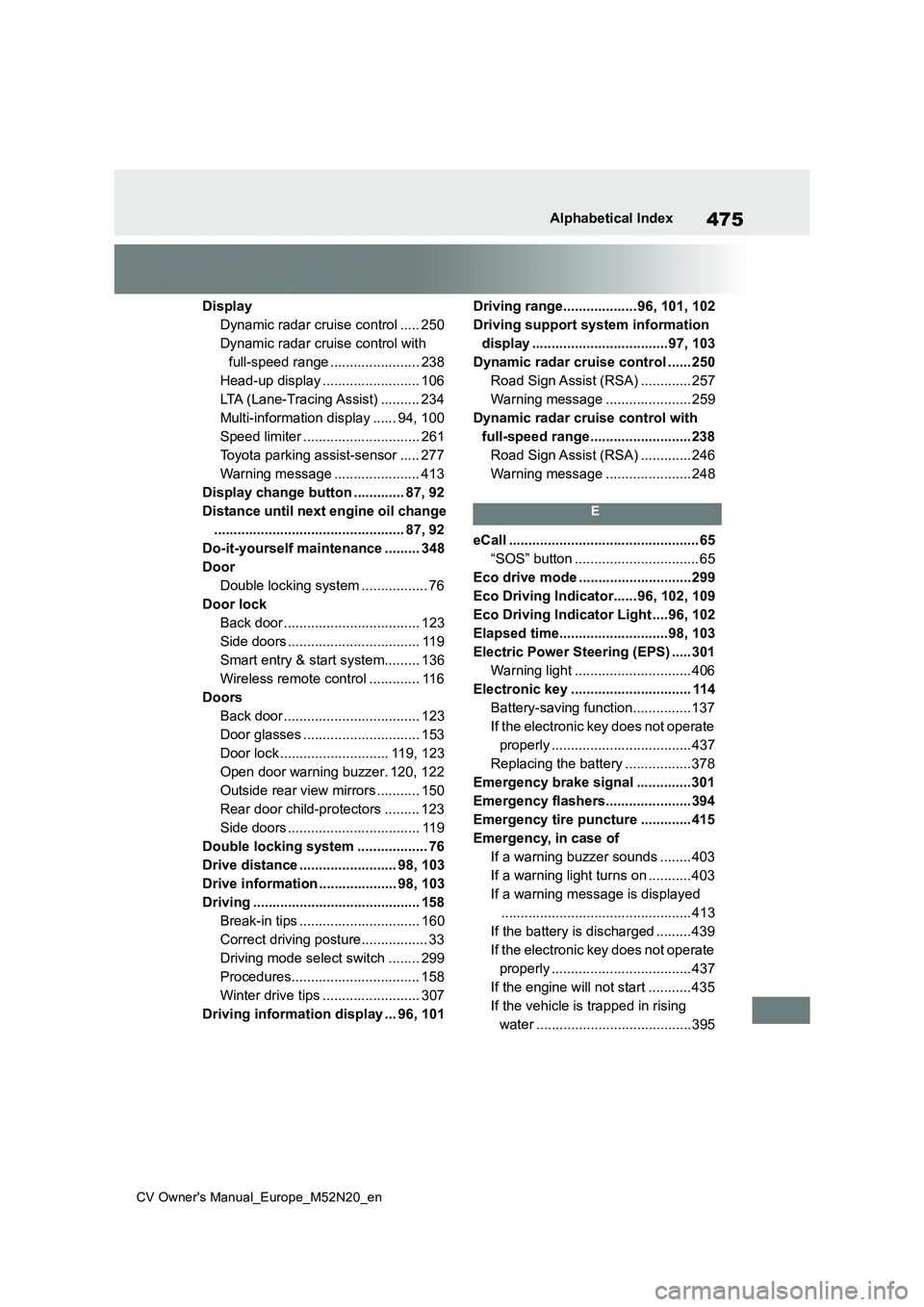

475
CV Owner's Manual_Europe_M52N20_en
Alphabetical Index
Display
Dynamic radar cruise control ..... 250
Dynamic radar cruise control with
full-speed range ....................... 238
Head-up display ......................... 106
LTA (Lane-Tracing Assist) .......... 234
Multi-information display ...... 94, 100
Speed limiter .............................. 261
Toyota parking assist-sensor ..... 277
Warning message ...................... 413
Display change button ............. 87, 92
Distance until next engine oil change
................................................. 87, 92
Do-it-yourself maintenance ......... 348
Door
Double locking system ................. 76
Door lock
Back door ................................... 123
Side doors .................................. 119
Smart entry & start system......... 136
Wireless remote control ............. 116
Doors
Back door ................................... 123
Door glasses .............................. 153
Door lock ............................ 119, 123
Open door warning buzzer. 120, 122
Outside rear view mirrors ........... 150
Rear door child-protectors ......... 123
Side doors .................................. 119
Double locking system .................. 76
Drive distance ......................... 98, 103
Drive information .................... 98, 103
Driving ........................................... 158
Break-in tips ............................... 160
Correct driving posture................. 33
Driving mode select switch ........ 299
Procedures................................. 158
Winter drive tips ......................... 307
Driving information display ... 96, 101
Driving range................... 96, 101, 102
Driving support system information
display ...................................97, 103
Dynamic radar cruise control ...... 250
Road Sign Assist (RSA) ............. 257
Warning message ...................... 259
Dynamic radar cruise control with
full-speed range.......................... 238
Road Sign Assist (RSA) ............. 246
Warning message ...................... 248
E
eCall ................................................. 65
“SOS” button ................................ 65
Eco drive mode .............................299
Eco Driving Indicator...... 96, 102, 109
Eco Driving Indicator Light ....96, 102
Elapsed time............................98, 103
Electric Power Steering (EPS) ..... 301
Warning light .............................. 406
Electronic key ............................... 114
Battery-saving function............... 137
If the electronic key does not operate
properly .................................... 437
Replacing the battery ................. 378
Emergency brake signal .............. 301
Emergency flashers...................... 394
Emergency tire puncture ............. 415
Emergency, in case of
If a warning buzzer sounds ........ 403
If a warning light turns on ........... 403
If a warning message is displayed
................................................. 413
If the battery is discharged ......... 439
If the electronic key does not operate
properly .................................... 437
If the engine will not start ........... 435
If the vehicle is trapped in rising
water ........................................395

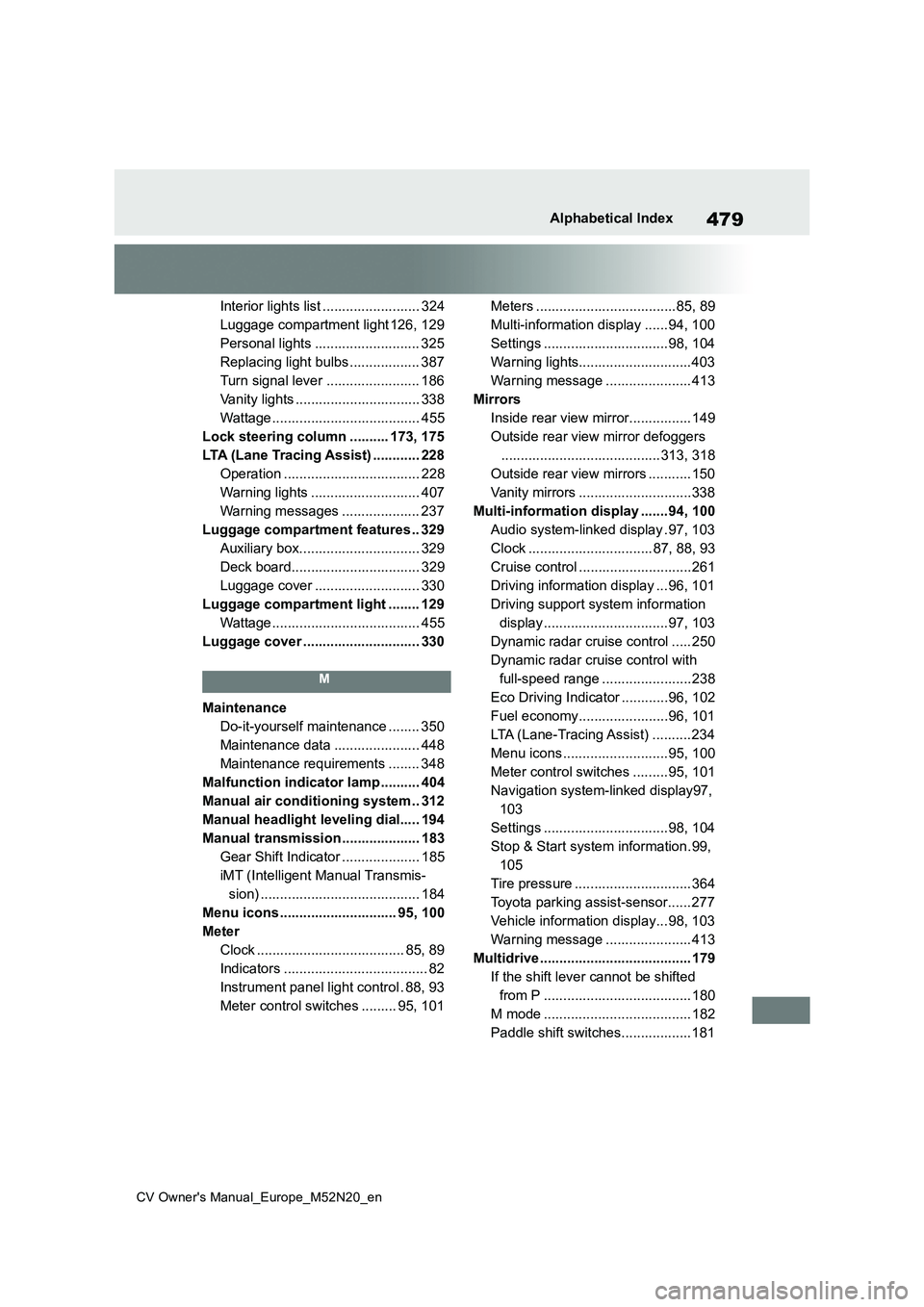

479
CV Owner's Manual_Europe_M52N20_en
Alphabetical Index
Interior lights list ......................... 324
Luggage compartment light 126, 129
Personal lights ........................... 325
Replacing light bulbs .................. 387
Turn signal lever ........................ 186
Vanity lights ................................ 338
Wattage ...................................... 455
Lock steering column .......... 173, 175
LTA (Lane Tracing Assist) ............ 228
Operation ................................... 228
Warning lights ............................ 407
Warning messages .................... 237
Luggage compartment features .. 329
Auxiliary box............................... 329
Deck board................................. 329
Luggage cover ........................... 330
Luggage compartment light ........ 129
Wattage ...................................... 455
Luggage cover .............................. 330
M
Maintenance
Do-it-yourself maintenance ........ 350
Maintenance data ...................... 448
Maintenance requirements ........ 348
Malfunction indicator lamp .......... 404
Manual air conditioning system .. 312
Manual headlight leveling dial..... 194
Manual transmission .................... 183
Gear Shift Indicator .................... 185
iMT (Intelligent Manual Transmis-
sion) ......................................... 184
Menu icons .............................. 95, 100
Meter
Clock ...................................... 85, 89
Indicators ..................................... 82
Instrument panel light control . 88, 93
Meter control switches ......... 95, 101
Meters ....................................85, 89
Multi-information display ......94, 100
Settings ................................98, 104
Warning lights.............................403
Warning message ...................... 413
Mirrors
Inside rear view mirror................ 149
Outside rear view mirror defoggers
......................................... 313, 318
Outside rear view mirrors ........... 150
Vanity mirrors .............................338
Multi-information display .......94, 100
Audio system-linked display .97, 103
Clock ................................ 87, 88, 93
Cruise control .............................261
Driving information display ...96, 101
Driving support system information
display ................................97, 103
Dynamic radar cruise control ..... 250
Dynamic radar cruise control with
full-speed range .......................238
Eco Driving Indicator ............96, 102
Fuel economy.......................96, 101
LTA (Lane-Tracing Assist) .......... 234
Menu icons ...........................95, 100
Meter control switches .........95, 101
Navigation system-linked display97,
103
Settings ................................98, 104
Stop & Start system information.99,
105
Tire pressure .............................. 364
Toyota parking assist-sensor...... 277
Vehicle information display...98, 103
Warning message ...................... 413
Multidrive ....................................... 179
If the shift lever cannot be shifted
from P ...................................... 180
M mode ...................................... 182
Paddle shift switches..................181
