87
2
CV Owner's Manual_Europe_M52N20_en
2-1. Instrument cluster
Vehicle status information and indicators
■Changing the display
Press the display change button
until the desired item is displayed.
■Display items
 Odometer
Displays the total distance the vehicle
has been driven.
 Trip meter A/Trip meter B
Displays the distance the vehicle has
been driven since the meter was last
reset. Trip meters A and B can be used
to record and display different distances
independently.
To reset, display the desired trip meter
and press and hold the display change
button.
 Distance until next engine oil
change
Displays the distance the vehicle can
be driven until an oil change is neces-
sary.
The distance until the next engine oil
change will also be displayed in the fol-
lowing situations:
• When the engine switch is turned to
ON.
• When a warning message indicating
that oil maintenance should be per-
formed soon or is required is dis-
played.
• Resetting: P. 3 5 6
■Adjusting the minute to “00”
1 Press or to select of
the multi-information display.
2 Press or to select .
Press the to set the clock to the
beginning of the nearest hour.
e.g.
1:00 to 1:29  1:00
1:30 to 1:59  2:00
■Changing the clock
1 Press or to select of
the multi-information display.
NOTICE
■To prevent damage to the engine and its components
●Do not let the indicator needle of the tachometer enter the red zone, which indicates the maximum
engine speed.
●The engine may be overheating if
the engine coolant temperature gauge is in the red zone (H). In this case, immediately stop the vehicle
in a safe place, and check the engine after it has cooled com-pletely. ( P.442)
Odometer and trip meter
display
Adjusting the clock (vehi-
cles without 7-inch/8-inch
display multimedia system)

88
CV Owner's Manual_Europe_M52N20_en
2-1. Instrument cluster
2Press or to select .
3 Press and hold the .
4 Press or to select an
item to be changed.
5 Press or to change the
setting.
The following can be changed:
 12-hour/24-hour format
 Hour
 Minute
The clocks on the following can be
adjusted on the multimedia system
screen.
 Multi-information display
 Multimedia system screen
For details, refer to “Navigation and
multimedia system Owner’s man-
ual”.
■Clock settings screen (vehicles
with 7-inch/8-inch display multime- dia system)
If is displayed when is
selected on the multi-information dis-
play, the system may be malfunctioning.
Have the vehicle inspected by any
authorized Toyota retailer or Toyota
authorized repairer, or any reliable
repairer.
The brightness of the instrument
panel lights can be adjusted on
select to the multi-information
display.
The brightness of the instrument panel
lights can be adjusted separately for
when the tail lights are on and off.
1 Press or to select of
the multi-information display.
2 Press or to select ,
and then press and hold the
.
3 Press or to change the
brightness.
■Instrument cluster brightness adjustment
The instrument cluster brightness levels when the tail lights are on and off can be adjusted individually.
However, when the surroundings are bright (daytime, etc.), turning on the tail lights will not change the instrument
cluster brightness.
Adjusting the clock (vehi-
cles with 7-inch/8-inch dis-
play multimedia system)
Adjusting the instrument
panel light control

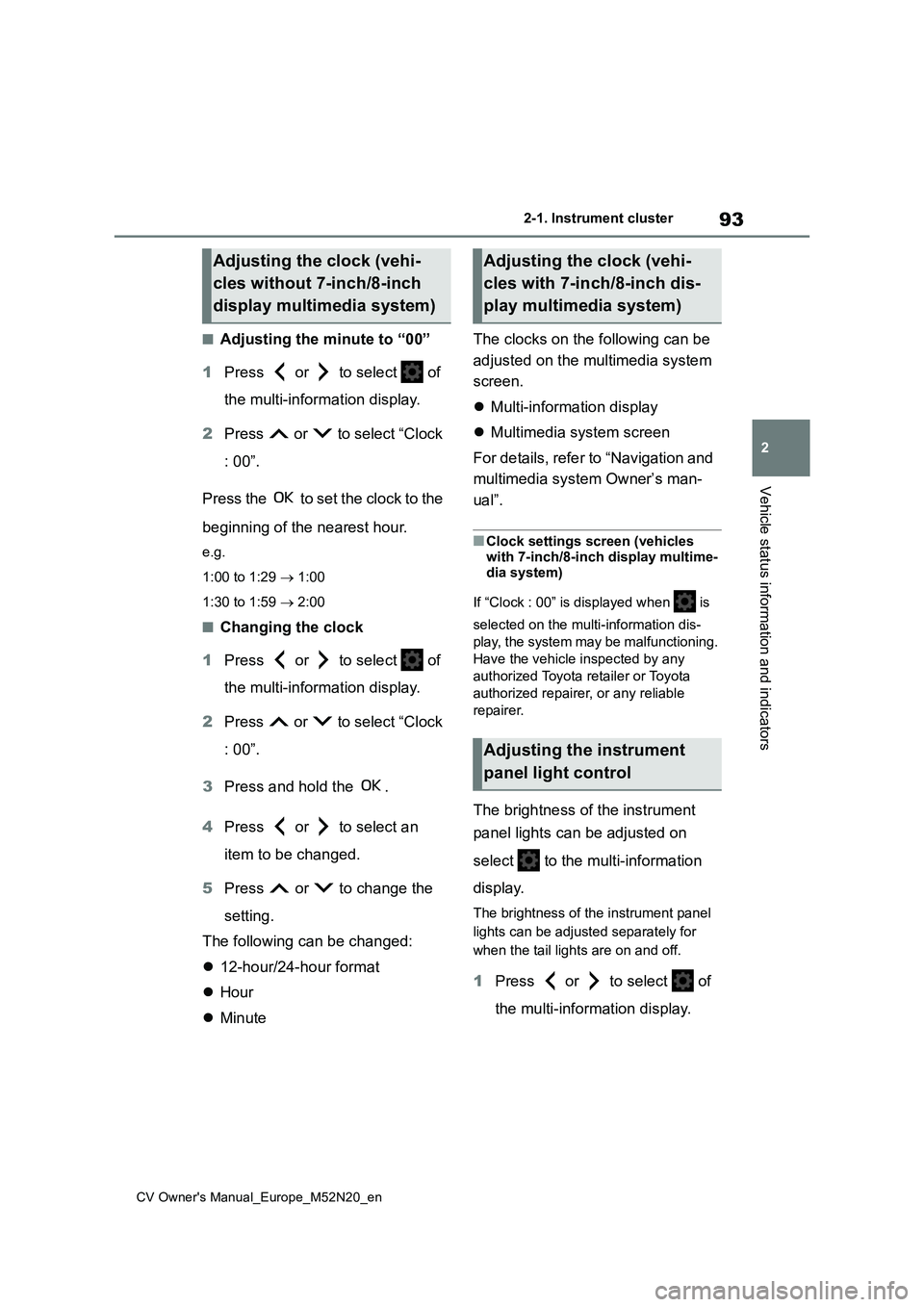

93
2
CV Owner's Manual_Europe_M52N20_en
2-1. Instrument cluster
Vehicle status information and indicators
■Adjusting the minute to “00”
1 Press or to select of
the multi-information display.
2 Press or to select “Clock
: 00”.
Press the to set the clock to the
beginning of the nearest hour.
e.g.
1:00 to 1:29  1:00
1:30 to 1:59  2:00
■Changing the clock
1 Press or to select of
the multi-information display.
2 Press or to select “Clock
: 00”.
3 Press and hold the .
4 Press or to select an
item to be changed.
5 Press or to change the
setting.
The following can be changed:
 12-hour/24-hour format
 Hour
 Minute
The clocks on the following can be
adjusted on the multimedia system
screen.
 Multi-information display
 Multimedia system screen
For details, refer to “Navigation and
multimedia system Owner’s man-
ual”.
■Clock settings screen (vehicles with 7-inch/8-inch display multime-
dia system)
If “Clock : 00” is displayed when is
selected on the multi-information dis-
play, the system may be malfunctioning.
Have the vehicle inspected by any
authorized Toyota retailer or Toyota
authorized repairer, or any reliable
repairer.
The brightness of the instrument
panel lights can be adjusted on
select to the multi-information
display.
The brightness of the instrument panel
lights can be adjusted separately for
when the tail lights are on and off.
1 Press or to select of
the multi-information display.
Adjusting the clock (vehi-
cles without 7-inch/8-inch
display multimedia system)
Adjusting the clock (vehi-
cles with 7-inch/8-inch dis-
play multimedia system)
Adjusting the instrument
panel light control

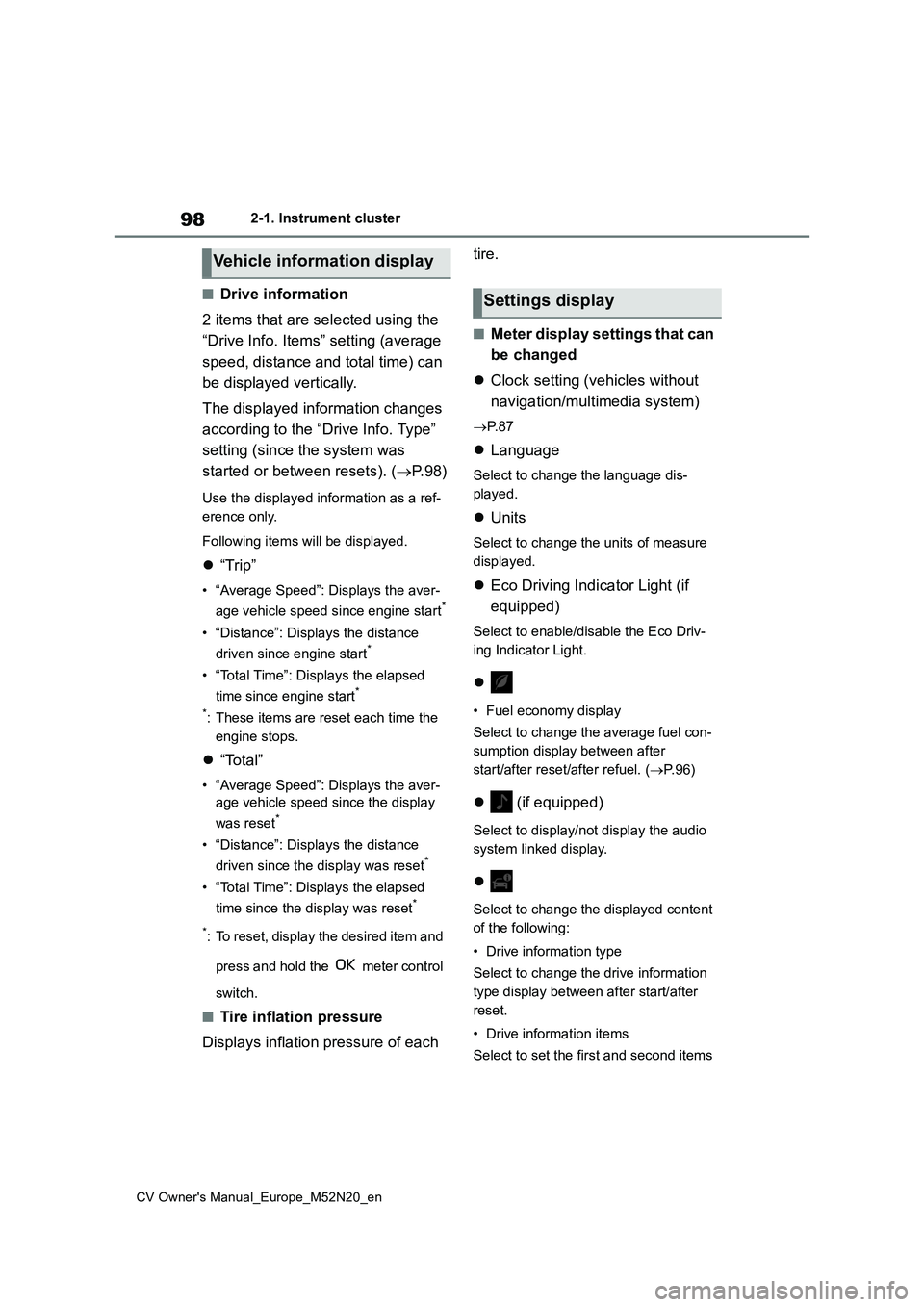

98
CV Owner's Manual_Europe_M52N20_en
2-1. Instrument cluster
■Drive information
2 items that are selected using the
“Drive Info. Items” setting (average
speed, distance and total time) can
be displayed vertically.
The displayed information changes
according to the “Drive Info. Type”
setting (since the system was
started or between resets). ( P. 9 8 )
Use the displayed information as a ref-
erence only.
Following items will be displayed.
 “Trip”
• “Average Speed”: Displays the aver-
age vehicle speed since engine start*
• “Distance”: Displays the distance
driven since engine start*
• “Total Time”: Displays the elapsed
time since engine start*
*: These items are reset each time the
engine stops.
 “Total”
• “Average Speed”: Displays the aver-
age vehicle speed since the display
was reset*
• “Distance”: Displays the distance
driven since the display was reset*
• “Total Time”: Displays the elapsed
time since the display was reset*
*: To reset, display the desired item and
press and hold the meter control
switch.
■Tire inflation pressure
Displays inflation pressure of each
tire.
■Meter display settings that can
be changed
 Clock setting (vehicles without
navigation/multimedia system)
 P. 8 7
Language
Select to change the language dis-
played.
 Units
Select to change the units of measure
displayed.
 Eco Driving Indicator Light (if
equipped)
Select to enable/disable the Eco Driv-
ing Indicator Light.

• Fuel economy display
Select to change the average fuel con-
sumption display between after
start/after reset/after refuel. ( P. 9 6 )
 (if equipped)
Select to display/not display the audio
system linked display.

Select to change the displayed content
of the following:
• Drive information type
Select to change the drive information
type display between after start/after
reset.
• Drive information items
Select to set the first and second items
Vehicle information display
Settings display

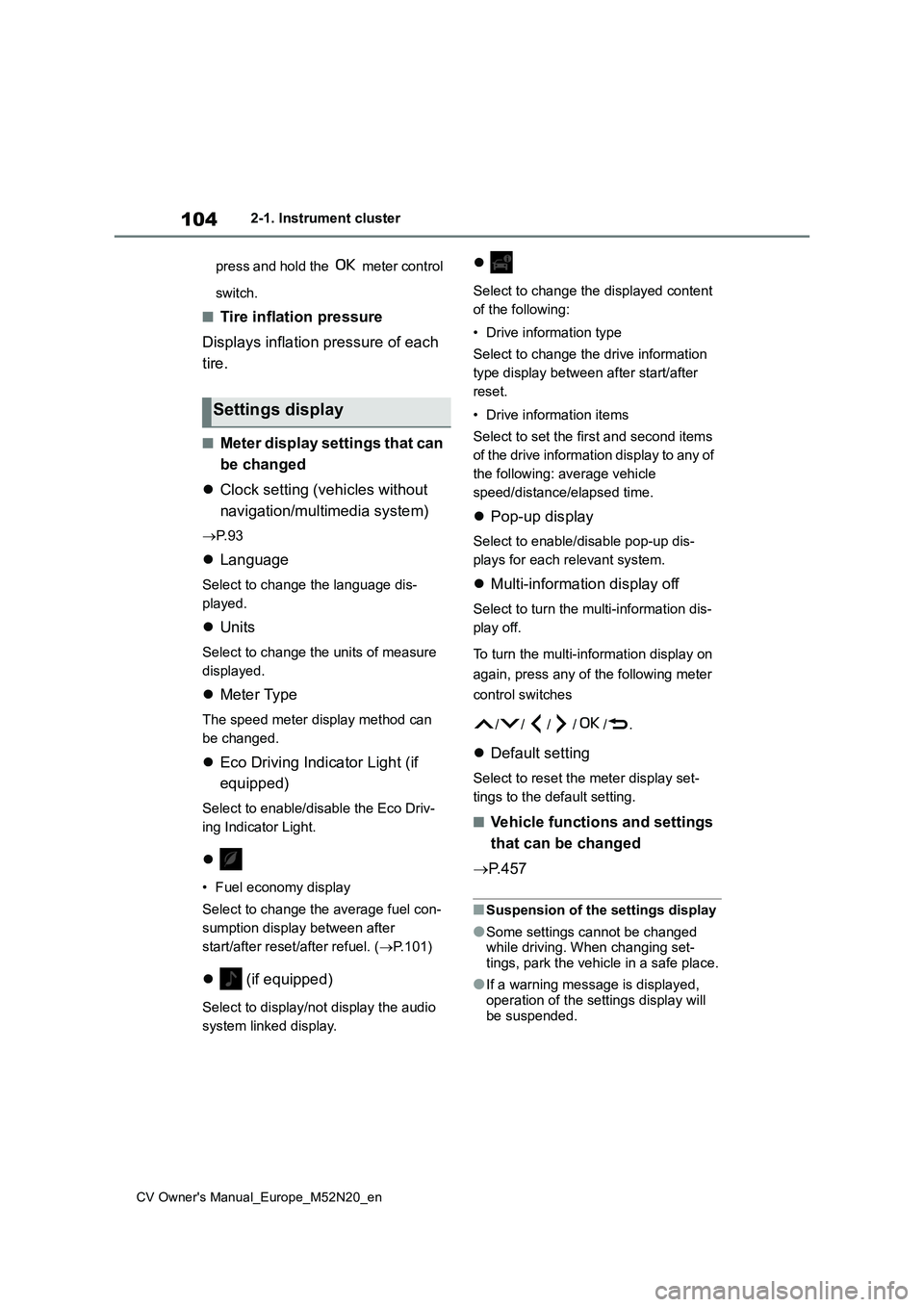

104
CV Owner's Manual_Europe_M52N20_en
2-1. Instrument cluster
press and hold the meter control
switch.
■Tire inflation pressure
Displays inflation pressure of each
tire.
■Meter display settings that can
be changed
 Clock setting (vehicles without
navigation/multimedia system)
 P. 9 3
Language
Select to change the language dis-
played.
 Units
Select to change the units of measure
displayed.
 Meter Type
The speed meter display method can
be changed.
 Eco Driving Indicator Light (if
equipped)
Select to enable/disable the Eco Driv-
ing Indicator Light.

• Fuel economy display
Select to change the average fuel con-
sumption display between after
start/after reset/after refuel. ( P.101)
 (if equipped)
Select to display/not display the audio
system linked display.

Select to change the displayed content
of the following:
• Drive information type
Select to change the drive information
type display between after start/after
reset.
• Drive information items
Select to set the first and second items
of the drive information display to any of
the following: average vehicle
speed/distance/elapsed time.
 Pop-up display
Select to enable/disable pop-up dis-
plays for each relevant system.
 Multi-information display off
Select to turn the multi-information dis-
play off.
To turn the multi-information display on
again, press any of the following meter
control switches
//// /.
 Default setting
Select to reset the meter display set-
tings to the default setting.
■Vehicle functions and settings
that can be changed
 P. 4 5 7
■Suspension of the settings display
●Some settings cannot be changed while driving. When changing set-tings, park the vehicle in a safe place.
●If a warning message is displayed, operation of the settings display will
be suspended.
Settings display

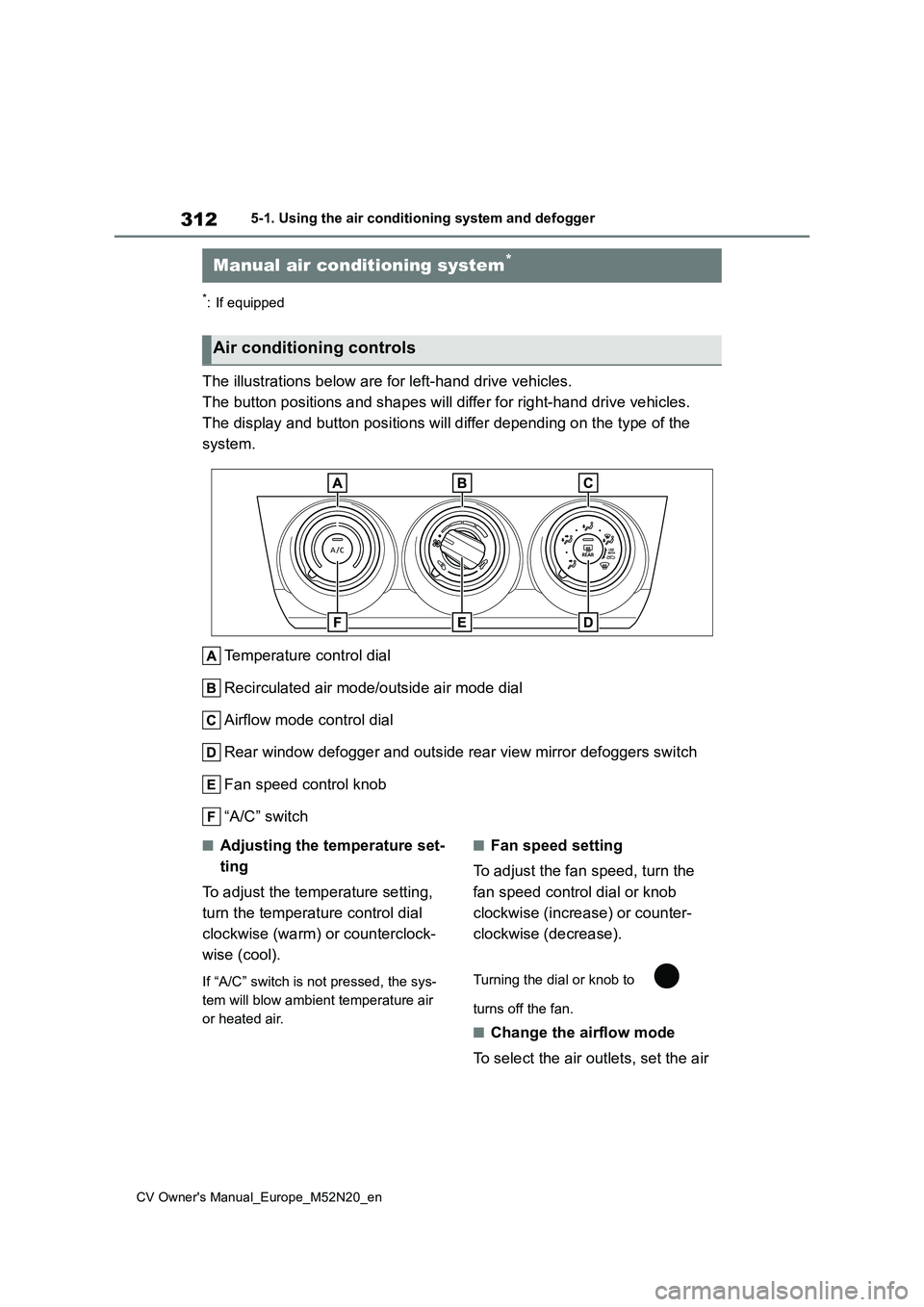

312
CV Owner's Manual_Europe_M52N20_en
5-1. Using the air conditioning system and defogger
5-1.Using the a ir c onditioning sys te m and de fog ger
*: If equipped
The illustrations below are for left-hand drive vehicles.
The button positions and shapes will differ for right-hand driv e vehicles.
The display and button positions will differ depending on the t ype of the
system.
Temperature control dial
Recirculated air mode/outside air mode dial
Airflow mode control dial
Rear window defogger and outside rear view mirror defoggers swi tch
Fan speed control knob
“A/C” switch
■Adjusting the temperature set-
ting
To adjust the temperature setting,
turn the temperature control dial
clockwise (warm) or counterclock-
wise (cool).
If “A/C” switch is not pressed, the sys-
tem will blow ambient temperature air
or heated air.
■Fan speed setting
To adjust the fan speed, turn the
fan speed control dial or knob
clockwise (increase) or counter-
clockwise (decrease).
Turning the dial or knob to
turns off the fan.
■Change the airflow mode
To select the air outlets, set the air
Manual air conditioning system*
Air conditioning controls

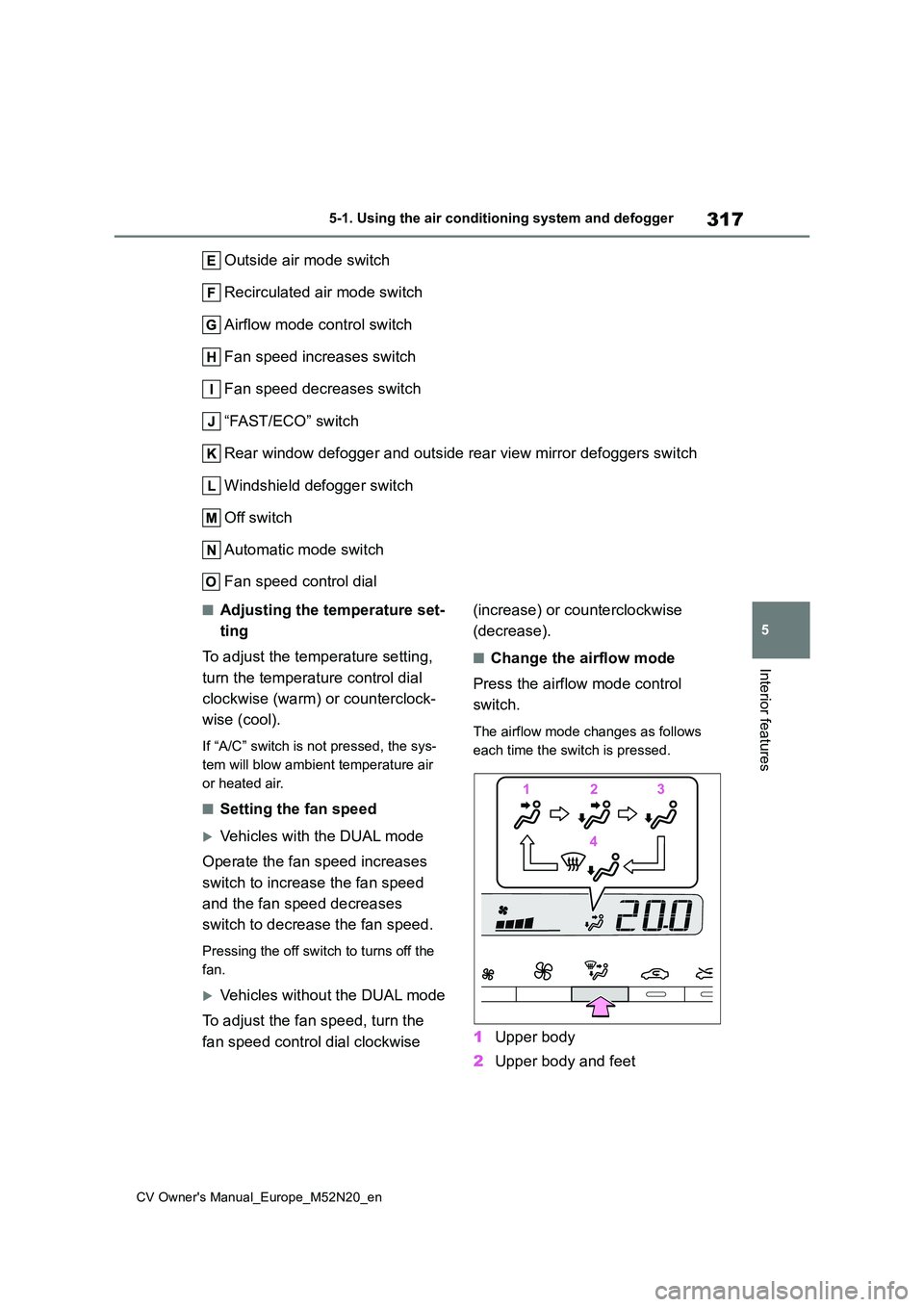

317
5
CV Owner's Manual_Europe_M52N20_en
5-1. Using the air conditioning system and defogger
Interior features
Outside air mode switch
Recirculated air mode switch
Airflow mode control switch
Fan speed increases switch
Fan speed decreases switch
“FAST/ECO” switch
Rear window defogger and outside rear view mirror defoggers swi tch
Windshield defogger switch
Off switch
Automatic mode switch
Fan speed control dial
■Adjusting the temperature set-
ting
To adjust the temperature setting,
turn the temperature control dial
clockwise (warm) or counterclock-
wise (cool).
If “A/C” switch is not pressed, the sys-
tem will blow ambient temperature air
or heated air.
■Setting the fan speed
Vehicles with the DUAL mode
Operate the fan speed increases
switch to increase the fan speed
and the fan speed decreases
switch to decrease the fan speed.
Pressing the off switch to turns off the
fan.
Vehicles without the DUAL mode
To adjust the fan speed, turn the
fan speed control dial clockwise
(increase) or counterclockwise
(decrease).
■Change the airflow mode
Press the airflow mode control
switch.
The airflow mode changes as follows
each time the switch is pressed.
1 Upper body
2 Upper body and feet

479
CV Owner's Manual_Europe_M52N20_en
Alphabetical Index
Interior lights list ......................... 324
Luggage compartment light 126, 129
Personal lights ........................... 325
Replacing light bulbs .................. 387
Turn signal lever ........................ 186
Vanity lights ................................ 338
Wattage ...................................... 455
Lock steering column .......... 173, 175
LTA (Lane Tracing Assist) ............ 228
Operation ................................... 228
Warning lights ............................ 407
Warning messages .................... 237
Luggage compartment features .. 329
Auxiliary box............................... 329
Deck board................................. 329
Luggage cover ........................... 330
Luggage compartment light ........ 129
Wattage ...................................... 455
Luggage cover .............................. 330
M
Maintenance
Do-it-yourself maintenance ........ 350
Maintenance data ...................... 448
Maintenance requirements ........ 348
Malfunction indicator lamp .......... 404
Manual air conditioning system .. 312
Manual headlight leveling dial..... 194
Manual transmission .................... 183
Gear Shift Indicator .................... 185
iMT (Intelligent Manual Transmis-
sion) ......................................... 184
Menu icons .............................. 95, 100
Meter
Clock ...................................... 85, 89
Indicators ..................................... 82
Instrument panel light control . 88, 93
Meter control switches ......... 95, 101
Meters ....................................85, 89
Multi-information display ......94, 100
Settings ................................98, 104
Warning lights.............................403
Warning message ...................... 413
Mirrors
Inside rear view mirror................ 149
Outside rear view mirror defoggers
......................................... 313, 318
Outside rear view mirrors ........... 150
Vanity mirrors .............................338
Multi-information display .......94, 100
Audio system-linked display .97, 103
Clock ................................ 87, 88, 93
Cruise control .............................261
Driving information display ...96, 101
Driving support system information
display ................................97, 103
Dynamic radar cruise control ..... 250
Dynamic radar cruise control with
full-speed range .......................238
Eco Driving Indicator ............96, 102
Fuel economy.......................96, 101
LTA (Lane-Tracing Assist) .......... 234
Menu icons ...........................95, 100
Meter control switches .........95, 101
Navigation system-linked display97,
103
Settings ................................98, 104
Stop & Start system information.99,
105
Tire pressure .............................. 364
Toyota parking assist-sensor...... 277
Vehicle information display...98, 103
Warning message ...................... 413
Multidrive ....................................... 179
If the shift lever cannot be shifted
from P ...................................... 180
M mode ...................................... 182
Paddle shift switches..................181
