TOYOTA YARIS GRMN 2017 Owners Manual

1012. Instrument cluster
2
Instrument cluster
YARIS_GRMN_OM_Europe_OM52J40E
Warning message display
Select to display warning messages and measures to be taken if a
malfunction is detected. ( P. 332)
Settings display
Select to change the meter display settings and the operation set-
tings of some vehicle functions. ( P. 103)
The multi-information display is
operated using the meter control
switches.
Select an item/change pages
Enter/set
Return to the previous screen

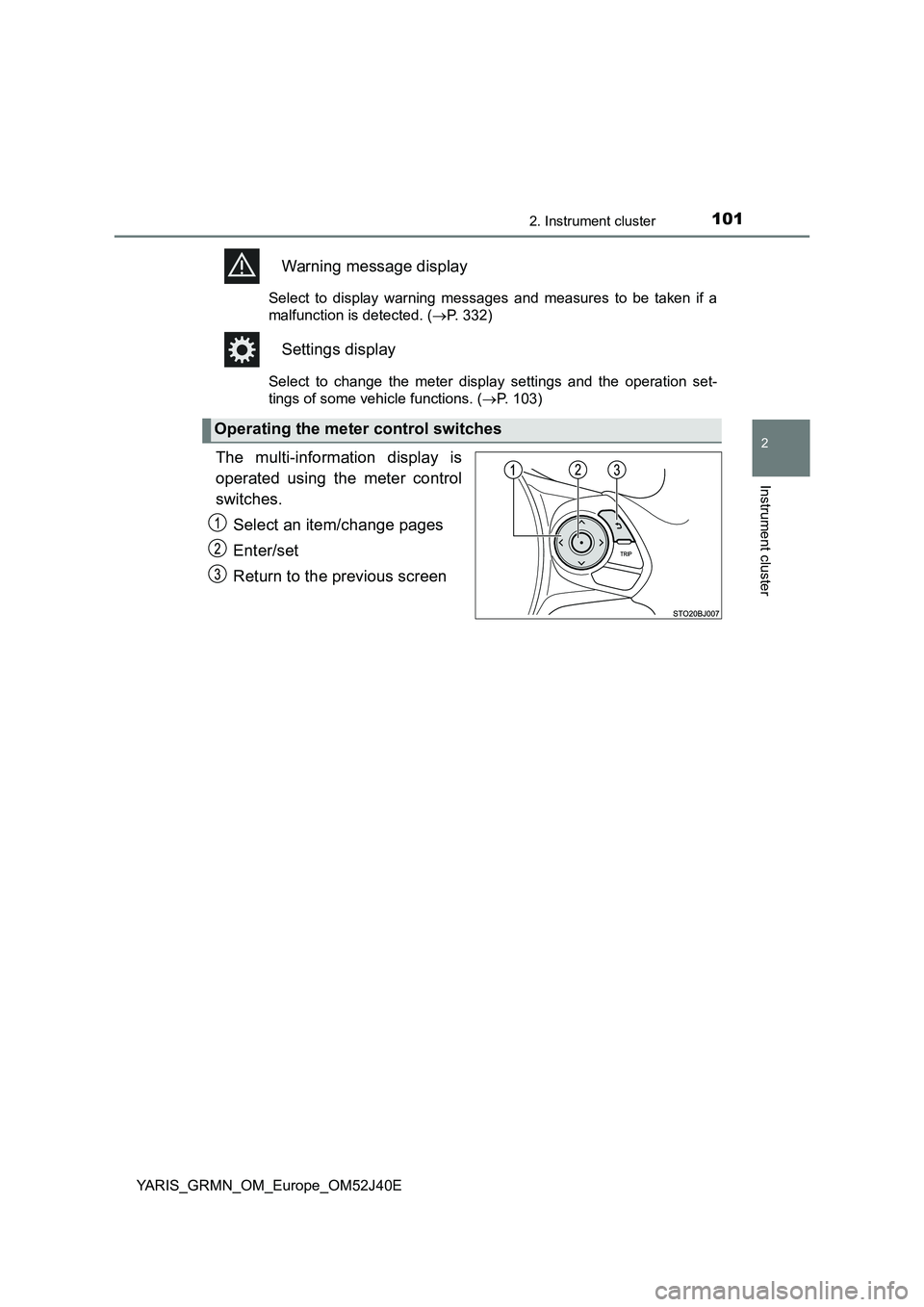

Operating the meter control switches

1022. Instrument cluster
YARIS_GRMN_OM_Europe_OM52J40E

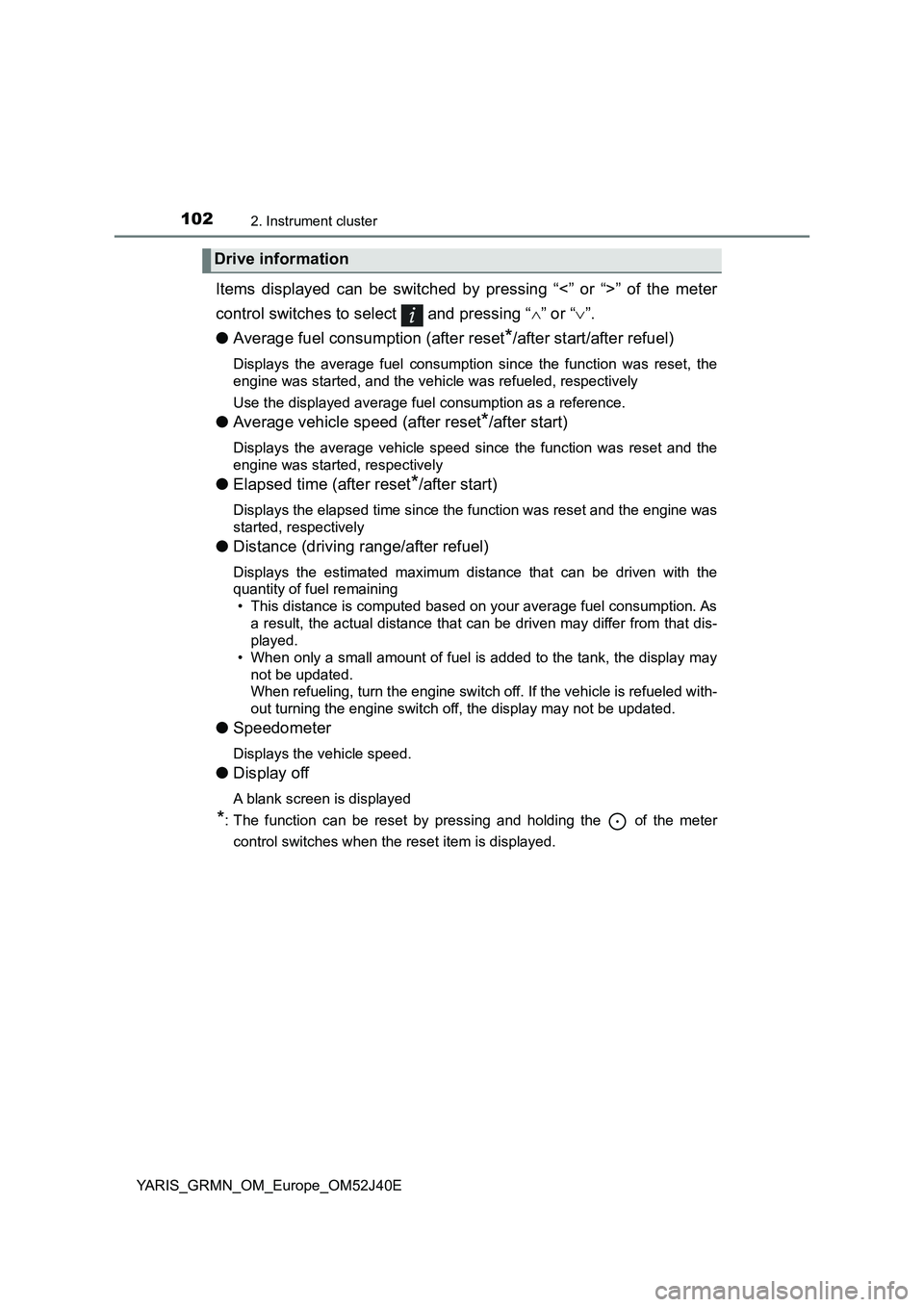

Items displayed can be switched by pressing “<” or “>” of the meter
control switches to select and pressing “ ” or “”.
● Average fuel consumption (after reset*/after start/after refuel)
Displays the average fuel consumption since the function was reset, the
engine was started, and the vehicle was refueled, respectively
Use the displayed average fuel consumption as a reference.
● Average vehicle speed (after reset*/after start)
Displays the average vehicle speed since the function was reset and the
engine was started, respectively
● Elapsed time (after reset*/after start)
Displays the elapsed time since the function was reset and the engine was
started, respectively
● Distance (driving range/after refuel)
Displays the estimated maximum distance that can be driven with the
quantity of fuel remaining
• This distance is computed based on your average fuel consumption. As
a result, the actual distance that can be driven may differ from that dis-
played.
• When only a small amount of fuel is added to the tank, the display may
not be updated.
When refueling, turn the engine switch off. If the vehicle is refueled with-
out turning the engine switch off, the display may not be updated.
● Speedometer
Displays the vehicle speed.
●Display off
A blank screen is displayed
*: The function can be reset by pressing and holding the of the meter
control switches when the reset item is displayed.
Drive information

1032. Instrument cluster
2
Instrument cluster
YARIS_GRMN_OM_Europe_OM52J40E

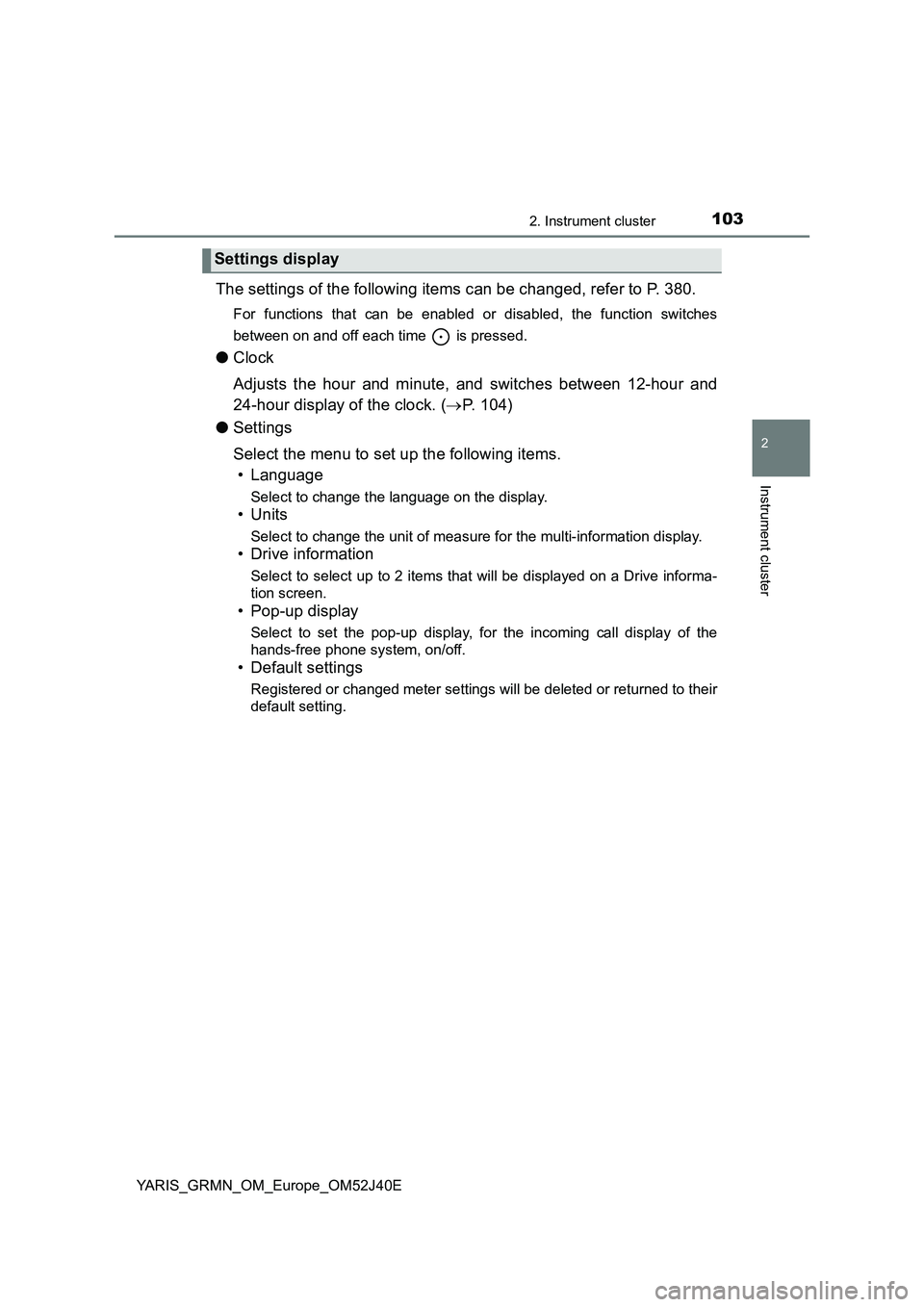

The settings of the following items can be changed, refer to P. 380.
For functions that can be enabled or disabled, the function switches
between on and off each time is pressed.
● Clock
Adjusts the hour and minute, and switches between 12-hour and
24-hour display of the clock. ( P. 104)
● Settings
Select the menu to set up the following items.
• Language
Select to change the language on the display.
•Units
Select to change the unit of measure for the multi-information display.
• Drive information
Select to select up to 2 items that will be displayed on a Drive informa-
tion screen.
• Pop-up display
Select to set the pop-up display, for the incoming call display of the
hands-free phone system, on/off.
• Default settings
Registered or changed meter settings will be deleted or returned to their
default setting.
Settings display

1042. Instrument cluster
YARIS_GRMN_OM_Europe_OM52J40E

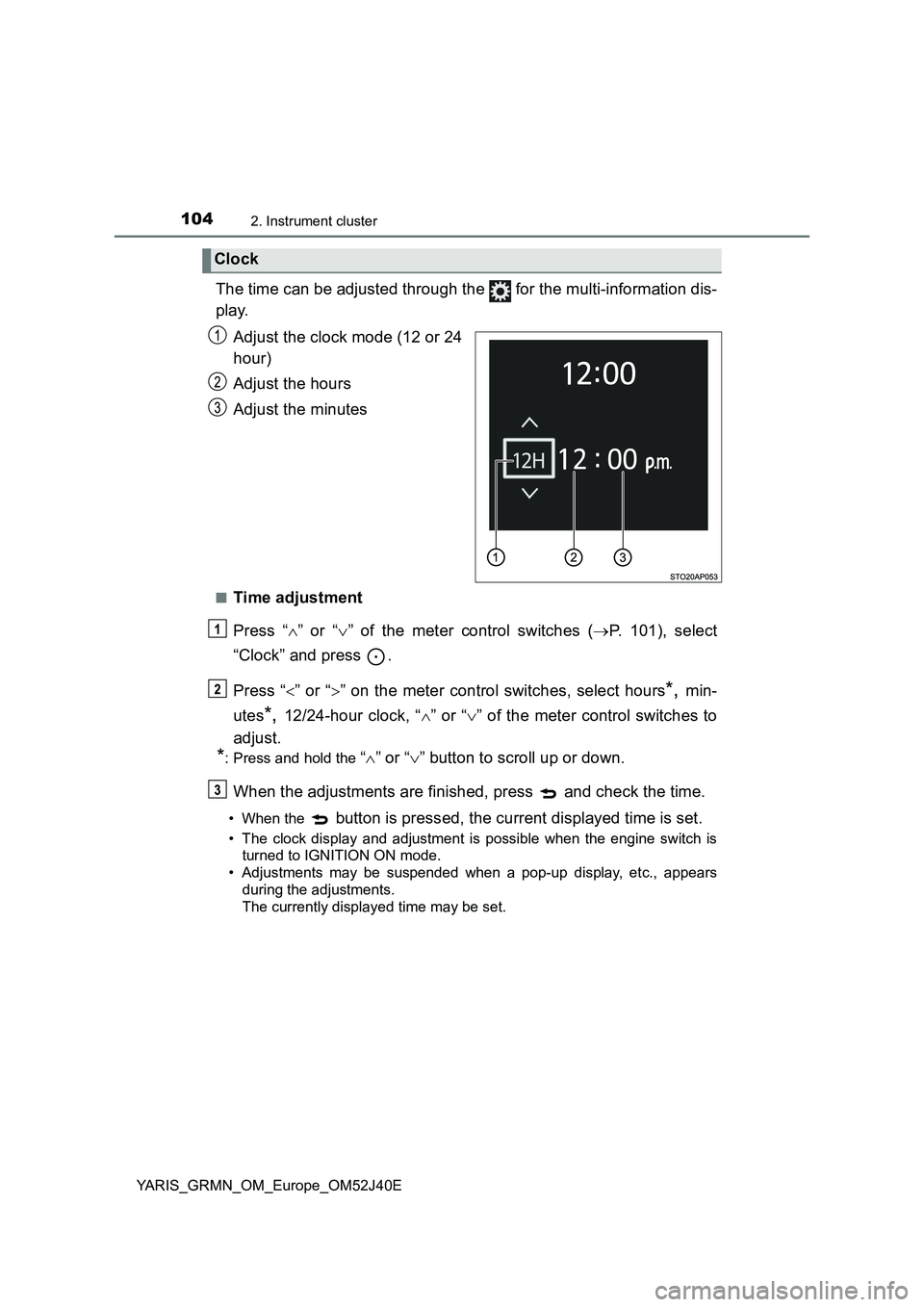

The time can be adjusted through the for the multi-information dis-
play.
Adjust the clock mode (12 or 24
hour)
Adjust the hours
Adjust the minutes
■Time adjustment
Press “ ” or “” of the meter control switches (P. 101), select
“Clock” and press .
Press “ ” or “” on the meter control switches, select hours*, min-
utes*, 12/24-hour clock, “ ” or “” of the meter control switches to
adjust.
*: Press and hold the “ ” or “” button to scroll up or down.
When the adjustments are finished, press and check the time.
• When the button is pressed, the current displayed time is set.
• The clock display and adjustment is possible when the engine switch is
turned to IGNITION ON mode.
• Adjustments may be suspended when a pop-up display, etc., appears
during the adjustments.
The currently displayed time may be set.
Clock

1052. Instrument cluster
2
Instrument cluster
YARIS_GRMN_OM_Europe_OM52J40E
■Pop-up display
In some situations, such as when a switch operation is performed, a pop-up
display will be temporarily display ed on the multi-information display.
The pop-up display function can be set on/off.
■ Setting display automatic cancelation
“Settings” item in settings display is not selectable during driving and cannot
be operated. Also, the settings screen is temporarily canceled in the following
situations.
● A warning message is displayed.
● The vehicle starts off.
■ Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal displays, and there is no problem continuing to
use the display.
■ When disconnecting and reconnecting battery terminals
The drive information and clock data will be reset.

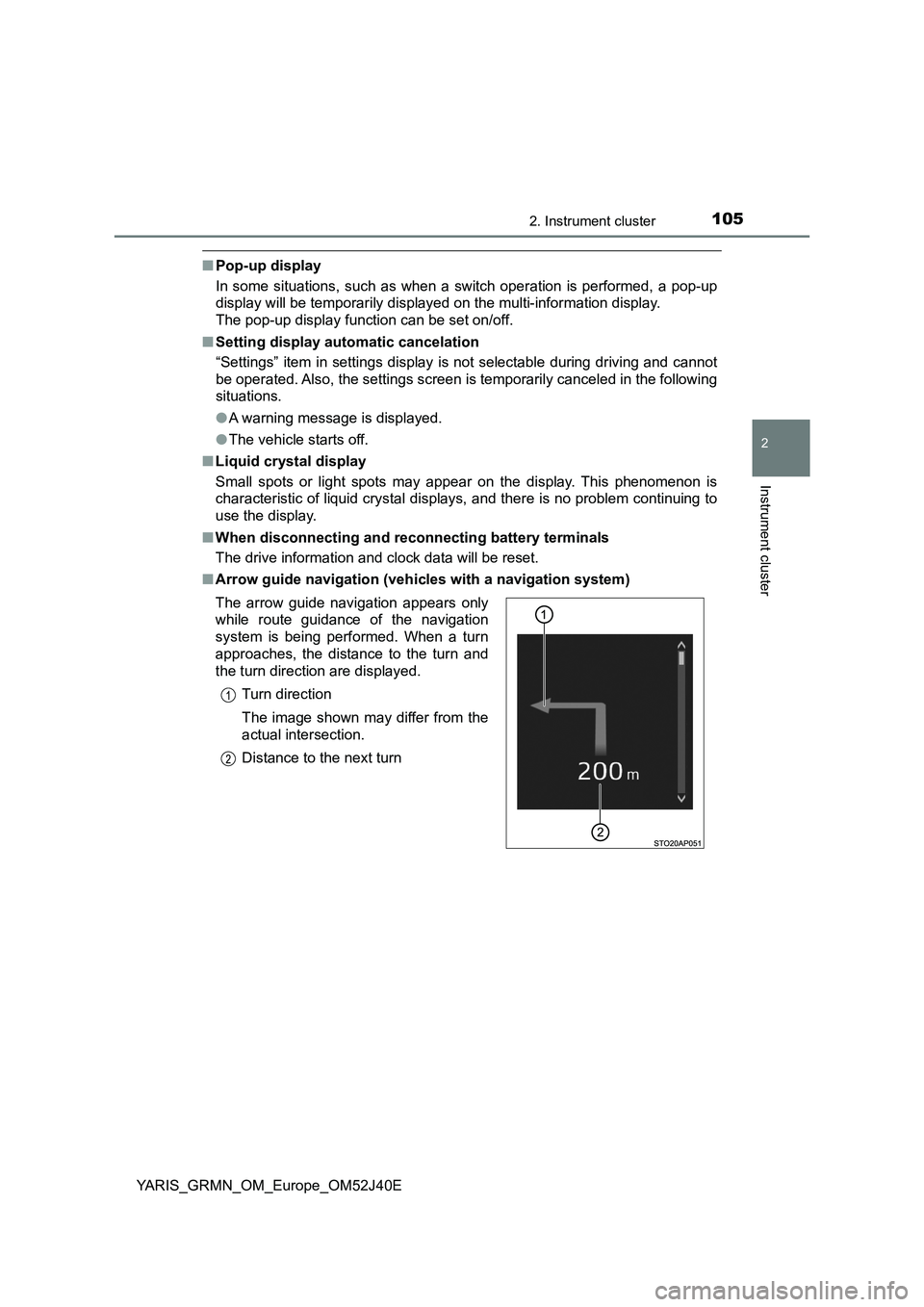

■ Arrow guide navigation (vehicles with a navigation system)
The arrow guide navigation appears only
while route guidance of the navigation
system is being performed. When a turn
approaches, the distance to the turn and
the turn direction are displayed.
Turn direction
The image shown may differ from the
actual intersection.
Distance to the next turn

1062. Instrument cluster
YARIS_GRMN_OM_Europe_OM52J40E

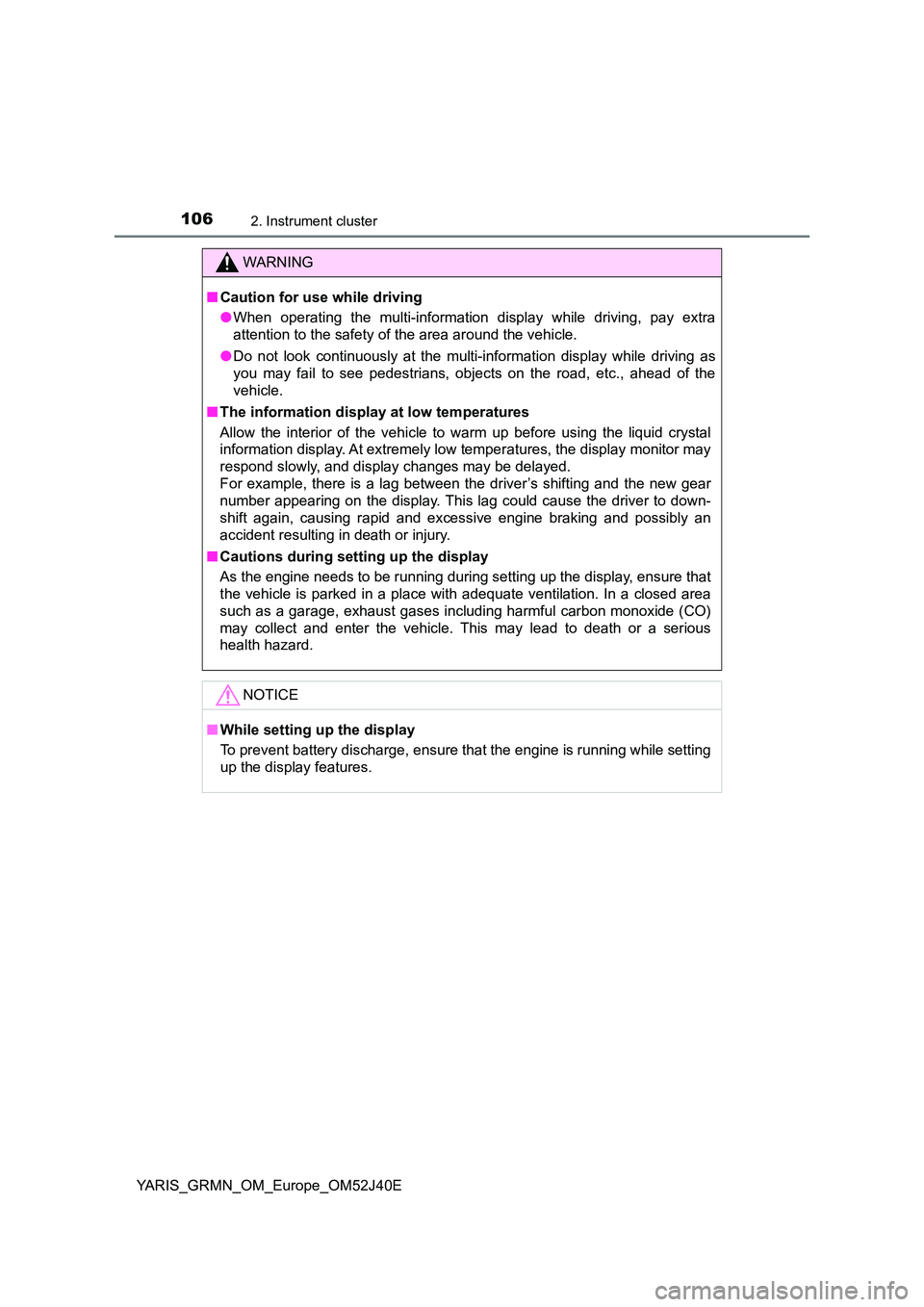

WARNING
■Caution for use while driving
● When operating the multi-information display while driving, pay extra
attention to the safety of the area around the vehicle.
● Do not look continuously at the multi-information display while driving as
you may fail to see pedestrians, objects on the road, etc., ahead of the
vehicle.
■ The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the display monitor may
respond slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear
number appearing on the display. This lag could cause the driver to down-
shift again, causing rapid and exce ssive engine braking and possibly an
accident resulting in death or injury.
■ Cautions during setting up the display
As the engine needs to be running during setting up the display, ensure that
the vehicle is parked in a place with adequate ventilation. In a closed area
such as a garage, exhaust gases including harmful carbon monoxide (CO)
may collect and enter the vehicle. This may lead to death or a serious
health hazard.
NOTICE
■ While setting up the display
To prevent battery discharge, ensure that the engine is running while setting
up the display features.

107
2
2. Instrument cluster
Instrument cluster
YARIS_GRMN_OM_Europe_OM52J40E

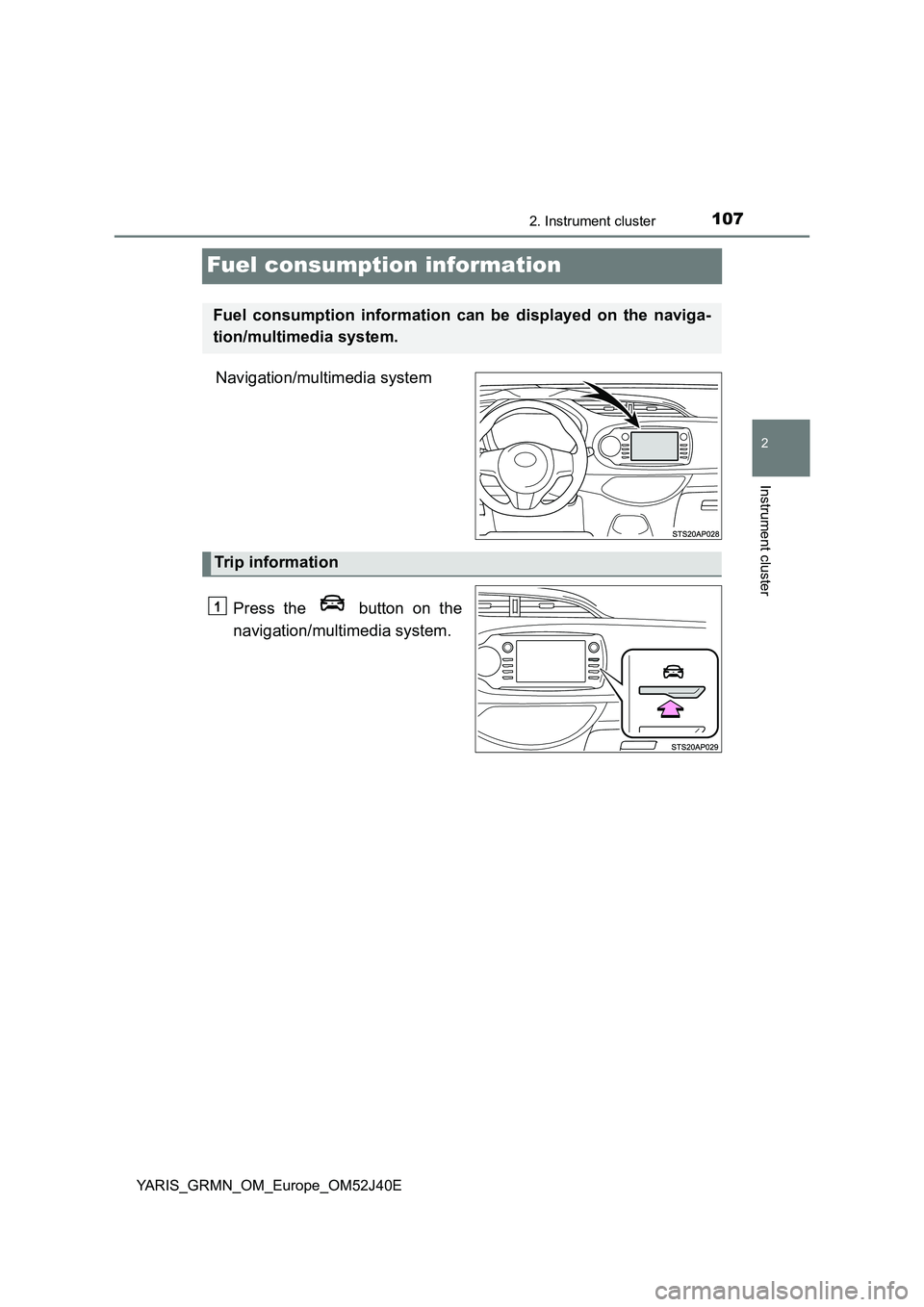

Fuel consumption information
Navigation/multimedia system
Press the button on the
navigation/multimedia system.
Fuel consumption information can be displayed on the naviga-
tion/multimedia system.
Trip information

1082. Instrument cluster
YARIS_GRMN_OM_Europe_OM52J40E

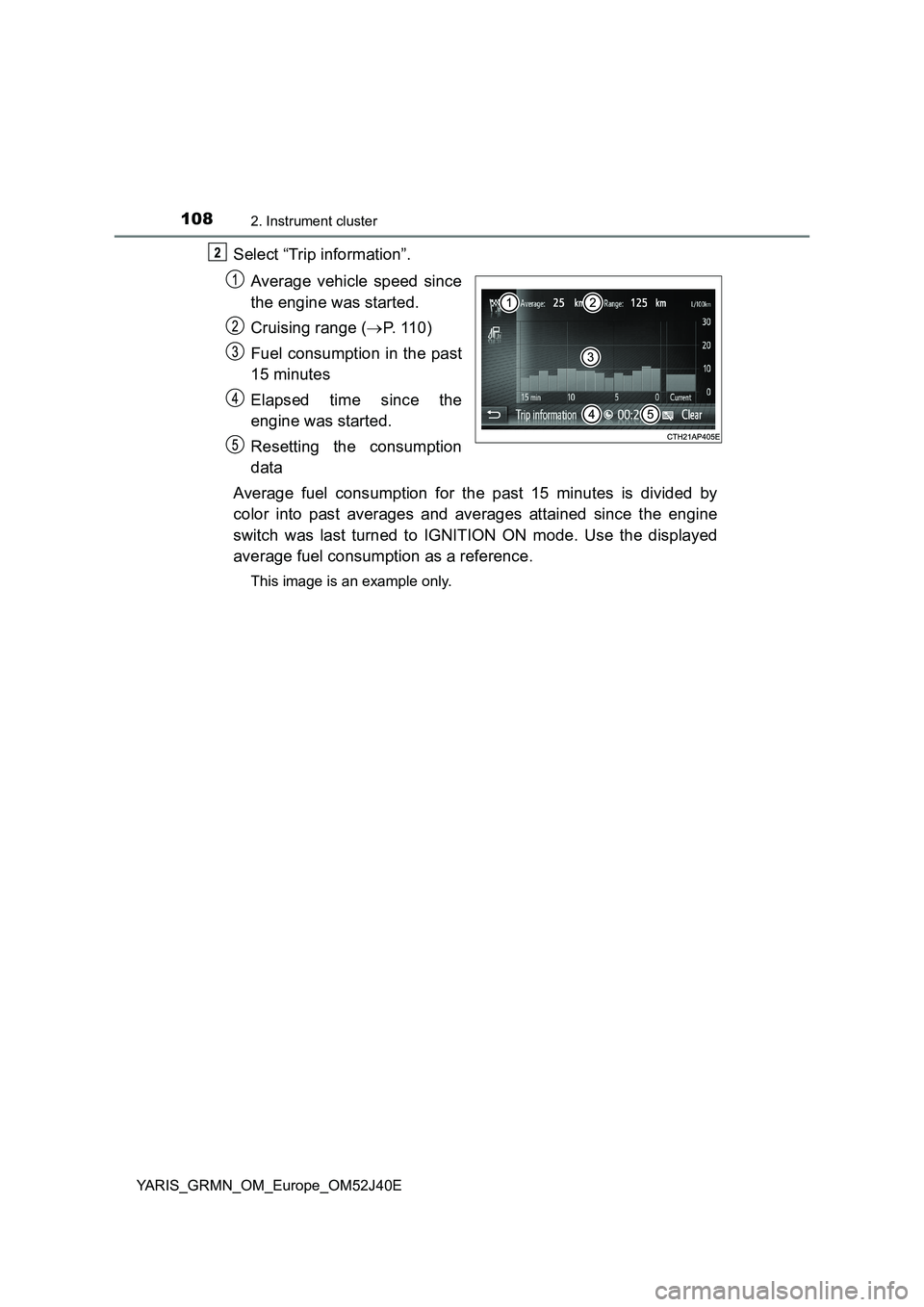

Select “Trip information”.
Average vehicle speed since
the engine was started.
Cruising range ( P. 110)
Fuel consumption in the past
15 minutes
Elapsed time since the
engine was started.
Resetting the consumption
data
Average fuel consumption for the past 15 minutes is divided by
color into past averages and averages attained since the engine
switch was last turned to IGNITION ON mode. Use the displayed
average fuel consumption as a reference.
This image is an example only.

1092. Instrument cluster
2
Instrument cluster
YARIS_GRMN_OM_Europe_OM52J40E

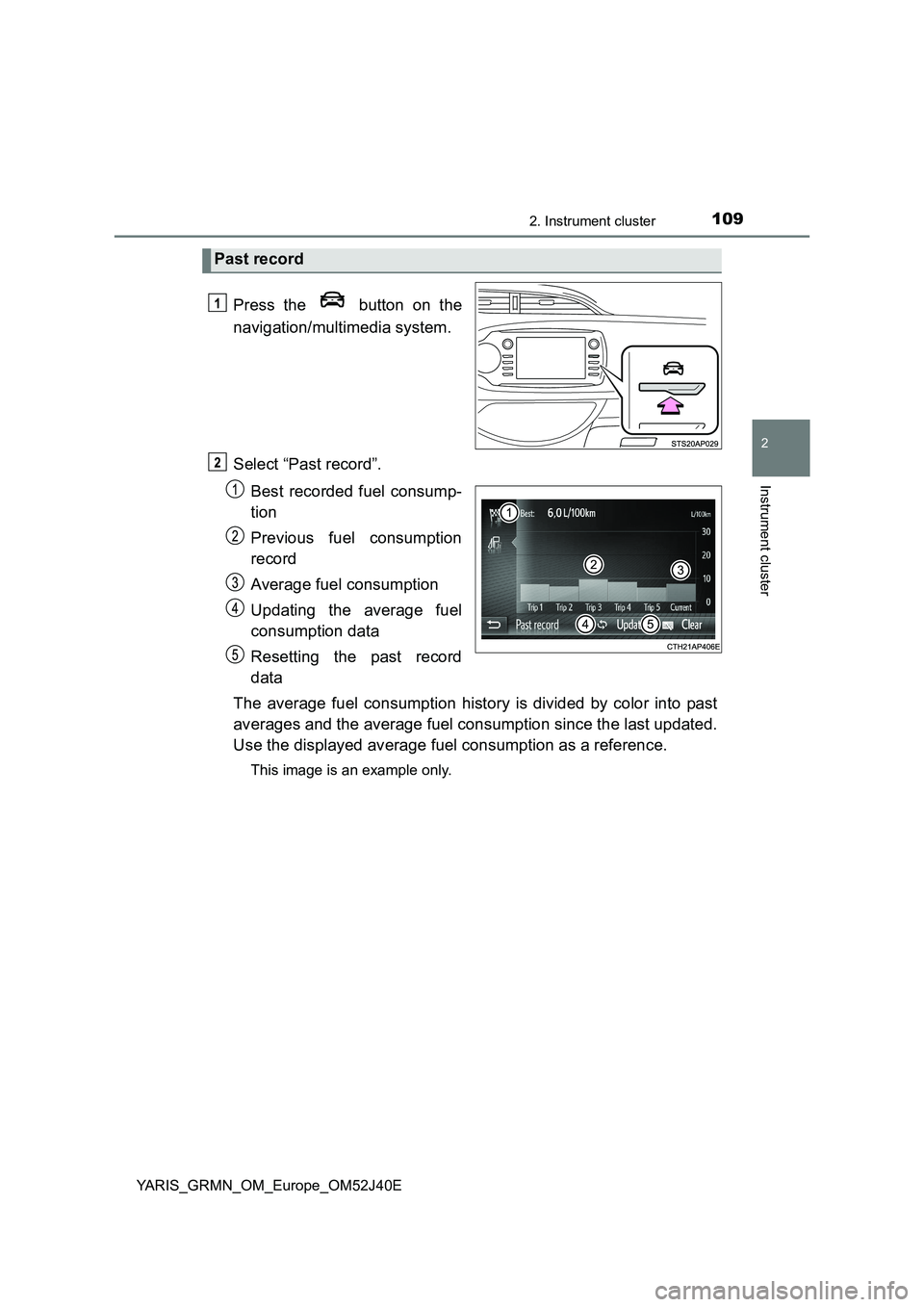

Press the button on the
navigation/multimedia system.
Select “Past record”.
Best recorded fuel consump-
tion
Previous fuel consumption
record
Average fuel consumption
Updating the average fuel
consumption data
Resetting the past record
data
The average fuel consumption history is divided by color into past
averages and the average fuel consumption since the last updated.
Use the displayed average fuel consumption as a reference.
This image is an example only.
Past record

1102. Instrument cluster
YARIS_GRMN_OM_Europe_OM52J40E

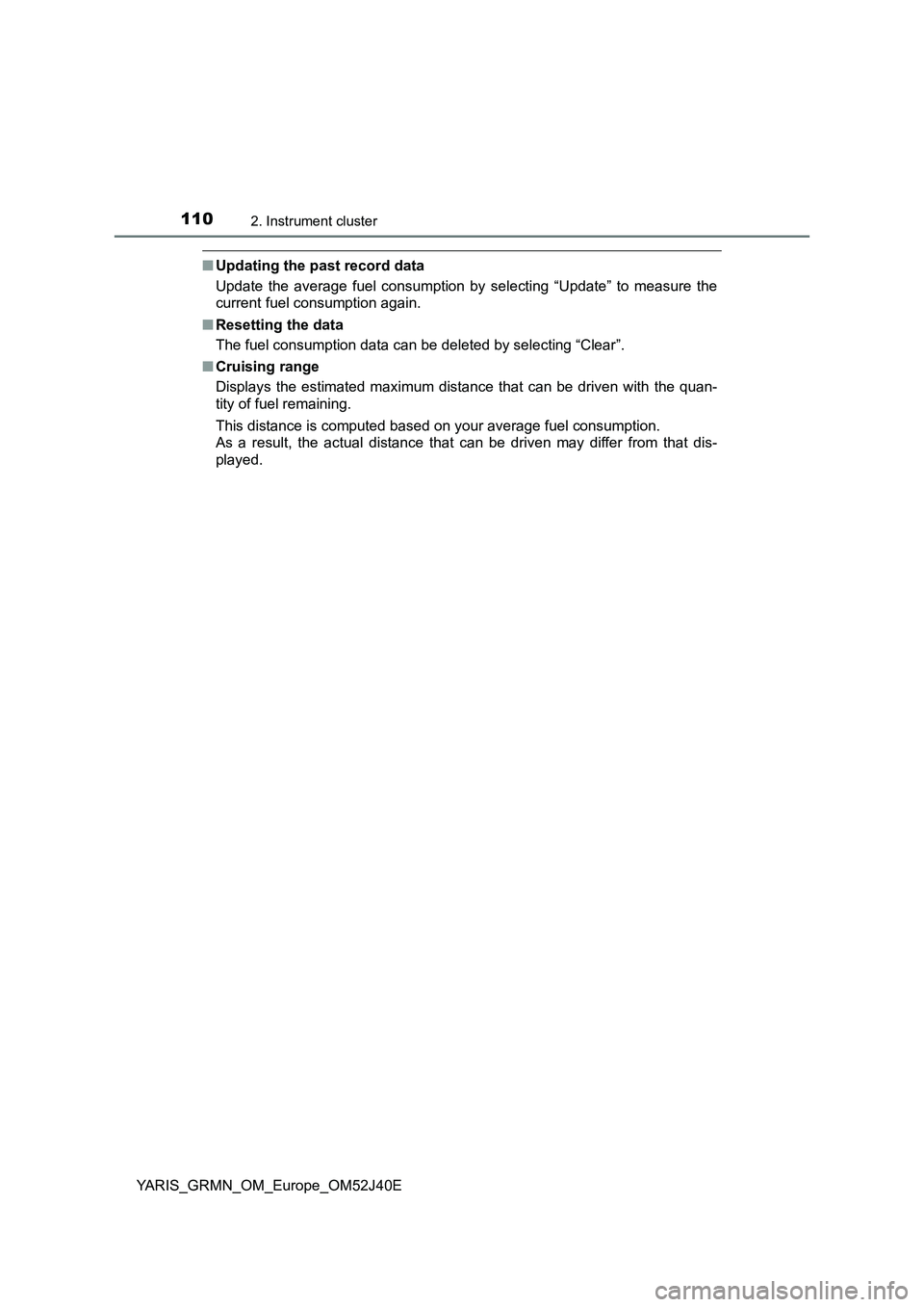

■Updating the past record data
Update the average fuel consumption by selecting “Update” to measure the
current fuel consumption again.
■ Resetting the data
The fuel consumption data can be deleted by selecting “Clear”.
■ Cruising range
Displays the estimated maximum distance that can be driven with the quan-
tity of fuel remaining.
This distance is computed based on your average fuel consumption.
As a result, the actual distance that can be driven may differ from that dis-
played.
