TOYOTA YARIS HATCHBACK 2009 Owners Manual

77
1-6. Theft deterrent system
1
Before driving
n
Items to check before locking the vehicle
To prevent unexpected triggering of the alarm and vehicle theft, make sure
of the following.
lNobody is in the vehicle.
l The win
dows are closed before the alarm is set.
lNo valuables or oth
er personal items are left in the vehicle.
n T
riggering of the alarm
The alarm may be triggered in the following situations.
(Stopping the alarm deactivates the system.)
l A person inside the vehicle opens a door or hood.

78
1-6. Theft deterrent system

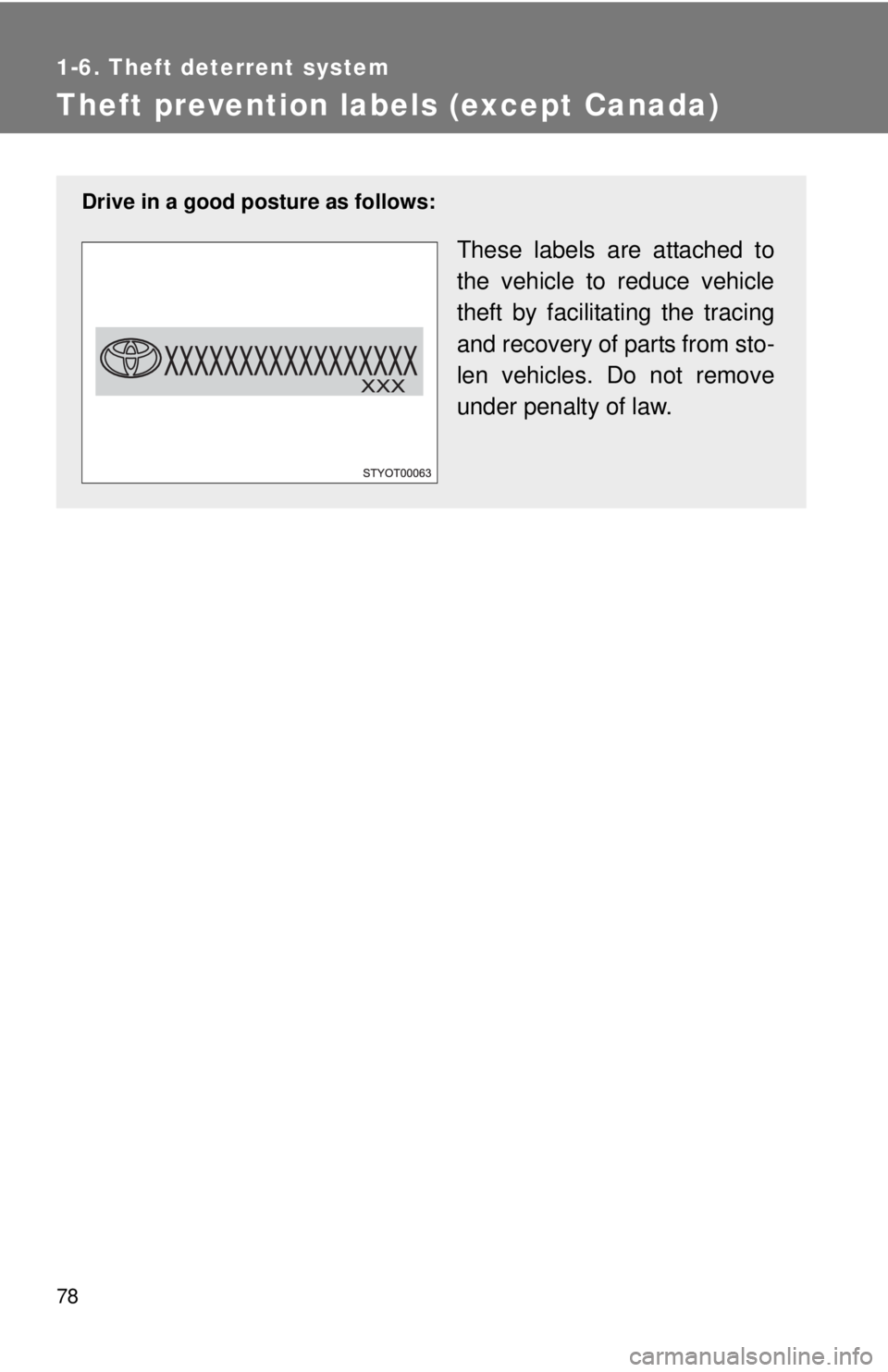

Theft prevention labels (except Canada)
Drive in a good posture as follows:
These labels are attached to
the vehicle to reduce vehicle
theft by facilitating the tracing
and recovery of parts from sto-
len vehicles. Do not remove
u
nder penalty of law.

79
1
Before driving
1-7. Safety information

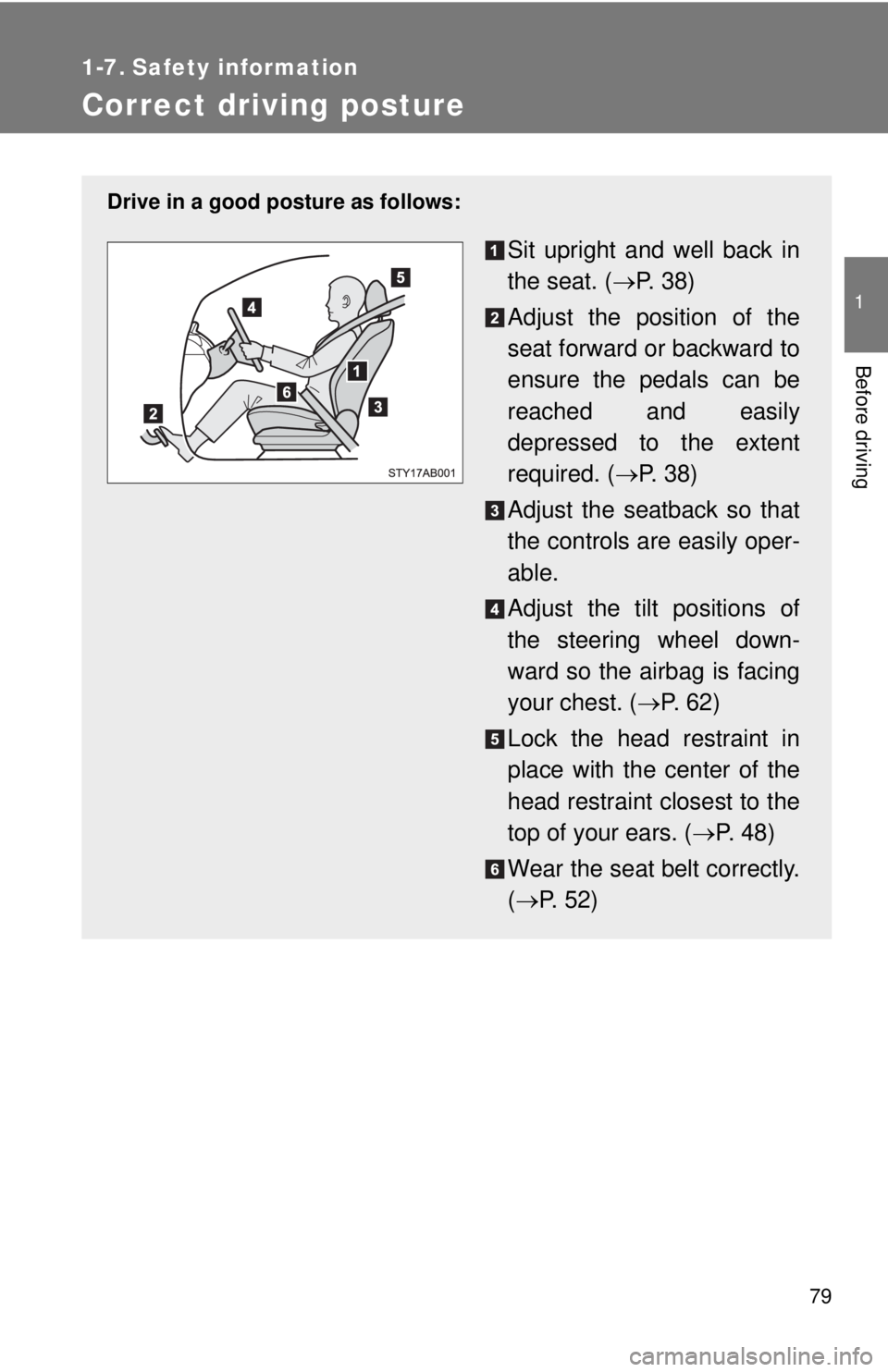

Correct driving posture
Drive in a good posture as follows:
Sit upright and well back in
the seat. (→P. 3 8 )
Adjust the position of the
seat forward or backward to
e
nsure the pedals can be
reached and easily
depressed to the extent
required. ( →P. 3 8 )
Adjust the seatback so that
the controls are easily oper -
able.
Adjust the tilt positions of
the steering wheel down -
ward so the airbag is facing
your
chest. ( →P. 6 2 )
Lock the head restraint in
place with the center of the
h
ead restraint closest to the
top of your ears. ( →P. 4 8 )
Wear the seat belt correctly.
( → P. 5 2 )

80 1-7. Safety information
CAUTION
nWhile driving
lDo not adjust the position of the driver's seat while driving.
Doing so could cause the driver to lose control of the vehicle.
l Do not place a cushion between the driver or passenger and the seatback.
A cushion may prevent correct posture from being achieved, and reduce
the effectiveness of the seat belt and head restraint, increasing the risk of
death or serious injury to the driver or passenger.
l Do not place anything under the front seats.
Objects placed under the front seats may become jammed in the seat
tracks and stop the seat from locking in place. This may lead to an acci-
dent. The adjustment mechanism may also be damaged.
n Adjusting the seat position
lTake care when adjusting the seat position to ensure that other passen-
gers are not injured by the moving seat.
l Do not put your hands under the seat or near the moving parts to avoid
injury.
Fingers or hands may become jammed in the seat mechanism.

81
1
1-7. Safety information
Before driving

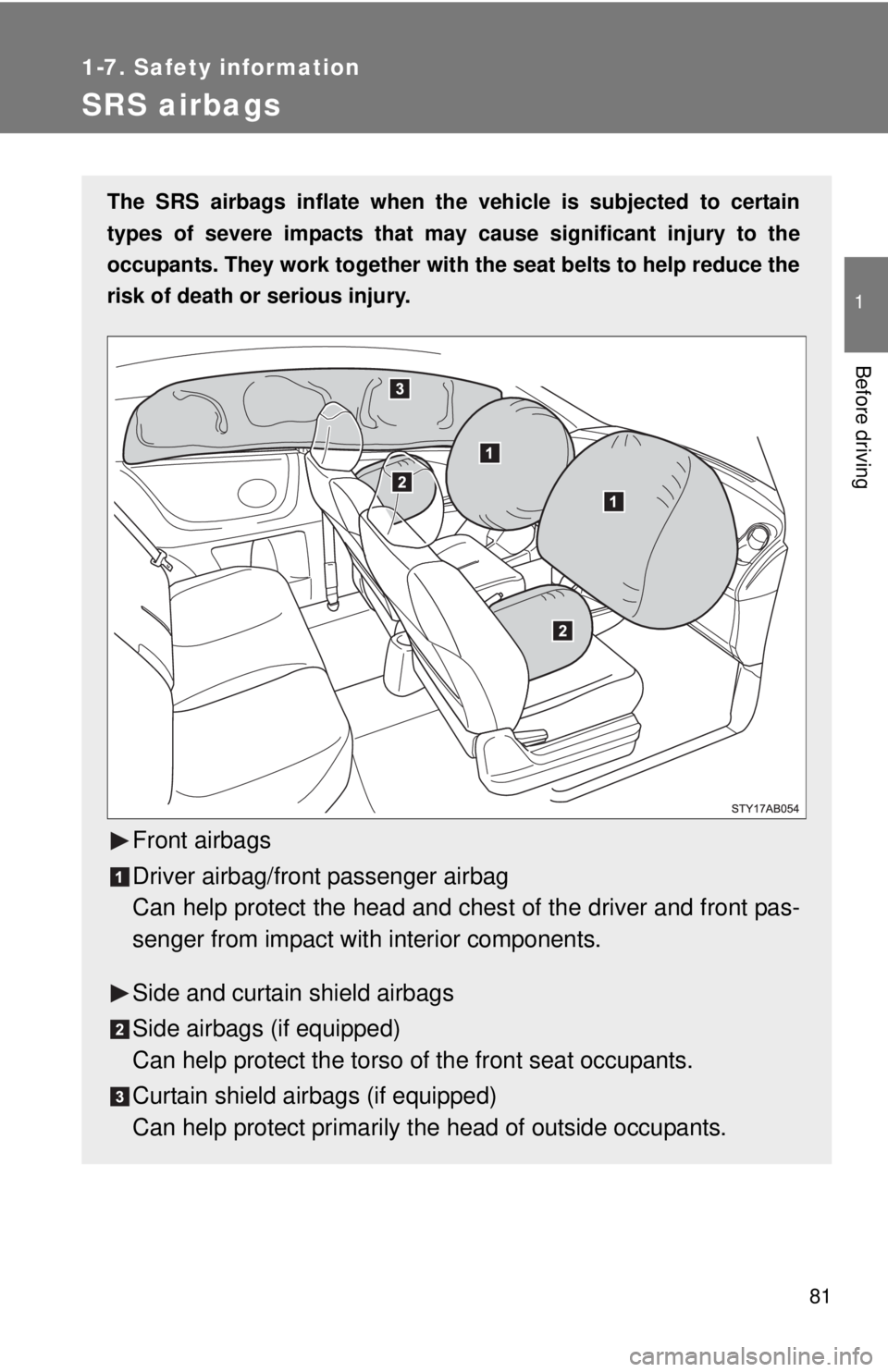

SRS airbags
The SRS airbags inflate when the vehicle is subjected to certain
types of severe impacts that may cause significant injury to the
occupants. They work together with the seat belts to help reduce the
risk of death or serious injury.
Front airbags
Driver airbag/front passenger airbag
Can help protect the head and ches t o
f the driver and front pas-
senger from impact with interior components.
Side and curtain shield airbags
Side airbags (if equipped)
Can help protect the torso of
the front seat occupants.
Curtain shield airbags (if equipped)
Can help protect primarily the head of outside occupants.

82 1-7. Safety information
Airbag system components
Front passenger airbag
Curtain shield airbags (if
equipped)
Side airbags (if equipped)
SRS warning light
Curtain shield airbag sen-
sors (if equipped)
Driver airbag
Side and curtain shield air-
bag sensors (if equipped)Driver’s seat position sen-
sor
Driver’s seat belt buckle
switch
AIR BAG ON and AIR BAG
OFF indicator lights
Airbag sensor assembly
Front airbag sensors
Front passenger’s seat belt
buckle switch
Occupant detection system
(ECU and sensors)

83
1-7. Safety information
1
Before driving
Your vehicle is equipped with
ADVANCED AIRBAGS designed based
on US motor vehicle safety standards (FMVSS208). The airbag sys -
tem controls airbag deployment power
for the driver and front pas-
senger. The driver airbag system consists of the driver seat’s position
se
nsor etc. The front passenger’s airbag system consists of the front
passenger occupant classification sensor etc.
The main SRS airbag system components are shown above. The
SRS airbag
system is controlled by the airbag sensor assembly. The
airbag sensor assembly consists of a safing sensor and an airbag
sensor.
In certain types of severe frontal or side imp
acts, the SRS airbag sys-
tem triggers the airbag inflators. A chemical rea
ction in the inflators
quickly fills the airbags with non-toxic gas to help restrain the motion
of the occupants.
n SRS warning light
This warning light system monitors the airbag sensor assembly, front airbag
sensors, side and curtain shield airbag sensors, curtain shield airbag sen -
sors, driver’s seat position sensor, driver’s seat belt buckle switch, front pas -
senger occupant classification system, AIR BAG ON indicator light, AIR
BAG OFF indicator
light, front passenger’s seat belt buckle switch, seat belt
pretensioner assemblies, inflators, interconnecting wiring and power
sources. ( →P. 3 0 8 )
n If the SRS airbags deploy (inflate)
l Bruising and
slight abrasions may result from contact with a deploying
(inflating) SRS airbag.
l A loud noise and white powder will be emitted.
l V
ehicles with side and curtain shield airbags: Parts of the airbag module
(steering wheel hub, airbag cover and inflator) as well as the front seats,
and parts of the front and rear pillars and roof side rail, may be hot for
several minutes. The airbag itself may also be hot.
l V
ehicles without side and curtain shield airbags: Parts of the airbag mod -
ule (steering wheel hub, airbag cover and inflator) as well as the front
seat
s may be hot for several minutes. The airbag itself may also be hot.

84 1-7. Safety information
nIf the SRS airbags deploy (inflate)
lThe front windshield may crack.
n Operating conditions (front airbags)
l The SRS front airbags will deploy if the severity of the frontal impact is
above the designed threshold level, comparable to an approximate 15
mph (25 km/h) collision when the vehicle impacts straight into a fixed bar-
rier that does not move or deform.
However, this threshold velocity will be considerably higher if the vehicle
strikes an object, such as a parked vehicle or sign pole, which can move or
deform on impact, or if the vehicle is involved in an underride collision (e.g.
a collision in which the front of the vehicle “underrides”, or goes under, the
bed of a truck, etc.).
l It is possible that in some collisions where the forward deceleration of the
vehicle is very close to the designed threshold level, the SRS front air-
bags and the seat belt pretensioners may not activate together.
l The SRS front passenger airbag will not activate if there is no passenger
sitting in the front passenger seat. However, the front passenger airbag
may deploy if luggage is put in the seat, even if the seat is unoccupied.
(→ P. 9 3 )
n Operating conditions (side airbag s and curtain shield airbags [if
equipped])
l The SRS side airbags and curtain shield airbags are designed to inflate
when the passenger compartment is subjected to a severe impact from
the side.
l The SRS side airbag on the passenger seat will not activate if there is no
passenger sitting in the front passenger seat. However, the side airbag
on the passenger seat may deploy if luggage is put in the seat, even if
the seat is unoccupied. ( →P. 93)

85
1-7. Safety information
1
Before driving
n
Conditions under which the SRS airbags may deploy (inflate), other
than a collision
The SRS front airbags may also deploy if a serious impact occurs to the
underside of your vehicle. Some examples are shown in the illustration.
n Types of collisions that may not depl oy the SRS airbag (front airbags)
The SRS front airbags are generally not designed to inflate if the vehicle is
involved in a side or rear collision, if it rolls over, or if it is involved in a low-
speed frontal collision. But, whenever a collision of any type causes suffi-
cient forward deceleration of the vehicle, deployment of the SRS front air-
bags may occur.
l Hitting a curb, edge of pavement or
hard surface
l Falling into or jumping over a deep hole
l Landing hard or vehicle falling
lCollision from the side
l Collision from the rear
l Vehicle rollover

86 1-7. Safety information
nTypes of collisions that may not deploy the SRS airbag
(side airbags and curtain shield airbags [if equipped])
The SRS side airbag and curtain shield airbag system may not activate if the
vehicle is subjected to a collision from the side at certain angles, or a colli-
sion to the side of the vehicle body other than the passenger compartment.
The SRS side airbags and curtain shield airbags are not generally designed
to inflate if the vehicle is involved in a frontal or rear collision, if it rolls over,
or if it is involved in a low-speed side collision.
lCollision from the side to the vehicle
body other than the passenger com-
partment
l Collision from the side at an angle
lCollision from the front
l Collision from the rear
l Vehicle rollover
