seats TOYOTA YARIS HATCHBACK 2010 Owners Manual

1
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Engine maintenance7Fuel tank door release and cap 6Hood release 7Indicator symbols4-5Instrument cluster 4Instrument panel2-3
Keyless entry* 6
Air Conditioning/Heating13Audio 14Automatic Transmission 8Clock14Cruise control13Door-Back 15Light control-Instrument panel 9Lights & turn signals 9Luggage storage box15Parking brake 8Power outlet15Seat adjustments-Front10Seat adjustments-Rear10Seat-Folding rear seat11Seats-Head restraints10Tilt steering wheel 8VSC OFF button15Windows-Power 12
Windshield wipers & washers 12
Child comfort guide 17Door locks-Power 16Seatbelts16Spare tire & tools 17
Tire Pressure Monitoring (warning) System 16
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
INDEX
* Visit your Toyota dealer for information on customizing this feature.

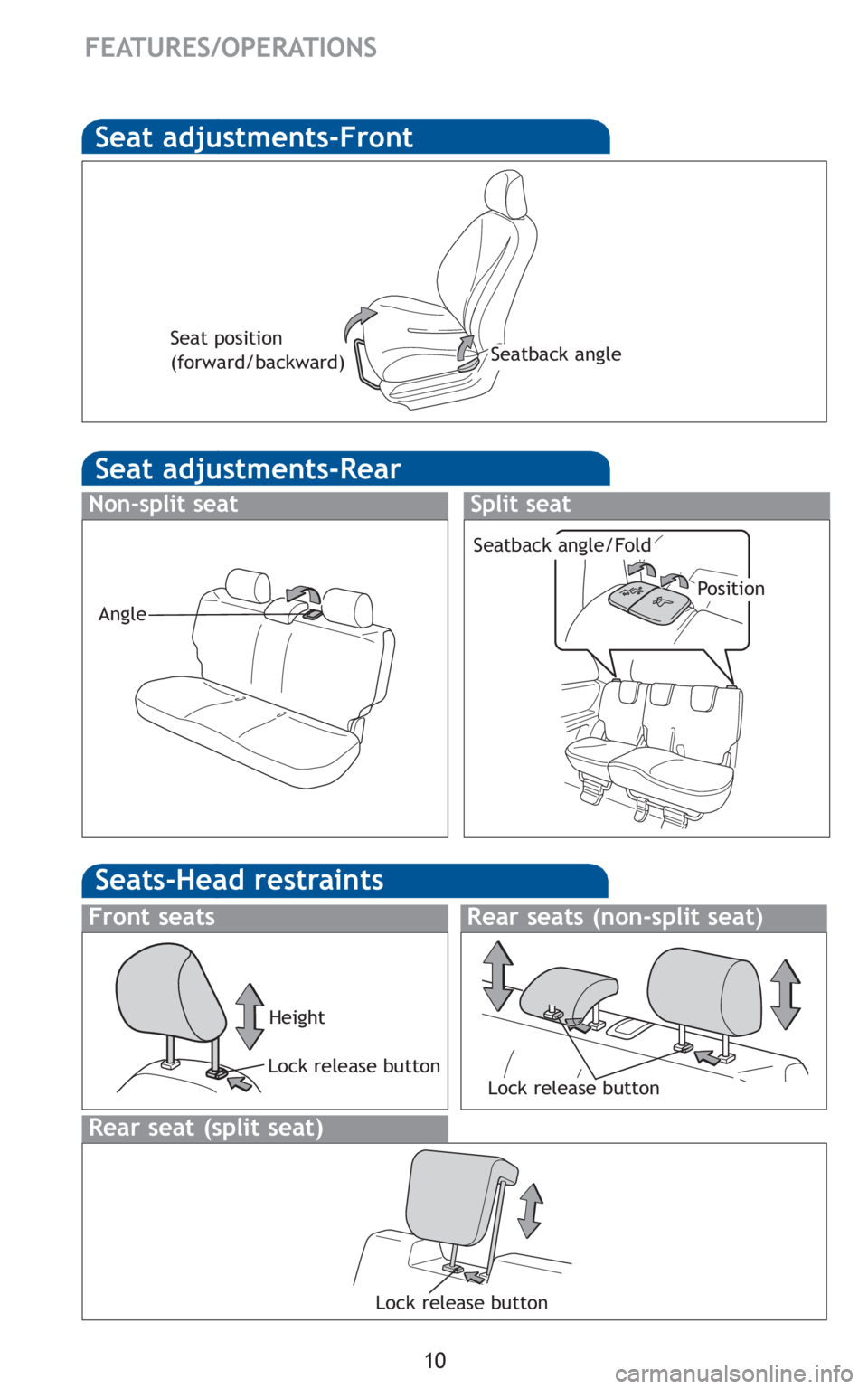

10
FEATURES/OPERATIONS
Seat adjustments-Front
Seat adjustments-Rear
Non-split seat
Seatback angle
Seat position
(forward/backward)
Angle
Split seat
Position
Seatback angle/Fold
Lock release button
Lock release button Height
Rear seat (split seat)
Front seats
Seats-Head restraints
Rear seats (non-split seat)
Lock release button

10
Pictorial indexInterior
Seat belts P. 56SRS driver airbag P. 85
Head restraints P. 50
Front seats P. 40
SRS side airbags∗ P. 85
Floor mats P. 232
SRS front
passenger
airbag
P. 85
Security indicator∗
P. 78, 80
3-door models
Rear seats P. 43
Seat belts P. 56
Horn P. 138

11
Seat belts P. 56
SRS driver airbag P. 85
Head restraints P. 50
Front seats P. 40
SRS side airbags∗ P. 85
Floor mats P. 232
SRS front passenger
airbag
P. 85
Security indicator∗
P. 78, 80
Power window
switches
∗ P. 71
5-door models
Rear seats P. 43
∗: If equipped
Horn P. 138

40
1-3. Adjustable components (seats, mirrors, steering wheel)

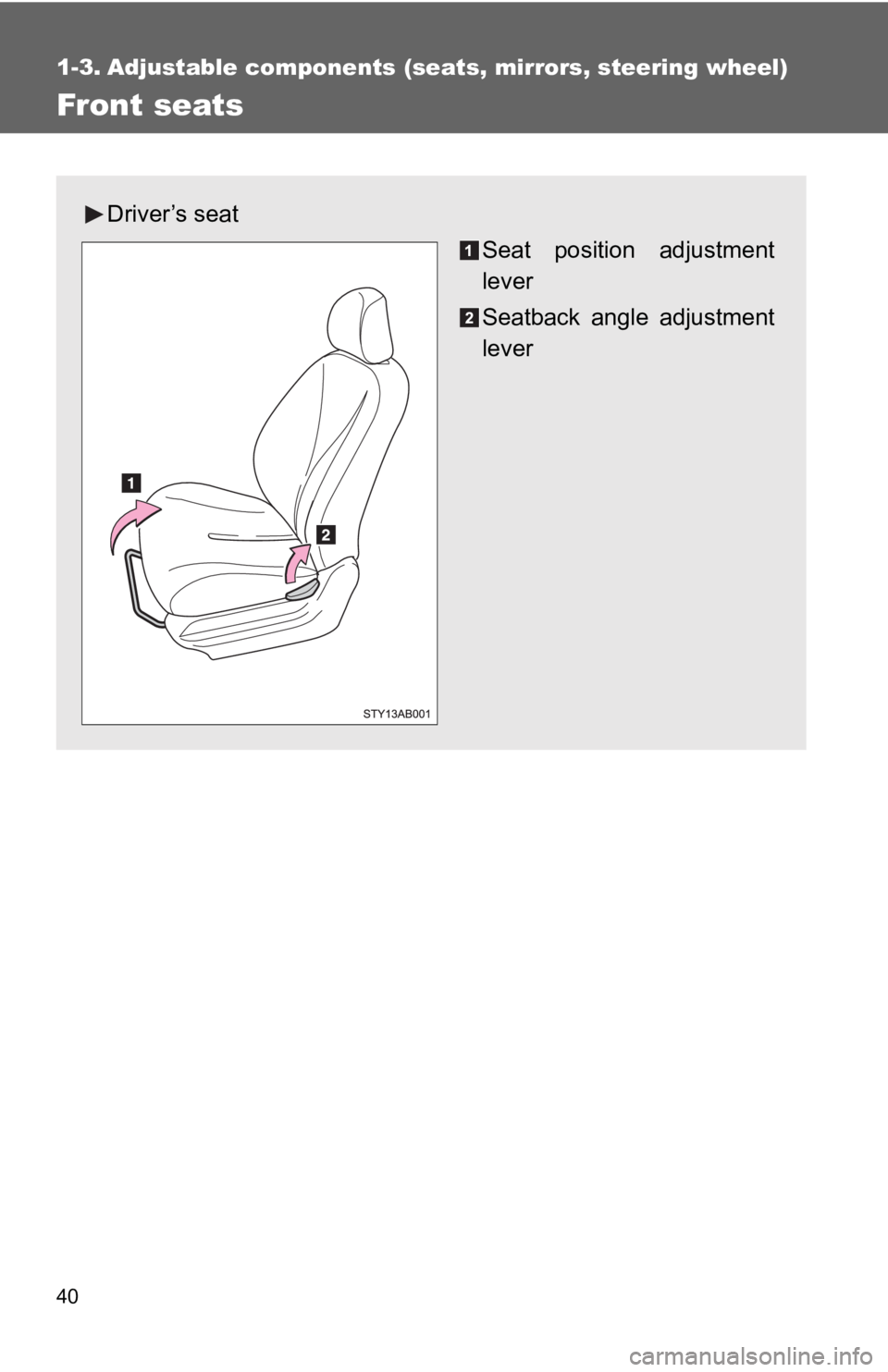

Front seats
Driver’s seat
Seat position adjustment
lever
Seatback angle adjustment
lever

42 1-3. Adjustable components (seats, mirrors, steering wheel)
CAUTION
■Seat adjustment
●Do not recline the seat more than necessary when the vehicle is in motion
to reduce the risk of sliding under the lap belt.
If the seat is too reclined, the lap belt may slide past the hips and apply
restraint forces directly to the abdomen or your neck may contact the
shoulder belt, increasing the risk of death or serious injury in the event of
an accident.
● After adjusting the seat, make sure that the seat is locked in position.
■ After returning the seatback
Push and pull the seatback to confirm that it is securely locked.
■ Caution while driving
Never operate the seatback lock release lever.

43
1
1-3. Adjustable components (seats, mirrors, steering wheel)
Before driving

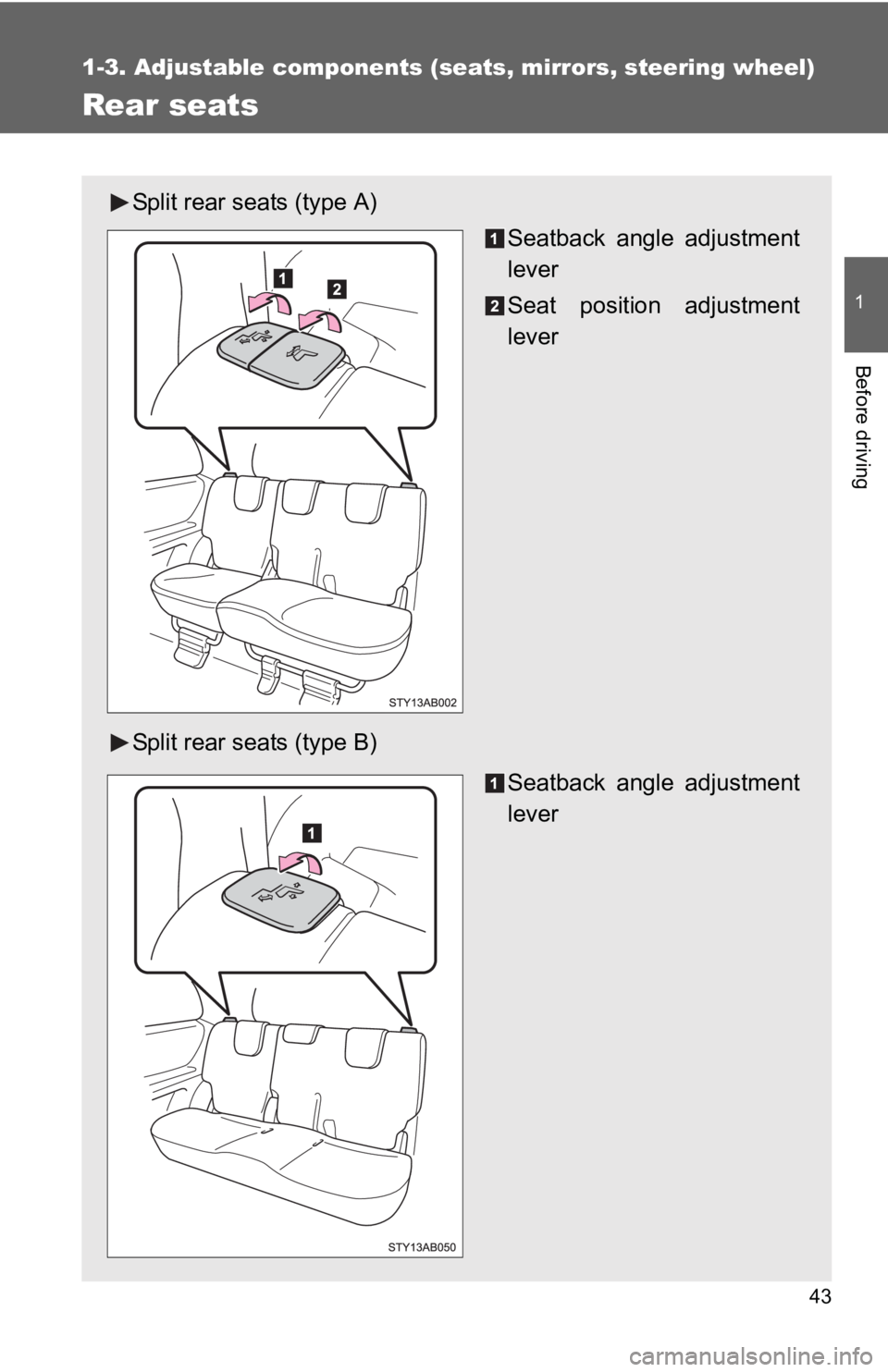

Rear seats
Split rear seats (type A)Seatback angle adjustment
lever
Seat position adjustment
lever
Split rear seats (type B) Seatback angle adjustment
lever

44 1-3. Adjustable components (seats, mirrors, steering wheel)

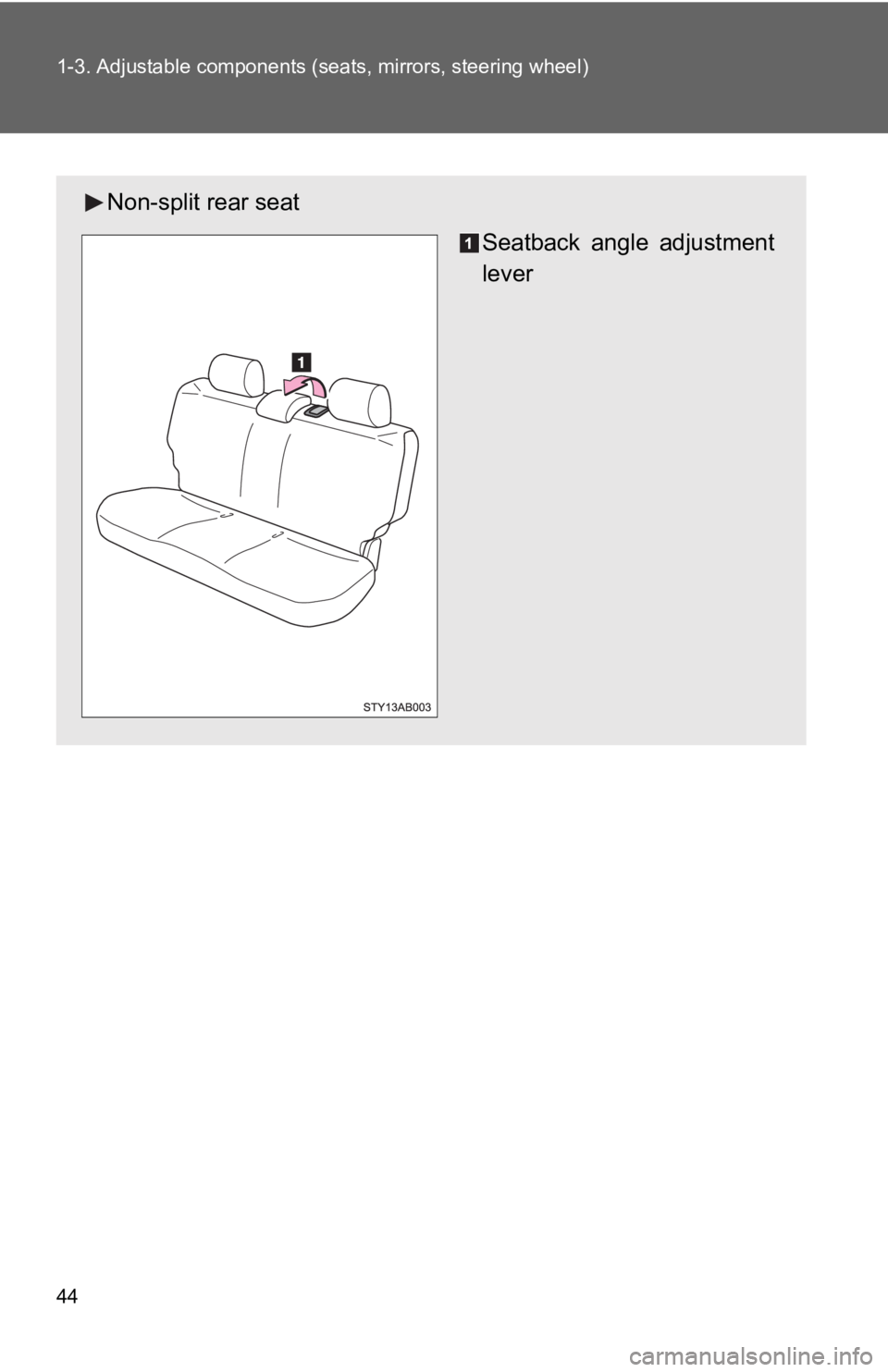

Non-split rear seat
Seatback angle adjustment
lever

46 1-3. Adjustable components (seats, mirrors, steering wheel)
Use the seat belt hangers to pre-
vent the belts from being tan-
gled.
■ Folding down rear seatbacks (split rear seats: type A)
LLower the head restraints to the
lowest position.
Pull the seat position adjustment
lever up. Then slide the rear seat
fully forward.
Pull the seatback angle adjust-
ment lever up and fold the seat-
back down.
Each seatback may be folded
separately.

47
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
Flip over the deck board.
■ Folding down rear seatbacks (split rear seats: type B)
Lower the head restraints to the
lowest position.
Pull the seatback angle adjust-
ment lever up and fold the seat-
back down.
