TOYOTA YARIS HATCHBACK 2013 Owners Manual

209
3-5. Other interior features
3
Interior features
YARIS_HB_U_52D44U
Vanity mirrors
Slide the cover to open.

210
3-5. Other interior features
YARIS_HB_U_52D44U

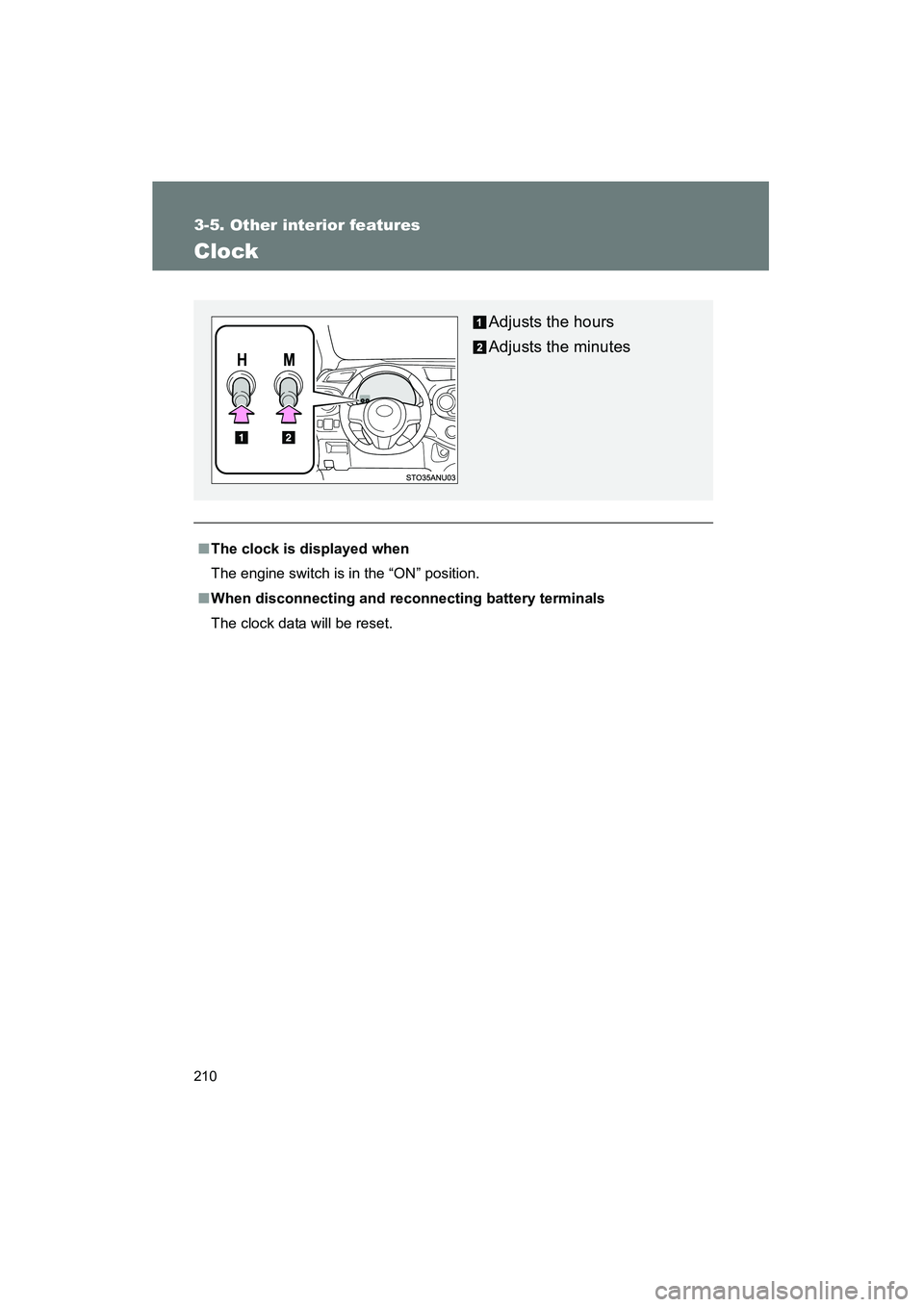

Clock
■The clock is displayed when
The engine switch is in the “ON” position.
■ When disconnecting and reconnecting battery terminals
The clock data will be reset.
Adjusts the hours
Adjusts the minutes

211
3-5. Other interior features
3
Interior features
YARIS_HB_U_52D44U

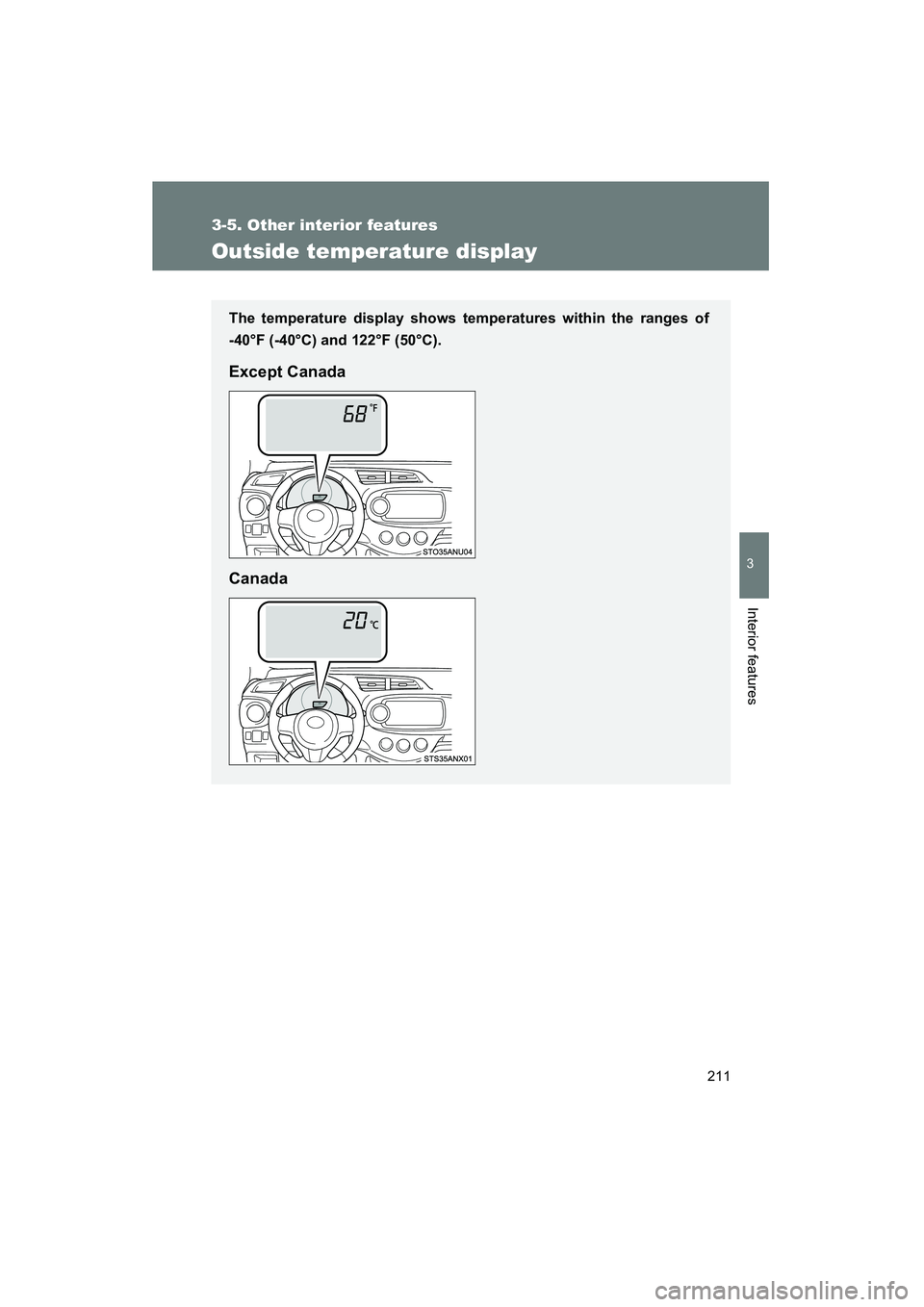

Outside temperature display
The temperature display shows temperatures within the ranges of
-40°F (-40°C) and 122°F (50°C).
Except Canada
Canada

212 3-5. Other interior features
YARIS_HB_U_52D44U

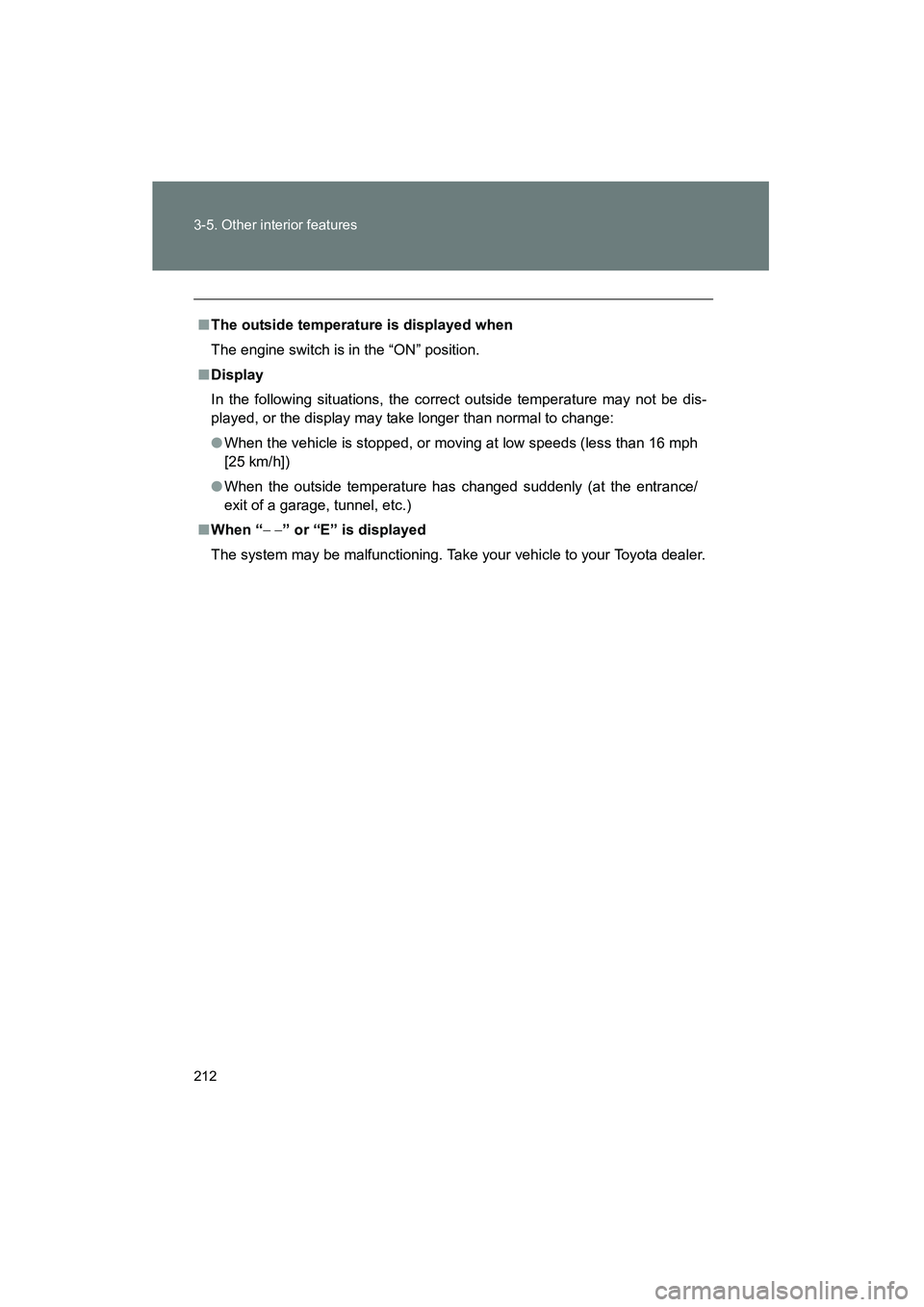

■The outside temperature is displayed when
The engine switch is in the “ON” position.
■ Display
In the following situations, the correct outside temperature may not be dis-
played, or the display may take longer than normal to change:
● When the vehicle is stopped, or moving at low speeds (less than 16 mph
[25 km/h])
● When the outside temperature has changed suddenly (at the entrance/
exit of a garage, tunnel, etc.)
■ When “ − −” or “E” is displayed
The system may be malfunctioning. Take your vehicle to your Toyota dealer.

213
3-5. Other interior features
3
Interior features
YARIS_HB_U_52D44U
Power outlet
■The power outlet can be used when
The engine switch is in the “ACC” or “ON” position.
NOTICE
■To avoid damaging the power outlet
Close the power outlet lid when the power outlet is not in use.
Foreign objects or liquids that enter the power outlet may cause a short cir-
cuit.
■ To prevent blown fuse
Do not use an accessory that uses more than 12 V 10 A.
■ To prevent battery discharge
Do not use the power outlet longer than necessary when the engine is not
running.
The power outlet can be used for 12 V accessories that run on less
than 10 A.

214
3-5. Other interior features
YARIS_HB_U_52D44U

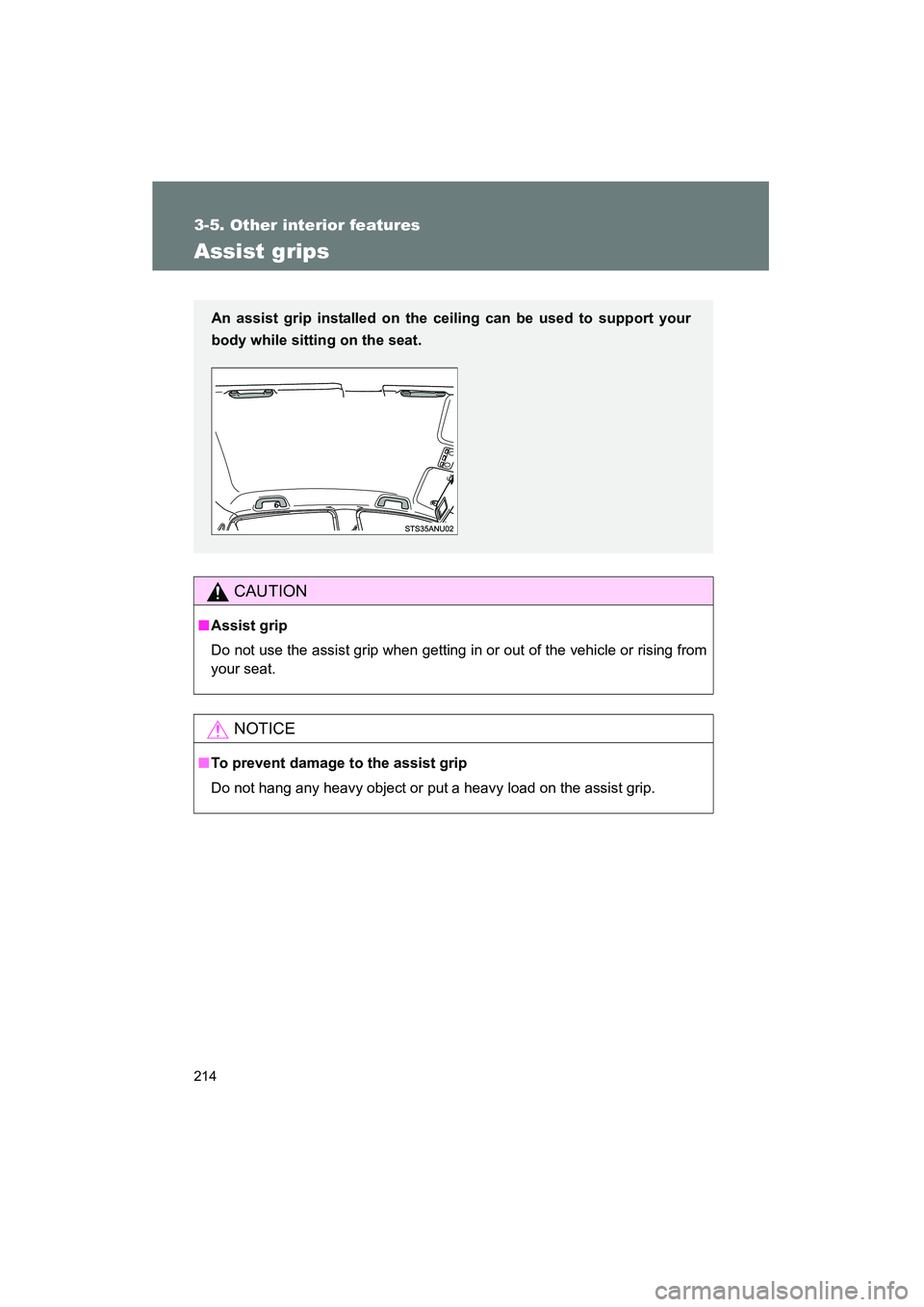

Assist grips
CAUTION
■Assist grip
Do not use the assist grip when getting in or out of the vehicle or rising from
your seat.
NOTICE
■To prevent damage to the assist grip
Do not hang any heavy object or put a heavy load on the assist grip.
An assist grip installed on the ceiling can be used to support your
body while sitting on the seat.

215
3-5. Other interior features
3
Interior features
YARIS_HB_U_52D44U

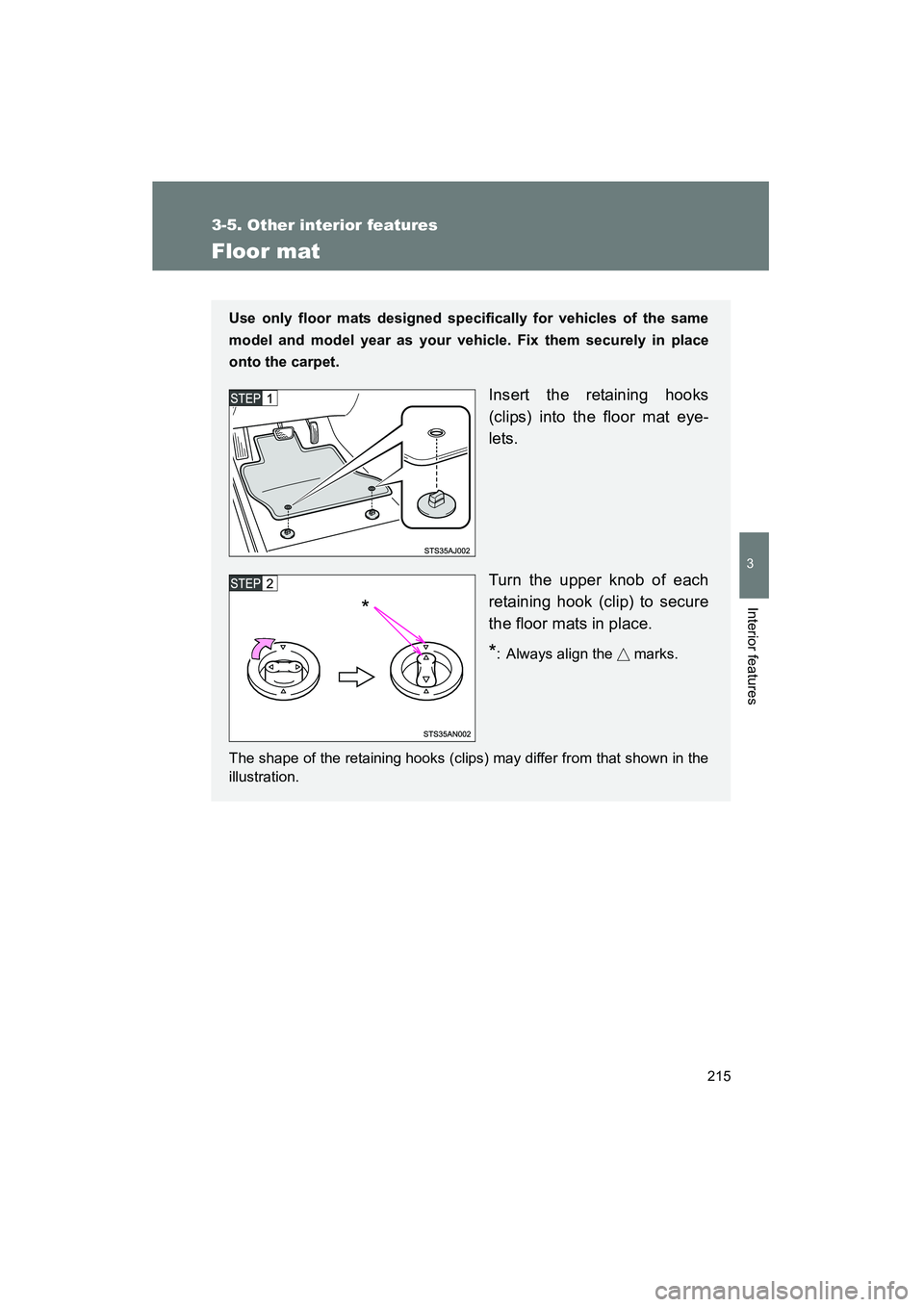

Floor mat
Use only floor mats designed specifically for vehicles of the same
model and model year as your vehicle. Fix them securely in place
onto the carpet.
Insert the retaining hooks
(clips) into the floor mat eye-
lets.
Turn the upper knob of each
retaining hook (clip) to secure
the floor mats in place.
*: Always align the marks.
The shape of the retaining hooks (clips) may differ from that shown in the
illustration.
*

216 3-5. Other interior features
YARIS_HB_U_52D44U

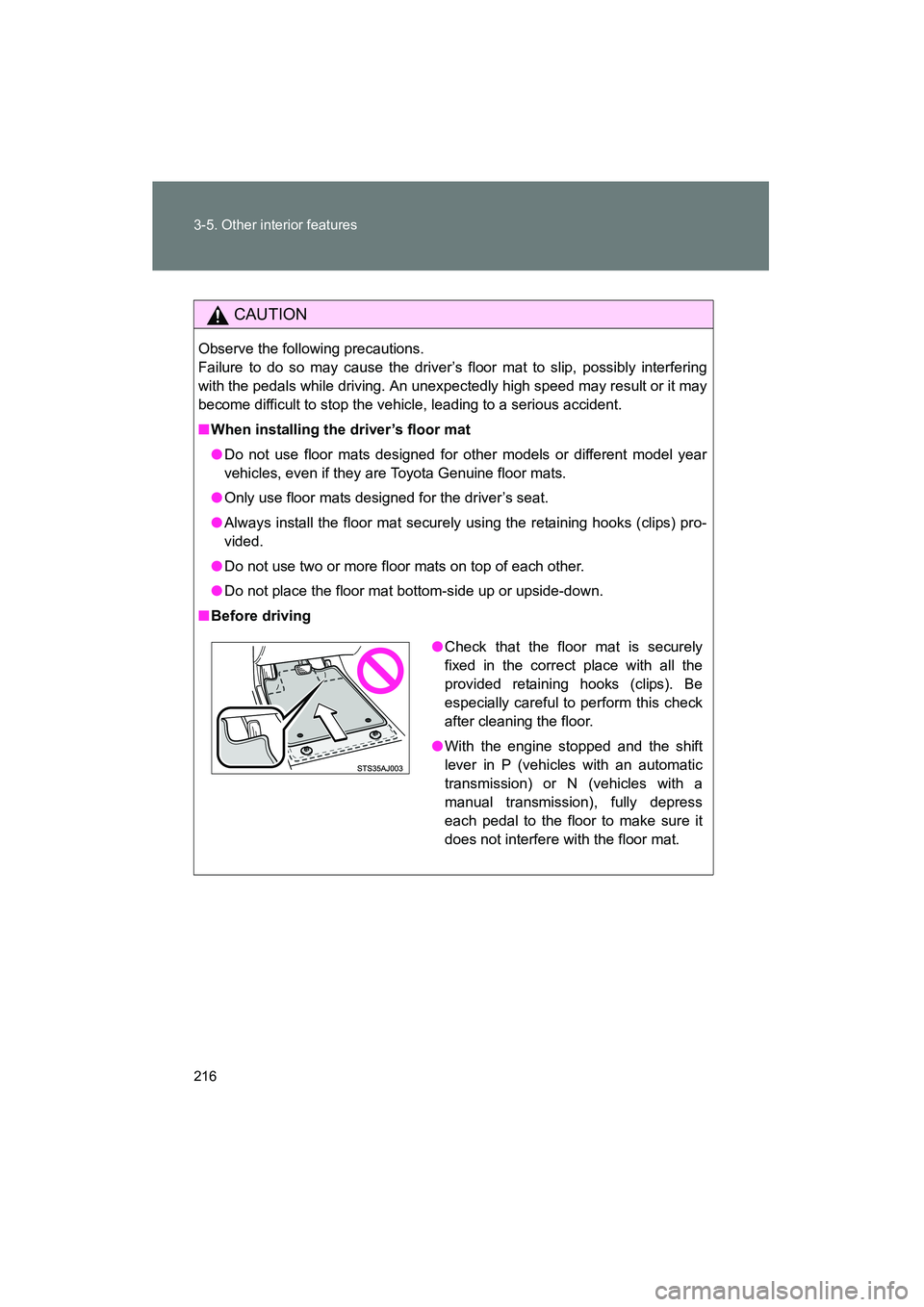

CAUTION
Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering
with the pedals while driving. An unexpectedly high speed may result or it may
become difficult to stop the vehicle, leading to a serious accident.
■When installing the driver’s floor mat
● Do not use floor mats designed for other models or different model year
vehicles, even if they are Toyota Genuine floor mats.
● Only use floor mats designed for the driver’s seat.
● Always install the floor mat securely using the retaining hooks (clips) pro-
vided.
● Do not use two or more floor mats on top of each other.
● Do not place the floor mat bottom-side up or upside-down.
■ Before driving
● Check that the floor mat is securely
fixed in the correct place with all the
provided retaining hooks (clips). Be
especially careful to perform this check
after cleaning the floor.
● With the engine stopped and the shift
lever in P (vehicles with an automatic
transmission) or N (vehicles with a
manual transmission), fully depress
each pedal to the floor to make sure it
does not interfere with the floor mat.

217
3-5. Other interior features
3
Interior features
YARIS_HB_U_52D44U

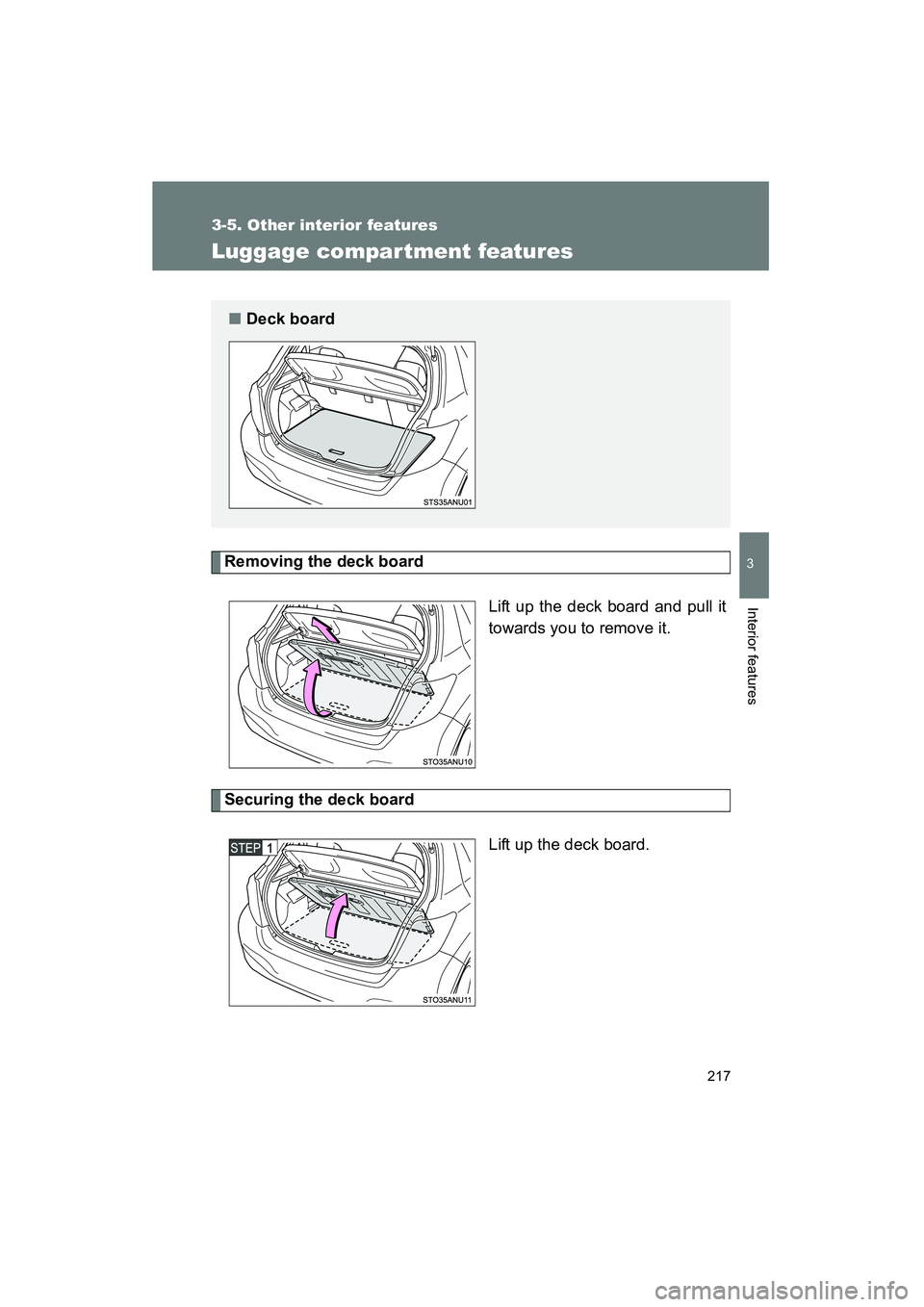

Luggage compar tment features
Removing the deck boardLift up the deck board and pull it
towards you to remove it.
Securing the deck boardLift up the deck board.
■Deck board

218 3-5. Other interior features
YARIS_HB_U_52D44URemove the hook on the back-
side of the deck board.
Attach the hook to the upper
edge of the back door opening
as shown.
■
Removing the luggage cover
The luggage cover can be removed by the following procedure:
Unhook the cords.
Return the luggage cover to horizontal
position.
Lift the luggage cover and pull it forward.
