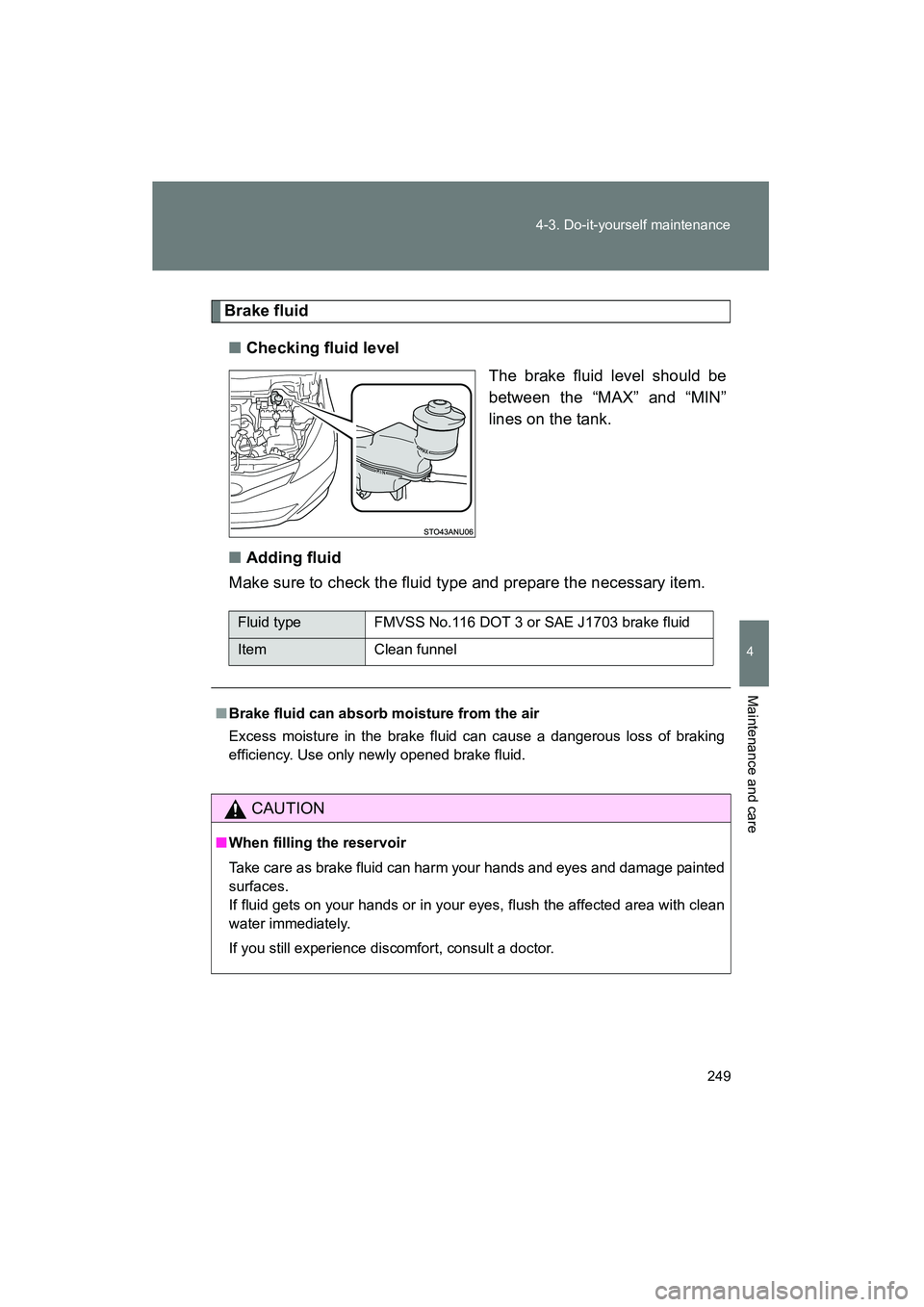

Page 251 of 403

TOYOTA YARIS HATCHBACK 2013  Owners Manual 249
4-3. Do-it-yourself maintenance
4
Maintenance and care
YARIS_HB_U_52D44U
Brake fluid
■ Checking fluid level
The brake fluid level should be
between the “MAX” and “MIN”
lines on the tank.

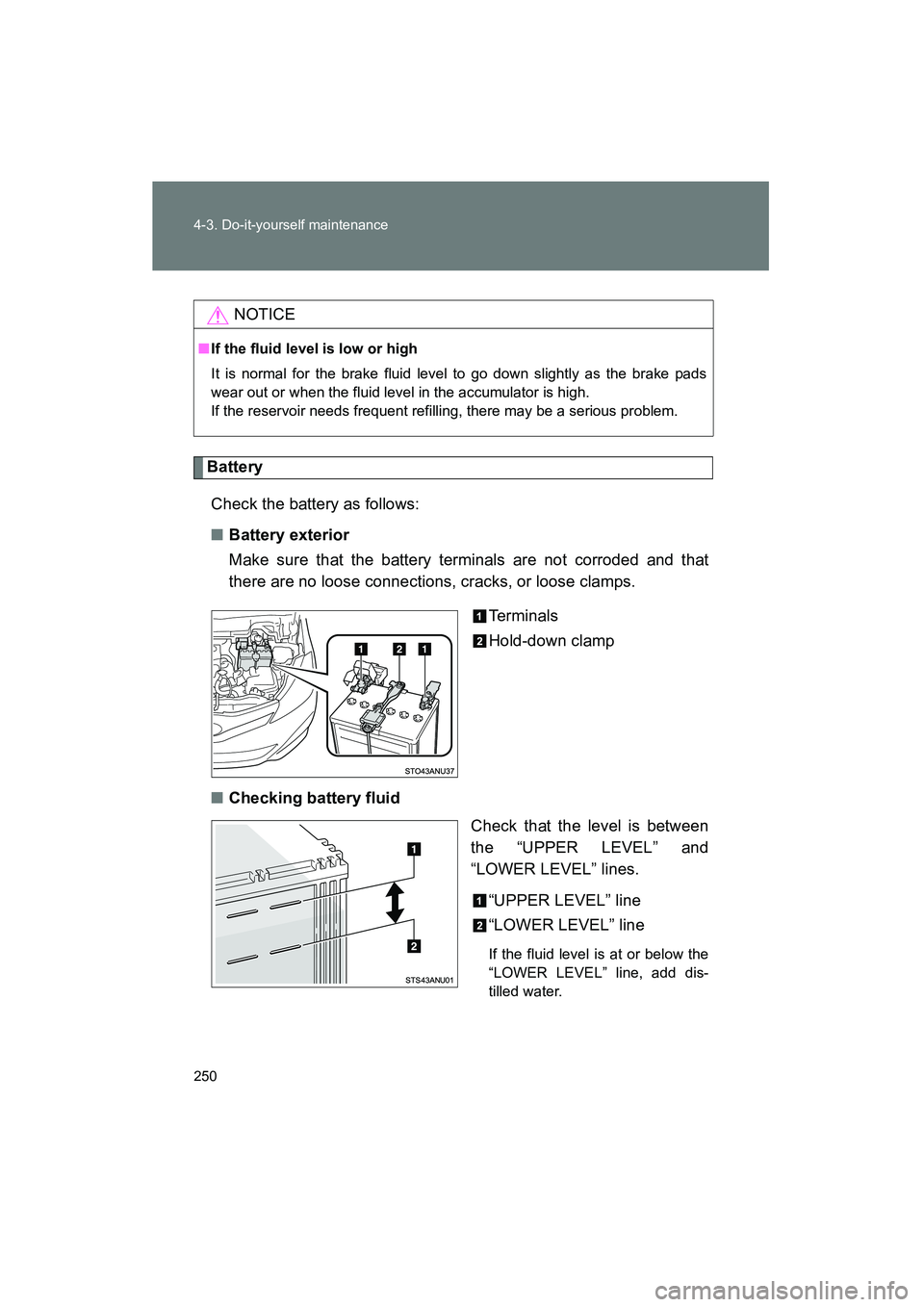

Page 252 of 403

TOYOTA YARIS HATCHBACK 2013  Owners Manual 250 4-3. Do-it-yourself maintenance
YARIS_HB_U_52D44U
BatteryCheck the battery as follows:
■ Battery exterior
Make sure that the battery terminals are not corroded and that
there are no loose connec

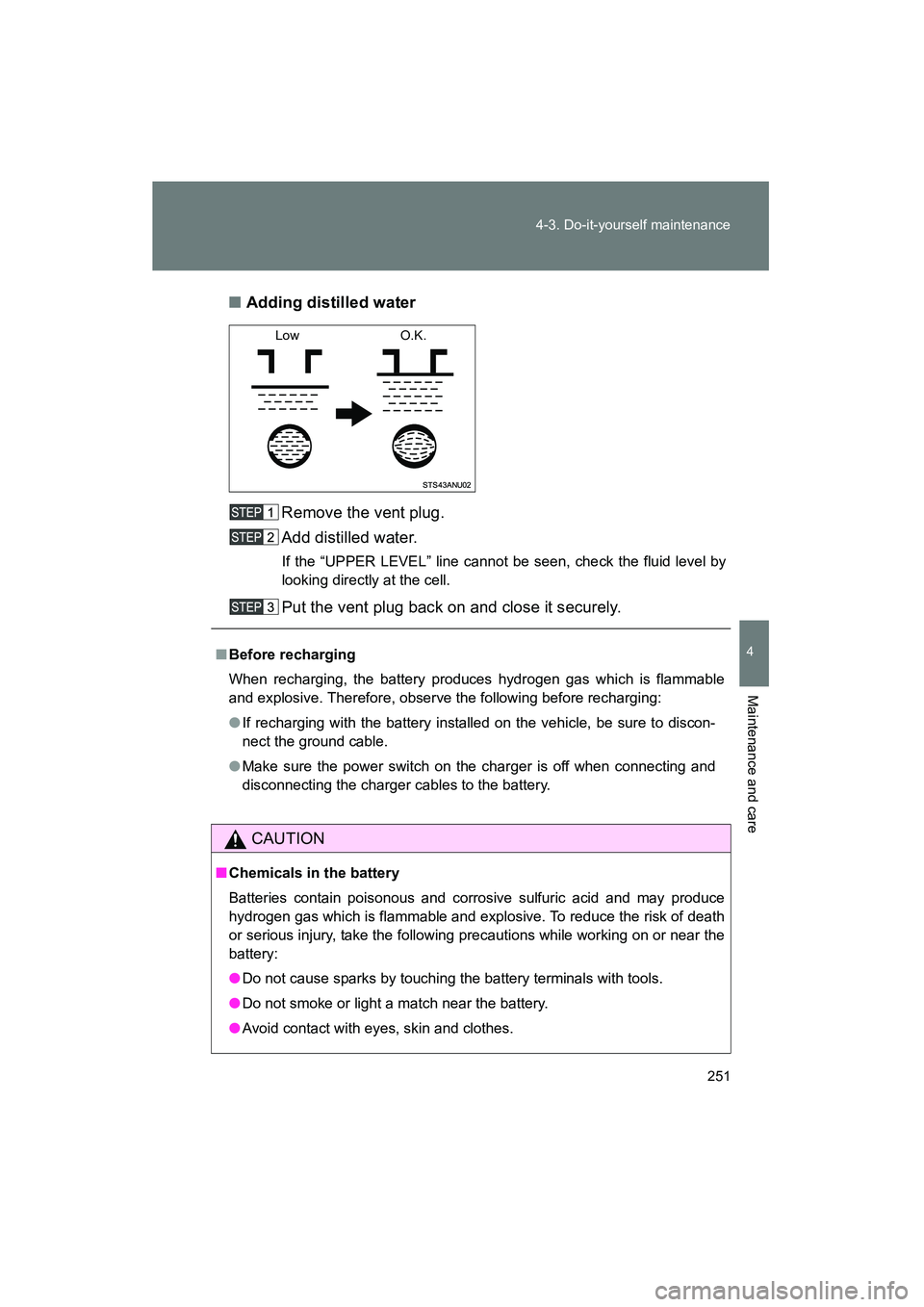

Page 253 of 403

TOYOTA YARIS HATCHBACK 2013  Owners Manual 251
4-3. Do-it-yourself maintenance
4
Maintenance and care
YARIS_HB_U_52D44U
■
Adding distilled water
Remove the vent plug.
Add distilled water.
If the “UPPER LEVEL” line cannot be seen, check t

Page 254 of 403

TOYOTA YARIS HATCHBACK 2013  Owners Manual 252 4-3. Do-it-yourself maintenance
YARIS_HB_U_52D44U
CAUTION
●Never inhale or swallow electrolyte.
● Wear protective safety glasses when working near the battery.
● Keep children away from the

Page 255 of 403

TOYOTA YARIS HATCHBACK 2013  Owners Manual 253
4-3. Do-it-yourself maintenance
4
Maintenance and care
YARIS_HB_U_52D44U
Washer fluid
If neither washer does not work
or the low windshield washer
fluid warning light comes on (if
equipped), the w

Page 256 of 403

TOYOTA YARIS HATCHBACK 2013  Owners Manual 254
4-3. Do-it-yourself maintenance
YARIS_HB_U_52D44U
Tires
Replace or rotate tires in accordance with maintenance sched-
ules and treadwear.
■Checking tires
New tread
Treadwear indicator
Worn tread

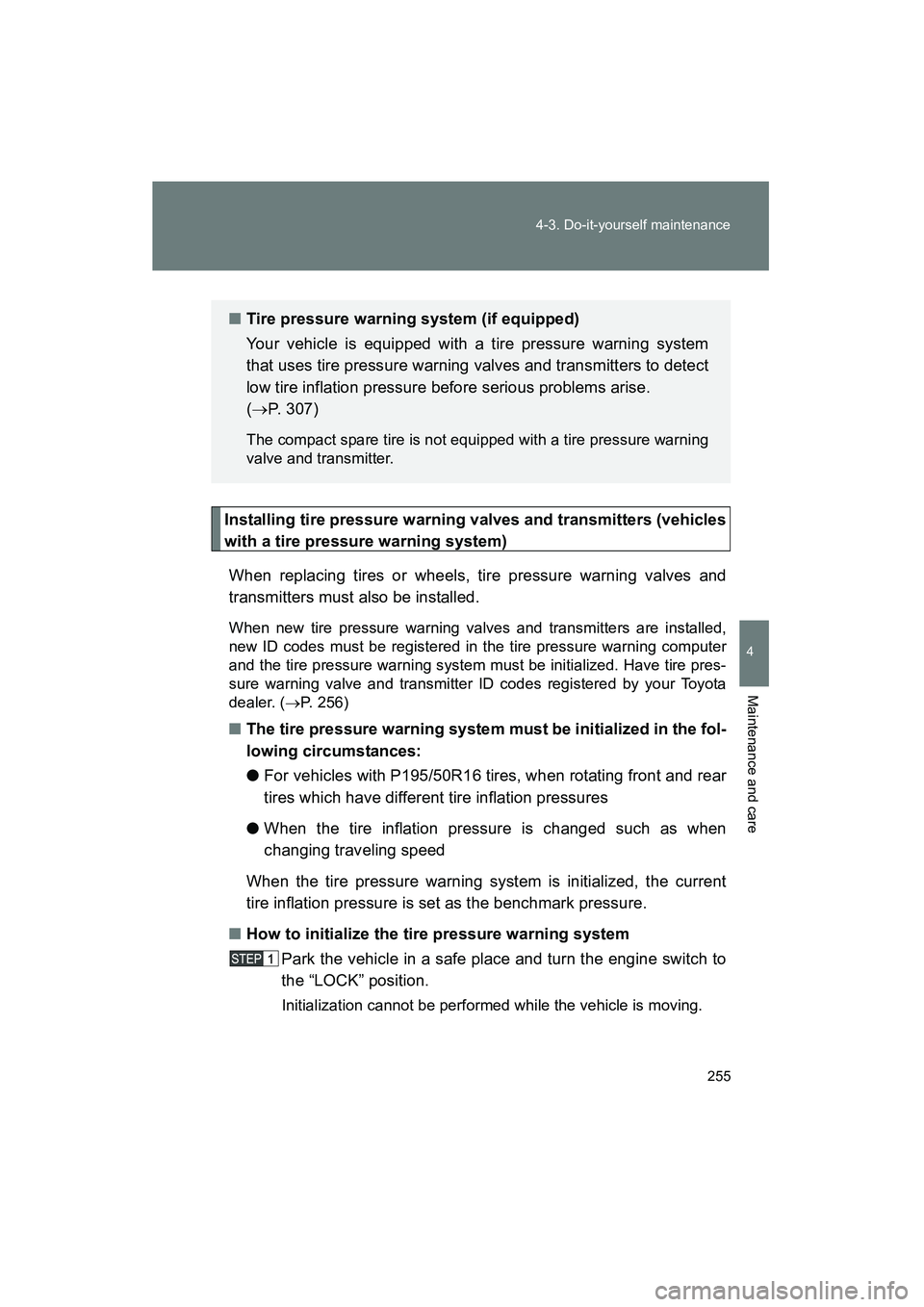

Page 257 of 403

TOYOTA YARIS HATCHBACK 2013  Owners Manual 255
4-3. Do-it-yourself maintenance
4
Maintenance and care
YARIS_HB_U_52D44U
Installing tire pressure warning valves and transmitters (vehicles
with a tire pressure warning system)
When replacing tire

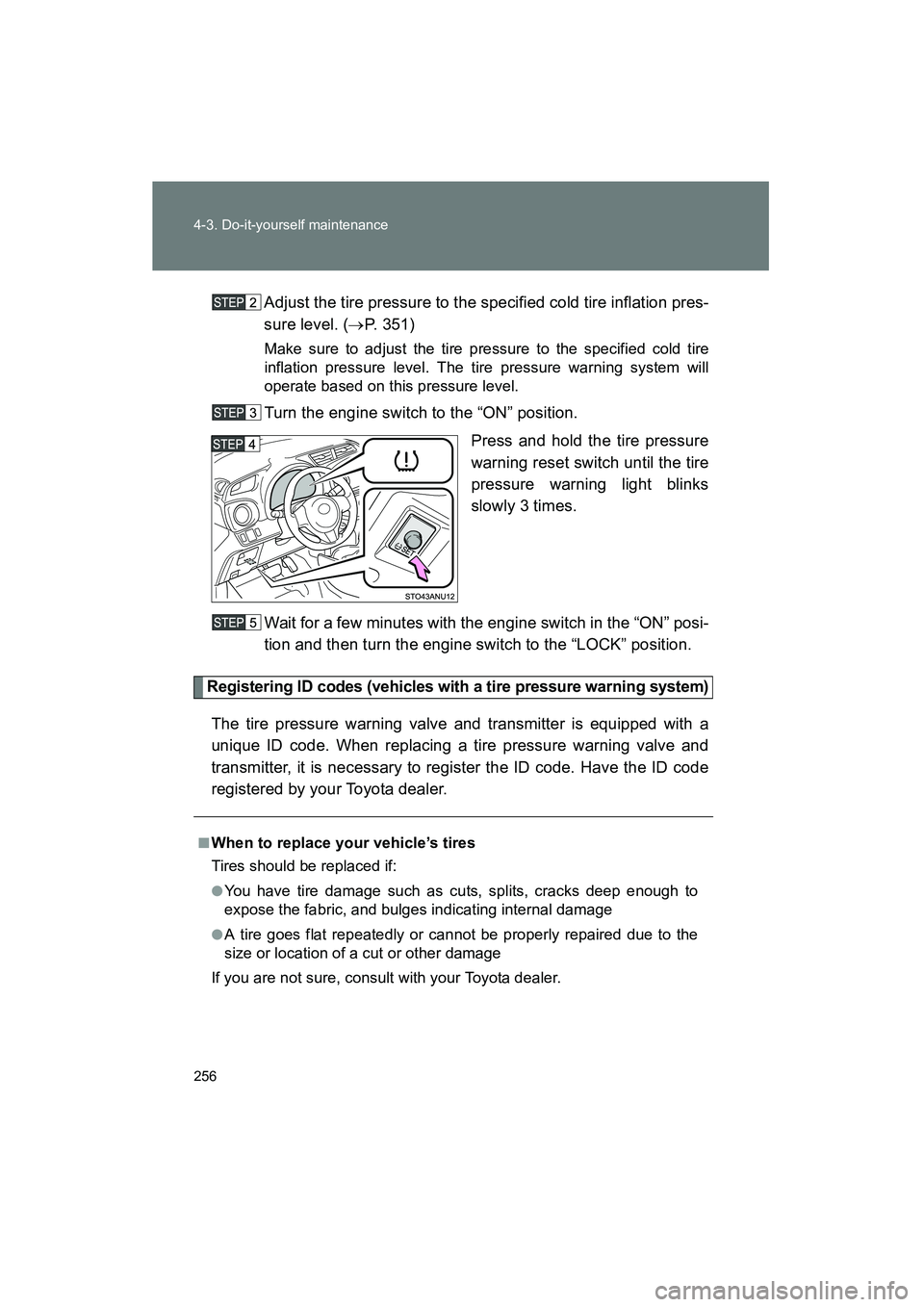

Page 258 of 403

TOYOTA YARIS HATCHBACK 2013  Owners Manual 256 4-3. Do-it-yourself maintenance
YARIS_HB_U_52D44UAdjust the tire pressure to the specified cold tire inflation pres-
sure level. (
→P. 351)
Make sure to adjust the tire pressure to the specified

Page 259 of 403

TOYOTA YARIS HATCHBACK 2013  Owners Manual 257
4-3. Do-it-yourself maintenance
4
Maintenance and care
YARIS_HB_U_52D44U
■Replacing tires and wheels (vehicles with a tire pressure warning
system)
If the ID code of the tire pressure warning va

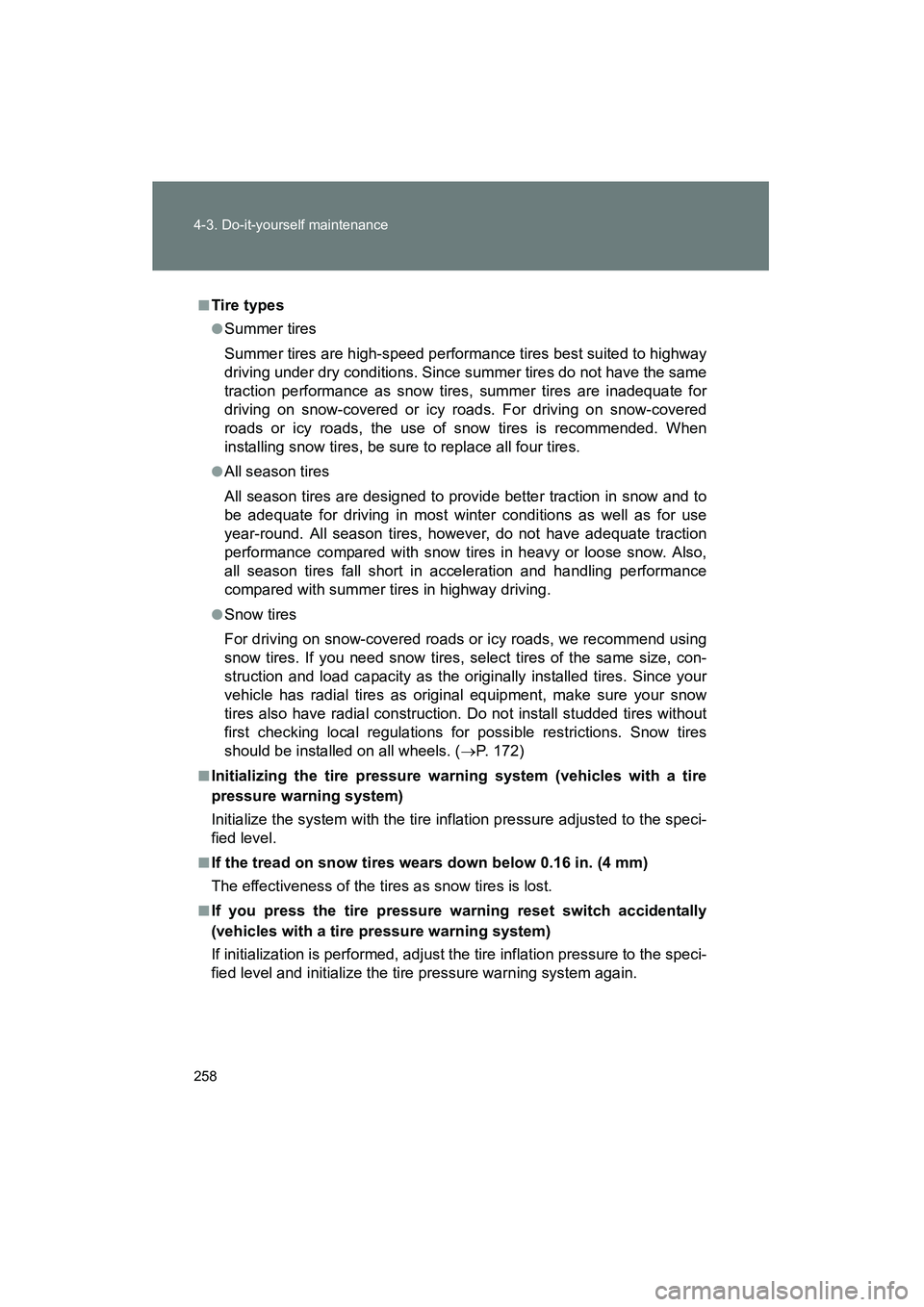

Page 260 of 403

TOYOTA YARIS HATCHBACK 2013  Owners Manual 258 4-3. Do-it-yourself maintenance
YARIS_HB_U_52D44U
■Tire types
●Summer tires
Summer tires are high-speed performance tires best suited to highway
driving under dry conditions. Since summer tire
