TOYOTA YARIS HATCHBACK 2017 Owners Manual

1394-2. Driving procedures
4
Driving
YARIS_HB_OM_USA_OM52G64U
Automatic transmission
While the engine switch is in the “ON” position, move the shift
lever with the brake pedal depressed.
When shifting the shift lever between P and D, make sure that the
vehicle is completely stopped.
*: Shifting to the D position allows the system to select a gear suitable for thedriving conditions. Setting the shift lever to the D position is recommended
for normal driving.
: If equipped
Shifting the shift lever
Shift position purpose
Shift positionFunction
PParking the vehicle or starting the engine
RReversing
NNeutral
DNormal driving*
3Position for engine braking
2Position for more powerful engine braking
LPosition for maximum engine braking
YARIS_HB_OM_USA_OM52G64U.book 139 ページ ２０１６年２月１６日　火曜日　午後３時２０分

1404-2. Driving procedures
YARIS_HB_OM_USA_OM52G64U
■Downshift restriction
The maximum allowable speeds are as follows.
■ AI-SHIFT
AI-SHIFT automatically selects the suitable gear according to driver perfor-
mance and driving conditions.
AI-SHIFT automatically operates when the shift lever is in the D position.
■ When driving with cruise control activated (if equipped)
Even when performing the following acti ons with the intent of enabling engine
braking, engine braking will not activate while downshifting to 3 because
cruise control will not be canceled. ( P. 190)
■ Shift lock system
The shift lock system is a system to prevent accidental operation of the shift
lever in starting.
The shift lever can be shifted from P only when the engine switch is in the
“ON” position and the brake pedal is being depressed.
■ If the shift lever cannot be shifted from P
First, check whether the brake pedal is being depressed.
If the shift lever cannot be shifted with your foot on the brake pedal, there may
be a problem with the shift lock system. Have the vehicle inspected by your
Toyota dealer immediately.
The following steps may be used as an emergency measure to ensure that
the shift lever can be shifted.
Releasing the shift lock:
Set the parking brake.
Turn the engine switch to the “LOCK” position.
Depress the brake pedal.
Pry the cover up with a flathead
screwdriver or equivalent tool.
To prevent damage to the cover,
wrap the tip of the screwdriver with
a rag.
DownshiftingMaximum speed mph (km/h)
D384 (135)
3253 (85)
2L25 (40)
1
2
3
4
YARIS_HB_OM_USA_OM52G64U.book 140 ページ ２０１６年２月１６日　火曜日　午後３時２０分

1414-2. Driving procedures
4
Driving
YARIS_HB_OM_USA_OM52G64U

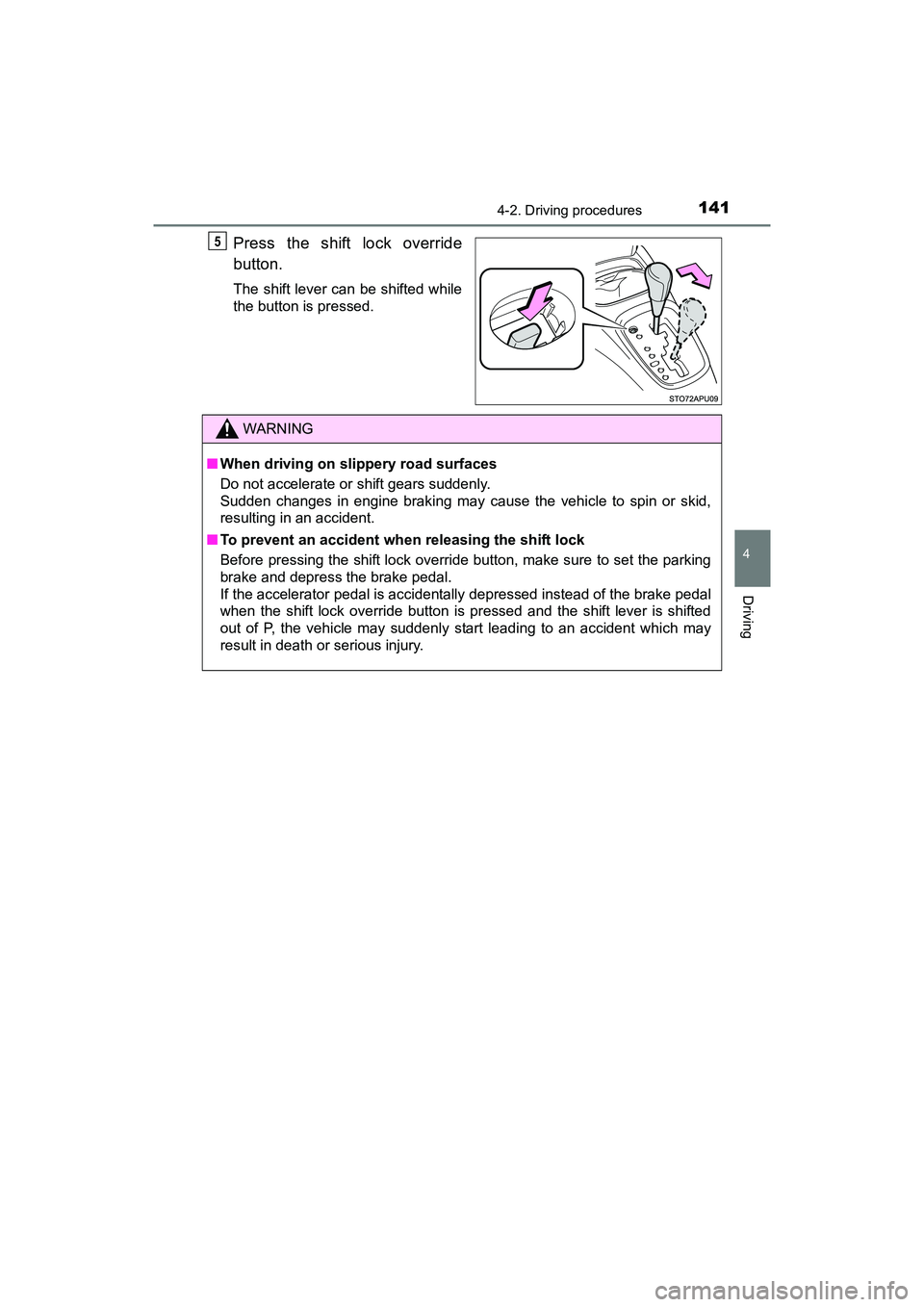

Press the shift lock override
button.
The shift lever can be shifted while
the button is pressed.
5
WARNING
■When driving on slippery road surfaces
Do not accelerate or shift gears suddenly.
Sudden changes in engine braking may cause the vehicle to spin or skid,
resulting in an accident.
■ To prevent an accident when releasing the shift lock
Before pressing the shift lock override button, make sure to set the parking
brake and depress the brake pedal.
If the accelerator pedal is accidentally depressed instead of the brake pedal
when the shift lock override button is pressed and the shift lever is shifted
out of P, the vehicle may suddenly start leading to an accident which may
result in death or serious injury.
YARIS_HB_OM_USA_OM52G64U.book 141 ページ ２０１６年２月１６日　火曜日　午後３時２０分

1424-2. Driving procedures
YARIS_HB_OM_USA_OM52G64U
Manual transmission
Fully depress the clutch pedal before operating the shift lever, and
then release it slowly.
If it is difficult to shift in reverse, shift the shift lever to N, release the clutch
pedal momentarily, and then try again.
■Maximum downshifting speed
Observe the downshifting speeds in the following table to prevent over-
revving the engine.
mph (km/h)
: If equipped
Shifting the shift lever
Shift positionMaximum speed
130 (49)
257 (92)
383 (134)
4113 (181)
YARIS_HB_OM_USA_OM52G64U.book 142 ページ ２０１６年２月１６日　火曜日　午後３時２０分

1434-2. Driving procedures
4
Driving
YARIS_HB_OM_USA_OM52G64U

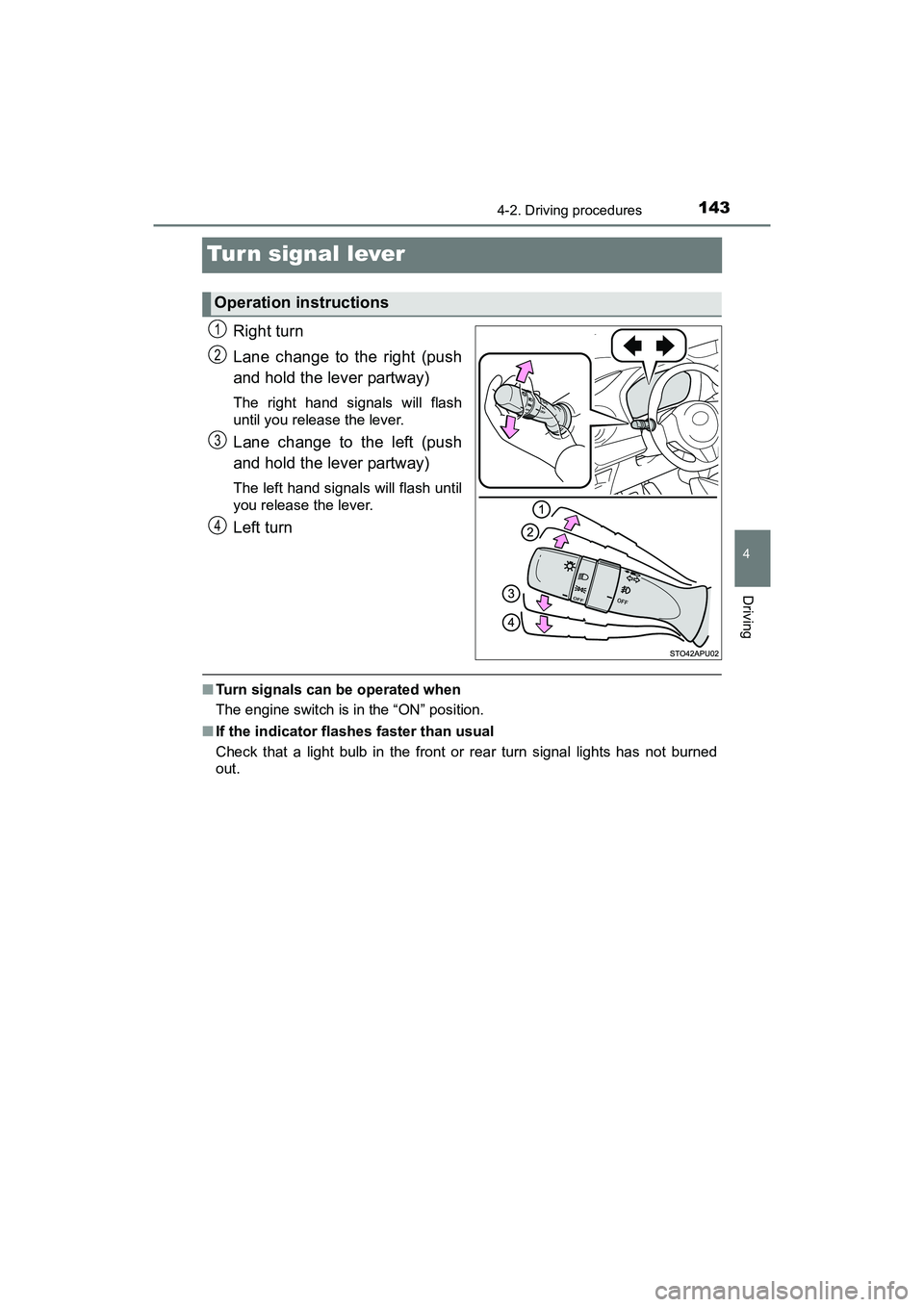

Tur n signal lever
Right turn
Lane change to the right (push
and hold the lever partway)
The right hand signals will flash
until you release the lever.
Lane change to the left (push
and hold the lever partway)
The left hand signals will flash until
you release the lever.
Left turn
■Turn signals can be operated when
The engine switch is in the “ON” position.
■ If the indicator flashes faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned
out.
Operation instructions
1
2
3
4
YARIS_HB_OM_USA_OM52G64U.book 143 ページ ２０１６年２月１６日　火曜日　午後３時２０分

1444-2. Driving procedures
YARIS_HB_OM_USA_OM52G64U

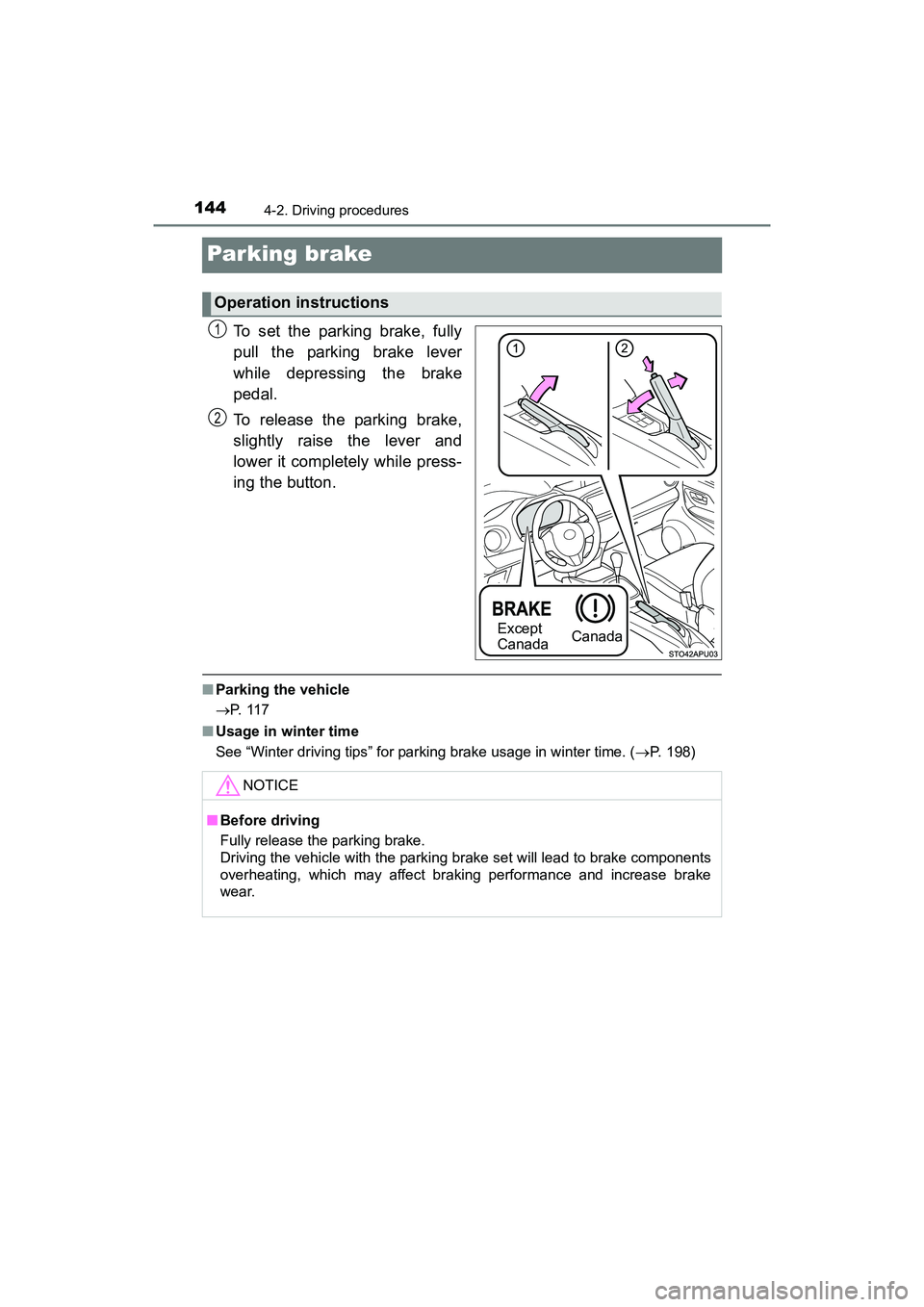

Parking brake
To set the parking brake, fully
pull the parking brake lever
while depressing the brake
pedal.
To release the parking brake,
slightly raise the lever and
lower it completely while press-
ing the button.
■Parking the vehicle
P. 1 1 7
■ Usage in winter time
See “Winter driving tips” for parking brake usage in winter time. ( P. 198)
Operation instructions
Except
CanadaCanada
1
2
NOTICE
■Before driving
Fully release the parking brake.
Driving the vehicle with the parking brake set will lead to brake components
overheating, which may affect braking performance and increase brake
wear.
YARIS_HB_OM_USA_OM52G64U.book 144 ページ ２０１６年２月１６日　火曜日　午後３時２０分

1454-3. Operating the lights and wipers
4
Driving
YARIS_HB_OM_USA_OM52G64U

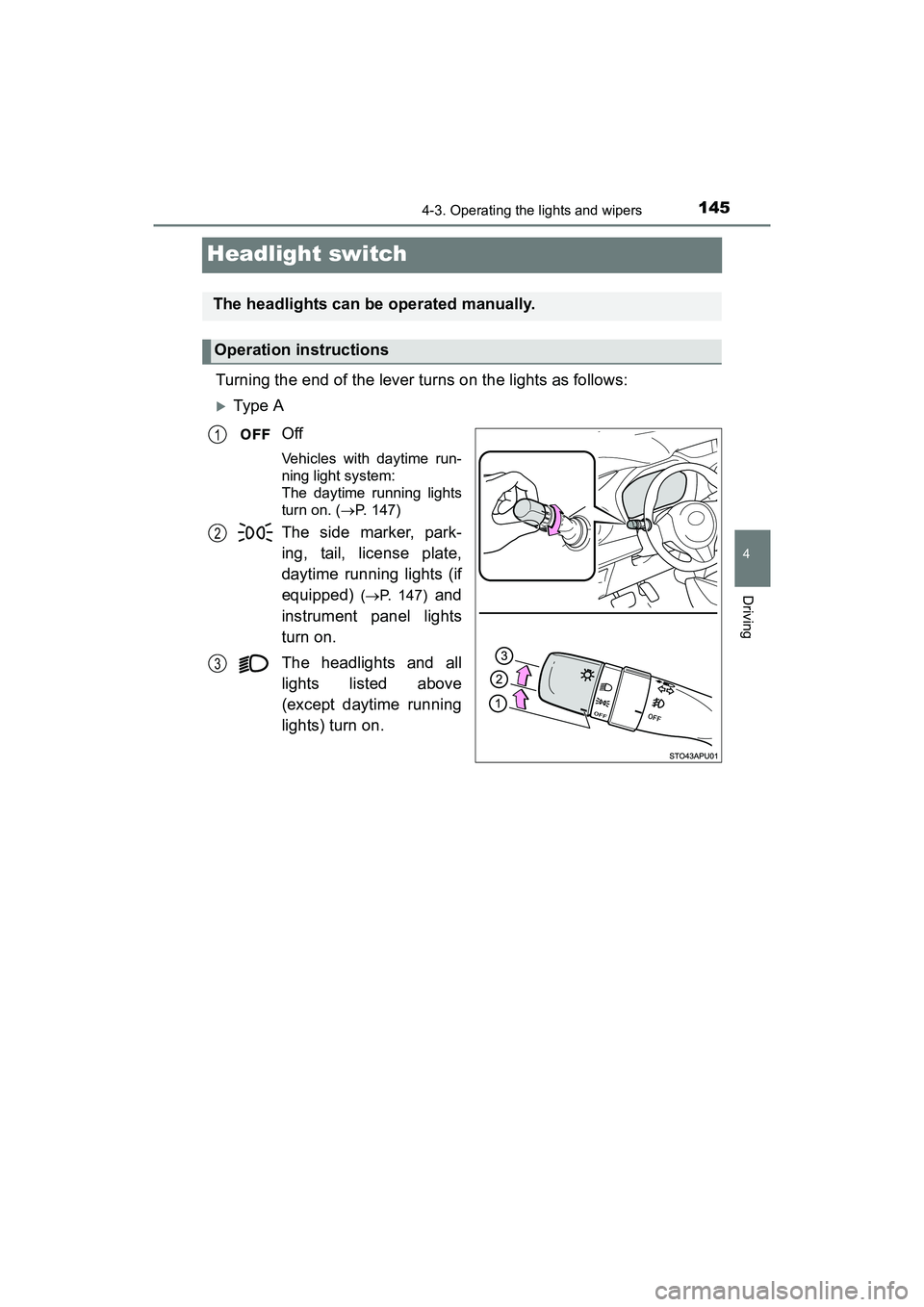

Headlight switch
Turning the end of the lever turns on the lights as follows:
Type AOff
Vehicles with daytime run-
ning light system:
The daytime running lights
turn on. ( P. 147)
The side marker, park-
ing, tail, license plate,
daytime running lights (if
equipped)
(P. 147) and
instrument panel lights
turn on.
The headlights and all
lights listed above
(except daytime running
lights) turn on.
The headlights can be operated manually.
Operation instructions
1
2
3
YARIS_HB_OM_USA_OM52G64U.book 145 ページ ２０１６年２月１６日　火曜日　午後３時２０分

1464-3. Operating the lights and wipers
YARIS_HB_OM_USA_OM52G64U

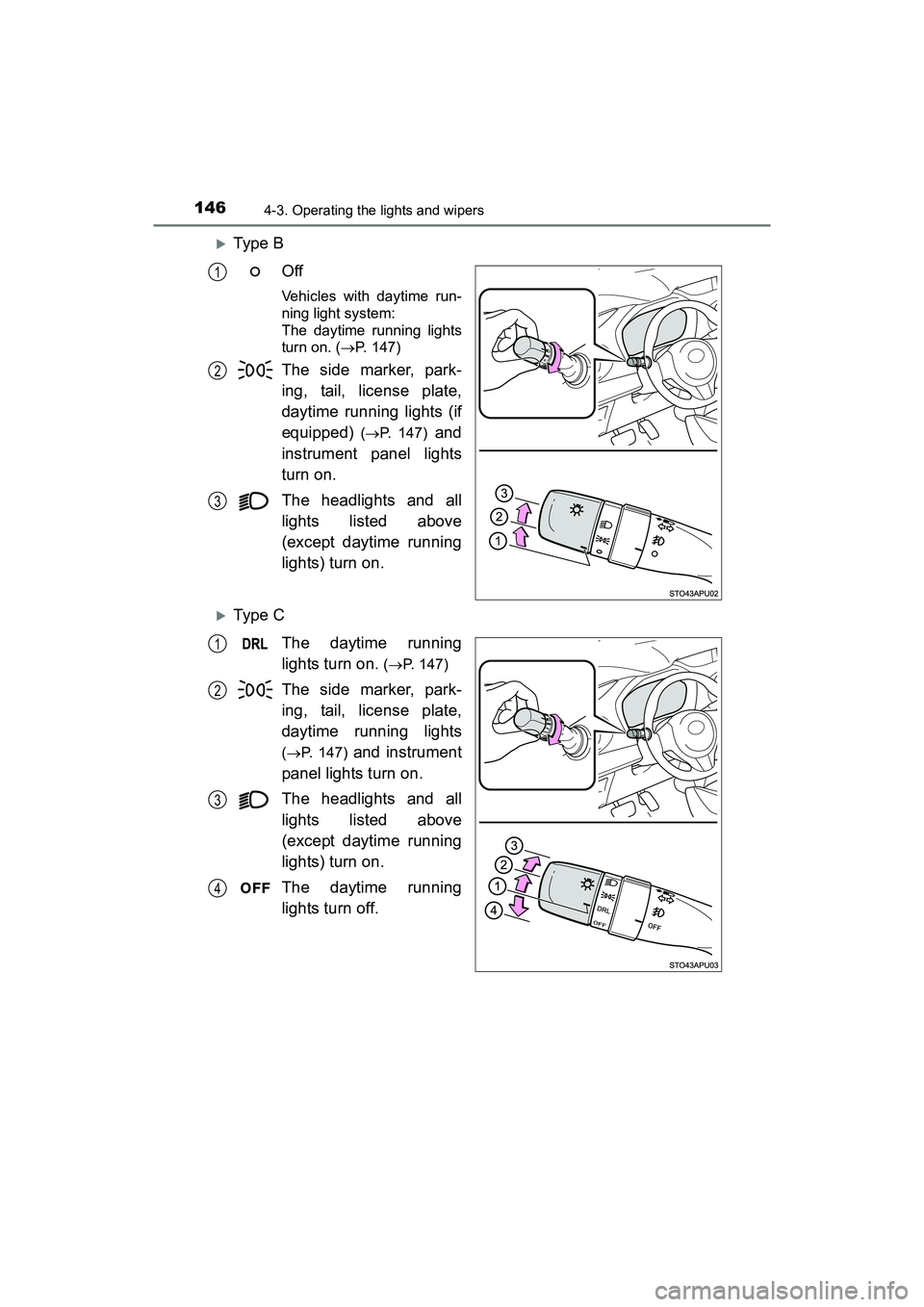

Type BOff
Vehicles with daytime run-
ning light system:
The daytime running lights
turn on. ( P. 147)
The side marker, park-
ing, tail, license plate,
daytime running lights (if
equipped)
(P. 147) and
instrument panel lights
turn on.
The headlights and all
lights listed above
(except daytime running
lights) turn on.
Type C
The daytime running
lights turn on.
(P. 147)
The side marker, park-
ing, tail, license plate,
daytime running lights
(P. 147) and instrument
panel lights turn on.
The headlights and all
lights listed above
(except daytime running
lights) turn on.
The daytime running
lights turn off.
1
2
3
1
2
3
4
YARIS_HB_OM_USA_OM52G64U.book 146 ページ ２０１６年２月１６日　火曜日　午後３時２０分

1474-3. Operating the lights and wipers
4
Driving
YARIS_HB_OM_USA_OM52G64U

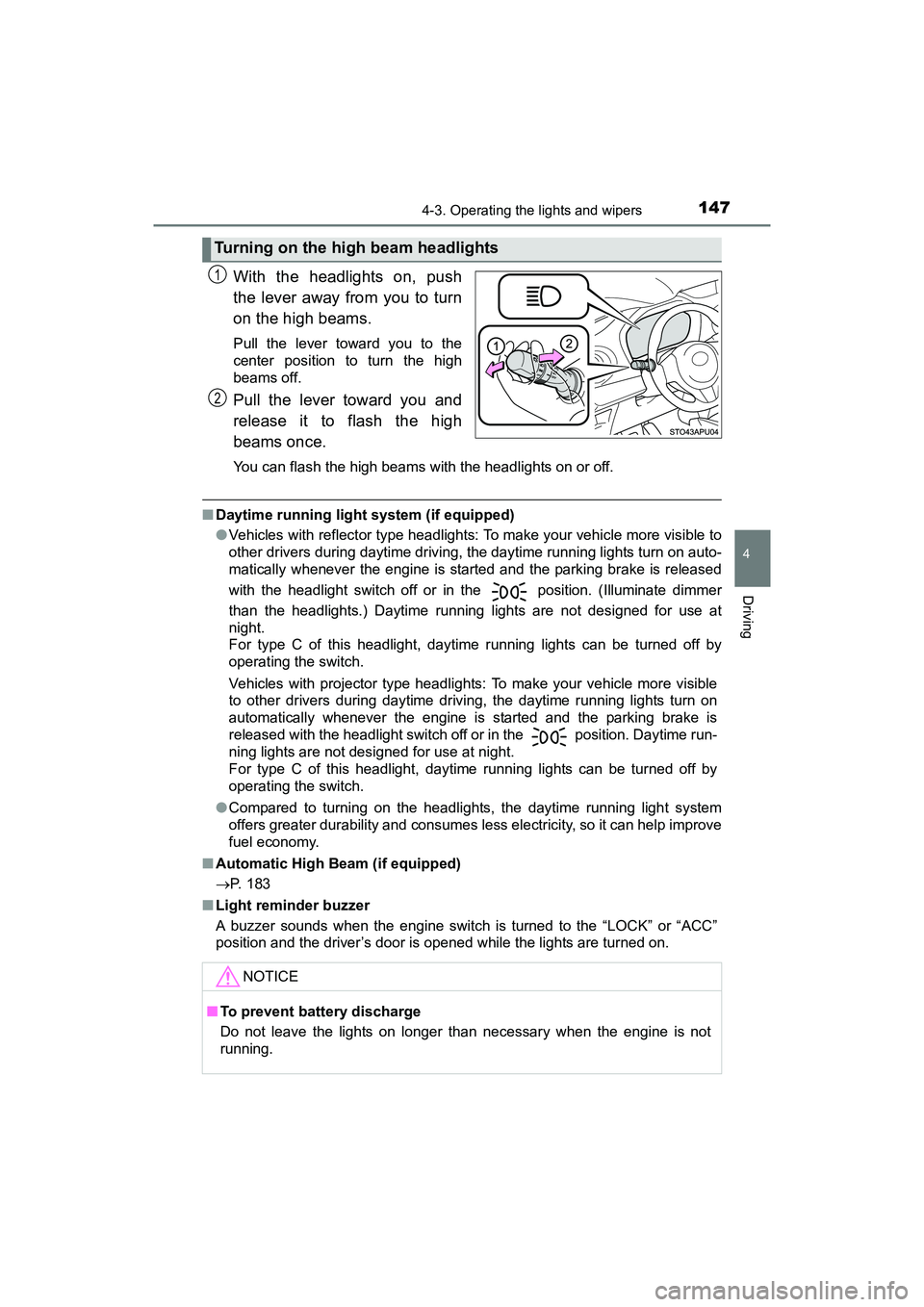

With the headlights on, push
the lever away from you to turn
on the high beams.
Pull the lever toward you to the
center position to turn the high
beams off.
Pull the lever toward you and
release it to flash the high
beams once.
You can flash the high beams with the headlights on or off.
■Daytime running light system (if equipped)
●Vehicles with reflector type headlights: To make your vehicle more visible to
other drivers during daytime driving, the daytime running lights turn on auto-
matically whenever the engine is started and the parking brake is released
with the headlight switch off or in the position. (Illuminate dimmer
than the headlights.) Daytime running lights are not designed for use at
night.
For type C of this headlight, daytime running lights can be turned off by
operating the switch.
Vehicles with projector type headlights: To make your vehicle more visible
to other drivers during daytime driving, the daytime running lights turn on
automatically whenever the engine is started and the parking brake is
released with the headlight switch off or in the position. Daytime run-
ning lights are not designed for use at night.
For type C of this headlight, daytime running lights can be turned off by
operating the switch.
● Compared to turning on the headlights, the daytime running light system
offers greater durability and consumes less electricity, so it can help improve
fuel economy.
■ Automatic High Beam (if equipped)
P. 183
■ Light reminder buzzer
A buzzer sounds when the engine switch is turned to the “LOCK” or “ACC”
position and the driver’s door is opened while the lights are turned on.
Turning on the high beam headlights
1
2
NOTICE
■To prevent battery discharge
Do not leave the lights on longer than necessary when the engine is not
running.
YARIS_HB_OM_USA_OM52G64U.book 147 ページ ２０１６年２月１６日　火曜日　午後３時２０分

1484-3. Operating the lights and wipers
YARIS_HB_OM_USA_OM52G64U

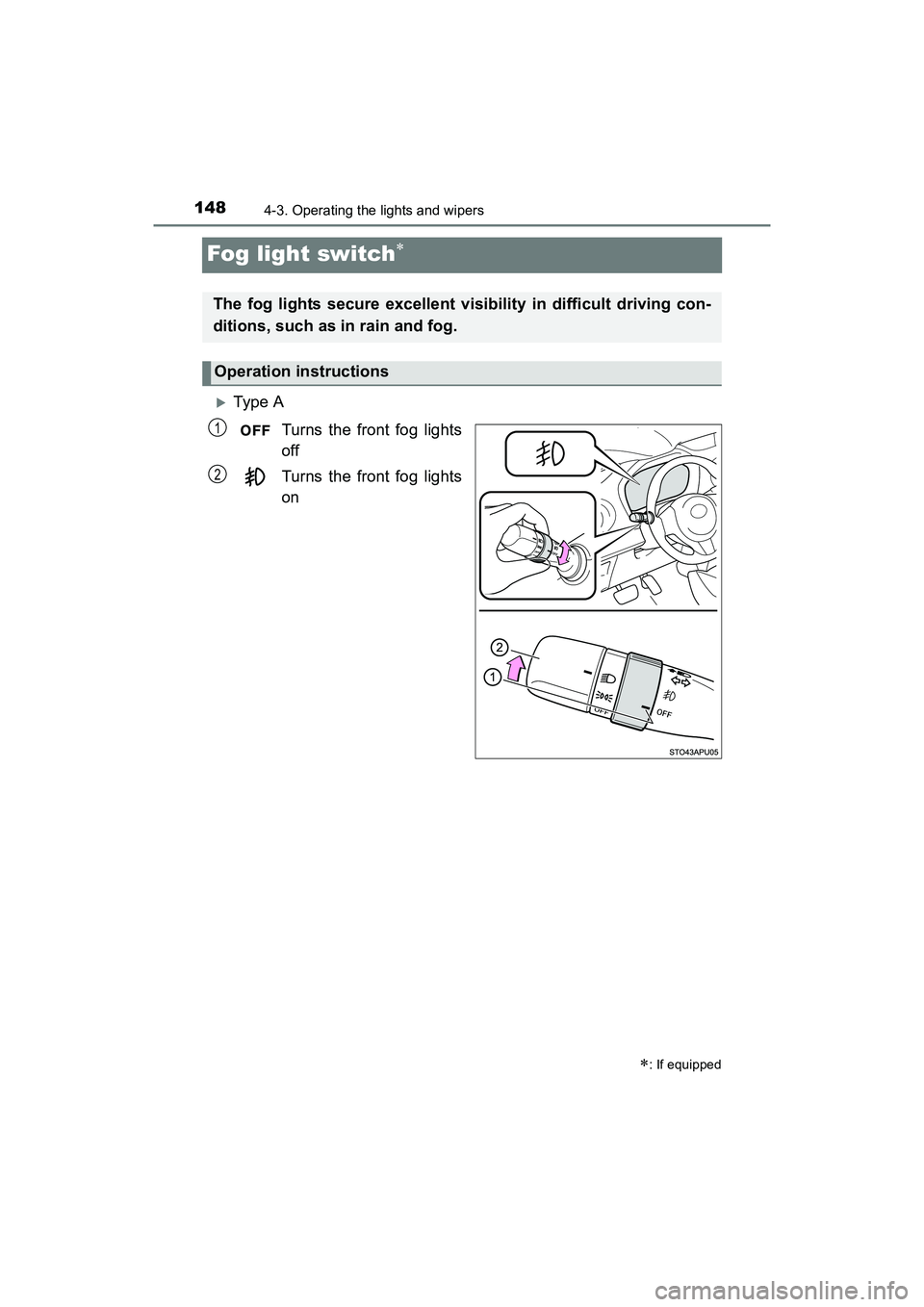

Fog light switch
Type ATurns the front fog lights
off
Turns the front fog lights
on
: If equipped
The fog lights secure excellent visibility in difficult driving con-
ditions, such as in rain and fog.
Operation instructions
1
2
