1694-5. Toyota Safety Sense C
4
Driving
YARIS_HB_OM_USA_OM52G64U
■Operational conditions
The pre-collision system is enabled and determines that the possibility of a
frontal collision with a vehicle is high.
Each function is operational at the following speeds:
●Pre-collision warning:
• Vehicle speed is approximately 10 to 86 mph (15 to 140 km/h).
• The relative speed between your vehicle and a preceding vehicle is
approximately 10 mph (15 km/h) or more.
● Pre-collision brake assist:
• Vehicle speed is approximately 19 to 49 mph (30 to 80 km/h).
• The relative speed between your vehicle and a preceding vehicle is
approximately 19 mph (30 km/h) or more.
● Pre-collision braking:
• Vehicle speed is approximately 7 to 49 mph (10 to 80 km/h).
• The relative speed between your vehicle and a preceding vehicle is
approximately 7 mph (10 km/h) or more.
The system may not operate in the following situations:
● If a battery terminal has been disconnected and reconnected and then the
vehicle has not been driven for a certain amount of time
● If the shift lever is in R
● If VSC is disabled (only the pre-collision warning function will be opera-
tional)
● If the PCS warning light is flashing or illuminated
■ Cancelation of the pre-collision braking
●If either of the following occur whil e the pre-collision braking function is
operating, it will be canceled:
• The accelerator pedal is depressed strongly.
• The steering wheel is turned sharply or abruptly.
● If the vehicle is stopped by the operation of the pre-collision braking func-
tion, the operation of the pre-collision braking function will be canceled after
the vehicle has been stopped for approximately 2 seconds.
sec_04-05.fm 169 ページ ２０１６年２月１７日　水曜日　午前１１時３５分

1704-5. Toyota Safety Sense C
YARIS_HB_OM_USA_OM52G64U■
Conditions under which the system m ay operate even if there is no pos-
sibility of a collision

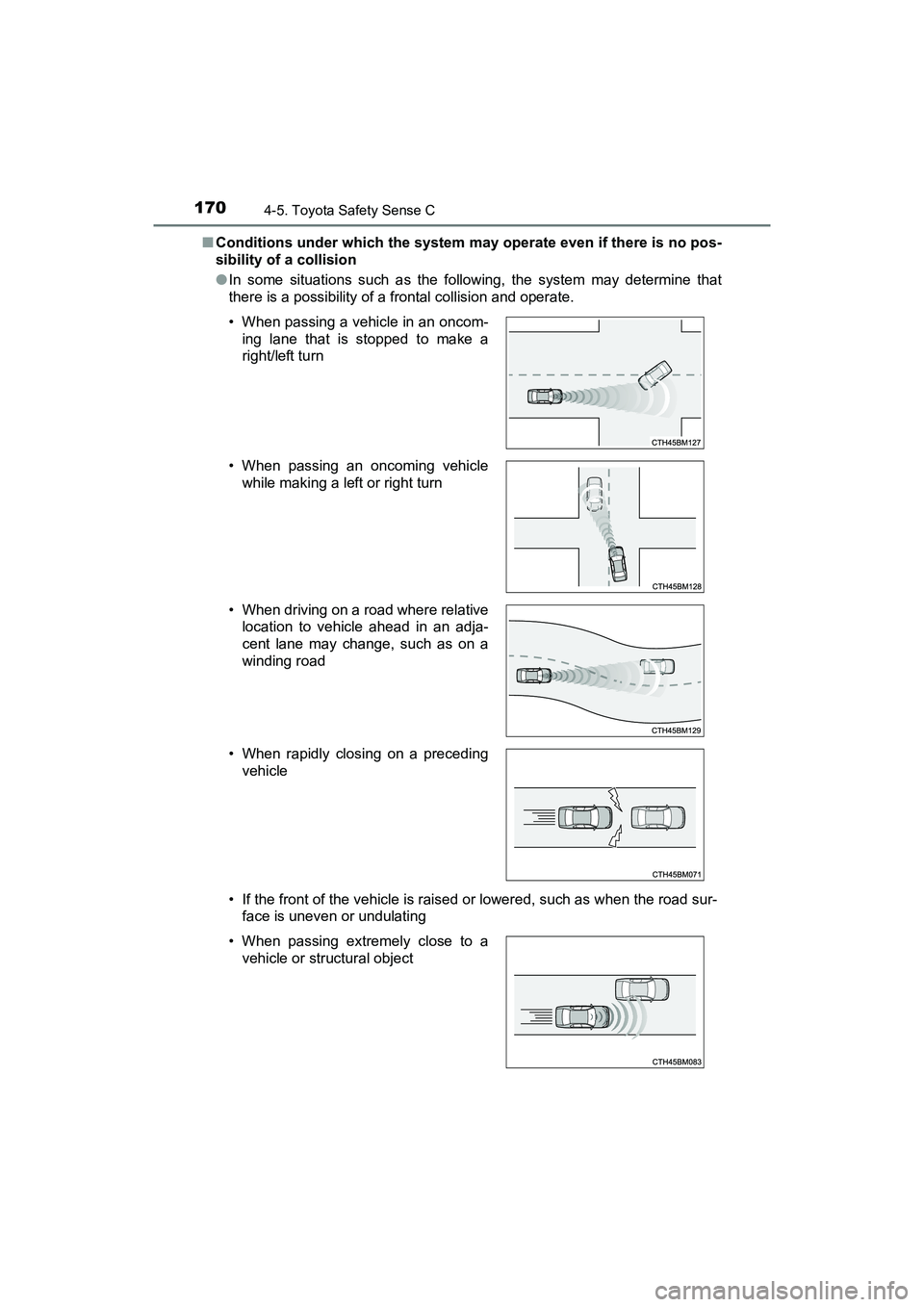

● In some situations such as the following, the system may determine that
there is a possibility of a frontal collision and operate.
• If the front of the vehicle is raised or lowered, such as when the road sur-
face is uneven or undulating
• When passing a vehicle in an oncom-
ing lane that is stopped to make a
right/left turn
• When passing an oncoming vehicle while making a left or right turn
• When driving on a road where relative location to vehicle ahead in an adja-
cent lane may change, such as on a
winding road
• When rapidly closing on a preceding vehicle
• When passing extremely close to a vehicle or structural object
sec_04-05.fm 170 ページ ２０１６年２月１７日　水曜日　午前１１時３５分

1714-5. Toyota Safety Sense C
4
Driving

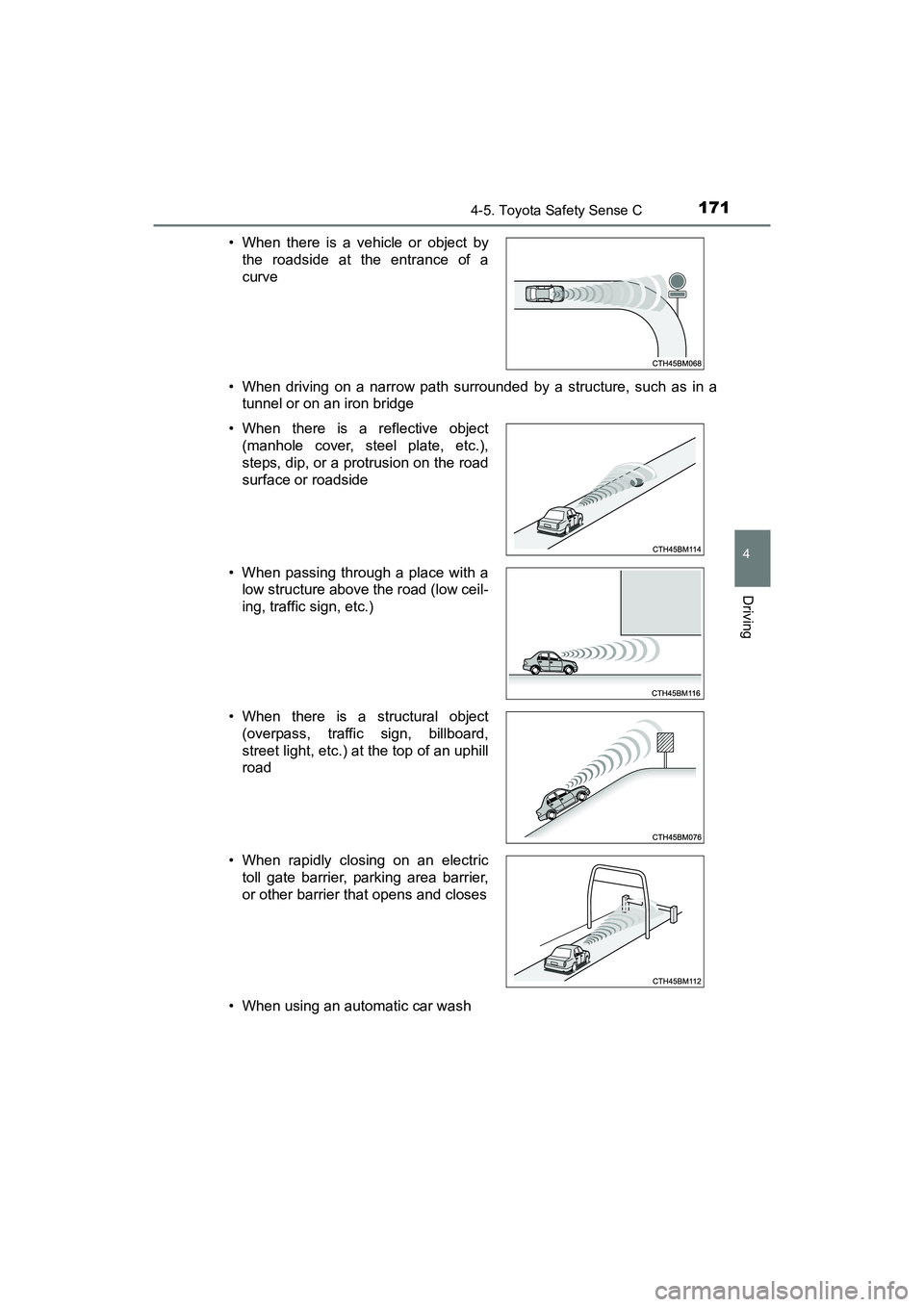

YARIS_HB_OM_USA_OM52G64U• When driving on a narrow path surrounded by a structure, such as in a
tunnel or on an iron bridge
• When using an automatic car wash • When there is a vehicle or object by the roadside at the entrance of a
curve
• When there is a reflective object (manhole cover, steel plate, etc.),
steps, dip, or a protrusion on the road
surface or roadside
• When passing through a place with a low structure above the road (low ceil-
ing, traffic sign, etc.)
• When there is a structural object (overpass, traffic sign, billboard,
street light, etc.) at the top of an uphill
road
• When rapidly closing on an electric toll gate barrier, parking area barrier,
or other barrier that opens and closes
sec_04-05.fm 171 ページ ２０１６年２月１７日　水曜日　午前１１時３５分

1724-5. Toyota Safety Sense C

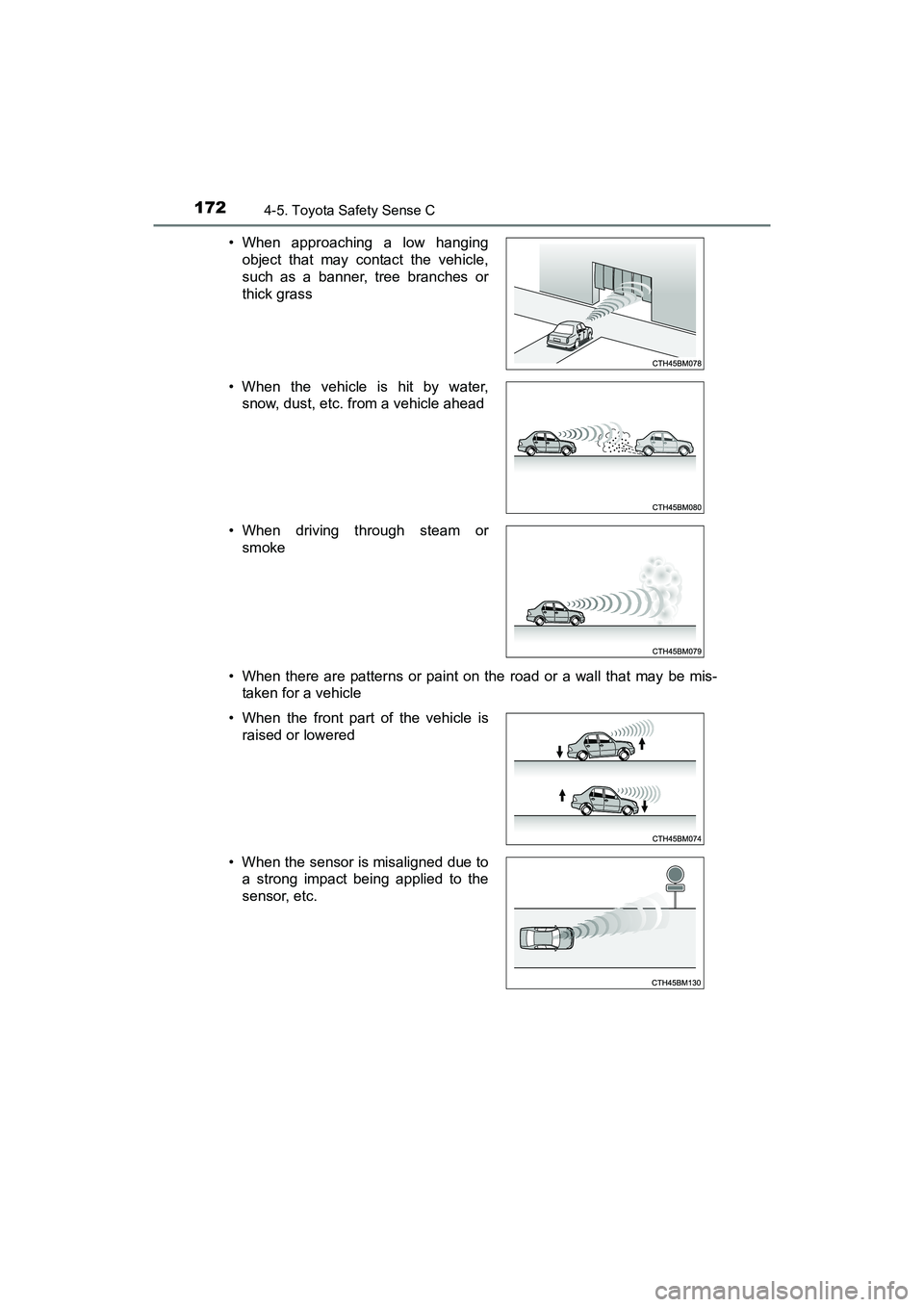

YARIS_HB_OM_USA_OM52G64U• When there are patterns or paint on the road or a wall that may be mis-
taken for a vehicle
• When approaching a low hanging
object that may contact the vehicle,
such as a banner, tree branches or
thick grass
• When the vehicle is hit by water, snow, dust, etc. from a vehicle ahead
• When driving through steam or smoke
• When the front part of the vehicle is raised or lowered
• When the sensor is misaligned due to a strong impact being applied to the
sensor, etc.
sec_04-05.fm 172 ページ ２０１６年２月１７日　水曜日　午前１１時３５分

1734-5. Toyota Safety Sense C
4
Driving

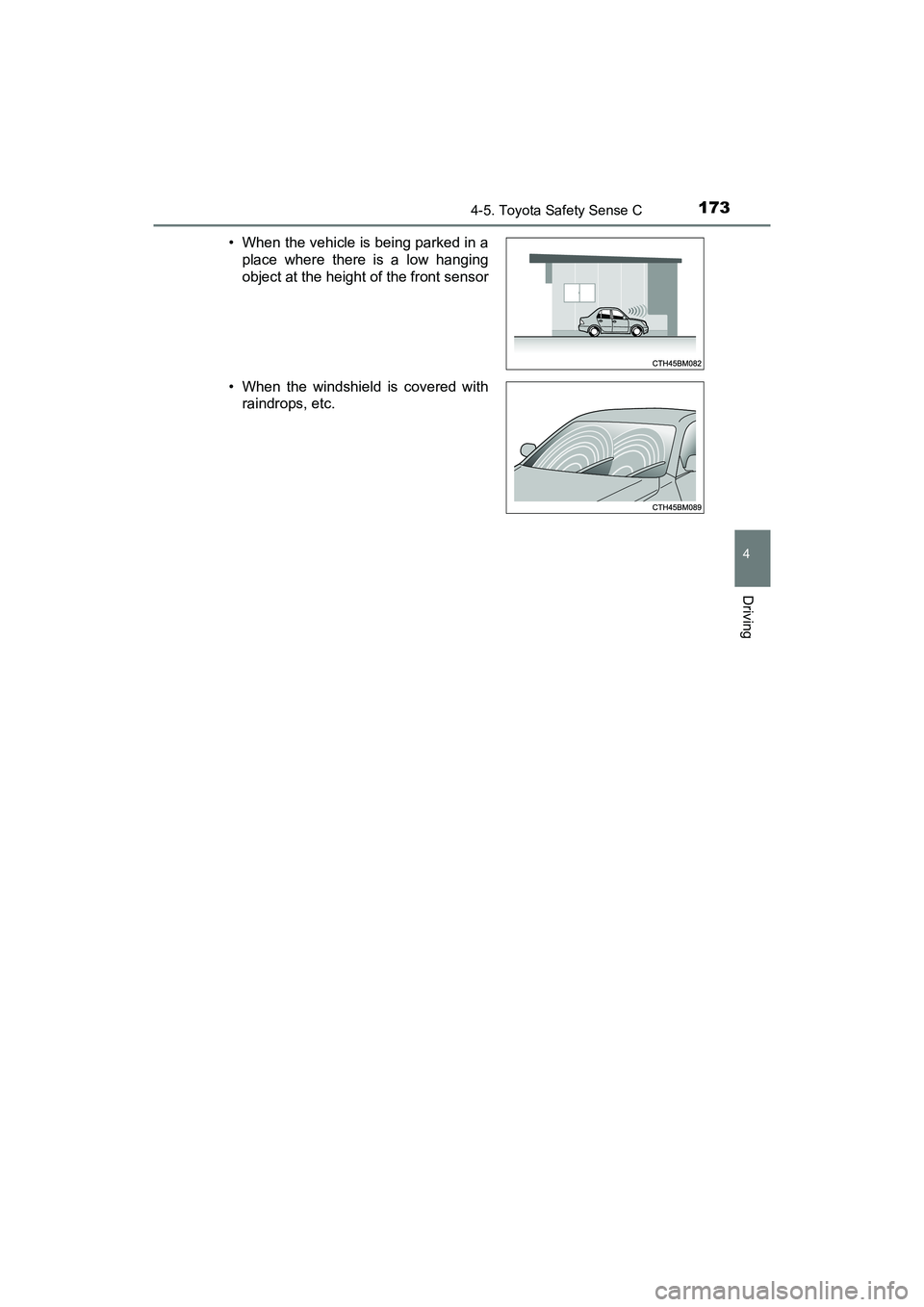

YARIS_HB_OM_USA_OM52G64U• When the vehicle is being parked in a
place where there is a low hanging
object at the height of the front sensor
• When the windshield is covered with raindrops, etc.
sec_04-05.fm 173 ページ ２０１６年２月１７日　水曜日　午前１１時３５分

1744-5. Toyota Safety Sense C
YARIS_HB_OM_USA_OM52G64U■
Situations in which the system may not operate properly

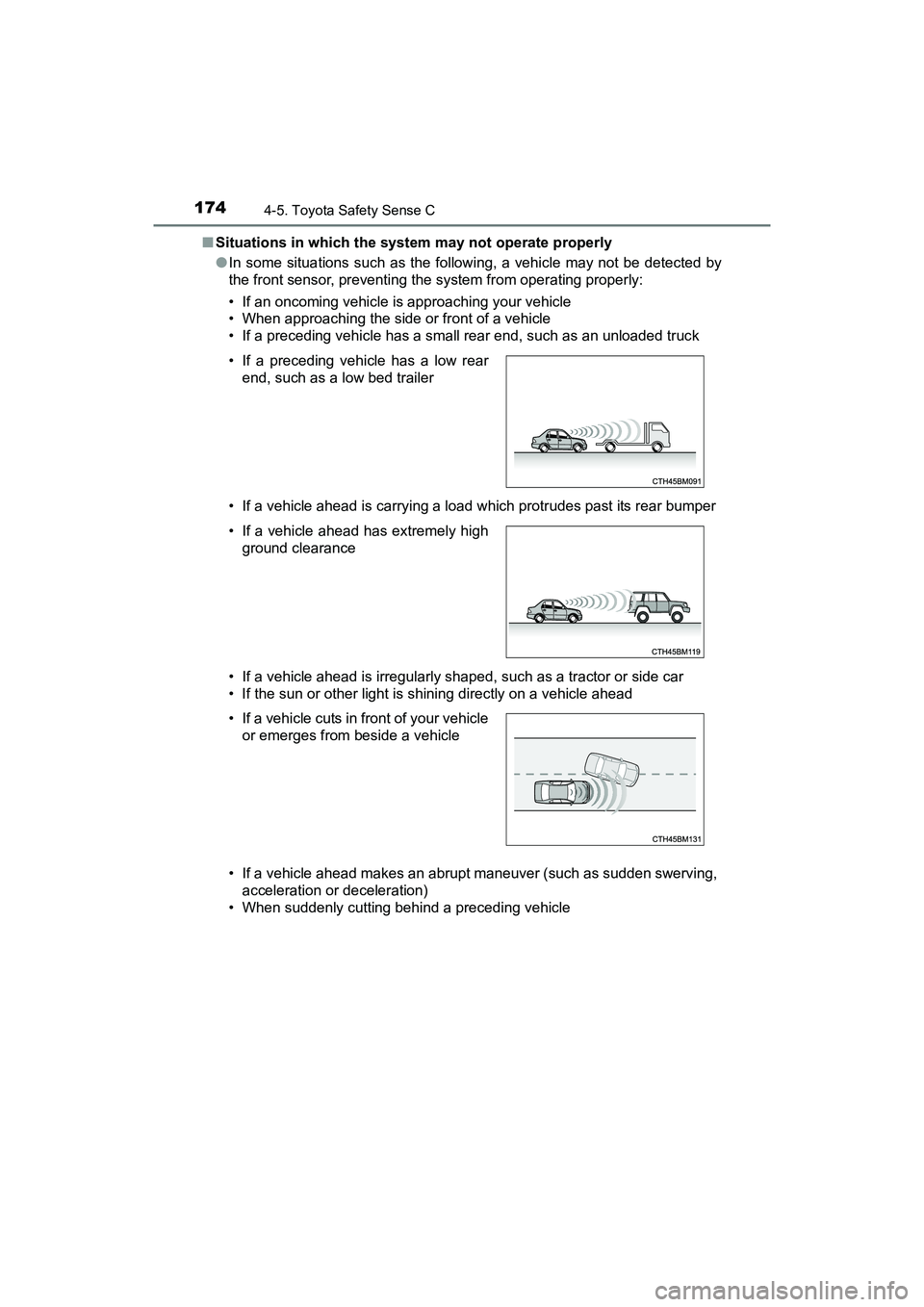

●In some situations such as the following, a vehicle may not be detected by
the front sensor, preventing the system from operating properly:
• If an oncoming vehicle is approaching your vehicle
• When approaching the side or front of a vehicle
• If a preceding vehicle has a small rear end, such as an unloaded truck
• If a vehicle ahead is carrying a load which protrudes past its rear bumper
• If a vehicle ahead is irregularly shaped, such as a tractor or side car
• If the sun or other light is shining directly on a vehicle ahead
• If a vehicle ahead makes an abrupt maneuver (such as sudden swerving,
acceleration or deceleration)
• When suddenly cutting behind a preceding vehicle • If a preceding vehicle has a low rear end, such as a low bed trailer
• If a vehicle ahead has extremely high ground clearance
• If a vehicle cuts in front of your vehicle or emerges from beside a vehicle
sec_04-05.fm 174 ページ ２０１６年２月１７日　水曜日　午前１１時３５分

1754-5. Toyota Safety Sense C
4
Driving

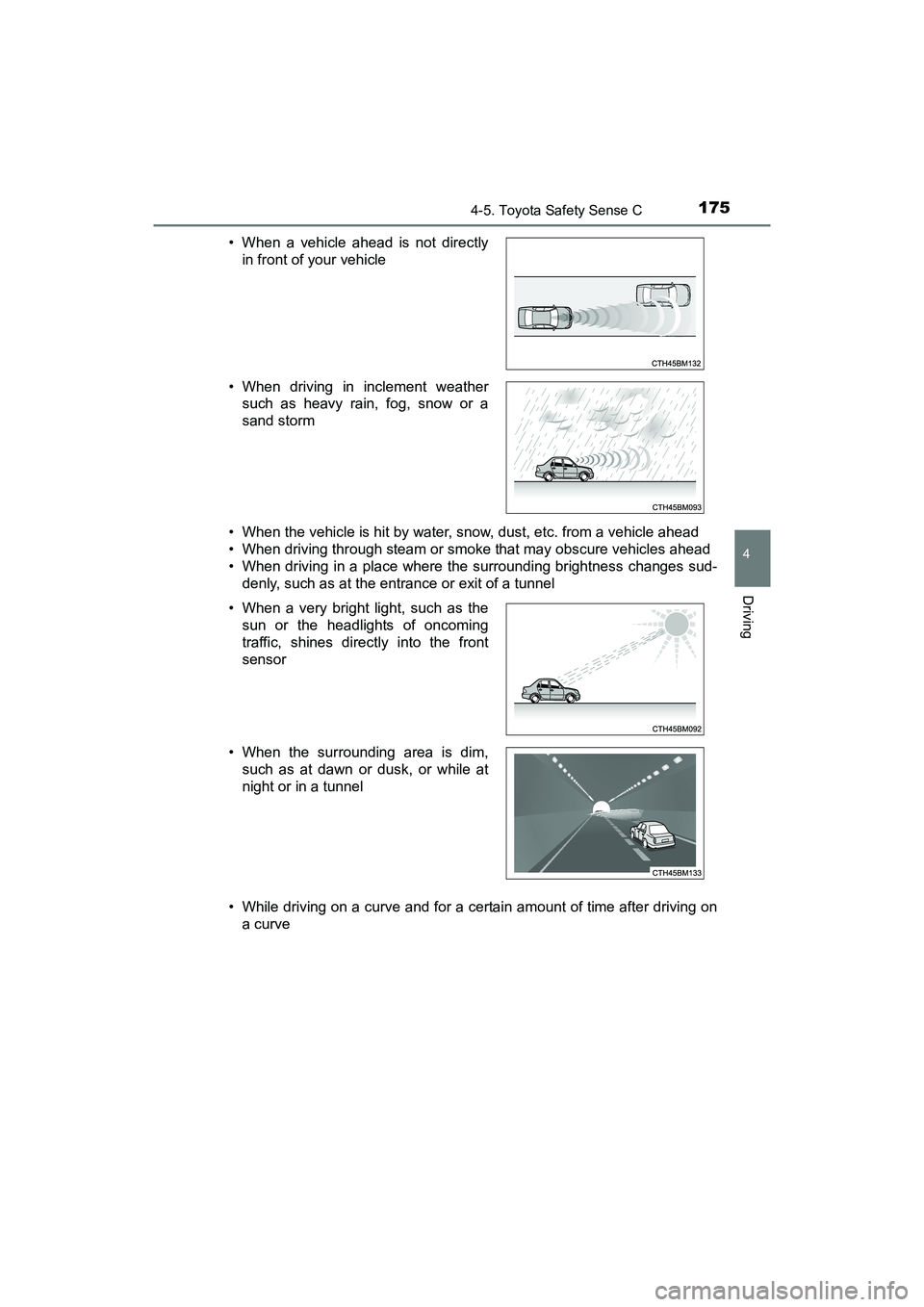

YARIS_HB_OM_USA_OM52G64U• When the vehicle is hit by water, snow, dust, etc. from a vehicle ahead
• When driving through steam or smoke that may obscure vehicles ahead
• When driving in a place where the surrounding brightness changes sud-
denly, such as at the entrance or exit of a tunnel
• While driving on a curve and for a certain amount of time after driving on a curve
• When a vehicle ahead is not directly
in front of your vehicle
• When driving in inclement weather such as heavy rain, fog, snow or a
sand storm
• When a very bright light, such as the sun or the headlights of oncoming
traffic, shines directly into the front
sensor
• When the surrounding area is dim, such as at dawn or dusk, or while at
night or in a tunnel
sec_04-05.fm 175 ページ ２０１６年２月１７日　水曜日　午前１１時３５分

1764-5. Toyota Safety Sense C
YARIS_HB_OM_USA_OM52G64U• If the wheels are misaligned
• If a wiper blade is blocking the front sensor
• The vehicle is wobbling.
• The vehicle is being driven at extremely high speeds.
• When driving on roads with sharp bends or uneven surfaces
• When a preceding vehicle is a poor reflector of laser
● In some situations such as the following, sufficient braking force may not be
obtained, preventing the system from performing properly:
• If the braking functions cannot operate to their full extent, such as when
the brake parts are extremely cold, extremely hot, or wet
• If the vehicle is not properly maintained (brakes or tires are excessively worn, improper tire inflation pressure, etc.)
• When the vehicle is being driven on a gravel road or other slippery sur-
face
• If your vehicle is skidding
• When the front part of the vehicle is
raised or lowered
• When the sensor is misaligned due to a strong impact being applied to the
sensor, etc.
sec_04-05.fm 176 ページ ２０１６年２月１７日　水曜日　午前１１時３５分

1774-5. Toyota Safety Sense C
4
Driving
YARIS_HB_OM_USA_OM52G64U■

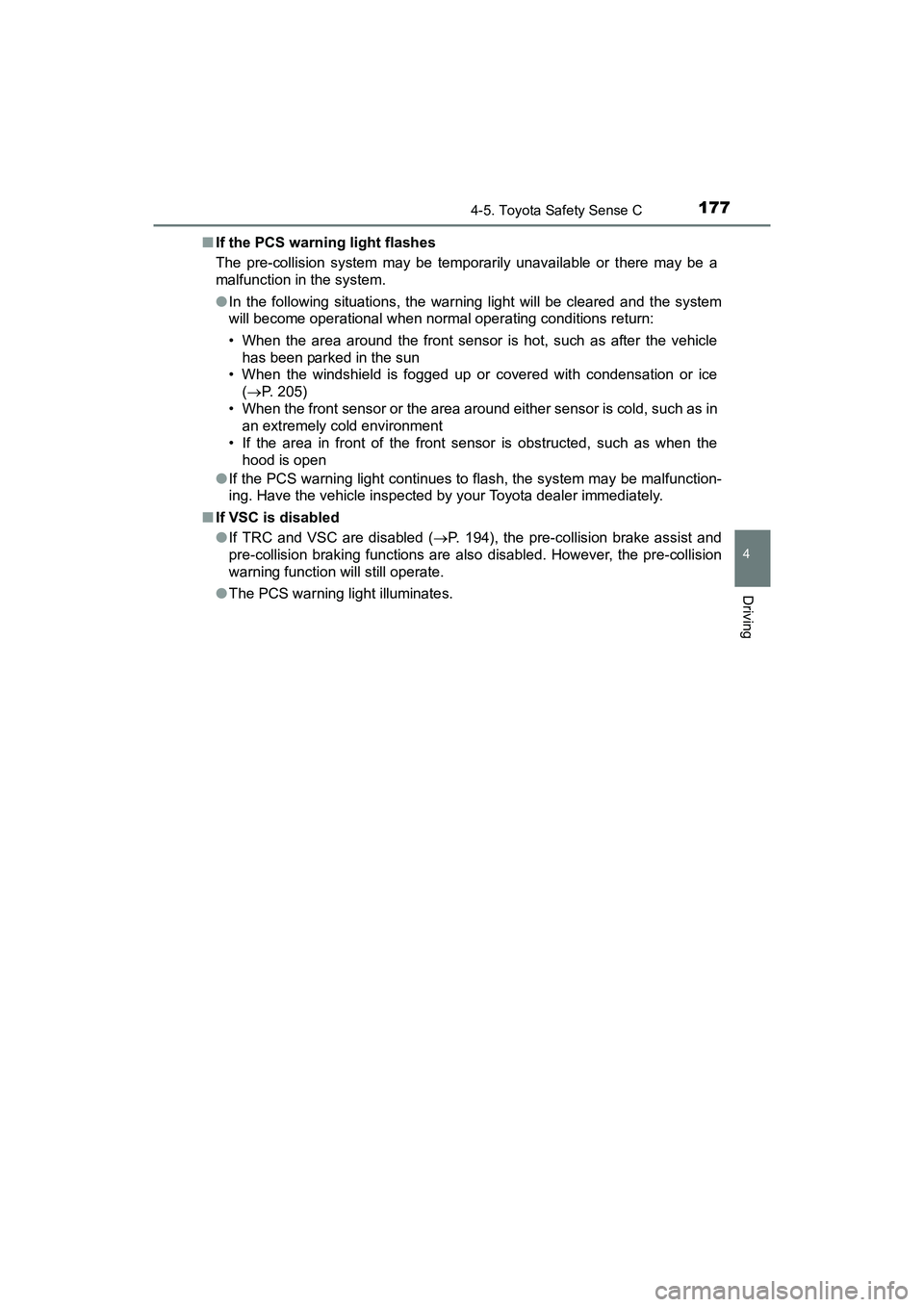

If the PCS warning light flashes
The pre-collision system may be temporarily unavailable or there may be a
malfunction in the system.
●In the following situations, the warning light will be cleared and the system
will become operational when normal operating conditions return:
• When the area around the front sensor is hot, such as after the vehicle
has been parked in the sun
• When the windshield is fogged up or covered with condensation or ice
(P. 205)
• When the front sensor or the area around either sensor is cold, such as in
an extremely cold environment
• If the area in front of the front sensor is obstructed, such as when the hood is open
● If the PCS warning light continues to flash, the system may be malfunction-
ing. Have the vehicle inspected by your Toyota dealer immediately.
■ If VSC is disabled
●If TRC and VSC are disabled (P. 194), the pre-collision brake assist and
pre-collision braking functions are also disabled. However, the pre-collision
warning function will still operate.
● The PCS warning light illuminates.
sec_04-05.fm 177 ページ ２０１６年２月１７日　水曜日　午前１１時３５分

1784-5. Toyota Safety Sense C
YARIS_HB_OM_USA_OM52G64U

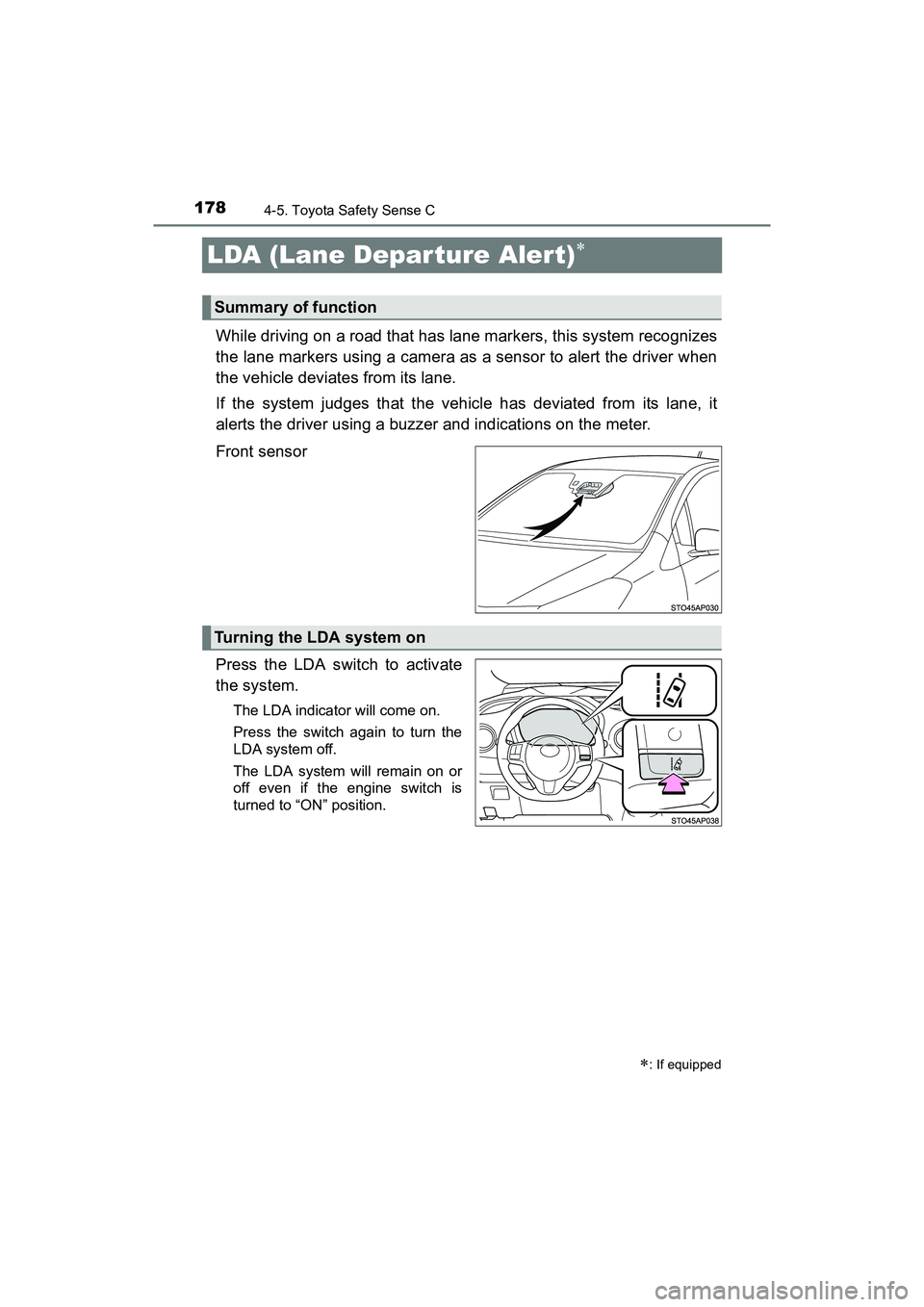

LDA (Lane Departure Alert)
While driving on a road that has lane markers, this system recognizes
the lane markers using a camera as a sensor to alert the driver when
the vehicle deviates from its lane.
If the system judges that the vehicle has deviated from its lane, it
alerts the driver using a buzzer and indications on the meter.
Front sensor
Press the LDA switch to activate
the system.
The LDA indicator will come on.
Press the switch again to turn the
LDA system off.
The LDA system will remain on or
off even if the engine switch is
turned to “ON” position.
: If equipped
Summary of function
Turning the LDA system on
