TOYOTA YARIS HATCHBACK 2017 Owners Manual

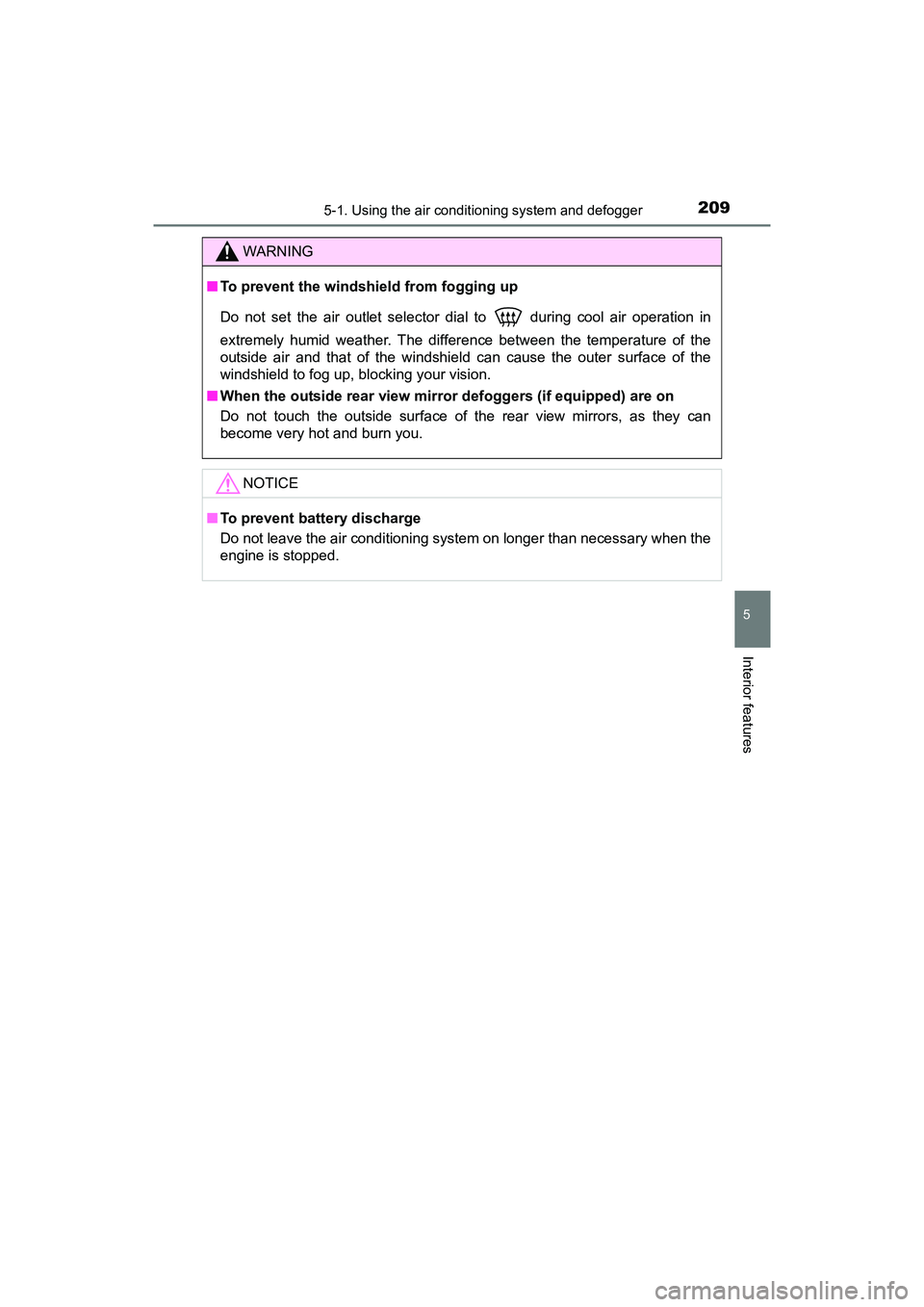

2095-1. Using the air conditioning system and defogger
5
Interior features
YARIS_HB_OM_USA_OM52G64U
WARNING
■To prevent the windshield from fogging up
Do not set the air outlet selector dial to
during cool air operation in
extremely humid weather. The difference between the temperature of the
outside air and that of the windshield can cause the outer surface of the
windshield to fog up, blocking your vision.
■ When the outside rear view mirror defoggers (if equipped) are on
Do not touch the outside surface of the rear view mirrors, as they can
become very hot and burn you.
NOTICE
■To prevent battery discharge
Do not leave the air conditioning system on longer than necessary when the
engine is stopped.
YARIS_HB_OM_USA_OM52G64U.book 209 ページ ２０１６年２月１６日　火曜日　午後３時２０分

2105-2. Using the audio system
YARIS_HB_OM_USA_OM52G64U
Steering wheel audio switches
Vol um e s wit ch :• Press: Increases/decreases
volume
• Press and hold: Continuously
increases/decreases volume
Radio mode: • Press: Selects a radio station
• Press and hold: Seeks up/ down
CD, MP3/WMA disc, iPod or USB mode: • Press: Selects a track/file/song
• Press and hold: Selects a folder or album (MP3/WMA disc, iPod or USB)
“MODE” switch • Press: Turns the power on, selects an audio source
• Press and hold: Mutes or pauses the current operation. To cancel the mute or pause, press and hold again.
: If equipped
Some audio features can be controlled using the switches on
the steering wheel.
Operation may differ depending on the type of audio system or
navigation system. For details, refer to the manual provided with
the audio system or navigation system.
Operating the audio system using the steering wheel switches
1
2
WARNING
■ To reduce the risk of an accident
Exercise care when operating the audio switches on the steering wheel.
3
YARIS_HB_OM_USA_OM52G64U.book 210 ページ ２０１６年２月１６日　火曜日　午後３時２０分

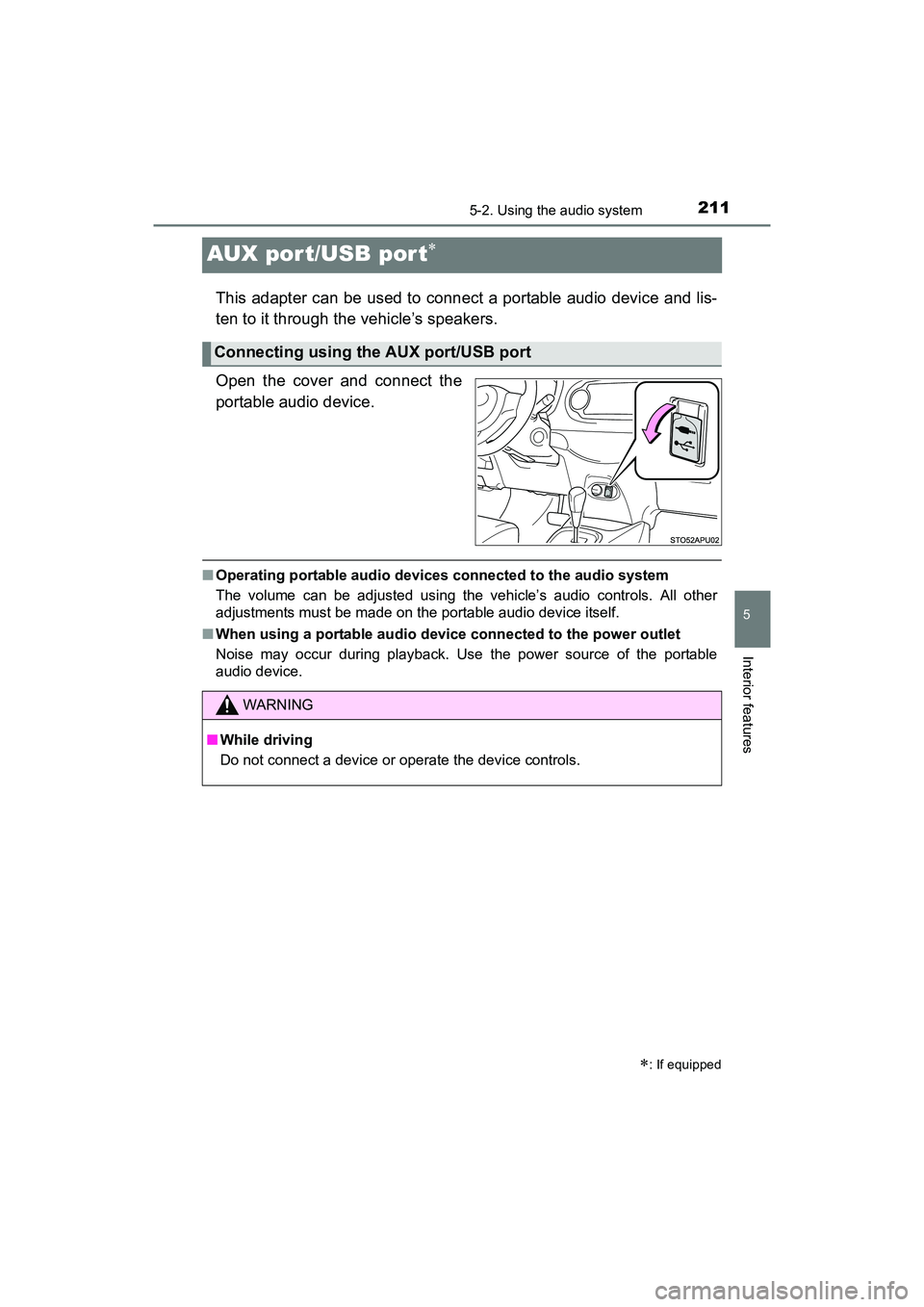

2115-2. Using the audio system
5
Interior features
YARIS_HB_OM_USA_OM52G64U
AUX port/USB port
This adapter can be used to connect a portable audio device and lis-
ten to it through the vehicle’s speakers.
Open the cover and connect the
portable audio device.
■Operating portable audio devices connected to the audio system
The volume can be adjusted using the vehicle’s audio controls. All other
adjustments must be made on the portable audio device itself.
■ When using a portable audio device connected to the power outlet
Noise may occur during playback. Use the power source of the portable
audio device.
: If equipped
Connecting using the AUX port/USB port
WARNING
■While driving
Do not connect a device or operate the device controls.
YARIS_HB_OM_USA_OM52G64U.book 211 ページ ２０１６年２月１６日　火曜日　午後３時２０分

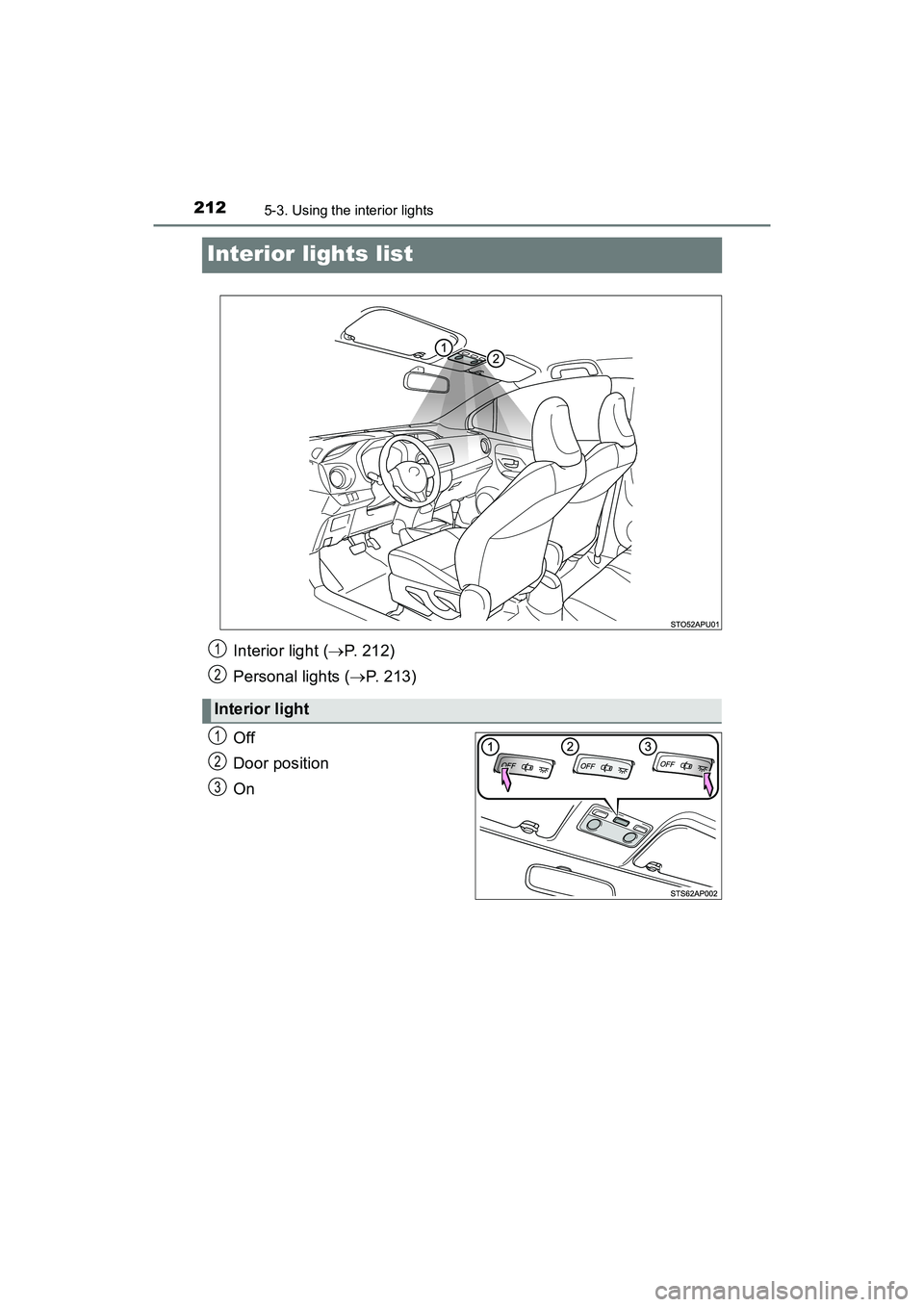

2125-3. Using the interior lights
YARIS_HB_OM_USA_OM52G64U
Interior lights list
Off
Door position
On
Interior light (P. 212)
Personal lights ( P. 213)
Interior light
1
2
1
2
3
YARIS_HB_OM_USA_OM52G64U.book 212 ページ ２０１６年２月１６日　火曜日　午後３時２０分

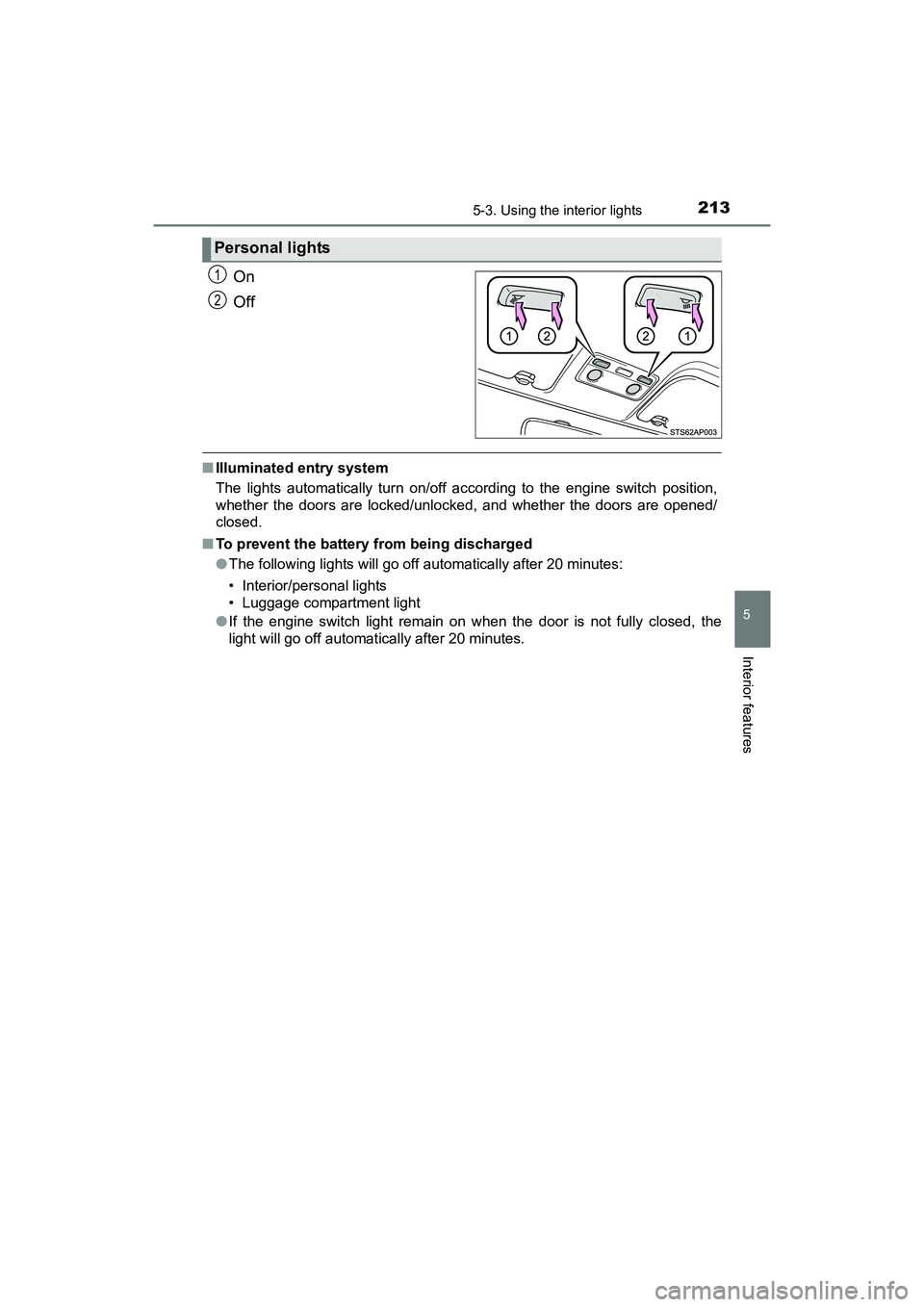

2135-3. Using the interior lights
5
Interior features
YARIS_HB_OM_USA_OM52G64U
On
Off
■Illuminated entry system
The lights automatically turn on/off according to the engine switch position,
whether the doors are locked/unlocked, and whether the doors are opened/
closed.
■ To prevent the battery from being discharged
●The following lights will go off automatically after 20 minutes:
• Interior/personal lights
• Luggage compartment light
● If the engine switch light remain on when the door is not fully closed, the
light will go off automatically after 20 minutes.
Personal lights
1
2
YARIS_HB_OM_USA_OM52G64U.book 213 ページ ２０１６年２月１６日　火曜日　午後３時２０分

2145-4. Using the storage features
YARIS_HB_OM_USA_OM52G64U
List of storage features
Glove box (P. 215)
Cup holders ( P. 215) Bottle holders (
P. 216)
Auxiliary box ( P. 217)
WARNING
■Items that should not be left in the storage spaces
Do not leave glasses, lighters or spray cans in the storage spaces, as this
may result in the following when cabin temperature becomes high:
●Glasses may be deformed by heat or cracked if they come into contact
with other stored items.
● Lighters or spray cans may explode. If they come into contact with other
stored items, the lighter may catch fire or the spray can may release gas,
causing a fire hazard.
1
2
3
4
YARIS_HB_OM_USA_OM52G64U.book 214 ページ ２０１６年２月１６日　火曜日　午後３時２０分

2155-4. Using the storage features
5
Interior features
YARIS_HB_OM_USA_OM52G64U
Pull up the lever to open the glove
box.
■Front
■Rear
Glove box
WARNING
■Caution while driving
Keep the glove box closed. In the event of sudden braking or sudden swerv-
ing, an accident may occur due to an occupant being struck by the open
glove box or the items stored inside.
Cup holders
YARIS_HB_OM_USA_OM52G64U.book 215 ページ ２０１６年２月１６日　火曜日　午後３時２０分

2165-4. Using the storage features
YARIS_HB_OM_USA_OM52G64U
■When using the bottle holder
●When storing a bottle, close the cap.
● The bottle may not be stored depending on its size or shape.
WARNING
■Items unsuitable for the cup holders
●Do not place anything other than cups or aluminum cans in the cup hold-
ers. Other items may be thrown out of the holders in the event of an acci-
dent or sudden braking, causing injury.
● To prevent burns, cover hot drinks when placed in the cup holders.
Bottle holders
WARNING
■Items unsuitable for the bottle holders
Do not place anything other than a bottle in the bottle holders.
Other items may be thrown out of the holders in the event of an accident or
sudden braking and cause injury.
NOTICE
■Items that should not be stowed in the bottle holders
Put the cap on before stowing a bottle. Do not place open bottles in the bot-
tle holders, or glasses and paper cups containing liquid. The contents may
spill and glasses may break.
YARIS_HB_OM_USA_OM52G64U.book 216 ページ ２０１６年２月１６日　火曜日　午後３時２０分

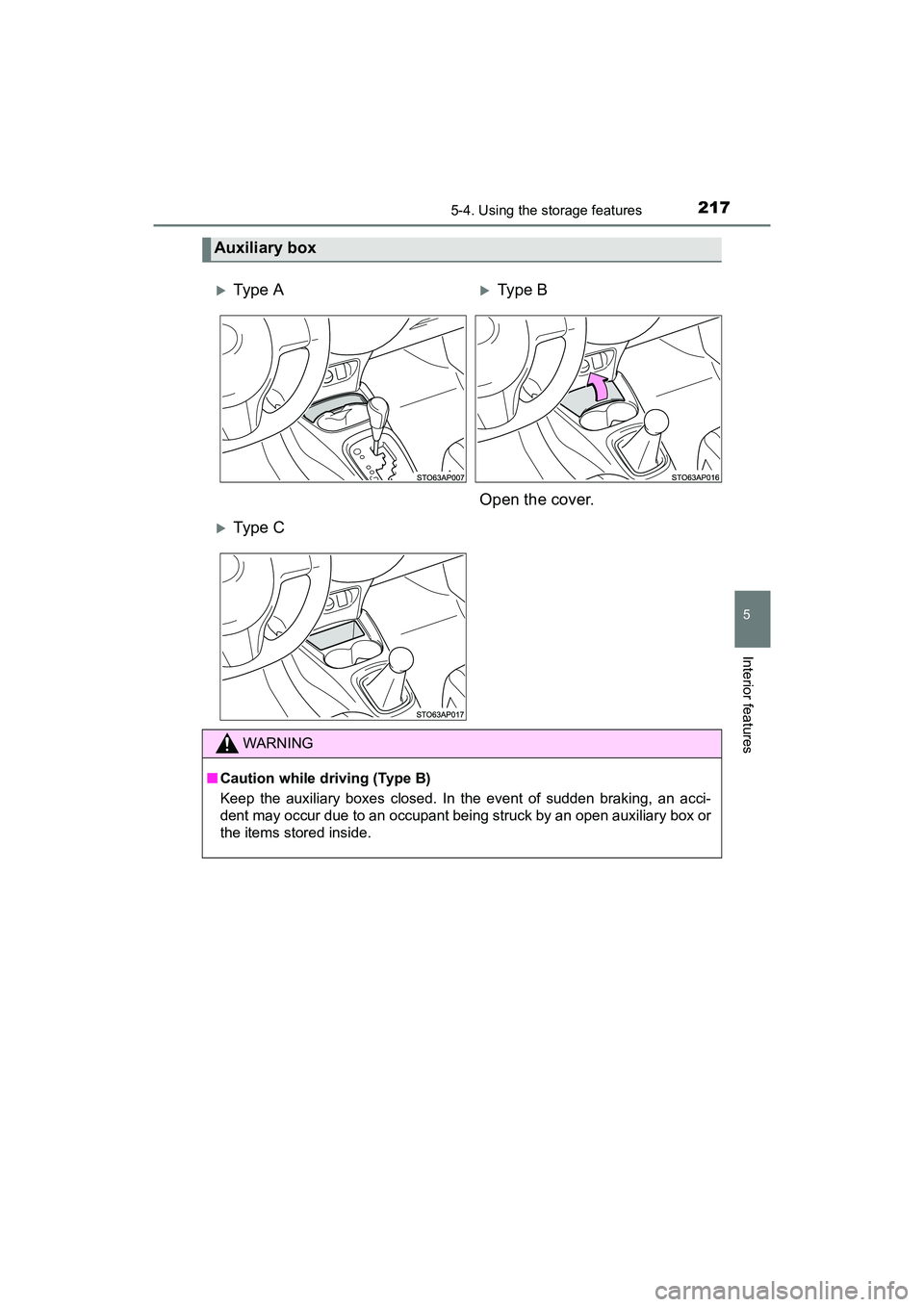

2175-4. Using the storage features
5
Interior features
YARIS_HB_OM_USA_OM52G64U
Auxiliary box
Type ATy pe B
Open the cover.
Type C
WARNING
■ Caution while driving (Type B)
Keep the auxiliary boxes closed. In the event of sudden braking, an acci-
dent may occur due to an occupant being struck by an open auxiliary box or
the items stored inside.
YARIS_HB_OM_USA_OM52G64U.book 217 ページ ２０１６年２月１６日　火曜日　午後３時２０分

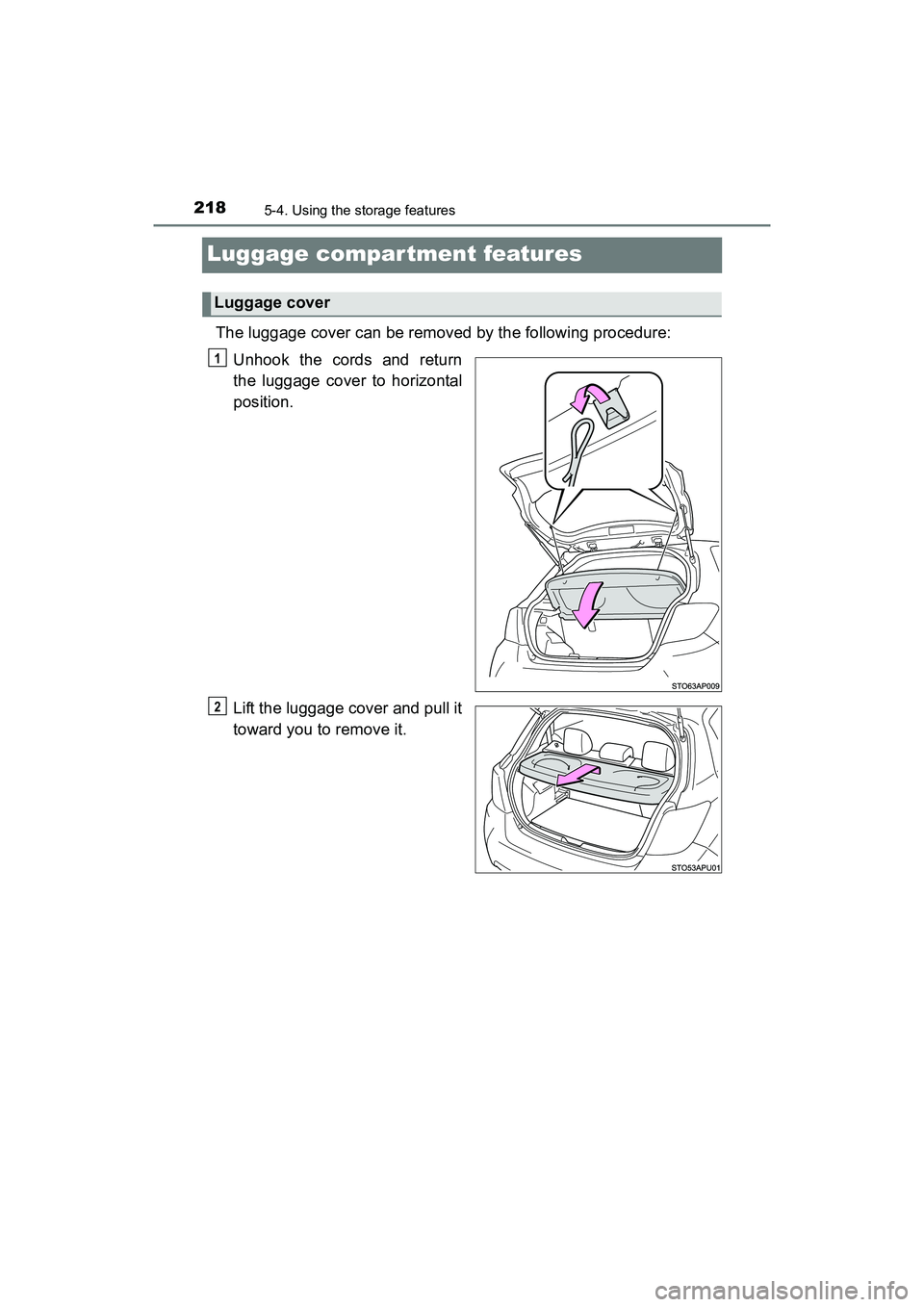

2185-4. Using the storage features
YARIS_HB_OM_USA_OM52G64U
Luggage compar tment features
The luggage cover can be removed by the following procedure:Unhook the cords and return
the luggage cover to horizontal
position.
Lift the luggage cover and pull it
toward you to remove it.
Luggage cover
1
2
