TOYOTA YARIS HATCHBACK 2017 Owners Manual

3598-1. Specifications
8
Vehicle specifications
YARIS_HB_OM_USA_OM52G64U
Innerliner
The layer(s) forming the inside surface of a
tubeless tire that contains the inflating medium
within the tire
Innerliner separationThe parting of the innerliner from cord material
in the carcass
Intended outboard
sidewall
(a) The sidewall that contains a whitewall,bears white lettering, or bears manufac-
turer, brand, and/or model name molding
that is higher or deeper than the same
molding on the other sidewall of the tire, or
(b) The outward facing sidewall of an asym-
metrical tire that has a particular side that
must always face outward when mounted
on a vehicle
Light truck (LT) tire
A tire designated by its manufacturer as pri-
marily intended for use on lightweight trucks
or multipurpose passenger vehicles
Load ratingThe maximum load that a tire is rated to carry
for a given inflation pressure
Maximum load ratingThe load rating for a tire at the maximum per-
missible inflation pressure for that tire
Maximum permissible
inflation pressureThe maximum cold inflation pressure to which
a tire may be inflated
Measuring rimThe rim on which a tire is fitted for physical
dimension requirements
Open spliceAny parting at any junction of tread, sidewall,
or innerliner that extends to cord material
Outer diameterThe overall diameter of an inflated new tire
Tire related termMeaning
YARIS_HB_OM_USA_OM52G64U.book 359 ページ ２０１６年２月１６日　火曜日　午後３時２０分

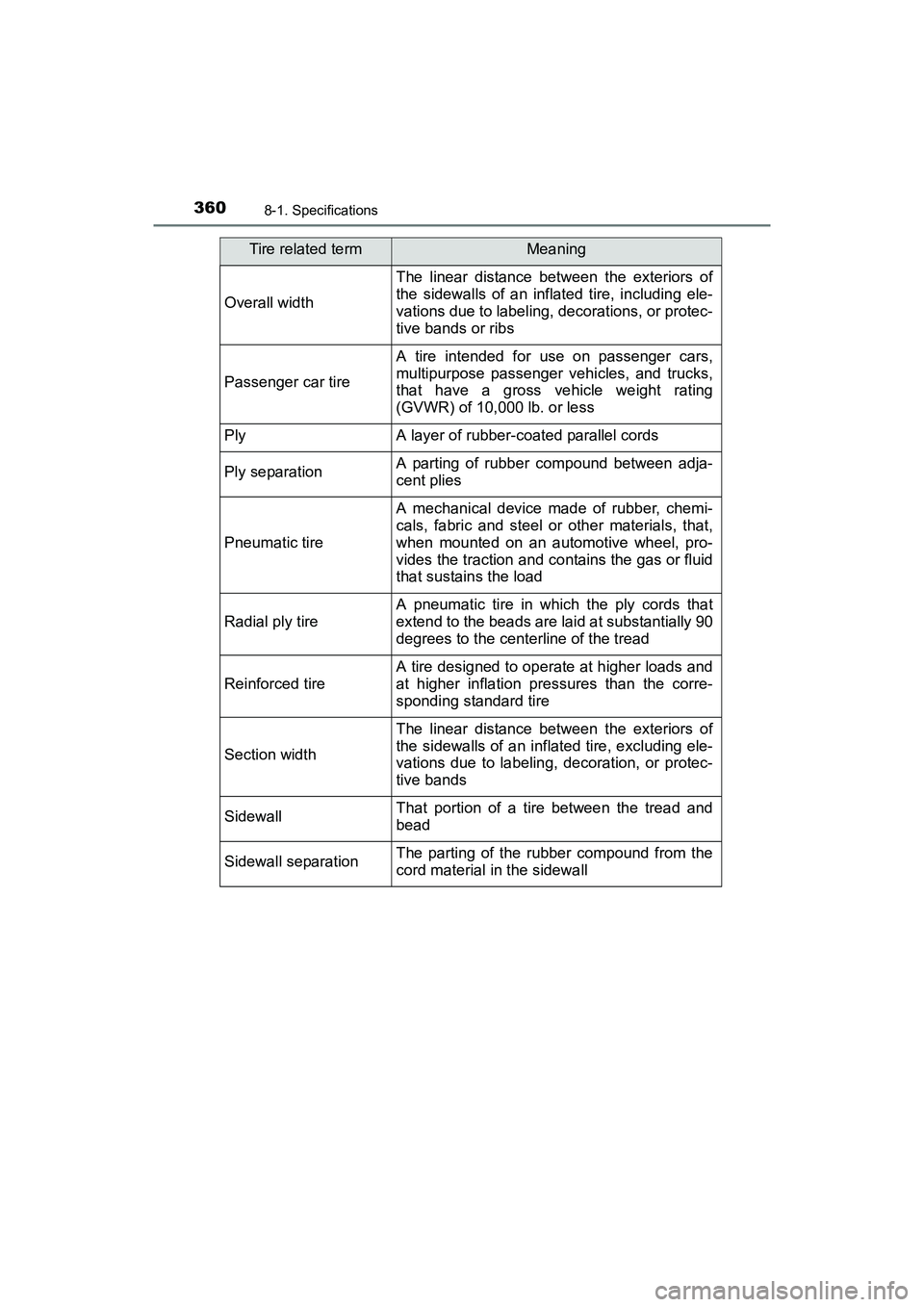

3608-1. Specifications
YARIS_HB_OM_USA_OM52G64U
Overall width
The linear distance between the exteriors of
the sidewalls of an inflated tire, including ele-
vations due to labeling, decorations, or protec-
tive bands or ribs
Passenger car tire
A tire intended for use on passenger cars,
multipurpose passenger vehicles, and trucks,
that have a gross vehicle weight rating
(GVWR) of 10,000 lb. or less
PlyA layer of rubber-coated parallel cords
Ply separationA parting of rubber compound between adja-
cent plies
Pneumatic tire
A mechanical device made of rubber, chemi-
cals, fabric and steel or other materials, that,
when mounted on an automotive wheel, pro-
vides the traction and contains the gas or fluid
that sustains the load
Radial ply tire
A pneumatic tire in which the ply cords that
extend to the beads are laid at substantially 90
degrees to the centerline of the tread
Reinforced tire
A tire designed to operate at higher loads and
at higher inflation pressures than the corre-
sponding standard tire
Section width
The linear distance between the exteriors of
the sidewalls of an inflated tire, excluding ele-
vations due to labeling, decoration, or protec-
tive bands
SidewallThat portion of a tire between the tread and
bead
Sidewall separationThe parting of the rubber compound from the
cord material in the sidewall
Tire related termMeaning
YARIS_HB_OM_USA_OM52G64U.book 360 ページ ２０１６年２月１６日　火曜日　午後３時２０分

3618-1. Specifications
8
Vehicle specifications
YARIS_HB_OM_USA_OM52G64U

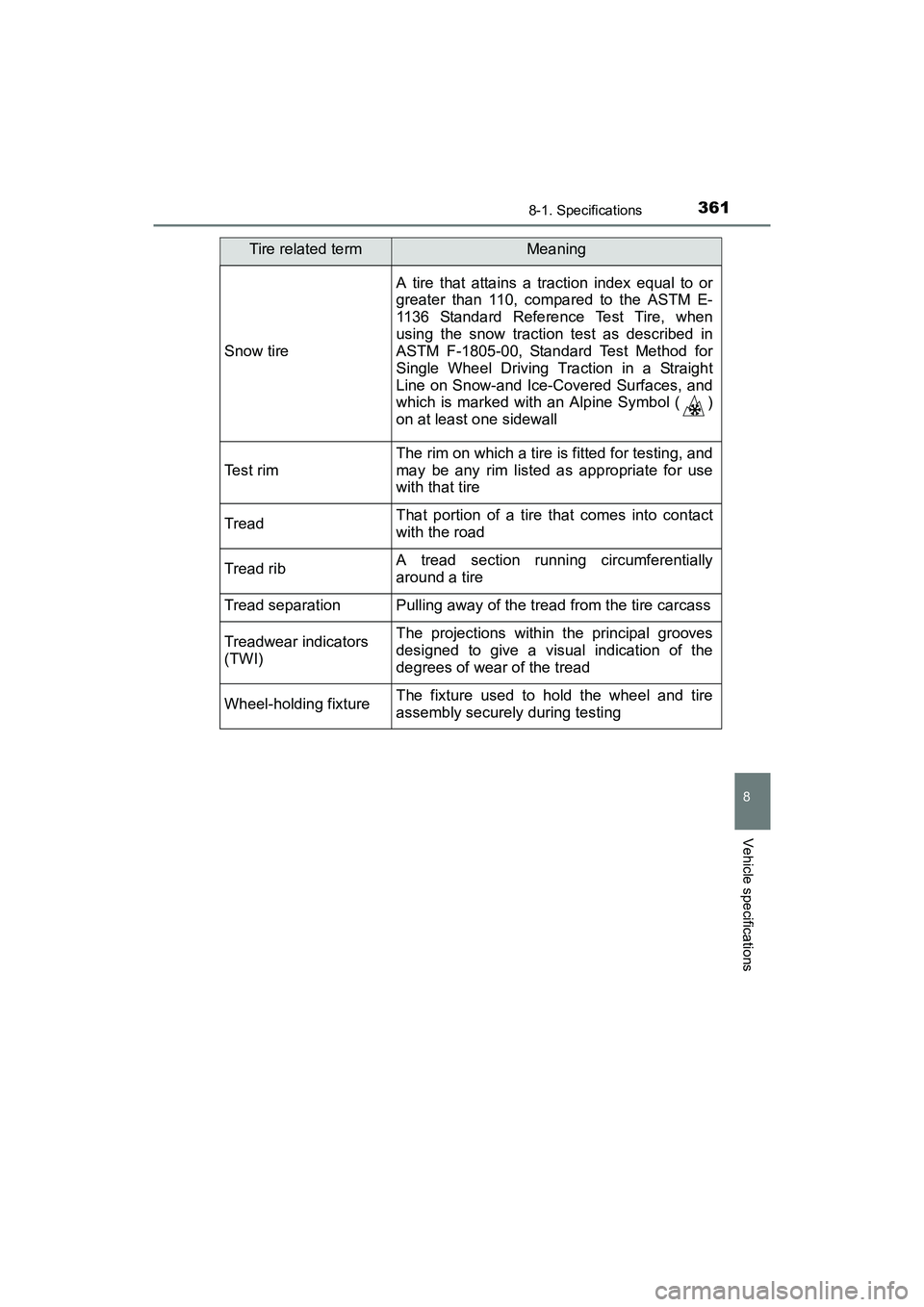

Snow tire
A tire that attains a traction index equal to or
greater than 110, compared to the ASTM E-
1136 Standard Reference Test Tire, when
using the snow traction test as described in
ASTM F-1805-00, Standard Test Method for
Single Wheel Driving Traction in a Straight
Line on Snow-and Ice-Covered Surfaces, and
which is marked with an Alpine Symbol ( )
on at least one sidewall
Te s t r i m
The rim on which a tire is fitted for testing, and
may be any rim listed as appropriate for use
with that tire
TreadThat portion of a tire that comes into contact
with the road
Tread ribA tread section running circumferentially
around a tire
Tread separationPulling away of the tread from the tire carcass
Treadwear indicators
(TWI)The projections within the principal grooves
designed to give a visual indication of the
degrees of wear of the tread
Wheel-holding fixtureThe fixture used to hold the wheel and tire
assembly securely during testing
Tire related termMeaning
YARIS_HB_OM_USA_OM52G64U.book 361 ページ ２０１６年２月１６日　火曜日　午後３時２０分

3628-1. Specifications
YARIS_HB_OM_USA_OM52G64U

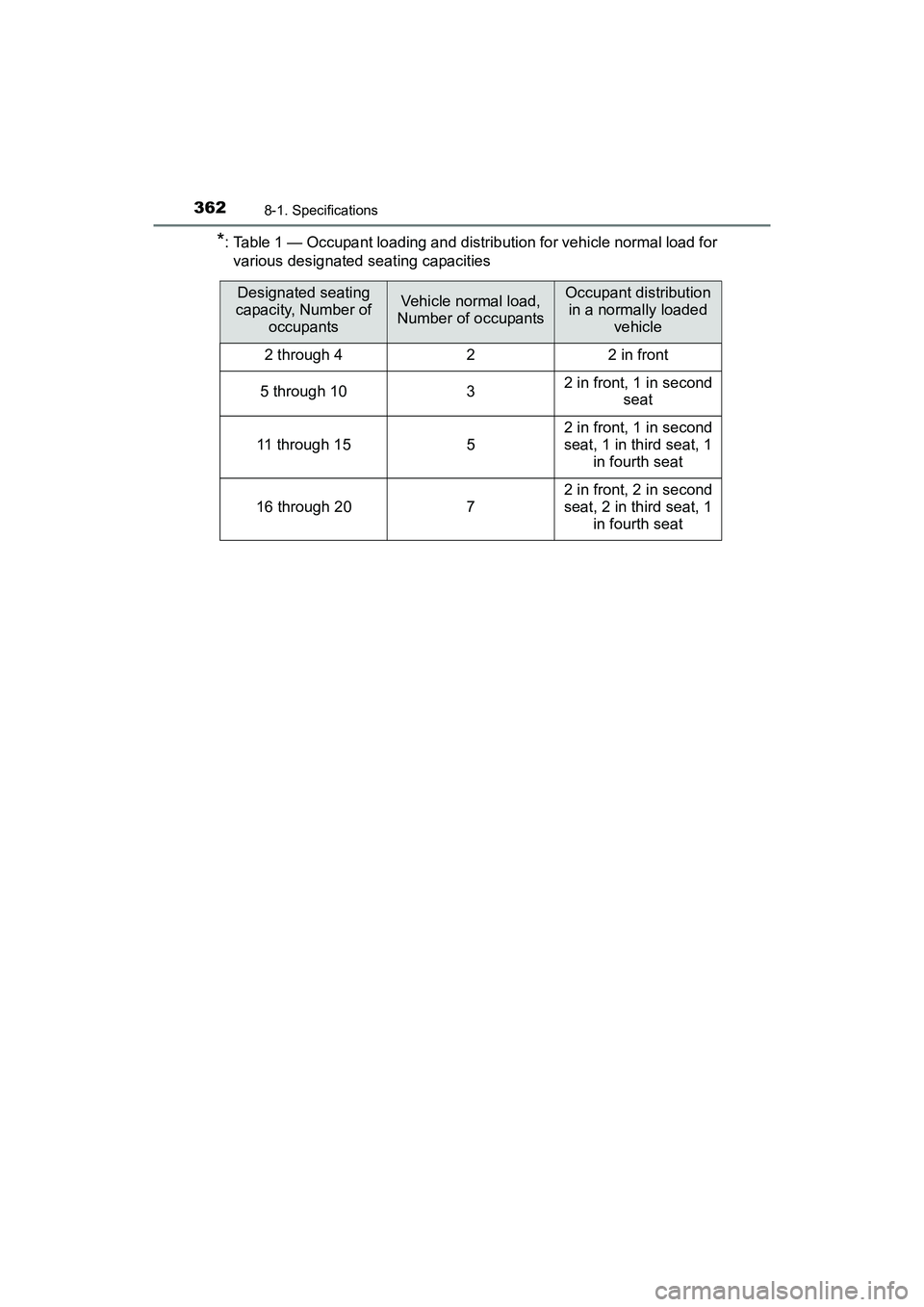

*: Table 1 — Occupant loading and distribution for vehicle normal load forvarious designated seating capacities
Designated seating
capacity, Number of occupants Vehicle normal load,
Number of occupantsOccupant distribution in a normally loaded vehicle
2 through 422 in front
5 through 1032 in front, 1 in second seat
11 through 155
2 in front, 1 in second
seat, 1 in third seat, 1
in fourth seat
16 through 207
2 in front, 2 in second
seat, 2 in third seat, 1 in fourth seat
YARIS_HB_OM_USA_OM52G64U.book 362 ページ ２０１６年２月１６日　火曜日　午後３時２０分

3638-2. Customization
8
Vehicle specifications
YARIS_HB_OM_USA_OM52G64U

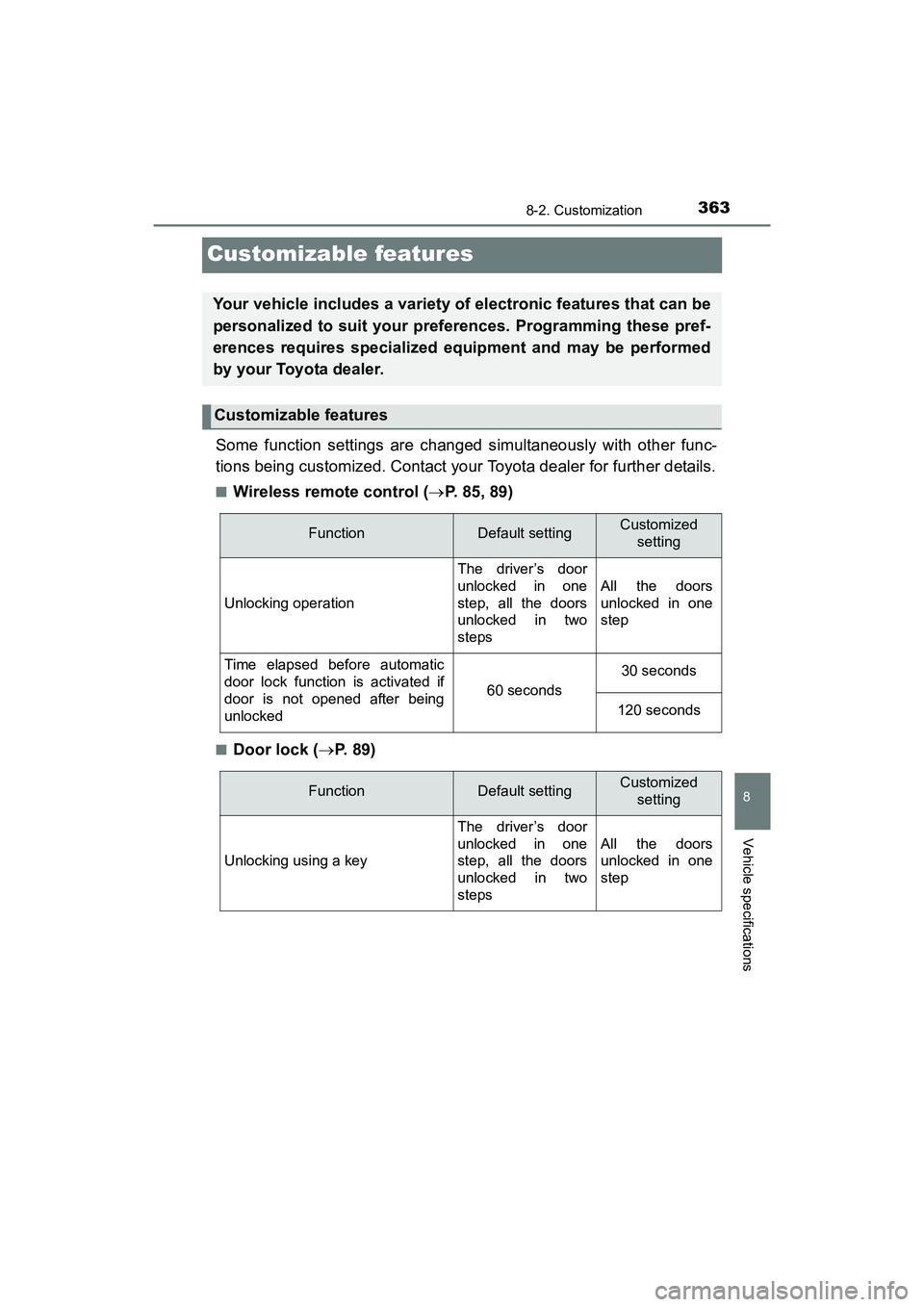

Customizable features
Some function settings are changed simultaneously with other func-
tions being customized. Contact your Toyota dealer for further details.
■Wireless remote control (P. 85, 89)
■Door lock ( P. 8 9 )
Your vehicle includes a variety of electronic features that can be
personalized to suit your preferences. Programming these pref-
erences requires specialized equipment and may be performed
by your Toyota dealer.
Customizable features
FunctionDefault settingCustomized
setting
Unlocking operation The driver’s door
unlocked in one
step, all the doors
unlocked in two
stepsAll the doors
unlocked in one
step
Time elapsed before automatic
door lock function is activated if
door is not opened after being
unlocked
60 seconds
30 seconds
120 seconds
FunctionDefault settingCustomized setting
Unlocking using a key The driver’s door
unlocked in one
step, all the doors
unlocked in two
stepsAll the doors
unlocked in one
step
YARIS_HB_OM_USA_OM52G64U.book 363 ページ ２０１６年２月１６日　火曜日　午後３時２０分

3648-2. Customization

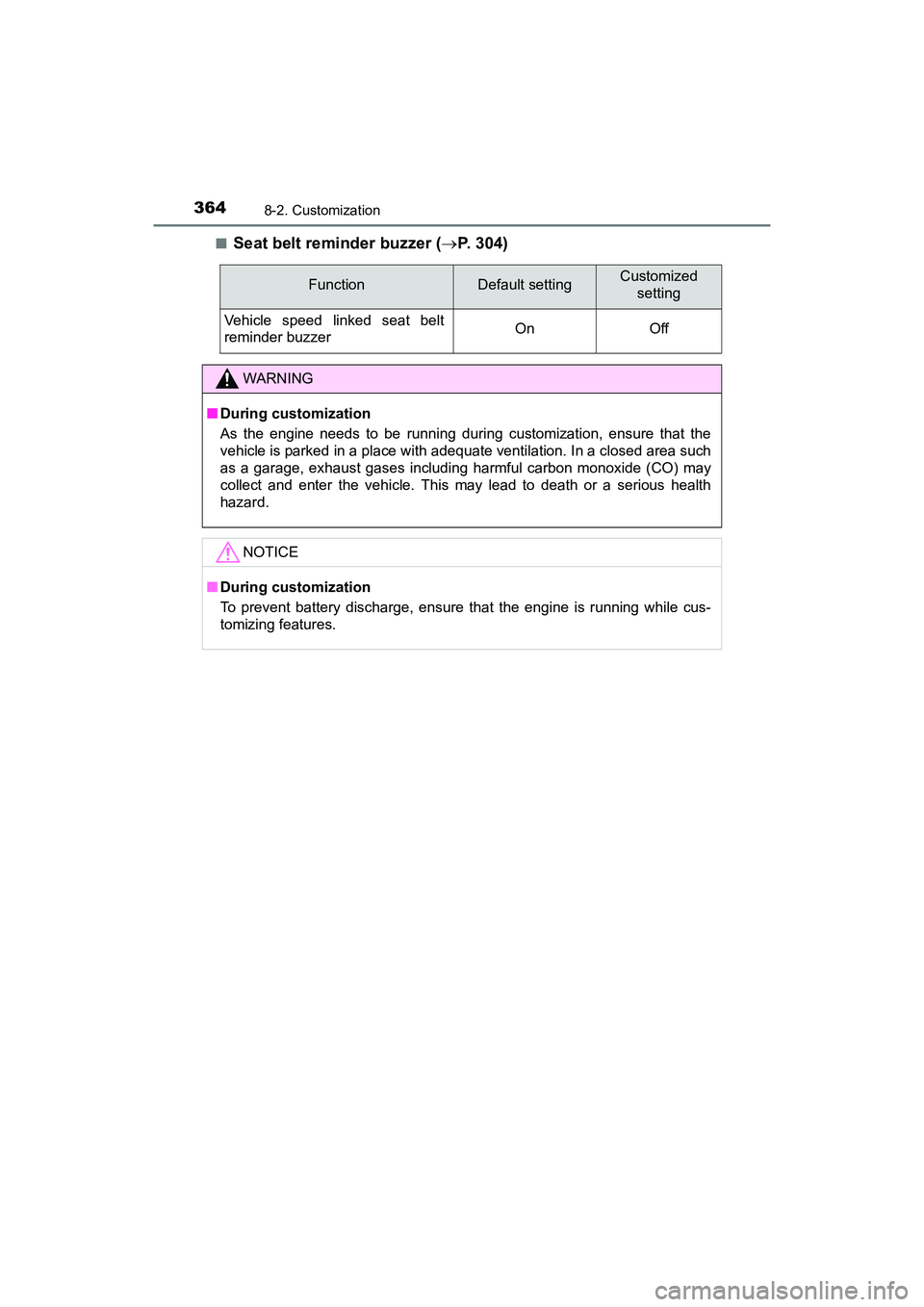

YARIS_HB_OM_USA_OM52G64U■
Seat belt reminder buzzer (
P. 304)
FunctionDefault settingCustomized
setting
Vehicle speed linked seat belt
reminder buzzer On
Off
WARNING
■During customization
As the engine needs to be running during customization, ensure that the
vehicle is parked in a place with adequate ventilation. In a closed area such
as a garage, exhaust gases including harmful carbon monoxide (CO) may
collect and enter the vehicle. This may lead to death or a serious health
hazard.
NOTICE
■During customization
To prevent battery discharge, ensure that the engine is running while cus-
tomizing features.
YARIS_HB_OM_USA_OM52G64U.book 364 ページ ２０１６年２月１６日　火曜日　午後３時２０分

3658-2. Customization
8
Vehicle specifications
YARIS_HB_OM_USA_OM52G64U

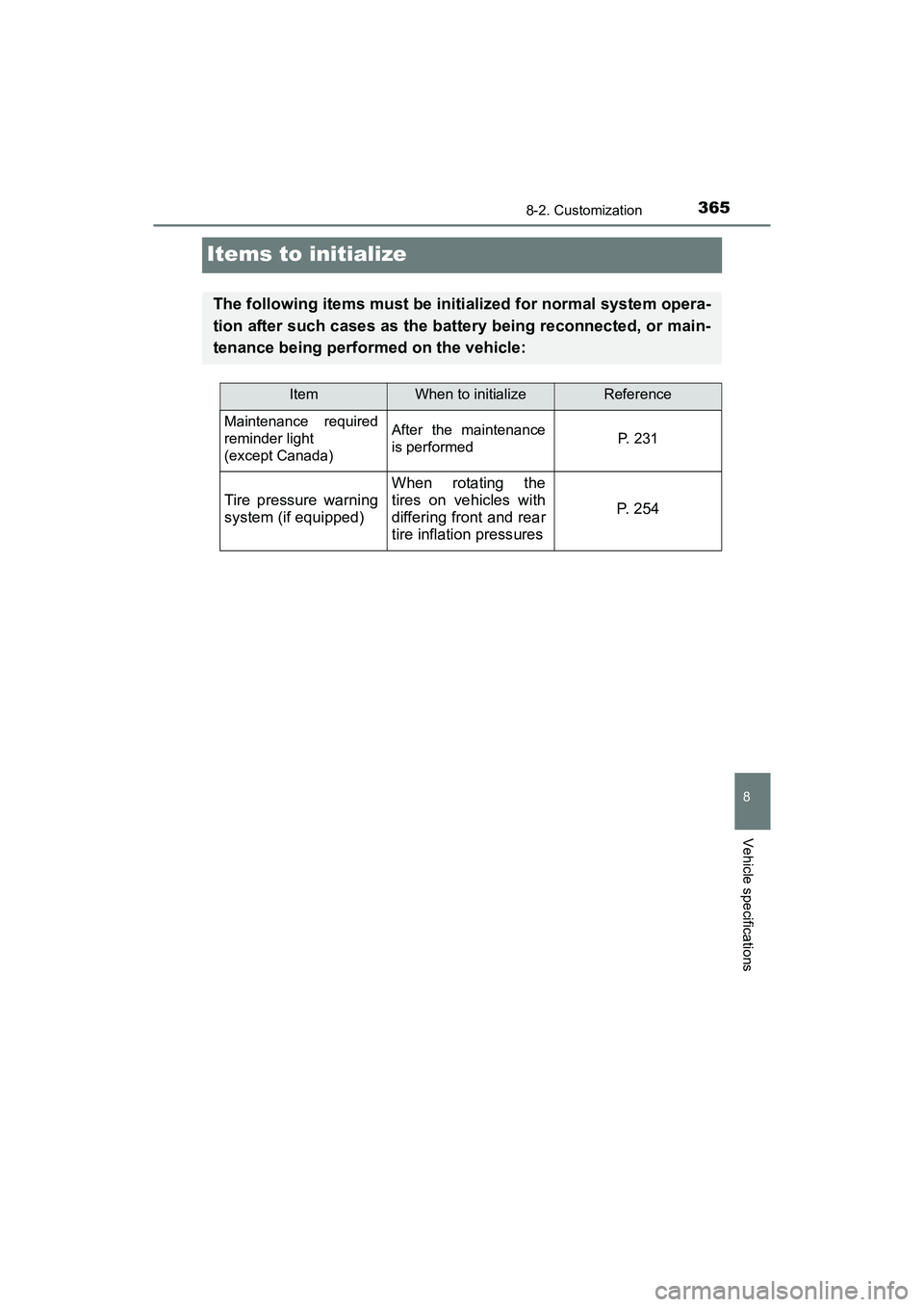

Items to initialize
The following items must be initialized for normal system opera-
tion after such cases as the battery being reconnected, or main-
tenance being performed on the vehicle:
ItemWhen to initializeReference
Maintenance required
reminder light
(except Canada)After the maintenance
is performedP. 231
Tire pressure warning
system (if equipped)
When rotating the
tires on vehicles with
differing front and rear
tire inflation pressures
P. 2 5 4
YARIS_HB_OM_USA_OM52G64U.book 365 ページ ２０１６年２月１６日　火曜日　午後３時２０分

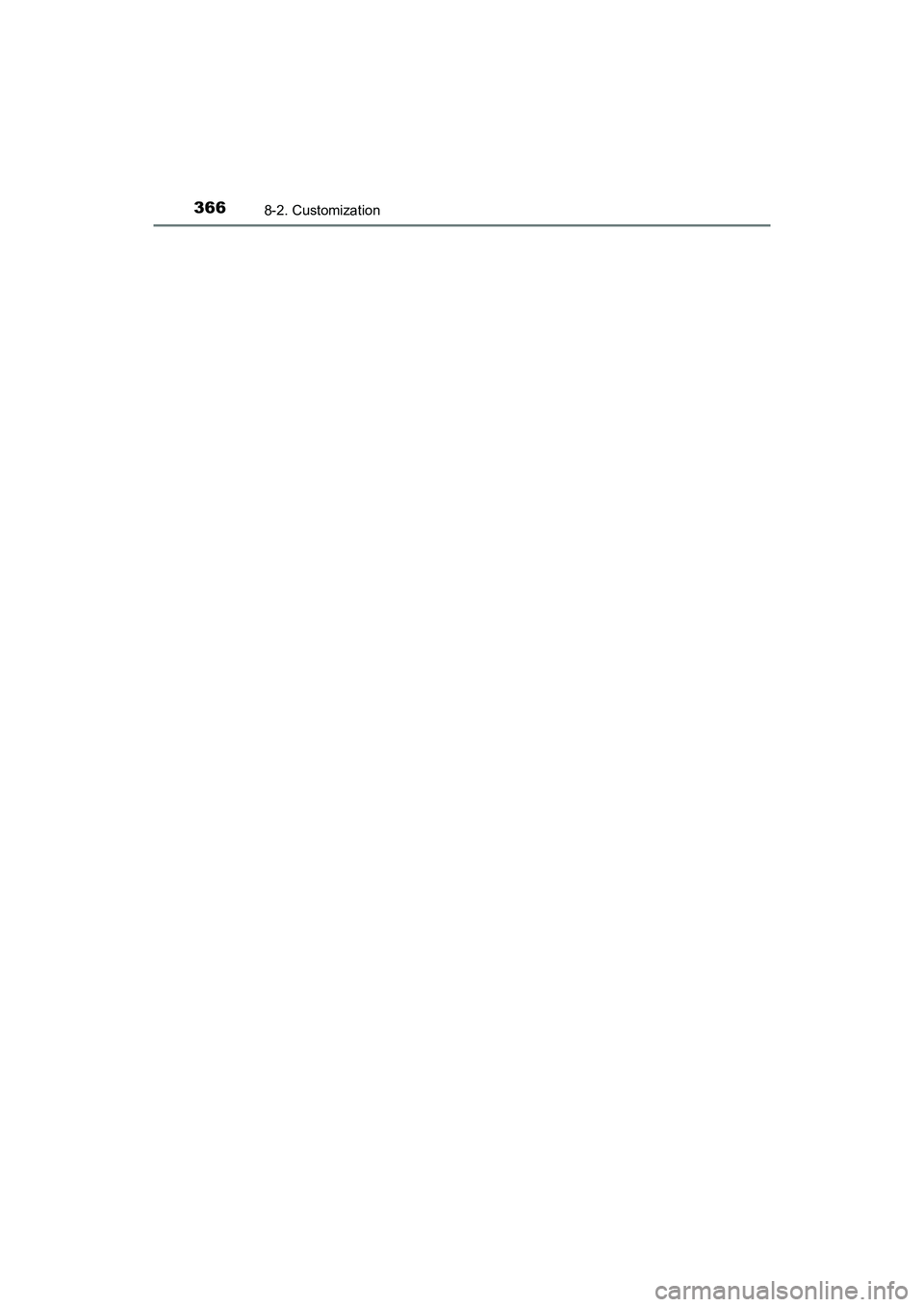

3668-2. Customization
YARIS_HB_OM_USA_OM52G64U
YARIS_HB_OM_USA_OM52G64U.book 366 ページ ２０１６年２月１６日　火曜日　午後３時２０分

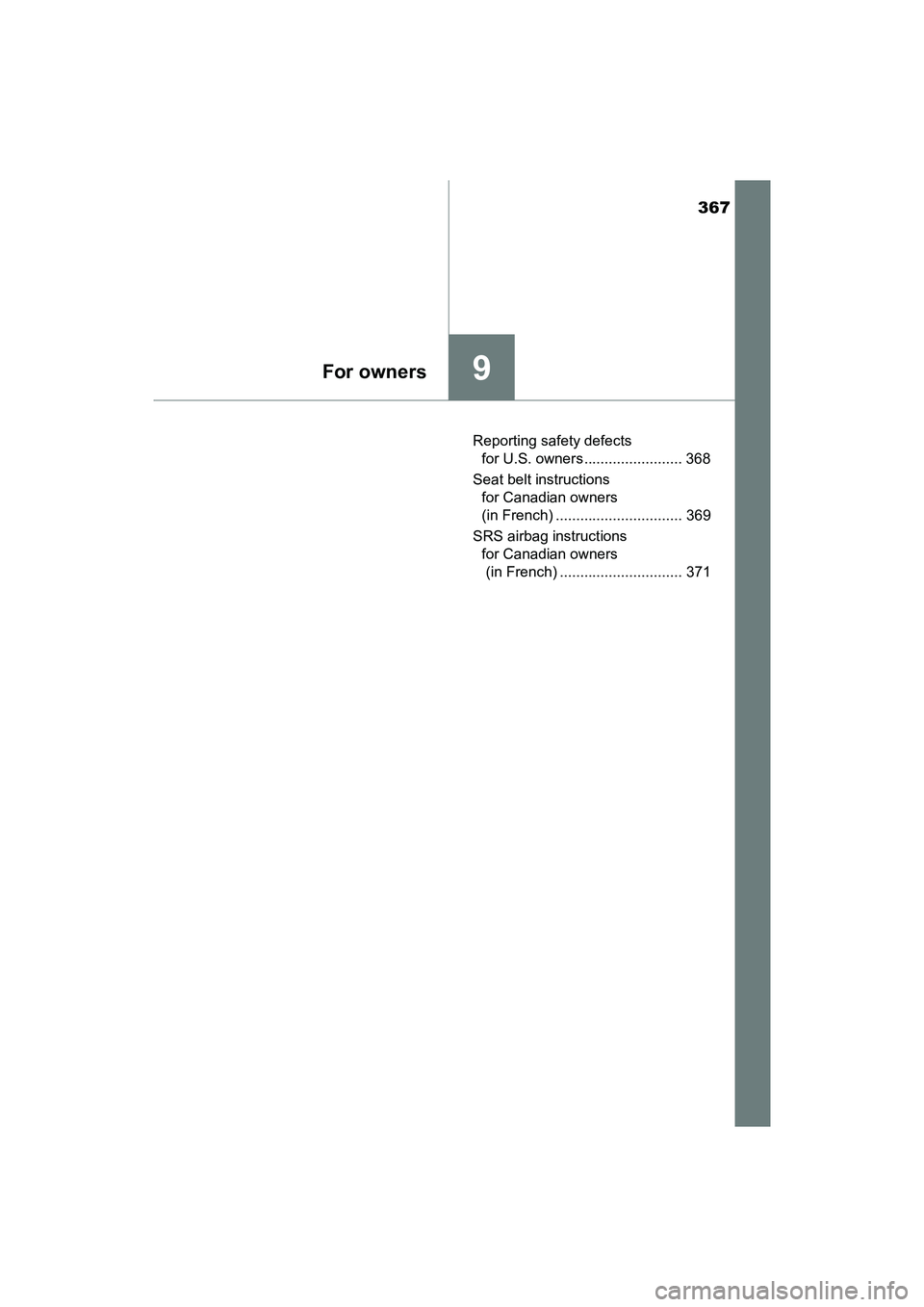

367
9For owners
YARIS_HB_OM_USA_OM52G64UReporting safety defects
for U.S. owners ........................ 368
Seat belt instructions for Canadian owners
(in French) ............................... 369
SRS airbag instructions for Canadian owners
(in French) .............................. 371
YARIS_HB_OM_USA_OM52G64U.book 367 ページ ２０１６年２月１６日　火曜日　午後３時２０分

368
YARIS_HB_OM_USA_OM52G64U

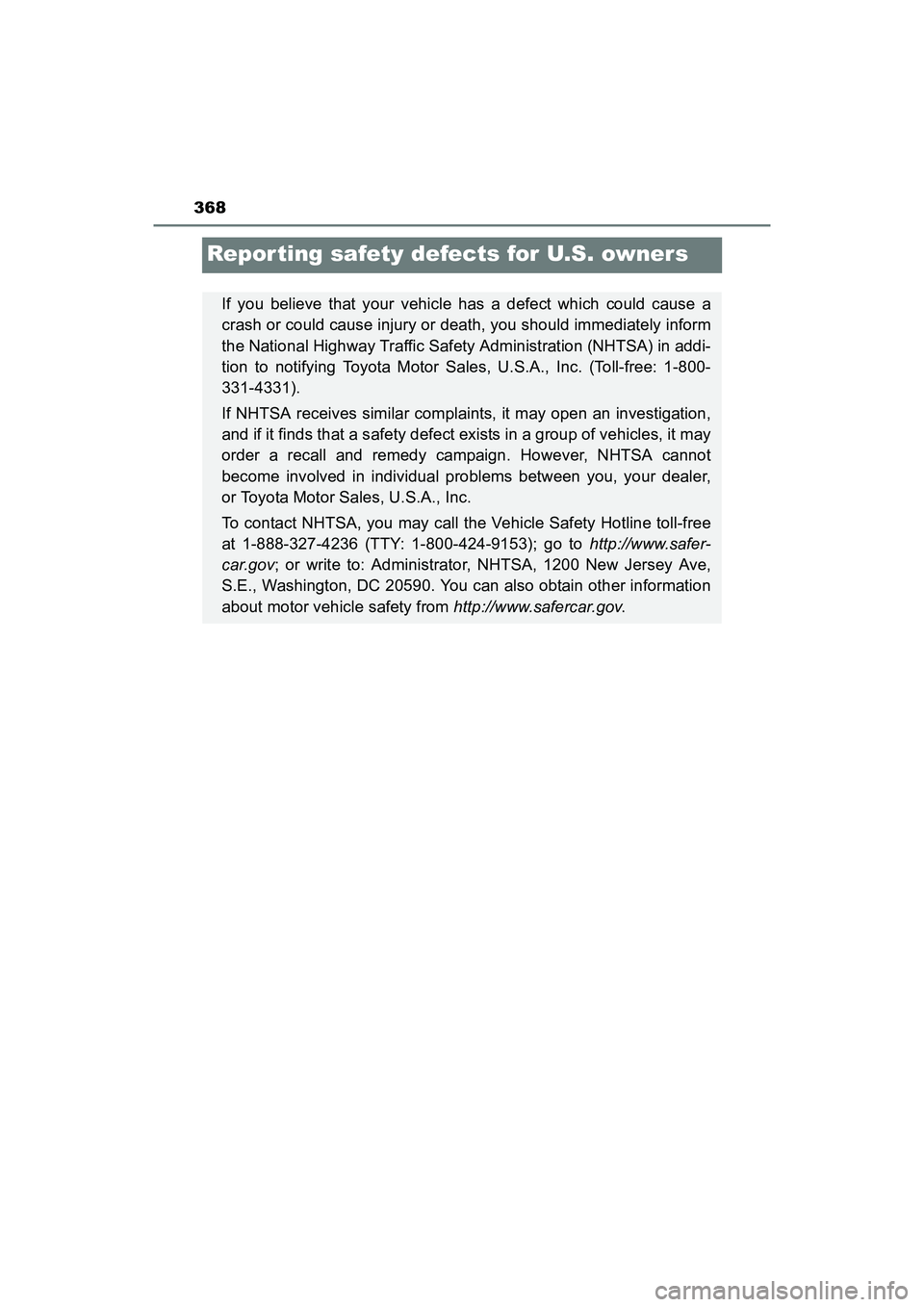

Repor ting safety defects for U.S. owners
If you believe that your vehicle has a defect which could cause a
crash or could cause injury or death, you should immediately inform
the National Highway Traffic Safety Administration (NHTSA) in addi-
tion to notifying Toyota Motor Sales, U.S.A., Inc. (Toll-free: 1-800-
331-4331).
If NHTSA receives similar complaints, it may open an investigation,
and if it finds that a safety defect exists in a group of vehicles, it may
order a recall and remedy campaign. However, NHTSA cannot
become involved in individual problems between you, your dealer,
or Toyota Motor Sales, U.S.A., Inc.
To contact NHTSA, you may call the Vehicle Safety Hotline toll-free
at 1-888-327-4236 (TTY: 1-800-424-9153); go to http://www.safer-
car.gov; or write to: Administrator, NHTSA, 1200 New Jersey Ave,
S.E., Washington, DC 20590. You can also obtain other information
about motor vehicle safety from http://www.safercar.gov.
