792. Instrument cluster
2
Instrument cluster
YARIS_HB_OM_USA_OM52G64U

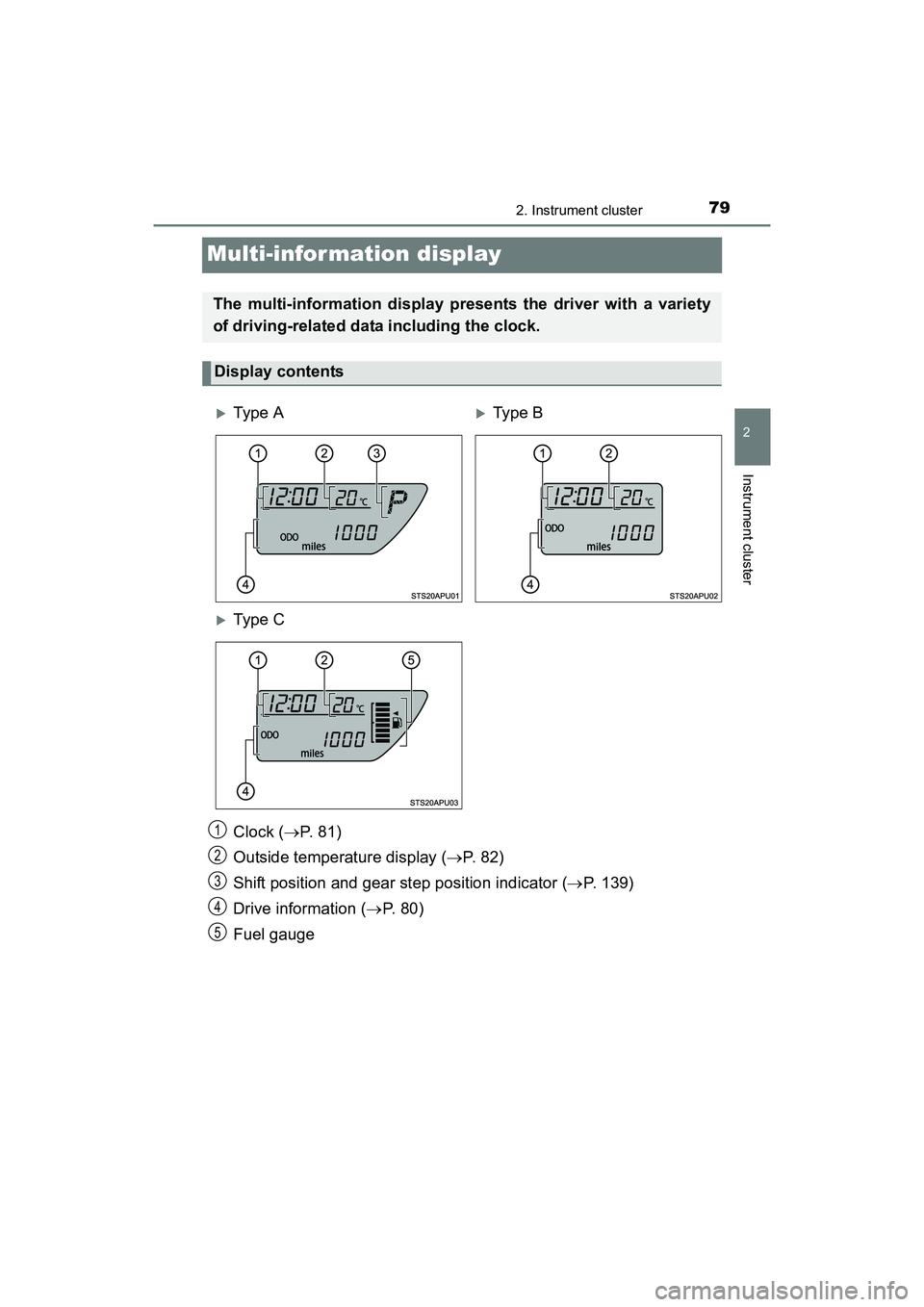

Multi-infor mation display
Clock (P. 8 1 )
Outside temperature display ( P. 82)
Shift position and gear step position indicator ( P. 139)
Drive information ( P. 8 0 )
Fuel gauge
The multi-information display presents the driver with a variety
of driving-related data including the clock.
Display contents
Type ATy p e B
Type C
1
2
3
4
5
YARIS_HB_OM_USA_OM52G64U.book 79 ページ ２０１６年２月１６日　火曜日　午後３時２０分

802. Instrument cluster
YARIS_HB_OM_USA_OM52G64U.
Items displayed can be switched
by pressing the display change
button.
■Odometer
Displays the total distance the vehicle has been driven.
■Trip m ete rs
Displays the distance the vehicle has been driven since the meter
was last reset. Trip meters “A” and “B” can be used to record and
display different distances independently.
Pressing and holding the display change button while the trip meter is
displayed will reset the trip meter to “0”.
■
Driving range
Displays the estimated maximum distance that can be driven with
the quantity of fuel remaining.
• This distance is computed based on your average fuel consumption. As a result, the actual distance that c an be driven may differ from that dis-
played.
• When only a small amount of fuel is added to the tank, the display may not be updated.
When refueling, turn the engine switch to the “LOCK” position. If the vehi-
cle is refueled without turning the engine switch to the “LOCK” position, the
display may not be updated.
Changing the display
Drive information
YARIS_HB_OM_USA_OM52G64U.book 80 ページ ２０１６年２月１６日　火曜日　午後３時２０分

812. Instrument cluster
2
Instrument cluster
YARIS_HB_OM_USA_OM52G64U■

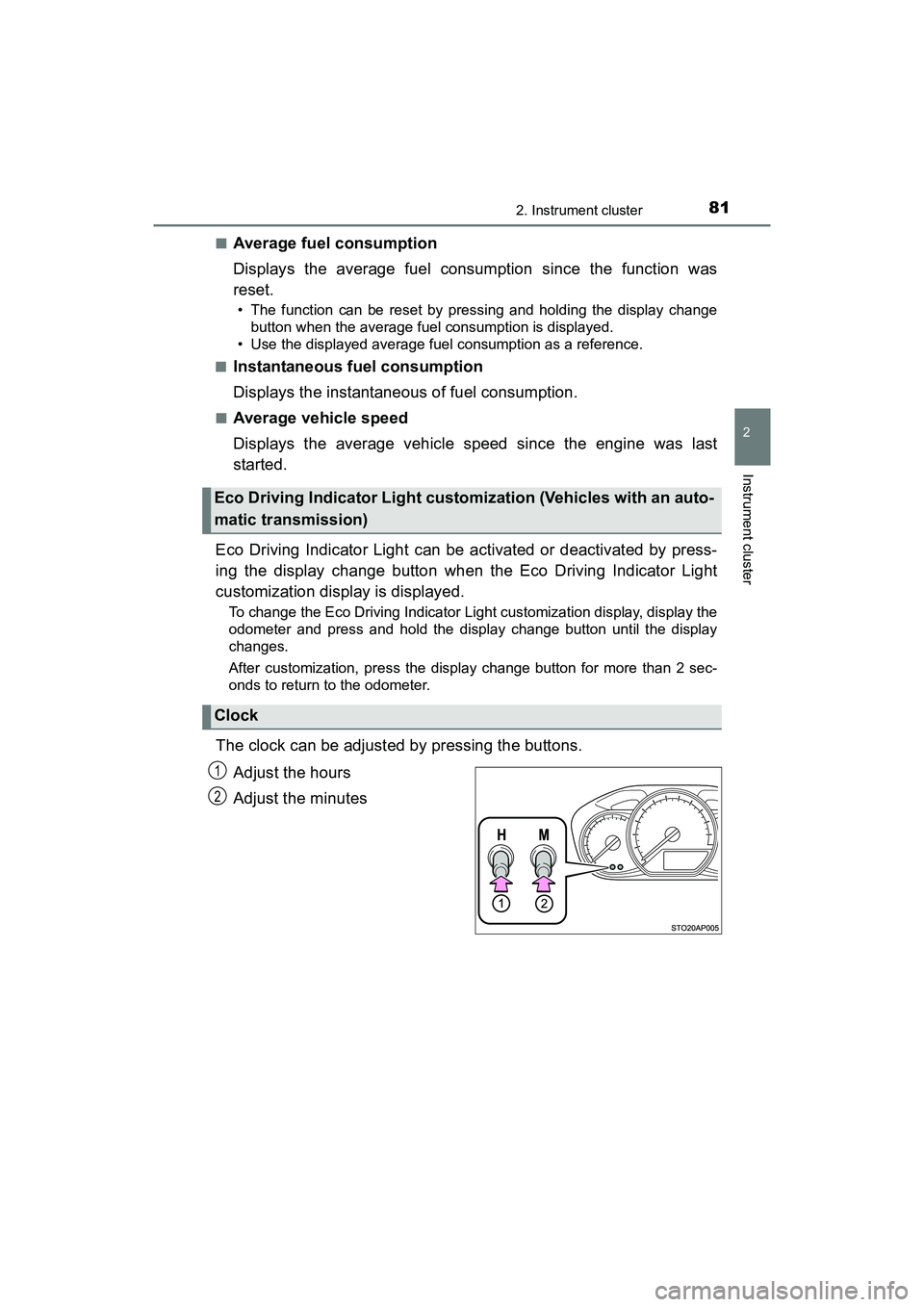

Average fuel consumption
Displays the average fuel consumption since the function was
reset.
• The function can be reset by pressing and holding the display change
button when the average fuel consumption is displayed.
• Use the displayed average fuel consumption as a reference.
■
Instantaneous fuel consumption
Displays the instantaneous of fuel consumption.
■Average vehicle speed
Displays the average vehicle speed since the engine was last
started.
Eco Driving Indicator Light can be activated or deactivated by press-
ing the display change button when the Eco Driving Indicator Light
customization display is displayed.
To change the Eco Driving Indicator Light customization display, display the
odometer and press and hold the display change button until the display
changes.
After customization, press the display change button for more than 2 sec-
onds to return to the odometer.
The clock can be adjusted by pressing the buttons. Adjust the hours
Adjust the minutes
Eco Driving Indicator Light customization (Vehicles with an auto-
matic transmission)
Clock
1
2
YARIS_HB_OM_USA_OM52G64U.book 81 ページ ２０１６年２月１６日　火曜日　午後３時２０分

822. Instrument cluster
YARIS_HB_OM_USA_OM52G64U
The temperature display shows temperatures within the range of
-40°F (-40°C) and 122°F (50°C).
■Display
In the following situations, the correct outside temperature may not
be displayed, or the display may take longer than normal to change:
●When the vehicle is stopped, or moving at low speeds (less than
16 mph [25 km/h])
● When the outside temperature has changed suddenly (at the
entrance/exit of a garage, tunnel, etc.)
■When “ ” or “E” is displayed
The system may be malfunctioning. Take your vehicle to your
Toyota dealer.
■ When disconnecting and reconnecting battery terminals
The following information data will be reset.
●Driving range
● Average fuel consumption
● Average vehicle speed
● Clock data
■ Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal display, and there is no problem continuing to
use the display.
■ Changing the pre-collision warning timing
P. 168
Outside temperature display
NOTICE
■The multi-information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the display monitor may
respond slowly, and display changes may be delayed.
sec_02.fm 82 ページ ２０１６年２月２５日　木曜日　午後１時３２分

83
3
Operation of
each component
YARIS_HB_OM_USA_OM52G64U 3-1. Key information
Keys .................................... 84
3-2. Opening, closing and locking the doors
Side doors ........................... 89
Back door ............................ 94
3-3. Adjusting the seats Front seats .......................... 98
Rear seats......................... 101
Head restraints.................. 104
3-4. Adjusting the steering wheel and mirrors
Steering wheel .................. 107
Inside rear view mirror ...... 109
Outside rear view mirrors ............................. 111
3-5. Opening and closing the windows
Power windows ................. 113
YARIS_HB_OM_USA_OM52G64U.book 83 ページ ２０１６年２月１６日　火曜日　午後３時２０分

843-1. Key information
YARIS_HB_OM_USA_OM52G64U

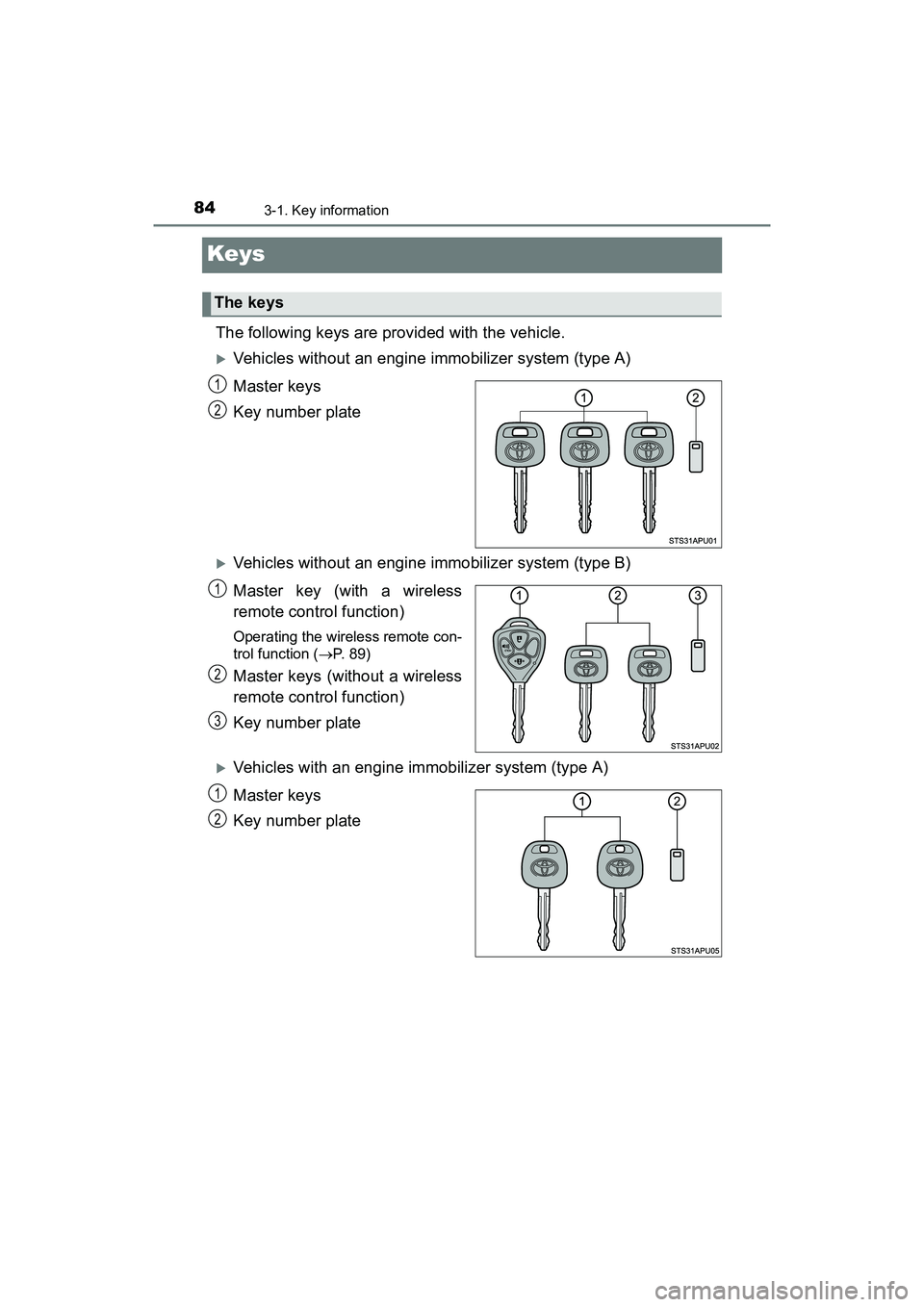

Keys
The following keys are provided with the vehicle.
Vehicles without an engine immobilizer system (type A)
Master keys
Key number plate
Vehicles without an engine immobilizer system (type B)
Master key (with a wireless
remote control function)
Operating the wireless remote con-
trol function (P. 89)
Master keys (without a wireless
remote control function)
Key number plate
Vehicles with an engine immobilizer system (type A)
Master keys
Key number plate
The keys
1
2
1
2
3
1
2
YARIS_HB_OM_USA_OM52G64U.book 84 ページ ２０１６年２月１６日　火曜日　午後３時２０分

853-1. Key information
3
Operation of each component
YARIS_HB_OM_USA_OM52G64U
Vehicles with an engine immobilizer system (type B)
Master keys
Operating the wireless remote con-
trol function (P. 89)
Key number plate
Vehicles with an engine immobilizer system (type C)
Master keys
Operating the wireless remote con-
trol function (P. 89)
Key number plate
Type A
Locks all the doors (
P. 8 9 )
Sounds the alarm
(press and hold)
Unlocks all the doors (
P. 8 9 )
Pressing the button unlocks the
driver’s door. Pressing the button
again within 3 seconds unlocks the
other doors.
1
2
1
2
Wireless remote control (if equipped)
1
2
3
YARIS_HB_OM_USA_OM52G64U.book 85 ページ ２０１６年２月１６日　火曜日　午後３時２０分

863-1. Key information
YARIS_HB_OM_USA_OM52G64U

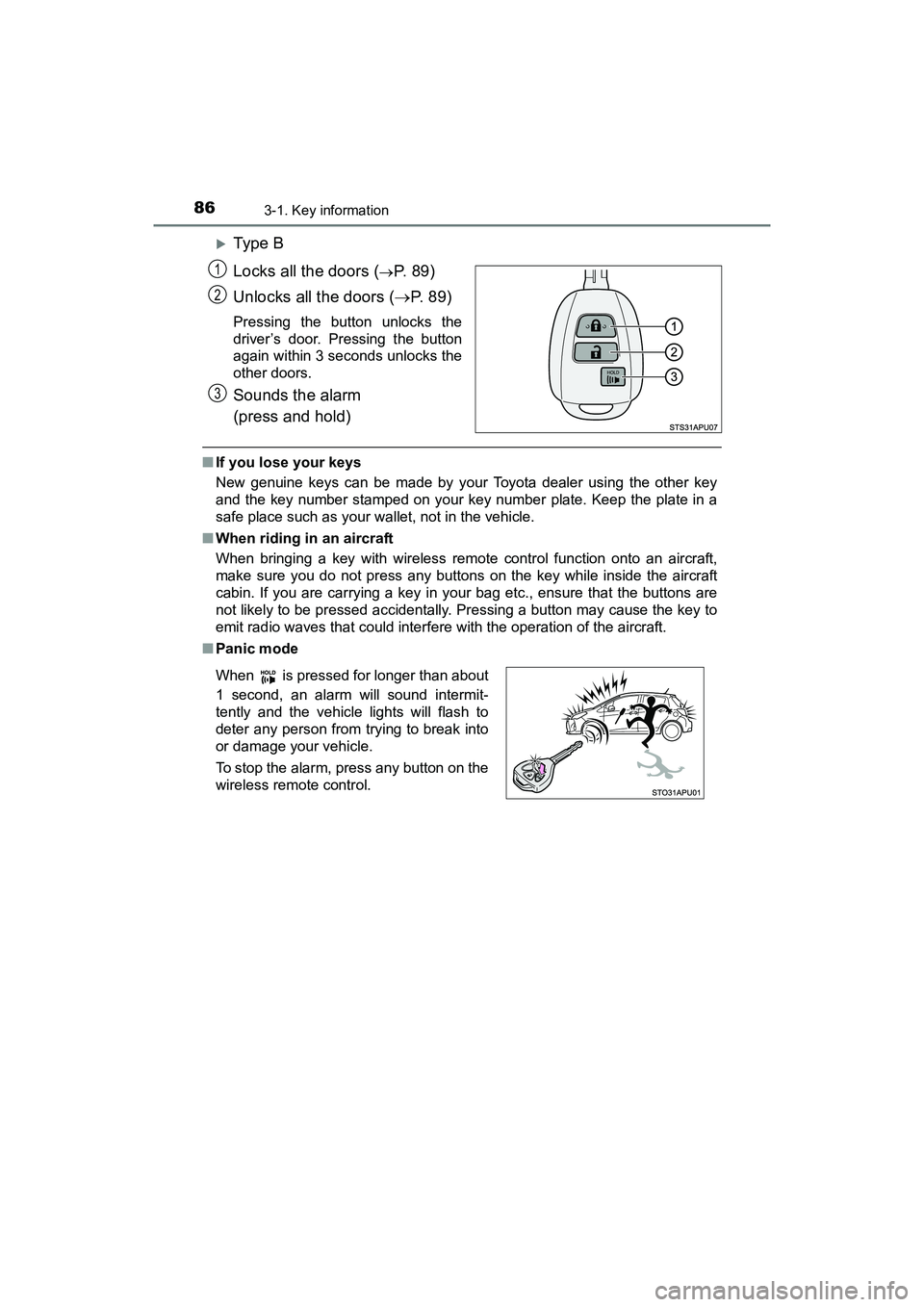

Type B
Locks all the doors (
P. 8 9 )
Unlocks all the doors ( P. 89)
Pressing the button unlocks the
driver’s door. Pressing the button
again within 3 seconds unlocks the
other doors.
Sounds the alarm
(press and hold)
■If you lose your keys
New genuine keys can be made by your Toyota dealer using the other key
and the key number stamped on your key number plate. Keep the plate in a
safe place such as your wallet, not in the vehicle.
■ When riding in an aircraft
When bringing a key with wireless remote control function onto an aircraft,
make sure you do not press any buttons on the key while inside the aircraft
cabin. If you are carrying a key in your bag etc., ensure that the buttons are
not likely to be pressed accidentally. Pressing a button may cause the key to
emit radio waves that could interfere with the operation of the aircraft.
■ Panic mode
1
2
3
When is pressed for longer than about
1 second, an alarm will sound intermit-
tently and the vehicle lights will flash to
deter any person from trying to break into
or damage your vehicle.
To stop the alarm, press any button on the
wireless remote control.
YARIS_HB_OM_USA_OM52G64U.book 86 ページ ２０１６年２月１６日　火曜日　午後３時２０分

873-1. Key information
3
Operation of each component
YARIS_HB_OM_USA_OM52G64U■

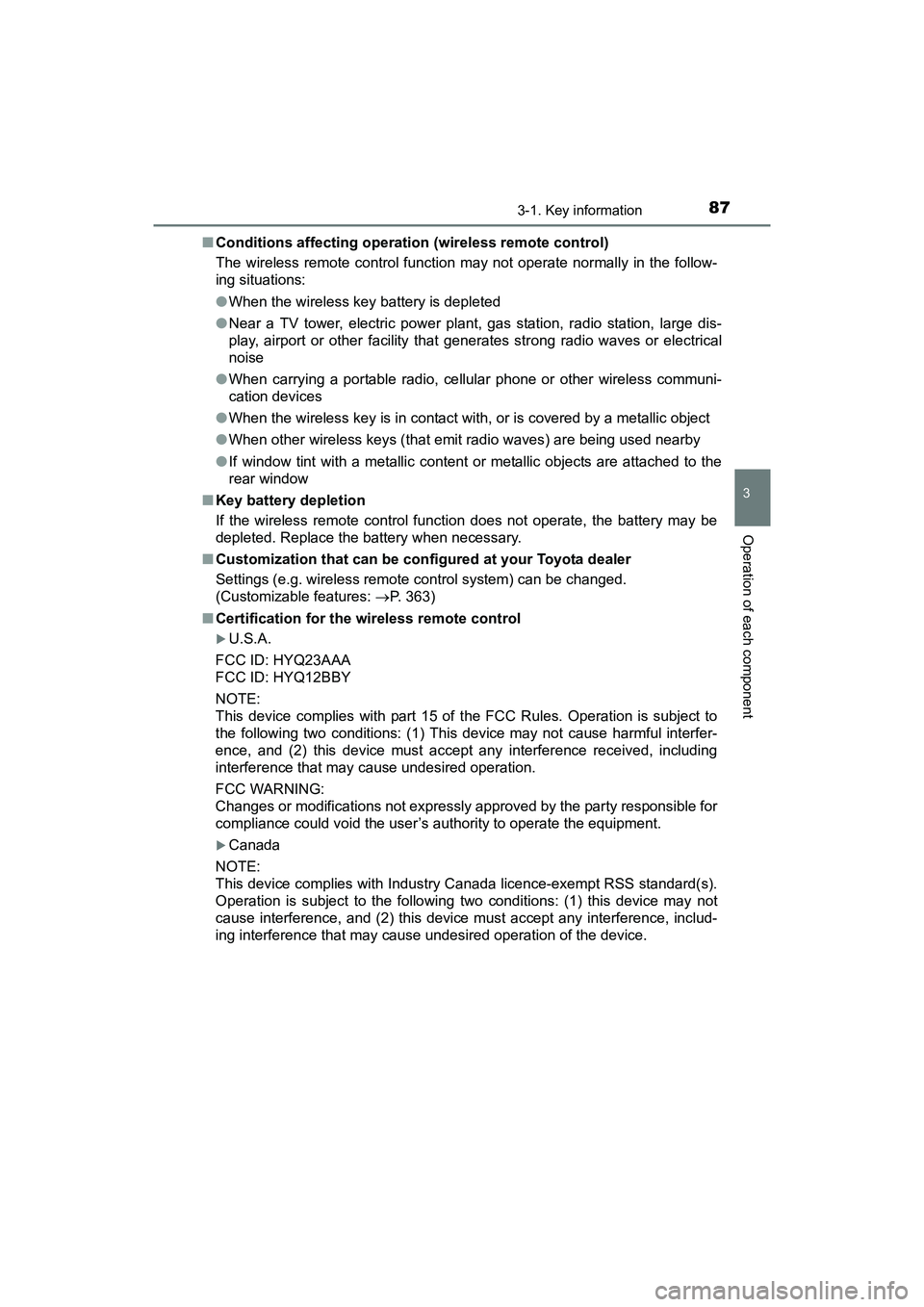

Conditions affecting operation (wireless remote control)
The wireless remote control function may not operate normally in the follow-
ing situations:
●When the wireless key battery is depleted
● Near a TV tower, electric power plant, gas station, radio station, large dis-
play, airport or other fac ility that generates strong radio waves or electrical
noise
● When carrying a portable radio, cellular phone or other wireless communi-
cation devices
● When the wireless key is in contact with, or is covered by a metallic object
● When other wireless keys (that emit radio waves) are being used nearby
● If window tint with a metallic content or metallic objects are attached to the
rear window
■ Key battery depletion
If the wireless remote control function does not operate, the battery may be
depleted. Replace the battery when necessary.
■ Customization that can be configured at your Toyota dealer
Settings (e.g. wireless remote control system) can be changed.
(Customizable features: P. 363)
■ Certification for the wireless remote control
U.S.A.
FCC ID: HYQ23AAA
FCC ID: HYQ12BBY
NOTE:
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful interfer-
ence, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
FCC WARNING:
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
Canada
NOTE:
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference, includ-
ing interference that may cause undesired operation of the device.
YARIS_HB_OM_USA_OM52G64U.book 87 ページ ２０１６年２月１６日　火曜日　午後３時２０分

883-1. Key information
YARIS_HB_OM_USA_OM52G64U

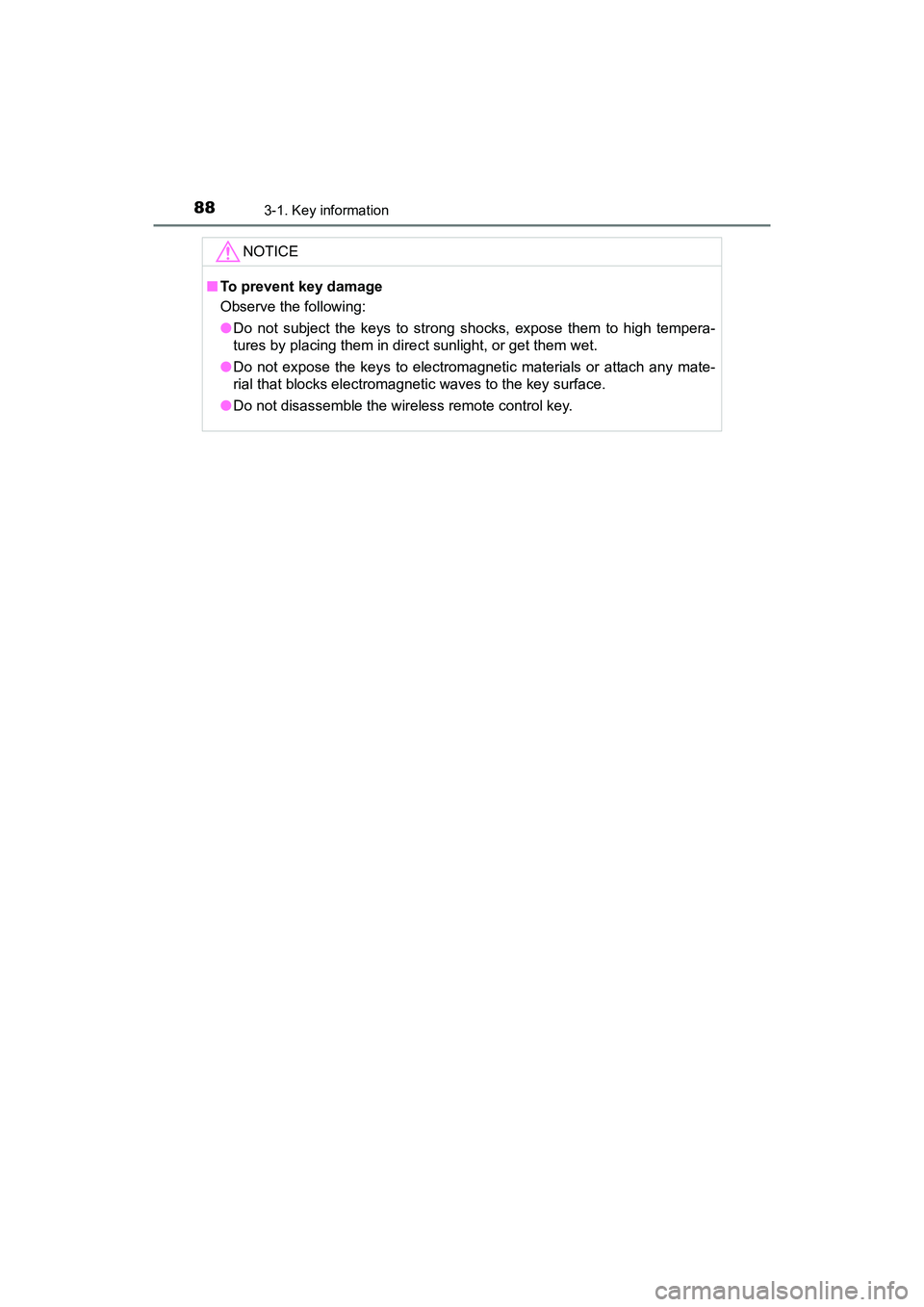

NOTICE
■To prevent key damage
Observe the following:
●Do not subject the keys to strong shocks, expose them to high tempera-
tures by placing them in dire ct sunlight, or get them wet.
● Do not expose the keys to electromagnetic materials or attach any mate-
rial that blocks electromagnetic waves to the key surface.
● Do not disassemble the wireless remote control key.
