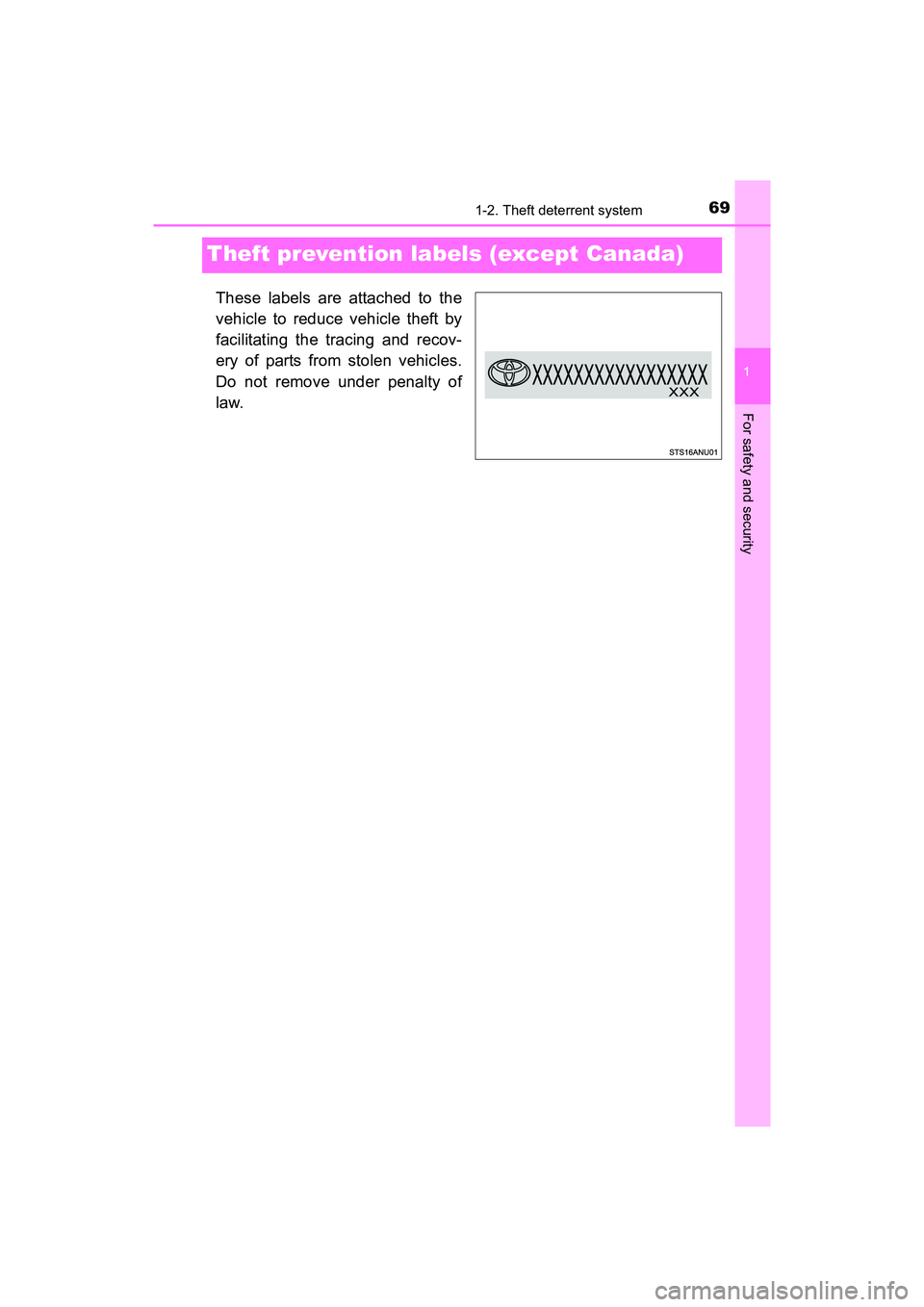

Theft prevention labels (except Canada)
These labels are attached to the
vehicle to reduce vehicle theft by
facilitating the tracing and recov-
ery of parts from stolen vehicles.
Do not remove under penalty of
law.
YARIS_HB_OM_USA_OM52G64U.book 69 ページ ２０１６年２月１６日　火曜日　午後３時２０分

701-2. Theft deterrent system
YARIS_HB_OM_USA_OM52G64U
YARIS_HB_OM_USA_OM52G64U.book 70 ページ ２０１６年２月１６日　火曜日　午後３時２０分

71
Instrument cluster2

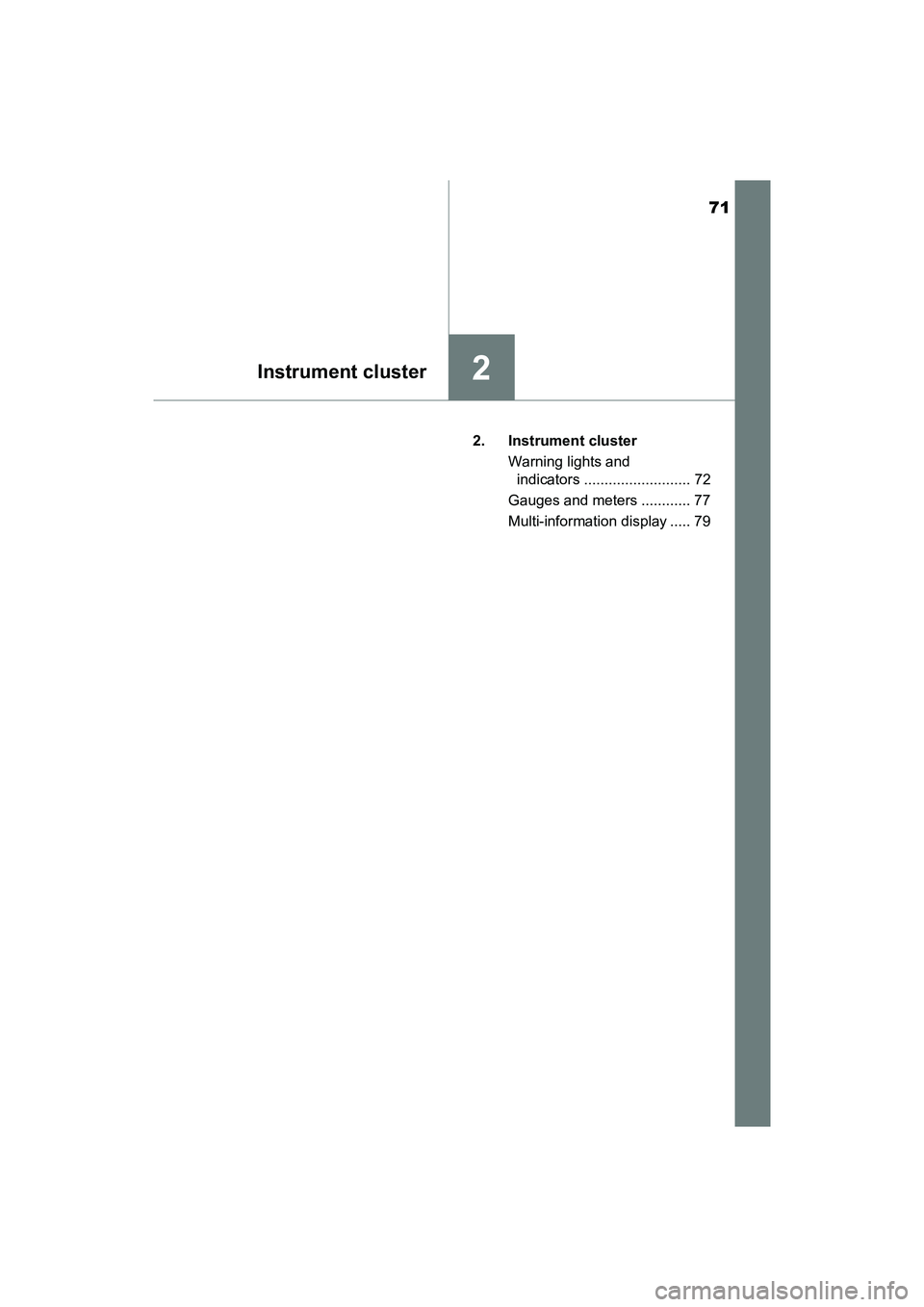

YARIS_HB_OM_USA_OM52G64U2. Instrument cluster
Warning lights and indicators .......................... 72
Gauges and meters ............ 77
Multi-information display ..... 79
YARIS_HB_OM_USA_OM52G64U.book 71 ページ ２０１６年２月１６日　火曜日　午後３時２０分

722. Instrument cluster
YARIS_HB_OM_USA_OM52G64U

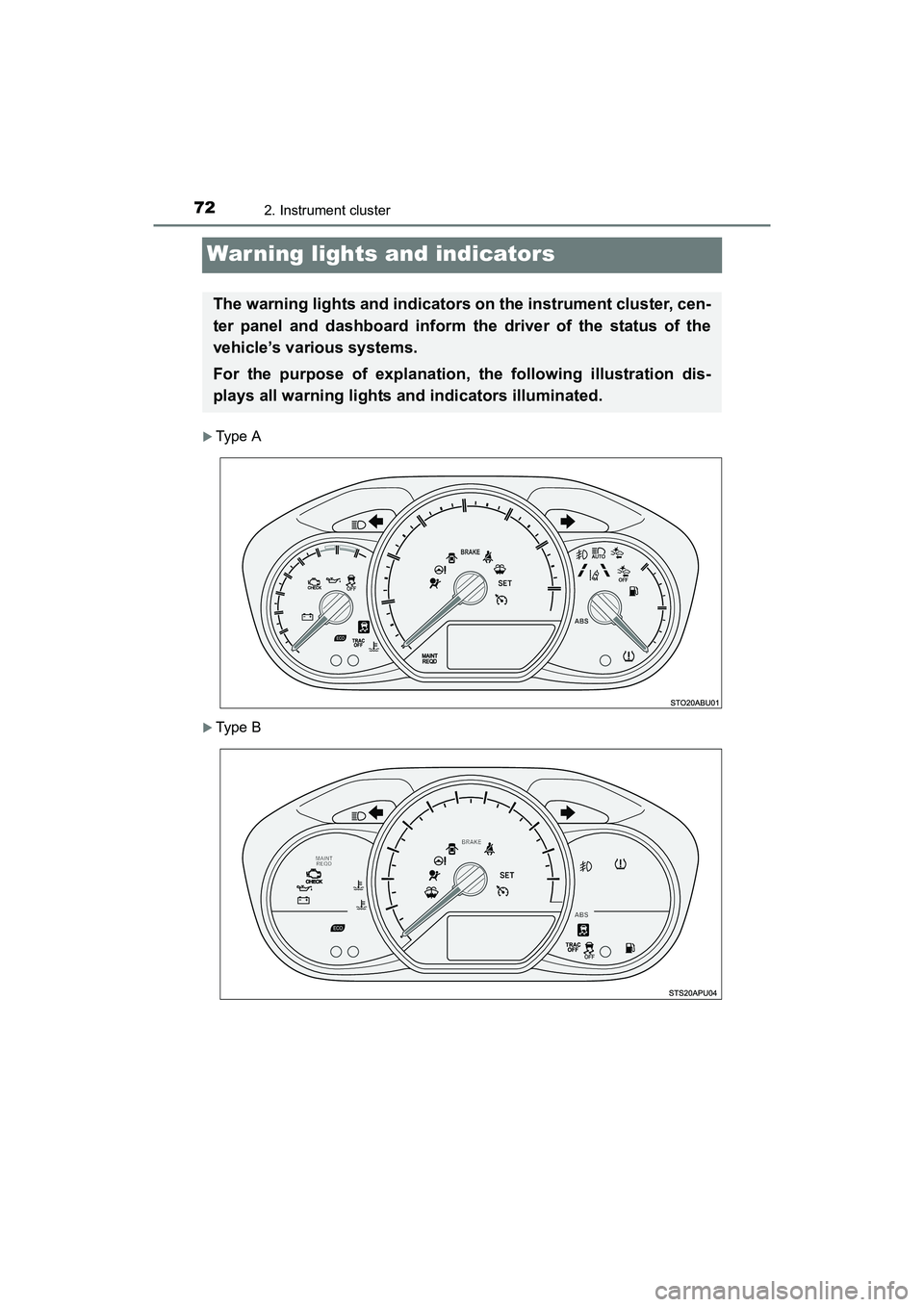

Warning lights and indicators
Type A
Type B
The warning lights and indicators on the instrument cluster, cen-
ter panel and dashboard inform the driver of the status of the
vehicle’s various systems.
For the purpose of explanation, the following illustration dis-
plays all warning lights and indicators illuminated.
YARIS_HB_OM_USA_OM52G64U.book 72 ページ ２０１６年２月１６日　火曜日　午後３時２０分

732. Instrument cluster
2
Instrument cluster
YARIS_HB_OM_USA_OM52G64U

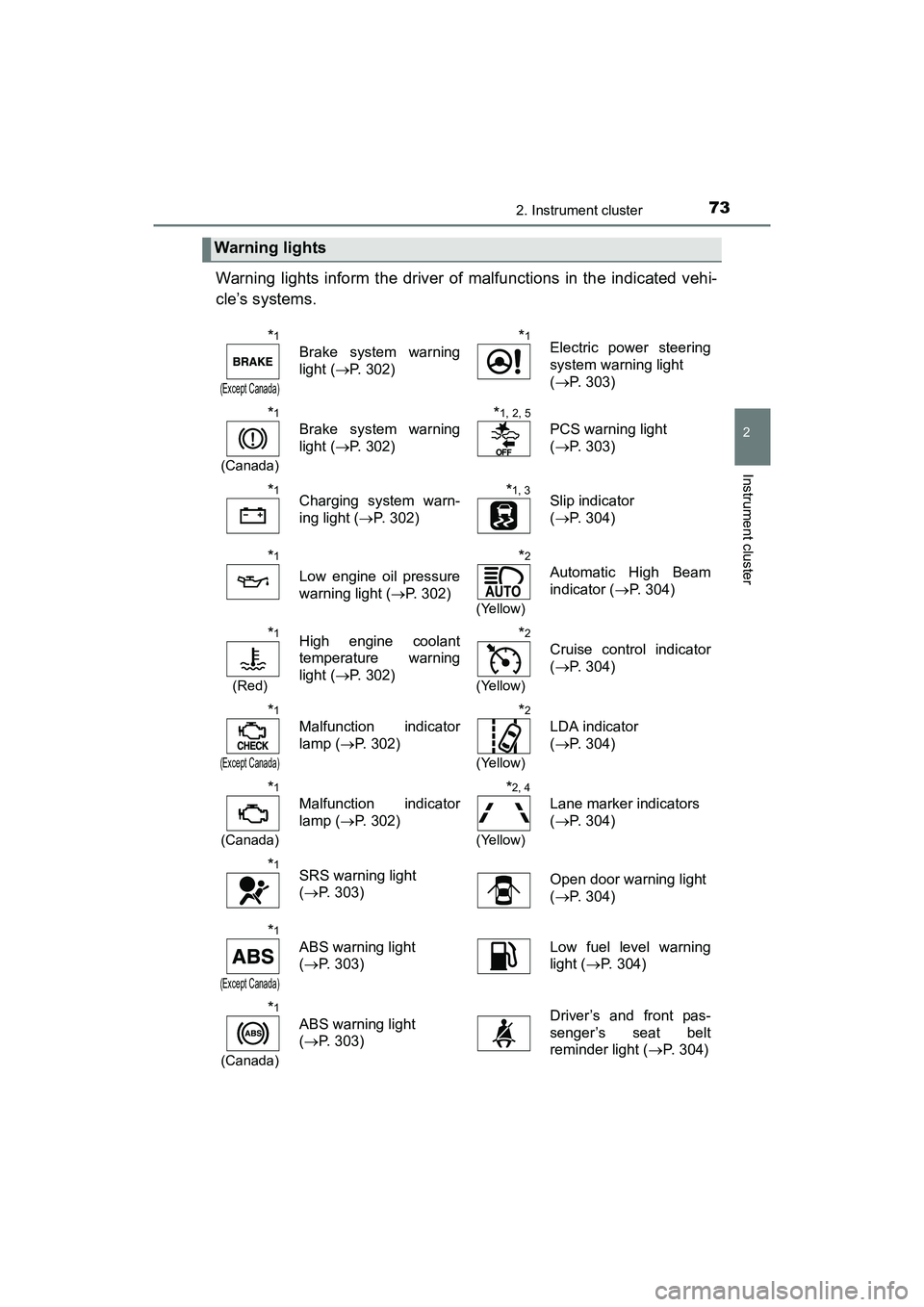

Warning lights inform the driver of malfunctions in the indicated vehi-
cle’s systems.
Warning lights
*1
(Except Canada)
Brake system warning
light (P. 302)
*1Electric power steering
system warning light
(P. 303)
*1
(Canada)
Brake system warning
light ( P. 302)
*1, 2, 5
PCS warning light
(P. 303)
*1Charging system warn-
ing light ( P. 302)*1, 3Slip indicator
(P. 304)
*1
Low engine oil pressure
warning light ( P. 302)
*2
(Yellow)
Automatic High Beam
indicator (P. 304)
*1
(Red)
High engine coolant
temperature warning
light (P. 302)*2
(Yellow)
Cruise control indicator
(P. 304)
*1
(Except Canada)
Malfunction indicator
lamp ( P. 302)
*2
(Yellow)
LDA indicator
(P. 304)
*1
(Canada)
Malfunction indicator
lamp ( P. 302)
*2, 4
(Yellow)
Lane marker indicators
(P. 304)
*1SRS warning light
(P. 303)Open door warning light
( P. 304)
*1
(Except Canada)
ABS warning light
(P. 303)Low fuel level warning
light ( P. 304)
*1
(Canada)
ABS warning light
(P. 303)Driver’s and front pas-
senger’s seat belt
reminder light ( P. 304)
YARIS_HB_OM_USA_OM52G64U.book 73 ページ ２０１６年２月１６日　火曜日　午後３時２０分

742. Instrument cluster
YARIS_HB_OM_USA_OM52G64U
*1: These lights turn on when the engine switch is turned to the “ON” positionto indicate that a system check is being performed. They will turn off after
the engine is started, or after a few seconds. There may be a malfunction
in a system if a light does not come on, or if the lights do not turn off. Have
the vehicle inspected by your Toyota dealer.
*2: If equipped
*3: The light flashes to indicate that the system is operating and come on toindicate a malfunction.
*4: The lights turn on with LDA indicator to indicate a malfunction.
*5: The light flashes to indicate a malfunction.

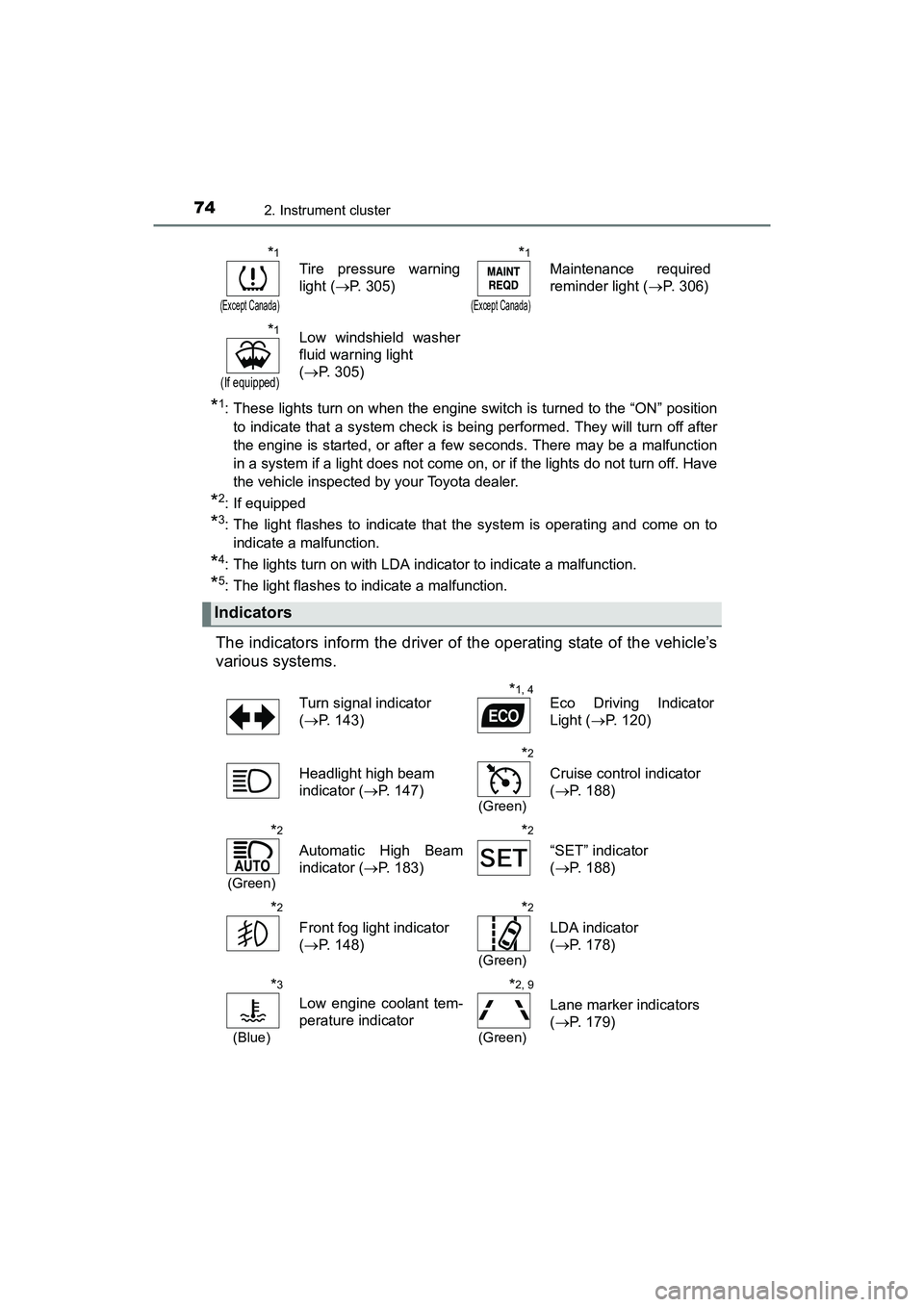

The indicators inform the driver of the operating state of the vehicle’s
various systems.
*1
(Except Canada)
Tire pressure warning
light ( P. 305)
*1
(Except Canada)
Maintenance required
reminder light ( P. 306)
*1
(If equipped)
Low windshield washer
fluid warning light
(P. 305)
Indicators
Turn signal indicator
(P. 143)*1, 4Eco Driving Indicator
Light ( P. 120)
Headlight high beam
indicator (P. 147)
*2
(Green)
Cruise control indicator
( P. 188)
*2
(Green)
Automatic High Beam
indicator (P. 183)
*2
“SET” indicator
(P. 188)
*2
Front fog light indicator
(P. 148)
*2
(Green)
LDA indicator
( P. 178)
*3
(Blue)
Low engine coolant tem-
perature indicator
*2, 9
(Green)
Lane marker indicators
(P. 179)
YARIS_HB_OM_USA_OM52G64U.book 74 ページ ２０１６年２月１６日　火曜日　午後３時２０分

752. Instrument cluster
2
Instrument cluster
YARIS_HB_OM_USA_OM52G64U

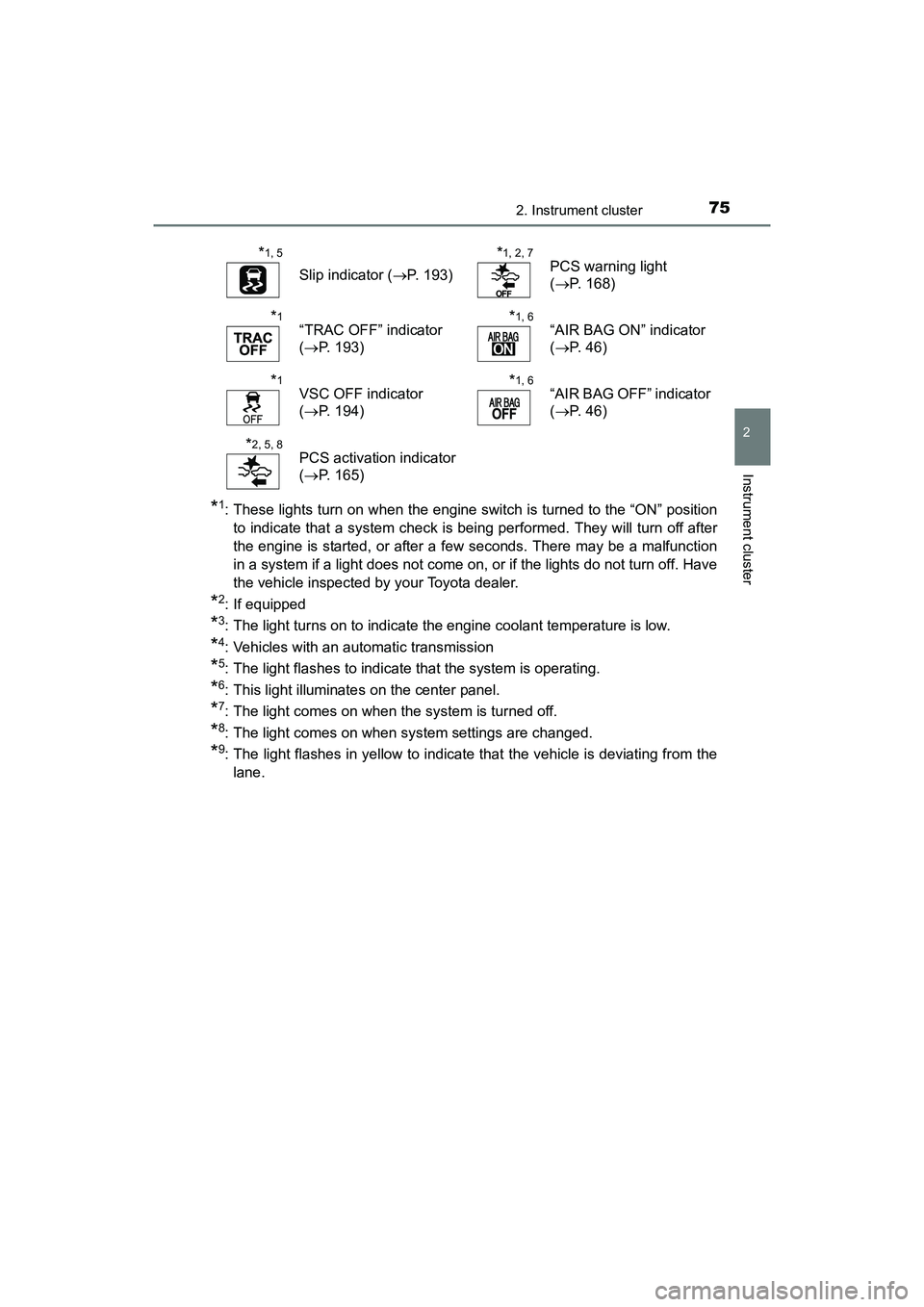

*1: These lights turn on when the engine switch is turned to the “ON” positionto indicate that a system check is being performed. They will turn off after
the engine is started, or after a few seconds. There may be a malfunction
in a system if a light does not come on, or if the lights do not turn off. Have
the vehicle inspected by your Toyota dealer.
*2: If equipped
*3: The light turns on to indicate the engine coolant temperature is low.
*4: Vehicles with an automatic transmission
*5: The light flashes to indicate that the system is operating.
*6: This light illuminates on the center panel.
*7: The light comes on when the system is turned off.
*8: The light comes on when system settings are changed.
*9: The light flashes in yellow to indicate that the vehicle is deviating from thelane.
*1, 5
Slip indicator ( P. 193)
*1, 2, 7PCS warning light
(P. 168)
*1“TRAC OFF” indicator
(P. 193)*1, 6“AIR BAG ON” indicator
( P. 46)
*1VSC OFF indicator
(P. 194)*1, 6“AIR BAG OFF” indicator
( P. 46)
*2, 5, 8PCS activation indicator
(P. 165)
YARIS_HB_OM_USA_OM52G64U.book 75 ページ ２０１６年２月１６日　火曜日　午後３時２０分

762. Instrument cluster
YARIS_HB_OM_USA_OM52G64U
WARNING
■If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning light not
come on when you start the engine, this could mean that these systems are
not available to help protect you in an accident, which could result in death
or serious injury. Have the vehicle inspected by your Toyota dealer immedi-
ately if this occurs.
NOTICE
■To prevent damage to the engine and its components
The engine may be overheating if the high engine coolant temperature
warning light flashes or turns on. In this case, immediately stop the vehicle
in a safe place, and check the engine after it has cooled completely.
(P. 330)
YARIS_HB_OM_USA_OM52G64U.book 76 ページ ２０１６年２月１６日　火曜日　午後３時２０分

772. Instrument cluster
2
Instrument cluster
YARIS_HB_OM_USA_OM52G64U

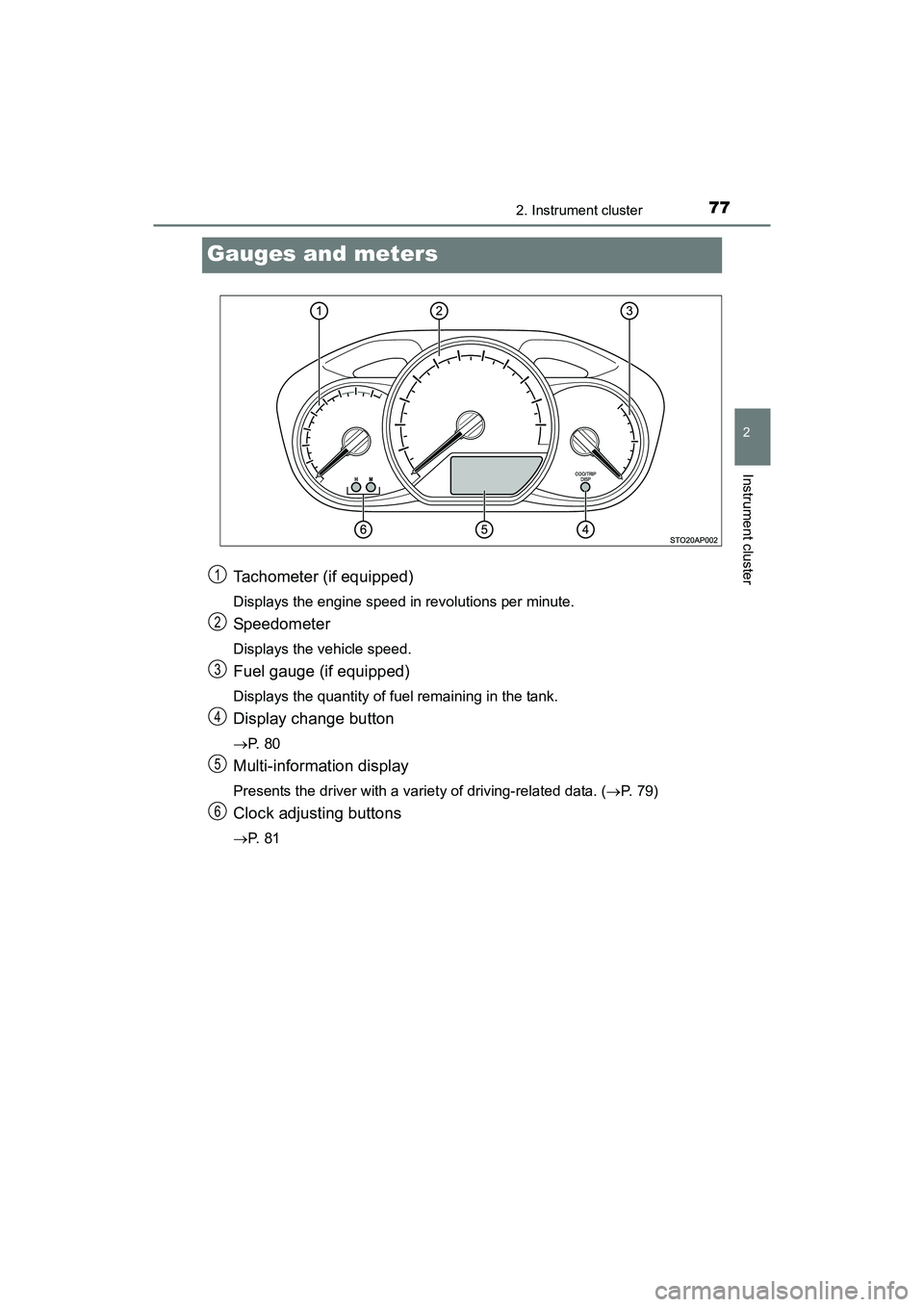

Gauges and meters
Tachometer (if equipped)
Displays the engine speed in revolutions per minute.
Speedometer
Displays the vehicle speed.
Fuel gauge (if equipped)
Displays the quantity of fuel remaining in the tank.
Display change button
P. 8 0
Multi-information display
Presents the driver with a variety of driving-related data. (P. 79)
Clock adjusting buttons
P. 8 1
1
2
3
4
5
6
YARIS_HB_OM_USA_OM52G64U.book 77 ページ ２０１６年２月１６日　火曜日　午後３時２０分

782. Instrument cluster
YARIS_HB_OM_USA_OM52G64U
The brightness of the instrument panel lights can be adjusted.Brighter
Darker
■The meters and display illuminate when
The engine switch is in the “ON” position.
Instrument panel light control
1
2
NOTICE
■To prevent damage to the engine and its components
On vehicles with a tachometer, do not let the indicator needle of the tachom-
eter enter the red zone, which indicates the maximum engine speed.
YARIS_HB_OM_USA_OM52G64U.book 78 ページ ２０１６年２月１６日　火曜日　午後３時２０分
