TOYOTA YARIS HATCHBACK 2017 Owners Manual

893-2. Opening, closing and locking the doors
3
Operation of each component
YARIS_HB_OM_USA_OM52G64U

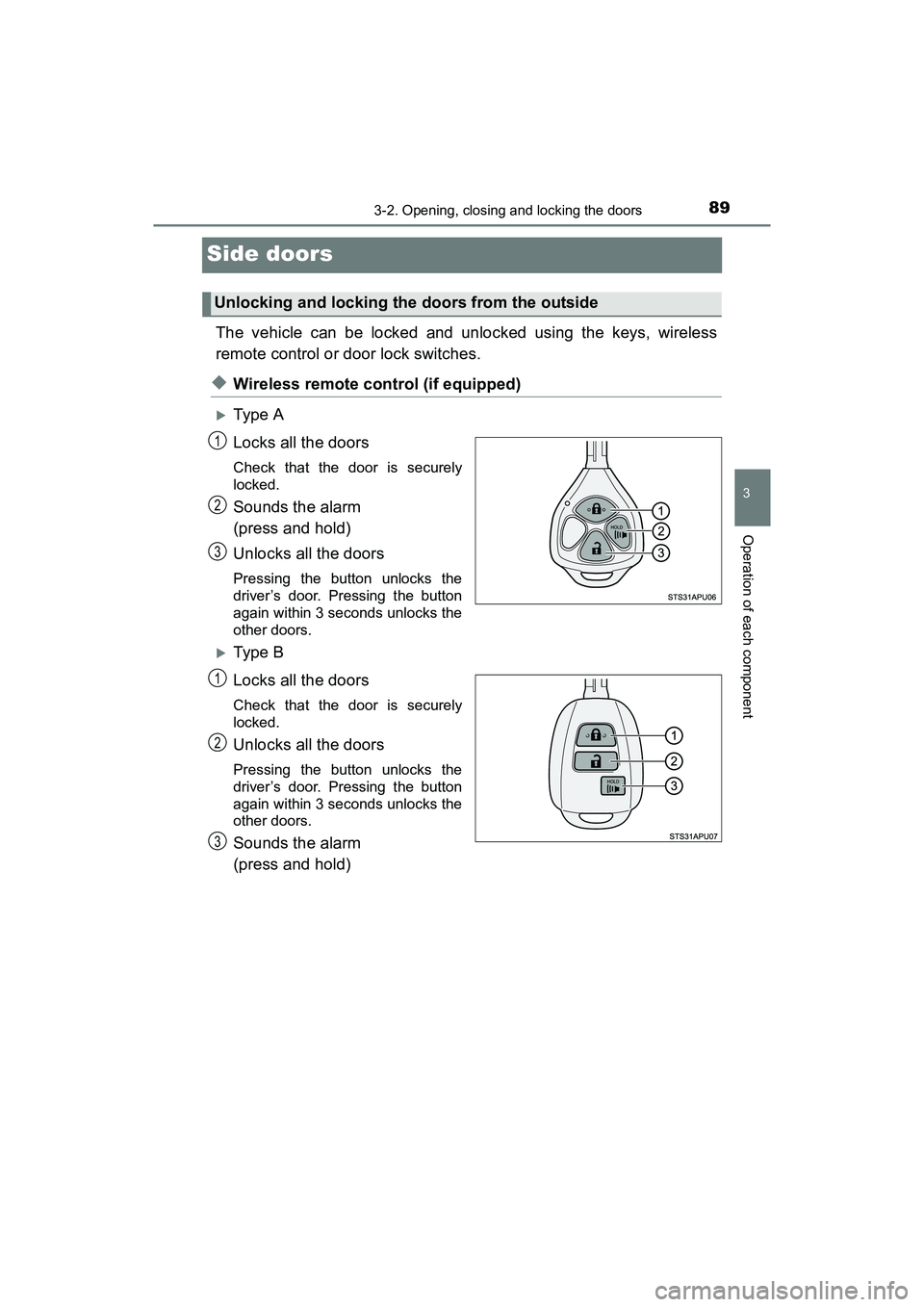

Side doors
The vehicle can be locked and unlocked using the keys, wireless
remote control or door lock switches.
◆Wireless remote control (if equipped)
Type A
Locks all the doors
Check that the door is securely
locked.
Sounds the alarm
(press and hold)
Unlocks all the doors
Pressing the button unlocks the
driver’s door. Pressing the button
again within 3 seconds unlocks the
other doors.
Type B
Locks all the doors
Check that the door is securely
locked.
Unlocks all the doors
Pressing the button unlocks the
driver’s door. Pressing the button
again within 3 seconds unlocks the
other doors.
Sounds the alarm
(press and hold)
Unlocking and locking the doors from the outside
1
2
3
1
2
3
YARIS_HB_OM_USA_OM52G64U.book 89 ページ ２０１６年２月１６日　火曜日　午後３時２０分

903-2. Opening, closing and locking the doors
YARIS_HB_OM_USA_OM52G64U

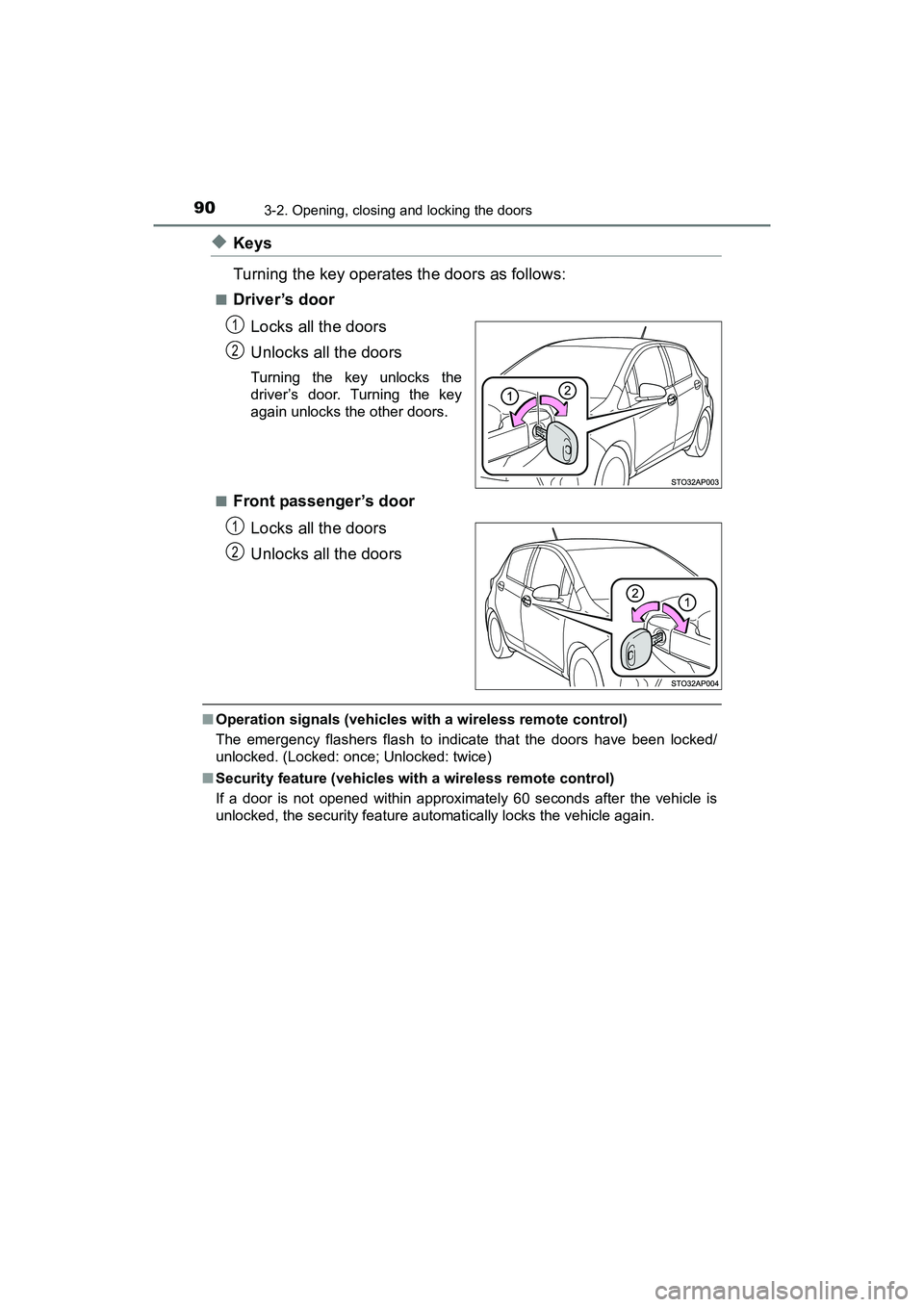

◆Keys
Turning the key operates the doors as follows:
■Driver’s doorLocks all the doors
Unlocks all the doors
Turning the key unlocks the
driver’s door. Turning the key
again unlocks the other doors.
■
Front passenger’s door Locks all the doors
Unlocks all the doors
■Operation signals (vehicles with a wireless remote control)
The emergency flashers flash to indicate that the doors have been locked/
unlocked. (Locked: once; Unlocked: twice)
■ Security feature (vehicles with a wireless remote control)
If a door is not opened within approximately 60 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again.
1
2
1
2
YARIS_HB_OM_USA_OM52G64U.book 90 ページ ２０１６年２月１６日　火曜日　午後３時２０分

913-2. Opening, closing and locking the doors
3
Operation of each component
YARIS_HB_OM_USA_OM52G64U

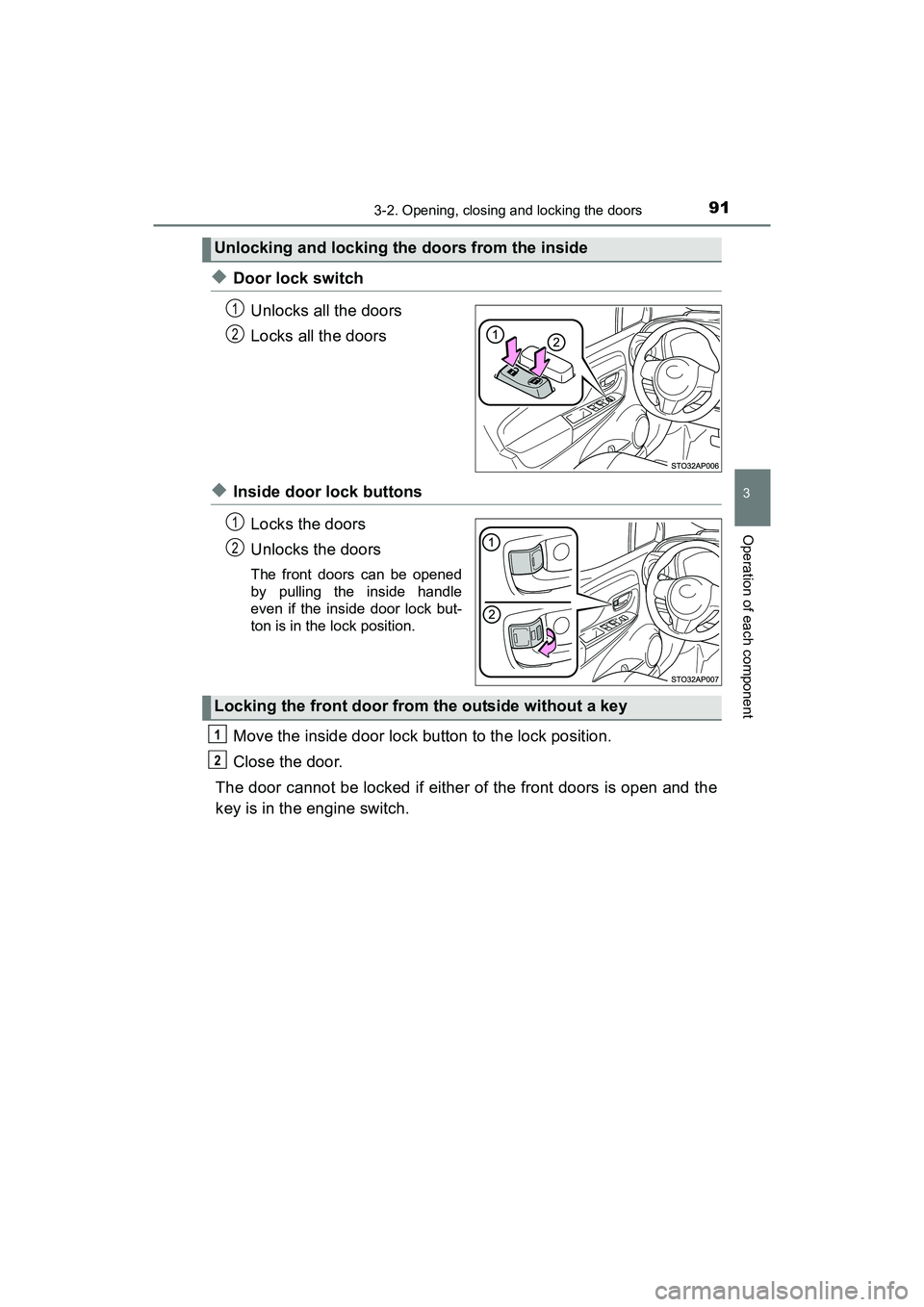

◆Door lock switchUnlocks all the doors
Locks all the doors
◆Inside door lock buttonsLocks the doors
Unlocks the doors
The front doors can be opened
by pulling the inside handle
even if the inside door lock but-
ton is in the lock position.
Move the inside door lock button to the lock position.
Close the door.
The door cannot be locked if either of the front doors is open and the
key is in the engine switch.
Unlocking and locking the doors from the inside
1
2
1
2
Locking the front door from the outside without a key
1
2
YARIS_HB_OM_USA_OM52G64U.book 91 ページ ２０１６年２月１６日　火曜日　午後３時２０分

923-2. Opening, closing and locking the doors
YARIS_HB_OM_USA_OM52G64U
The door cannot be opened from
inside the vehicle when the lock is
set.Unlock
Lock
These locks can be set to prevent
children from opening the rear
doors. Push down on each rear
door switch to lock both rear doors.
■Conditions affecting the operation of the wireless remote control
P. 8 7
■ Customization
Settings (e.g. unlocking function using a key) can be changed.
(Customizable features P. 363)

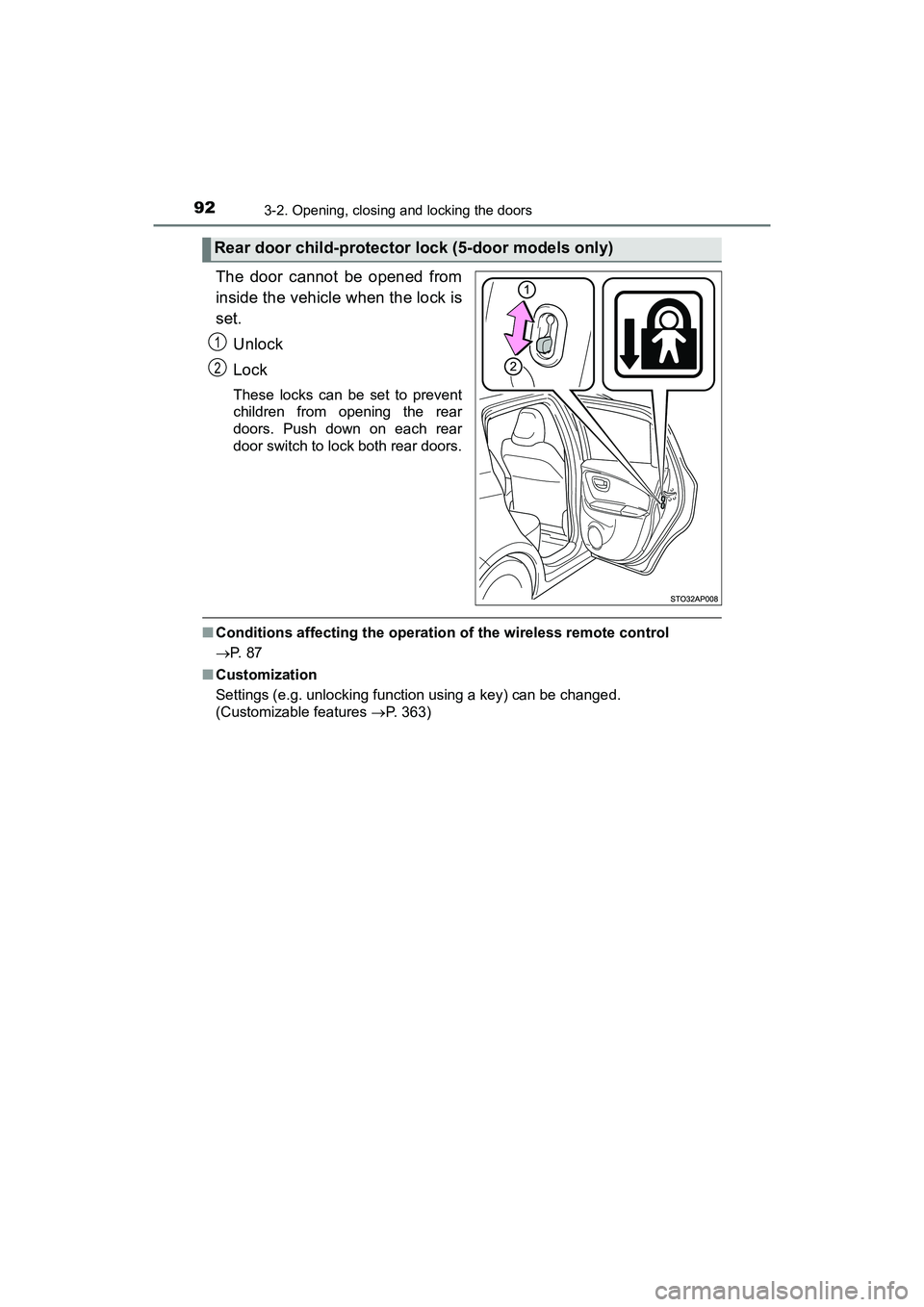

Rear door child-protector lock (5-door models only)
1
2
YARIS_HB_OM_USA_OM52G64U.book 92 ページ ２０１６年２月１６日　火曜日　午後３時２０分

933-2. Opening, closing and locking the doors
3
Operation of each component
YARIS_HB_OM_USA_OM52G64U

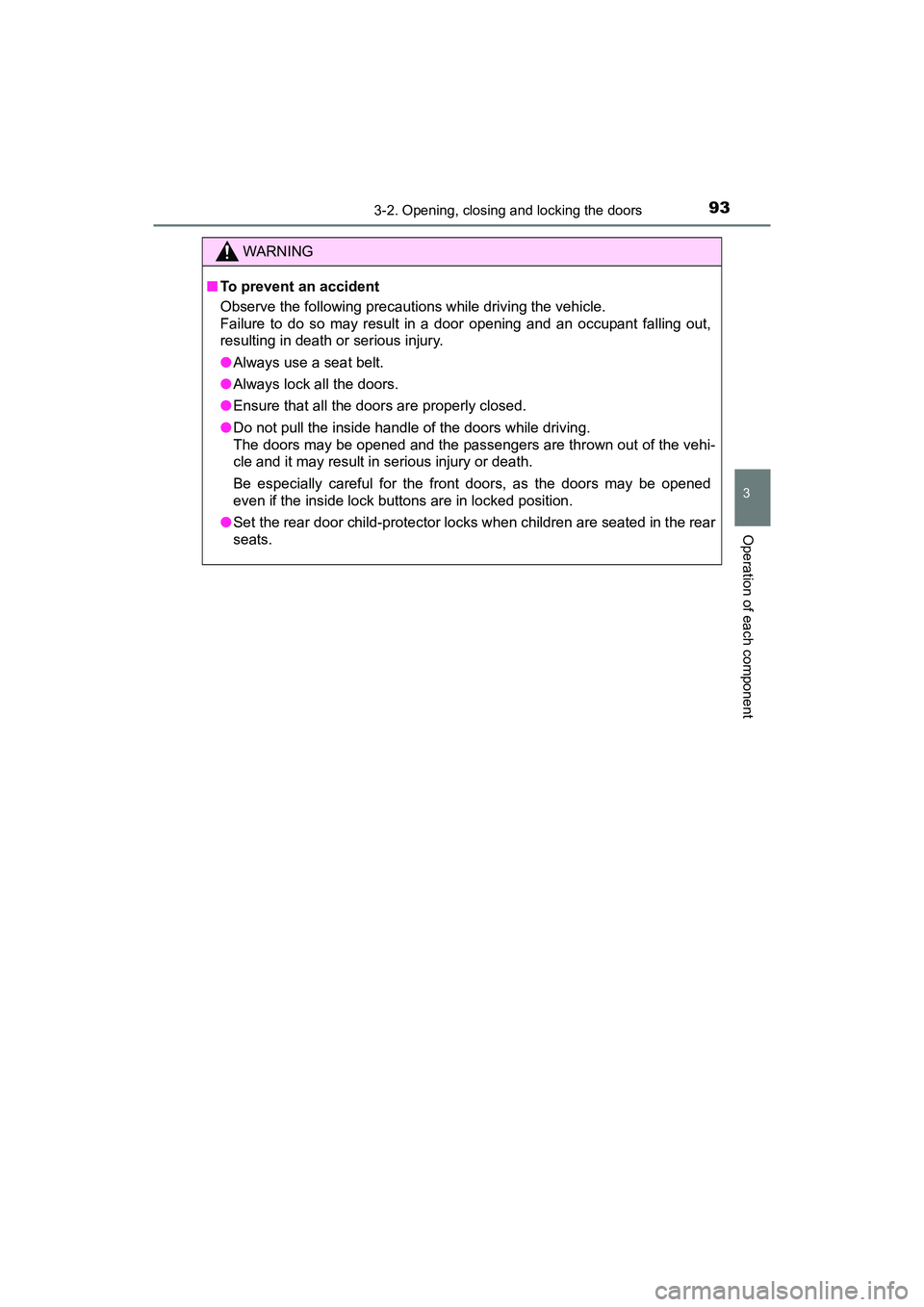

WARNING
■To prevent an accident
Observe the following precautions while driving the vehicle.
Failure to do so may result in a door opening and an occupant falling out,
resulting in death or serious injury.
●Always use a seat belt.
● Always lock all the doors.
● Ensure that all the doors are properly closed.
● Do not pull the inside handle of the doors while driving.
The doors may be opened and the passengers are thrown out of the vehi-
cle and it may result in serious injury or death.
Be especially careful for the front doors, as the doors may be opened
even if the inside lock buttons are in locked position.
● Set the rear door child-protector lock s when children are seated in the rear
seats.
YARIS_HB_OM_USA_OM52G64U.book 93 ページ ２０１６年２月１６日　火曜日　午後３時２０分

943-2. Opening, closing and locking the doors
YARIS_HB_OM_USA_OM52G64U

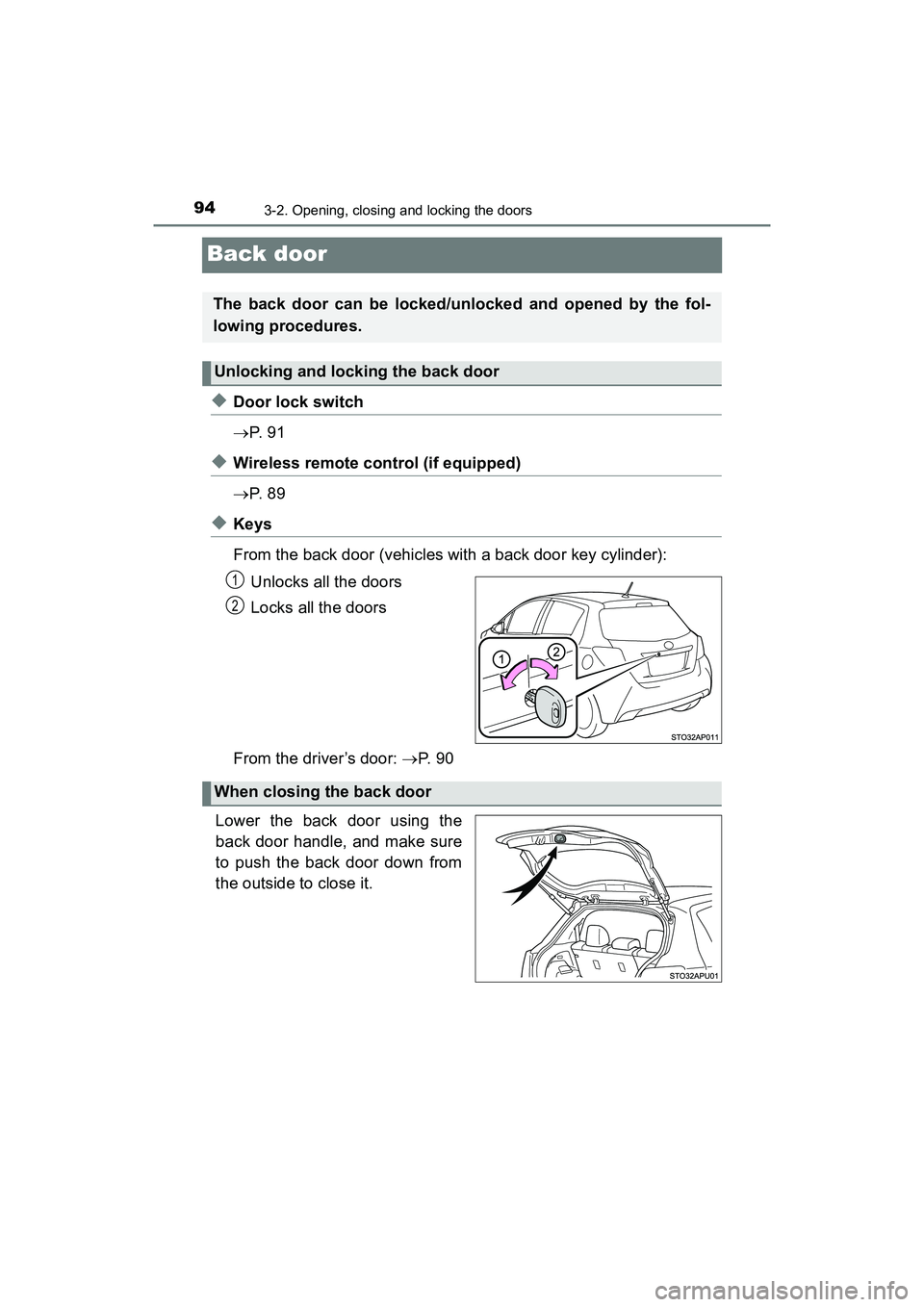

Back door
◆Door lock switch
P. 9 1
◆Wireless remote control (if equipped)
P. 8 9
◆Keys
From the back door (vehicles with a back door key cylinder):
Unlocks all the doors
Locks all the doors
From the driver’s door:  P. 9 0
Lower the back door using the
back door handle, and make sure
to push the back door down from
the outside to close it.
The back door can be locked/unlocked and opened by the fol-
lowing procedures.
Unlocking and locking the back door
1
2
When closing the back door
YARIS_HB_OM_USA_OM52G64U.book 94 ページ ２０１６年２月１６日　火曜日　午後３時２０分

953-2. Opening, closing and locking the doors
3
Operation of each component
YARIS_HB_OM_USA_OM52G64U
■Operation signals (vehicles with a wireless remote control)
P. 9 0
■ Security feature (vehicles with a wireless remote control)
P. 9 0
■ Luggage compartment light
The luggage compartment lights turn on when the back door is opened.
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
■Before driving
●Make sure that the back door is fully closed. If the back door is not fully
closed, it may open unexpectedly while driving and hit near-by objects or
luggage in the luggage compartment may be thrown out, causing an acci-
dent.
● Do not allow children to play in the luggage compartment.
If a child is accidentally locked in the luggage compartment, they could
have heat exhaustion or other injuries.
● Do not allow a child to open or close the back door.
Doing so may cause the back door to open unexpectedly, or cause the
child’s hands, head, or neck to be caught by the closing back door.
■ Important points while driving
●Keep the back door closed while driving.
If the back door is left open, it may hit near-by objects or luggage in the
luggage compartment may be thrown out, causing an accident.
● Never let anyone sit in the luggage compartment. In the event of sudden
braking or a collision, they are susceptible to death or serious injury.
YARIS_HB_OM_USA_OM52G64U.book 95 ページ ２０１６年２月１６日　火曜日　午後３時２０分

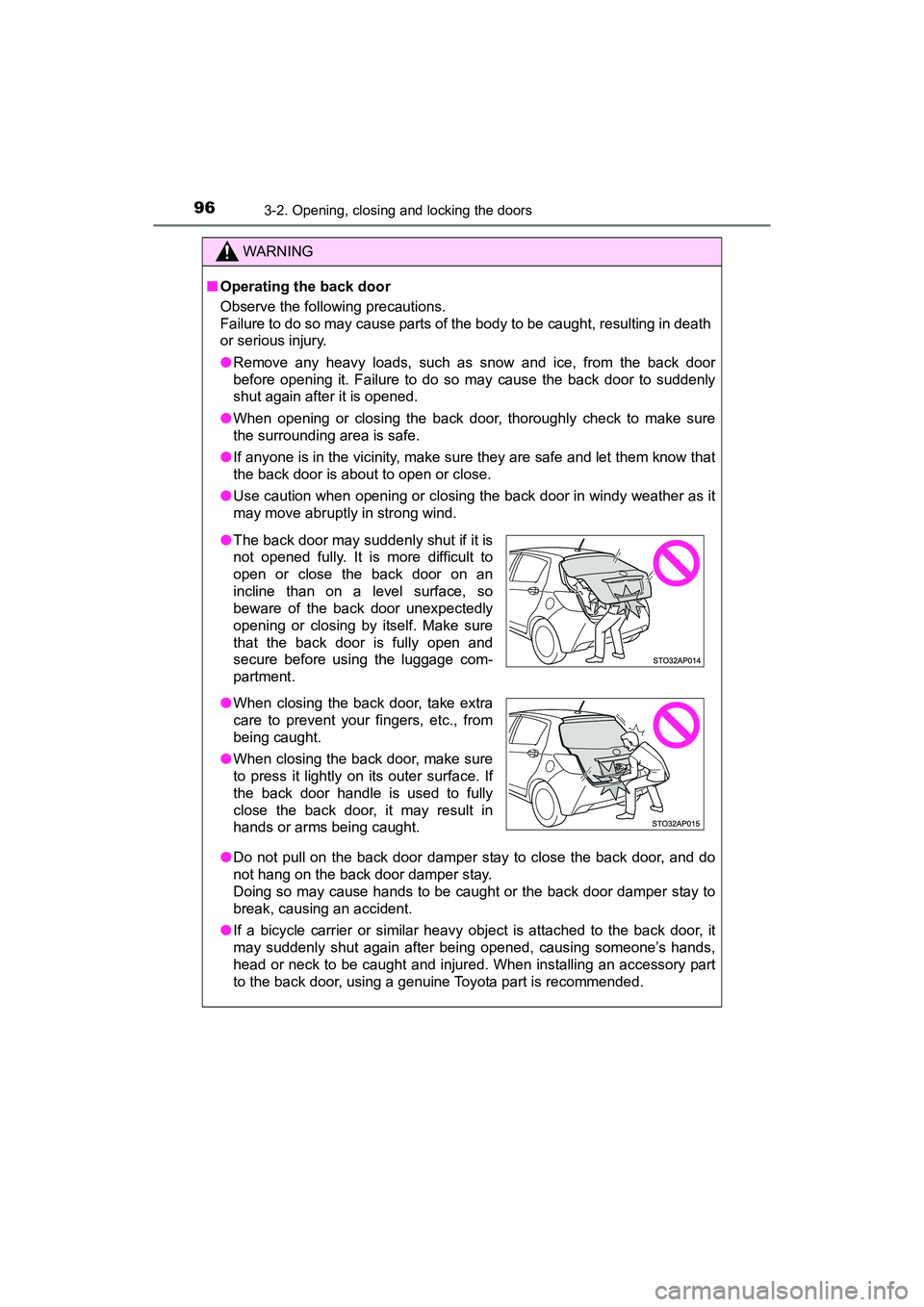

963-2. Opening, closing and locking the doors
YARIS_HB_OM_USA_OM52G64U
WARNING
■Operating the back door
Observe the following precautions.
Failure to do so may cause parts of the body to be caught, resulting in death
or serious injury.
●Remove any heavy loads, such as snow and ice, from the back door
before opening it. Failure to do so may cause the back door to suddenly
shut again after it is opened.
● When opening or closing the back door, thoroughly check to make sure
the surrounding area is safe.
● If anyone is in the vicinity, make sure they are safe and let them know that
the back door is about to open or close.
● Use caution when opening or closing the back door in windy weather as it
may move abruptly in strong wind.
● Do not pull on the back door damper stay to close the back door, and do
not hang on the back door damper stay.
Doing so may cause hands to be caught or the back door damper stay to
break, causing an accident.
● If a bicycle carrier or similar heavy object is attached to the back door, it
may suddenly shut again after being opened, causing someone’s hands,
head or neck to be caught and injured. When installing an accessory part
to the back door, using a genuine Toyota part is recommended.
●The back door may suddenly shut if it is
not opened fully. It is more difficult to
open or close the back door on an
incline than on a level surface, so
beware of the back door unexpectedly
opening or closing by itself. Make sure
that the back door is fully open and
secure before using the luggage com-
partment.
● When closing the back door, take extra
care to prevent your fingers, etc., from
being caught.
● When closing the back door, make sure
to press it lightly on its outer surface. If
the back door handle is used to fully
close the back door, it may result in
hands or arms being caught.
YARIS_HB_OM_USA_OM52G64U.book 96 ページ ２０１６年２月１６日　火曜日　午後３時２０分

973-2. Opening, closing and locking the doors
3
Operation of each component
YARIS_HB_OM_USA_OM52G64U
NOTICE
■Back door damper stays
The back door is equipped with damper stays that hold the back door in
place.
Observe the following precautions.
Failure to do so may cause damage to the back door damper stay, resulting
in malfunction.
●Do not attach any foreign objects, such
as stickers, plastic sheets, or adhesives
to the damper stay rod.
● Do not touch the damper stay rod with
gloves or other fabric items.
● Do not attach any accessories other
than genuine Toyota parts to the back
door.
● Do not place your hand on the damper
stay or apply lateral forces to it.
YARIS_HB_OM_USA_OM52G64U.book 97 ページ ２０１６年２月１６日　火曜日　午後３時２０分

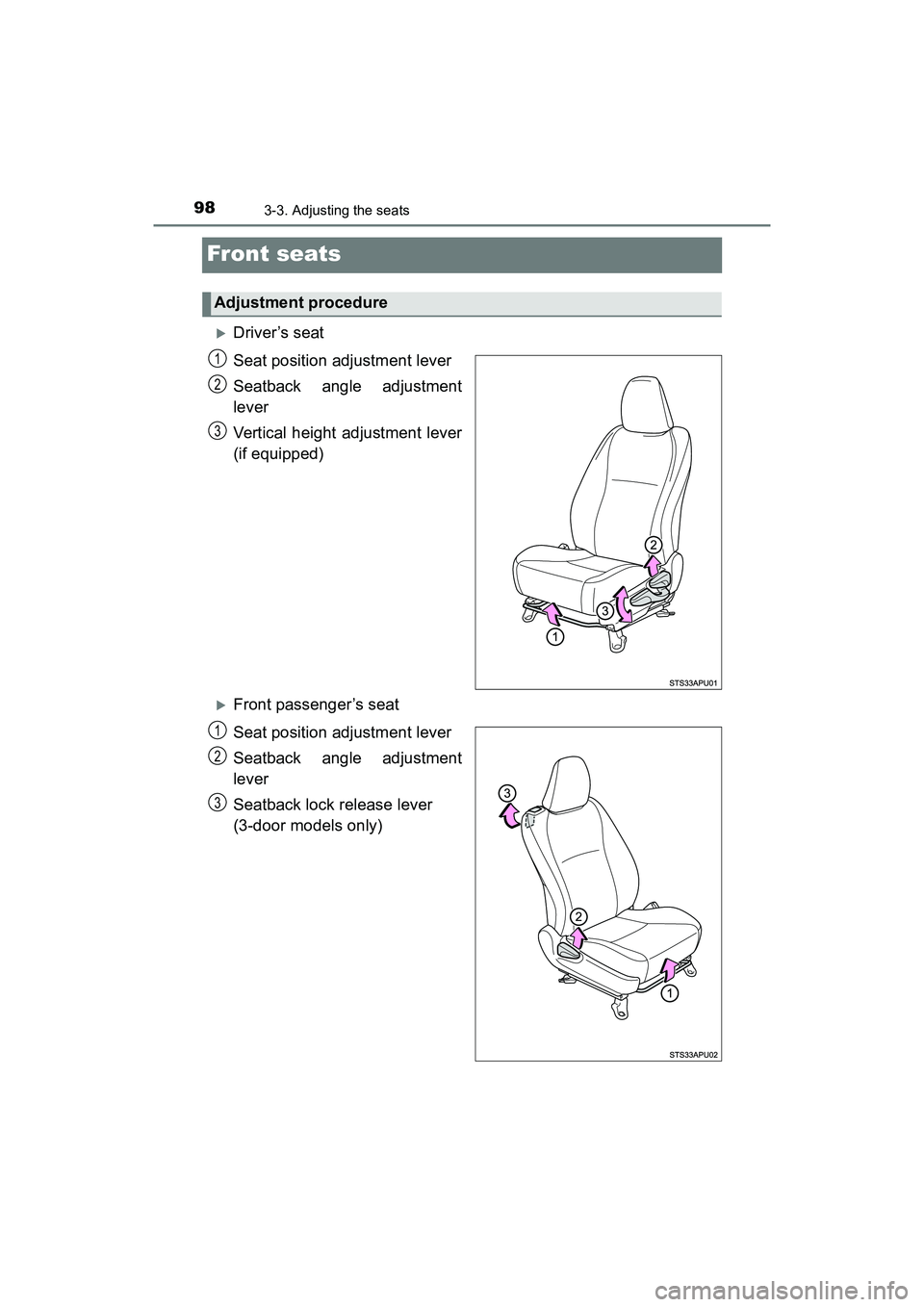

983-3. Adjusting the seats
YARIS_HB_OM_USA_OM52G64U
Fr ont seats
Driver’s seat
Seat position adjustment lever
Seatback angle adjustment
lever
Vertical height adjustment lever
(if equipped)
Front passenger’s seat
Seat position adjustment lever
Seatback angle adjustment
lever
Seatback lock release lever
(3-door models only)
Adjustment procedure
1
2
3
1
2
3
