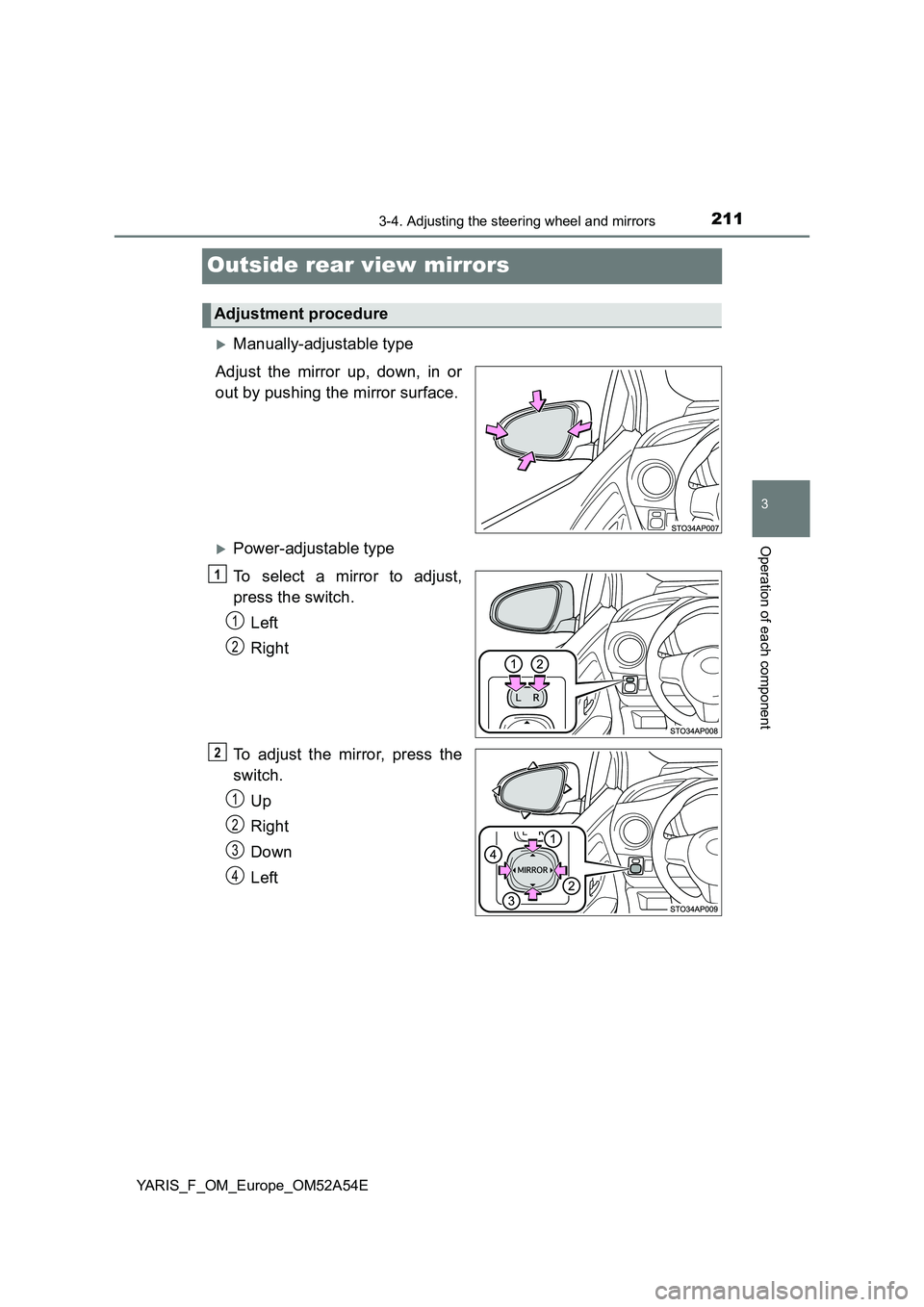

TOYOTA YARIS HATCHBACK 2019 Owners Manual

211
3
3-4. Adjusting the steering wheel and mirrors
Operation of each component
YARIS_F_OM_Europe_OM52A54E
Outside rear view mirrors
Manually-adjustable type
Adjust the mirror up, down, in or
out by pushing the mirror surface.
Power-adjustable type
To select a mirror to adjust,
press the switch.
Left
Right
To adjust the mirror, press the
switch.
Up
Right
Down
Left
Adjustment procedure
1
1
2
2
1
2
3
4

2123-4. Adjusting the steering wheel and mirrors
YARIS_F_OM_Europe_OM52A54E

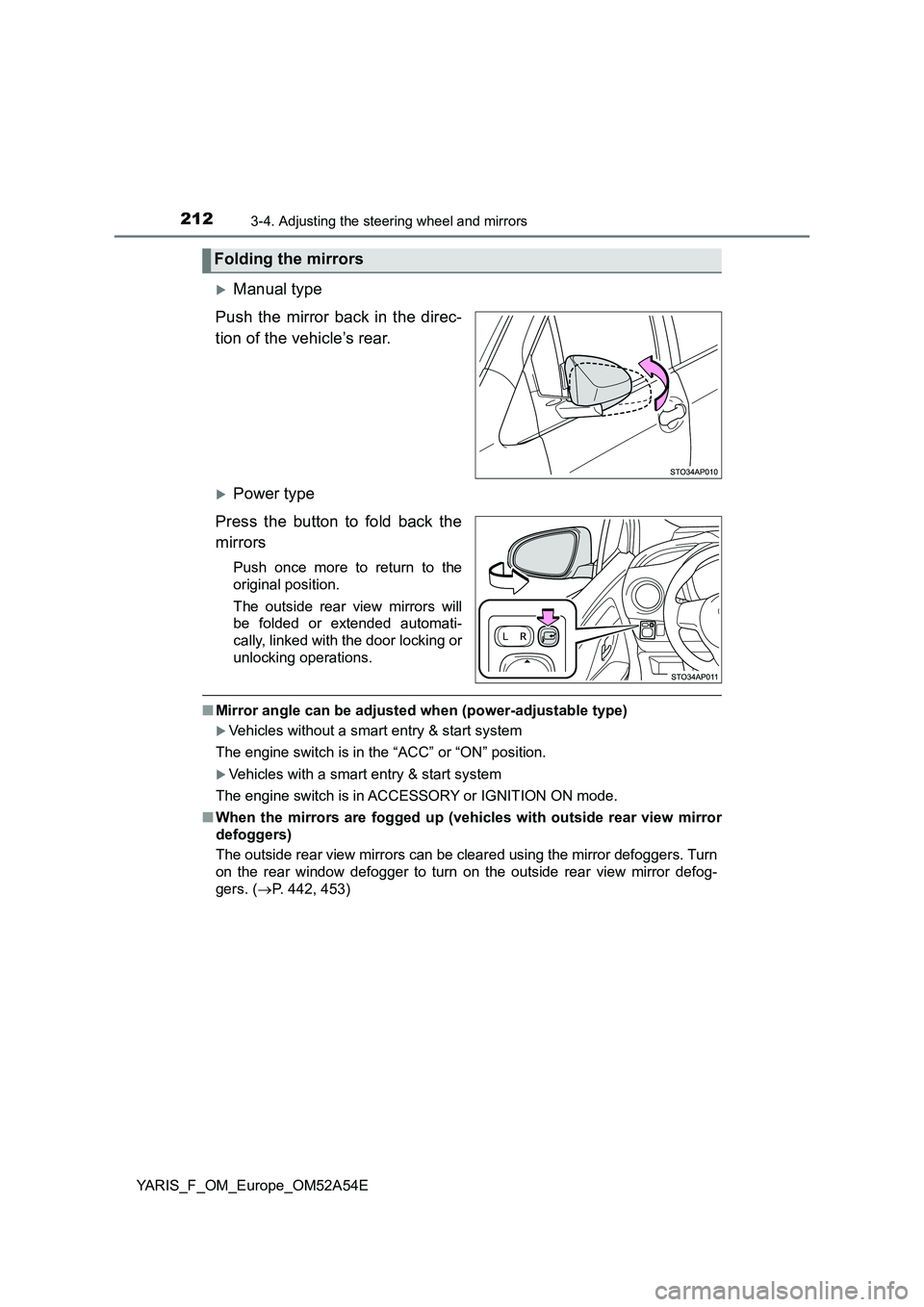

Manual type
Push the mirror back in the direc-
tion of the vehicle’s rear.
Power type
Press the button to fold back the
mirrors
Push once more to return to the
original position.
The outside rear view mirrors will
be folded or extended automati-
cally, linked with the door locking or
unlocking operations.
■Mirror angle can be adjusted when (power-adjustable type)
Vehicles without a smart entry & start system
The engine switch is in the “ACC” or “ON” position.
Vehicles with a smart entry & start system
The engine switch is in ACCESSORY or IGNITION ON mode.
■When the mirrors are fogged up (vehicles with outside rear view mirror
defoggers)
The outside rear view mirrors can be cleared using the mirror defoggers. Turn
on the rear window defogger to turn on the outside rear view mirror defog-
gers. (P. 442, 453)
Folding the mirrors

2133-4. Adjusting the steering wheel and mirrors
3
Operation of each component
YARIS_F_OM_Europe_OM52A54E

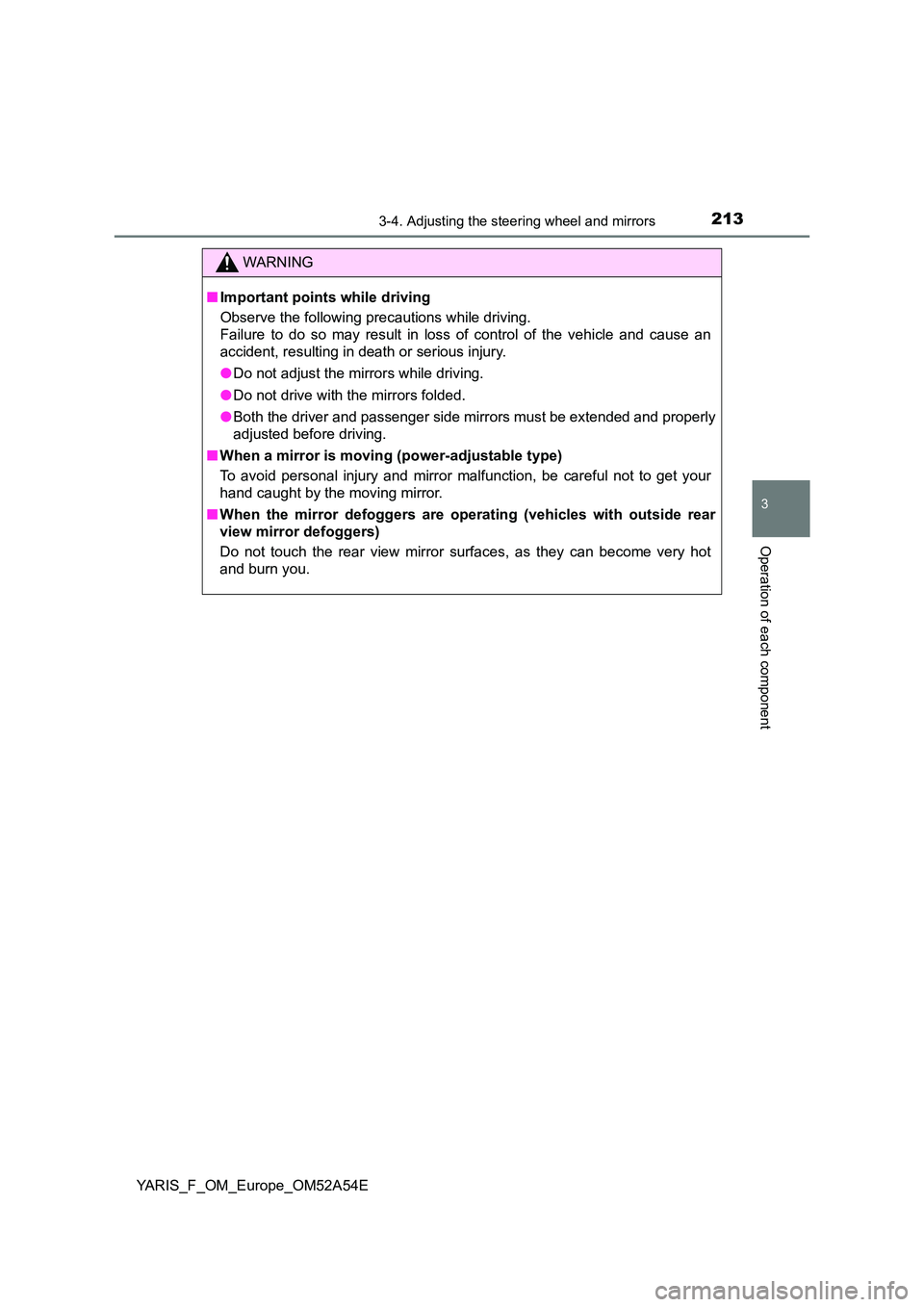

WARNING
■Important points while driving
Observe the following precautions while driving.
Failure to do so may result in loss of control of the vehicle and cause an
accident, resulting in death or serious injury.
● Do not adjust the mirrors while driving.
● Do not drive with the mirrors folded.
● Both the driver and passenger side mirrors must be extended and properly
adjusted before driving.
■ When a mirror is moving (power-adjustable type)
To avoid personal injury and mirror malfunction, be careful not to get your
hand caught by the moving mirror.
■ When the mirror defoggers are operating (vehicles with outside rear
view mirror defoggers)
Do not touch the rear view mirror surfaces, as they can become very hot
and burn you.

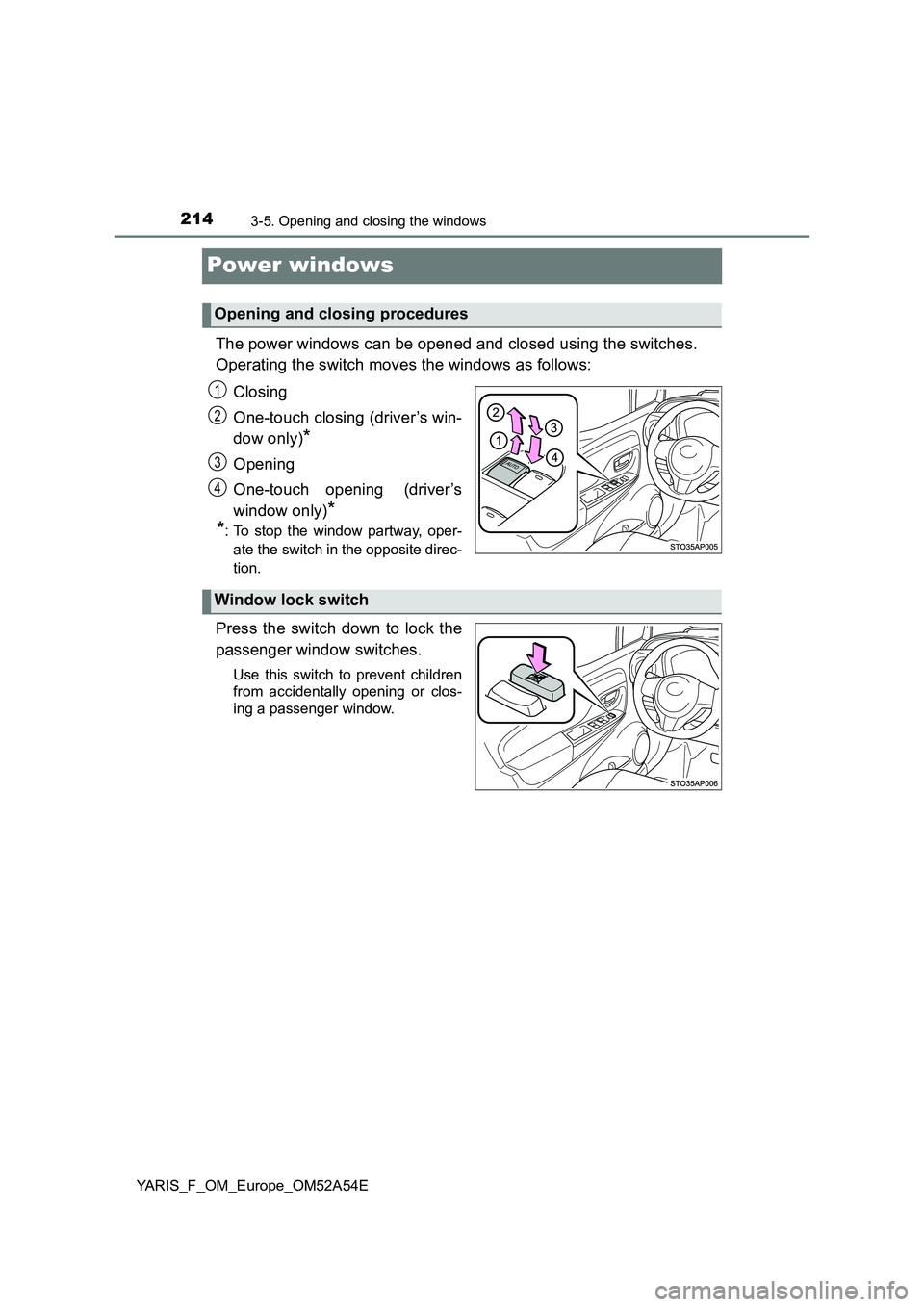

2143-5. Opening and closing the windows
YARIS_F_OM_Europe_OM52A54E
Power windows
The power windows can be opened and closed using the switches.
Operating the switch moves the windows as follows:
Closing
One-touch closing (driver’s win-
dow only)
*
Opening
One-touch opening
(driver’s
window only)
*
*
: To stop the window partway, oper-
ate the switch in the opposite direc-
tion.
Press the switch down to lock the
passenger window switches.
Use this switch to prevent children
from accidentally opening or clos-
ing a passenger window.
Opening and closing procedures
1
2
3
4
Window lock switch

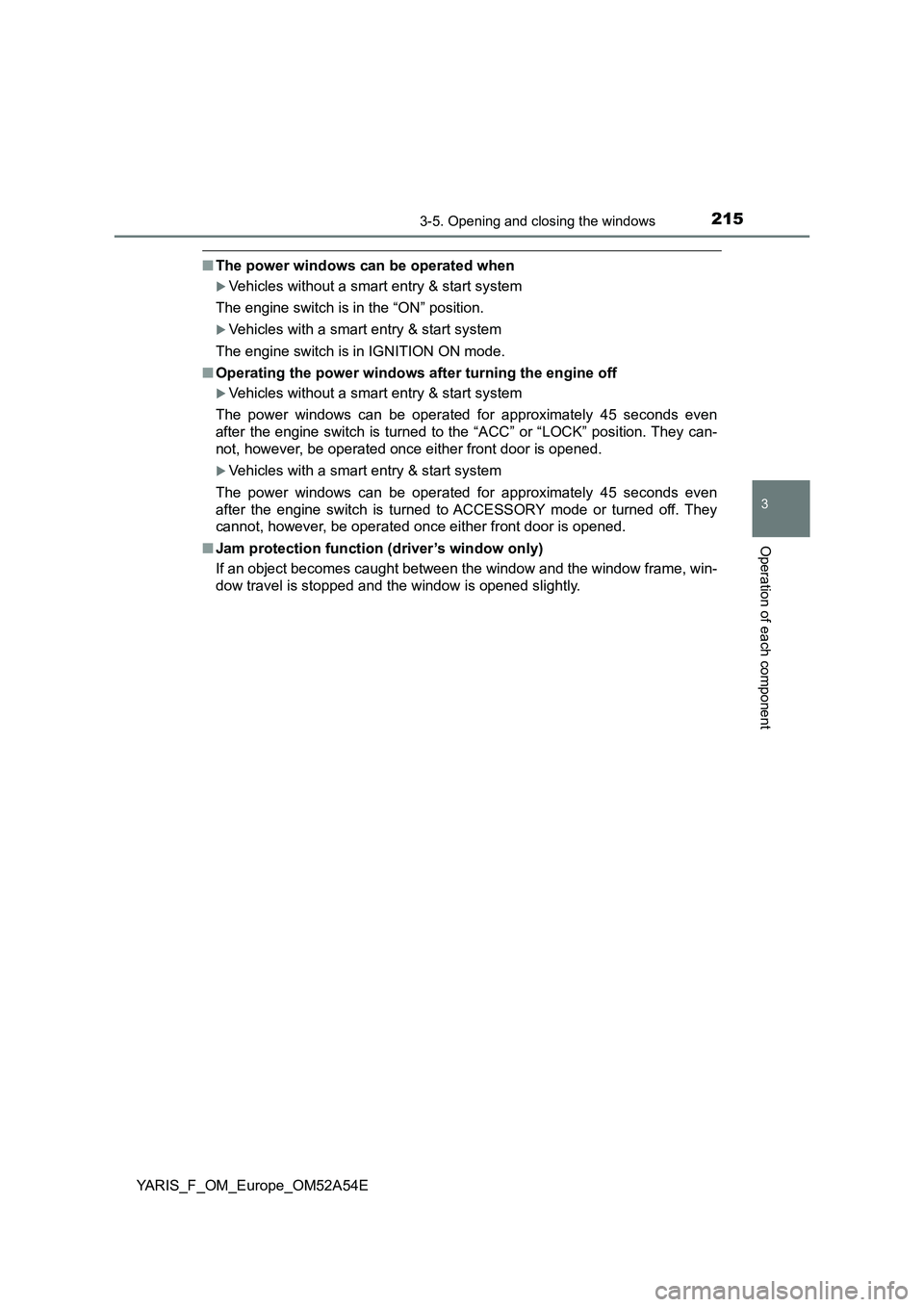

2153-5. Opening and closing the windows
3
Operation of each component
YARIS_F_OM_Europe_OM52A54E
■The power windows can be operated when
Vehicles without a smart entry & start system
The engine switch is in the “ON” position.
Vehicles with a smart entry & start system
The engine switch is in IGNITION ON mode.
■Operating the power windows after turning the engine off
Vehicles without a smart entry & start system
The power windows can be operated for approximately 45 seconds even
after the engine switch is turned to the “ACC” or “LOCK” position. They can-
not, however, be operated once either front door is opened.
Vehicles with a smart entry & start system
The power windows can be operated for approximately 45 seconds even
after the engine switch is turned to ACCESSORY mode or turned off. They
cannot, however, be operated once either front door is opened.
■Jam protection function (driver’s window only)
If an object becomes caught between the window and the window frame, win-
dow travel is stopped and the window is opened slightly.

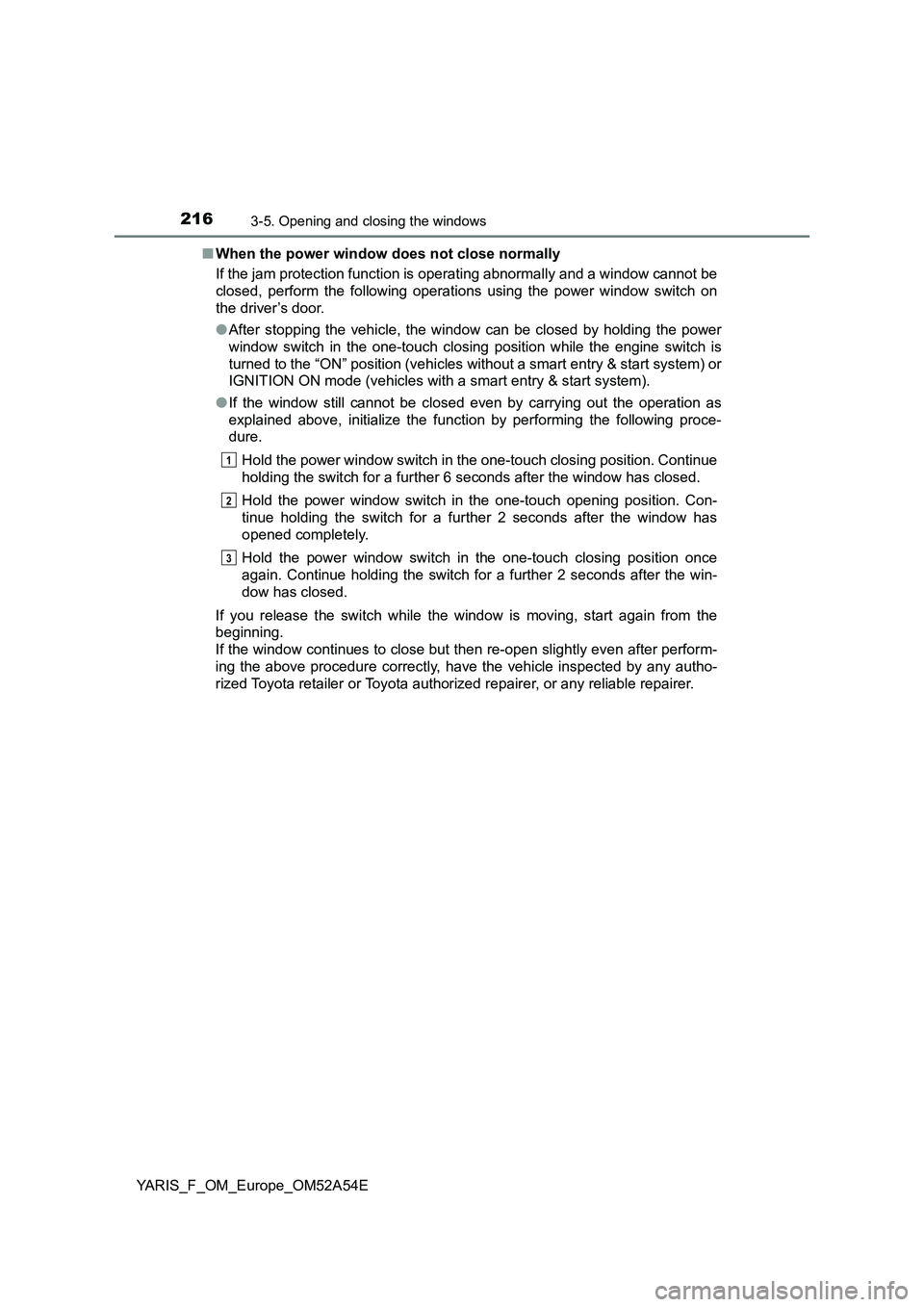

2163-5. Opening and closing the windows
YARIS_F_OM_Europe_OM52A54E■When the power window does not close normally
If the jam protection function is operating abnormally and a window cannot be
closed, perform the following operations using the power window switch on
the driver’s door.
●After stopping the vehicle, the window can be closed by holding the power
window switch in the one-touch closing position while the engine switch is
turned to the “ON” position (vehicles without a smart entry & start system) or
IGNITION ON mode (vehicles with a smart entry & start system).
●If the window still cannot be closed even by carrying out the operation as
explained above, initialize the function by performing the following proce-
dure.
Hold the power window switch in the one-touch closing position. Continue
holding the switch for a further 6 seconds after the window has closed.
Hold the power window switch in the one-touch opening position. Con-
tinue holding the switch for a further 2 seconds after the window has
opened completely.
Hold the power window switch in the one-touch closing position once
again. Continue holding the switch for a further 2 seconds after the win-
dow has closed.
If you release the switch while the window is moving, start again from the
beginning.
If the window continues to close but then re-open slightly even after perform-
ing the above procedure correctly, have the vehicle inspected by any autho-
rized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
1
2
3

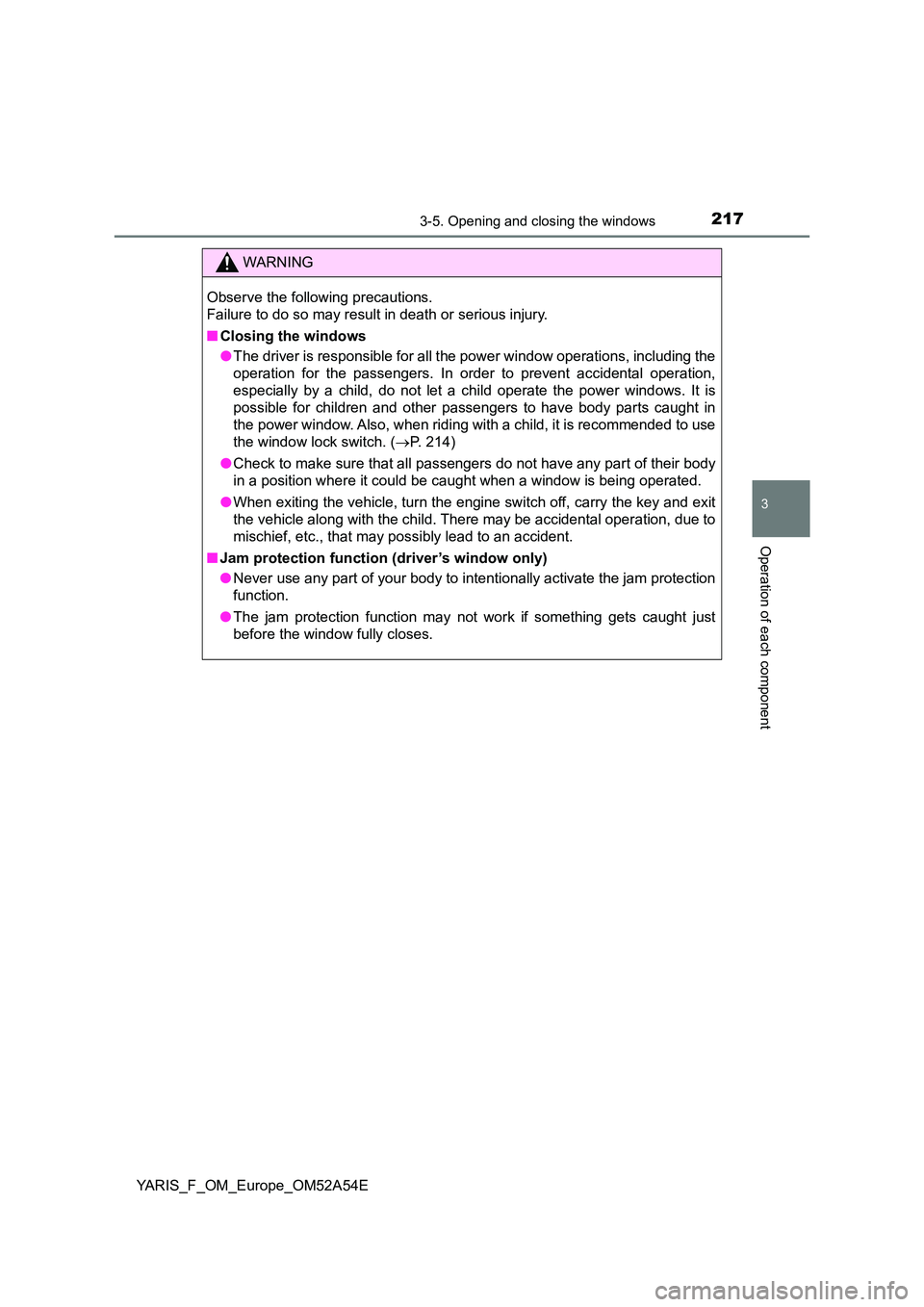

2173-5. Opening and closing the windows
3
Operation of each component
YARIS_F_OM_Europe_OM52A54E
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
■ Closing the windows
● The driver is responsible for all the power window operations, including the
operation for the passengers. In order to prevent accidental operation,
especially by a child, do not let a child operate the power windows. It is
possible for children and other passengers to have body parts caught in
the power window. Also, when riding with a child, it is recommended to use
the window lock switch. ( P. 214)
● Check to make sure that all passengers do not have any part of their body
in a position where it could be caught when a window is being operated.
● When exiting the vehicle, turn the engine switch off, carry the key and exit
the vehicle along with the child. T here may be accidental operation, due to
mischief, etc., that may possibly lead to an accident.
■ Jam protection function (driver’s window only)
● Never use any part of your body to intentionally activate the jam protection
function.
● The jam protection function may not work if something gets caught just
before the window fully closes.

2183-5. Opening and closing the windows
YARIS_F_OM_Europe_OM52A54E

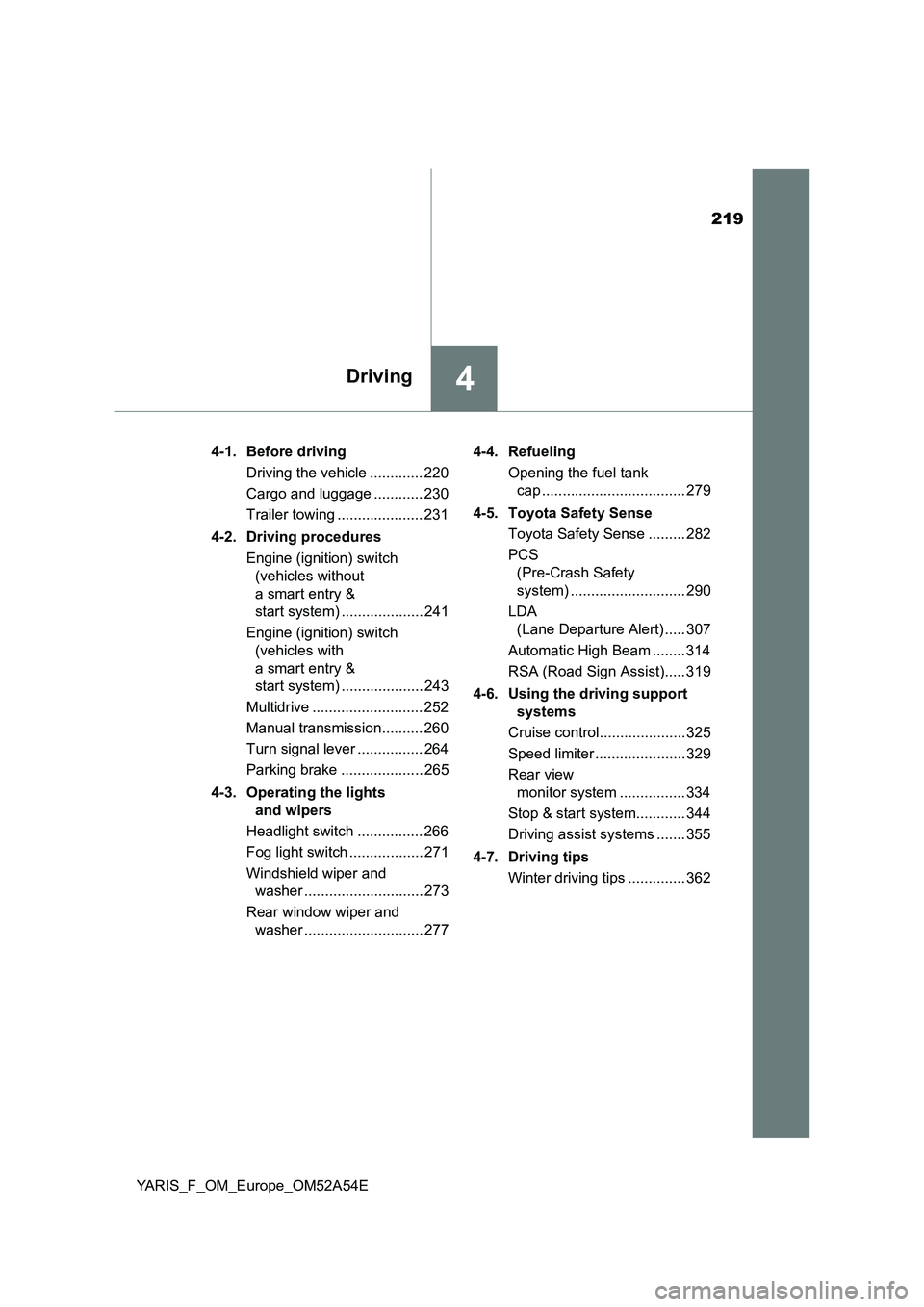

219
4Driving
YARIS_F_OM_Europe_OM52A54E4-1. Before driving
Driving the vehicle ............. 220
Cargo and luggage ............ 230
Trailer towing ..................... 231
4-2. Driving procedures
Engine (ignition) switch
(vehicles without
a smart entry &
start system) .................... 241
Engine (ignition) switch
(vehicles with
a smart entry &
start system) .................... 243
Multidrive ........................... 252
Manual transmission.......... 260
Turn signal lever ................ 264
Parking brake .................... 265
4-3. Operating the lights
and wipers
Headlight switch ................ 266
Fog light switch .................. 271
Windshield wiper and
washer ............................. 273
Rear window wiper and
washer ............................. 2774-4. Refueling
Opening the fuel tank
cap ................................... 279
4-5. Toyota Safety Sense
Toyota Safety Sense ......... 282
PCS
(Pre-Crash Safety
system) ............................ 290
LDA
(Lane Departure Alert) ..... 307
Automatic High Beam ........ 314
RSA (Road Sign Assist)..... 319
4-6. Using the driving support
systems
Cruise control..................... 325
Speed limiter ...................... 329
Rear view
monitor system ................ 334
Stop & start system............ 344
Driving assist systems ....... 355
4-7. Driving tips
Winter driving tips .............. 362

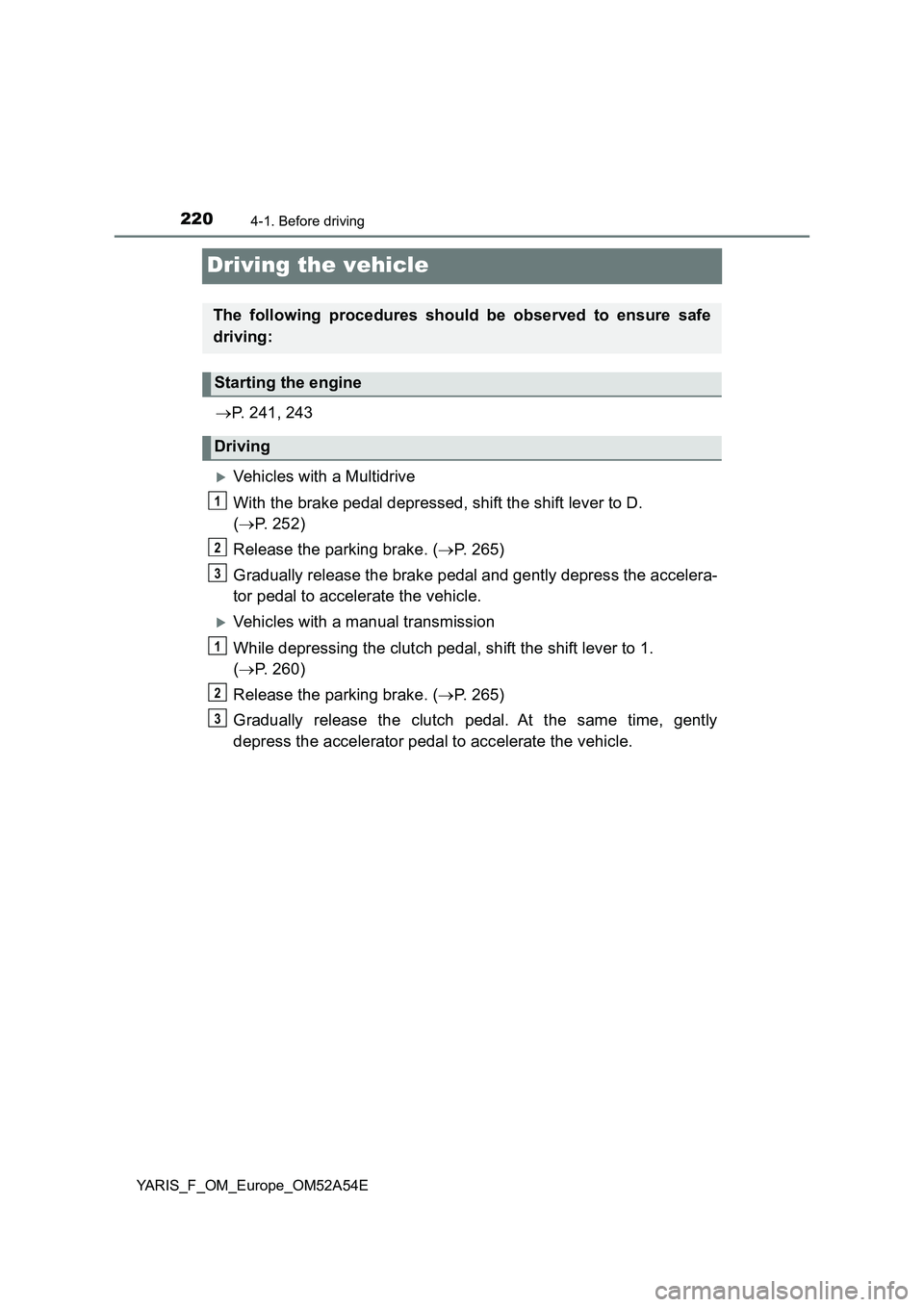

2204-1. Before driving
YARIS_F_OM_Europe_OM52A54E
Driving the vehicle
P. 241, 243
Vehicles with a Multidrive
With the brake pedal depressed, shift the shift lever to D.
(P. 252)
Release the parking brake. (P. 265)
Gradually release the brake pedal and gently depress the accelera-
tor pedal to accelerate the vehicle.
Vehicles with a manual transmission
While depressing the clutch pedal, shift the shift lever to 1.
(P. 260)
Release the parking brake. (P. 265)
Gradually release the clutch pedal. At the same time, gently
depress the accelerator pedal to accelerate the vehicle.
The following procedures should be observed to ensure safe
driving:
Starting the engine
Driving
1
2
3
1
2
3
