TOYOTA YARIS HATCHBACK 2019 Owners Manual

2514-2. Driving procedures
4
Driving
YARIS_F_OM_Europe_OM52A54E

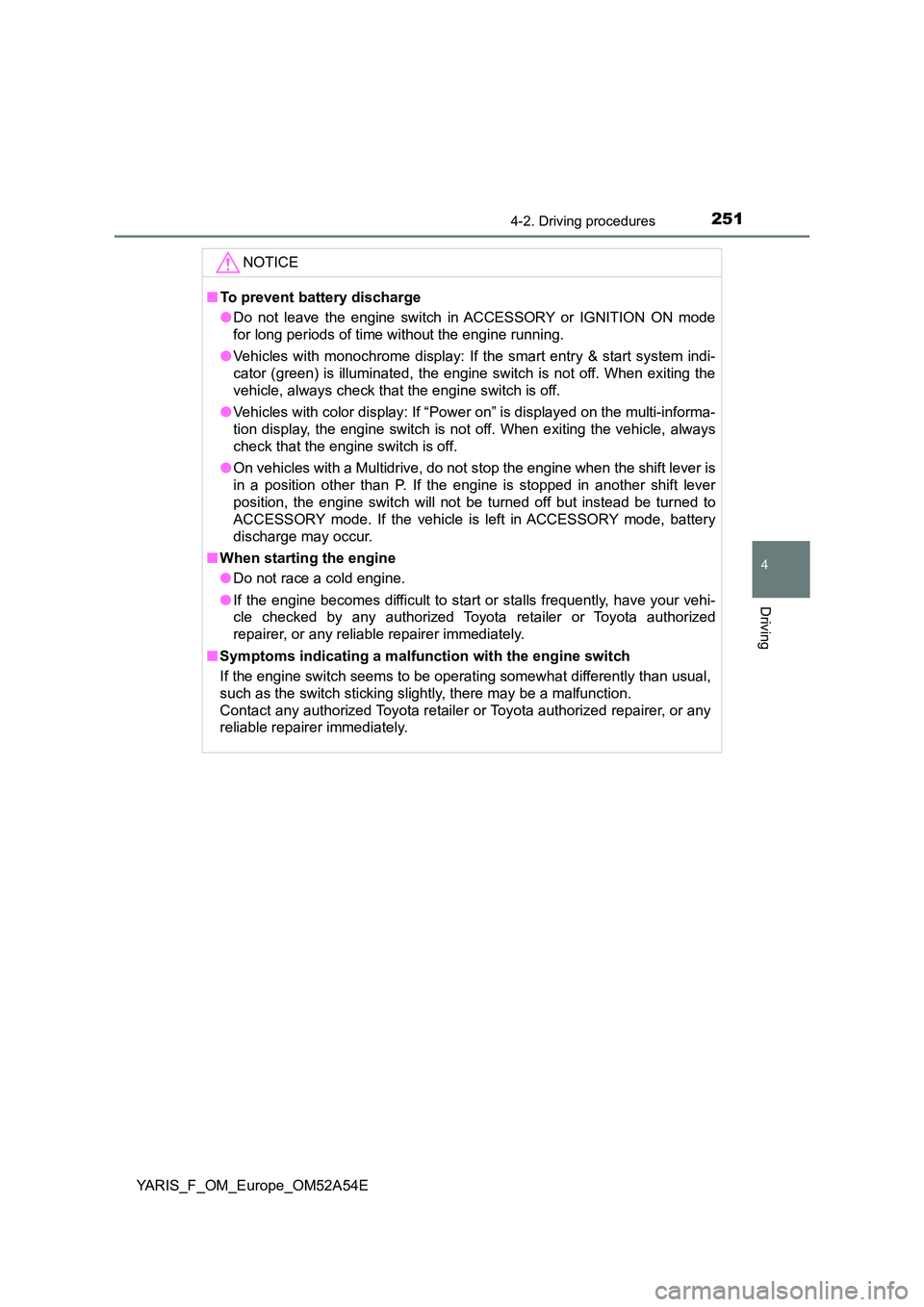

NOTICE
■To prevent battery discharge
● Do not leave the engine switch in ACCESSORY or IGNITION ON mode
for long periods of time without the engine running.
● Vehicles with monochrome display: If the smart entry & start system indi-
cator (green) is illuminated, the engine switch is not off. When exiting the
vehicle, always check that the engine switch is off.
● Vehicles with color display: If “Power on” is displayed on the multi-informa-
tion display, the engine switch is not off. When exiting the vehicle, always
check that the engine switch is off.
● On vehicles with a Multidrive, do not stop the engine when the shift lever is
in a position other than P. If the engine is stopped in another shift lever
position, the engine switch will not be turned off but instead be turned to
ACCESSORY mode. If the vehicle is left in ACCESSORY mode, battery
discharge may occur.
■ When starting the engine
● Do not race a cold engine.
● If the engine becomes difficult to start or stalls frequently, have your vehi-
cle checked by any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer immediately.
■ Symptoms indicating a malfunction with the engine switch
If the engine switch seems to be operating somewhat differently than usual,
such as the switch sticking slightly, there may be a malfunction.
Contact any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer immediately.

2524-2. Driving procedures
YARIS_F_OM_Europe_OM52A54E

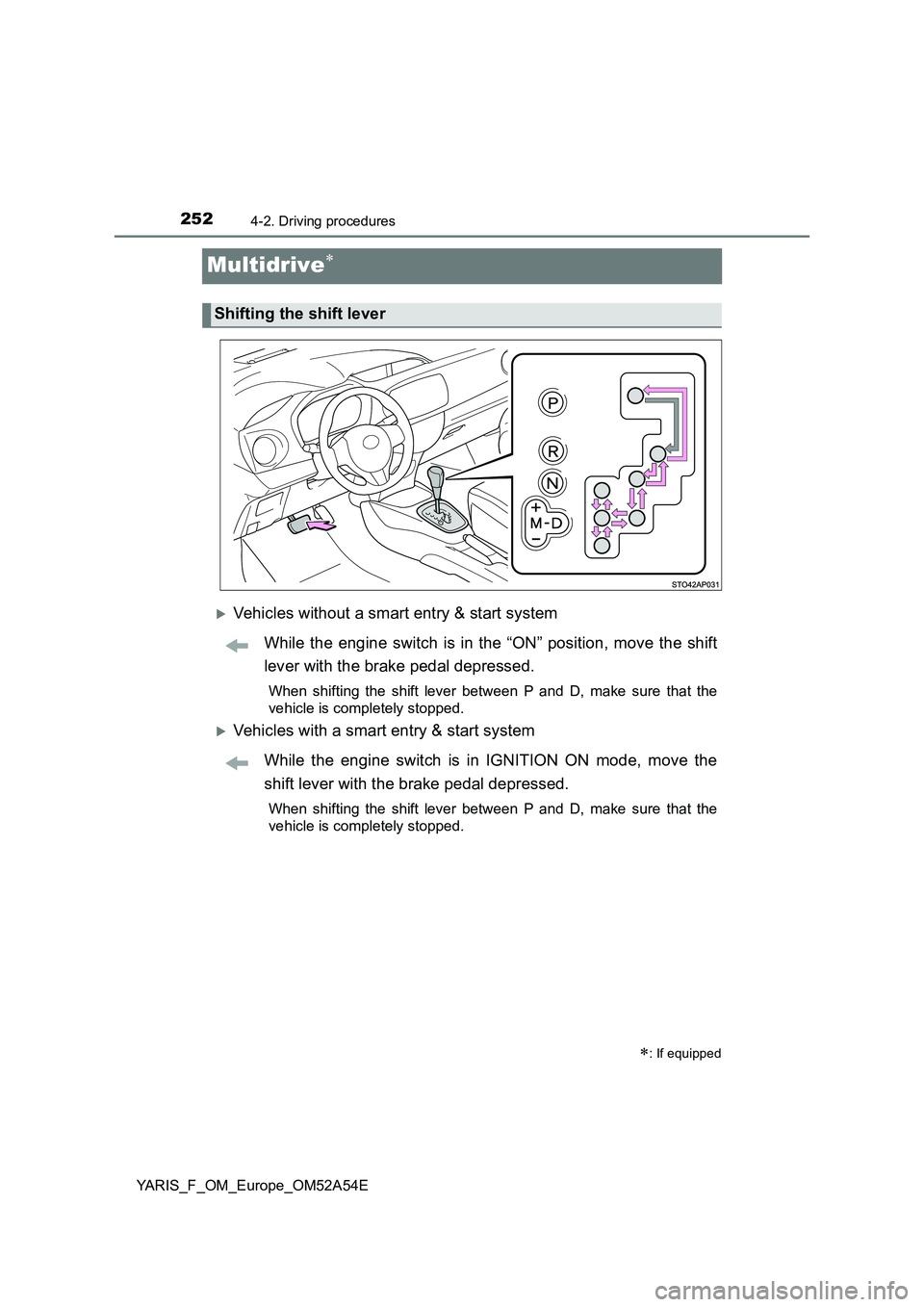

Multidrive
Vehicles without a smart entry & start system
While the engine switch is in the “ON” position, move the shift
lever with the brake pedal depressed.
When shifting the shift lever between P and D, make sure that the
vehicle is completely stopped.
Vehicles with a smart entry & start system
While the engine switch is in IGNITION ON mode, move the
shift lever with the brake pedal depressed.
When shifting the shift lever between P and D, make sure that the
vehicle is completely stopped.
: If equipped
Shifting the shift lever

2534-2. Driving procedures
4
Driving
YARIS_F_OM_Europe_OM52A54E
*1: To improve fuel consumption and reduce noises, set the shift lever in the D
position for normal driving.
*2: By selecting gear step using paddle shift switches, you can control engine
braking forces.
Press the switch.
For powerful acceleration and driv-
ing in mountainous regions.
The “SPORT” indicator will come
on.
Press the switch once more to
return the normal mode.

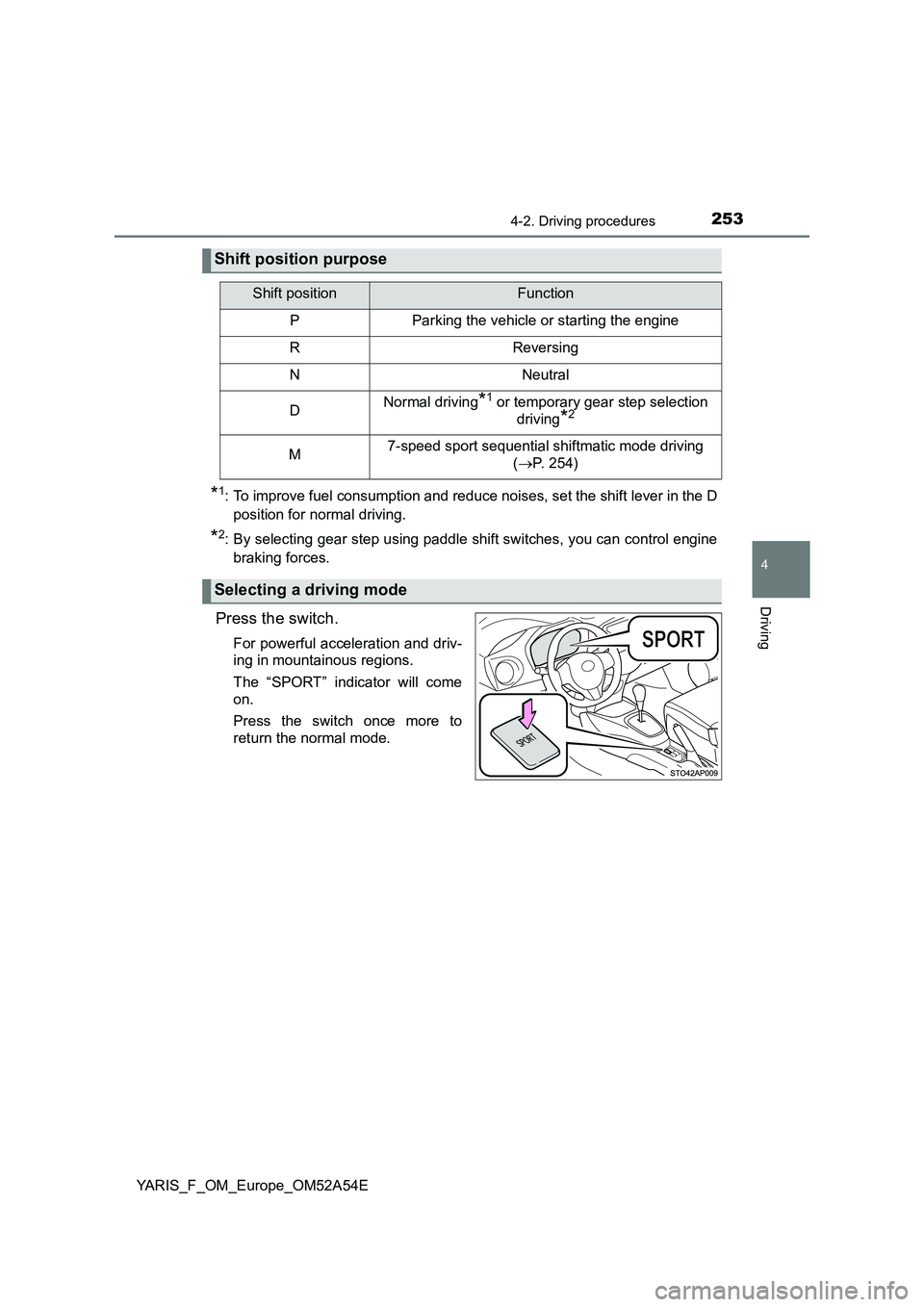

Shift position purpose
Shift positionFunction
PParking the vehicle or starting the engine
RReversing
NNeutral
DNormal driving*1 or temporary gear step selection
driving
*2
M7-speed sport sequential shiftmatic mode driving
(P. 254)
Selecting a driving mode

2544-2. Driving procedures
YARIS_F_OM_Europe_OM52A54E
Shift the shift lever to the M position and operate the shift lever or pad-
dle shift switch.
Upshifting
Downshifting
The gear step changes once
every time the shift lever or paddle
shift switch is operated.
The selected gear step, from 1 to
7, will be displayed in the multi-
information display.
*1: Vehicles with color display.
*2: Vehicles with monochrome display.
However, even when in the M position, the gear steps will be automat-
ically changed if the engine speed is too high, or too low.
■Gear step functions
●You can choose from 7 levels of engine braking force.
●A lower gear step will provide greater engine braking force than a
higher gear step, and the engine speed will also increase.
Changing gear steps in 7-speed sport sequential shiftmatic
mode
*2
*11
2

2554-2. Driving procedures
4
Driving
YARIS_F_OM_Europe_OM52A54E

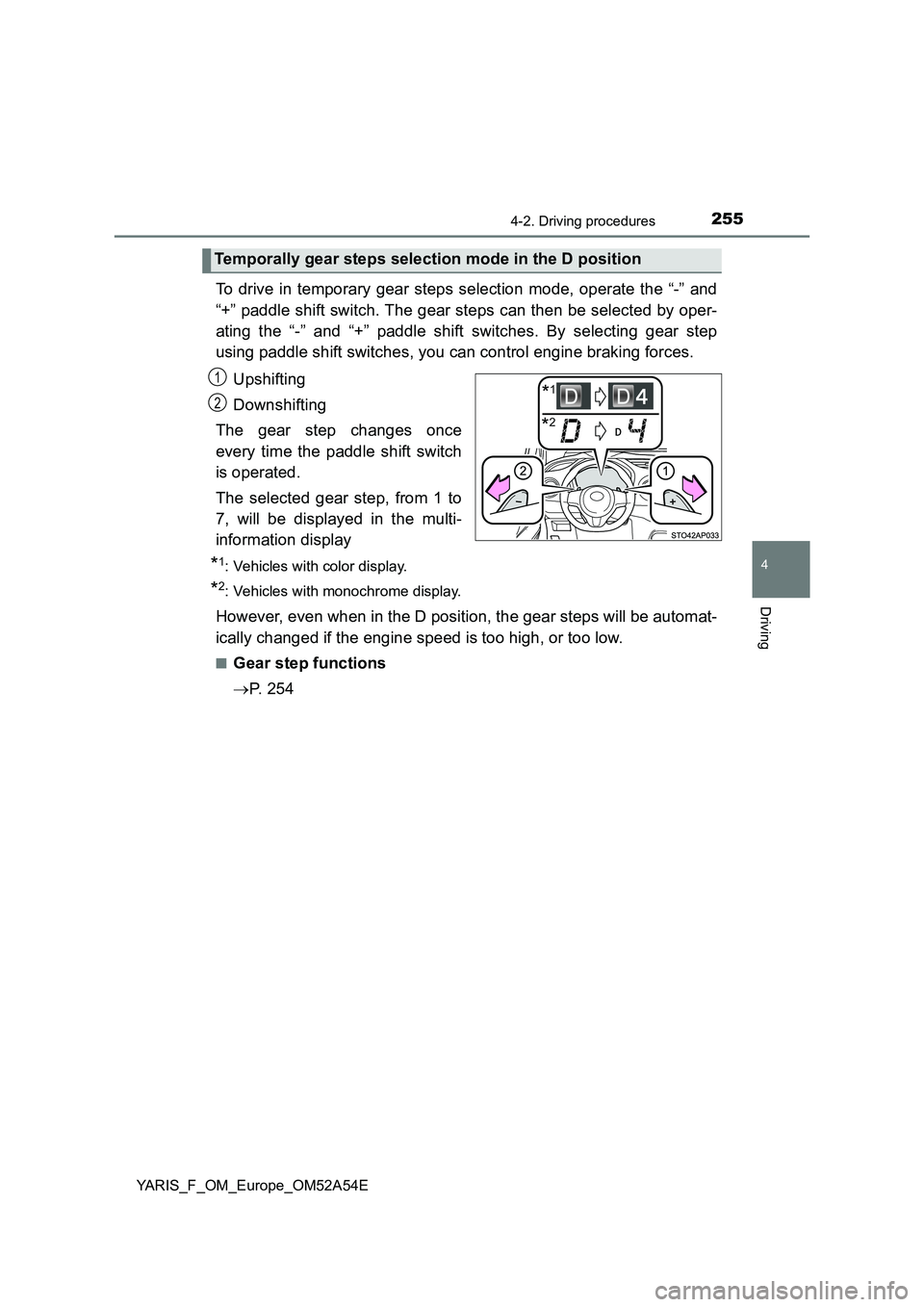

To drive in temporary gear steps selection mode, operate the “-” and
“+” paddle shift switch. The gear steps can then be selected by oper-
ating the “-” and “+” paddle shift switches. By selecting gear step
using paddle shift switches, you can control engine braking forces.
Upshifting
Downshifting
The gear step changes once
every time the paddle shift switch
is operated.
The selected gear step, from 1 to
7, will be displayed in the multi-
information display
*1: Vehicles with color display.
*2: Vehicles with monochrome display.
However, even when in the D position, the gear steps will be automat-
ically changed if the engine speed is too high, or too low.
■Gear step functions
P. 2 5 4
Temporally gear steps selection mode in the D position
*2
*11
2

2564-2. Driving procedures
YARIS_F_OM_Europe_OM52A54E

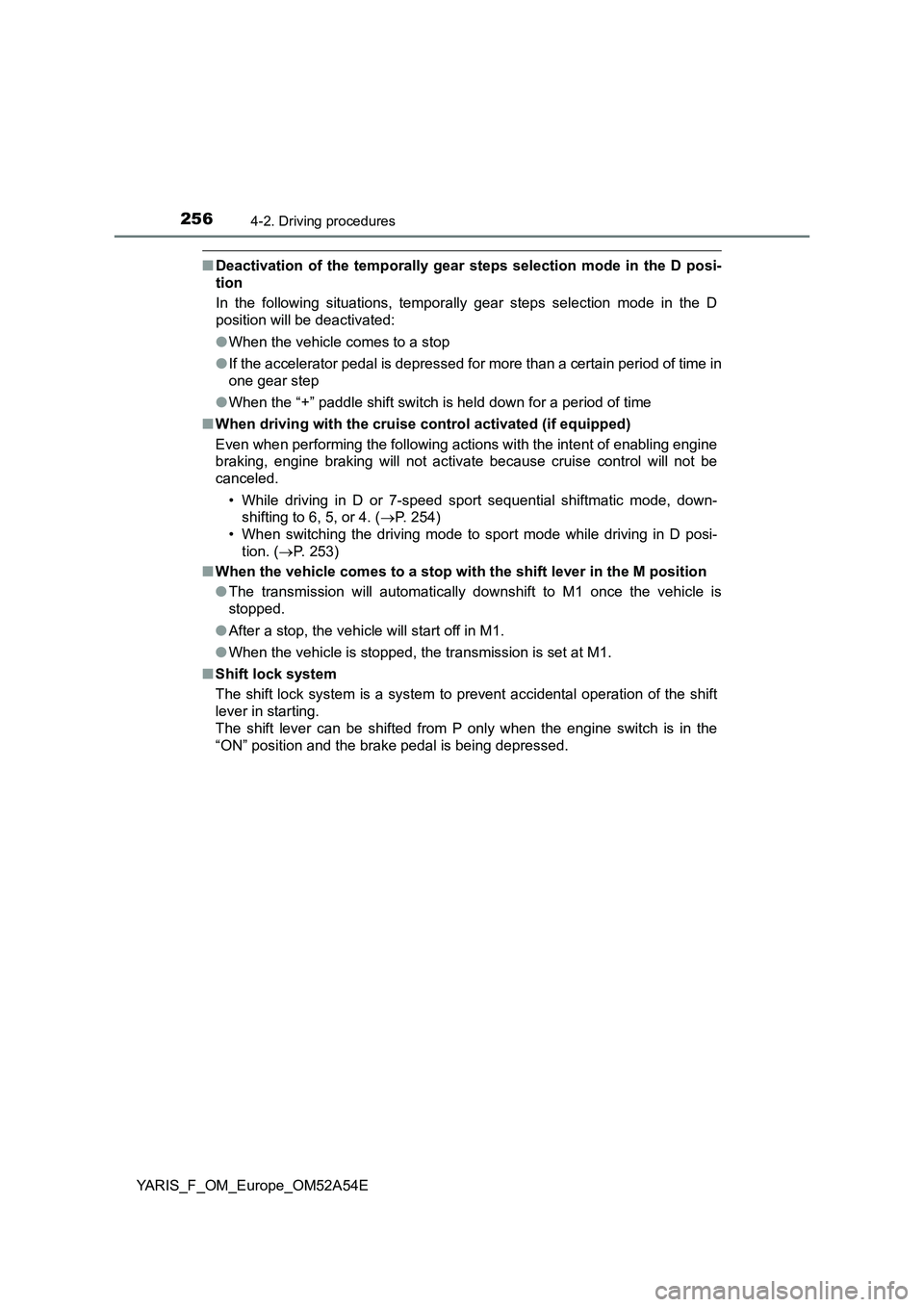

■Deactivation of the temporally gear steps selection mode in the D posi-
tion
In the following situations, temporally gear steps selection mode in the D
position will be deactivated:
●When the vehicle comes to a stop
●If the accelerator pedal is depressed for more than a certain period of time in
one gear step
●When the “+” paddle shift switch is held down for a period of time
■When driving with the cruise control activated (if equipped)
Even when performing the following actions with the intent of enabling engine
braking, engine braking will not activate because cruise control will not be
canceled.
• While driving in D or 7-speed sport sequential shiftmatic mode, down-
shifting to 6, 5, or 4. (P. 254)
• When switching the driving mode to sport mode while driving in D posi-
tion. (P. 253)
■When the vehicle comes to a stop with the shift lever in the M position
●The transmission will automatically downshift to M1 once the vehicle is
stopped.
●After a stop, the vehicle will start off in M1.
●When the vehicle is stopped, the transmission is set at M1.
■Shift lock system
The shift lock system is a system to prevent accidental operation of the shift
lever in starting.
The shift lever can be shifted from P only when the engine switch is in the
“ON” position and the brake pedal is being depressed.

2574-2. Driving procedures
4
Driving
YARIS_F_OM_Europe_OM52A54E
■ If the shift lever cannot be shifted from P
First, check whether the brake pedal is being depressed.
If the shift lever cannot be shifted with your foot on the brake pedal, there may
be a problem with the shift lock system (a system to prevent accidental oper-
ation of the shift lever). Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer immediately.
The following steps may be used as an emergency measure to ensure that
the shift lever can be shifted.
Releasing the shift lock:
Set the parking brake.
Turn the engine switch to the “LOCK” position (vehicles without a smart
entry & start system) or ACCESSORY mode (vehicles with a smart entry &
start system).
Depress the brake pedal.
Pry the cover up with a flathead screw-
driver or equivalent tool.
To prevent damage to the cover, wrap
the tip of the screwdriver with a rag.
Press the shift lock override button.
The shift lever can be shifted while the
button is pressed.
1
2
3
4
5

2584-2. Driving procedures

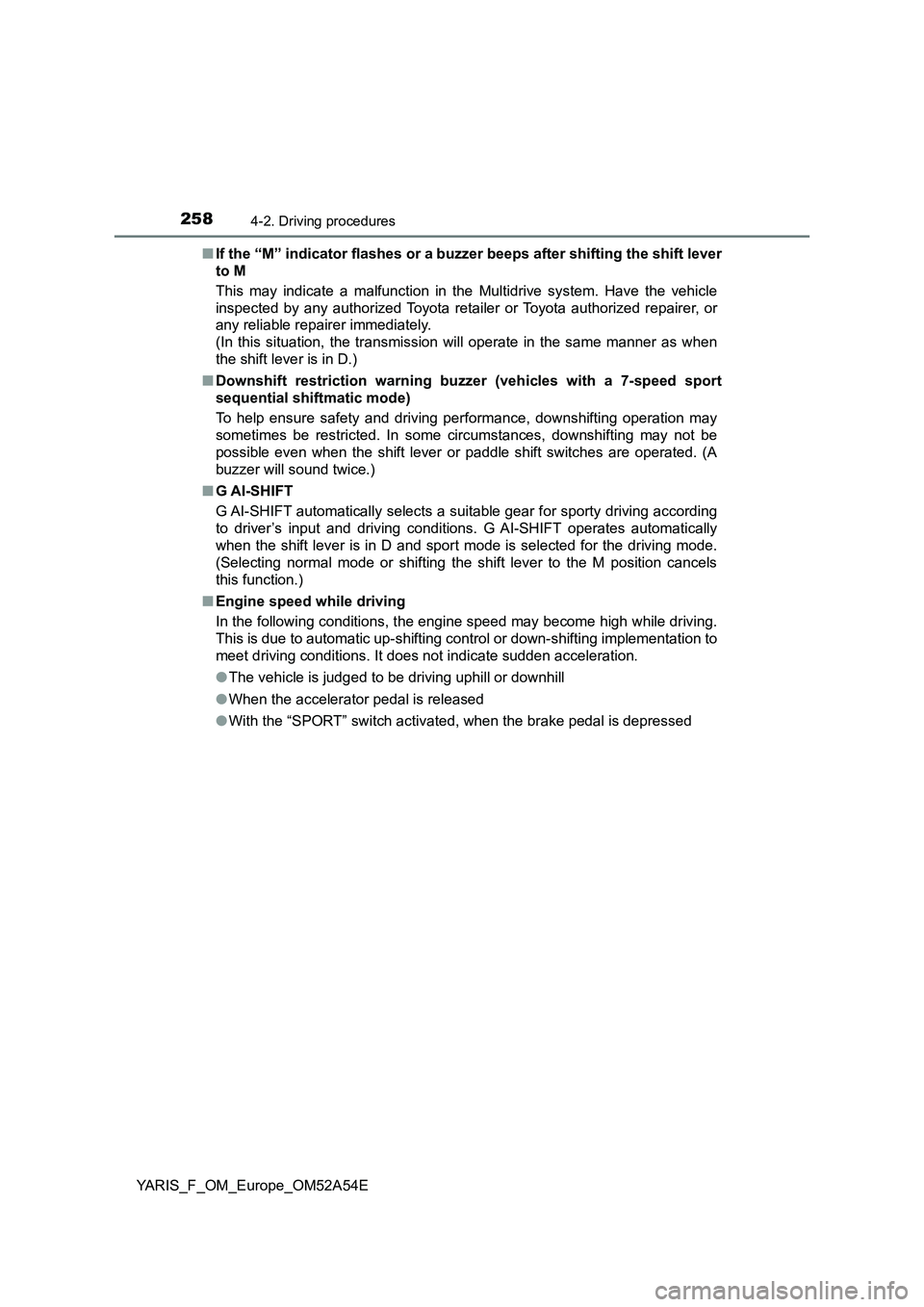

YARIS_F_OM_Europe_OM52A54E■If the “M” indicator flashes or a buzzer beeps after shifting the shift lever
to M
This may indicate a malfunction in the Multidrive system. Have the vehicle
inspected by any authorized Toyota retailer or Toyota authorized repairer, or
any reliable repairer immediately.
(In this situation, the transmission will operate in the same manner as when
the shift lever is in D.)
■Downshift restriction warning buzzer (vehicles with a 7-speed sport
sequential shiftmatic mode)
To help ensure safety and driving performance, downshifting operation may
sometimes be restricted. In some circumstances, downshifting may not be
possible even when the shift lever or paddle shift switches are operated. (A
buzzer will sound twice.)
■G AI-SHIFT
G AI-SHIFT automatically selects a suitable gear for sporty driving according
to driver’s input and driving conditions. G AI-SHIFT operates automatically
when the shift lever is in D and sport mode is selected for the driving mode.
(Selecting normal mode or shifting the shift lever to the M position cancels
this function.)
■Engine speed while driving
In the following conditions, the engine speed may become high while driving.
This is due to automatic up-shifting control or down-shifting implementation to
meet driving conditions. It does not indicate sudden acceleration.
●The vehicle is judged to be driving uphill or downhill
●When the accelerator pedal is released
●With the “SPORT” switch activated, when the brake pedal is depressed

2594-2. Driving procedures
4
Driving
YARIS_F_OM_Europe_OM52A54E
WARNING
■When driving on slippery road surfaces
Do not accelerate or shift gears suddenly.
Sudden changes in engine braking may cause the vehicle to spin or skid,
resulting in an accident.
■ To prevent an accident when releasing the shift lock
Before pressing the shift lock override button, make sure to set the parking
brake and depress the brake pedal.
If the accelerator pedal is accidentally depressed instead of the brake pedal
when the shift lock override button is pressed and the shift lever is shifted
out of P, the vehicle may suddenly start, possibly leading to an accident
resulting in death or serious injury.

2604-2. Driving procedures
YARIS_F_OM_Europe_OM52A54E

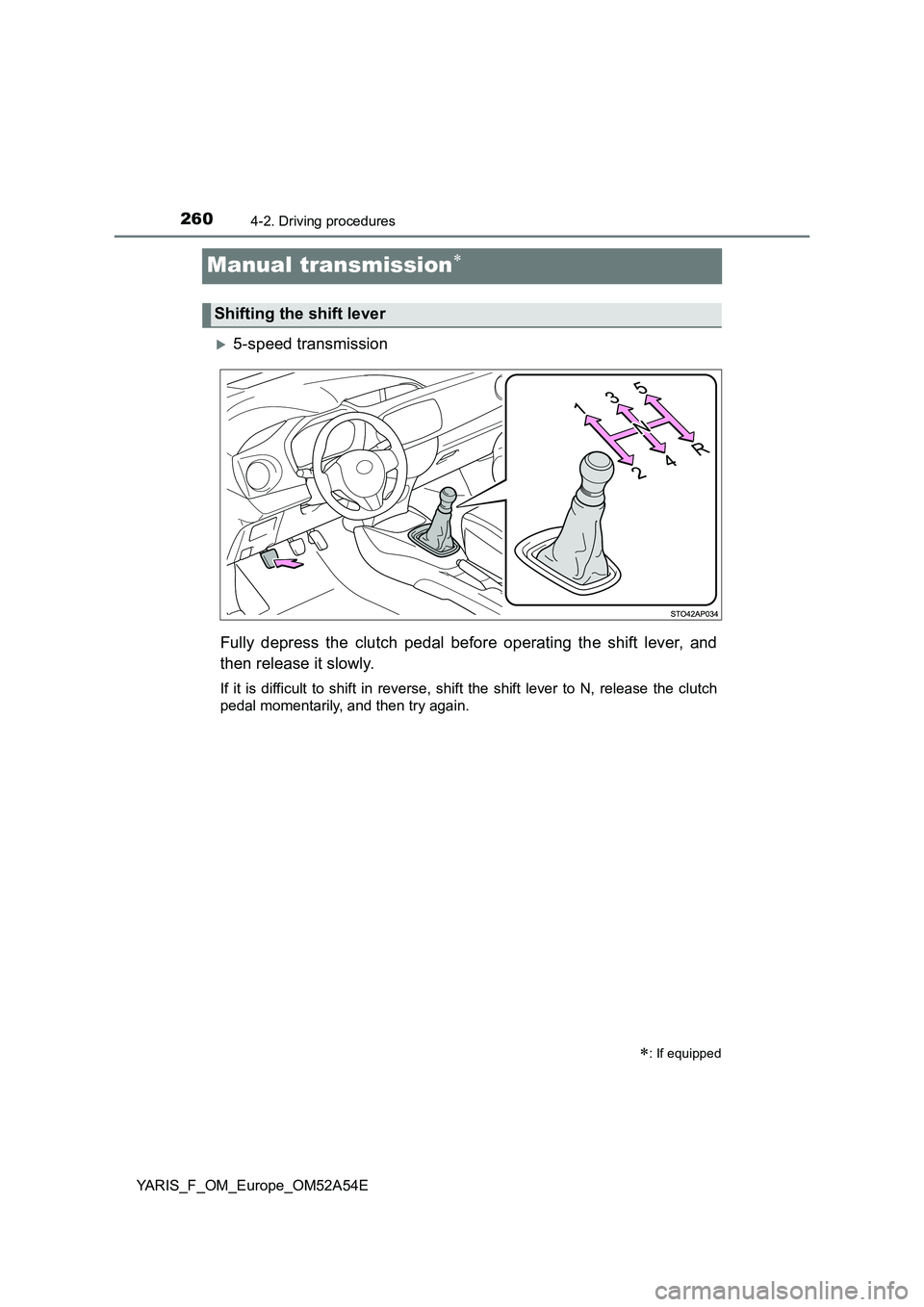

Manual transmission
5-speed transmission
Fully depress the clutch pedal before operating the shift lever, and
then release it slowly.
If it is difficult to shift in reverse, shift the shift lever to N, release the clutch
pedal momentarily, and then try again.
: If equipped
Shifting the shift lever
