srs TOYOTA YARIS HATCHBACK 2020 (in English) Owner's Guide

88
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
1-4. SRS Air Bags

4385-3. Owner Maintenance
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)

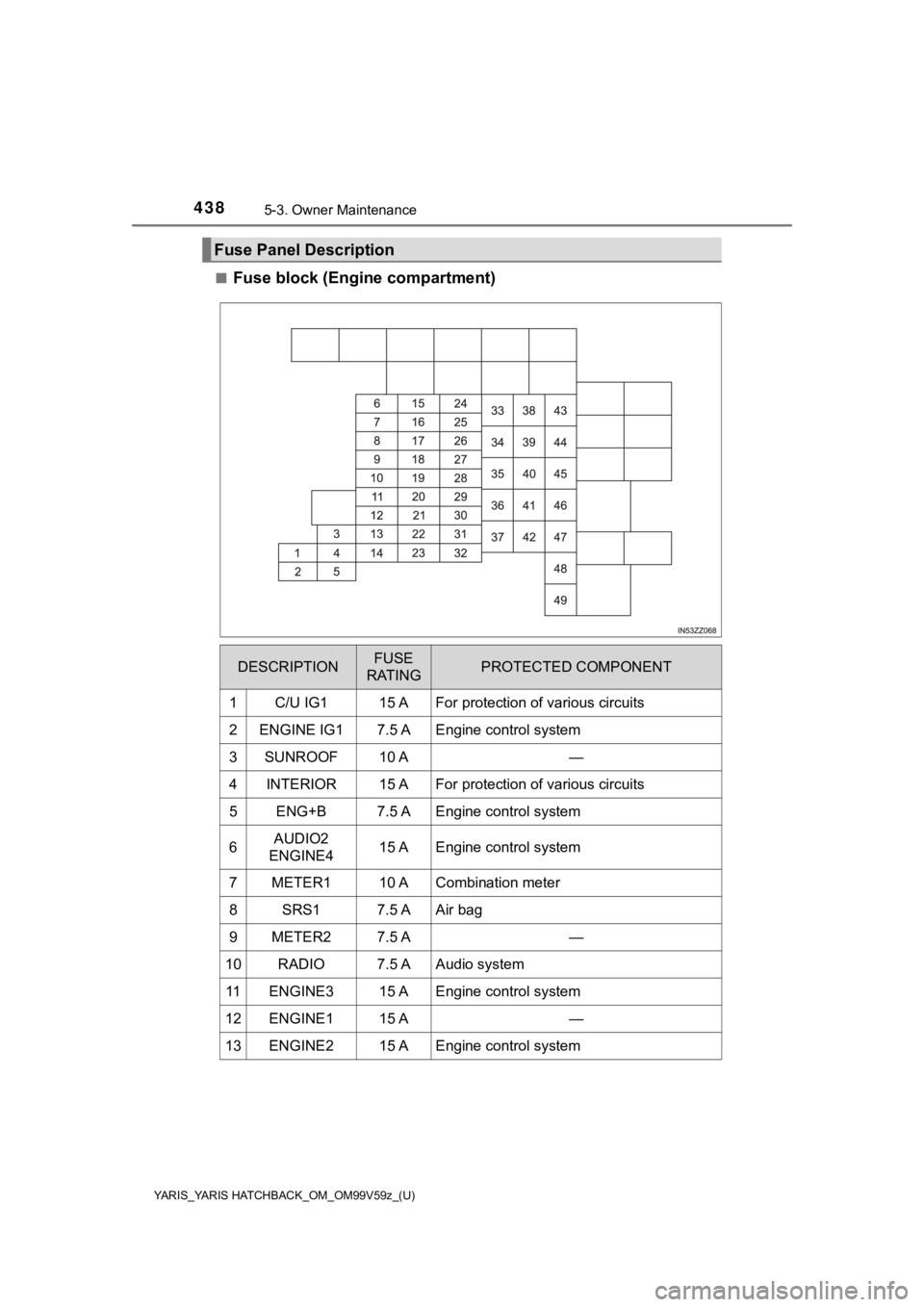

■Fuse block (Engine compartment)
Fuse Panel Description
DESCRIPTIONFUSE
RATINGPROTECTED COMPONENT
1C/U IG115 AFor protection of various circuits
2ENGINE IG17.5 AEngine control system
3SUNROOF10 A—
4INTERIOR15 AFor protection of various circuits
5ENG+B7.5 AEngine control system
6AUDIO2
ENGINE415 AEngine control system
7METER110 ACombination meter
8SRS17.5 AAir bag
9METER27.5 A—
10RADIO7.5 AAudio system
11ENGINE315 AEngine control system
12ENGINE115 A—
13ENGINE215 AEngine control system

YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
4415-3. Owner Maintenance
5
Maintenance and Care
■Fuse block (Left side)
DESCRIPTIONFUSE
RATINGPROTECTED COMPONENT
1———
2———
3AUDIO215 AAudio system
4ST.HEATER10 AHeated steering wheel (if equipped)
5F.OUTLET15 AAccessory sockets
6———
7AT I N D7.5 AAT shift indicator (if equipped)
8MIRROR7.5 APower control mirror
9———
10P. W I N D O W 225 APower windows
11R.WIPER15 ARear window wiper
12———
13———
14SRS2/ESCL15 A—
15SEAT WARM20 ASeat warmer (if equipped)
16M.DEF7.5 AMirror defogger (if equipped)

514
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
7-2. Warranty
Add-On Non-Genuine Parts and Accesso-
ries
Non-genuine parts and accessories for Toyota vehicles can be found
in stores.
These may fit your vehicle, but they are not approved by Toyota for
use with Toyota vehicles. When y ou install non-genuine parts or
accessories, they could affect your vehicle’s performance or sa fety
systems; the Toyota warranty doesn’t cover this. Before you ins tall
any non-genuine parts or accessories, consult your Toyota deale r.
Toyota assumes no responsibility for death, injury, or expenses that
may result from the installation of add-on non-genuine parts or acces-
sories.
WARNING
■ Always consult your Toyota dealer before you install non-genuine
parts or accessories
Improperly designed parts or accessories could seriously affect your vehi-
cle’s performance or safety systems. This could cause you to have an acci-
dent or increase your chances of injuries in an accident.
■ Be very careful in ch oosing and installing add-on electrical eq uipment,
such as mobile telephones, two-w ay radios, stereo systems, and car
alarm systems
Incorrectly choosing or installing improper add-on equipment or choosing
an improper installer is dangerous. Essential systems could be damaged,
causing engine stalling, airbag (SRS) activation, ABS/TCS/DSC i nactiva-
tion, or a fire in the vehicle.

568Alphabetical index
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
Parking Brake .......................... 210
Power Steering ........................ 226
Power Windows ....................... 132
Power steering warning buzzer ..................................... 505
Rear Coat Hooks...................... 383
Rear Door Child Safety Locks ...................................... 112
Rear Seat .................................... 26
Rear View Monitor ................... 245
Displayable range on the screen................................. 247
Picture quality adjustment..... 254
Rear view monitor operation ............................ 250
Rear view park ing camera
location ............................... 246
Switching to the rear view
monitor display ................... 246
Variance between actual road conditions and
displayed Image ................. 252
Viewing the display ............... 249
Rear Window Defogger ........... 207
Rearview Mirror ....................... 130
Recommended Oil ................... 395
Recreational Towing ............... 153
Replacement Fuse ...................................... 435
Key battery............................ 410
Light Bulbs ............................ 419
Tires ...................................... 416
Wheel.................................... 417
Wiper .................................... 405
Request Switch Inoperable Warning Beep (With the
advanced keyless
function) ................................. 504
Rocking the Vehicle ................ 145 Safety Defects, Reporting....... 510
Saving Fuel and Protection
of the Environment ............... 142
Seat Belt System Automatic locking ................... 36
Emergency locking ................. 36
Extender ................................. 42
Pregnant women .................... 35
Seat belt precautions .............. 33
Seat belt warning beep ........... 503
Seats Front seat ............................... 23
Head restraint ......................... 30
Rear seat ................................ 26
Seat warmer ........................... 24
Security System Immobilizer system ............... 136
Theft Deterrent
system .......... ...................... 138
Smart key ................................... 93
Spare Tire ................................. 461
Specifications .......................... 548
Speedometer............................ 164
SRS Air Bags
Front passenger occupant classification syst em ............ 82
How the SRS air bags
work...................................... 74
Limitations to SRS air bag ...... 80
Monitoring ............................... 87
SRS air bag deployment criteria .................................. 78
Supplemental restraint
system components ............. 73
P
R
S
