2-9. Driving Tips
Winter Driving
Carry emergency gear, including tire chains, window scraper, flares, a
small shovel, jumper cables, and a small bag of sand or salt.
Ask your Toyota dealer to check the following:
• Have the proper ratio of ant ifreeze in the radiator.
Refer to Engine Coolant on P. 398.
• Inspect the battery and its cabl es. Cold reduces battery capacity.
• Use an engine oil appropriate for the lowest ambient temperatures that the vehicle w ill be driven in (P. 395).
• Inspect the ignition system for damage and loose connections.
• Use washer fluid made with antifreeze but do not use engine cool-
ant antifreeze for washer fluid ( P. 402).
●Do not use the parking brake in freezing weather as it may freeze. Instead,
shift to 1 or R with a manual transaxle and to P with an automa tic transaxle.
Block the rear wheels.
● Remove snow before driving. Snow left on the windshield is dang erous as it
could obstruct vision.
● Do not apply excessive force to a window scraper when removing ice or fro-
zen snow on the mirror glass and windshield.
● Never use warm or hot water for removing snow or ice from windo ws and
mirrors as it could result in the glass cracking.
● Drive slowly. Braking performance can be adversely affected if snow or ice
adheres to the brake components. If this situation occurs, drive the vehicle
slowly, releasing the accelerator pedal and lightly applying the brakes sev-
eral times until the brake performance returns to normal.

174
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
3-2. Combination Meter and Display
*1: The light turns on when the ignition is switched on for an operation check,
and turns off a few seconds later or when the engine is started . If the light
does not turn on or remains turned on, have the vehicle inspect ed at your
Toyota dealer.
*2: The light turns on continuously when the parking brake is appl ied.
These lights turn on or flash to notify the user of the system operation
status or a system malfunction.
*1
(If equipped)
LED Headlight Warning
Light (
P. 489)(If equipped)
Low Washer Fluid Level
Warning Light ( P. 489)
Low Fuel Warning Light
( P. 489)
*1
(If equipped)
Tire Pressure Monitoring
System Warning Light
(P. 489)
*1Check Fuel Cap
Warning Light ( P. 489)*1
(Red)
KEY Warning Light
(P. 489)
Seat Belt Warning Light
(Front seat) ( P. 489)
*1
(Amber)
Low Speed Pre-Collision
System Warning Light
(P. 489)
Door-Ajar Warning Light
( P. 489)
Indicator Lights
(Green)
KEY Indicator Light
(P. 158)*1DSC OFF Indicator Light
(P. 219)
*1
(If equipped)
Wrench Indicator Light
(P. 175)
(Red)
Low Speed Pre-Collision
System Indicator Light
(P. 232)
*1TCS/DSC Indicator
Light ( P. 217, 219)*1Low Speed Pre-Collision
System OFF
Indicator Light ( P. 233)

YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
1893-3. Transaxle
3
When Driving
■Recommendations for shifting
●Upshifting
For normal acceleration and cruising, Toyota recommends these
shift points:
*1: Always observe local speed limit regulations.
●Downshifting
When you must slow down in heavy traffic or on a steep upgrade,
downshift before the engine starts to overwork. This gives better
acceleration when yo u need more speed.
On a steep downgrade, downshifting helps maintain safe speed
and prolongs brake life.
■ Manual Shift Mode
●Changing to manual shift mode while driving will not damage the transaxle.
● If you change to manual shift mode when the vehicle is stopped, the gear
will shift to M1.
● If you change to manual shift mode without depressing the accelerator
pedal when driving in D range, 5th gear/6th gear, the gear will shift to M4/
M5.
■ Indicators
●If the gears cannot be shifted down when driving at higher speeds, the gear
position indication will flash twice to signal that the gears cannot be shifted
down (to protect the transaxle).
● If the automatic transaxle fluid (ATF) temperature becomes too high, there is
the possibility that the transaxle will switch to automatic shi ft mode, cancel-
ing manual shift mode and turning off the gear position indicat ion illumina-
tion. This is a normal function to protect the AT. After the AT F temperature
has decreased, the gear position indication illumination turns back on and
driving in manual shift mode is restored.

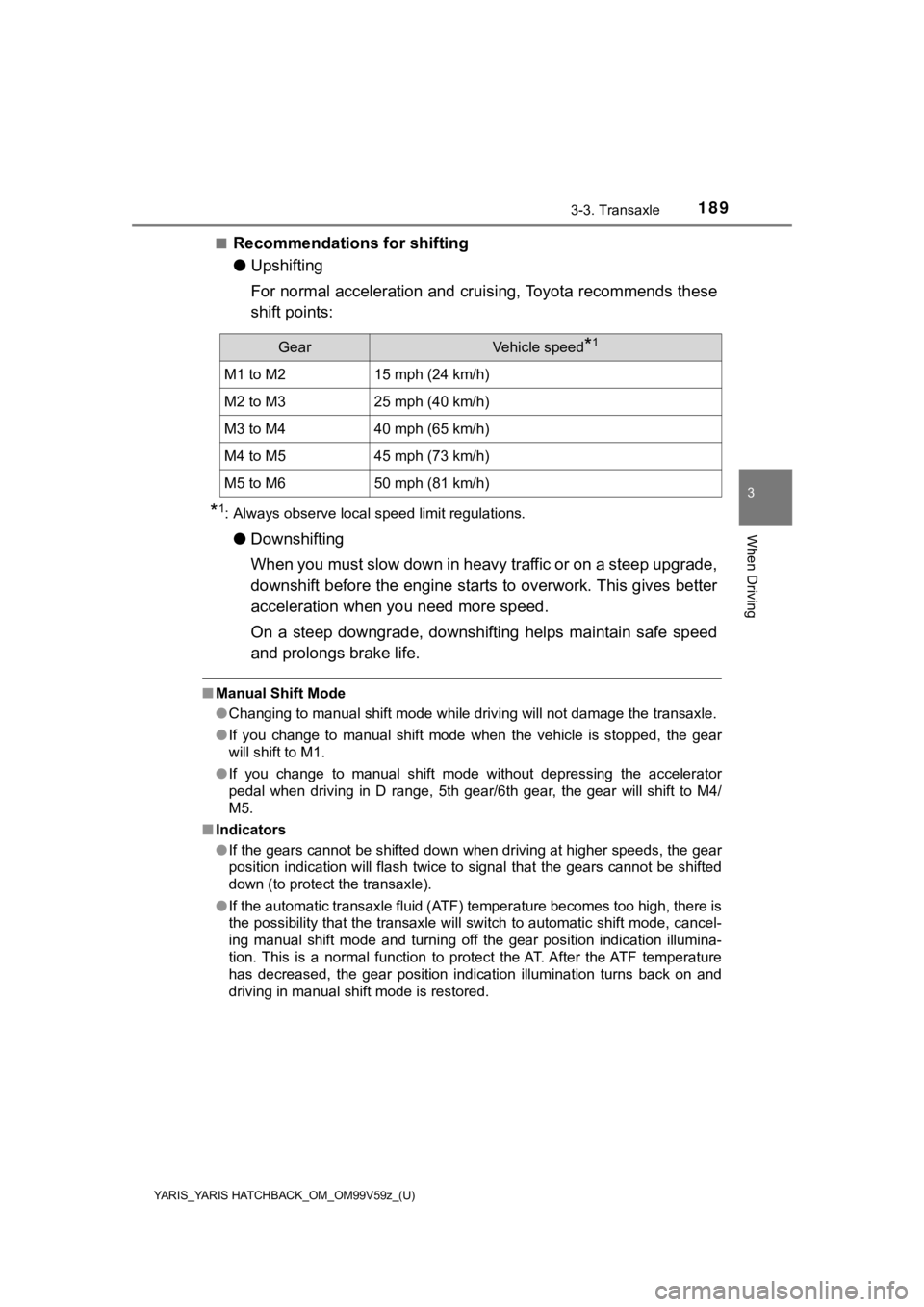

GearVehicle speed*1
M1 to M215 mph (24 km/h)
M2 to M325 mph (40 km/h)
M3 to M440 mph (65 km/h)
M4 to M545 mph (73 km/h)
M5 to M650 mph (81 km/h)

385
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
5Maintenance and Care
5-1. Essential InformationIntroduction ....................... 386
5-2. Scheduled Maintenance Maintenance Monitor ........ 388
5-3. Owner Maintenance Owner Maintenance Precautions ..................... 390
Hood ................................. 392
Engine Compartment Overview ......................... 394
Engine Oil ......................... 395
Engine Coolant ................. 398
Brake/Clutch Fluid............. 401
Window Washer Fluid ....... 402
Body Lubrication ............... 403
Wiper Blades..................... 404
Battery............................... 408
Key Battery Replacement ................... 410
Tires .................................. 413
Light Bulbs ........................ 419
Fuses ................................ 435
5-4. Appearance Care Exterior Care ..................... 442
Interior Care ...................... 450

390
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
5-3. Owner Maintenance
Owner Maintenance Precautions
The owner or a qualified service technician should make these vehicle
inspections at the indicated intervals to ensure safe and depen dable
operation.
Bring any problem to the attention of your Toyota dealer or qua lified
service technician a s soon as possible.
■When Refueling
• Brake and clutch fluid level ( P. 401)
• Engine coolant level ( P. 3 9 8 )
• Engine oil level ( P. 397)
• Washer fluid level ( P. 402)
■At Least Monthly
• Tire inflation pressures ( P. 413)
■At Least Twice a Year (For Exam ple, Every Spring and Fall)
You can do the following scheduled maintenance items if you hav e
some mechanical ability and a few basic tools and if you closel y fol-
low the directions in this manual.
• Engine coolant ( P. 398)
• Engine oil ( P. 395)
Improper or incomplete service may result in problems. This sec tion
gives instructions only for it ems that are easy to perform.
As explained in the Introduction ( P. 386), several procedures can be
done only by a qualifi ed service technician with special tools.
Improper owner maintenance during the warranty period may affec t
warranty coverage. Refer to Introduction ( P. 386) for owner’s
responsibility in protecting your investment. For details, read the sep-
arate Toyota Warranty and Maintenance Guide provided with the v ehi-
cle. If you are unsure about any servicing or maintenance proce dure,
have it done by your Toyota dealer.
There are strict environmental laws regarding the disposal of w aste oil
and fluids. Please dispose of your waste properly and with due regard
to the environment.
We recommend that you entrust the oil and fluid changes of your vehi-
cle to your Toyota dealer.

394
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
5-3. Owner Maintenance

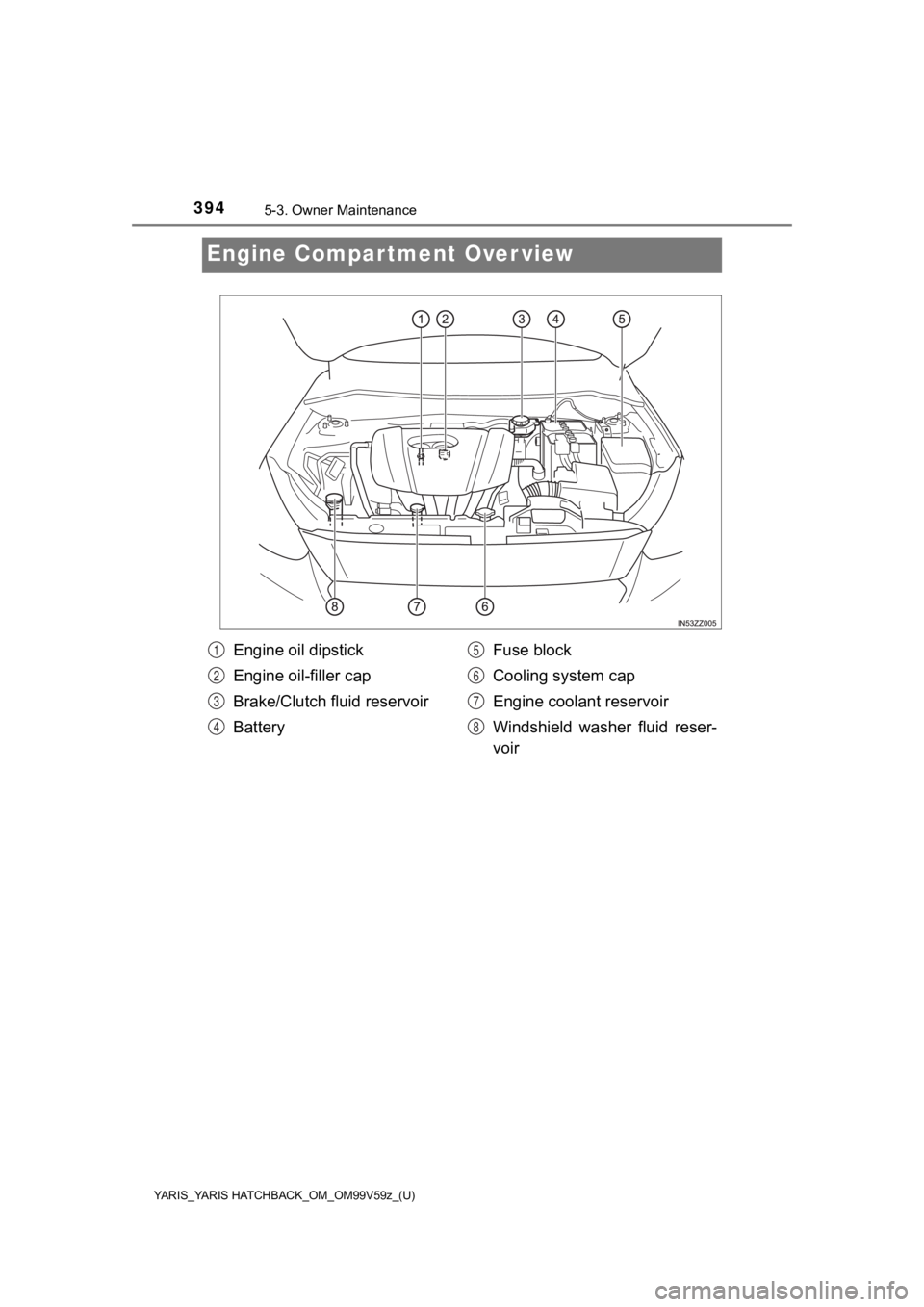

Engine Compartment Over view
Engine oil dipstick
Engine oil-filler cap
Brake/Clutch fluid reservoir
BatteryFuse block
Cooling system cap
Engine coolant reservoir
Windshield washer fluid reser-
voir1
2
3
4
5
6
7
8

401
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
5-3. Owner Maintenance
5
Maintenance and Care

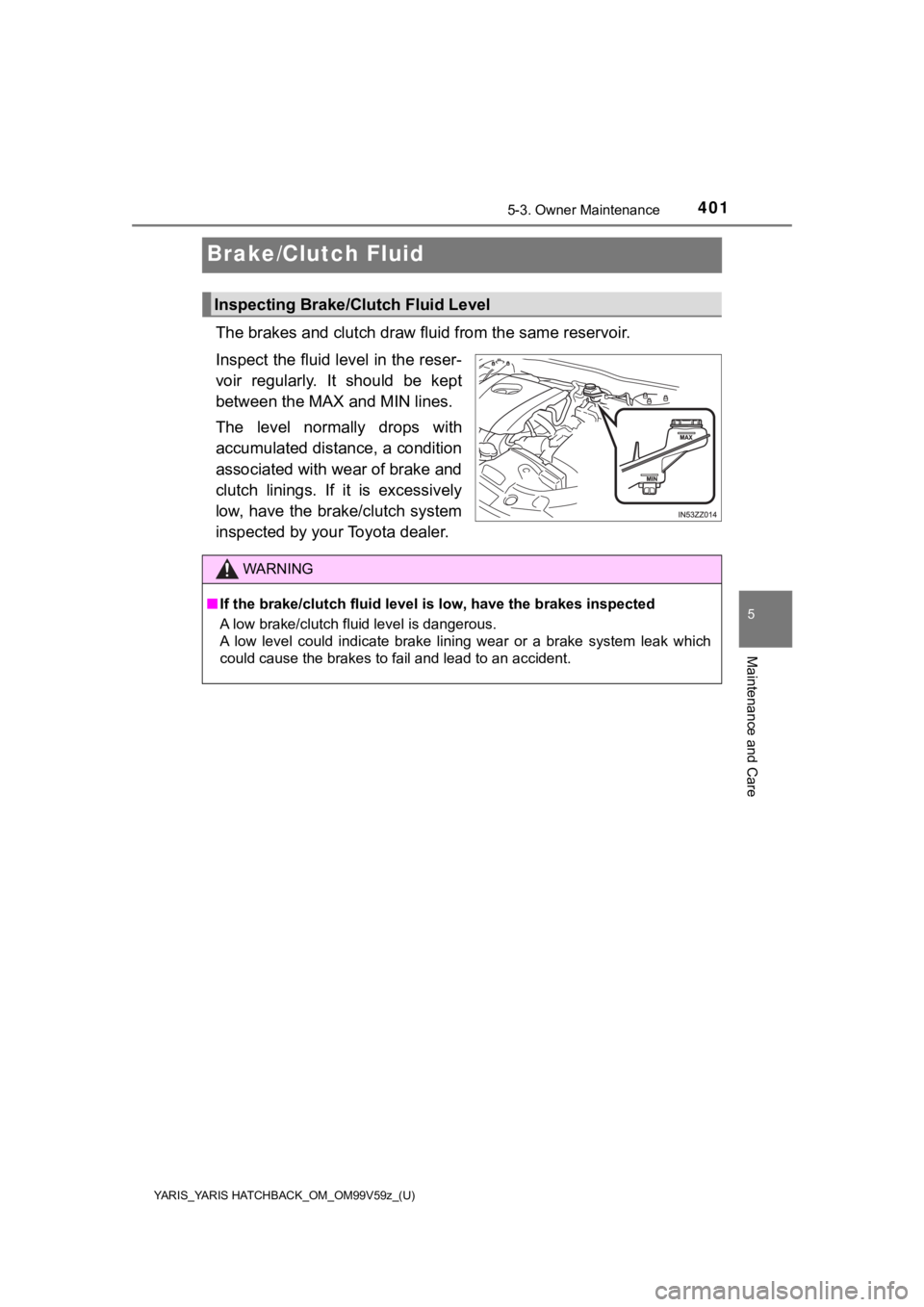

Brake/Clutch Fluid
The brakes and clutch draw fluid from the same reservoir.
Inspect the fluid level in the reser-
voir regularly. It should be kept
between the MAX and MIN lines.
The level normally drops with
accumulated distance, a condition
associated with wear of brake and
clutch linings. If it is excessively
low, have the brake/clutch system
inspected by your Toyota dealer.
Inspecting Brake/Clutch Fluid Level
WARNING
■ If the brake/clutch fluid level is low, have the brakes inspect ed
A low brake/clutch fluid level is dangerous.
A low level could indicate brake lining wear or a brake system leak which
could cause the brakes to fail and lead to an accident.

489
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
6-7. Warning/Indicator Lights and Warning Sounds
6
If Trouble Arises

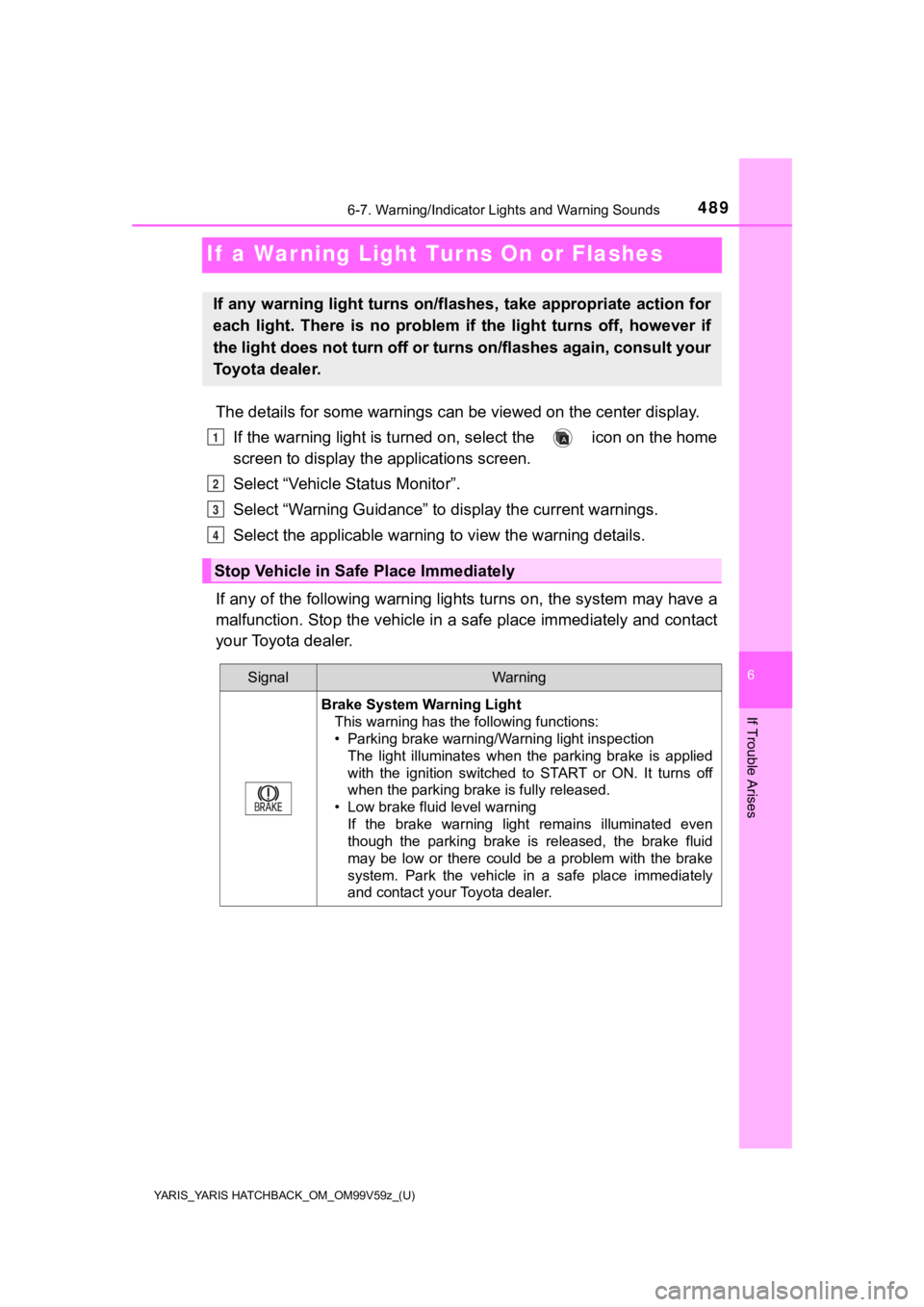

If a War ning Light Turns On or Flashes
The details for some warnings can be viewed on the center displ ay.
If the warning light is turned on, select the icon on the home
screen to display the applications screen.
Select “Vehicle Status Monitor”.
Select “Warning Guidance” to d isplay the current warnings.
Select the applicable warning to view the warning details.
If any of the following warning lights turns on, the system may have a
malfunction. Stop the vehicle in a safe place immediately and c ontact
your Toyota dealer.
If any warning light turns on/flashes, take appropriate action for
each light. There is no problem if the light turns off, however if
the light does not turn off or turns on/flashes again, consult your
Toyota dealer.
Stop Vehicle in Safe Place Immediately
SignalWarning
Brake System Warning Light This warning has the following functions:
• Parking brake warning/Warning light inspection
The light illuminates when the parking brake is applied
with the ignition switched to START or ON. It turns off
when the parking brake is fully released.
• Low brake fluid level warning If the brake warning light remains illuminated even
though the parking brake is released, the brake fluid
may be low or there could be a problem with the brake
system. Park the vehicle in a safe place immediately
and contact your Toyota dealer.
1
2
3
4

5498-2. Specifications
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
8
Specifications
Refer to Introduction on P. 386 for owner’s responsibility in protecting your
investment.
Approximate Quantities:
Check oil and fluid levels with dipsticks or reservoir gauges.
Lubricant Quality
ItemClassification
Engine oilRefer to Recommended Oil on P. 395.
CoolantFL-22 type
Manual transaxle oilAPI ServiceGL-4
SAE75W-80
Automatic transaxle fluidATF required
Brake/Clutch fluidSAE J1703 or FMVSS116 DOT-3
Capacities
ItemCapacity
Engine oil
With oil filter replacement4.4 qt. (4.2 L, 3.7 Imp.qt.)
Without oil filter replace-
ment4.1 qt. (3.9 L, 3.4 Imp.qt.)
CoolantManual transaxle5.6 qt. (5.3 L, 4.7 Imp.qt.)
Automatic transaxle5.8 qt. (5.5 L, 4.8 Imp.qt.)
Manual transaxle oil1.68 qt. (1.59 L, 1.40 Imp.qt.)
Automatic transaxle fluid7.6 qt. (7.2 L, 6.3 Imp.qt.)
Fuel tank11.6 gal. (44.0 L, 9.68 Imp.gal.)
