YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
2814-2. Audio System
4
Interior Features
●Playback may not be possible depending on the type and conditio n of the
USB flash memory even if the audio file complies with the standard above.
● A copyright protected WMA/AAC file cannot be played in this unit.
● The order of the music data stored in the device may differ fro m the play-
back order.
● To prevent loss or damage of stored data, we recommend that you always
back up your data.
● If the current consumption of the connected device exceeds the following
current value, it may not operate or recharge.
• Apple device is connected: 2,100mA
• Device compatible with BC1.2 is connected: 1,500 mA
• Device other than the above is connected: 500 mA
● Do not pull out the USB device while in the USB mode (only pull it out while
in FM/AM radio mode).
● The device will not operate if the data is password protected.
This unit is compatible with Apple CarPlay™ which can operate a n
iPhone® using the vehicle’s audio device.
• iPhone, Siri and Apple Music ar e registered trademarks of Apple
Inc.
• Apple CarPlay is trademarks of Apple Inc.
• iOS is a trademark or registered trademark of Cisco in the U.S . and
other countries and is used under license.
May not be compatible dependi ng on the model or OS version.
To prevent loss or damage of stored data, we recommend that you always
back up your data.
NOTICE
Do not use an audio file extension on files other than audio fi les. In addition,
do not change the audio file extension. Otherwise, the unit wil l not recog-
nize the file correctly resulting in noise or a malfunction.
Agreements and disclaimers related to Apple CarPlay™

YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
3014-2. Audio System
4
Interior Features
Devices
Android Auto
An Android Auto™ mode con-
nection can be set on or off when
connecting an Android™ Smart-
phone.
For setting to take effect, it is
necessary to connect the
Android Phone Again
Displays in gray and cannot be
selected if an Android™ Smart-
phone is not connected.
Apple CarPlay
An Apple CarPlay™ connection
can be set on or off when con-
necting an iPhone
®.
For setting to take effect, it is
necessary to connect the
iPhone
® again.
Displays in gray and cannot be
selected if an iPhone
® is not con-
nected.
Ta bItemFunction

YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
3034-2. Audio System
4
Interior Features
Select the icon on the home screen to display the Applications
screen. The following information can be verified.
Depending on the grade and specification, the screen display ma y differ.
Applications
Top screenItemFunction
Fuel Economy Monitor
Fuel Consumption
DisplayRefer to Fuel Economy
Monitor on P. 221.
Vehicle
Status
Monitor
Warning
GuidanceWarnings currently
active can be verified.Refer to If a Warning
Light Turns On or
Flashes on P. 489.
Maintenance
• Scheduled Maintenance
• Tire Rotation
• Oil Change
Refer to Maintenance
Monitor on P. 388.
Apple CarPlay ― Refer to How to use
Apple CarPlay™ on
P. 317
Android Auto―
Refer to How to use
Android Auto™ mode
on P. 321

307
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
4-2. Audio System
4
Interior Features
AUX/USB mode
●How to use AUX mode ( P. 310)
● How to use USB mode ( P. 3 1 0 )
● How to use Apple CarPlay™ ( P. 317)
● How to use Android Auto™ mode ( P. 321)
Audio can be heard from the veh icle’s speakers by connecting a
commercially-available portable audio unit to the auxiliary jack.
A commercially-availab le, non-impedance (3.5 ) stereo mini
plug cable is required. Contact y our Toyota dealer for details.
In addition, audio can be played from the vehicle audio device
by connecting a USB de vice to the USB port.
Auxiliary jack
USB port

YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
3174-2. Audio System
4
Interior Features
■What is Apple CarPlay™?
Apple CarPlay™ allows you to make calls, send or receive mes-
sages, and listen to mus ic using your iPhone
® with the vehicle’s
audio system, or search for dest inations using the maps. In addi-
tion, voice recognition operat ion is possible using Siri
®.
How to use Apple CarPlay™

318
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
4-2. Audio System
NOTICE
●YOU EXPRESSLY ACKNOWLEDGE AND AGREE THAT USE OF
APPLE CARPLAY™ (“THE APPLICATION”) IS AT YOUR SOLE RISK
AND THAT THE ENTIRE RISK AS TO SATISFACTORY QUALITY, PER-
FORMANCE, ACCURACY AND EFFORT IS WITH YOU TO THE MAXI-
MUM EXTENT PERMITTED BY APPLICABLE LAW, AND THAT THE
APPLICATION AND INFORMATION ON THE APPLICATION IS PRO-
VIDED “AS IS” AND “AS AVAILABLE”, WITH ALL FAULTS AND WITH-
OUT WARRANTY OF ANY KIND, AND TOYOTA HEREBY DISCLAIMS
ALL WARRANTIES AND CONDITIONS WITH RESPECT TO THE APPLI-
CATION AND INFORMATION ON THE APPLICATION, EITHER
EXPRESS, IMPLIED OR STATUTORY, INCLUDING, BUT NOT LIMITED
TO, THE IMPLIED WARRANTIES AND/OR CONDITIONS OF MER-
CHANTABILITY, SATISFACTORY QUALITY, FITNESS FOR A PARTICU-
LAR PURPOSE, ACCURACY, QUIET ENJOYMENT, AND
NONINFRINGEMENT OF THIRD PARTY RIGHTS. AS EXAMPLES, AND
WITHOUT LIMITATION, TOYOTA DISCLAIMS ANY WARRANTY
REGARDING THE ACCURACY OF DATA PROVIDED BY THE APPLICA-
TION, SUCH AS THE ACCURACY OF DIRECTIONS, ESTIMATED
TRAVEL TIME, SPEED LIMITS, ROAD CONDITIONS, NEWS,
WEATHER, TRAFFIC, OR OTHER CONTENT PROVIDED BY APPLE,
ITS AFFILIATES, OR THIRD PARTY PROVIDERS; TOYOTA DOES NOT
GUARANTEE AGAINST LOSS OF APPLICATION DATA, WHICH MAY
BE LOST AT ANY TIME; TOYOTA DOES NOT GUARANTEE THAT THE
APPLICATION OR ANY SERVICES PROVIDED THROUGH THEM WILL
BE PROVIDED AT ALL TIMES OR THAT ANY OR ALL SERVICES WILL
BE AVAILABLE AT ANY PARTICULAR TIME OR LOCATION. FOR
EXAMPLE, SERVICES MAY BE SUSPENDED OR INTERRUPTED
WITHOUT NOTICE FOR REPAIR, MAINTENANCE, SECURITY FIXES,
UPDATES, ETC., SERVICES MAY BE UNAVAILABLE IN YOUR AREA
OR LOCATION, ETC. IN ADDITION, YOU UNDERSTAND THAT
CHANGES IN THIRD PARTY TECHNOLOGY OR GOVERNMENT REG-
ULATION MAY RENDER THE SERVICES AND/OR APPLICATIONS
OBSOLETE AND/OR UNUSABLE.
TO THE EXTENT NOT PROHIBITED BY LAW, IN NO EVENT SHALL
TOYOTA OR ITS AFFILIATES BE LIABLE FOR PERSONAL INJURY,
OR ANY
INCIDENTAL, SPECIAL, INDIRECT OR CONSEQUENTIAL DAM-
AGES WHATSOEVER, INCLUDING, WITHOUT LIMITATION, DAM-
AGES FOR LOSS OF PROFITS, CORRUPTION OR LOSS OF DATA,
FAILURE TO TRANSMIT OR RECEIVE ANY DATA, BUSINESS
INTERRUPTION OR ANY OTHE R COMMERCIAL DAMAGES OR
LOSSES, ARISING OUT OF OR RELATED TO THE APPLICATION
OR YOUR USE OF OR INABILITY TO USE THE APPLICATION OR
INFORMATION ON THE APPLICATION.

YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
3194-2. Audio System
4
Interior Features
●Apple CarPlay™ is provided by Apple® and its use is subject to your agree-
ment to the Apple CarPlay™ terms of use, which are included as part of the
Apple iOS terms of use.
● When using Apple CarPlay™, location, speed, and other vehicle d ata is
transferred to your iPhone
®. For further details, refer to Apple®’s Privacy
Policy.
■
Switching to Apple CarPlay™
Connect the iPhone
® by inserting the Apple® -genuine connector
cord to the USB terminal indicated by the mark.
Refer to How to connect USB po rt/Auxiliary jack on P. 309
●When you switch your iPhone® connection from Bluetooth® to the vehicle’s
USB terminal, the system switches to Apple CarPlay™. The applic ations
which was being used via Bluetooth
® connection can be used continuously.
However, the available functions of the applications using Bluetooth® con-
nection and those on Apple CarPlay™ may differ.
● If the iPhone
® is connected to the USB terminal not indicated by the
mark, the system operates in USB mode.
■
Display of Apple CarPlay™ Screen
Use any of the following methods to display the Apple CarPlay™
screen in the center display.
• Select on the home screen.
• Long press on the commander switch.
• Select on the home screen, and select from the Applications screen.
NOTICE
● When using Apple CarPlay™, please avoid distraction and use App le Car-
Play™ responsibly. Stay fully aware of driving conditions and a lways obey
applicable laws.

320
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
4-2. Audio System

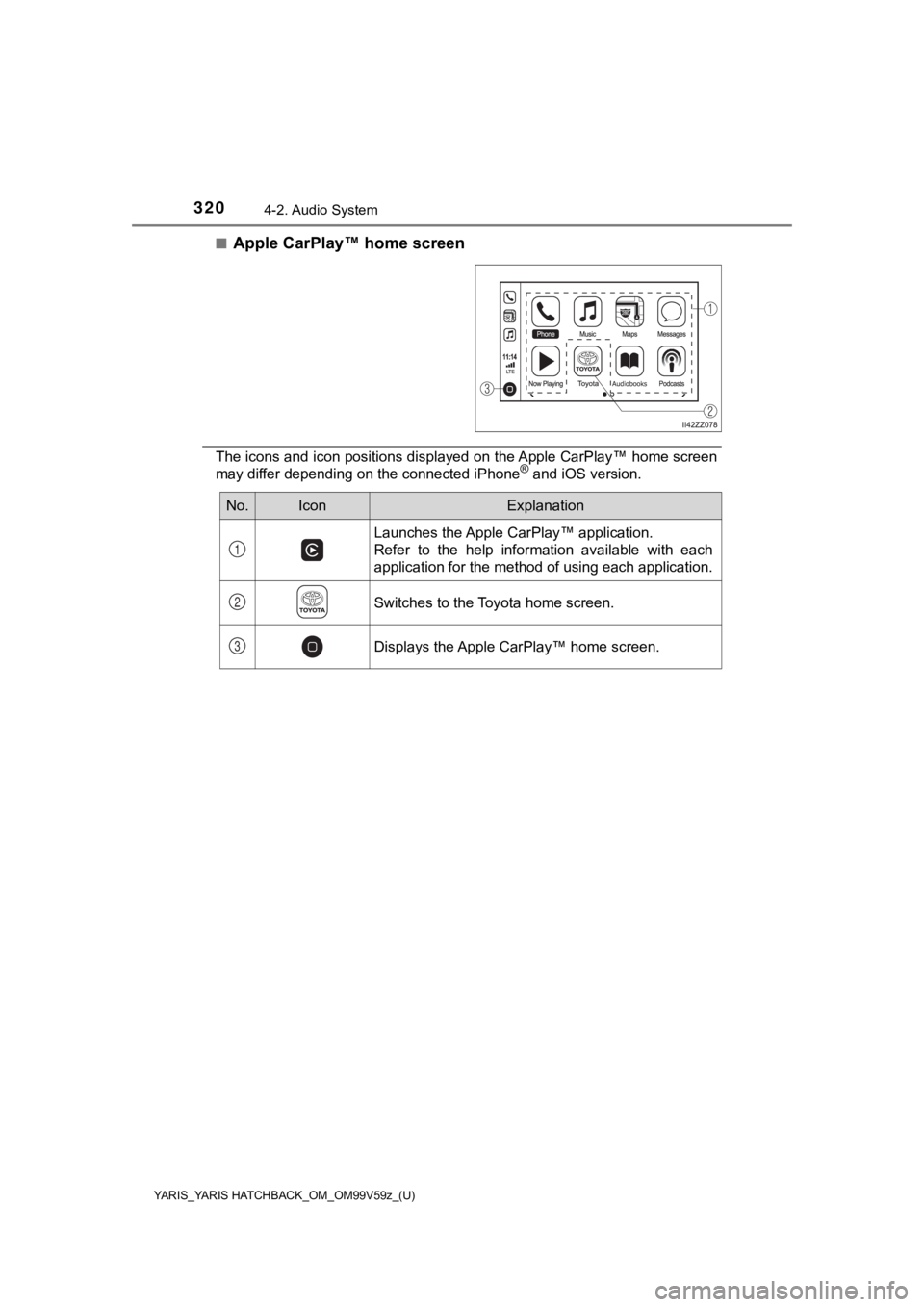

■Apple CarPlay™ home screen
The icons and icon positions displayed on the Apple CarPlay™ home screen
may differ depending on the connected iPhone® and iOS version.
No.IconExplanation
Launches the Apple CarPlay™ application.
Refer to the help information available with each
application for the method of using each application.
Switches to the Toyota home screen.
Displays the Apple CarPlay™ home screen.
1
2
3

YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
3214-2. Audio System
4
Interior Features
■Convenient Ways to Use Apple CarPlay™
■To End Apple CarPlay™
To end Apple CarPlay™, disconnect the Apple
® -genuine connec-
tor cord from the USB terminal and disconnect the iPhone® from
the connector cord.
If the connector cord is disconnected from the USB terminal dur ing music
playback using Apple CarPlay™, the audio source selection will no longer be
available and the vehicle’s audio device will be muted.
■
What is Android Auto™?
Android Auto™ is an application which allows the operation of an
Android™ Smartphone using the vehicle’s audio. Android Auto™
functions such as the phone, mes sages, music, and map can be
used with the vehicl e’s audio system.
ItemOperation method
Activating the voice recog-
nition function (Siri®)
Activate Siri® using any of the following two
methods to operate Apple CarPlay™ by
voice.
• Press and hold/Long press the talk button on the audio control switch.
• Press and hold
To display the NowPlaying
screen
When music is playing in Apple CarPlay™
and a screen other than the NowPlaying
screen is being displayed, press on the
commander switch to display the NowPlaying
screen.
To display the MAP screen
When using map route guidance in Apple
CarPlay™ and a screen other than the MAP
screen is being displayed, press on
the commander switch to display the MAP
screen.
To return to Toyota screenPress and hold on the commander switch.
How to use Android Auto™ mode

366
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
4-3. Bluetooth®
Troubleshooting
If you have any problems with Bluetooth®, contact our toll-free cus-
tomer service center.
● U.S.A.
Toyota Customer Experience Center
Phone: 1-800-331-4331 (Toll-free)
Web: http://www.toyota.com/entune
● Canada
Toyota Canada Customer Interaction Centre
Phone: 1-888-TOYOTA-8 or 1-888-869-6828 (Toll-free)
Web: http://www.toyota.ca
■Apple CarPlay™ use-related issues
SymptomCauseSolution method
Apple CarPlay™ can-
not launch even though
an Apple
®-genuine
connector cord is
inserted into the USB
port and it is con-
nected to my iPhone
®.
You used the wrong
USB port.Use the USB port dis-
playing the mark to
start Apple CarPlay™.
The error message,
“Mobile device error” is
displayed after con-
necting my iPhone
® to
the USB port.
There is mis-communi-
cation between the
vehicle’s audio system
and your iPhone
®.
Disconnect the connec-
tor cord from the USB
port once and then
reconnect it.
The icon of the applica-
tion I want to use is not
displayed on the home
screen of Apple Car-
Play™.Only applications com-
patible with Apple Car-
Play™ are displayed
on the screen.
Contact the applica-
tion’s supplier.
